Teka DW8 57 FI VR02 User manual

EN
User Manual
www.teka.com
DW8 57 FI VR02

To review the section on troubleshooting Tips
will help youto solve somecommon problems
by yourself .
NOTE:
Dear Customer,
Please carefully read this manualbefore using the
dishwasher, itwill help youto use and maintain the
dishwasher properly.
Pass it on to any subsequent owner of the appliance.
This manual containssections on safetyInstructions,
Operating Instructions, InstallationInstructions and
Troubleshooting Tips, etc.
The manufacturer,following a policyof constant
development and updatingof the product, may
make modifications withoutgiving prior notice.
This user manualshall also begot from the
manufacturer or responsiblevendor.
Read this Manual
Before Calling for Service
Keep it to refer to it at a later date.
If you can not solve the problems by yourself ,
please ask forthe help ofprofessional technicians.
1) Safety Information..........................................11) Safety Information..........................................1
2) Quick operation guide..................................... 22) Quick operation guide..................................... 2
Dishwasher Features.................................... ...3
4) Prior usingfor the firsttime...............................44) Prior usingfor the firsttime...............................4
5) Loading theDishwasher Basket........................95) Loading theDishwasher Basket........................9
Attention before orafter loading theDishwasher
Baskets..........................................................9
7) Maintenance andcleaning..............................137) Maintenance andcleaning..............................13
Filtering System.............................................13
Caring for the Dishwasher...............................14
Loading the upperBasket...............................10
Loading the Lower Basket...............................10
6) Starting awashing programme........................116) Starting awashing programme........................11
Wash Cycle Table...........................................11
Turning on the Appliance................................11
Change the Programme..................................12
At the end of the Wash Cycle...........................12
8) Installation instruction....................................158) Installation instruction....................................15
9) TroubleshootingTips......................................229) TroubleshootingTips......................................22
Before calling for service.................................22
Error codes...................................................23
Technicalinformation.....................................24
3) Operation Instructions.....................................33) Operation Instructions.....................................3
Control Panel...................................................3
.................................. 15Installation preparation
Aesthetic panel's dimensions and installation...16
..............18Tension adjustment of the door spring
.............................. 18Connection of drain hoses
......................... 19Dishwasher installation steps
About Electricity Connecting...........................20
Cold Water Connection.................................. 21
Loading the baskets according to En50242Loading the baskets according to En50242
A Water Softener...........................................4
B Loading the Salt into the Softener.................5
C Fill the Rinse Aid Dispenser.........................5
D Function of Detergent .................................6

1-11-1
This appliance is intended to be used in household
and similar applications such as:
-staff kitchen areas in shops, offices and other
working environments;
-farm houses;
-by clients in hotels, motels and other residential type
environments;
-bed and breakfast type environments.
This appliance can be used by children aged from 8
years and above and persons with reduced physical,
sensory or mental capabilities or lack of experience
and knowledge if they have been given supervision
or instruction concerning use of the appliance in a
safe way and understand the hazards involved.
Children shall not play with the appliance. Cleaning
and user maintenance shall not be made by children
without supervision. For EN60335-1
This appliance is not intended for use by persons
(including children )with reduced physical, sensory
or mental capabilities, or lack of experience and
knowledge ,unless they have been given supervision
or instruction concerning use of the appliance by a
person responsible for their safety. For IEC60335-1
This appliance is for indoor use only, for household
use only.
To protect against the risk of electrical shock, do not
immerse the unit, cord or plug in water or other liquid.
Please unplug before cleaning and maintenance the
appliance .
Use a soft cloth moisten with mild soap, and then use
a dry cloth to wipe it again.
1.IMPORTANT SAFETY INFORMATION1.IMPORTANT SAFETY INFORMATION
When using your dishwasher,
follow the precautions listed below:
WARNING!WARNING!

1-21-2
This appliance must be earthed. In the event of a
malfunction or breakdown, earthing will reduce the risk
of anelectric shock by providing a path of least
resistance of electric current. This appliance is equipped
with a cord having an equipment-earthing conductor
and a grounding plug.
The plug must be plugged into an appropriate outlet that
is installed and earthed in accordance with all local
codes and ordinances.
Improper connection of the equipment-earthing
conductor can result in the risk of an electric shock.
Check with a qualified electrician or service
representative if you are in doubt whether the appliance
is properly grounded.
Do not modify the plug provided with the appliance;
If it does not fit the outlet.
Have a proper outlet installed by a qualified electrician.
Do not abuse, sit on, or stand on the door or dish rack of
the dishwasher.
Do not operate your dishwasher unless all enclosure
panels are properly in place.
Open the door very carefully if the dishwasher is
operating, there is a risk of water squirting out.
Do not place any heavy objects on or stand on the door
when it is open. The appliance could tip forward.
When loading items to be washed:
1) Locate sharp items so that they are not likely to
damage the door seal;
EARTHING INSTRUCTIONS

1-31-3
2) Warning: Knives and other utensils with sharp points
must be loaded in the basket with their points down or
placed in a horizontal position.
Check that the detergent powder is empty after
completion of the wash cycle.
Do not wash plastic items unless they are marked
dishwasher safe or the equivalent.
For plastic items n check the manufacturer's
ot so marked,
recommendations.
Use only detergent and rinse additives designed for
an automatic dishwasher.
Never use soap, laundry detergent, or hand washing
detergent in your dishwasher.
Children should be supervised to ensure that they do not
play with the appliance.
The door should not be left open, since this could increase
the risk of tripping.
If the supply cord is damaged, it must be replaced by the
manufacturer or its service agent or a similarly qualified
person in order to avoid a hazard.
During installation, the power supply must not be
excessively or dangerously bent or flattened.
Do not tamper with controls.
The appliance is to be connected to the water mains using
new hose sets and that old hose-sets should not be reused.
The maximum number of place settings to be washed
is 13.
The maximum permissible inlet water pressure is 1MPa.
The minimum permissible inlet water pressure is 0.04MPa.

Dispose of the dishwasher packaging material
correctly.
All packaging materials can be recycled.
Plastic parts are marked with the standard
international abbreviations:
PE for polyethylene, e.g. sheet wrapping material
PS for polystyrene, e.g. padding material
POM polyoxymethylene, e.g. plastic clips
PP polypropylene, e.g. Salt filler
ABS Acrylonitrile Butadiene Styrene, e.g. Control
Panel .
Packaging material could be dangerous for children!
For disposing of package and the appliance please
go to a recycling centre. Therefore cut off the power
supply cable and make the door closing device
unusable.
Cardboard packaging is manufactured from recycled
paper and should be disposed in the waste paper
collection for recycling.
By ensuring this product is disposed of correctly, you
will help prevent potential negative consequences
for the environment and human health, which could
otherwise be caused by inappropriate waste handling
of this product.
For more detailed information about recycling of this
product, please contact your local city office and your
household waste disposal service.
DISPOSAL: Do not dispose this product as unsorted
municipal waste. Collection of such waste separately
for special treatment is necessary.
WARNING!WARNING!
DisposalDisposal
1-41-4

22

33
3.Operation Instruction3.Operation Instruction
before using it for the first time.
To get the best performance from your dishwasher, read all operating instructions
IMPORTANTIMPORTANT

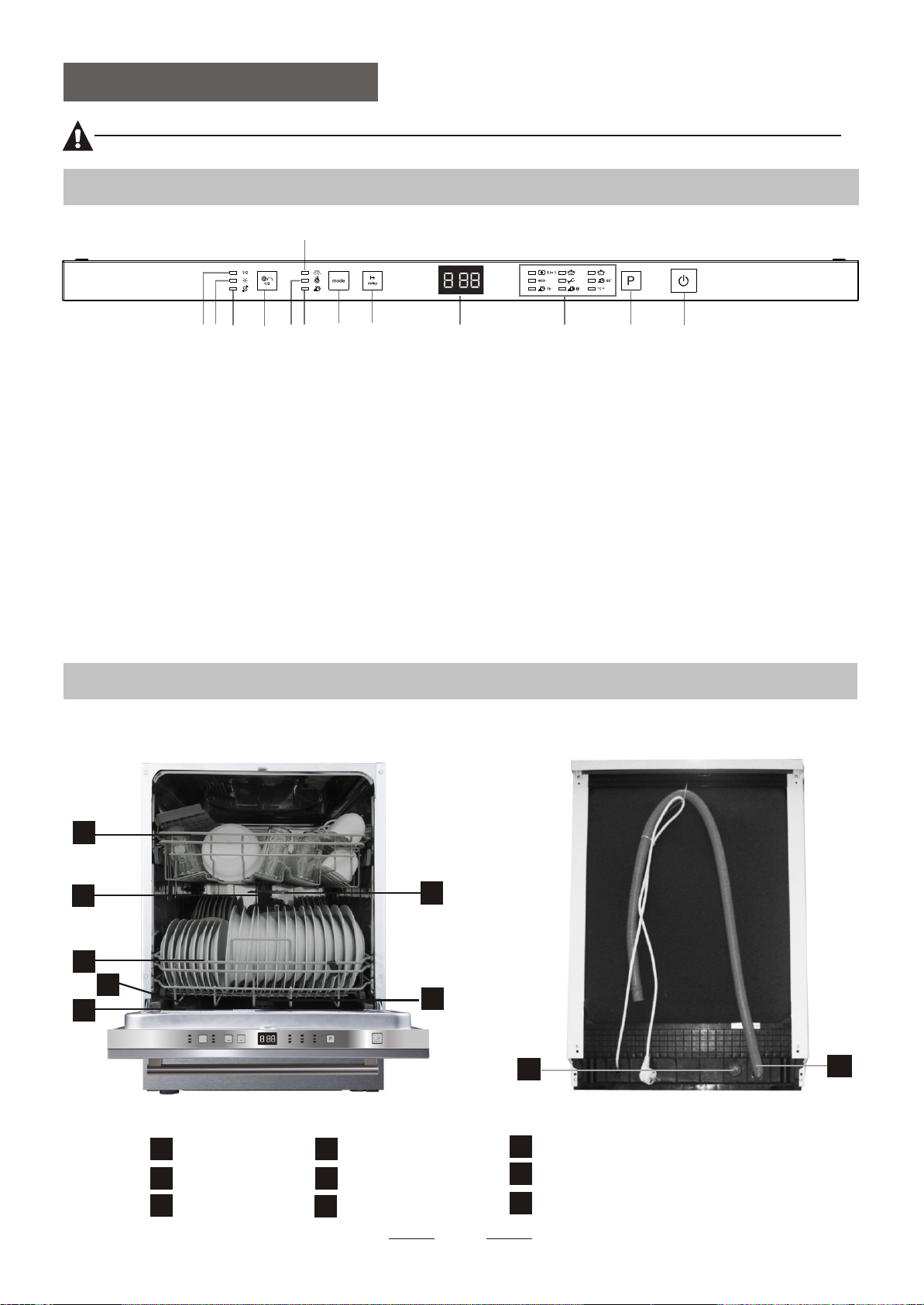

Dishwasher FeaturesDishwasher Features
8
Back View
1
2
3
4
5
6
7
Front view
Dispenser
Spray arms
Filter assembly
Inlet pipe connector
Drain pipe
Lower Basket
Inner pipe
Upper Basket
1Salt Container
5
6
7
8
9
3
2
4
9
Control PanelControl Panel
13.On/Off Button: To turn on/off the power supply.
4.Half load functionsButton: To select Halfload functions.
(With this Half load function you can only use it when you
have only about or less than6 place setting dish wave,
and you will see less water and energy consumption ,
can only be used withIntensive, Normal, ECO,Glass and
90 Min .)
1.Half load indictators: To show Half load functions starting
up or not.
12.Program Button :To Press the button to select
appropriate Program.
2.Rinse aid warning lights: To be onwhen dispenser need
to be refilled.
3.Salt warning lights: To be on when the salt container
need to be refilled.
5. Extra drying indicators:Toshow Extra drying functions
starting up or not.
6. Express wash indicators:To show Express wash
functions starting up or not.
8. Function button(only Intensive,Normal, ECO,
Glass have thisfunction).
9.Delay Button : To Press the button to delay.
10.Display screen: toshow the remindingtime
and the state( delay time).
11.Program indicators: to show which program
you have chose.
7. Extra washing indicators:To show Extra washing
functions starting upor not.
1144
22551111 1212 1313
33661010
77
8899
:
:

The water softener must be set manually, using the water hardness dial.
The water softener is designed to remove minerals and salts from the water, which would have
a detrimental or adverse effect on the operation of the appliance.
The higher thecontent of these minerals and salts, the harder your wateris.
The softener shouldbe adjusted accordingto the hardnessof the waterin your area.Yourlocal Water Authority
can advise you on the hardness of the water in your area.
Adjusting Salt Consumption
The dishwasher is designed to allow for adjustment in the amount of salt consumed based on the hardness of
the water used.This is intended to optimiseand customise thelevel o fsalt consumption.
WATER SOFTENER
The hardness of the water varies from place to place. If hard water is used in the dishwasher, deposits will
form on the dishes and utensils.
The appliance is equipped with a special softener that uses a salt container specifically designed to eliminate
lime and minerals from the water.
4.Prior using for the first time4.Prior using for the first time
Contact your local water board for information on the hardness of your water supply.
44
A. Water SoftenerA. Water Softener
NOTE:NOTE:
If your model does not have any water softener, you may skip this section.
¡ã
Clark: British degree
¡ã
fH: French degree
¡ã
dH: German degree
Note:1Note:1 dH=1.25 Clarke=1.78 fH=0.178mmol/l
¡ã ¡ã ¡ã
1
Note:2Note:2
The manufactory setting: H3 (EN 50242)
Before using your dishwasher for the first time:
A. Set the water softener
B. Add 1.5Kgdishwasher salt andthen full fillthe salt containerwith water
C. Fill the rinse aid dispenser
D. Fill in detergent
Please follow the steps below for adjustment in salt consumption.
1. Open the door ,Switch on the appliance;
2. Press theProgram button formore than 5seconds to startthe water softener
set model within 60seconds after the appliance was switched on( The Salt and
Rinse aid warninglightswill be onperiodically when itget in theset model );
3. Press theProgram button toselect the properset according toyour local environment,
the sets will change in the following sequence: H3 H4 H5 H6 H1 H2 H3;
4. Press the Power button to end the set up model.
dH
mmol/l
0~90~5 0~0.94 0
10-20
6-11 1.0-2.0 9
21-30
12-17 2.1-3.0 12
20
fH
0~6
7-14
15-21
Clarke
WATER HARDNESS
Selector Position Salt consumption
(gram/cycle)
18-22 31-40 22-28 3.1-4.0
41-60
23-34 4.1-6.0 30
60
29-42
35-55
61-98 43-69 6.1-9.8
H1
H2
H3
H4
H5
H6

1. The salt container mustonly be refilledwhen the saltwarning light inthe control panelcomes on.
Depending on howwell the saltdissolves, the saltwarning light maystill be oneven though the
salt container isfilled.
If there isno salt warninglight in thecontrol panel (forsome Models),you canestimate when tofill
the salt intothe softener bythe cycles thatthe dishwasher hasrun.
2. If thereare spills ofthe salt, asoak or arapid program shouldbe run toremove the excessivesalt.
Always use the salt intended for use with dishwasher.
The salt container is located beneath the lower basket and should be filled as explained
in the following:
Attention!
Only use salt specifically designed for the use in dishwashers! Every other type of
salt not specifically designed for the use in a dishwasher, especially table salt, will
damage the water softener. Incase of damages caused by the use of unsuitable
salt the manufacturer does not give any warranty nor is liable for any damages caused.
Only fill with salt just before starting one of the complete washing programs.
This will prevent any grains of salt or salty water, which may have been spilled,
remaining on the bottom of the machine for any period of time, which may cause
corrosion.
55

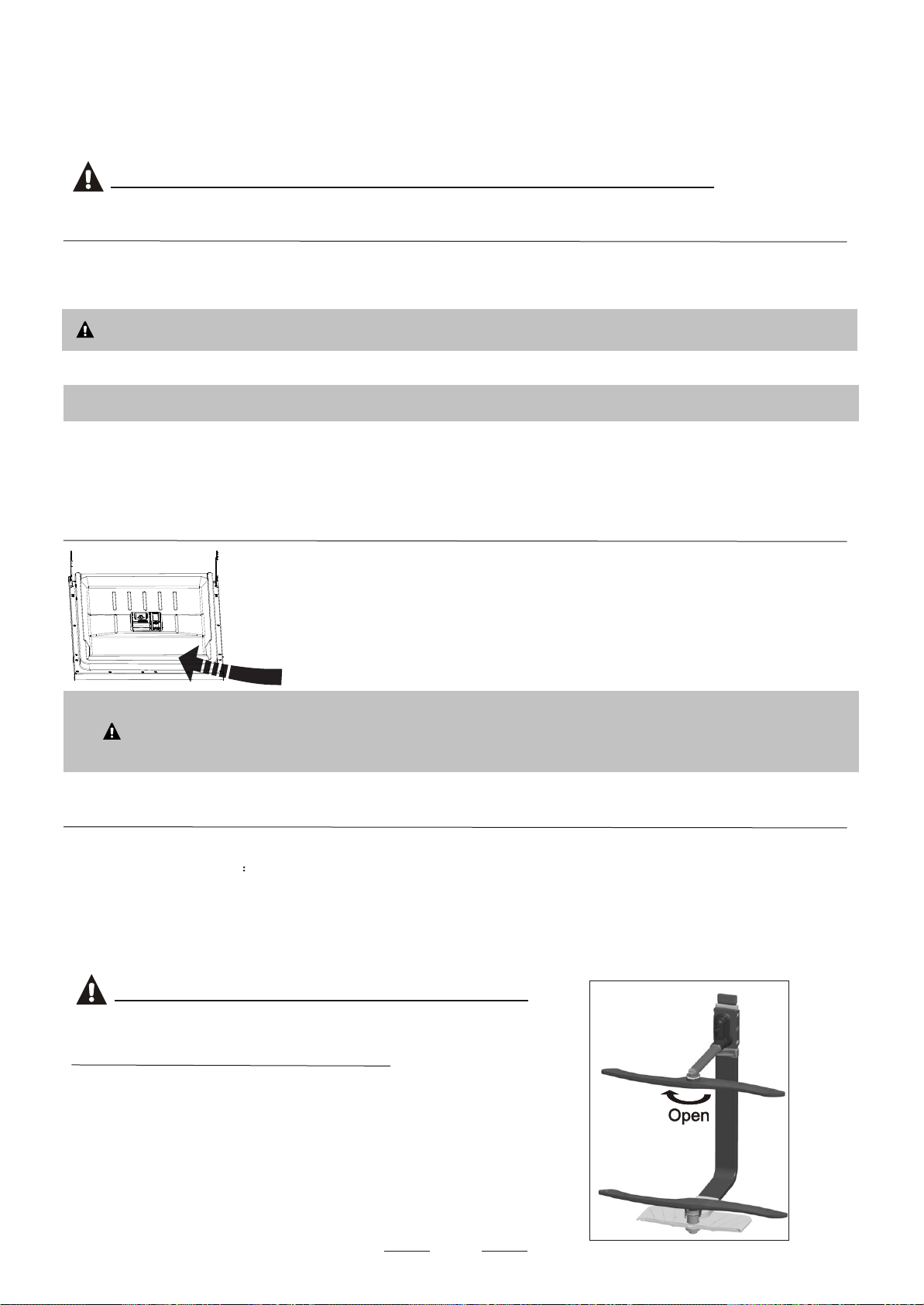

B. Loading the Salt Into the SoftenerB. Loading the Salt Into the Softener
C. Fill the Rinse Aid DispenserC. Fill the Rinse Aid Dispenser
The rinse aid is released during the final rinse to prevent water from forming droplets on your dishes, which can
leave spots and streaks. It also improves drying by allowing water to roll off the dishes. Your dishwasher is
designed to use liquid rinse aids. The rinse aid dispenser is located inside the door next to the detergent dispenser.
To fill the dispenser, open the cap and pour the rinse aid into the dispenser until the level indicator turns completely
black. The volume of the rinse aid container is about 110ml.
Rinse AidDispenser
Function of Rinse Aid
Rinse aid is automatically added during the last rinse, ensuring thorough rinsing, and spot and streak free drying.
Attention!
Only use branded rinse aid for dishwasher. Never fill the rinse aid dispenser with any other substances
(e.g. Dishwasher cleaning agent, liquid detergent). This would damage the appliance.
NOTE:NOTE:
Full fill the salt container with water,It is normal for a small amount of water to come out of the
salt container.
11
22
A After the lower basket has been removed, unscrew and remove the cap from the salt container.
BPlace the end of the funnel (supplied) into the hole and introduce about 1.5kg of dishwasher salt.
C
D After filling the container , screw the cap tightly back clockwise.
E The salt warning light will stop being after the salt container has been filled with salt.
FImmediately after filling the salt into the salt container, a washing program should be started (We suggest to use a short
program). Otherwise the filter system, pump or other important parts of the machine may be damaged
by salty water. This is out of warranty.
1122

66

77

88

5.Loading the Dishwasher Baskets5.Loading the Dishwasher Baskets
For washing in the dishwasher the following cutlery/dishesFor washing in the dishwasher the following cutlery/dishes
Cutlery with wooden, horn china or
mother-of-pearl handles
Plastic items that are not heat resistant
Older cutlery with glued parts that are not
temperature resistant
Bonded cutlery items or dishes
Pewter or copperitems
Crystal glass
Steel items subject to rusting
Wooden platters
Items made from synthetic fibres
Some types ofglasses can become
dull after a large number of washes
Silver and aluminumparts have a
tendency to discolour during washing
Glazed patterns may fade if machine
washed frequently
Are not suitable Are of limited suitability
Dishes and items of cutlery must not lie inside one another, or cover each other.
To avoid damage to glasses, they must not touch.
Load large itemswhich are mostdifficult to clean into thelower basket.
The upper basket is designed to hold more delicate and lighter dishware such as glasses, coffee
and tea cups
Long bladed knives stored in an upright position are a potential hazard!
Long and/or sharp items of cutlery such as carving knives must be positioned
horizontally in theupper basket.
Please do not overload your dishwasher. This is important for good results and for
reasonable consumption of energy.
Load hollow itemssuch as cups,glasses, pans etc.With the openingfacing downwards sothat
water cannot collect in the container or a deep base.
RecommendationRecommendation
Consider buying utensilswhich are identified as dishwasher-proof.
Use a mild detergent that is described as 'kind to dishes'. If necessary, seek further
information from thedetergent manufacturers.
For particular items, select a program with as low a temperature as possible.
To prevent damage, do not take glass and cutlery out of the dishwasher immediately
after the programme has ended.
(For best performance of the dishwasher, follow these loading guidelines.
Features and appearanceof baskets and cutlery baskets may vary from your model.)
Scrape off any large amountsof leftover food. Soften remnants of burnt food in pans.
It is not necessary to rinse the dishes under running water.
Place objects inthe dishwasher in following way:
1.Items such as cups, glasses, pots/pans, etc. are faced downwards.
2.Curved items,or ones withrecesses, should be loaded aslant so that water can run off.
3.All utensils are stacked securely and can not tip over.
4.All utensilsare placed inthe way that the sprayarms can rotate freely during washing.
NOTE:NOTE:
Very smallitems should notbe washed in the dishwasher as they could easily fall out of the basket.
Attention before or after loading the Dishwasher BasketsAttention before or after loading the Dishwasher Baskets
Toprevent water drippingfrom the upper basket into the lower basket, we recommend that you
empty the lowerbasket first andthen the upperbasket.
Removing the DishesRemoving the Dishes
99

1010

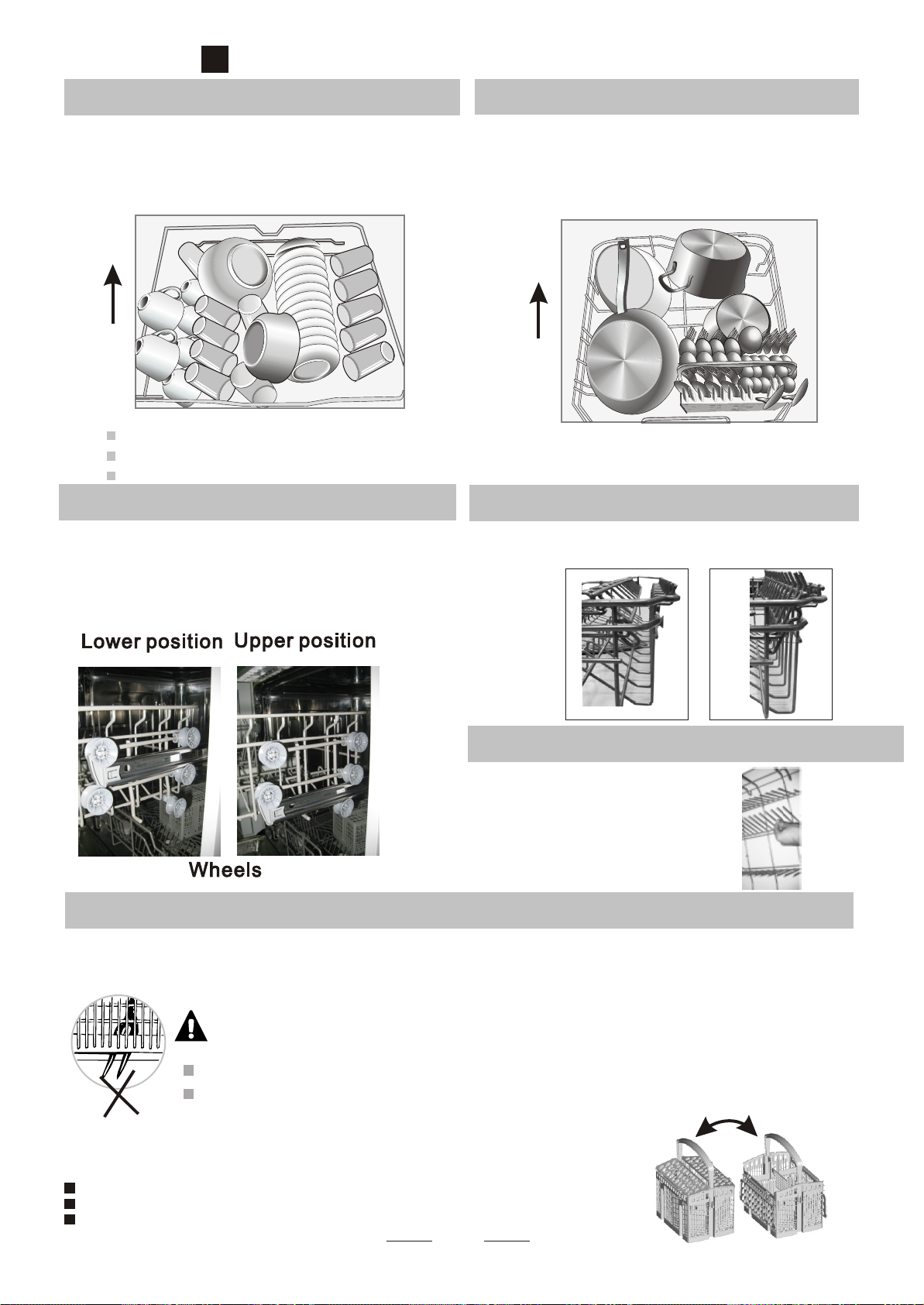

Folding Spikes of Lower Basket
For better stacking of pots and pans,
the spikes can be folded down as
show in thepicture right.
Adjusting the Upper Basket
The height ofthe upper basketcan be adjusted in order to
create more space for large utensils both for the upper
/lower basket. The height of the upper basket can be
adjusted by placing the wheels on different height of the
rails. Long items, serving cutlery, salad servers and knives
should be placedon the shelf so that they do not obstruct
the rotation ofthe spray arms..
Folding back the cup shelives
For better stacking of pots and pans,
the spikes can be folded down as
show in the picture right.
Cutlery should beplaced in thecutlery basket withthe handles atthe bottom. Ifthe rack hasside baskets, the
spoons should beloaded separately intothe appropriate slots,especially long utensilsshould be placed in the
horizontal position atthe front ofthe upper basketas shown inthe picture.
Cutlery BasketCutlery Basket
Do not let any item extend through the bottom.
Always load sharp utensils with the sharp
point down!
WARNING!
For personal safetyand a topquality cleaning, placethe silverware inthe basket
making sure that:
For personal safetyand a topquality cleaning, placethe silverware inthe basket
making sure that:
They do not nest together.They do not nest together.
Silverware is placed with the handles-down.Silverware is placed with the handles-down.
But place knives and other potentially dangerous utensils are placed handles-up.But place knives and other potentially dangerous utensils are placed handles-up.
The upper basketis designed tohold more delicate
and lighter dishware such as glasses, coffee and
tea cups and saucers, as well as plates, small bowls
and shallow pans(as long asthey are nottoo dirty).
Position the dishes and cookware so that they will
not get moved by the spray of water.
Loading the Upper BasketLoading the Upper Basket
We suggest that you place large items and the most
difficult to clean items are to be placed into the lower
basket: such as pots, pans, lids, serving dishes and
bowls, as shownin the figurebelow. Itis preferable to
place serving dishesand lids onthe side of the racks
in order to avoid blocking the rotation of the top spray
arm.
Loading the Lower BasketLoading the Lower Basket
Pots, serving bowls, etc, must always be placed top down.
Deep pots should be slanted to allow water to flow out.
Please be remindedthat:
The Bottom Basket features folding spikes sothat larger ormore pots andpans can beloaded.
The Method Loading Normal DishwareThe Method Loading Normal Dishware
IN
IN

6.Starting a washing program6.Starting a washing program
Wash Cycle TableWash Cycle Table
NOTE:NOTE:
Means: need to fill rinse into the Rinse-Aid Dispenser.
( )
Detergent
pre/main
Detergent
pre/main
Cycle Selection
Information
Cycle Selection
Information
ProgramProgram Running
time(min)
Running
time(min)
Water
(L)
Water
(L)
Energy
(Kwh)
Energy
(Kwh)
Rinse
Aid
Rinse
Aid
Description
of Cycle
Description
of Cycle
Normal
Glass
5/27.5g
5/27.5g
5/27.5g
5/27.5g
For normally soiled loads,
such as pots plates
glasses and lightly
soiled pans.
For heaviest soiled crockery,
and normally soiled pots
pans dishes etc with dried
on soiling.
Pre-wash(50 )
Wash (60 )
Rinse
Rinse
Rinse(70 )
Drying
Pre-wash(45 )
Wash (55 )
Rinse
Rinse (65 )
Drying
Pre-wash
Wash (45 )
Rinse(65 )
Drying
180
19
170
1.3
0.92
1.6
18.5
15
11
90 12.5
1.35
For lightly soiled loads that
do not need excellent
drying efficiency.
130 0.9 14.5
Pre-wash
Wash (40 )
Rinse
Rinse(60 )
Drying
11
1.05
215
32.5
(1or2pieces)
Wash(50 )
Rinse
Rinse(65 )
Drying
Intensive
This is standard programme, it is
suitable to clean normally soiled
tableware and it is the most efficient
programme in terms of its combined
energy and water consumption for
that type of tableware.
(1or2pieces)
(1or2pieces)
(1piece)
(1piece)
(1or2pieces)
90 min
1 hour
32.5g
For lightly soiled loads,
such as glasses,
crystal and fine china.
Rapid
A shorter wash for lightly
soiled loads and quick
wash.
Wash (45 )
Rinse(50 )
Rinse (55 )
30 0.75 11
25g
To rinse dishes that you plan
to wash later that day.
Pre-wash
15 0.02 4
Soak
All in one
For normally soiledcrockery
and has notdried on.
1111
NOTE:NOTE:
*EN 50242 : This programme is the test cycle. The information for comparability test
in accordance withEN 50242, asfollows:
Capacity: 13 setting
Position Upper basket: upper wheels on rails
Rinse aid setting: 6
PI:0.49w;Po:0.45w
Turning On the ApplianceTurning On the Appliance
Starting a cyclewash
Draw out thelower and upperbasket, load thedishes and pushthem back.
It is commendedto load thelower basket first,then the upperone (see the section entitled
Loading the Dishwasher ).
Pour in thedetergent (see thesection entitled Salt, Detergent andRinse Aid ).
Insert the pluginto the socket.The power supply is 220-240VAC /50 HZ, thespecification
of the socketis 10A 250VAC. Make sure thatthe water supplyis turned onto full pressure.
Close the door, press the ON/OFF Button, and the program light will turn on.
Press the program button , the wash program will be changed as follows direction:
All in one->Intensive->Normal->ECO->Glass->90 min->1 hour->Rapid->Soak;
If a program is selected, the response light willlight. Then close the door, the dishwasher
begins to start.
1
2
3
4
5
Left-on mode duration:Power will becut off automatically after programfinished for 30minutes.
Wash(65 )
Rinse
Rinse (65 )
Drying
(*EN 5 0242)
5/27.5g
For lightly soiled loads that
do not need excellent
drying efficiency.
Pre-wash(50 )
Wash(60 )
Rinse (60 )
Drying
//////
//
5
1
60 0
1.15

1212
WARNING!WARNING!
It is dangerous to open the door when washing,
because the hot water may scald you.
When the workingcycle has finished,the buzzer ofthe dishwasher willsound for 8seconds, then stop.Turn off
the appliance using the ON/OFF button, shut off the water supply and open the door of the dishwasher.
Wait for a few minutes before unloading the dishwasher to avoid handling the dishes and utensils while they
are still hot and more susceptible to breakage. They will also dry better.
Switch Off the Dishwasher
The program light is on but is not blinking, only in this case the programme has ended.
1.Switch off the dishwasherby pressing theON/OFF button.
2.Turn off the water tap!
Open the door carefully.
Hot dishes aresensitive to knocks. The dishes should therefore be allowed to cool down around 15 minutes
before removing from the appliance.
Open the dishwasher'sdoor, leave it ajar and wait a few minutes before removing the dishes. In this way they
will be cooler and the drying will be improved.
Unloading the dishwasher
It is normal that the dishwasher is wet inside.
Empty the lowerbasket first andthen the upperone. This will avoid waterdripping from theupper Basket onto
the dishes in the lower one.
Forgot to Add a Dish?Forgot to Add a Dish?
At the End of the Wash CycleAt the End of the Wash Cycle
A forgotten dish can be added any time before the detergent cup opens.
Add forgotten dishes.
Close the door
After the spray arms stop working, you can open the door
completely.
2
3
Open the door a little .
14
5The dishwasher will run after 10 seconds.
Change the Program...Change the Program...
If you open the door during a wash cycle , the machine will pause. The program light will
stop blinking and the buzzer will mooing every minute unless you close the door . After
you close the door ,the machine will keep on working after 10 seconds.
NOTE:NOTE:
Premise:
A cyclethat is underwaycan only bemodified if ithas only beenrunning for ashort time. Otherwise,the
detergent may have already been released, and the appliance may have already drained the wash water.
If this is the case,the detergent dispensermust be refilled(see the sectionentitled " Loadingthe
Detergent " ).
Open the door,press the Programbutton more than3 seconds ,the machine willbe in standbystate,
then you canchange the programto the desiredcycle setting (seethe section entitled " Starting a
wash cycle. . ." ).
1
2
When you open the door to pause during washing, the running indicator will
stop blinking and the dishwasher will mooing every minute unless you close the door to start.
If your model has broken remember function, the machine will go on to finish the selected
program after the power cut.
NOTE:NOTE:

The filter preventslarger remnants offood or otherobjects from gettinginside the pump.
The residues may block the filter, in this case they must be removed.
The filter system consists ofa coarse filter,a flat (Main filter)
And amicrofilter(Fine filter).
Food and soil particles trapped in this filter are pulverized by a
special jet on the lower spray arm and washed down to drain.
Larger items, suchas pieces ofbones or glass,that could block
the drain aretrapped in thecoarse filter.To remove theitems
caught by thefilter, gentlysqueeze the tapon the topof this
filter and liftout.
This filter holds soil and food residues in the sump area and
prevents it from being deposited on the dishes during wash cycle.
Main filter 1
Coarse filter 2
Fine filter 3
2
3
1
Filter assembly
The filter efficiently removes food particles from the wash water, allowing it to be recycled during the cycle.
For best performanceand results, thefilter must becleaned regularly. For thisreason, it isa good ideato
remove the largerfood particles trappedin the filterafter each washcycle by rinsingthe semicircular filterand
cup under runningwater. Toremove the filterdevice, pull thecup handle inthe upward direction.
WARNING!WARNING!
The dishwasher must never be used without the filters.
Improper replacement of the filter may reduce the performance level of the
appliance and damage dishes and utensils.
nn
nn
Step 1 Turn the filter in anti-clockwisedirection,
Step 2 lift the filterassy up
7.Maintenance and Cleaning7.Maintenance and Cleaning
Filtering SystemFiltering System
NOTE:NOTE:
When following this procedure from step1 to step 2, the filter system will be removed;
when following it from Step 2 to Step 1, the filter system will be installed.
1313
NOTE:NOTE:
1
2

The control panel can be cleaned by using a lightly dampened cloth.
After cleaning, make sure to dry it thoroughly.
For the exterior, use a good appliance polish wax.
Never use sharp objects, scouring pads or harsh cleaners on any part of the dishwasher.
Protect AgainstFreezing
1.Cut off the electrical power to the dishwasher.
2.Turn off the water supply and disconnect the water inlet pipe from the water valve.
3.Drain thewater from the inlet pipe and water valve. (Use a pan to gather the water)
4.Reconnect the water inlet pipe to the water valve.
5.Remove thefilter at the bottom of the tub and use a sponge to soak up water in the sump.
please take frostprotection measures onthe dishwasher inwinter. Everytime after washing cycles,
please operate as follows
Caring for the DishwasherCaring for the Dishwasher
Cleaning the Filter
Cleaning the Door
Toclean the coarsefilter and thefine filter,use a cleaningbrush. Reassemble thefilter parts as shown in the figures
on the lastpage and reinsertthe entire assemblyin the dishwasher, positioning it in its seat and pressing downwards.
When cleaning the filters, don't knock on them. Otherwise, the filters could be
contorted and the performance of the dishwasher could be decreased.
WARNING!WARNING!
To clean the edge around the door, you should use only a soft warm, damp cloth.
To avoid penetration of water into the door lock and electrical components, do not
use a spray cleaner of any kind.
WARNING!WARNING!
Never use a spray cleaner to clean the door panel as it may damage the door lock
and electrical components.
Abrasive agents or some paper towels should not be used because of the risk of
scratching or leaving spots on the stainless steel surface.
nn
nn
Cleaning the Spray Arms
NOTE:NOTE:
If your dishwasher cannot work because of the ice,
please contact professional service persons.
It is necessaryto clean thespray arms regularlyfor hard
water chemicals willclog the sprayarm jets andbearings.
- Inspect the filters for blocking after every time the dishwasher has been used.
- By unscrewing the coarse filter, you can remove the filter system. Remove any food remnants and
clean the filters under running water.
Remarks:
The entire filter assembly should be cleaned once a week.
NOTE:NOTE:
To remove the lower spray arm, pull out the spray arm upward.
Toremove the upperspray arm, hold the nut, rotate the arm
clockwise to removeit.
Wash the arms in soapy and warm water and use a soft brush to
clean the jets. Replace them after rinsing them thoroughly.
1414

It is recommend that you run awash cycle withthe
dishwasher empty andthen remove the plug from the
socket, turn off the water supply and leave the door of
the appliance slightlyopen. This will help thedoor
seals to last longer and prevent odours from forming
within the appliance.
If the appliance must be moved, try to keep it in the
vertical position. If absolutely necessary, it can be
positioned on its back.
One of thefactors that causeodours to formin the
dishwasher is foodthat remains trappedin the seals.
Periodic cleaning witha damp spongewill prevent this
from occurring.
Before cleaning orperforming maintenance, always
remove the plugfrom the socket.
To clean the exterior and rubber parts of the dishwasher,
do not use solvents or abrasive cleaning products.
Only use a cloth with warm soapy water.
Toremove spots orstains from thesurface of the
interior, use a cloth dampened with water an a little
vinegar, or a cleaning product made specifically for
dishwashers.
Remove the Plug
No Solvents or Abrasive Cleaning
Moving the Appliance
Seals
How to Keep Your Dishwasher in Shape
After every wash,turn off the water supply to the
appliance and leave the door slightly open so that
moisture and odours are not trapped inside.
After Every Wash When not in Use for a LongTime
1515
The installation of the pipes
and electrical equipments
should be done by professionals.
Attention:
The installation position of dishwasher should be near the existing inlet and drain hoses and
power cord.
One side of the cabinet sink should be chosen to facilitate the connection of drain hoses of
the dishwasher.
Installation preparation
Note: please check the accompanying installation accessories(hook for aesthetic panel
,screw)
8.Installation instruction8.Installation instruction
Warning
Electrical Shock Hazard
Disconnect electrical power
beforeinstalling dishwasher.
Failure to do so can result in
death or electrical shock.
