Teka RMW 963 Installation and maintenance instructions

TECHNICAL PASSPORT
ПАСПОРТ ТЕХНИЧЕСКОГО ИЗДЕЛИЯ
MICROWAVES
МИКРОВОЛНОВЫЕ ПЕЧИ
RMW 963

2
TECHNICAL PASSPORT ENGLISH
Microwave Oven RMW 963
INSTALLATION INSTRUCTIONS...................................................................................... 4
SAFETY PRECAUTIONS......................................................................................................... 5
MICROWAVE BENEFITS ........................................................................................................ 7
DESCRIPTION OF THE MICROWAVE OVEN............................................................... 9
MAIN FUNCTIONS AND MODES ...................................................................................... 9
CLOCK SETTING........................................................................................................................ 9
HIDE/SHOW CLOCK................................................................................................................. 9
SAFETY INTERLOCK ............................................................................................................... 9
MICROWAVES.............................................................................................................................. 10
MICROWAVES –QUICK START.......................................................................................... 10
GRILL............................................................................................................................................... 10
MICROWAVES + GRILL........................................................................................................... 11
WEIGHT DEFROST (AUTOMATIC MODE)..................................................................... 11
TIME DEFROST (MANUAL MODE).................................................................................... 12
AUTOMATIC MODES............................................................................................................... 12
AUTOMATIC MODE А: HEATING....................................................................................... 12
AUTOMATIC MODE B: COOKING...................................................................................... 14
AUTOMATIC MODE C: DEFROST AND FRYING......................................................... 15
IN THE PROCESS OF OPERATION................................................................................... 16
DEFROST....................................................................................................................................... 17
COOKING WITH MICROWAVES......................................................................................... 18
COOKING WITH GRILL.......................................................................................................... 21
SUITABLE COOKWARE OR DINNERWARE.................................................................. 23
MICROWAVE OVEN CLEANING AND MAINTENANCE .......................................... 25
TROUBLESHOOTING.............................................................................................................. 26
LAMP REPLACEMENT............................................................................................................. 27
SPECIFICATIONS...................................................................................................................... 28
DESCRIPTION OF THE MODES......................................................................................... 28
INSTALLATION .......................................................................................................................... 29
CONTENTS

3
ENGLISH TECHNICAL PASSPORT
Microwave Oven RMW 963
DEAR CUSTOMER!
Thank you for the credence you gave
to us by purchasing our microwave
oven. We are sure that the functionality
of this modern and practical product
made of high-quality materials will
meet all your expectations.
To get an insight into all the features
of the new microwave oven, and to
achieve the best operating results,
please carefully read this Instruction
Manual.
KEEP THE ATTACHED
DOCUMENTATION FOR FURTHER USE.
Always keep the manual near the
device. If you transfer the microwave
oven to another owner, transfer the
Instruction Manual as well!
ENVIRONMENT
PROTECTION
Disposal of the Package
The package contains the Green
Point mark.
Take the packing materials
(cardboard, foamed plastics, plastic
package) to the recycling point so that
they could be recycled or reused.
Life-expired Product
In accordance with Waste Electrical
and Electronic Equipment Directive
2002/96/ЕС (WEEE), household
appliances are not subject to disposal
with household solid wastes.
Life-expired products shall be
collected in special locations to
have the ability to use the materials
subject to recycling and reuse, and
to avoid potential harm the health
and environment. The crossed out bin
symbol at a product or its package
reminds people of that and shows
that the life-expired product must be
delivered to a special collection point.
For information on life-expired
appliance collection points, please refer
to local authorities or the store, where
you have purchased the product.
A life-expired product must be made
unsuitable for use. Thus, unplug the
power cord from the power outlet and
cut it off.

4
TECHNICAL PASSPORT ENGLISH
Microwave Oven RMW 963
INSTALLATION
INSTRUCTIONS
Before Installation
Check that voltage in the power
supply network, to which the device is
connected complies with the value, as
provided in the data plate of the device.
Open the microwave oven door,
take out all accessories and dispose
of the packing materials. Do not
remove the mica cover from the oven
chamber ceiling! The cover protects
the magnetron against fat and food
splatters.
Warning! The front surface of the
microwave oven can be wrapped with
protective lm. Before the rst use,
carefully remove the lm starting from
the inner side.
Make sure that the oven has
no damages.
Make sure that the door is not
distorted and is securely closed, and
that the inner side of the door and front
end sides have no dents. If any damages
are found, contact an authorized service
center.
DO NOT USE THE OVEN, if you nd
that the plug or the connecting cable
are damage, the oven does not operate
normally, the oven has been damaged
or dropped. Contact an authorized
service center.
Install the oven on an even stable
surface. Do not install the oven near
heat sources, radio and TV sets.
In the process of installation, make
sure that there are no moisture sources
near the connecting cable, the cable
does not pass under the oven or contact
with objects having sharp edges. High
temperature can damage the cable.
Warning! Upon installation, make
sure that free access is provided to
the power outlet, to which the cable is
connected.
After Installation
Your microwave oven is equipped
with a connecting cable and a plug for
single-phase connection.
Fixed installation of the oven should
be performed by a qualied technician.
In this case the oven is connected to
power supply using an all-pole switch
with at least 3 mm distance between
the pins.
WARNING! THE DEVICE MUST BE
GROUNDED.
The manufacturer and the seller
shall not be liable for any damage to
people, animals or property caused by
a failure to comply with the installation
conditions.
The oven will operate only when the
door is properly closed.
After the rst use, clean the oven
chamber and the accessories in
accordance with the instructions, as
provided in Microwave Oven Cleaning
and Maintenance section.

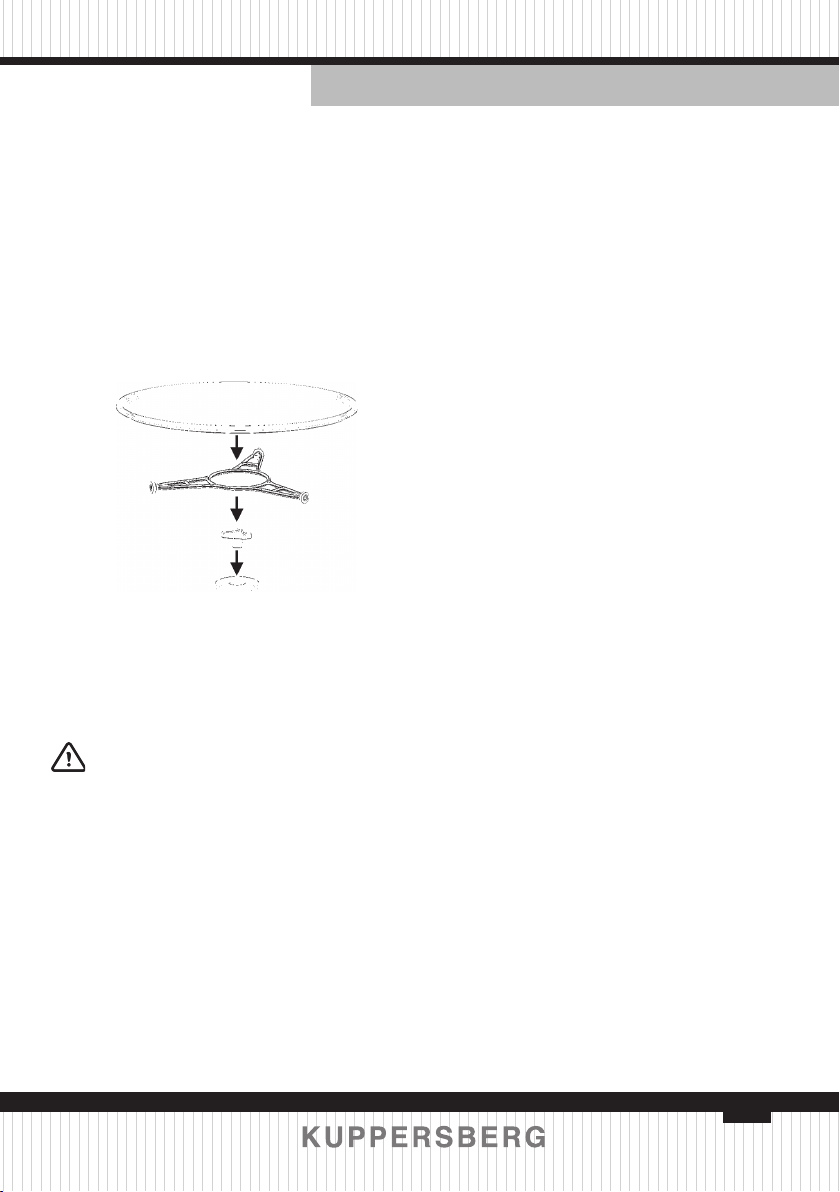

Place the turntable drive in the
center of the oven chamber, then

5
ENGLISH TECHNICAL PASSPORT
Microwave Oven RMW 963
place the turntable roller support and
the turntable tray on top, and make sure
that the center of the tray is accurately
xed on the drive. All components of
the turntable must be properly installed
in the chamber, when the oven is used.
The turntable rotates both clockwise
and counterclockwise.
Use a separate manual attached
hereto for installation
SAFETY PRECAUTIONS
ÂWarning! Never leave the
operating oven unattended, especially
when you use cookware or dinnerware
made of paper, plastic or other
combustibles: they can melt and ignite.
FIRE HAZARD!
ÂWarning! If you notice smoke
or re, do not open the oven door to
localize the re. Turn off the device
and unplug it from the power outlet or
disconnect the oven from power supply.
ÂWarning! Do not heat spirits
or alcohol drinks in the oven. FIRE
HAZARD!
ÂWarning! Do not heat products
in tightly closed containers, as they can
explode.
ÂWarning! Children may use the
oven without supervision of adults
only if they are given the respective
instruction for safe use and understand
the hazards associated with improper
use of the oven.
ÂWarning! If the oven has a
combined cooking mode (microwaves
+ another heating method), children are
not allowed to use the oven without
supervision of adults, as the oven
chamber generates high temperatures.
ÂWarning! Use of the oven is
prohibited in the following cases:
Bthe door is improperly closed;
Bthe door hinges are damaged;
Bthe inner side of the door and
the front end surfaces are damaged;
Bthe door window glass is
damaged;
Bpartial sparking is observed
in the oven, even if there are no metal
objects inside.
ÂThe device can be used again
only after repairs performed by a
qualied technician of an authorized
service center.
Caution!
ÂDo not heat baby food in
jars and bottles with screw caps or

6
TECHNICAL PASSPORT ENGLISH
Microwave Oven RMW 963
paciers. After heating, carefully stir
or shake the product to provide even
temperature. Before feeding, check the
temperature of the baby food. BURN
HAZARD!
ÂTo avoid overheating and
burns, it is important to set a suitable
microwave power and duration for
cooking of a small quantity of food. For
example, if high power is set, a slice of
bread can be burnt in 3 minutes.
ÂFor frying, use grill and
constantly control the process. When
toasts are made in a combined mode,
re can outbreak within a very short
period.
ÂCheck that power cords of other
appliances do not contact with the hot
door or the oven. Cable insulation can
melt. Short-circuit hazard!
Be careful, when heating liquids!
If you take a container with a
liquid (water, coffee, tea, milk...) with
temperature close to the boiling point
out of the oven abruptly, the liquid can
boil and slop over onto your hands.
INJURY AND BURN HAZARD!
To prevent such situation, put a
spoon or a glass stick in a container
with a liquid.
This product is designed for
household use only!
Use the microwave oven only for
cooking.
To avoid hazards and oven damages,
follow our recommendations:
ÂDo not turn on the oven without
the turntable drive, roller support and
tray properly installed in their place.
ÂNever turn on an empty
microwave oven.If there are no products
in the oven, this can lead to electrical
overload and severe damages. DAMAGE
HAZARD!
ÂTo check the operation of the
microwave oven, place a glass of water
inside. Water will absorb the microwave
energy and the oven will not be
damaged.
ÂDo not close or obstruct vents.
ÂUse only cookware and
dinnerware suitable for microwaves.
Before using cookware, dinnerware or
containers, check that they are suitable
for a microwave oven (refer to Suitable
Cookware or Dinnerware section).
ÂNever remove the mica cover
from the oven chamber ceiling! The
cover protects the magnetron against
ingress of splashes of fat and food.
 Do not place inammable
objects inside, as they can ignite if you
turn on the oven.
ÂDo not use the oven as a storage
box.

7
ENGLISH TECHNICAL PASSPORT
Microwave Oven RMW 963
ÂDo not cook or heat shell eggs
and hard boiled eggs in a microwave
oven, as they can burst.
ÂDo not use a microwave oven
for deep frying, as it is impossible to
control the temperature of heating of
vegetable oil.
ÂUse cooking gloves to prevent
burns from contact with cookware or
dinnerware, or oven components.
ÂDo not rest again or sit on the
open oven door.This can cause damages
to the oven, in particular, hinges. The
maximum load on the door is 8 kg.
ÂThe turntable and the grill rack
withstand a load up to 8 kg.. Do not
exceed the load to avoid damages to
the oven.
Cleaning
ÂWarning! Regularly clean the
microwave oven. Remove remnants
of food from the oven walls (refer
to Microwave Oven Cleaning and
Maintenance section). If you do not
keep the oven clean, its surfaces will
deteriorate, which will reduce the
service life of the device and lead to a
potential hazard..
ÂThe inner side of the door and
the contacting front end surfaces must
be always kept clean, which will ensure
safe oven operation.
ÂClean the oven following the
instructions, as provided in Microwave
Oven Cleaning and Maintenance
section.
Repairs
ÂAttention: microwaves! Do not
remove the cover! Repairs performed
by unqualied persons unauthorized by
the manufacturers are dangerous.
ÂTo prevent hazards, a damaged
power cord must be replaced by
the manufacturer, an engineer of an
authorized service center or a qualied
technician.
This work requires special tools.
ÂRepairs and maintenance of
the device must be performed only by
a technician of an authorized service
center.
MICROWAVE BENEFITS
In traditional ovens, heat generated
outside by an electric heating element
or a gas burner, gradually penetrates
into products. Thus, more energy is
consumed to heat the air, oven parts
and cookware or dinnerware.
In a microwave oven, heat is
generated in the products and carried
from the inside towards the outer
surface. Heat is not consumed to heat
the air, inner walls of the oven and
cookware and dinnerware (if suitable
for use in a microwave oven), i.e. only
food is heated.
Microwave ovens provide the
following benets:
1. Cooking time is reduced: in
average you can save up to 75% of time,
as compared with traditional ovens.

8
TECHNICAL PASSPORT ENGLISH
Microwave Oven RMW 963
2. Extremely quick defrosting of
products allows mitigation of bacterial
growth hazard.
3. Energy saving.
4. Nutritional value saving by
reduction of the cooking time.
5. Easy cleaning.
Operation of the Microwave
Oven
The microwave oven is equipped
with a high-voltage instrument, a
magnetron, which converts electric
energy into microwaves. Microwaves
generated by the magnetron are
supplied into the oven chamber by the
waveguide and evenly distributed by a
metal impeller (dissector) or using the
turntable.
Inside the oven chamber,microwaves
reect from metal walls, spread in all
directions and evenly penetrate into
products.
Heating of Products
Most products contain water, and
water molecules start vibrating under
the inuence of microwaves.
Friction of molecules against each
other results in heat, which increases
the temperature of products and allows
cooking, defrosting and keeping them
hot.
As heating takes place inside the
products:
Âthey can be cooked without
water and fats or wit small quantities
of the same;
Âdefrosting, heating and cooking
in a microwave oven is quicker than in a
traditional one;
Âvitamins, minerals and nutrients
remain in food;
Âproducts retain their natural
color, taste and avor.
Microwaves penetrate through
china, glass, cardboard and plastic,
but not metal. Therefore, avoid using
metal cookware or dinnerware, or those
containing metal parts in a microwave
oven.
Microwaves are reected by metal,..
... but penetrate through glassware
and chinaware...
... and are absorbed by products.

9
ENGLISH TECHNICAL PASSPORT
Microwave Oven RMW 963
DESCRIPTION
OF THE MICROWAVE OVEN
1. Door window glass
2. Hinges
3. Turntable drive
4. Roller support for the turntable
5. Turntable glass
6. Hinged grill heating element
7. Mica cover
8. Lamp
9. Control panel
10. High grille
11. Low grille
12. Side guides
1. MODE indicators
2. SET FUNCTION/MODE touch
control
3.SET POWER/WEIGHT touch control
3a. POWER/WEIGHT indicators
4. CLOCK/TIMER indicators
4a. CLOCK/TIMER touch control
5. START and STOP touch controls/
Safety interlock
MAIN FUNCTIONS AND
MODES
Clock Setting
After the oven is connected to the
mains for the rst time, or after power is
disconnected,the CLOCK indicator starts
ashing showing that current time is
incorrect. To set the clock, perform the
following steps:
1. Touch CLOCK control. Figures
showing hours start ashing.
2. Set hours using - and +.
3. Touch CLOCK control again to set
minutes. Figures showing minutes start
ashing.
4. Set minutes using - and +.
5. To complete the setting, touch
CLOCK control again.
Hide/Show Clock
If you do not want the time to
be displayed, you can hide them by
touching and holding CLOCK control for
3 seconds. Points separating hours and
minutes will ash, but no time will be
displayed.
To display the time again, touch and
hold CLOCK control for 3 seconds.
Safety Interlock

10
TECHNICAL PASSPORT ENGLISH
Microwave Oven RMW 963
Operation of the oven can be locked
(e.g. to prevent use by children).
1. To activate the interlock, touch
and hold STOP control for 3 seconds.
The oven beeps, and the display shows
SAFE. The oven is locked, and you
cannot use it in this state.
2. To unlock the oven, touch and
hold STOP control for 3 seconds again.
The oven beeps, and the display shows
current time.
Microwaves
Use this mode to cook and heat
vegetables, potatoes, rice, sh and meat.
1. Touch MICROWAVES mode
control. The control lights up.
2. Touch SET POWER control to
adjust microwave power. The relevant
indicator starts ashing. If the
control is not touched, the oven will
automatically operate at 800 W.
3. Adjust microwave power using -
and + controls.
4. Touch TIMER control to adjust
the duration of cooking. The relevant
indicator starts ashing.
5. Adjust the duration of cooking
using - and + controls (e.g. 1 minute).
6. Touch START control. The oven
starts running.
NOTE: If power is set to 1000 W,
the duration of cooking is limited to 15
minutes.
Microwaves – Quick Start
Use this mode for quick heating of
products and dishes with high moisture
content, such as water, tea, coffee, thin
soups.
1. Touch START control. The oven
starts running in Microwaves mode at
maximum power for 30 seconds.
2. If you want to increase the
duration of cooking,touch START control
again. With each touch, the duration of
cooking is incremented by 30 seconds.
NOTE: If power is set to 1000 W,
the duration of cooking is limited to 15
minutes.
Grill
Use this mode for crisping the top
of a dish.
1. Touch GRILL control. The relevant
control lights up.
2. Touch TIMER control to adjust
the duration of cooking. The relevant
indicator starts ashing.
