Teknika 5425303 User manual

NOTE: THIS INSTRUCTION
BOOKLET CONTAINS IMPORTANT
SAFETY INFORMATION.
PLEASE READ AND KEEP FOR
FUTURE REFERENCE.
Bookcase with Door
Canyon Lane Collection | Model 5425303
Deep shelves for
tall tales.
Teknik
www.teknikoffice.co.uk

Part Identification
Hardware Identification
Assembly Steps
Safety
No. 2 Phillips Screwdriver
Tip Shown Actual Size
Table of Contents Assembly Tools Required
3
4-5
6-18
19
Page 2
Electric drill with 1/8" bit
(ONLY in indicated step)

Part Identification
åWhile not all parts are labeled, some of the parts will have a label or an inked letter on the edge
to help distinguish similar parts from each other. Use this part identification to help identify similar parts.
Now you know
our ABCs.
A TOP (1)
B LEFT END (1)
C RIGHT END (1)
D FIXED SHELF (1)
E BOTTOM (1)
F SMALL BACK (1)
H LARGE BACK (1)
J LEG (4)
K DOOR (1)
L LARGE ADJUSTABLE SHELF (2)
M SMALL ADJUSTABLE SHELF (1)
N BASE (1)
A
B
C
D
E
N
J
J
H
F
K
L
L
M
Page 3

Hardware Identification
HIDDEN CAM - 8
1CAM SCREW - 8 2WOOD DOWEL - 6 3
SHELF PIN - 12
4PULL - 1
5STRIKE PLATE - 1 6
MAGNETIC CATCH - 1
7HINGE - 2
8L-WRENCH - 1
9
FURNITURE TIPPING RESTRAINT KIT - 1
98
Page 4
APPLIQUE CARD - 2
10

Hardware Identification
åScrews are shown actual size. You may receive extra hardware with your unit.
BLACK 1-9/16" PAN HEAD SCREW - 4
11 BLACK 1/2" HEX HEAD SCREW - 8 12
BLACK 1/2" FLAT HEAD SCREW - 2
14
SILVER 1/2" FLAT HEAD SCREW - 12
15 BLACK 3/4" MACHINE SCREW - 2
16
BLACK 1/2" PAN HEAD SCREW - 21
13
BLACK 5/8" FLAT HEAD SCREW - 2
17
Page 5

Step 1
å Assemble your unit on a carpeted floor or on the empty carton to avoid
scratching your unit or the floor.
å Turn eight CAM SCREWS (2) into the TOP (A), and ENDS (B and C).
å Push four HIDDEN CAMS (1) into the large holes in the ENDS (B and C).
C
B
A
The arrow in the HIDDEN
CAM must point toward the
hole in the edge of the board.
Hole
(8 used)
Arrow
2
1
Page 6
(4 used)

å Push four HIDDEN CAMS (1) into the large holes in the
FIXED SHELF (D).
å Insert six WOOD DOWELS (3) into the ENDS (B and C)
and FIXED SHELF (D).
Step 2
C
B
D
(4 used)
1
1
3
(6 used)
Meet Part (D). This component has
been engineered to be lighter, stronger,
faster… well ok. Not technically faster.
But definitely makes for a sturdier
bookcase that’s easier to assemble and
friendlier to the environment.
Page 7
Some assembly
(and snacks) required.

å Fasten the ENDS (B and C) to the FIXED SHELF (D).
Tighten four HIDDEN CAMS.
å NOTE: Be sure the WOOD DOWELS in the FIXED SHELF
insert into the ENDS.
Step 3
B
C
D
1
2
Page 8

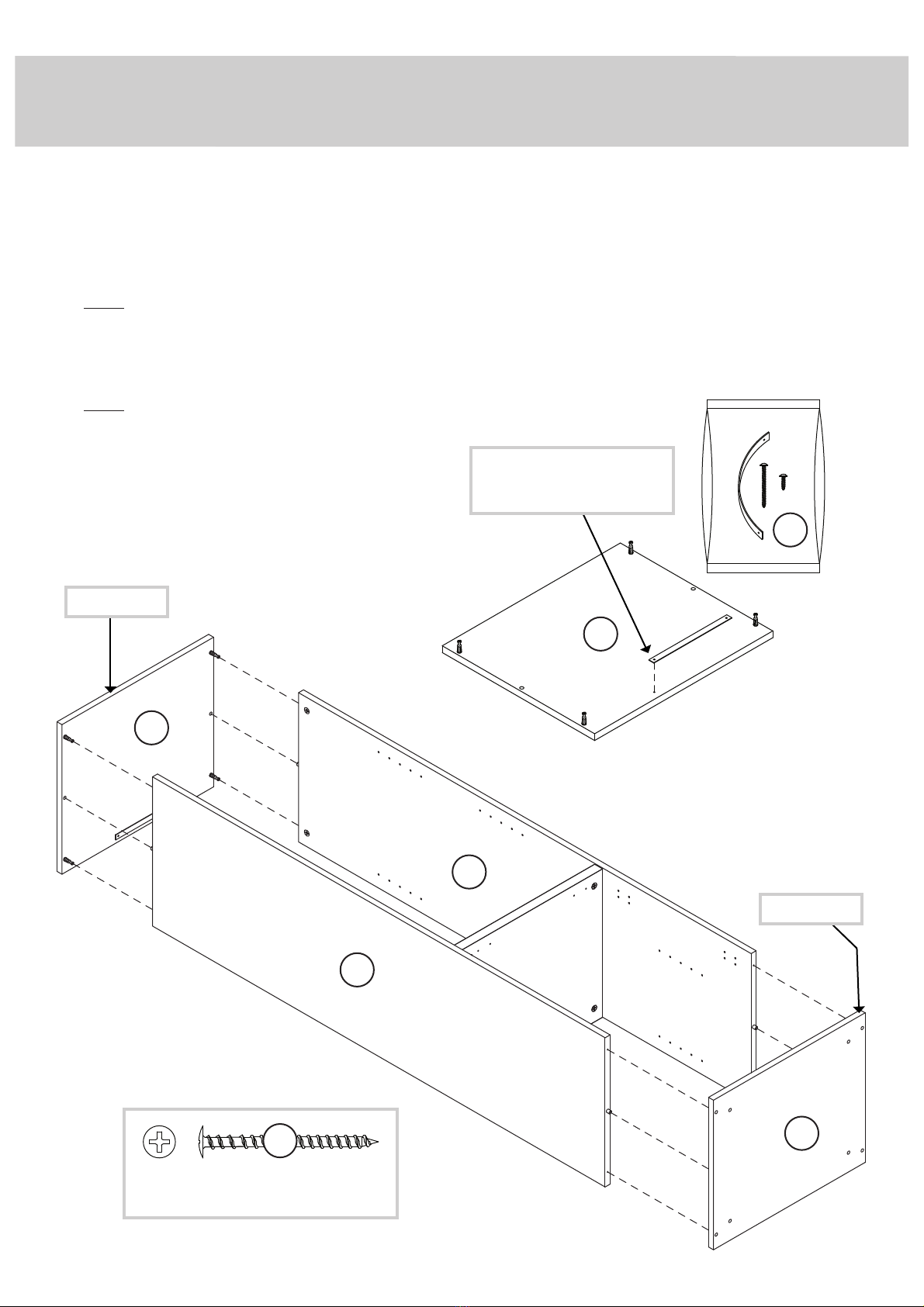

å Open the FURNITURE TIPPING RESTRAINT KIT (98) and
fasten the SAFETY STRAP to the TOP (A). Use the provided
short screw.
å Fasten the TOP (A) to the ENDS (B and C). Tighten four
HIDDEN CAMS.
å NOTE: Be sure the WOOD DOWELS in the ENDS insert into
the TOP.
å Fasten the BOTTOM (E) to the ENDS (B and C). Use four
BLACK 1-9/16" PAN HEAD SCREWS (11).
å NOTE: Be sure the WOOD DOWELS in the ENDS insert into
the BOTTOM.
Step 4
C
B
E
A
A
Finished edge
Finished edge
98
Use the short screw through
the hole in the strap and into
the top surface of the TOP (A).
Page 9
BLACK 1-9/16" PAN HEAD SCREW
(4 used in this step)
11

å Fasten the LEGS (J) to the BASE (N). Tighten four BLACK
1/2" HEX HEAD SCREWS (12) using the L-WRENCH (9).
Step 5
N
J
J
J
J
9
Page 10
BLACK 1/2" HEX HEAD SCREW
(4 used in this step)
12

å Carefully turn your unit over onto its front edges.
å Unfold the LARGE BACK (H) and lay it over your unit.
å Make equal margins along all four edges of the LARGE BACK (H).
Push on opposite corners of your unit if needed to make it "square".
å Fasten the upper BACK (H) to three edges of your unit using
nine BLACK 1/2" PAN HEAD SCREWS (13).
å Unfold the SMALL BACK (F) and lay it over your unit.
å Make equal margins along all four edges of the SMALL BACK (F). Push
on opposite corners of your unit if needed to make it "square".
å Fasten the SMALL BACK (F) to your unit using twelve
BLACK 1/2" PAN
HEAD SCREWS (13).
å Fasten the LEGS (J) to the BOTTOM (E). Tighten four BLACK 1/2" HEX
HEAD SCREWS (12) using the L-WRENCH (9).
Step 6
H
E
J
F
J
J
J
Unfinished
surface
Do not fasten SCREWS along
this edge until the lower BACK
is overlapping the upper BACK.
Do not stand the unit upright without the
BACK fastened. The unit may collapse.
Caution
Unfinished
surface
BLACK 1/2" PAN HEAD SCREW
(21 used for the BACKS)
13
BLACK 1/2" HEX HEAD SCREW
(4 used for the LEGS)
12
9
Page 11

å Carefully stand your unit upright.
å Place your unit in its final location against a wall. Locate
the center of a stud in your wall near your unit and mark
it with a pencil. Next, drill a 1/8" hole on the mark and into
the stud in your wall.
å Fasten the unit to the wall. Use the long screw through the
other end of the strap and into the 1/8" hole.
Step 7
Drill this hole into
a stud in your wall.
98
98
Page 12
Now might be a
good time to refresh
your drink.

Step
å This unit has the option of the door opening to the left or right. This step will show
you how to open the DOOR to the right. The next two steps will show you how to
open the DOOR to the LEFT.
å Fasten two HINGES (8) to the DOOR (K). Use four SILVER 1/2" FLAT
HEAD SCREWS (15).
å Fasten the STRIKE PLATE (6) to the DOOR (K). Use two BLACK 1/2" FLAT
HEAD SCREWS (14).
å NOTE: Be sure to position the STRIKE PLATE exactly as shown.
Step 8
K
DOOR OPEN RIGHT
SILVER 1/2" FLAT HEAD SCREW
(4 used for the HINGES)
15
6
BLACK 1/2" FLAT HEAD SCREW
(2 used for the STRIKE PLATE)
14
8
8
Page 13

Step

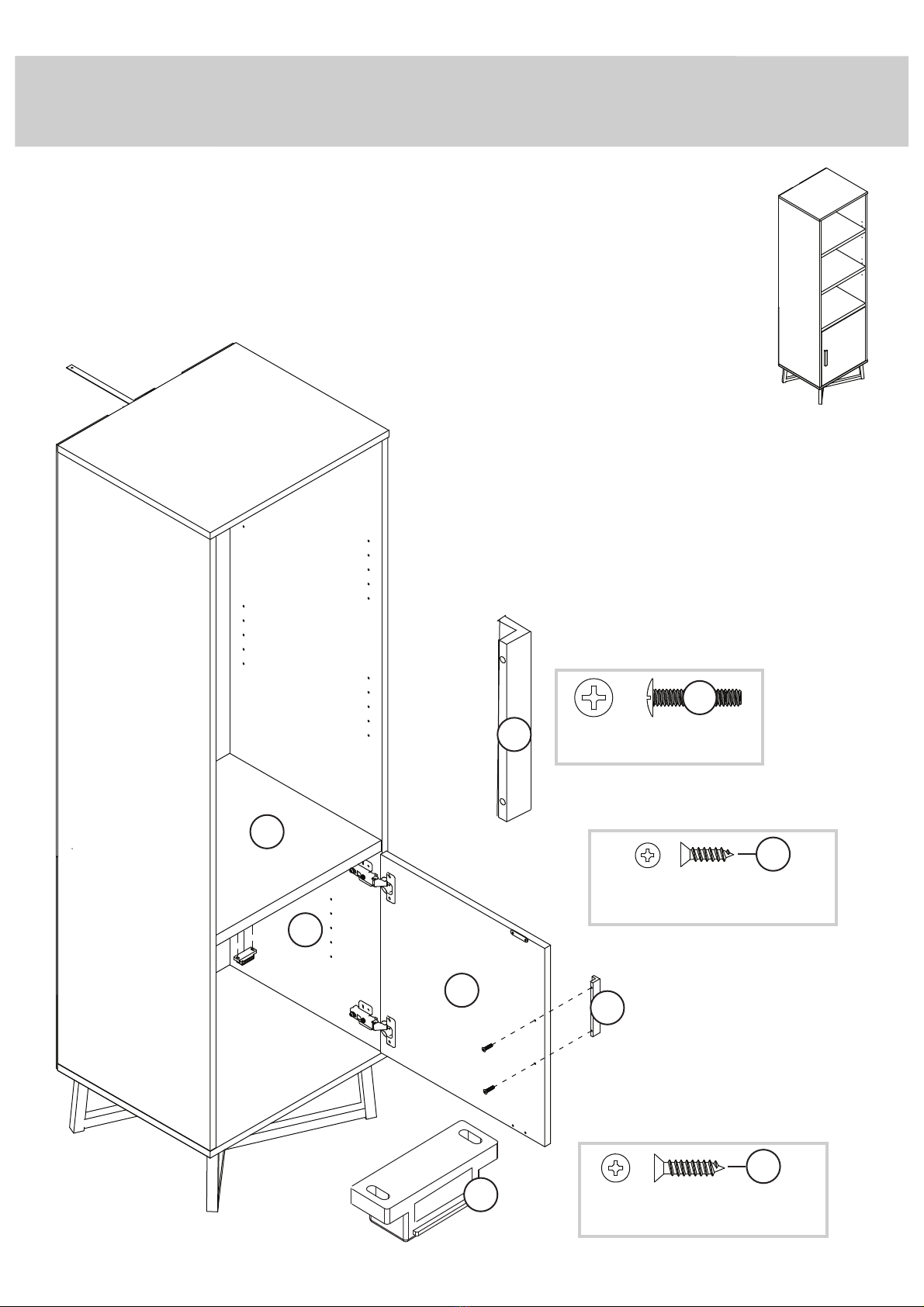

å Fasten the DOOR (K) to the RIGHT END (C). Use eight
SILVER 1/2" FLAT HEAD SCREWS (15).
å Fasten the PULL (5) to the DOOR (K). Use two BLACK 3/4"
MACHINE SCREWS (16).
å Fasten the MAGNETIC CATCH (7) to the FIXED SHELF (D).
Use two BLACK 5/8" FLAT HEAD SCREWS (17)
Step 9
BLACK 3/4" MACHINE SCREW
(2 used for the PULL)
16
BLACK 5/8" FLAT HEAD SCREW
(2 used for the MAGNETIC CATCH)
17
DOOR OPEN RIGHT
C
K
D
SILVER 1/2" FLAT HEAD SCREW
(8 used for the HINGES)
15
5
7
5
Page 14

å The following two steps will show you how to assemble the door to open left.
å Fasten two HINGES (8) to the DOOR (K). Use four SILVER 1/2" FLAT
HEAD SCREWS (15).
å Fasten the STRIKE PLATE (6) to the DOOR (K). Use two BLACK 1/2" FLAT
HEAD SCREWS (14).
å NOTE: Be sure to position the STRIKE PLATE exactly as shown.
Step 10
K
DOOR OPEN LEFT
BLACK 1/2" FLAT HEAD SCREW
(2 used for the STRIKE PLATE)
14
SILVER 1/2" FLAT HEAD SCREW
(4 used for the HINGES)
15
Page 15
6
8
8

StepStep 11
å Fasten the DOOR (K) to the LEFT END (B). Use eight
SILVER 1/2" FLAT HEAD SCREWS (15).
å Fasten the PULL (5) to the DOOR (K).
Use two BLACK 3/4"
MACHINE SCREWS (16).
å Fasten the MAGNETIC CATCH (7) to the FIXED SHELF (D).
Use two BLACK 5/8" FLAT HEAD SCREWS (17)
B
K
D
BLACK 3/4" MACHINE SCREW
(2 used for the PULL)
16
BLACK 5/8" FLAT HEAD SCREW
(2 used for the MAGNETIC CATCH)
17
5
SILVER 1/2" FLAT HEAD SCREW
(8 used for the HINGES)
15
DOOR OPEN LEFT
7
5
Page 16

Step
å Refer to the enlarged diagram to identify the parts on
the HINGES.
å The DOORS may need some adjustments. Follow the text
below to make needed adjustments.
å DOOR ADJUSTMENTS:
To adjust the DOORS from side to side (horizontal), turn the
adjusting screw in or out.
å To adjust the DOORS up and down (vertical), remove the round
hole screws and loosen the slotted hole screws. Move the DOORS
up or down to the desired location. Tighten the slotted hole screws
first. Then turn the round holes screws into their holes.
å To adjust the DOORS in or out (depth), loosen the mounting
screw one turn and move the DOORS in or out, as needed.
Tighten the mounting screw after making adjustments.
Step 12
(vertical adjustment)
4 screws
Adjusting screw (horizontal)
Mounting screw (depth)
Page 17
If you're doing this to
help a friend, don't
leave without a bite.

Step
å Insert the SHELF PINS (4) into the hole locations of your choice in the ENDS (B and C). Set the ADJUSTABLE
SHELVES (L and M) onto the SHELF PINS.
å Peel APPLIQUES from the APPLIQUE CARD (10) and stick them onto each visible HIDDEN CAM
å NOTE: Please read the back pages of the instruction booklet for important safety information.
å This completes assembly. Clean with a damp cloth. Wipe dry.
Step 13
L
L
M
C
B
4
(12 used)
To cover HIDDEN CAMS
(8 used)
15 lbs.
25 lbs.
25 lbs.
35 lbs.
35 lbs.
Page 18
Parts (L) and (M). Even more
components that are sturdier,
easier, and friendlier!
25 lbs.
10
Finished edge

WARNING
Please use your furniture correctly and safely. Improper use can cause safety hazards,
or damage to your furniture or household items. Carefully read the following chart.
Look out for: What can happen: How to avoid the problem:
• Overloaded shelves.
• Improper loading can cause the
product to be top-heavy.
• Risk of injury.
• Top-heavy furniture can tip over.
• Overloaded shelves can break.
• Never exceed the weight limits shown in
the instructions.
• Work from bottom to top when loading
shelves. Place the heavier items on the
lower shelves.
• Improperly moving furniture that is not
designed and equipped with casters. • Furniture can tip over or break if improperly moved.
• Physical injury. Furniture can be very
heavy.
• Unload shelves from top to bottom before
moving the furniture.
• Do not push furniture, especially on a
carpeted floor. Have a friend help you lift
the item and set it in place.
• This unit must be positioned against a
wall.
• Children climbing on the shelves can
cause the product to tip. • Risk of injury or death. • Do not allow children to climb on the shelves. Avoid placing items like toys or
candy on upper shelves.
• Use the supplied tipping restraint kit for
added stability.
• Placing TVs on furniture items that are
not designed to support a television is
hazardous.
• Risk of injury or death. TVs can be very
heavy. Plus the weight and location of the
picture tube tends to make TVs unbalanced
and prone to tipping forward.
• This product is not designed to support a
television.
