Teknion KIOSKS User manual
kiosks
INDEX
By Section
Product Name
Product
Code
Guide
No.
Last
Updated
Product Name
Product
Code
Guide
No.
Last
Updated
Product Name
Product
Code
Guide
No.
Last
Updated
Media Kiosk HDWT 101 May 2022 Framed Fabric Add-On HDAF 201 May 2022 Whiteboard/Taskboard Add-On HDAB
Media Chat Kiosk HDWV Framed Whiteboard Add-on HDAW Storage Kiosk HDWB
Wire Manager Kit HDAZ 202 May 2022 Gallery Kiosk HDWB
Open Felt Kiosk HDWF
Servery Kiosk HDWG
Open Planter Kiosk HDWP
Recycle Kiosk HDWR
Mudroom Kiosk HDWS
ACCESSORIES
NO INSTALLTION GUIDE
KIOSKS
*Click on the desired Installation Guide to jump to the Guide
page.
May 2022
PAGE 1 OF 1
Section:
Description: Page No:
Date:
Rev. No: 1
TV MOUNTING
KIOSK
Sept 2022 2 of 10
TKL_101
kiosks
installation Guides
Part and Product Identification
A - Media Kiosk (HDWT) x1
HDWT
or HDWV
B2 - Duct Cover (A16-10671) x1
B3 - Camera Mount Bracket
(A16-10678) x1
C - Media Chat Kiosk (HDWV) x1
B1 - Duct Plate (A16-10672) x1
TV MTG KIT- COLLABORATION WALL (X01-4190) x1
B8 - ClubTalk TV Mount Screw
and Spacer Kit (X01-2257) x1
B9 - WS_#8x0.625_ST_ZN_WH_QD
(E04-0049) x2
B10 - MS_1/4-20x0.5_ST_ZN_PN_QD
(E01-0141) x12
TV MTG KIT- COLLABORATION WALL (X01-4350) x1
D5 - ClubTalk TV Mount Screw
and Spacer Kit (X01-2257) x1
D6 - MS_1/4-20x0.5_ST_ZN_PN_QD
(E01-0141) x12
D1 - Top Bracket Subassembly -
Tech Easel (N01-5488) x1
D2 - Monitor Mounting Bracket
(A16-9659) x1
D3 - Tech Easel Monitor Bracket
(A16-9656) x2
D4 - Tech Easel Velcro 10" Long
(E05-0148) x6
B6 - Tech Easel Monitor Bracket
(A16-9656) x2
B4 - Top Bracket Subassembly -
Tech Easel (N01-5488) x1
B5 - Monitor Mounting Bracket
(A16-9659) x1
B7 - Tech Easel Velcro 10" Long
(E05-0148) x6
B4.1 - MS_10-24_1.0_ST_ZN_PN_SP
(E01-0133) x1
D1.1 - MS_10-24_1.0_ST_ZN_PN_SP
(E01-0133) x1
Section:
Description: Page No:
Date:
ATTACH TV MOUNT TO TV
Sept 2022 3 of 10
TKL_101
TV MOUNTING
KIOSK
kiosks
installation Guides
STEP 1: Attach the Top Bracket and Monitor Mounting Bracket to the TV of choice. The mounting kit hardware comes with screws, spacers and washers of various sizes to suit the TV of choice.
Use the screws needed from the TV mounting set.
NOTE: TV is not included with the Kiosk products, it is purchased by the customer.
NOTE: Use only what is needed from the mounting screws. There are extra to accommodate a wide variety of TVs.
NOTE: Depending on the TV size, the inner, middle or outer holes on the brackets will be used.
NOTE: TV is not included
with the Kiosk products, it is
purchased by the customer.
NOTE: Use only what is needed from
the mounting screws. There are extra to
accommodate a wide variety of TVs.
NOTE: Depending on the TV size,
the inner, middle or outer holes on
the brackets will be used.
B8
B8
B8
B4
B5
STEP 2b: Adjust the Webcam Mount to the desired height if necessary. Tighten the screw
when the Webcam Mount is at desired height.
STEP 2a: Insert the Webcam Mount through the centre gap in the Top Bracket. Position the
insert and the screw to line up through the hole.
Note: HDWV configurations do not come with a Webcam Mount.
Section:
Description: Page No:
Date:
INSTALL WEBCAM MOUNT (OPTIONAL) ADJUST FOR HEIGHT (OPTIONAL)
TKL_101
4 of 10
Sept 2022
TV MOUNTING
KIOSK
kiosks
installation Guides
NOTE: HDWV configurations do
not come with a Webcam Mount.
B4
B4.1
B3 B3
B4
STEP 3b: Install TV onto Tech Easel Monitor Bracket.
NOTE: TV hidden for clarity.
STEP 3a: Install Tech Easel Monitor Bracket. Use the pilot holes for placement.
Section:
Description: Page No:
Date:
INSTALL TECH EASEL MONITOR BRACKET HANG TV ONTO TECH EASEL MONITOR BRACKET
TKL_101
5 of 10
Sept 2022
TV MOUNTING
KIOSK
kiosks
installation Guides
NOTE: TV hidden for clarity.
B9
B6
B4
B5
STEP 5: Install Duct Plate and place Velcro around the extruded section in the middle of te
Duct Plate.
NOTE: TV hidden for clarity.
STEP 4: Turn disengagement lock on both sides to lock the Top Bracket into Place. This will
prevent the TV from falling off..
NOTE: TV hidden for clarity.
Section:
Description: Page No:
Date:
TURN DISENGAGEMENT LOCK INSTALL DUCT PLATE
TKL_101
6 of 10
Sept 2022
TV MOUNTING
KIOSK
kiosks
installation Guides
NOTE: The Duct Plate is for
HDWT configurations only.
NOTE: TV hidden for clarity.
NOTE: TV hidden for clarity.
NOTE: TV hidden for clarity.
B9
B1
B7
STEP 7: Remove both PET covers. The bottom one has metal brackets on its top to pull from.STEP 6: Hang the Duct Cover onto the Duct Plate.
Note: TV hidden for clarity.
Section:
Description: Page No:
Date:
INSTALL DUCT COVER REMOVE BOTH P.E.T COVERS
TKL_101
7 of 10
Sept 2022
TV MOUNTING
KIOSK
kiosks
installation Guides
NOTE: TV hidden for clarity.
B2
B7
B1
STEP 8b: For the Media Chat Kiosk (HDWV) the wire will be routed through the plastic
u-channel manager, which is mounted behind the tv, travels underneath the shelf and behind
the felt hinged door. The PET cover shown is closed magnetically. It can be opened by pulling
on the edge with sufficient force. NOTE: For HDWV configurations only.
Section:
Description: Page No:
Date:
ROUTE THE TV WIRING ROUTE THE TV WIRING
TKL_101
8 of 10
Sept 2022
TV MOUNTING
KIOSK
kiosks
installation Guides
STEP 8a: Slide the wiring through the Duct Plate and Duct Cover and through the gaps that
lead into the bottom. Use additional velcro strips if neccessary.
NOTE: For HDWV
configurations only.
NOTE: Electrics are
not supplied with
Kiosk.

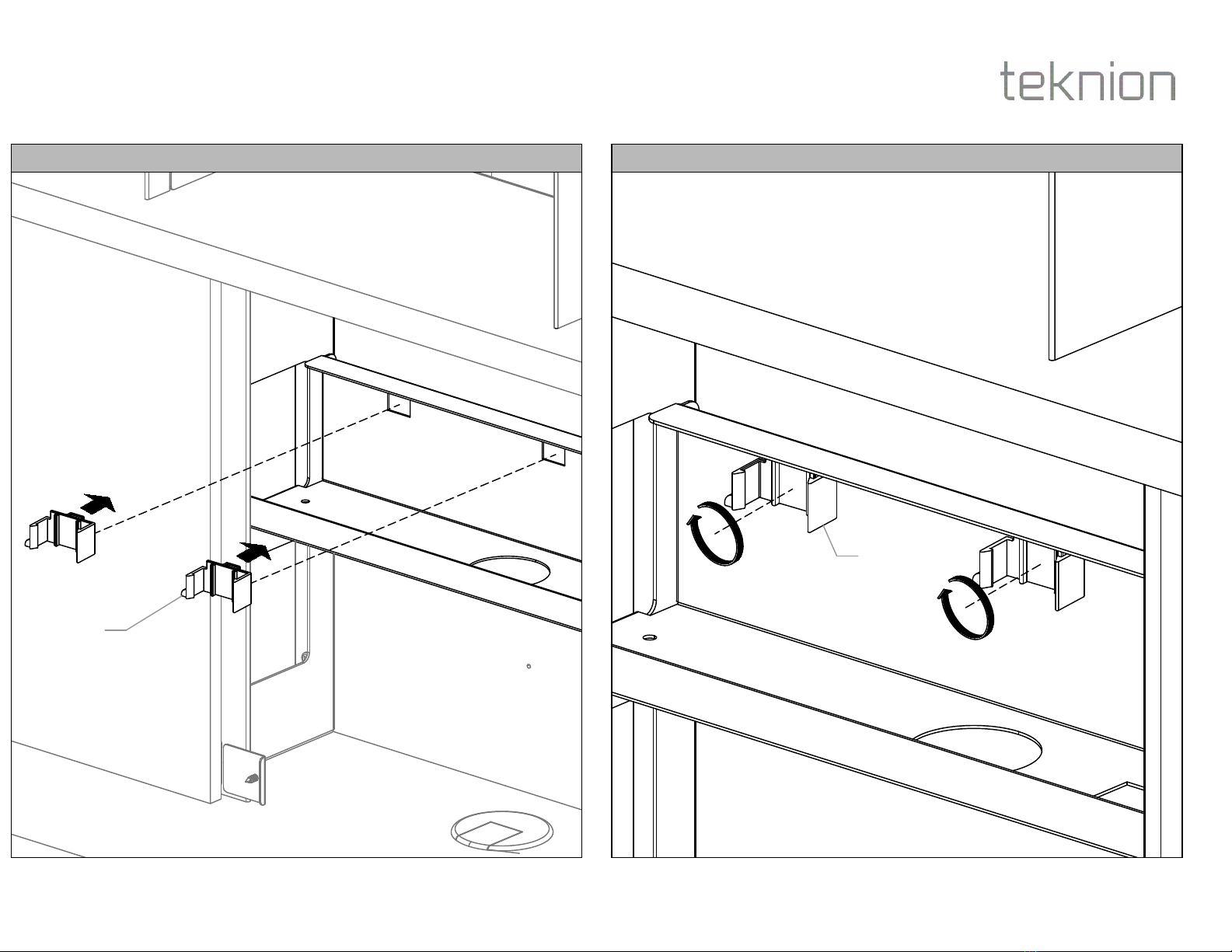

STEP 9a: Push in the Mounting Hangars into the gaps provided.
Section:
Description: Page No:
Date:
PUSH IN THE MOUNTING HANGARS TWIST THE MOUNTING HANGARS
TKL_101
9 of 10
Sept 2022
TV MOUNTING
KIOSK
kiosks
installation Guides
STEP 9b: Twist the Mounting Hangars clockwise 90 degrees so that they rest on the bracket.
PB02-E162
PB02-E162
STEP 11: Route the wiring through the bottom grommet or through one of the side cutouts as
shown. Use the remaining Velcro strips to manage the wiring for the power bar and TV.
STEP 10: Snap the Power Bar onto the the Mounting Hangars.
Section:
Description: Page No:
Date:
INSTALL POWER BAR ROUTE THE WIRING FOR THE POWER BAR
TKL_101
10 of 10
Sept 2022
TV MOUNTING
KIOSK
kiosks
installation Guides
YEPD400-AC245B-120

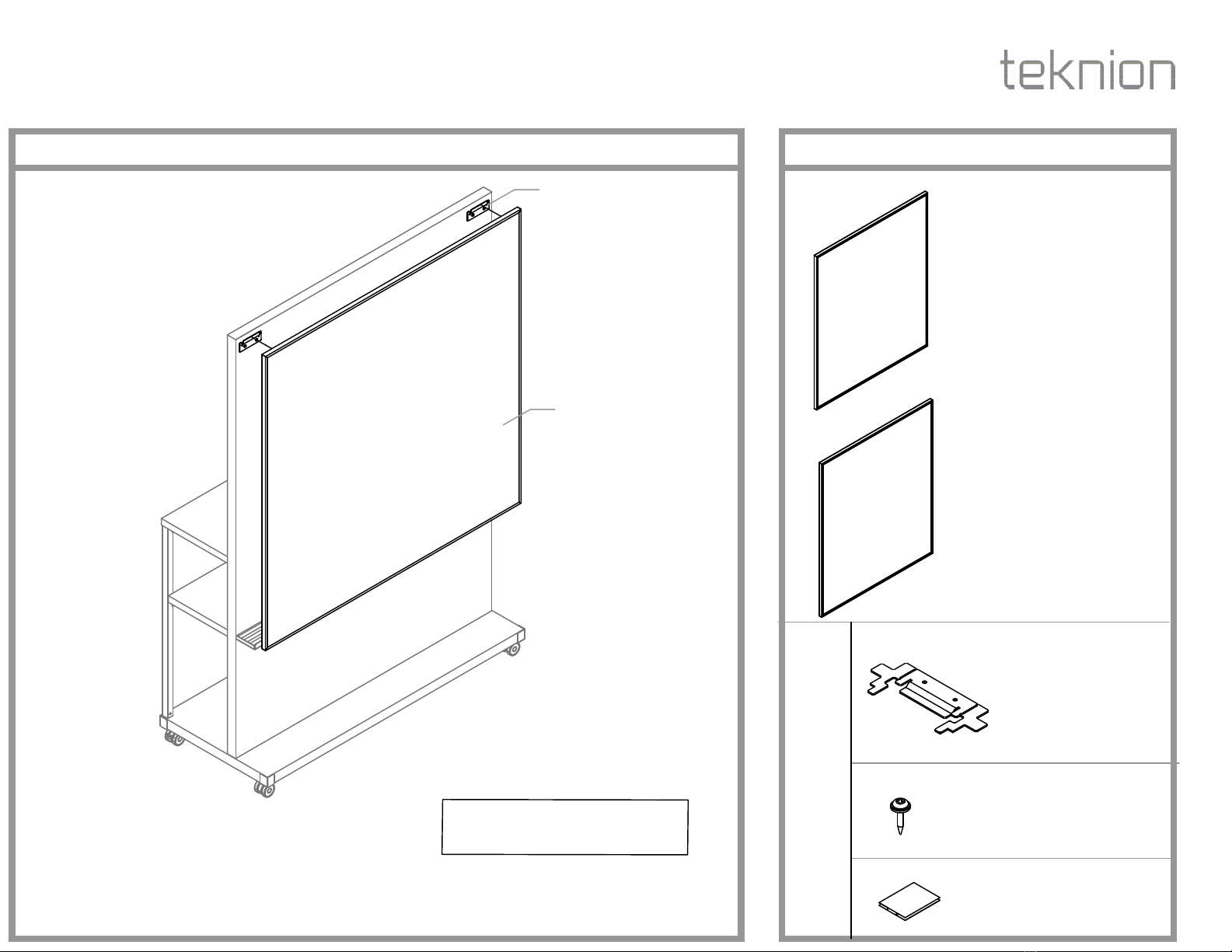

Framed Fabric Add-On (HDAF) and Framed White Board Add-On (HDAW) Part and Product Identification
A - Framed Fabric Add-on
Assembly
(N01-7487-X) x 1
Section:
Description: Page No:
Date:
Rev. No: 0
ADD-ON BOARDS
ACCESSORIES
May 2022 1 of 3
TKI_201
kiosks
Installation Guides
B - Hardware Kit-Screen Mounting Bracket
(X01-4499) x 1
B1 - Screen Mounting Bracket
(A16-10618) x 2
B2 - WS_M8X0.625_ST_ZN
_WH_QD
(E04-0049) x 4
B3 - Low Profile Dual Lock
Engaged Fastener
(E05-0028) x 2
Framed Whiteboard Sub-
Assembly
(N01-7265-X) x 1
OR
A
B1
NOTE: Don't use this Add-On on
Media Kiosk (HDWT) and Media chat
Kiosk (HDWV).
STEP 4: Attach Dual Lock Engaged Fasteners on the bottom of the board as shown.
STEP 3: Break Off tabs from the brackets as shown.
STEP 5: Hang the board on the brackets and attach the bottom with the dual lock fasteners.
Section:
Description: Page No:
Date:
BREAK OFF TABS
ATTACH DUAL LOCK ENGAGED FASTENERS
HANG ADD-ON ONTO BRACKETS
TKI_201
3 of 3
May 2022
ADD-ON
ACCESSORIES
kiosks
Installation Guides
B1
B3
A
B1
B3
Wire Manager Kit (HDAZ) Part and Product Identification
A - Cord Loop
(PB02-E152-YN) x1
Section:
Description: Page No:
Date:
Rev. No: 0
WIRE MANAGEMENT KIT
ACCESSORIES
May 2022 1 of 6
TKI_202
kiosks
Installation Guides
B - Mounting Bracket
(A16-10836) x1
C - Fixed Desk Wire Manager
(B03-2412) x1
D - WS_8x0.75_ST_ZN_PH_QD
(E04-0073) x7
A.1 - Wire Clip x2
(Comes Assembled)
A
B
C
NOTE: Wire Manager Compatible
with HDWG, HDWS and HDWD.
Can be used for HDWV and HDWT
if more Wire Management is needed.
NOTE: Installation on
HDWG shown as example.
STEP 2a: Remove the 2 Wire Clips attached to the middle of the Cord Loop.STEP 1: Find a pilot hole on the bottom side of a shelf and line up the top screw hole of the
Mounting Bracket with it. Secure it with a screw before securing the Mounting Bracket further
with the next 2 screws.
NOTE: The Mounting Bracket can also be secured where needed (without lining up with pilot
holes) as long as it is screwed in under a shelf and along the Kiosk Wall.
Section:
Description: Page No:
Date:
INSTALL MOUNTING BRACKET REMOVE WIRE CLIPS
TKI_202
2 of 6
May 2022
WIRE MANAGEMENT KIT
ACCESSORIES
kiosks
Installation Guides
D
D
B
D
A
A.1
NOTE: The Mounting Bracket can also be
secured where needed (without lining up
with pilot holes) as long as it is screwed in
under a shelf and along the Kiosk Wall.
STEP 4b: Another common placement for both the Media Kiosk (HDWT) and the Media Chat
Kiosk (HDWV) is to place it by the bottom of the TV mount to manage the TV wire.
NOTE: Installation on HDWV shown.
NOTE: TV on mount hidden for clarity.
NOTE: Top Shelf hidden for clarity.
STEP 4a: Stick the Fixed Wire Manager wherever it is needed. One common place it is placed is
by the side of the main kiosk wall.
Section:
Description: Page No:
Date:
SECURE DESK WIRE MANAGER SECURE DESK WIRE MANAGER
TKI_202
4 of 6
May 2022
WIRE MANAGEMENT KIT
ACCESSORIES
kiosks
Installation Guides
CC
NOTE: TV on mount
hidden for clarity.
NOTE: Top Shelf
hidden for clarity.
NOTE: Installation
on HDWV shown.
Section:
Description: Page No:
Date:
ROUTE WIRING
May 2022 6 of 6
TKI_202
WIRE MANAGEMENT KIT
ACCESSORIES
kiosks
Installation Guides
STEP 6: Route the wires through the different section of the Wire Management Kit. This is an example of how the Wire Management Kit can be used to manage cables and wires.
NOTE: Power Bar shown is YEPD-7. It is not included with the Wire Management kit.
NOTE: Power Bar
shown is YEPD-7. It is
not included with the
Wire Management kit.
