1- GENERAL

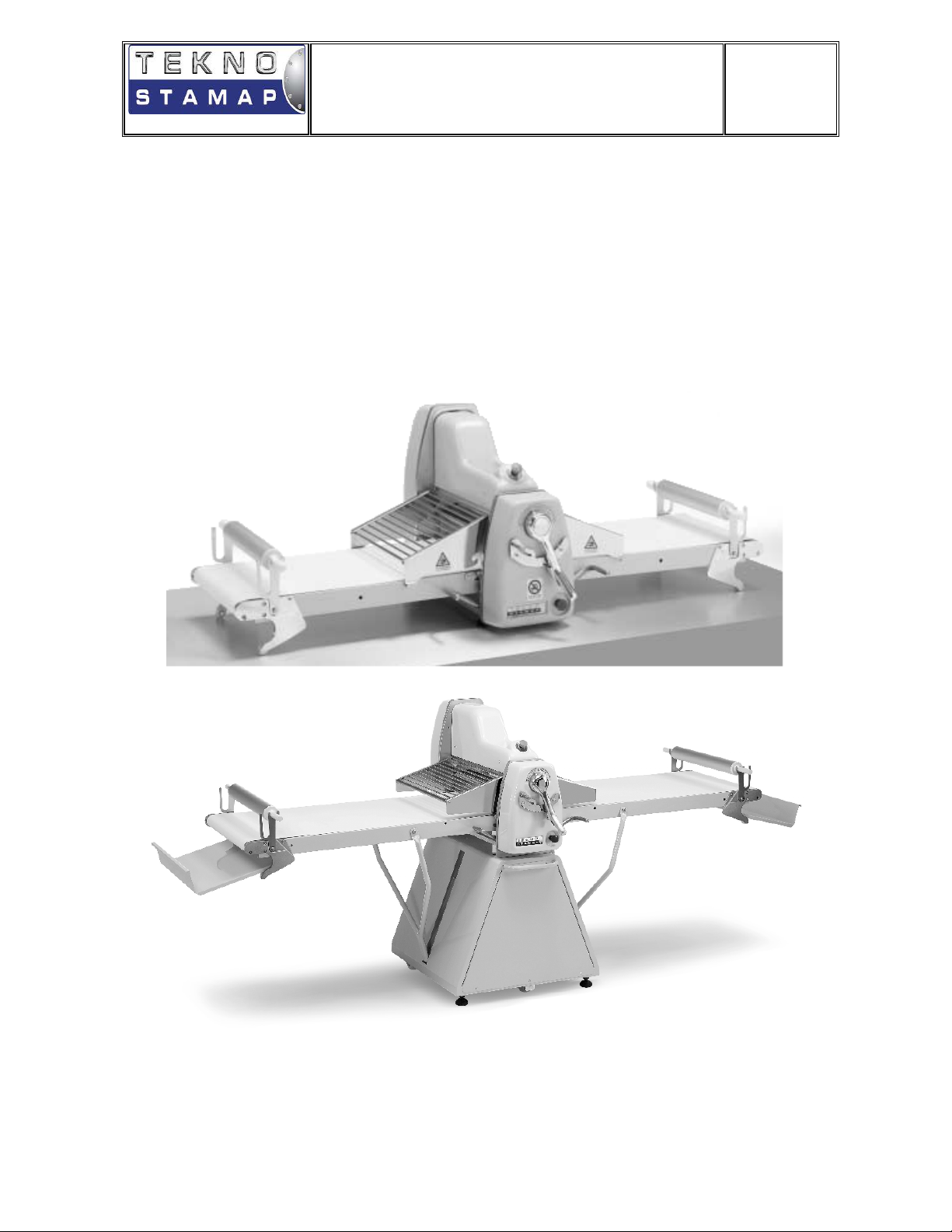

USE AND MAINTENANCE MANUAL
MANUAL DOUGH SHEETER
LAM 500-600 - LAM 500-600 BENCH-TOP
p. 5/47
22 04 001
ENGLISH
mod.04.01
Property of TEKNO STAMAP S.r.l.
Reproduction, even partial, forbidden without authorisation
1.1 GUARANTEE
TEKNO STAMAP SRL guarantees the good working and the quality of this Tekno Stamap
machine for a period of 12 months from the machine shipping date ONLY IF the guarantee
coupon below is filled in and sent within 15 days of receiving the machine.
The guarantee is valid only if the machine is correctly used and maintained according to the
enclosed instructions. The guarantee is no longer applicable if the machine has been tampered
with in any way, modified or repaired without our authorisation, or if non authentic spare parts have
been used. The guarantee does not cover damage resulting from normal wear, from faults of the
user, or incorrect use of the machine. The conveyor belts are excluded from the guarantee.
The guarantee is limited to the replacement of the faulty part covered by guarantee. All other
claims, such as indemnities for interruptions in production or similar, are rejected.
If considered necessary, TEKNO STAMAP SRL may ask for the machine to be returned to the
factory for repair under guarantee.
Place of jurisdiction: 36100 Grisignano Vi
TEKNO STAMAP SRL – Via Vittorio Veneto 131 – 36040 Grisignano di Zocco (VI) – Italy
-----------------------------------------------------------------------------------------------------------------------------
To be returned to the manufacturer.
This coupon must be mailed before staring to work with the machine.
GUARANTEE COUPON
The manufacturer guarantees:
Model: ……………………………………………………………………………….
Serial number: ..…………...……………………………………………………………….
Date of installation or start-up: …………………..………………………………..
Name and complete address …………………………………………………………
……………………………………………………………………………………………..
……………………………………………………………………………………………..

USE AND MAINTENANCE MANUAL
MANUAL DOUGH SHEETER
LAM 500-600 - LAM 500-600 BENCH-TOP
p. 6/47
22 04 001
ENGLISH
mod.04.01
Property of TEKNO STAMAP S.r.l.
Reproduction, even partial, forbidden without authorisation
1.2 GENERAL WARNINGS AND APPLICATION
The aim of this manual is:
− To facilitate understanding and operation of the machine and enable the system to be used to
its full technical potential.
− To provide instructions for the most effective and rational maintenance and help the operator to
understand any faults and how to remedy them.
− To warn against risks inherent in use of the machine due to failure to observe the safety
regulations.
− To indicate working limits for maintaining hygiene and environmental conditions and to ensure
health at work.
These pages must be read carefully before starting the machine.
This manual forms an integral part of the product; it must be kept near the machine for prompt
easy consultation and must also be kept for future reference until the machine is scrapped.
The manufacturer does not guarantee the technical-legal suitability of the installation premises and
machine supporting services but provides all instructions for correct installation in the relevant
section of this manual.
For the above, the user is advised to contact an expert professional technician, also for
compliance with any local laws or regulations.
• The machine is designed for the food industry.
It is a machine designed for sheeting of dough obtained with different types of ingredients like
flour, water, sugar, fat, butter, salt, yeast, etc. and of medium consistency for cake-making in
general.
• The machine must be used only for the purpose for which it has been designed. All other uses
are considered inappropriate and therefore unreasonable.
The manufacturer cannot be held liable for incorrect use, inappropriate and/or
unreasonable acts.
The manufacturer cannot be held liable for any damage caused by inappropriate, incorrect or
unreasonable use, for example:
− inappropriate use by non-trained personnel;
− non-authorised modifications or work on the machine;
− use of non-original spare parts or parts not specific for the model;
− failure to follow the instructions, even partially.

USE AND MAINTENANCE MANUAL
MANUAL DOUGH SHEETER
LAM 500-600 - LAM 500-600 BENCH-TOP
p. 7/47
22 04 001
ENGLISH
mod.04.01
Property of TEKNO STAMAP S.r.l.
Reproduction, even partial, forbidden without authorisation
1.3 RATING PLATE DATA

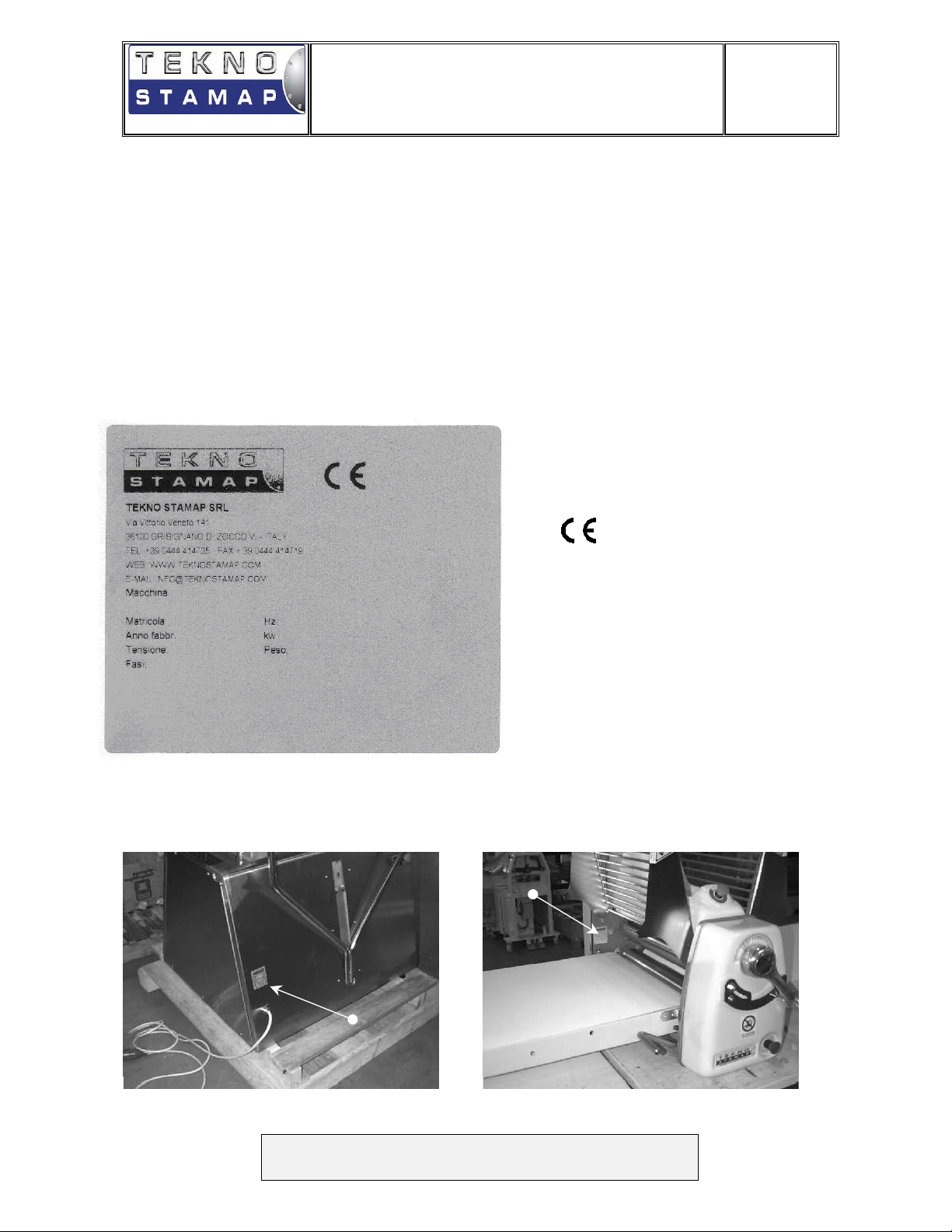

Figure 1 shows the identification plate applied on the machine. In figure 2 an arrow clearly
indicates the position of the plate on the machine. The plate is made of screen printed aluminium
and the data are written in indelible ink to last as long as possible.
In place of the aluminium plate there may be an adhesive label complete with all the machine
identification data; any attempt to remove this label will destroy it.
It is forbidden to remove or replace the “CE MARKING” plate. If the plate is damaged or
removed, please inform TEKNO STAMAP s.r.l. immediately.
Figura 1
Figura 2 Figura 3
Basement version table-top version

USE AND MAINTENANCE MANUAL
MANUAL DOUGH SHEETER
LAM 500-600 - LAM 500-600 BENCH-TOP
p. 8/47
22 04 001
ENGLISH
mod.04.01
Property of TEKNO STAMAP S.r.l.
Reproduction, even partial, forbidden without authorisation
1.4 TRANSPORT INSTRUCTIONS
A B
PACKAGING DATA
− The machine is supplied on a pallet, in a strapped triple-layer corrugated cardboard box.
MACHINE MOD. TYPE OF PACKAGING WEIGHT
KG.
A mm B mm H mm
LAM 507 BENCH-TOP Pallet and cardboard box 800 1200 1100
LAM 510 BENCH-TOP Pallet and cardboard box 800 1200 1250
LAM 610 BENCH-TOP Pallet and cardboard box 800 1200 1250
LAM 507 Pallet and cardboard box 1120 1170 1740
LAM 510 Pallet and cardboard box 1120 1170 1740
LAM 610 Pallet and cardboard box 1120 1170 1740
LAM 614 Pallet and cardboard box 1120 1170 1740
LAM 616 Pallet and cardboard box 1120 1170 1740
INSTRUCTIONS FOR TRANSPORT AND UNLOADING
− Loading and unloading from the vehicle can be performed:

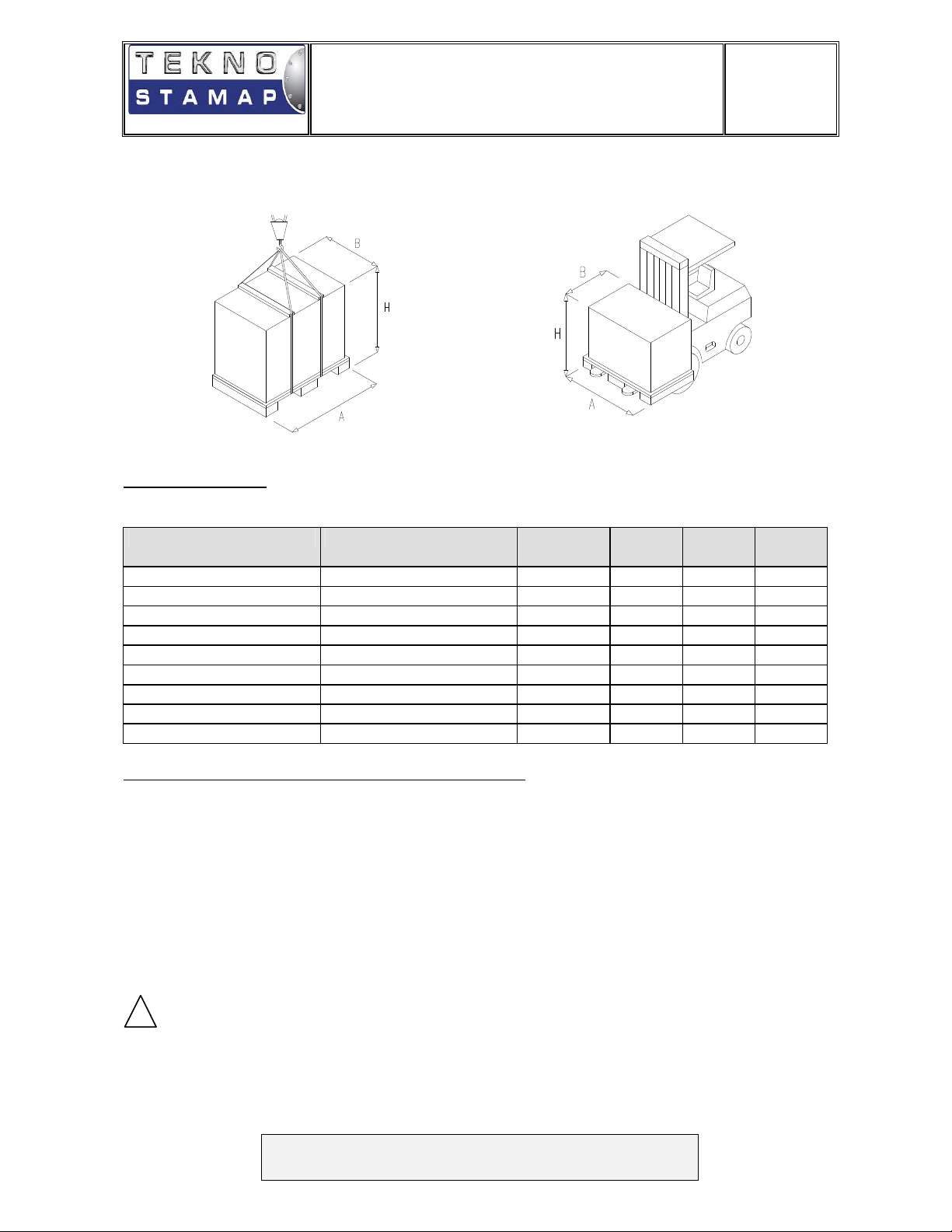

− by means of crane, see figure “A”
− by means of forklift truck, see figure “B”.
− The machine must be transported adopting all precautions to prevent damage to the machine.
− In particular the machine must not be placed on top of other materials and vice versa either
during transport or storage.
− During transport the machine must be positioned so that it cannot be knocked by other
materials loaded on the same vehicle.
− Before unloading from the vehicle, check that the packaging is intact and that there is no risk of
tipping over.
− During unloading, place the machine carefully on the ground to prevent it being knocked.
!CAUTION When handling, pay attention to all the indications on the packaging. The
capacity of the belts must be adequate for the weight of the packages. Do
not use metal belts.

USE AND MAINTENANCE MANUAL
MANUAL DOUGH SHEETER
LAM 500-600 - LAM 500-600 BENCH-TOP
p. 9/47
22 04 001
ENGLISH
mod.04.01
Property of TEKNO STAMAP S.r.l.
Reproduction, even partial, forbidden without authorisation
1.5 MACHINE ASSEMBLING

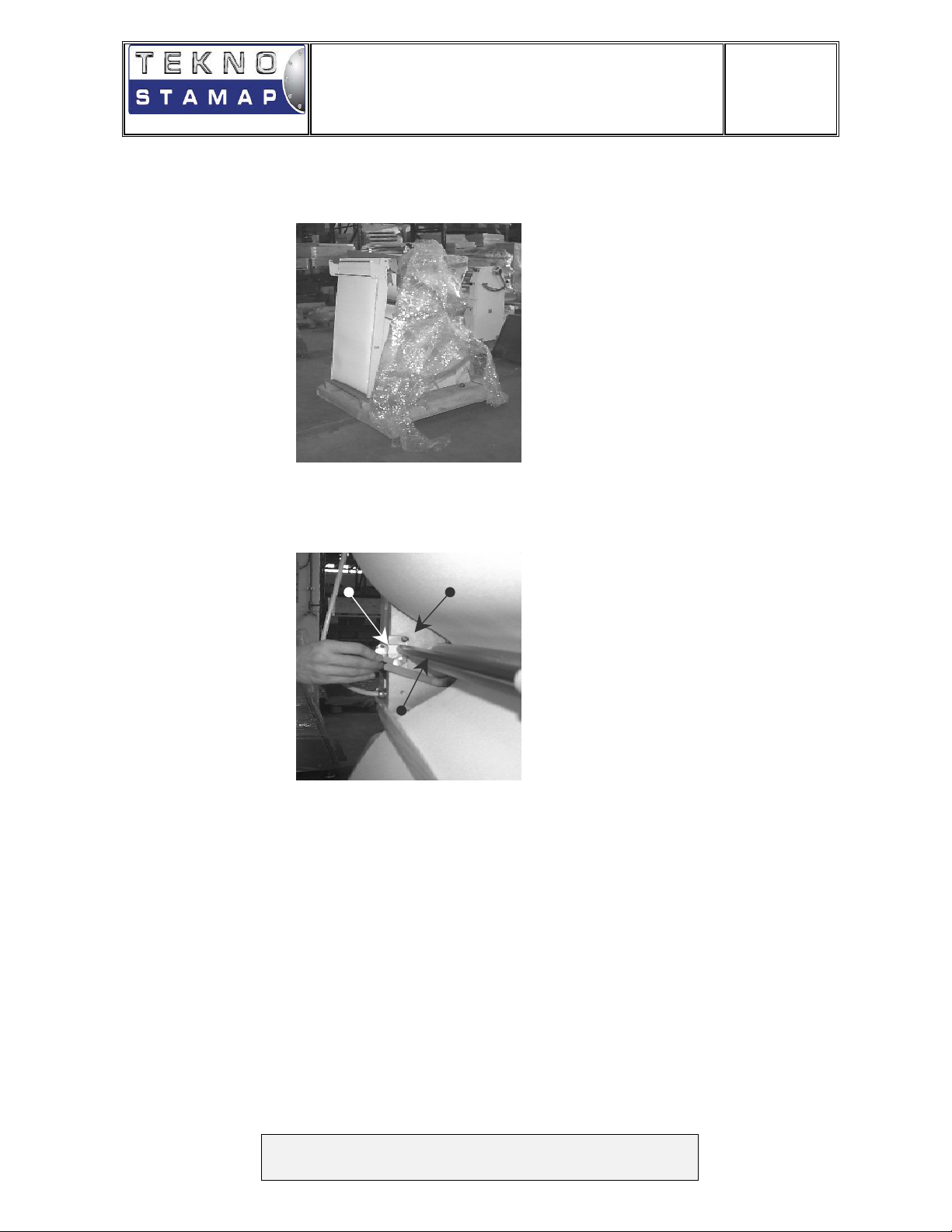

The machine is delivered on a pallet and wrapped with nylon film, and in order to guarantee
a safe transportation the working tables are dismantled and basement is fixed through 4
screws.
behind the working table a long screw will be used as supporting point for the working tables.
It is necessary to release this screw on both side of the table. Be careful not to loose the
white washers assembled with the screw

USE AND MAINTENANCE MANUAL
MANUAL DOUGH SHEETER
LAM 500-600 - LAM 500-600 BENCH-TOP
p. 10/47
22 04 001
ENGLISH
mod.04.01
Property of TEKNO STAMAP S.r.l.
Reproduction, even partial, forbidden without authorisation

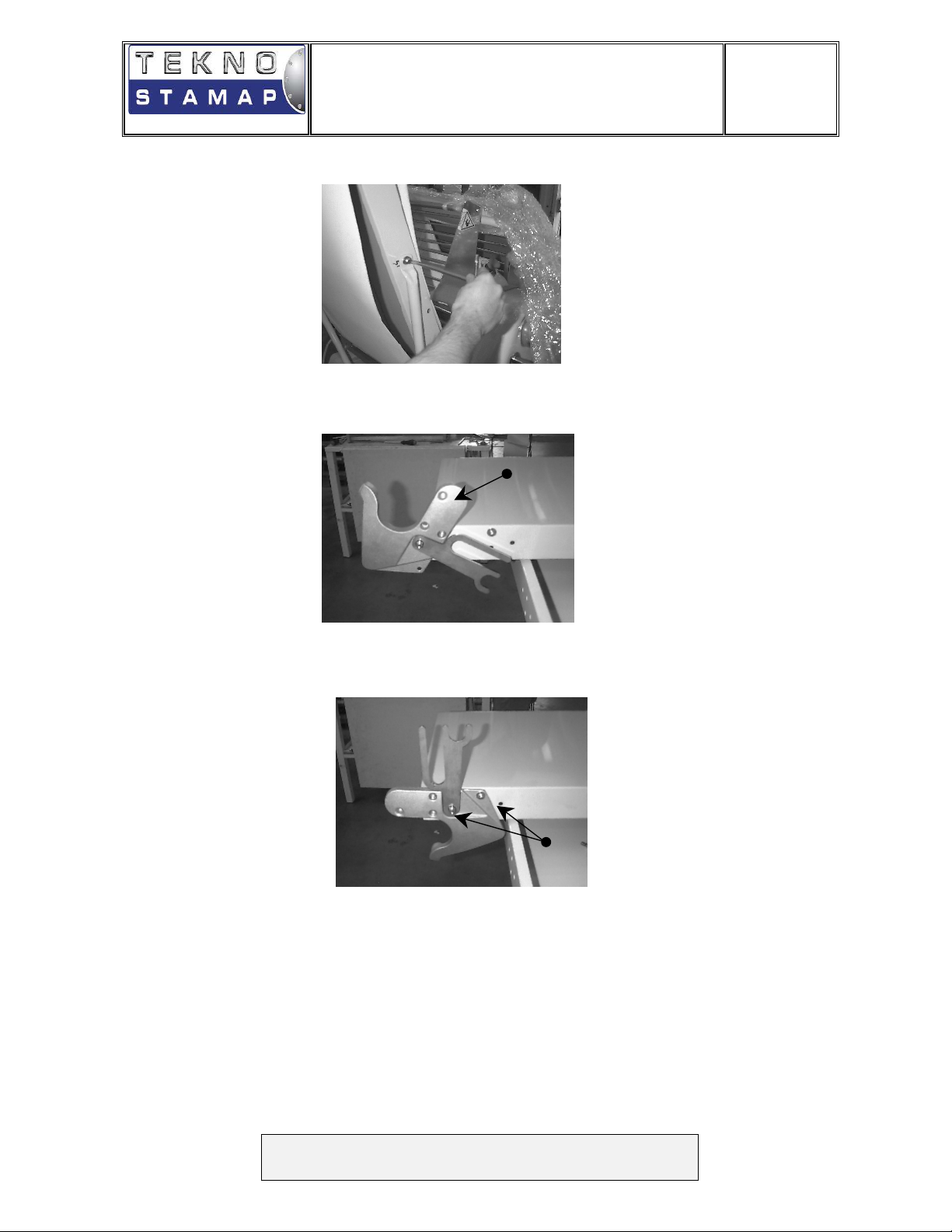

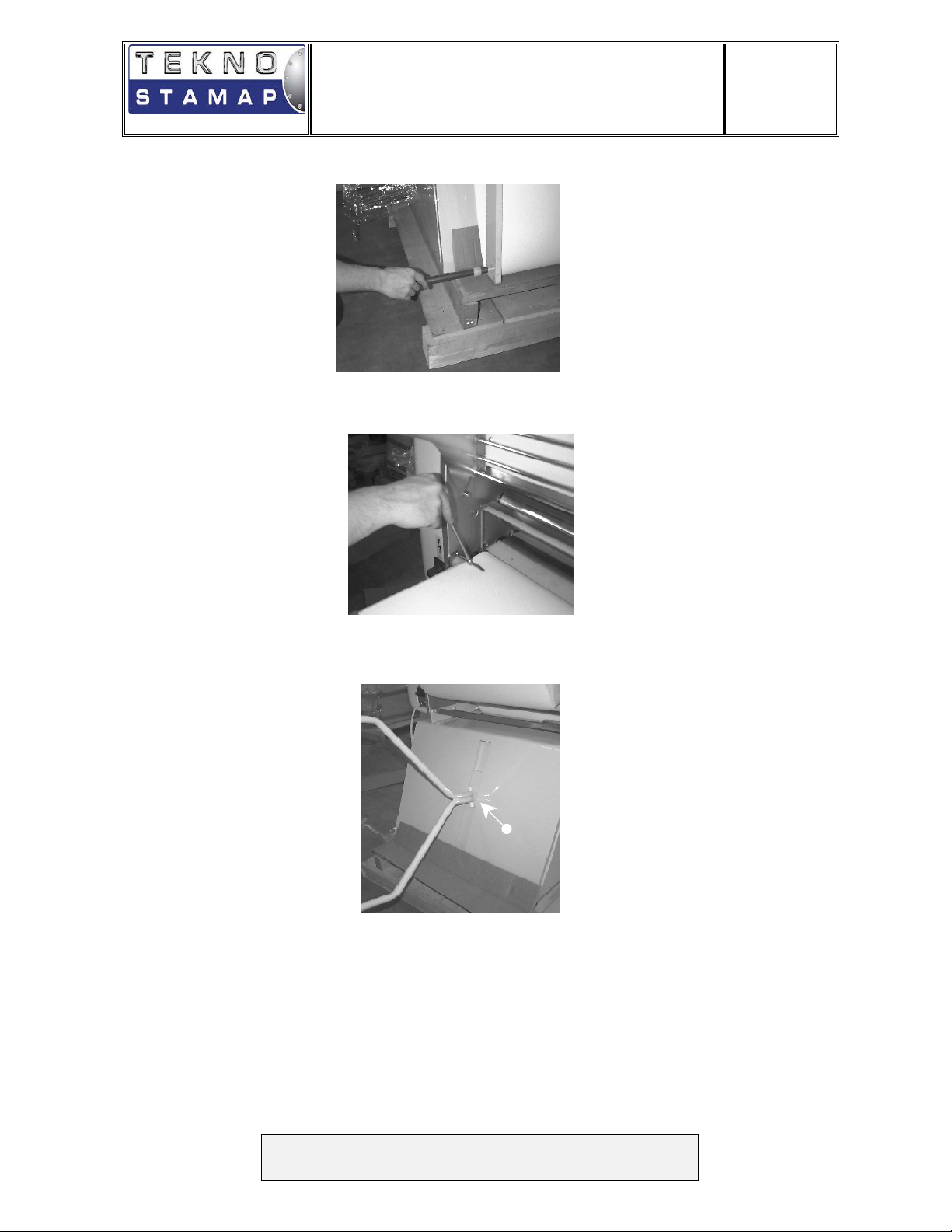

This long screw will be inserted on the table as shown on the picture. Each washer will be
assembled at the end of the screw.
Now it is possible to hoist the table till the screw is located on it previous place, then fix it
through the small plate. The small plate will be fixed by the screw as indicated on the above
Inside the packaging, you will find 2 supporting legs at Y. Once the working table is
assembled, it must be hoisted to place the legs which have to be hanged inside the slit as
shown in the picture

USE AND MAINTENANCE MANUAL
MANUAL DOUGH SHEETER
LAM 500-600 - LAM 500-600 BENCH-TOP
p. 11/47
22 04 001
ENGLISH
mod.04.01
Property of TEKNO STAMAP S.r.l.
Reproduction, even partial, forbidden without authorisation
Revolve lightly the leg and hoist it until it reaches the screws on the table and fix it on the
tables through the screws previously unscrewed as shown on the above picture
The ends of the table are fitted with 2 belt tie-rods which can be used as support for the
table as indicated on picture above
It is necessary to unscrew the 2 indicated screws and turn the complete tie-rod group till the
ideal position is reached, then screw the screws as previous position: so all the belt is in
tension. Now the working tables are assembled. To install completely the machine it is
necessary to open the side panels and unscrew the 4 screws which fix the machine on the
pallet.

USE AND MAINTENANCE MANUAL
MANUAL DOUGH SHEETER
LAM 500-600 - LAM 500-600 BENCH-TOP
p. 12/47
22 04 001
ENGLISH
mod.04.01
Property of TEKNO STAMAP S.r.l.
Reproduction, even partial, forbidden without authorisation
1.6 DECOMMISSIONING
1.6.1 SETTING ASIDE
− If the machine has to be stored, it must be protected against dust and stored in a covered
place.
− If the machine is not going to be used for a long time, it must be protected against dust and
atmospheric agents by means of appropriate covering.
− No special precautions are required for the motor and electrical system; simply follow the above
instructions.
1.6.2 SCRAPPING
− To scrap the machine, proceed as follows:
1. Eliminate the electricity supply cable.
2. Remove all moving parts that could be a hazard.
3. Dispose of the majority of parts as scrap metal and take to authorised scrapyards.
4. The other parts, plastic for example, must be disposed of according to current
regulations, via specialist firms if necessary.

USE AND MAINTENANCE MANUAL
MANUAL DOUGH SHEETER
LAM 500-600 - LAM 500-600 BENCH-TOP
p. 13/47
22 04 001
ENGLISH
mod.04.01.10
Property of TEKNO STAMAP S.r.l.
Reproduction, even partial, forbidden without authorisation
2- TECHNICAL SPECIFICATIONS

USE AND MAINTENANCE MANUAL
MANUAL DOUGH SHEETER
LAM 500-600 - LAM 500-600 BENCH-TOP
p. 14/47
22 04 001
ENGLISH
mod.04.01.10
Property of TEKNO STAMAP S.r.l.
Reproduction, even partial, forbidden without authorisation
2.1 TECHNICAL DESCRIPTION
APPLICATION
• The machine is designed for the food industry.
It is a machine designed for sheeting of dough obtained with different types of ingredients like
flour, water, sugar, fat, butter, salt, yeast, etc. and of medium consistency for cake-making in
general.
• The machine must be used only for the purpose for which it has been designed. All other uses
are considered inappropriate and therefore unreasonable.

USE AND MAINTENANCE MANUAL
MANUAL DOUGH SHEETER
LAM 500-600 - LAM 500-600 BENCH-TOP
p. 15/47
22 04 001
ENGLISH
mod.04.01.10
Property of TEKNO STAMAP S.r.l.
Reproduction, even partial, forbidden without authorisation
COMPOSITION OF THE MACHINE
Model Lam 500 - 600 bench-top
− The dough sheeter consists mainly of a supporting structure (1) and three plastic covering
panels (2) - (3) - (4).
− The supporting structure (1) consists of two sides (in aluminium) screwed together by means of
metal spacers.
− Cover (2) houses the belt drive unit. Cover (3) houses the electric motor and cover (4) the drive
unit, called clutch unit, for reversing the movement of the machine.
− The base is provided with levelling system (5) to ensure machine stability.
Model Lam 500 - 600 (with base)
− The dough sheeter consists mainly of a supporting structure (1) and three plastic covering
panels (2) - (3) - (4).
− The supporting structure (1) consists of a shaped welded metal sheet made of painted steel
with two sides (in aluminium) fitted above it and screwed together by means of metal spacers.
− Cover (2) houses the belt drive unit. Cover (3) houses the electric motor and cover (4) the drive
unit, called clutch unit, for reversing the movement of the machine.
− The base is provided with levelling system (5) to ensure machine stability.
OPERATION
Model Lam 500 - 600 bench-top and Lam 500 – 600 (with base)
− The conveyor belts (6) are operated by the control lever (7), with movement according to the
position of the lever. It has two side operating positions and one central position (idle). By
turning the lever to the left, the conveyor belt (6) will move from right to left and vice versa; if
the lever is set to the central intermediate position (idle) the conveyor belts will be at a standstill.
− If devices other than the control lever (7) are activated during operation, for example one of the
two safety grilles (10) is raised, the machine will immediately stop. Press the start button (9) to
re-start the machine.
− Via the handle (11) the product thickness can be varied from zero (0) millimetres to thirty-five
(35) millimetres. The rolling thickness expressed in millimetres can be read on the self-adhesive
label coinciding with one of the handle references. Rolling must be performed gradually,
starting from the thickest size (35 mm) and gradually reaching the thickness required.

USE AND MAINTENANCE MANUAL
MANUAL DOUGH SHEETER
LAM 500-600 - LAM 500-600 BENCH-TOP
p. 16/47
22 04 001
ENGLISH
mod.04.01.10
Property of TEKNO STAMAP S.r.l.
Reproduction, even partial, forbidden without authorisation
MACHINE MOVEMENT
− The single-speed motor operates the calibration cylinders via pulley, belt and driven pulley. In
their turn, the calibrating cylinders operate the clutch centre drive. The electric motor rotation
can be reversed by means of the control lever (7) in conjunction with internal switches. This
control lever pivots the coupling gears which, according to the motor rotation direction, engage
the drive cylinder of one of the conveyor belts.
PROTECTIONS
− The central area consisting of the two calibrating cylinders, considered the most dangerous
area for the operator, is completely covered and protected by two side protection grilles (10).
They are made entirely of stainless steel. If one of the two grilles is raised, even by a few
millimetres, a microswitch will cut in, immediately stopping the machine.
− The conveyor surfaces, on which the conveyor belts rotate, are designed so that the operator
cannot insert his fingers between the surface and the belt.
ELECTRICAL SYSTEM
All the electrical components subject to rated voltage and the electric motors are enclosed in a
casing with IP 54 protection rating. The control elements, push-buttons and selectors operate at
low voltage (24V) and are enclosed in casing with IP 54 protection rating.
The machine is designed for earth connection to protect against indirect contact risks (Chap. 10).
The electrical power and control circuit is provided with its own protection devices against short
circuits and overloads.
On the front of the machine, opposite the operator’s normal working position, is the
stop/emergency button (see chap. 4.2). This button disables the start buttons, thus preventing the
machine from being started. Reset, which is obtained by pulling the button cap, does not
automatically restart the machine.

USE AND MAINTENANCE MANUAL
MANUAL DOUGH SHEETER
LAM 500-600 - LAM 500-600 BENCH-TOP
p. 17/47
22 04 001
ENGLISH
mod.04.01.10
Property of TEKNO STAMAP S.r.l.
Reproduction, even partial, forbidden without authorisation
2.2 TECHNICAL SPECIFICATIONS

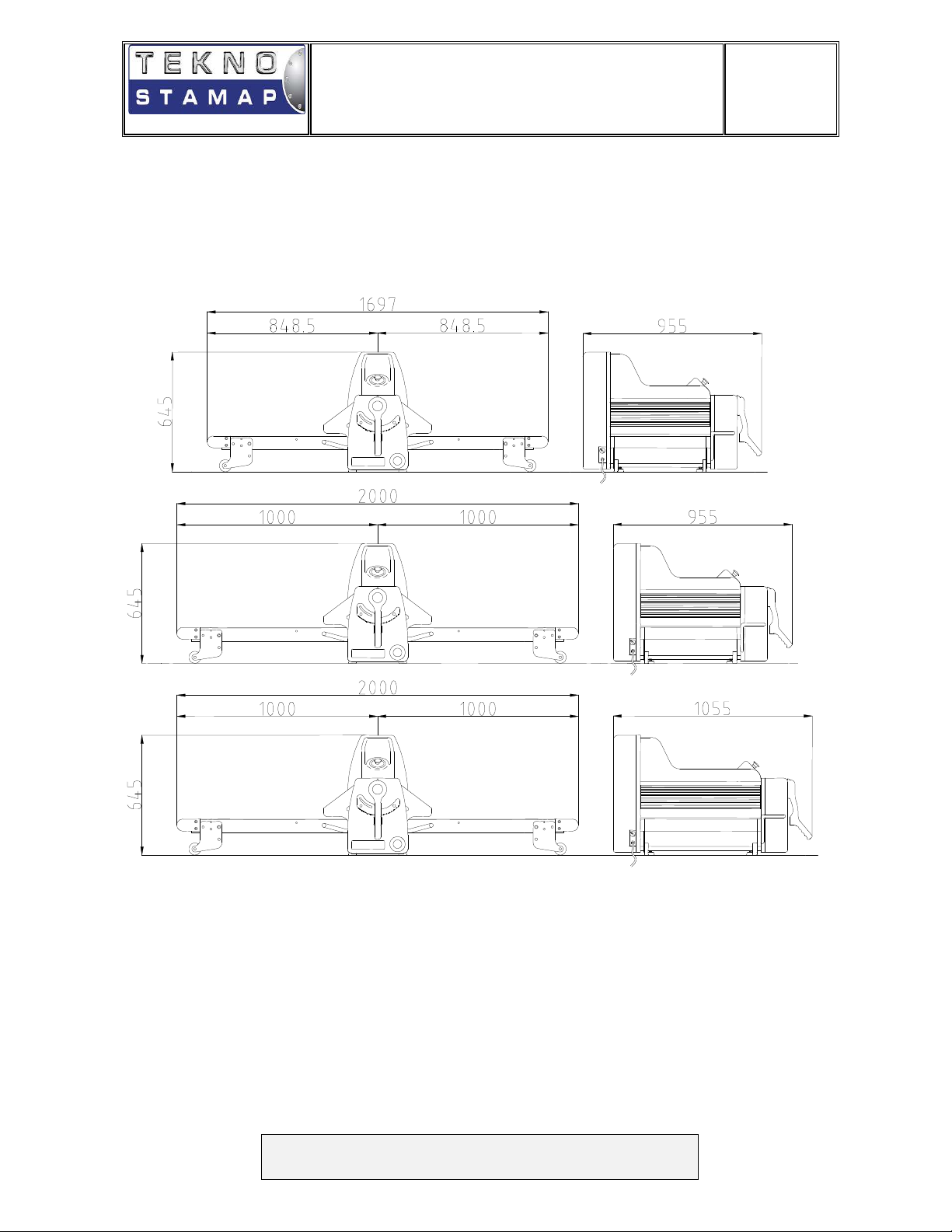

lam 507
Bench-top
lam 510
Bench-top
lam 610
Bench-top

USE AND MAINTENANCE MANUAL
MANUAL DOUGH SHEETER
LAM 500-600 - LAM 500-600 BENCH-TOP
p. 18/47
22 04 001
ENGLISH
mod.04.01.10
Property of TEKNO STAMAP S.r.l.
Reproduction, even partial, forbidden without authorisation

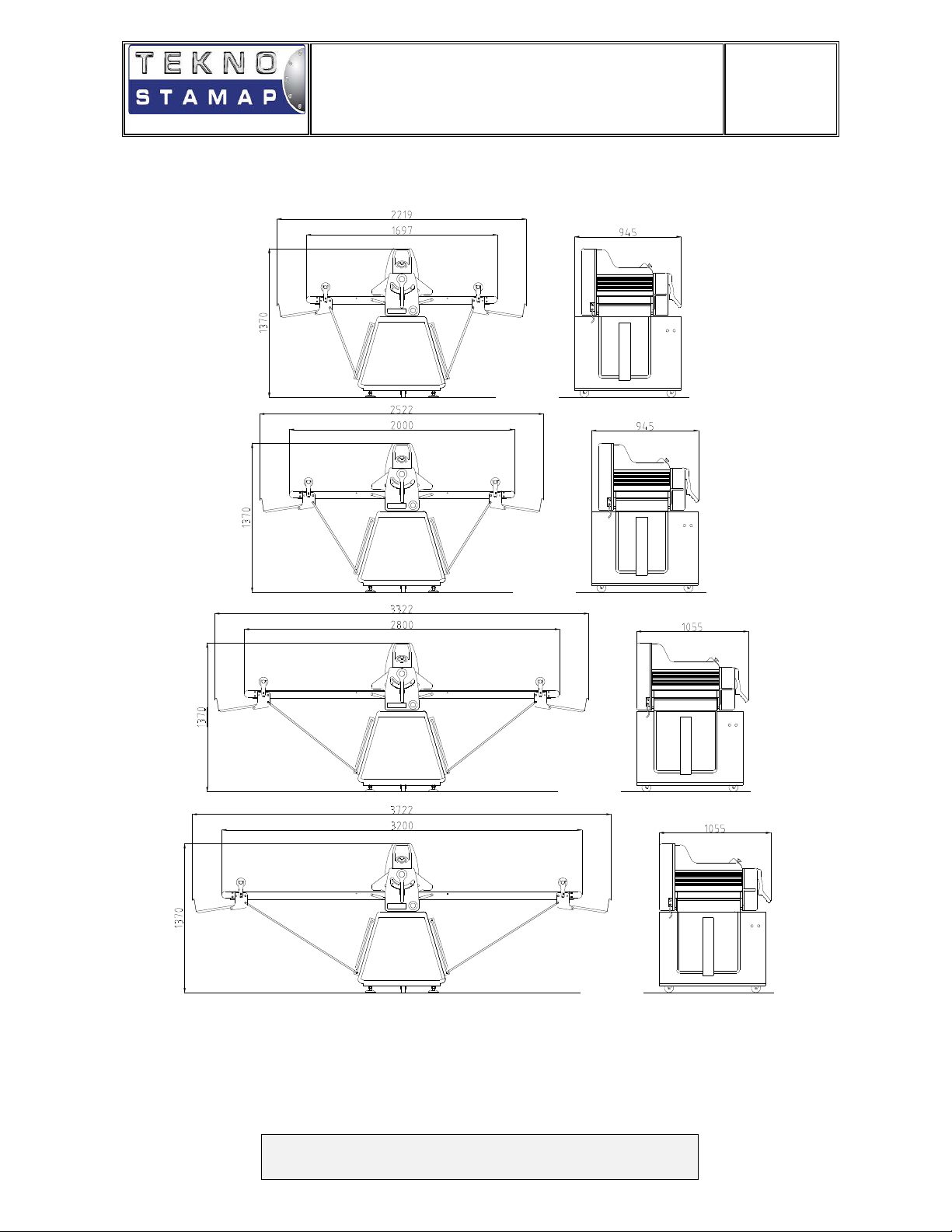

lam 510
lam 614
lam 616
lam 507

USE AND MAINTENANCE MANUAL
MANUAL DOUGH SHEETER
LAM 500-600 - LAM 500-600 BENCH-TOP
p. 19/47
22 04 001
ENGLISH
mod.04.01.10
Property of TEKNO STAMAP S.r.l.
Reproduction, even partial, forbidden without authorisation
MODEL Cylinder
diam.
Cylinder
opening
Outlet belt
speed
Belt
width
Belt
length
Motor power
Kw
Weight
Kg
LAM 507 B 84 mm 0.2-35 mm 50 cm/sec 500 750 0.55 89
LAM 510 B 84 mm 0.2-35 mm 50 cm/sec 500 1000 0.55 93
LAM 610 B 84 mm 0.2-35 mm 50 cm/sec 600 1000 0.55 99
LAM 507 84 mm 0.2-35 mm 50 cm/sec 500 750 0.55 140
LAM 510 84 mm 0.2-35 mm 50 cm/sec 500 1000 0.55 150
LAM 610 84 mm 0.2-35 mm 50 cm/sec 600 1000 0.75 150
LAM 614 84 mm 0.2-35 mm 50 cm/sec 600 1400 0.75 160
LAM 616 84 mm 0.2-35 mm 50 cm/sec 600 1600 0.75 170
LAM 614 L/T 84 mm 0.2-35 mm cm/sec 600 1400
LAM 616 L/T 84 mm 0.2-35 mm cm/sec 600 1600
NOISE: below 70 dB.

USE AND MAINTENANCE MANUAL
MANUAL DOUGH SHEETER
LAM 500-600 - LAM 500-600 BENCH-TOP
p. 20/47
22 04 001
ENGLISH
mod.04.01.10
Property of TEKNO STAMAP S.r.l.
Reproduction, even partial, forbidden without authorisation
3- STARTING UP
