teko Astra-Z-3245 User manual

Astra-Z-3245
Wireless Remote Control Key Fob
Operation Manual

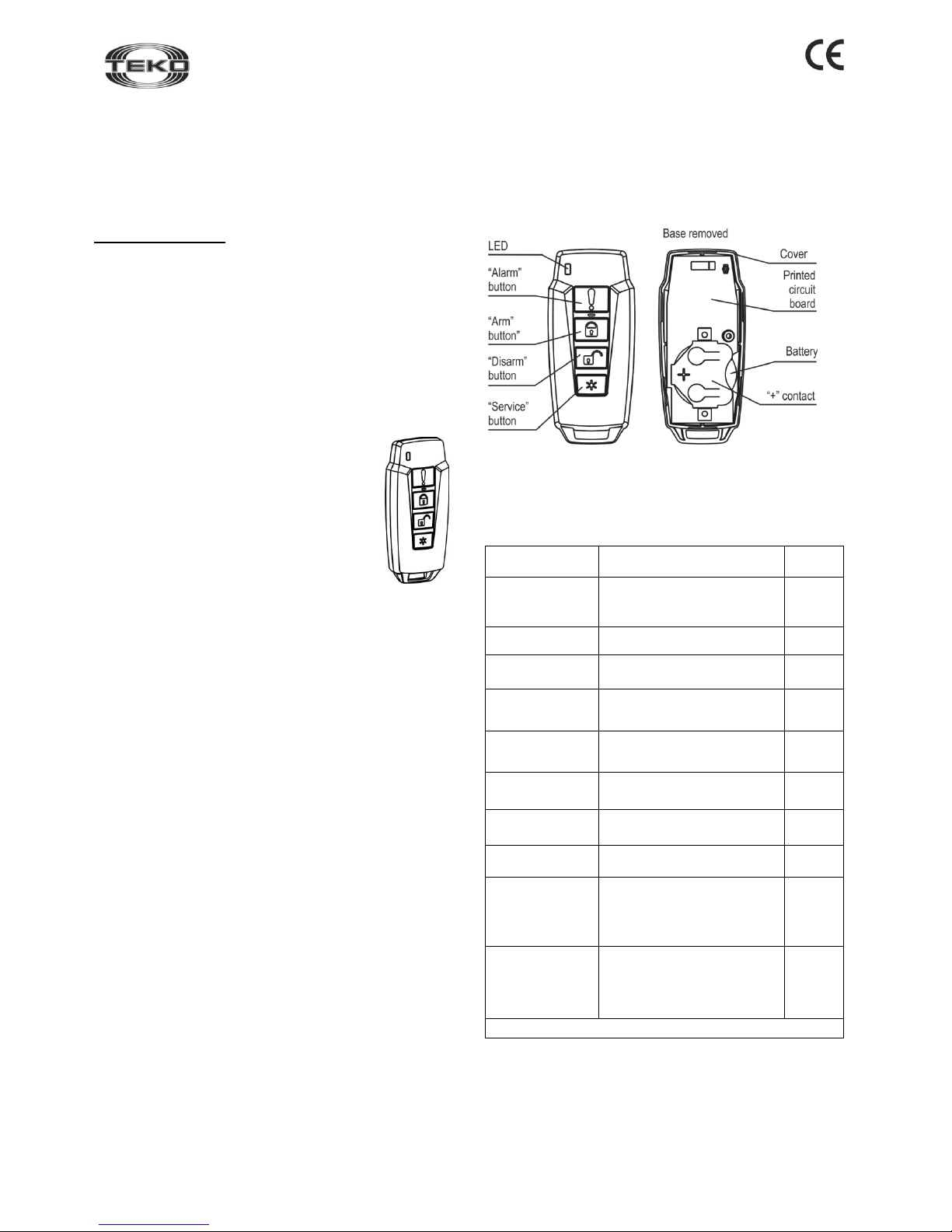

Figure 1
This operation manual is intended for studying the operating
principles, proper use, storage, and maintenance of the
Wireless remote control key fob Astra-Z-3245 (hereinafter
referred to as key fob) (Figure 1).
The manufacturer reserves the right to make alteration
regarding refinement of the product without prior notification. All
improvements are included in new revision of the operation
manual.
List of Abbreviations:
Astra-Zitadel System: Astra-Zitadel on-site wireless intrusion /
fire detection and alarm system;
Astra-Zitadel System Control Panel –Astra-Z-812M, Astra-
Z-8945 ver.A, Astra-8945 Pro or Astra-812 Pro Control Panel
(with connected Astra-Z Wireless Extender);
MSS Astra-Z –Astra-Z Monitoring Software Suite;
MSS Astra Pro: Astra Pro Monitoring Software Suite;
PC: Personal Computer;
Battery: power supply battery.
1 Function
1.1 The key fob is intended for wireless
transmitting of alarm notifications and
identifiable reports for arming / disarming, etc.
to the control panel of the Astra-Zitadel
system.
1.2 Power is supplied to the key fob from a
CR2430 type battery, voltage 3,0 V (included
in delivery package).
1.3 When pressing the service button «*» on the
key fob (which is registered in the system and
has user rights for arming / disarming), light and
sound alerter Astra-2345 switches ON to
indicate status of partitions, which it is assigned to, by light
alerting.
1.4 When simultaneous pressing for 1 s on «*» button and any
other the detector starts searching new channel of radio network,
and switches to it if number of channel was changed.
2 Specification
Technical Parameters of Radio Channel
Operating frequency range, MHz ......................2 400 to 2 483.5
Number of operating channels at 5 MHz intervals...................16
Channel width, MHz ..................................................................2
Wireless coverage range:
Line-of-sight, m, min..............................................................100
General Technical Parameters
Current consumption, mA, max:
- with radio module OFF.....................................................0.005
- with radio module ON............................................................52
Battery replacement
indication threshold, V............................................................2.3
Power supply voltage, V.......................................from 2.1 to 3.0
Power supply voltage lower threshold
(operability threshold), V.........................................................1.8
Overall dimensions, mm, max ...............................7432.513.5
Weight, kg, max....................................................................0.04
Battery average operating lifetime
with double pressing per day, years, min ..................................2
Operating Conditions
Temperature range, °C........................................from -20 to +50
Relative air humidity, %..................................up to 95 at +35 °C
without moisture condensation
3 Delivery Set
Astra-Z-3245 .....................................................................1 pcs.
CR2430 Battery................................................................. 1 pcs.
Operation Manual............................................................. 1 copy
4 Structure
4.1 The key fob consists of a cover (front side) and base (Figure 2).
4.2 Mounted in the cover are printed circuit board with radio
elements (hereinafter PCB) and buttons. The base is affixed to
the cover with a screw.
4.3 Mounted on PCB is a LED for Astra-3245 operability
supervision.
Figure 2
5 Information Capacity
Table 1: Notifications processed by LED and Control Panel (or
MSS interface)
Notification
Type
LED
Control
Panel
Standby
Mode start
Lights up once for 1 to 20
seconds after powering up
−
Alarm
Lights up for 1 second when
pressing the «Alarm»button
+
Arming
Lights up for 1 second when
pressing the «Arm»button
+
Disarming
Lights up for 1 second when
pressing the «Disarm»
button
+
LSA activation
Lights up for 1 second when
pressing the «Service»
button
+
Powering up
Not lit
+
Power failure
Triple blink while pressing a
button
+
Network search
Blinks with frequency of 5Hz
during 1 to 60 seconds
+
Command
delivered
Turns on one time for 0,1
second within 10 seconds
after pressing any button
upon notification handshake
from control panel
−
Command not
delivered
Double blink in a 10 seconds
after pressing any button if
wireless network is not found
or there is no handshake
from control panel
−
+: notification issued; –: notification not issued
Notes
If «Power failure» notification appears, change the battery within three
weeks.
6 Pre-Starting Procedure
6.1 After transportation in conditions differing from those of
operation, key fob must be kept unpacked for 4 hours in the
expected operating conditions.

Revision 3245-v3_1_en
2
6.2 According to Astra-Zitadel System Control Panel`s
Operating Manual * perform the following procedure:
1) Install Software ** (MSS Astra-Z, Pconf-Z or MSS Astra
Pro) intended for configuring Control Panel;
2) Create wireless network.
6.3 Registering the Key Fob in the Wireless Network
Key fob registration procedure is required for identification in
the wireless network in which it is supposed to operate.

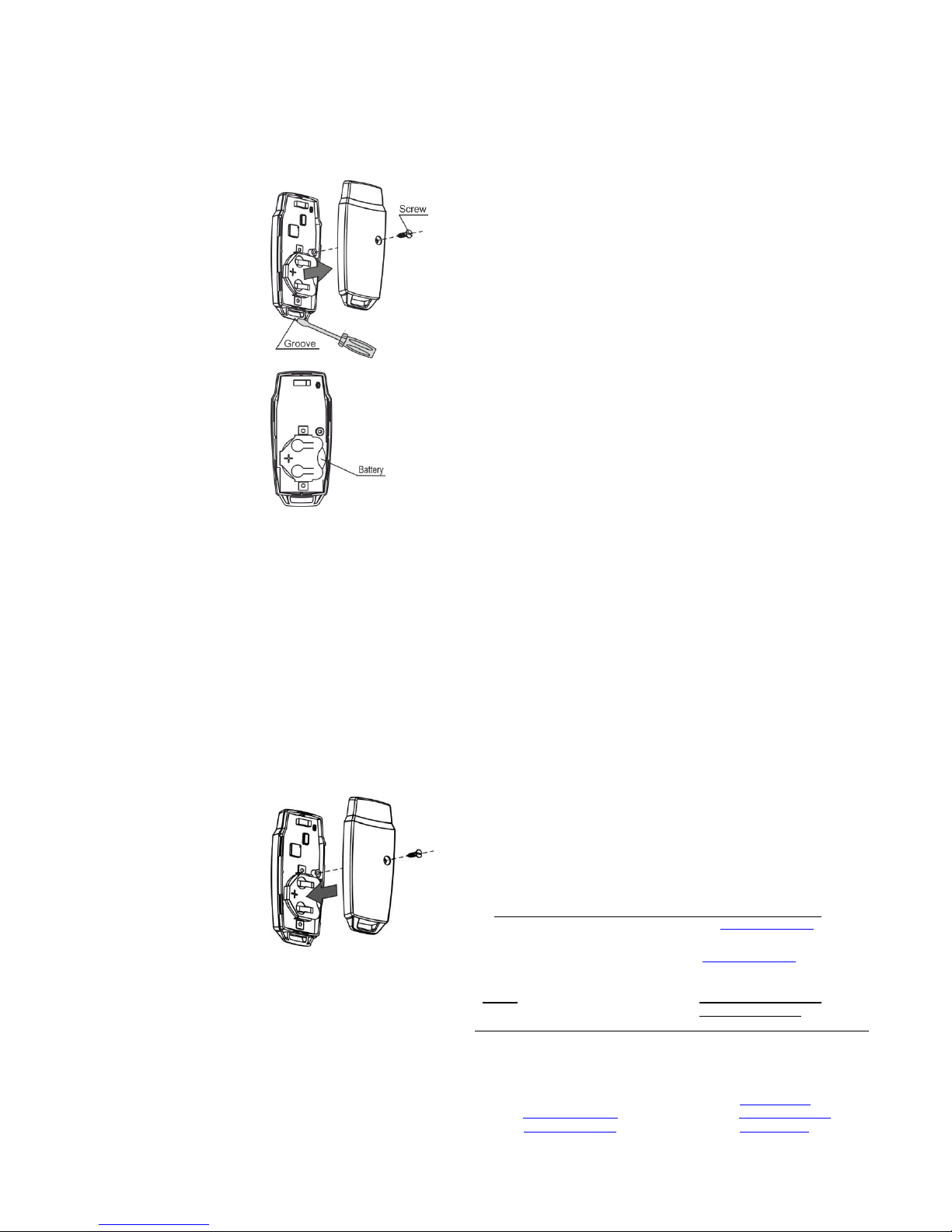

Step-1
Place the key fob on the
working place and
disassemble:
- Remove the screw;
- Insert a screwdriver into
the groove on the key fob
housing and separate the
base from the cover.
- Remove the base.
Step-2
Insert the battery; the
LED lights up for 1 to 20
seconds.
After the LED turns OFF,
the key fob switches to
registration mode for 60
seconds.
Step-3
During the delay time (60 seconds), initiate Wireless
device registration mode on the control panel by the
method described in the appropriate Astra-Zitadel System
Control Panel`s Operation manual*.
Press any two buttons at the same time (except for
«Service»button) on the key fob.
The key fob switches to wireless network search mode for no
more than 60 seconds, the LED blinks at a frequency of 5 Hz.
WARNING!
Avoid to initiate registration procedure on several
detectors simultaneously
Step-4
Verify registration by the control panel indication:
Once registration procedure completed successfully,
the abbreviated name of detector «KF»appears on the
screen or «KFxxx registered» notification appears on the
control panel`s screen.
Assemble the detector:
- Replace the base.
- Tighten the screw.
In case registration procedure failed, repeat the
registration procedure, i.e. perform steps 2 –4, previously
reinsert the battery
Step-5
If necessary, assign to the key fob user rights for arming /
disarming by the method described in the appropriate
Astra-Zitadel System Control Panel`s Operating Manual*.
Step-6
After successful registration of the key fob, for long term
storage before its installation, it is allowed to switch the key
fob OFF by removing the battery.
When power is supplied, there is no need to re-register the key
fob in the same wireless network if it was not intentionally
removed from the network through Astra-Z-812 control panel.
7 Labeling
The following information is marked on the label attached to the key
fob housing:
- abbreviated key fob designation;
- firmware version;
- month and year of manufacture;
- conformity mark (if certificate is available);
- bar-code that duplicates textual information.
8 EC Conformity Declarations
This product is in conformity with the provisions of:
R&TTE Directive 1999/5/EC, Article 10.5;
EN 60950: 2001 Safety of information technology equipment;
EN 50371 Generic standard to demonstrate the compliance of low-
power electronic and electrical apparatuses with the basic restrictions
related to human exposure to electromagnetic fields (10 MHz - 300
GHz) –General public;
EN 301489-17 V1.1.1 (09-2000) Electromagnetic Compatibility and
radio spectrum Matters (ERM); Electromagnetic Compatibility (EMC)
standard for radio equipment and services; Part 17: Specific condi-
tions for wideband data Hiperlan equipment;
EN 300220-1 V1.3.1 (2000-09) Electromagnetic compatibility and
Radio spectrum Matters (ERM); Short range devices; Technical char-
acteristics and test methods for radio equipment to be used in the 25
MHz to 1 000 MHz frequency range with power levels ranging up to
500 mWt; Part 1: Parameters intended for regulatory purposes.
Construction of the detector provides for protection class IP41.
9 Recycling
9.1 The key fob is not a danger to life, human health and the
environment. On expiry of its lifetime recycling is done without taking
special measures to protect the environment.
9.2 Recycling of battery cells must be done by delivering used cells to
a trading organization, service centre, manufacturer, or to another
organization accepting used batteries.
10 Warranty Terms
10.1 The manufacturer guarantees the compliance of the siren to
specifications on condition that user observes required conditions of
transportation, storage, installation and operation.
10.2 The storage warranty period is 1 year and 6 months from the
date of manufacture.
10.3 The operating warranty period is 1 year from the date of
commissioning, but not more than 1 year and 6 months from the date
of manufacture.
10.4 The manufacturer guarantees replacement or repair of the
product during the warranty period.
10.5 The warranty doesn’t come into effect in the following
cases:
- not adherence to the operating manual;
- mechanical damage to the device
- repair of the device by any third-party service apart from the
Manufacturer
10.6 The warranty applies to the key fob only. Any third-party
equipment from other manufacturers used in conjunction with the key
fob, including batteries, is subject to its own warranty terms.
The manufacturer bears no responsibility for death, injury,
property damage or other incidental or premeditated loss based
on user's statement that the device failed to implement its
functions.
* Available for free downloading from www.controlex.eu
and/or integrated with configuring software.
** Available for free downloading from www.controlex.eu.
