teko Astra-Z-2345 User manual

Astra-Z-2345
Wireless Fire Light and Sound Alerter (Wireless Siren)
Operation Manual
Revision 2345-v1_5_en
This operation manual is intended for studying operating
principles, proper use, storage, and maintenance of
Astra-Z-2345 wireless siren (hereinafter referred to as siren)
(Figure 1).
The manufacturer reserves the right to make alteration
regarding refinement of the product without prior notification. All
improvements are included in new revision of the operation
manual.
List of Abbreviations:
Astra-Zitadel System: Astra-Zitadel on-site wireless
intrusion/fire detection and alarm system;
Astra-Zitadel System Control Panel: Astra-Z-812M, Astra-Z-
8945 ver.A, Astra-8945 Pro or Astra-812 Pro Control Panel
(with connected Astra-Z Wireless Extender);
MSS Astra-Z: Astra-Z Monitoring Software Suite;
MSS Astra Pro: Astra Pro Monitoring Software Suite;
LT: Astra-942 Laser Tester;
LSA:Light and Sound Alerter;
Battery: power supply battery.
1 Function
1.1 The siren is intended for warning
people of fire in a secured room using light
and sound alerting upon a command from
the Astra-Zitadel system control panel.
1.2 Power is supplied to the siren from
two batteries: primary battery LSH 14
(1pcs.) and secondary battery CR123
(1pcs.), or batteries with similar
characteristics and construction. Both batteries are included in
the delivery set.
The siren retains operability if secondary battery is missing or
discharged.
1.3 The siren ensures three-color light alerting (red, green, and
blue).
2 Specification
Technical Parameters of Sound Channel
Sound pressure level at
a distance of 1 m, dB, min.....................................................105
Frequency band of alarms
generated by sound channel, Hz,.................from 1 000 to 3 000
Technical Parameters of Radio Channel
Operating frequency range, MHz ......................2 400 to 2 483.5
Number of operating channels
at 5 MHz intervals, pcs., max…………………………………….16
Wireless coverage range,
line-of-sight, m, min.............................................................1000
General Technical Parameters
Power supply voltage, V...................................................2.4-3.6
Current consumption:
with radio module OFF, µA, max ...........................................150
with radio module ON, mA, max............................................180
Current consumption in alarming
mode, mA, max:
- light......................................................................................250
- sound ...............................................................................1 000
Battery discharge notification threshold
for battery replacement, V
- main battery ........................................................................ 2.9
- backup battery..................................................................... 2.6
Deactivation threshold (at decrease of both batteries
power supply voltage while
maintaining LED indication), V ...............................................2.4
Cumulative service life of two
batteries, months, min............................................................. 38
Weight (without battery), kg, max........................................... 0.3
Overall dimensions, mm, max:
- diameter.............................................................................. 124
- height (including detach switch).......................................... 102
Operating Conditions
Temperature range, °C........................................from -30 to +55
Relative air humidity, .................................. up to 93 at +40 °C
without moisture condensation
3 Delivery Set
Wireless siren Astra-Z-2345 ..............................................1 pcs.
LSH 14 Battery...................................................................1 pcs.
CR123 Battery....................................................................1 pcs.
Screw 3.9×32 .....................................................................4 pcs.
Dowel 6×30 ........................................................................4 pcs.
Soft isolator........................................................................4 pcs.
Operation Manual..............................................................1 copy

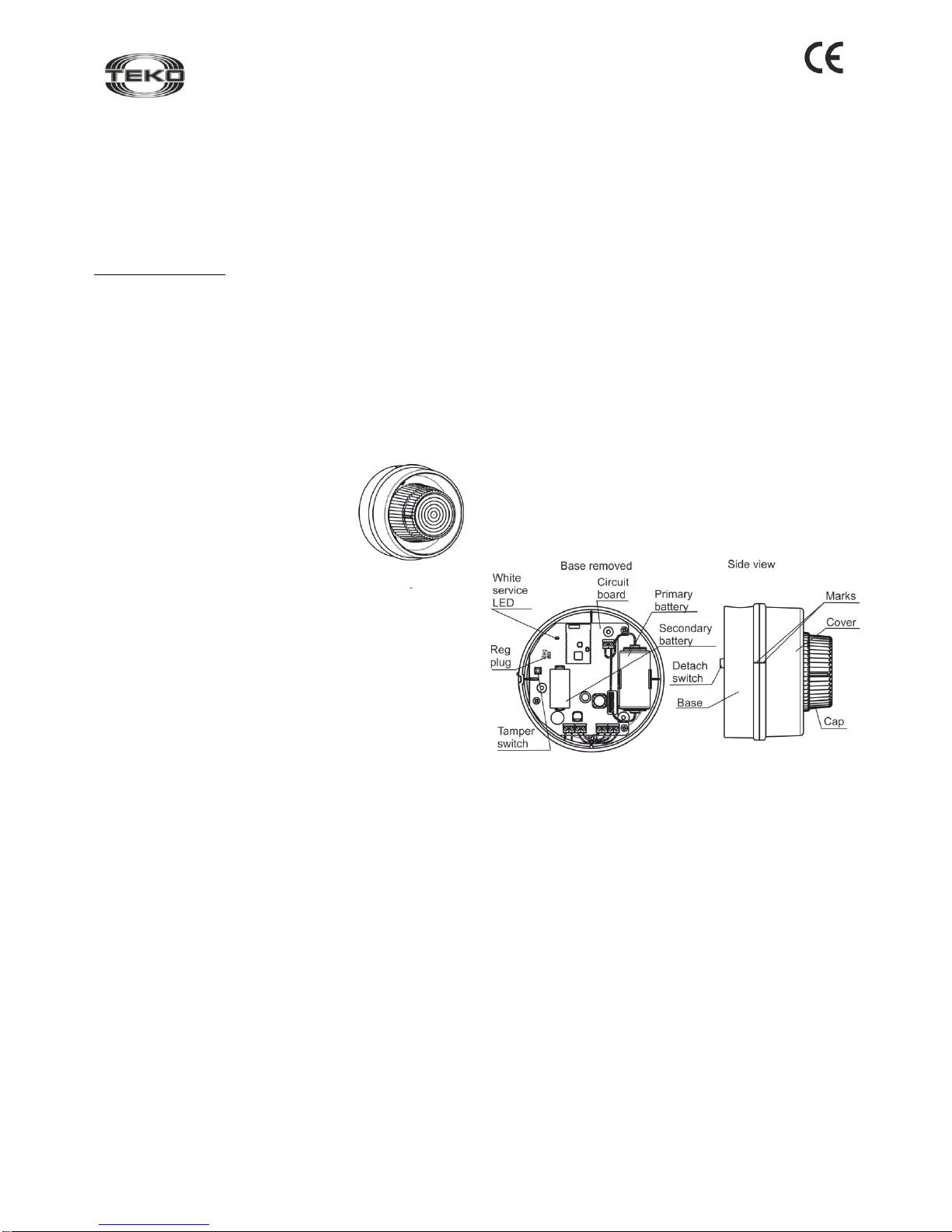

4 Structure
4.1 Structurally siren is designed as a block with a removable
cover, to which a cap is attached. The block contains a
piezoelectric sound emitter and a printed circuit board (PCB)
with radio elements and batteries (Figure 2).
Batteries installed
Figure 2
4.2 Mounted under the cap is a three-color LED indicator of
the light alerting (colors: red, green, and blue).
4.3 Mounted on PCB is a switch, which forms «Detached
from wall»notification when detaching the siren from the wall.
4.4 The siren has the following service LEDs:
- installed on PCB is a white LED to indicate the wireless
network status.
- installed under the cap is a red LED to indicate the status of
the siren itself and to receive commands from the Astra-942
laser tester.
Figure 1

Revision 2345-v1_5_en
2
5 Notifications
Table 1: Notifications issued on the Light Channel
Notification
Red
Green
Blue
Standby
mode start
One-time sequential indication of each color for
0.1 seconds
Exit delay
time
Blinks once
per
2 seconds
within delay
time
OFF
OFF
Alarm/Fire
Blinks once
per second
within the
sound alerting
period, then –
once every 10
seconds
OFF
OFF
Arming
Lights up for
10 seconds
OFF
OFF
Disarming
OFF
Lights up for
10 seconds
OFF
No network
OFF
OFF
Double
blink for 0.1
seconds
every 25
seconds
Network
search
OFF
OFF
Blinks with
frequency of
5Hz during 1
to 60
seconds
Table 2: Notifications issued on the Sound Channel
Notification
Acoustic Signal
Alarm
Continuously ON for 10 minutes
Fire
Intermittently ON every 1 second with off-
duty ratio 2 during 10 minutes
Table 3: Notifications issued to Service LEDs and control panel
Notification
White
LED
Red
LED
Control
Panel
Standby
mode start
OFF
Lights up for 1
to 20 seconds
-
Normal
OFF
OFF
+
Tamper
OFF
Lights up once
for 1 second
+
Power ON
OFF
+
Failure of
primary
battery
OFF
OFF
+
Failure of
secondary
battery
OFF
OFF
+
Power
failure
OFF
Triple blink for
0.1 seconds with
pause of 0.5
seconds every 25
seconds
+
Network
search
Blinks with
frequency of 5Hz
during
1 to 60 seconds
OFF
-
No network
Double blink for
0.1 seconds with
pause of 0.5
seconds every 25
seconds
OFF
-
+: notification issued; –: notification not issued
Notes
1If «Primary battery failure»notification appears, change
both batteries within two months.
2The «Power failure»notification is processed by the red LED if
both batteries are discharged or if one of the batteries is missing
and the second battery is discharged.
3 Upon simultaneous power supply voltage decrease of the
main and backup batteries below 2,4 V, the siren ceases
operation while retaining LED indication.
4The siren indicates «Armed/Disarmed»status of partitions to
which it is assigned when pressing «»button on Astra-Z-
3245 key fob. The key fob must be registered in the network
and have user rights for arming/disarming.
6 Pre-Starting Procedure
6.1 After transportation in conditions differing from those of
operation, siren must be kept unpacked for 4 hours in the
expected operating conditions.
6.2 Running Siren. Replacing Batteries
WARNING! Lithium-thionyl-chloride batteries have an effect of
«passivation»to provide the possibility of long-term storage. To
provide battery normal operation after long-term storage, hold
an «activation»procedure.
«Activation»occurs when inserting battery into LSA.

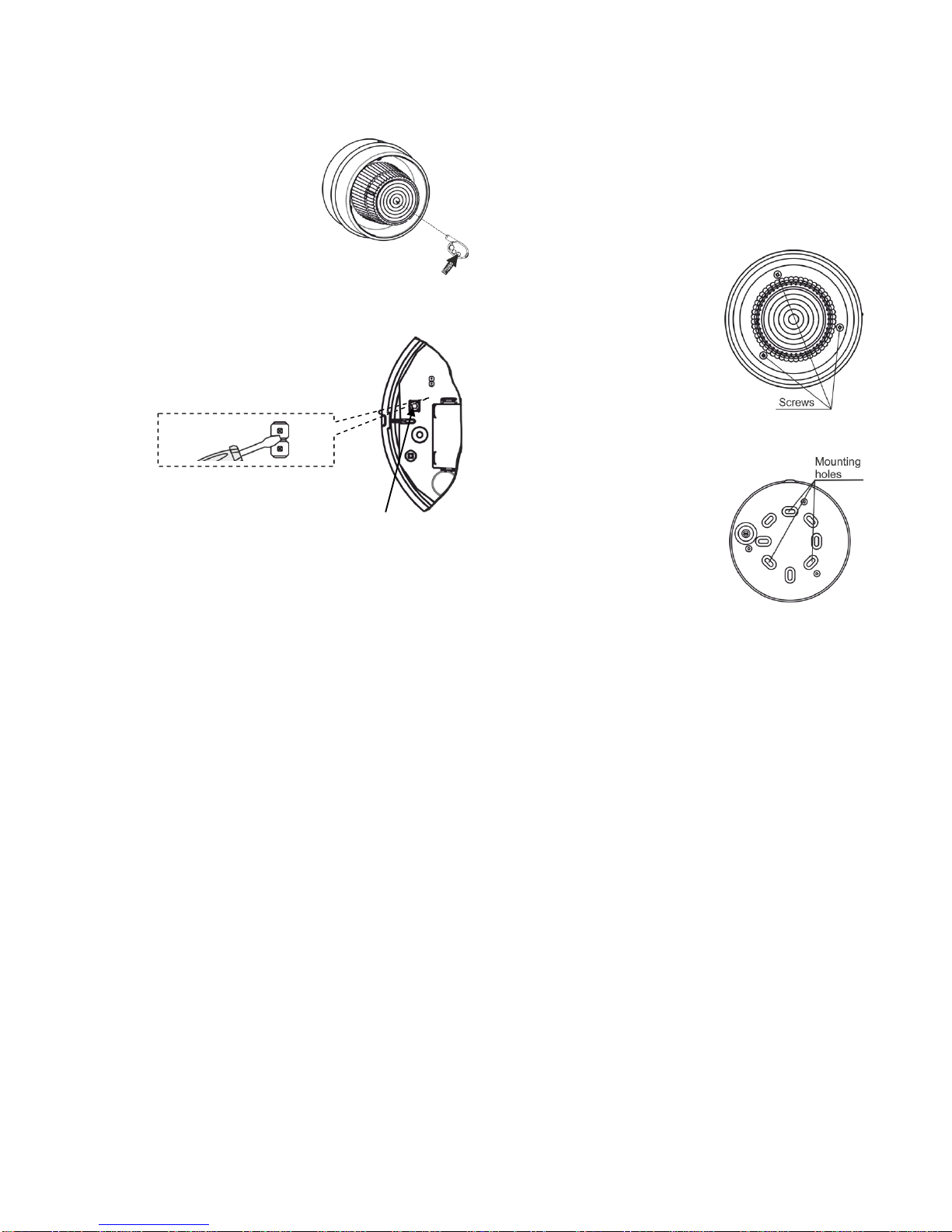

Step-1
Remove the housing cover by
removing 3 screws that fasten the
cover to the base.
Step-2
Insert primary and secondary batteries with the correct
polarity (to replace the battery, remove the old one and after
at least 30 seconds insert the new one).
The red LED lights up for 1 to 20 seconds.
If after 60 seconds the red LED flashes triply every 25
seconds, re-activate the battery by removing it, and after at
least 30 seconds reinserting it.
WARNING!
It is strictly forbidden to "activate" SAFT LSH 14 battery by
short circuit between the poles of battery or exceed the load
current 2 A, as battery is built in safety fuse which irreversibly
destroyed in case of overload.
6.3 Registering the Siren in the Wireless Network
Siren registration procedure is required for identification in the
wireless network in which it is supposed to operate.
Step-1
According to Astra-Zitadel System Control Panel`s
Operating Manual * perform the following procedure:
1) Install Software ** (MSS Astra-Z, Pconf-Z or MSS Astra
Pro) intended for configuring Control Panel;
2) Create wireless network.
Step-2
Perform steps described in p. 6.2.
Step-3
Make sure alerter issues "No network" notification.
Otherwise, perform deletion of the alerter from wireless
network in accordance with p.6.4.
Step-4
Switch the control panel to Wireless device registration
mode by the method described in the appropriate Astra-Zitadel
System Control Panel`s Operating manual*.
Step-5
Initiate siren registration procedure by one of 2 methods:
a) using the LT (step-6);
b) using the Reg plug and the detach switch (step-7).

Revision 2345-v1_5_en
3
WARNING!
Avoid to initiate registration procedure on several
wireless devices simultaneously
Step-6
Initiating siren registration procedure using the LT:
- Press the lower button on the LT
and hold until a beam appears.
- Direct the laser beam at the cap
center.
- irradiate the LED located under
the cap for at least 1 second.
The red service LED lights up for 2
seconds and then the siren
switches to wireless network
search mode: the blue LED of the
light channel and the white service
LED start blinking with a frequency of 5 Hz during the
wireless network search period, but not more than 60 s.
Step-7
Initiating registration procedure using the
Reg plug and detach switch:
1) Shortly (for 1-2 seconds) close the Reg
plug with a screwdriver.
The siren switches to wireless network
registration mode for 60 seconds.
2) Shortly (for 0,2-2 seconds) press the detach switch.
The siren switches to wireless network search mode: the
blue LED of the light channel and the white service LED
blink with a frequency of 5 Hz during the wireless network
search period, but not more than 60 seconds.
Step-8
Verify registration procedure:
Once registration procedure completed successfully, the
abbreviated name of detector «LSA»appears on the screen
or «LSAxxx registered» notification appears on the control
panel`s screen.
Reassemble the siren by superposing marks on base and
cover and driving screws.
In case registration procedure failed repeat the
registration procedure, i.e. perform steps 3 and 4, 6 or 3
and 4, 7.
Step-9
After successful registration of the siren, for long term storage
before its installation, it is allowed to switch the siren OFF by
removing the battery or installing a soft isolator.
When power is supplied, there is no need to re-register the siren
in the same wireless network if it was not intentionally removed
from the network through software orcontrol panel`s menu.
6.4 Deleting Alerter from Wireless Network
Deletion of the LSA from wireless network is performed
using Software ** or through Control Panel`s menu.
When deleting alerter from wireless network, Control Panel
transmits notification about deletion to alerter within two
periods of RF supervision time. After receiving the
notification alerter issues "No network" notification.
To speed up the deletion procedure:
- remove alerters`s base;
- shortly close Reg plug;
- press and hold down tamper switch for 8-10 sec.
The alerter issues "No network" notification to LED and is
available for registration.
7 Installation
7.1 Location
7.1.1 The siren can be installed on the wall as well as on the
ceiling.
7.1.2 In a permanent structure, the siren should be installed on
a load-bearing wall.
7.1.3 In premises made of light metal structures, installing the
siren directly on the wall should be avoided; instead, it should
be installed on load-bearing structural elements.
7.2 Installation procedure
Step-1
Remove the housing cover by
removing 3 screws that fasten the
cover to the base.
Step-2
Perform operations described in p. 6.
Step-3
Using a screwdriver, push the blanks
out of the mounting holes in the
base.
Step-4
Choose an installation location on site. Mark selected location
using mounting holes in the base as a template.
Fasten the base to a load-bearing surface.
Step-5
Install the cover onto the fastened base as follows:
- Insert the sealing soft isolator (large ring) from the delivery
package into the base slot.
- Install the cover on the base by aligning the marks on the
cover and the base.
- Insert the sealing soft isolators (3 pcs.) from the delivery
package under the screws that fasten the cover to the base.
- Tighten 3 screws.
Step-6
Set siren’s operating mode in accordance with an appropriate
Astra-Zitadel system Operation manual*. Configure the siren
through «Alerting / System outputs»menu sub-item.
Assignment of siren outputs:
- Output 1 –sound;
- Output 2 –light.
Step-7
Verify siren operability:
1)In the system based on Astra-Z-812M control panel:
- Verify the siren status on the control panel («Normal»status
should appear; otherwise, verify proper installation –see p. 7.1);
- Initiate a test alerting from the control panel in accordance
with an appropriate Astra-Zitadel system Operating
Manual*.
2)In the system based on Astra-8945 control panel:
- Verify the siren status on MSS interface («Normal»status
should appear; otherwise, verify proper installation –see p. 7.1);
- Initiate a test alerting from MSS interface in accordance
with an appropriate Astra-Zitadel system Operating
Manual*.
3) In the system based on Astra-8945 Pro and Astra-812
Pro control panels:

Revision 2345-v1_5_en
4
- Verify the LSA status on MSS Astra Pro interface
(«Normal»status should appear; otherwise, verify proper
installation –see p. 7.1);
- Initiate a test alerting from MSS Astra Pro interface in
accordance with an appropriate Astra-Zitadel system
Operating Manual*.
Make sure the alerting is issued.
7.3 To ensure the alarm system reliable operation, testing
and maintenance of the siren is recommended as follows:
- Inspect the integrity and secure fastening of the siren’s
housing at least once a month;
- Clean contaminants from the siren at least once in three
months;
- Verify siren operability by the method described in p.7.2 step
7at least once a month.
7 Labeling
The following information is marked on the label attached to the
siren’s housing:
- manufacturer trademark;
- abbreviated siren designation;
- firmware version;
- month and year of manufacture;
- conformity mark (if certificate is available);
- bar-code that duplicates textual information.
8 EC Conformity Declarations
This product is in conformity with the provisions of:
R&TTE Directive 1999/5/EC, Article 10.5;
EN 60950: 2001 Safety of information technology equipment;
EN 50371 Generic standard to demonstrate the compliance of low-
power electronic and electrical apparatuses with the basic restrictions
related to human exposure to electromagnetic fields (10 MHz - 300
GHz) –General public;
EN 301489-17 V1.1.1 (09-2000) Electromagnetic Compatibility and
radio spectrum Matters (ERM); Electromagnetic Compatibility (EMC)
standard for radio equipment and services; Part 17: Specific condi-
tions for wideband data Hiperlan equipment;
EN 300220-1 V1.3.1 (2000-09) Electromagnetic compatibility and
Radio spectrum Matters (ERM); Short range devices; Technical char-
acteristics and test methods for radio equipment to be used in the 25
MHz to 1 000 MHz frequency range with power levels ranging up to
500 mW; Part 1: Parameters intended for regulatory purposes.
Construction of the detector provides for protection class IP41.
9 Recycling
10.1 The siren is not a danger to life, human health and the
environment. On expiry of its lifetime recycling is done without taking
special measures to protect the environment.
10.2 Recycling of battery cells must be done by delivering used cells
to a trading organization, service centre, manufacturer, or to another
organization accepting used batteries.
10 Warranty Terms
11.1 Quality Management System meets provisions of ISO 9001-
2011.
11.2 The manufacturer guarantees the compliance of the siren to
specifications on condition that user observes required conditions of
transportation, storage, installation and operation.
11.3 The storage warranty period is 5 years and 6 months from the
date of manufacture.
11.4 The operating warranty period is 5 years from the date of
commissioning, but not more than 5 years and 6 months from the
date of manufacture.
11.5 The manufacturer guarantees replacement or repair of the
product during the warranty period.
11.6 The warranty doesn’t come into effect in the following
cases:
- not adherence to the operating manual;
- mechanical damage to the device;
- repair of the device by any third-party service apart from the
manufacturer.
11.7 Warranty applies to the siren only. All equipment from other
manufacturers used in conjunction with the siren, including batteries, is
subject to its own warranty terms.
The manufacturer bears no responsibility for death, injury,
property damage or other incidental or premeditated loss based
on user's statement that the device failed to implement its
functions.
* Available for free downloading from www.controlex.eu
and/or integrated with configuring software.
** Available for free downloading from www.controlex.eu.
Sales:
Controlex GmbH
Warranty service and
technical support:
ТЕКО-TD
Philosophenweg 31-33
47051 Duisburg, Germany
Phone: +49 (0) 203 / 393 91 188
Fax: +49 (0) 203 / 393 91 189
GSM: +49 (0) 178 / 218 48 22
E-mail: [e-mail]
Web: www.controlex.eu
Prospekt Pobedy str. 19
420138 Kazan, Russia
Phone: [phone]
Fax: [phone]
E-mail: [e-mail]
[e-mail]
Web: www.teko.biz
Made in Russia
