1. Product Introduction
Thanks for choosing the SCU11-KVM USB-C to HDMI converter. This converter is designed to
convert 4K@60Hz 4:4:4(max) USB-C video input to 4K@60Hz 4:4:4(max) HDMI video output. For the
USB-C, also supports USB 3.1 Gen2 data transfer and 60W fast-charging.
In addition, the converter includes three USB 3.1 ports and one Ethernet Gigabit LAN port. It also
supports plug and play; no software drivers required.
1.1 Features
•Supports HDMI 2.0, 4K@60Hz 4:4:4, HDCP 2.3
•USB-C input supports 60W USB Power Delivery
•Supports USB 3.1 Gen2 data transfer via USB-C
•3 USB 3.1 KVM for camera, keyboard, and mouse
•Ethernet Gigabit LAN
•Plug and Play
1.2 Customer Service
We provide a limited warranty for the product within three years counting from date of purchase
(The purchase invoice shall prevail).
Note: Please contact your distributor immediately if any damage or defect in the components is
found.

www.tekvox.com
SCU11-KVM
79111 User Manual
2. Specifications
Input
1x USB-C (US B3.1, Gen 2)
Input Resolution
Up to 4Kx2K @ 60Hz 4:4:4
Output
1x HDMI (Type-A, Female)
Output Resolution
Up to 4Kx2K @ 60Hz 4:4:4
Compliances
HDMI: 2.0
HDCP: 2.3 (backwards-compatible)
USB
3x USB Device (Type-A, Female, USB 3.1 Gen 1)
1x USB-C (USB 3.1 Gen 2)
Ethernet
1x RJ45 (10/100/1000BaseT)
Bandwidth
18Gbps
Operating Temperature
14 ~ 131°F (-10 ~ 55°C)
Storage Temperature
-13 ~ 158°F (-25 ~ 70°C)
Relative Humidity
10 ~ 90%
Power Supply
DC 24V, 5A
USB-C Power Delivery
60W (max)
Power Consumption
68W (max)
Product Dimensions
5.7” (145mm) x 3.15” (80mm) x 0.87” (22mm)
Product Weight
1.26 lbs. (270g)

www.tekvox.com
SCU11-KVM
79111 User Manual
3. Panel Description
3.1 Front Panel
1. Power LED: The LED illuminates green when power is applied
2. CHARGING: The LED illuminates green when USB-C is charging externally
3.2 Rear Panel
1. ETHERNET: 1x RJ45 port, connect to Ethernet
2. DEVICES: 3x USB 3.1 KVM for camera, keyboard, and mouse
3. USB-C IN: 1x USB-C port, connect to video source
4. HDMI OUT: 1x HDMI-A port, connect to HDMI display
5. DC 24V: DC barrel port to connect a power adapter.

www.tekvox.com
SCU11-KVM
79111 User Manual
4. System Connection

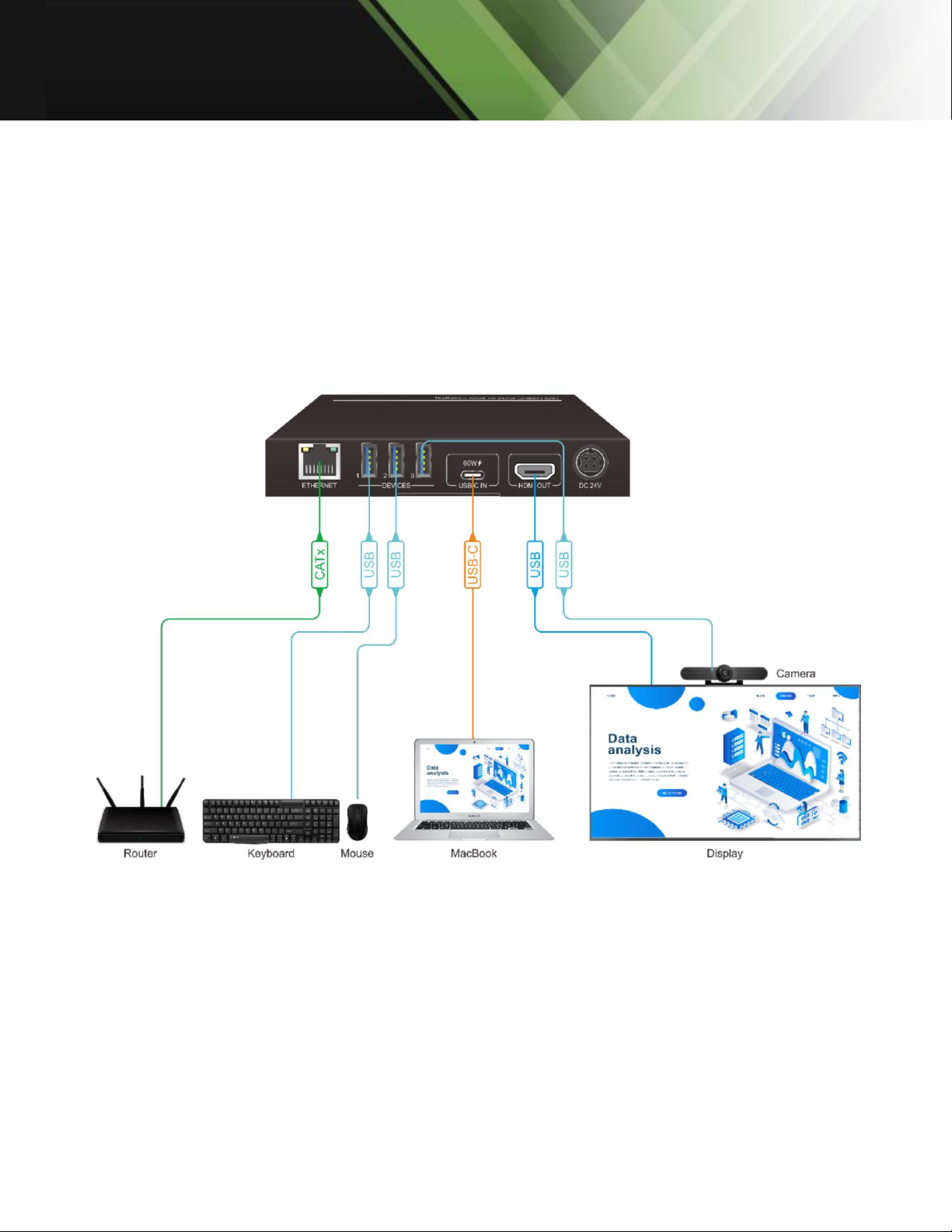

The following diagram illustrates typical input and output connections that can be utilized with the
Converter:

www.tekvox.com
SCU11-KVM
79111 User Manual
5. Panel Drawing
