Telecor TMS-MA User manual

TMS-MA Telecor Media
Source Model A
Installation Manual
Intended for use with
TMS-MA Telecor Media Source
Model A
April 2023
Rev. 0.0 PRELIMINARY
Telecor Inc.
6205 Kestrel Road
Mississauga, Ontario
Canada; L5T 2A1
Tel: [phone]
Fax: [phone]
www.telecor.com

LIMITED WARRANTY POLICY
Telecor Inc. warrants all products bearing the Telecor name to be free from defects in material and
workmanship under normal use and service for a period of one year from date of delivery. Telecor will repair
or replace (at our option), free of charge, any unit that is found to be defective and returned to us under
warranty. Telecor warrants all other products made by others, and distributed by us, to be covered by the
manufacturers' warranty period.
This warranty shall not apply to any Telecor products that have been subject to misuse, neglect, accident,
modification, water, fire, lightning, paint, or used in violation of instructions furnished, repaired or altered
outside of the factory. This warranty does not cover batteries, bulbs, fuses or damage caused by batteries
used in connection with the product. Telecor reserves the right to make the final decision on whether there
is a defect in materials or workmanship, and whether or not the product returned is within the warranty
period.
This warranty covers bench repairs only. Telecor will not be responsible for any costs incurred involving
on-site service calls. Repair or replacement by others, fire, transportation, labour charges, indemnity, etc.,
are not covered by this warranty and no responsibility for same will be assumed by us. Our liability does
not extend to consequential damage.
AUTHORIZED REPAIR STATION:
All participating Distributors and Dealers are authorized to accept Telecor products for return to us for repair
or replacement, or customers may return goods to us directly, providing that return authorization has been
obtained.
U. S. customers are required to ship any returns or repairs to:
Telecor Inc.
2434 Jerauld Avenue * U. S. customers must not
Niagara Falls, New York return products to Canada
USA, 14305
Canadian and all International customers are required to ship any returns or repairs to:
Telecor Inc.
6205 Kestrel Road
Mississauga, Ontario
Canada, L5T 2A1
For details on Telecor’s Return Policy, see our Published Merchandise Return Policy.
E:\G-69\G-M69-B\G-M69-B_TMS-MA_Installation_Manual.docx/TH
© Copyright 2023 by Telecor Incorporated. All rights reserved. No part of this publication may be reproduced in any form, or by any
means, without the prior written permission of Telecor Incorporated.
Telecor Inc. makes no representation of warranties with respect to this manual. Further, Telecor reserves the right to make changes
in the specifications of the products described in this manual at any time without notice, and without obligation of Telecor to notify
any persons of such revisions or changes.
www.telecor.com

FCC NOTICE
PRODUCT NAME: Telecor Media Source Model A
FCC ID: 2A9XY-TMSMA
FCC RULES: THIS PRODUCT HAS BEEN TESTED TO COMPLY WITH FCC RF
(PART 15, SUBPART C)
OPERATING ENVIRONMENT: FOR USE IN RESIDENTIAL AREAS
FCC Compliance Statement:
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) this device may not cause harmful interference and (2) this device must accept any interference
received, including interference that may cause undesired operation.
FCC Notice:
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant
to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may cause harmful interference
to radio communications. However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged to try to correct the interference by
one or more of the following measures:
•Reorient or relocate the receiving antenna.
•Increase the separation between the equipment and receiver.
•Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
•Consult the dealer or an experienced radio/TV technician for help.
FCC Warning:
Changes or modifications not expressly approved by Telecor could void the user’s authority to operate the
equipment.
Radiation Exposure Statement:
This equipment complies with FCC and ISED radiation exposure limits set forth for an uncontrolled
environment without restriction. The distance between users and the product should be no less than 20cm.

INDUSTRY CANADA INFORMATION
IC:4134A-TMSMA
IC RULES: THIS PRODUCT HAS BEEN TESTED TO COMPLY WITH RF (RSS-247 Issue2 February 2017)
The Telecor Media Source Model A complies with Industry Canada ICES-003:
CAN ICES-003 (B)/NMB-003(B).
Warning:
This device contains license-exempt transmitter(s)/receiver(s) that comply with Innovation, Science and
Economic Development (ISED) Canada’s license-exempt RSS(s). Operation is subject to the following two
conditions: (1) this device may not cause interference, and (2) this device must accept any interference,
including interference that may cause undesired operation of the device.
The device has been evaluated to meet general RF exposure requirement.
The distance between user and products should be no less than 20cm.
Cet appareil contient des émetteurs/récepteurs exemptés de licence qui sont conformes aux flux RSS
exempts de licence du Canada pour l’innovation, la Science et le développement économique (ISDE).Le
fonctionnement est soumis aux deux conditions suivantes: (1) ce dispositif ne peut pas causer
d’interférence, et (2) ce dispositif doit accepter toute interférence, y compris les interférences pouvant
causer un fonctionnement indésirable du dispositif.
L’appareil a été évalué pour répondre aux exigences générales d’exposition aux RF.
La distance entre l'utilisateur et les produits devraient être au moins 20 cm.
The Party Responsible for Product Compliance:
Telecor Inc.
6205 Kestrel Road
Mississauga, Ontario
Canada, L5T 2A1

Table of Contents
A. Introduction.............................................................................................................................................9
B. Installation.............................................................................................................................................11
B.1 Unpacking ......................................................................................................................................11
B.2 Installing TMS-MA in Equipment Rack ..........................................................................................12
B.3 Connecting the TMS-MA Cables ...................................................................................................13
C. Overview................................................................................................................................................15
C.1 Front Panel.....................................................................................................................................15
C.2 Remote...........................................................................................................................................16
D. Operations.............................................................................................................................................17
D.1.1 Powering On the TMS-MA................................................................................................17
D.1.2 Playing USB Drive/SD/MMC Card Audio..........................................................................17
D.1.3 Playing Bluetooth Audio....................................................................................................19
D.1.4 Playing Aux Audio.............................................................................................................20
D.1.5 Playing Radio Audio..........................................................................................................20
Appendix 1. Specifications ......................................................................................................................23

TMS-MA Telecor Media Source Model A Installation Manual 9
A. Introduction
TMS-MA Telecor Media Source Model A
The TMS-MA Telecor Media Source Model A is an all-in-one audio source device which
accommodates multiple different kinds of audio sources into one single device.
The front side provides an AUX IN port, a USB slot, and a SD/MMC memory card slot. This
makes it possible to play MP3 files from USB drives and SD/MMC memory cards. The TMS-MA
is also capable of receiving FM radio and connecting to Bluetooth audio devices.
The rear side of the device provides a stereo output and a jack for an FM antenna (provided by
customer) for improved FM reception.
The TMS-MA is designed to be installed in a 19” equipment rack. If the TMS-MA is purchased
with an equipment rack, all required cables and mounting hardware for the TMS-MA will be pre-
installed in the rack.

TMS-MA Telecor Media Source Model A Installation Manual 11
B. Installation
Once you have unpacked and inspected your TMS-MA, your next step is to install the unit in a
standard 19” equipment rack and then connect the power, audio cable harness, and optional
(provided by customer) antenna.
B.1 Unpacking
The following equipment is included with your TMS-MA:
•Telecor Media Source Model A (TMS-MA)
•Cable harness for connecting TMS-MA to T2/XL (CHAP-TMS-MA)
1
•2A DC 5V Power Adapter
When you receive your TMS-MA you should unpack it carefully to verify that you have received
all the parts. If you are missing any parts notify Telecor immediately. Also inspect for any damage
which could have occurred during shipping. If you discover any damaged items, contact the
shipping company immediately.
1
If the TMS-MA is ordered with a rack, the cable harness will be pre-installed in the rack.

12 Installation
B.2 Installing TMS-MA in Equipment Rack
The TMS-MA installs into a standard 19” equipment rack.
Materials Required TMS-MA
4 10-32 ½” black screws (Part number: MS-1032)
1
(purchased separately)
4 “tooth” lock washers (included with MS-1032 screws)
4 plastic washers (Part number: MW-10BK)1(purchased separately)
4 speed nuts (Part number: MN-1032)1(purchased separately)
The TM-MA must be installed in a location with an operating temperature range of 10 to 40ºC (50
to 104ºF), 0-90% relatively humidity, non-condensing.
To install the TMS-MA into the equipment rack, complete the following steps:
1. Mount the TMS-MA in a 19" equipment rack.
2. Ensure that the equipment rack is properly grounded. Use “tooth” lock washers between
the TMS-MA and the mounting rails of the equipment rack. The washers ensure that a
chassis ground is maintained. Use the four plastic washers to protect the finish of the
front panel.

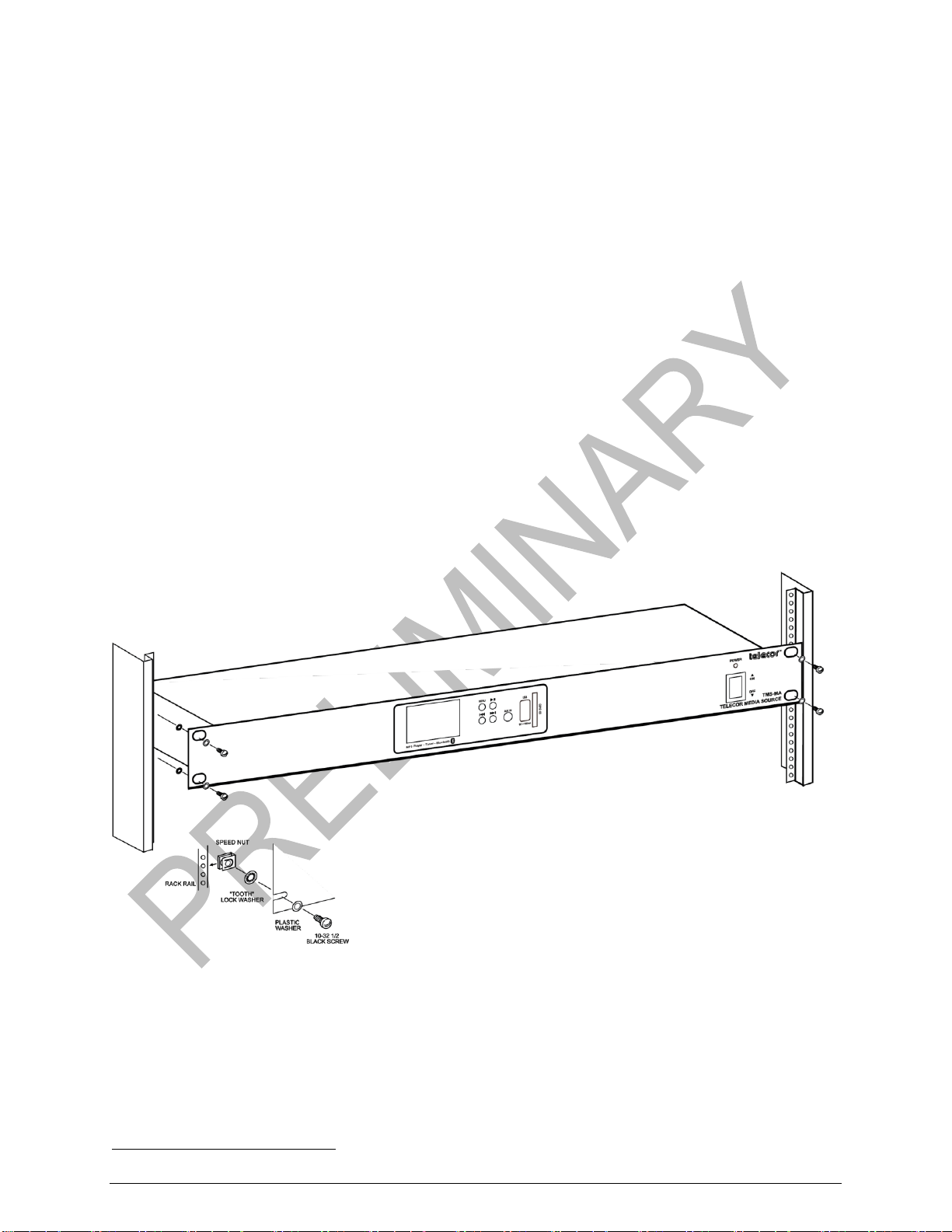

Installing TMS-MA into the Equipment Rack
1
Purchased in bags of 50 or will be included if the TMS-MA is ordered with a rack.

TMS-MA Telecor Media Source Model A Installation Manual 13
B.3 Connecting the TMS-MA Cables
Once you have mounted the TMS-MA unit into the rack, you can then connect the power, audio
cable harness, and optional (provided by customer) antenna.
The CHAP-TMS-MA audio cable harness connects the TMS-MA to the Telecor II’s ATBU-2 or
Telecor XL’s ATP-AX2. It has a 3-pin insulation displacement connector (IDC) at the TMS-MA
end and a 2-pin IDC at the T2/XL end.
CHAP-TMS-MA Audio Cable Harness
Connections to the TMS-MA
1. Connect the power adapter cord to the TMS-MA and plug it into the mains.
2. Optional: plug an FM antenna into the 75Ω antenna port and run the antenna wire along
the outside of the rack.
3. On the rear of the TMS-MA, plug the 3-pin IDC of the CHAP-TMS-MA cable harness
into the audio output port as in the above diagram.
4. Plug the 2-pin IDC end of the CHAP-TMS-MA audio cable harness into the TUNER,
TAPE or AUX input of the T2/XL’s Audio Input board (ATP-AX2 on an XL System or
ATBU-2 on a T2 system).
Audio Connection to the T2/XL System

TMS-MA Telecor Media Source Model A Installation Manual 15
C. Overview
C.1 Front Panel
Front Panel of Telecor Media Source Model A
1. LCD Display: Provides information about the current operation, e.g., the current audio track or
radio station.
2. Operational Buttons: Menu, Play/Pause, Left ( ), and Right ( ).
3. AUX IN Port: Used to connect an auxiliary input audio device.
4. USB Connection Port: Used to connect a USB drive.
5. SD/MMC Card Slot: Used to insert an SD/MMC card.
6. Power Switch: Supplies power to the TMS-MA. The Power LED illuminates when power is
supplied.

16 Overview
C.2 Remote
The TMS-MA includes a remote which can be used to access its functions.
Remote for Telecor Media Source Model A
: Powers the TMS-MA on/off.
: Toggles through operational modes/menus.
: Mutes/unmutes audio.
: Play/pause audio. Context sensitive confirmation.
: Context sensitive navigate left.
: Context sensitive navigate right.
: Toggles equalizer mode in certain audio modes.
: Decrease volume.
: Increase volume.
: Toggles repeat mode.
: Toggle audio source between USB drive and SD/MMC card.
to : Context sensitive numerical inputs.

TMS-MA Telecor Media Source Model A Installation Manual 17
D. Operations
D.1.1 Powering On the TMS-MA
1. Press the power switch on the front of the TMS-MA to ensure power is supplied. The
Power LED will illuminate when power is supplied.
2. Press and hold MENU on the front of the TMS-MA or the POWER button on the remote
until the LCD display lights up.
Note: The TMS-MA being supplied with power and being powered on are two different states. If the
power supply is turned off while the TMS-MA remains powered on, it will instantly power on next
time power is supplied.
D.1.2 Playing USB Drive/SD/MMC Card Audio
To play audio from a USB drive/SD/MMC card:
1. Insert the USB drive into the USB slot or the SD/MMC card into the SD/MMC card slot
on the front of the TMS-MA. Once detected, the MP3 files should automatically begin
playing.
2. If the audio files on the USB drive/SD/MMC card are not automatically detected and
played, press and hold MENU on the front of the TMS-MA or Mode on the remote until
the main menu appears.
3. Press MENU on the front of the TMS-MA or Mode on the remote until “Music” is
selected.
4. Press Play/Pause on the front of the TMS-MA or the remote.
Selecting Music (USB Drive/SD/MMC Card)
When the TMS-MA is set to play audio from a USB drive/SD/MMC card, the LCD display on the
front of the TMS-MA will display the following:
Playing USB Drive (Left) or SD/MMC Card (Right) Audio Display

18 Operations
The components of the LCD display when playing USB drive or SD/MMC card audio are as
follows:
1. USB drive or SD/MMC card audio source indicator
2. Current track number (top) and total number of tracks (bottom)
3. Equalizer mode
4. Repeat mode
5. Play/pause state
6. Mute/unmute state
7. Current track location and current track duration
8. Audio file name
To switch between a connected USB drive and an inserted SD/MMC card being the audio source:
1. Press U/SD on the remote.
To play or pause audio:
1. Press Play/Pause on the front of the TMS-MA or the remote.
To mute the audio:
1. Press Mute on the remote.
To select a different audio file:
1. Press Left or Right on the front of the TMS-MA or the remote.
Note: The audio files will be listed in alphabetical order according to their file names.
2. Alternatively, enter the number of the audio file followed by Play/Pause on the remote to
select that audio file, e.g., press 5 and the Play/Pause to play the fifth audio file.
To rewind or fast forward through an audio file:
1. Press and hold Left or Right on the front of the TMS-MA or the remote. Release when
the desired position in the audio file has been reached.
To adjust the volume:
1. Press Vol- or Vol+ on the remote.

TMS-MA Telecor Media Source Model A Installation Manual 19
To change repeat mode:
1. Press RPT on the remote. The available repeat modes are: 1 (repeat current audio file, R
(randomized), A (all audio files), and D (only audio files in the current folder).
To change equalizer mode:
1. Press EQ on the remote. The available equalizer modes are: Nor (Normal), Pop, Rock,
Jazz, Clas (Classical), Soft, and DBB (Dynamic Bass Boost).
D.1.3 Playing Bluetooth Audio
To play audio from a Bluetooth device:
1. Press and hold MENU on the front of the TMS-MA or Mode on the remote until the
main menu appears.
2. Press MENU on the front of the TMS-MA or Mode on the remote until “Bluetooth” is
selected.
3. Press Play/Pause on the front of the TMS-MA or the remote.
Selecting Bluetooth
4. On your Bluetooth device, search for other Bluetooth devices. Select MPLAYER C
when it is detected.
When the TMS-MA is set to play audio from a Bluetooth, the LCD display on the front of the
TMS-MA will display the following:
Bluetooth Device Not Connected (Left) or Connected (Right) Display
To mute the audio:
1. Press Mute on the remote.
To adjust the volume:
1. Press Vol- or Vol+ on the remote.

20 Operations
D.1.4 Playing Aux Audio
To play audio from AUX input:
1. Plug the AUX input device into the AUX IN port on the front of the TMS-MA.
2. If the AUX input device is not automatically detected and played, press and hold MENU
on the front of the TMS-MA or Mode on the remote until the main menu appears.
3. Press MENU on the front of the TMS-MA or Mode on the remote until “AUX” is
selected.
4. Press Play/Pause on the front of the TMS-MA or the remote.
Selecting AUX Input Audio
When the TMS-MA is set to play audio from AUX input, the LCD display on the front of the
TMS-MA will display the following:
TMS-MA Playing AUX Input Audio
To play or pause audio:
1. Press Play/Pause on the front of the TMS-MA or the remote.
D.1.5 Playing Radio Audio
To play audio from radio:
1. Press and hold MENU on the front of the TMS-MA or Mode on the remote until the
main menu appears.
2. Press MENU on the front of the TMS-MA or Mode on the remote until “Radio” is
selected.
3. Press Play/Pause on the front of the TMS-MA or the remote.
Selecting AUX Input Audio
