Avonic CM55-VCT Videoconferencing Endpoint Quick
Installation Guide
Copyright Notice
All contents of this manual, whose copyright belongs to Avonic. Cannot be cloned, copied or
translated without the permission of the company. Product specifications and information which
were referred to in this document are for reference only, and the content will be updated at any time
without prior notice Avonic.

www.avonic.eu

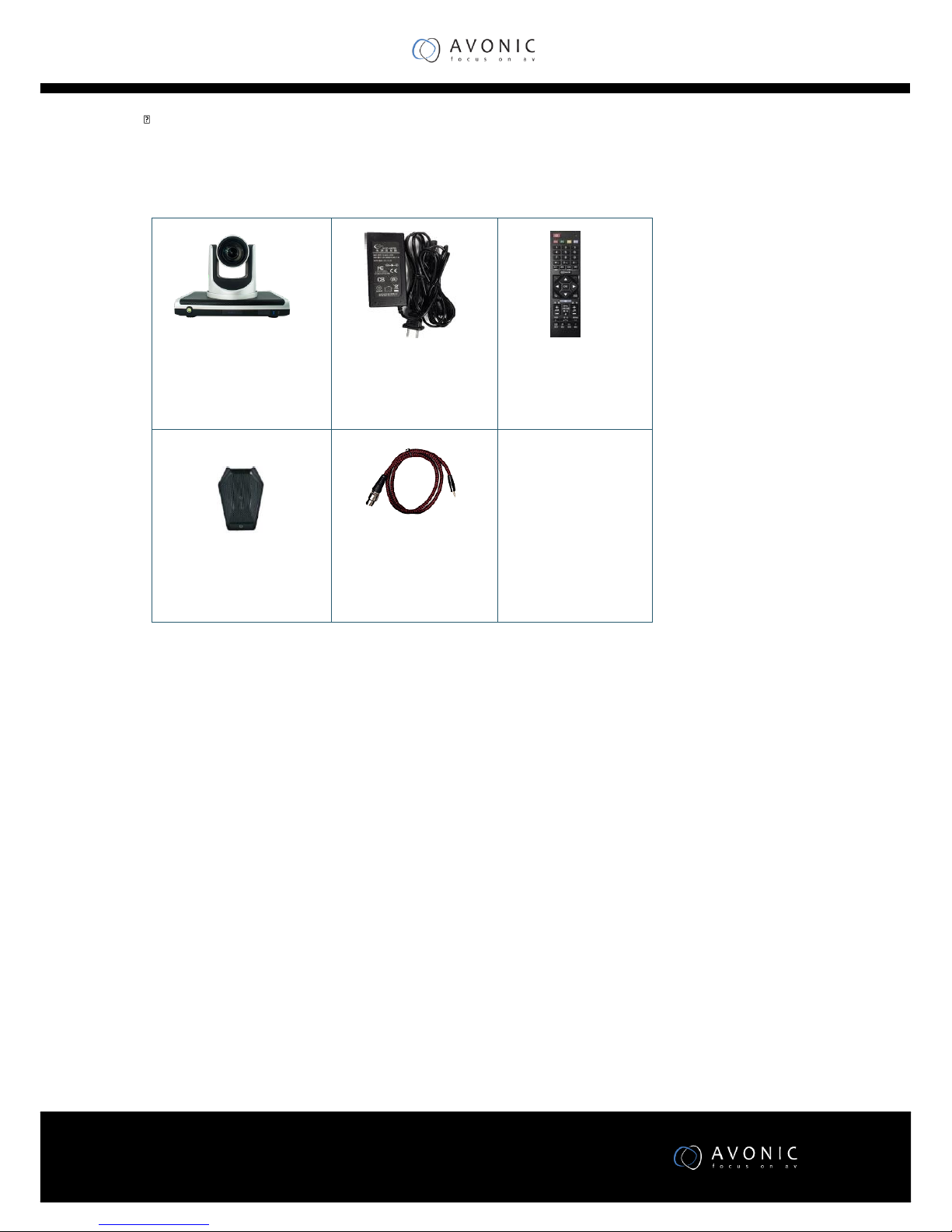

Supplied Accessories
When you unpack, check that all the supplied accessories are included:
VHD-CM55-VCT
videoconferencing endpoint
Power adapter+Power cable
IR Remoter controller
Boundary Microphone
3.5mm Audio cable
Quick Installation
Guide
Product Introduction
CM55-VCT Videoconferenceing endpoint is one small size, Camera+Video Conferenceing System buit-in-one device,
Support 1080P HD codec and H.323, SIP protocol, System with integrated design, easy to install, After connecting the
internet cable ,power on the endpoint.
Key Features：
All-in-one design, Camera + Video Conferencing System buit-in-one device, simple to use. Support Wi-Fi,
support external microphone, small size, easy to install.
Use 72.5° wide-angle high quality lens, support 12x optical zoom, and 32x digital zoom (optional).
Support 1080P Full HD video input, and support 2 external vide input (DVI-A or DVI-D).。
Network adaptability, FEC anti-loss: 20% loss.
RESTful API + Android runtime environment, support custom UI and third-part applications, the development
of applications that can be deployed inside the endpoint or external.
Full open SDK, provides powerful media processing engine, support the development of third-party protocols and
applications, easy to implement secondary development for customers.。

www.avonic.eu

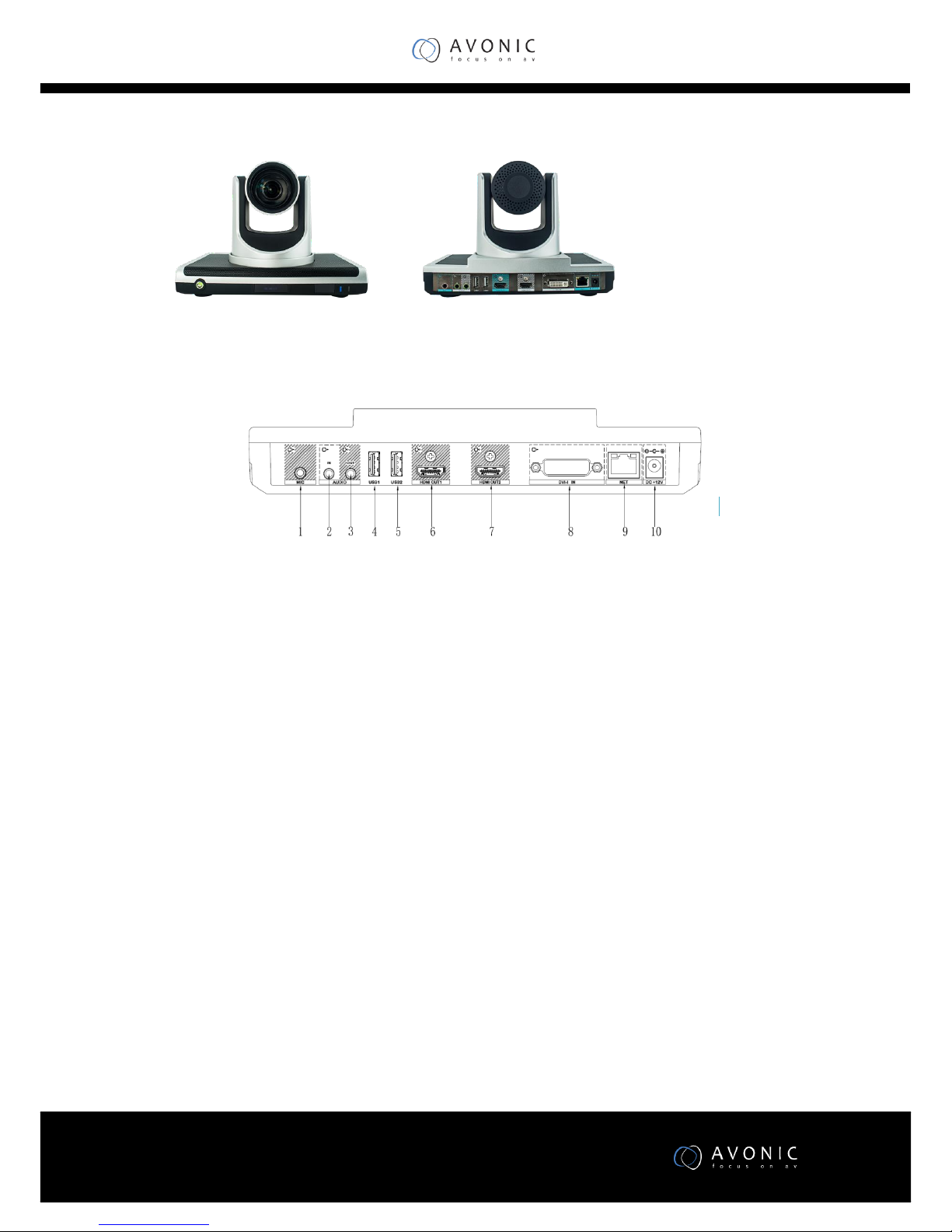

Getting Started
The Front of C9
The back of C9

www.avonic.eu
No.
Component
Description
1
MIC
Connect the microphone to the Audio input interface of
endpoint for receiving sound.
2
AUDIO IN
3.5mm Audio input interface , For connect computer,
telephone …Audio input source for receiving sound
3
AUDIO OUT
3.5mm Audio output interface, connect the Sound to
the Audio out output interface of endpoint through
Audio cable for output sound
4
USB1
Connects to a USB flash drive. : upgrade, connect
mouse, keyboard control and so on
5
USB2
Connects to a USB flash drive.: upgrade, connect
mouse, keyboard control and so on
6
HDMI OUT1
Using an HDMI cable, Connect the high-definition TV
to the HDMI OUT1 output interface of endpoint With
audio output
7
HDMI OUT2
Using an HDMI cable, Connect the high-definition TV
to the HDMI OUT2 output interface of endpoint
8
DVI IN
Connecting auxiliary video input device (VGA video
source, such as a computer)
Using a DVI cable, connect the computer to a DVI IN
input, press remote control ，To send a second
video source to the participant's endpoint.
9
NET
with A network cable to connect endpoint LAN port,
make sure the endpoint with net
10
DC+12V
Connect the power supply ,Supply 12V power for
endpoint

www.avonic.eu
Parameter index
category
Item
Description
Electrical
Characteristics
Working voltage
100V AC~240V AC，50Hz~60Hz；12V
DC
Consumption
Power consumption：24W
Environmental
Specification
Operating condition
Temperature
0℃～40℃
Humidity
10%～80%
Peripheral noise
<46dBA SPL
Lowest luminance
0.5lux
Recommended
luminance
> 300lux
Non-Operating condition
Temperature
-40℃～70℃
Humidity
0%～95%
Physical
Characteristics
Size
239.4mm（长）×148.4mm（宽）
×157mm（高）
Weight
1.7kg

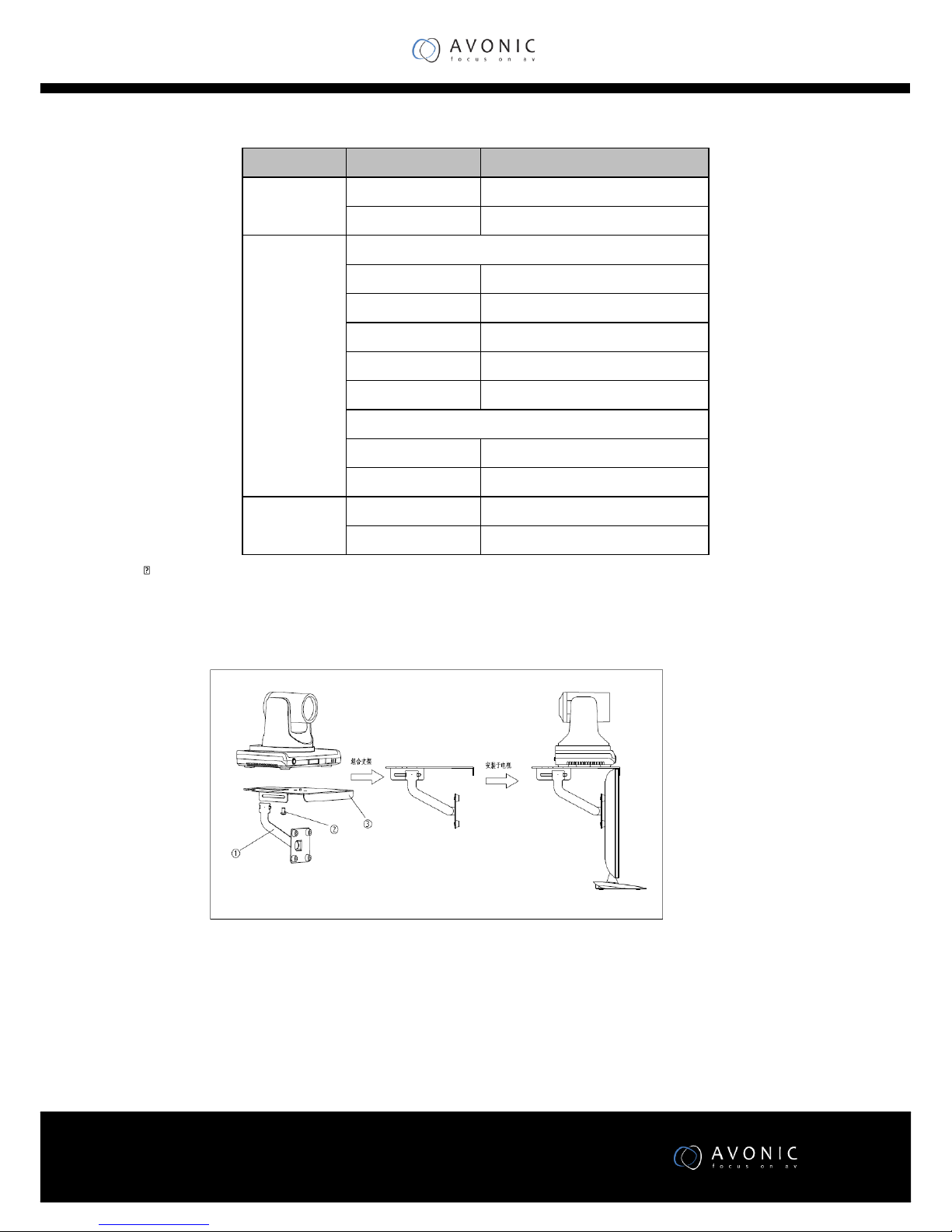

Installation
The videoconferenceing endpoint can be placed directly on the desktop, Fixed on TV or hanging on the wall, As shown below;.
1. Standard Mounting,As shown below;
2. Wall-Mounting, As shown below;

www.avonic.eu

Explanation
1. Place the CM55-VCT on a flat surface, keep the desk on stable and note slip.
2. Place the CM55-VCT on the TV-Bracket, Please according to the TV thickness, using the screws on the TV-Bracket.


 

www.avonic.eu
Connecting Cables
The following figure shows a cable connection example in which the HDMI port is used for video output.

www.avonic.eu
Configuration as follows：
Input the main video: Use the built-in camera
Input the second video image: using DVI cable, connect computer to the DVI IN input interface of CM55-VCT
Input sound: Using 3.5mm microphone cable of Boundary Microphone to connect MIC interface of CM55-VCT .
Enter Players Sound: Using 3.5mm Audio cable, connect the Player to the LINE IN interface of CM55-VCT .
Output Main video image: using an HDMI cable to connect the HDMI OUT1 interfaces of CM55-VCT to HDMI
input display device
Output sound：using an HDMI cable to connect the HDMI OUT1 interfaces of CM55-VCT to HDMI input display
device,or using 3.5mm Or use the 3.5mm audio cable to CM55-VCT LINE OUT connectors to the speaker.
output of the second video image：using an HDMI cable to connect the HDMI OUT1 interfaces of CM55-VCT to
HDMI input display device,
connect to the network：using the network cable to connect LAN port terminal，Let the terminal connect
network.
Connect the power supply：connect DC+12V interface of CM55-VCT to matching power adapters

www.avonic.eu
Turn on the power
Connect all the equipment of matching with CM55-VCT , then connect the power.
Note：
When the power of terminal in the open state,please prevent the power cord from the terminal and cause an
outage.
Please turn off the terminal, then turn off the external power supply (eg power socket), and finally unplug the
power cord.
Please make sure the power cord and power adapter is properly and reliably connected to the device:
Please make sure the Voltage of AC power supply range between 100V ~ 240V, frequency is 50Hz or 60Hz.
Please make sure the order definition of FireWire (L), neutral (N) and protective earth (PE) and the
corresponding voltage difference must conform to international standards, and the protective earth (PE) can
get ground
The HDMI OUT1 as the output interface. Following with the figure to connect the
cable,connect the power of adapter, and then press the power button (green light)，start-up
screen to display the main menu (takes about 120 seconds).
When turned on ,the lamp of CM55-VCT terminal described in the following table.。
State of lamp
CM55-VCT Statements
Power green light long bright
Normal operation
Power orange light long bright
It has been shut down but the
power hasn’t been cut
Power light is off
The power has been cut
IR receiver light flashes green
Remote control infrared signal is
received

www.avonic.eu
Basic Information
Set Language
1. In the main interface, select the "Settings" , enter the setting interface, and then select the "language" enter the
language setting interface.
2. Select “English” or “Chinese”(Simplified) and then come back.(The picture has been updated)
Set the date and time.
1. In the main interface, select the "Settings", enter the setting interface, and then select to enter the network settings
screen.
2. Move to the left interface, select the “Date and Time”, Configure the time parameters

www.avonic.eu
Parameter
Description
Select Time Zone
Set the Local Time Zone
Time Serve
Set NTP Time Serve
Auto-Sync
set to synchronize automatically
Select 24 Hour Format
Set up 24 hours format
Select Date Format
Display date format(Year/Month/Day)
Return button
Save the configuration information, back to internet interface
Set the network
1． Select “Setting” in the main interface, enter the setup interface, select “Network”. Enter the network setting
interface.
2． Select “Ethernet Configuration”

www.avonic.eu
Parameter
Description
Network Type
Manual settings:
Your network administrator assigns an IP address to your TE30. If you
select this option, you must also set Local IP address, Subnet mask, and
Gateway address.
When a DHCP server is available on the network, your TE30
automatically obtains an IP address using the Dynamic Host
Configuration Protocol (DHCP).
IP Address
network connections
Netmask
network connections
Gateway Address
network connections
DNS Address
network connections
Save button
Save the Internet ,Setting, Back to Internet Setting interface
Release button
Do not save the network settings, Back to Internet Setting interface
Set the Videoconferenceing camera name
1. Select “Settings” at the main interface, Enter the setup interface, Select “account” to enter account setup interface.
2. Select the "General" Configuration "terminal name", select "Save."
Setting H.323 Parameters (optional)
Setting CM55-VCT H323ID and number, specify GK address, so that the CM55-VCT is registered to GK, enabling
conference calls by number or other terminals.
1．Select “Settings” in the main interface, Select “Account , Enter Account Setup interface.
2．Select “H.323”,Press Home button, enter the interface to setting.

www.avonic.eu
Parameter
Description
Configuration
manual configuration、ZijingCloud
ZijingCloud
Input the correct ZijingCloud ID and password, your
CM55-VCT automatically obtains an H.232
configuration information.
Manual
configuratio
n
GK Serve Address
The IP address or domain
Registered Name
The CM55-VCT name or called name
Endpoint Number
The called name of CM55-VCT or the number of
E.164
Password
GK Serve register password(optional)
Save Button
Save the setting, back to the setup interface
Default Button
restore the default value empty
If you select this parameter, the TE30 registers with the GK after being
started. After successfully registering with the GK, the TE30 can call endpoints
defined in the address book by their IP addresses, numbers, and names.
If you do not select this parameter, the TE30 does not register with the GK
and can call endpoints only by their IP addresses.
Explanation
1. If you select this parameter, the CM55-VCT registers with the GK after being
started. After successfully registering with the GK, the TE30 can call endpoints
defined in the address book by their IP addresses, numbers, and names.
2. If you do not select this parameter, the CM55-VCT does not register with the GK
and can call endpoints only by their IP addresses.

www.avonic.eu

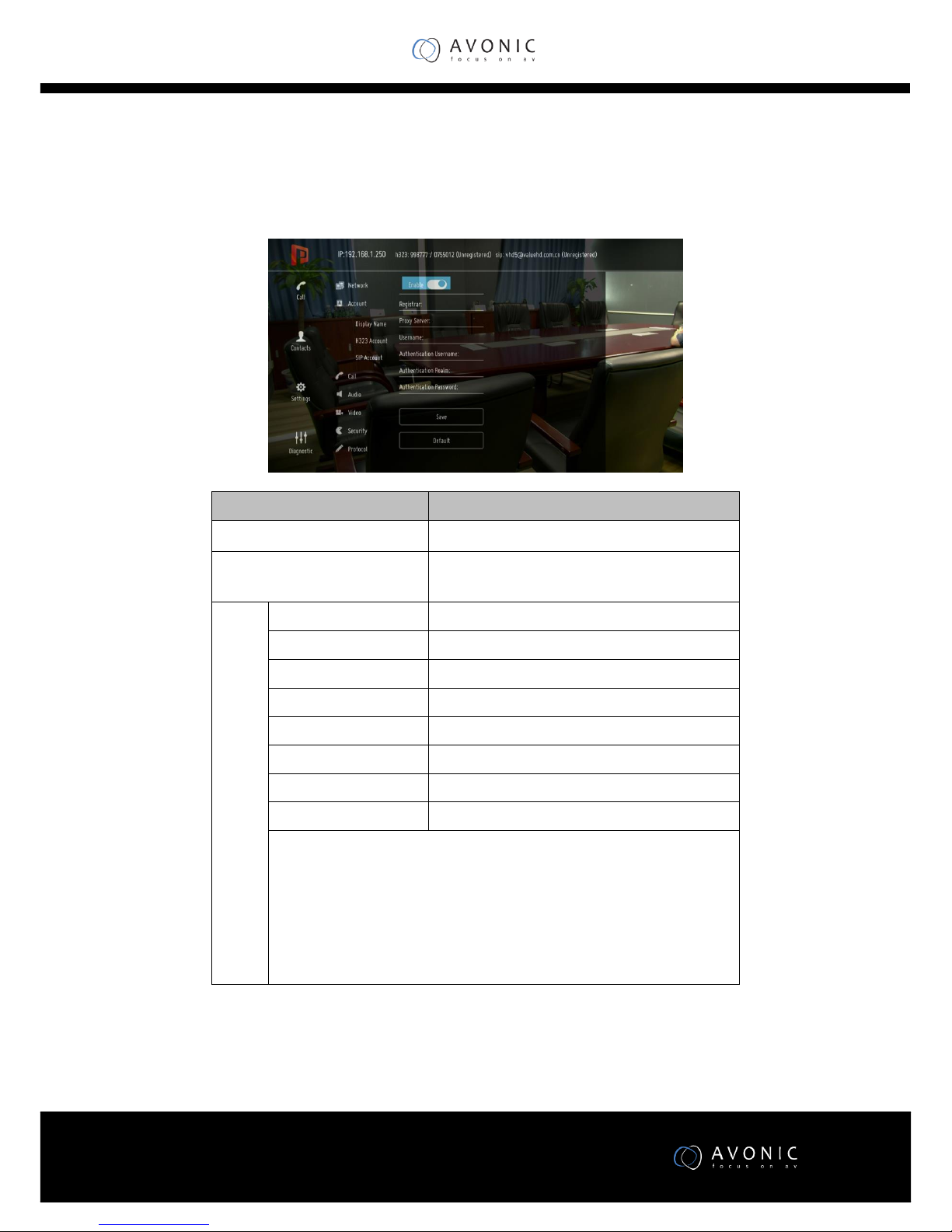

Setting SIP Parameters (optional)
Configuration SIP parameters, set CM55-VCT SIP address, registration number, With remote communication
1． Select “Settings” in the main interface, enter the setup interface, Select “Account”, Enter Account settings interface.
2．Select “SIP” ,Press the “Home” button, Enter interface to settings
Parameter
Description
Configuration
Manual Settings、ZijingCloud
ZijingCloud
Input the correct ZijingCloud ID and password, your
CM55-VCT automatically obtains an SIP configuration
information.
Manual
configur
ation
SIP registration server
address
IP address or domain
SIP proxy server address
IP address or domain(Optional)
End user name
End-user name（number）or SIP URI
Authentication username
Authentication username(Optional)
Authentication Password
Authentication Password(Optional)
Certified Domain
Certified Domain(Optional)
Save button
Save the setting, back to the setup interface
Default button
restore the default value empty
If you select this parameter, the CM55-VCT registers with the SIP server. After
successfully registering with the SIP server, the CM55-VCT can call endpoints defined
in the address book by their IP addresses, numbers, and names.
If you do not select this parameter, the CM55-VCT does not register with the SIP
server and can call other endpoints only by their IP addresses

www.avonic.eu
Using the built-in Web GUI to control and setup the camera
1. Find the local IP address on the front diplay of the camera.
2. Open a browser on a computer or tablet and browse to the IP address of the camera
3. Default login details are
User: admin
Password: admin
4. The same settings as in the OSD are available.
