StarLeaf GT Mini 3330 User manual

StarLeaf GT Mini 3330
Installation Guide
01 April 2021

Contents
About the codec 4
Connectors and ports 4
Using the correct HDMI and DVI cables 5
Connecting your laptop to the codec 5
StarLeaf Pronto 6
DVI-I cable 6
Audio connectors and voltage levels 6
3.5mm audio connector pinout 7
Extending the camera cables 7
GT Mini dimensions and mounting 8
Getting the best room system experience 9
Optimizing your room 9
Audio and video setup 9
How to install GT Mini 3330 10
Pack contents 10
QuickConnect 13
StarLeaf Pronto 15
DVI-I cable 15
About the camera 16
Camera control for PTZcameras 16
Camera presets 16
Audio settings for Group Telepresence 19
Microphone settings 19
StarLeaf microphones 19
3rd party XLR microphones 19
Line in microphones 20
Line out 20
Pink noise test tone 20
Advanced settings 22
Auto-answer mode 22
API mode 22
Max send and receive rates 22
Typical installation of GT Mini 23
Using Group Telepresence 24
About StarLeaf touchscreen controllers 25
StarLeaf installation guide, 01 April 2021 Page 2 of 34

LED behavior for GT Mini 29
Network port LED behavior 29
StarLeaf Controller Port LED behavior 29
Using a smartboard with a GT Mini 30
Smartboard with external PC 30
Smartboard with internal PC 30
GT Mini 3330 safety and compliance information 31
Installation 31
Ventilation 31
Servicing 31
Power requirements 31
Operating environment 32
Approvals information 32
EU/EEC 32
USA 32
Canada 33
Legal information 34
Third party software acknowledgments 34
Disclaimers and notices 34
StarLeaf installation guide, 01 April 2021 Page 3 of 34

About the codec
About the codec
In this topic:
nConnectors and ports (p4)
nUsing the correct HDMI and DVI cables (p5)
nConnecting your laptop to the codec (p5)
nAudio connectors and voltage levels (p6)
nExtending the camera cables (p7)
Connectors and ports
The figure below shows the connectors on the rear of the Group Telepresence 3330 (GT
Mini) codec.
The table below describes the connectors:
Connector Description
Microphone XLR-F connectors. Connect the microphone. You can alter the
power and gain settings of the microphone via the StarLeaf Portal
(refer to Audio settings for Group Telepresence (p19))
Audio line-in 3.5mm line level stereo audio connector. You can connect a line
level microphone source or input other audio, for example a
computer. In either case, ensure you have the correct settings for
audio in the Portal. For more information, refer below and to How
to install GT Mini 3330 (p10)
Audio line-out 3.5mm stereo audio connector. If required, you can connect to a
local loudspeaker system. You can alter the line-out audio settings
via the StarLeaf Portal (refer to Audio settings for Group
Telepresence (p19)). For more information about the connector,
refer below this table
COM This port is for a 4P4C connector providing an RS-232 interface. This is
the same connector used in RJ9, RJ10, and RJ22. There is both a
serial and an IP API option for the GT Mini and a StarLeaf Room
Systems API guide is available
Camera control Mini-DIN-8 connector for controlling zoom, pan, and tilt using
VISCA™ protocol. You connect to this port if you are using a PTZ
video conferencing camera. For more information, refer to About
the camera (p16)
Camera input HDMI connector. You connect to this port if you are using a PTZ
video conferencing camera. For more information, refer to About
the camera (p16)
StarLeaf installation guide, 01 April 2021 Page 4 of 34

About the codec
Connector Description
Computer In DVI-I connector. Connect a PC or other device to share content in
a video call or locally. If audio-in is enabled on this connector,
audio can also be shared from the connected device when
connected using an HDMI-DVI-I connector. From Cloud 7.1, audio-
in on this DVI-I connector is enabled by default. If your room system
pre-dates Cloud 7.1, contact StarLeaf Support to enable audio-in
on this connector
Video Out HDMI x2 HDMI connectors. Video Out connector A outputs both audio and
video (1080p60 only) to the screen. If you are connecting a second
screen, connect it to HDMI port B
USB x2 You can connect Pronto Cable USB to instantly share content from
your laptop, and synchronize your StarLeaf meetings. For this you
must use the top USB port on the codec. For more information, see
Installing Pronto Cable USB. If you are using a USB webcam, you
can connect it to either port
Network 10/100/1000 Mbit/s auto-sensing Ethernet port. Connect to the
network
StarLeaf Controller
Only
Connect to the PoE port on the rear of the StarLeaf touchscreen
controller to both power the touchscreen controller and to allow
communication between the touchscreen controller and the
codec
+48V power Connect to the supplied AC/DC adaptor
There are LEDs on the Network port and the StarLeaf Controller Only port of the codec
indicating the status of the network link, and the link to the StarLeaf touchscreen
controller. LED behavior is described in LED behavior for GT Mini (p29).
Note: Older models of GT Mini have HDMI ports labeled 1 and 2. In this case, plug screen 1
into port 2.
Using the correct HDMI and DVI cables
When connecting HDMI or DVI cables to the camera inputs, the PC input, and the
telepresence screen display outputs, ensure you use the correct gauge of HDMI/DVI
cable. For short cable lengths of up to 5m (17 feet), use 28AWG or thicker core. For longer
lengths, use 24AWG or thicker. StarLeaf does not support the use of HDMI or DVI cables of
longer than 15m (49 feet) with the codec.
Connecting your laptop to the codec
You can connect your laptop, in order to share content, in one of two ways:
StarLeaf installation guide, 01 April 2021 Page 5 of 34

About the codec
StarLeaf Pronto
StarLeaf Pronto allows users to meet and share in an instant. When you connect Pronto to
your laptop, your screen and audio are shared with the room so that you are ready to
present immediately. Your StarLeaf meetings are also synchronized with the room,
allowing you to join with one touch.
Go to Installing Pronto Cable USB for more information.
DVI-I cable
Connect the DVI-I to DVI-I cable to Computer-In DVI-I on the rear of the codec. For the
convenience of the Group Telepresence users, leave the other end of the cable on the
meeting room table. This allows users to connect a laptop to the Group Telepresence
system when they need to do so. The Group Telepresence system includes a selection of
adaptors to be used with the DVI-I to DVI-I cable where the video output of a PCis other
than DVI-I (for example, VGA, HDMI, DVI-D).
Audio connectors and voltage levels
The audio voltage levels used by the XLR inputs, audio line-in and audio line-out are
specified in the tables below. These levels can be adjusted in Portal > Room system > Edit
room system > Audio and video settings.
For inputs, the table specifies the:
nmaximum levels supported (for minimum Portal gain setting)
nmaximum levels supported for the default Portal gain setting of 0dB
nmaximum levels supported for the maximum Portal gain setting
Input Max
level
Max level at Portal
0dB
Portal max
gain
Max level at Portal max
gain
XLR in -17dBu -17dBu +30dB -47dBu
Line in +8dBu +2dBu +30dB -28dBu
For outputs, the table specifies the:
nmaximum levels provided (for maximum Portal gain setting)
nmaximum levels provided for the default Portal gain setting of 0dB
nmaximum levels provided for the minimum Portal gain setting
Output Max
level
Max level at Portal
0dB
Portal min
gain
Max level at Portal min
gain
Line out +2dBu +2dBu -70dB -68dBu
Phantom power is compatible with active microphones that are designed for 48V
phantom power. The following are specifications of the power supply:
nOutput voltage when operational, no load is 45.3V +/- 4%
nOutput voltage when muted, no load is 35.3V +/- 4%
StarLeaf installation guide, 01 April 2021 Page 6 of 34

About the codec
nPower output source impedance is 1.975kOhms +/- 2%
3.5mm audio connector pinout
All StarLeaf room systems use a standard 3.5mm connector:
Left signal = tip
Right signal = middle
Ground = back
Extending the camera cables
StarLeaf room systems that use a PTZ camera are provided with camera connection
cables of 5m in length. If you need to install the camera further than 5m from the room
system, you must extend those cables.
You can extend those cables using a third-party product called an extender. This product
effectively carries the media and camera-control signals across a cat 6 Ethernet cable.
StarLeaf has partnered with Sound Control Technologies to provide this solution which is
available at https://www.soundcontrol.net/solutions/#
StarLeaf installation guide, 01 April 2021 Page 7 of 34

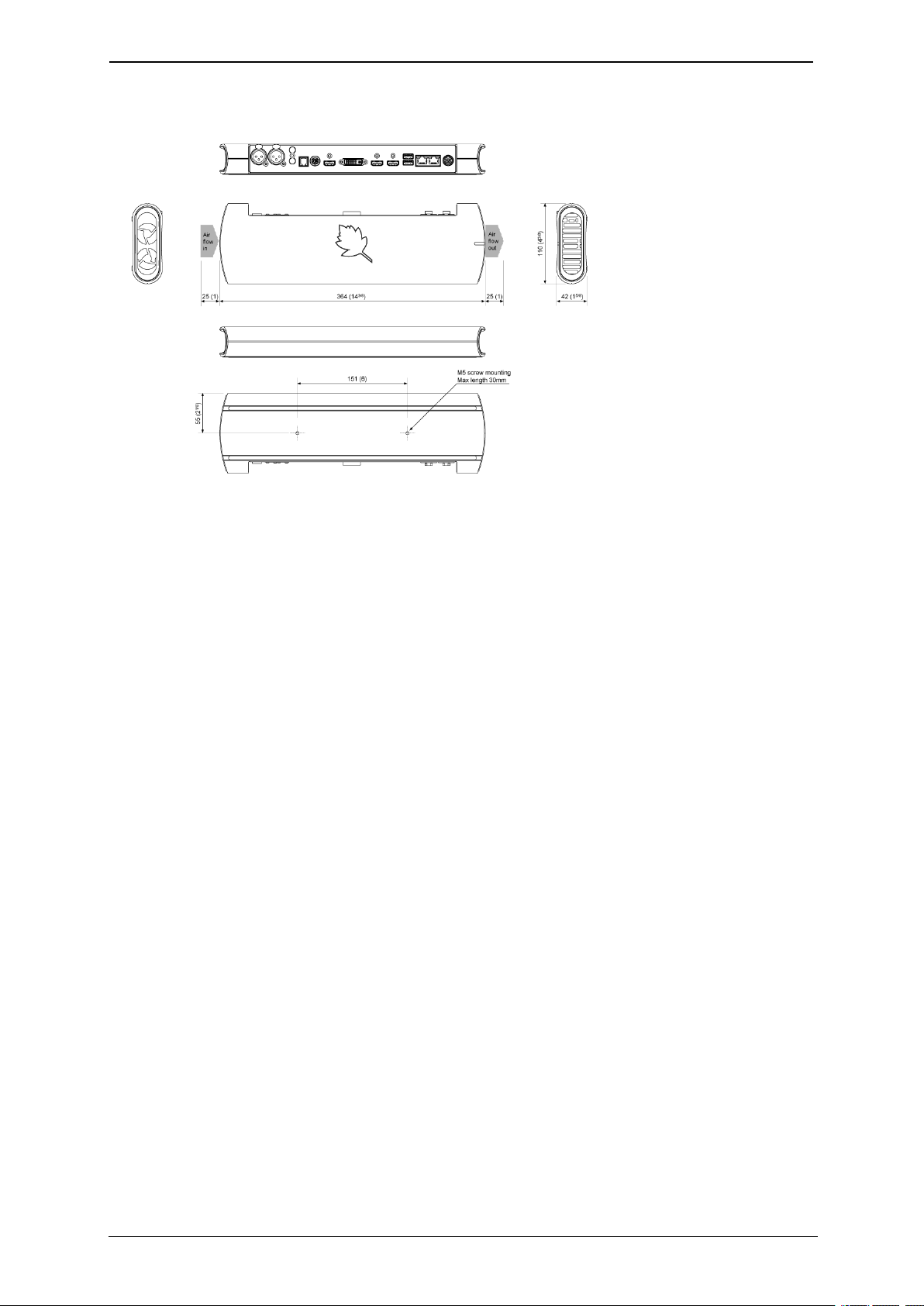

GT Mini dimensions and mounting
GT Mini dimensions and mounting
StarLeaf installation guide, 01 April 2021 Page 8 of 34

Getting the best room system experience
Getting the best room system experience
Before or during your room system installation, it is recommended that you consider the
following to get the best meeting experience:
nOptimizing your room (p9)
nAudio and video setup (p9)
Optimizing your room
It is recommended that your meeting space has:
nGood lighting. Make sure the light source is either directly above you or behind the
camera
nA non-reflective table
nEither sound proofing or furnishings to reduce noise
nIs in a non disruptive location (e.g not next to a kitchen or entrance hall)
Audio and video setup
It is recommended that you do the following:
nOptimize your TV settings (e.g use 1080p, and/or select 'Game' or 'Movie' mode)
nPlace your controller and microphone in a central location
nPosition the camera to be in-line or above where people will sit in the room
nConfigure camera presets and other audio and video settings at StarLeaf Portal >Room
systems >Edit room system >Audio and video settings
StarLeaf installation guide, 01 April 2021 Page 9 of 34

How to install GT Mini 3330
How to install GT Mini 3330
Before installing a StarLeaf product, read the safety information at
www.starleaf.com/safety.
Pre-requisites
Before installing the room system, ensure you have the following:
nA StarLeaf account
nOne or two room screens that support a 1080p60 input format (use TVs/screens that
have an audio-output capability, or alternatively, you can connect loud speakers to
the codec). Enable Game Mode or PC Mode if the screens have these options as this
reduces media processing delays and improves video experience
nWired network connection
Pack contents
nCodec
nInstallation sheet
nAC/DC adaptor
nCables
lPower cable
lHDMI to HDMI cables (two) (connects codec to screens)
lDVI-I to DVI-I cable (connects codec to PC video)
lNetwork cable
nAdaptors for the codec-to-PC cable
lDVI-I to HDMI
lDVI-I to VGA
lDVI-I to DVI-D
nStarLeaf touchscreen controller
nVideo camera (if you are using your own camera, the minimum input resolution must be
720p50 or 720p60)
nMicrophone
Positioning the codec
1. Ensure you have chosen an appropriate installation site:
lThe codec must be accessible with all cables easily connected
lYou must provide ventilation for the codec; leave a space of at least 10cm (4
inches) behind, in front, and to the left and right of the codec
lEnsure that the power switch is easily accessible; the power switch is the main
disconnect device for the codec
lUse a grounded AC power outlet for the codec
2. Place the unit on a firm horizontal surface. If you intend to mount the unit, refer to GT
Mini dimensions and mounting (p8).

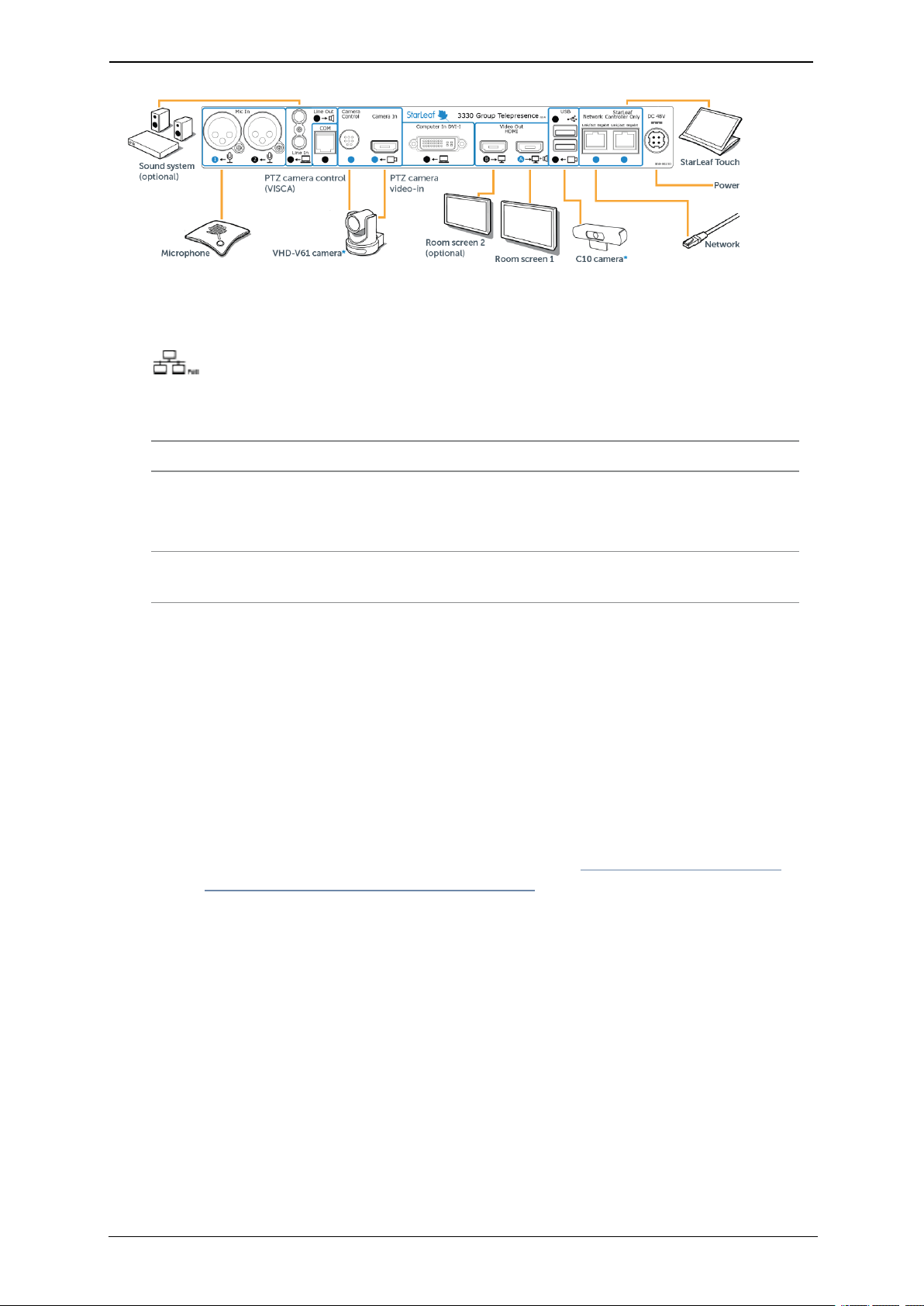

Connecting cables to the codec
StarLeaf installation guide, 01 April 2021 Page 10 of 34

How to install GT Mini 3330
1. Using an Ethernet cable, connect the StarLeaf Controller port on the codec to the
network port (PoE) on the rear of the touchscreen controller. The network port on the
touchscreen controller is marked with this symbol:
The touchscreen controller must connect directly to the codec; do not connect the
touchscreen controller to the codec using a switch.
Note: If you are using the StarLeaf Conference Phone 2220, refer to .
2. Using an Ethernet cable, connect the Network port on the rear of the codec to an
Ethernet switch in your network. The Ethernet port is a 10/100/1000 Mbit/s auto-sensing
port and is set to ‘auto’ by default.
Note: In all cases, the speed and duplex settings at either end of the connection must
be identical. Using non-matching settings causes severe packet loss.
To configure the network speed and duplex settings of the codec’s Network port: on
the touchscreen controller that you have connected to the codec, go to settings >
networking > network port speed.
3. Connect one telepresence screen to Video Out A. If you have a second telepresence
screen, connect it to Video Out B. (Note: on older systems, if you have only one screen,
connect it to the port labeled: HDMI 2.)
4. Connect the camera. One of:
lPTZ camera: connect the camera to Camera Control and to Camera In and then
connect power to the camera
lWebcam: connect the camera to the lower of the two USB ports
5. Connect the microphone to Microphone 1. (Note that you can, instead, use a
microphone connected to Audio In. If you do so, refer to Using the line-in connector
and to Audio settings for Group Telepresence (p19)).
6. Using the supplied AC/DC adaptor and power cable, connect power to the codec.
The power LED on the side of the codec lights.
StarLeaf installation guide, 01 April 2021 Page 11 of 34

How to install GT Mini 3330
Mounting the camera
StarLeaf recommends that when you mount the camera, you place it at the top of the
screen, as opposed to the base. This makes it easier for you to see the participants on the
screen while still appearing to make eye contact.
If you have a dual-screen system, ensure that the camera is mounted on the screen that
will display the view of the main video (telepresence screen 1).
Connecting to StarLeaf
To connect your room system to StarLeaf you must provision it through the Portal as
described in the video and instructions below.
Either you or your reseller can register the room system using the StarLeaf Portal. To do this:
1. In the StarLeaf Portal, choose Room systems > Add room system. You can see the Add
room system page:
a. Type a Name for the room system. The room system displays the name on the
touchscreen controller and users are able to find this name in the directory. Users
are also able to invite this room system to their scheduled conferences.
b. Optionally enter the Room resource email address if this room system will be part of
a meeting room booking system. This enables the room to receive email invites and
StarLeaf installation guide, 01 April 2021 Page 12 of 34

How to install GT Mini 3330
have the green button light up for third-party meetings. For more information, see
Green buttons for third-party meetings.
c. If the display of this room system should use a language other than the default
language for this customer, select the Language.
d. If this room system is in a time zone that is different to the default time zone for this
customer, select the Time zone.
e. For the Layout for QuickMeet conferences, Either use the organization default or
choose a layout. During a conference, participants can change the layout using
the touchscreen controller.
2. In the Hardware endpoint section, for Type choose StarLeaf GT Mini or GT 3351.
3. Configure any of these other settings, if required:
a. Conference Phone 2220: If you intend to connect a Conference Phone 2220, select
that option.
b. Advanced settings: The options here depend on your account settings, but might
include:
oAPI mode
oAuto answer mode
oMax send and receive
Refer to Advanced settings.
c. Audio and video settings include:
oAudio inputs and outputs
oFeatures
oCamera presets
Refer to Audio settings for Group Telepresence (p19).
4. In Audio and video settings > Features, select the correct Video output mode. For one-
screen systems, select single screen. For two-screen systems, select dual screen.
5. In the dialing information section, you will see that the Portal has automatically
allocated a dialing address for this room system using autocomplete. This is an address
in the format <meeting_room_name>@<subdomain>.call.sl
This address format allows dialing from the Internet to this room system and we
recommend you do not alter this unless you have cause to do so.
6. Click Apply. This causes the Portal to generate the QuickConnect code. You enter this
code on the touchscreen controller.
QuickConnect
The touchscreen controller receives power from the Group Telepresence System. The first
time it starts up it displays the screen shown below. Enter your StarLeaf QuickConnect
code.
StarLeaf installation guide, 01 April 2021 Page 13 of 34

How to install GT Mini 3330
The touchscreen controller displays the meeting room name and extension number as
per your StarLeaf account. This is the home screen of the touchscreen controller. The
Group Telepresence System is ready to make and receive calls. An example home
screen is shown below:
Using the line-in connector
You can connect one of:
nline level microphone source: if you connect a microphone source to the line-in
connector, in the Group Telepresence settings, set Audio and video settings > Audio
inputs >Device to line in. In this case, the audio from the microphone source is sent to
the far end and is not played out through the device selected in Audio outputs
nother audio: If you want to connect other audio devices to the line in connector (for
example a PC audio output), set Audio and video settings > Audio inputs >Device to
either StarLeaf microphones or 3rd party microphones. In this case, audio played into
the line-in connector is played out through the device selected in Audio outputs and
also sent to the far end
StarLeaf installation guide, 01 April 2021 Page 14 of 34

How to install GT Mini 3330
Connecting a laptop to Group Telepresence
You can connect your laptop, in order to share content, in one of two ways:
StarLeaf Pronto
StarLeaf Pronto allows users to meet and share in an instant. When you connect Pronto to
your laptop, your screen and audio are shared with the room so that you are ready to
present immediately. Your StarLeaf meetings are also synchronized with the room,
allowing you to join with one touch.
Go to Installing Pronto Cable USB for more information.
DVI-I cable
Connect the DVI-I to DVI-I cable to Computer-In DVI-I on the rear of the codec. For the
convenience of the Group Telepresence users, leave the other end of the cable on the
meeting room table. This allows users to connect a laptop to the Group Telepresence
system when they need to do so. The Group Telepresence system includes a selection of
adaptors to be used with the DVI-I to DVI-I cable where the video output of a PCis other
than DVI-I (for example, VGA, HDMI, DVI-D).
StarLeaf installation guide, 01 April 2021 Page 15 of 34

About the camera
About the camera
Before you install the camera, read the safety information in the camera documentation.
Ensure that the camera is using the correct settings according to the documentation that
accompanies it as PTZ camera settings can vary.
PTZ cameras are supplied without a remote control as you control the camera with the
StarLeaf room system.
In this topic:
nCamera control for PTZcameras (p16)
nCamera presets (p16)
Camera control for PTZcameras
The Camera control on the Touch 2045 home screen provides you with controls for the PTZ
camera. (You will not see these controls if you are using a GT Mini with a USB camera.)
Camera control on the GT Mini 3330:
Camera presets are pre-defined camera positions. For example, a pre-defined position
that points the camera at the whiteboard, or that changes the camera to a wide-angled
view. Select the position you require from the touchscreen controller.
Camera presets
Camera presets allow you to save up to five pre-defined camera positions. Users can then
select these positions from the touchscreen controller.
To create camera presets:
StarLeaf installation guide, 01 April 2021 Page 16 of 34

About the camera
1. Use the touchscreen controller to move the camera to the required position.
2. Go to the Room systems page on your Admin Portal, and click the edit icon in
the row of the room system which you want to create a preset for. You are directed to
the Edit room system page:
3. Open the Audio and video settings dropdown.
4. Under Camera presets, enter a name for the preset and select Save. To try out presets
without saving them, click Test next to a preset. To delete a preset, select Clear.
StarLeaf installation guide, 01 April 2021 Page 17 of 34

About the camera
StarLeaf installation guide, 01 April 2021 Page 18 of 34

Audio settings for Group Telepresence
Audio settings for Group Telepresence
The StarLeaf Portal allows configuration of Group Telepresence audio settings.
To view audio settings:
1. Log in to the Portal and go to Room systems.
2. Select the pencil icon beside the Group Telepresence system you want to view.

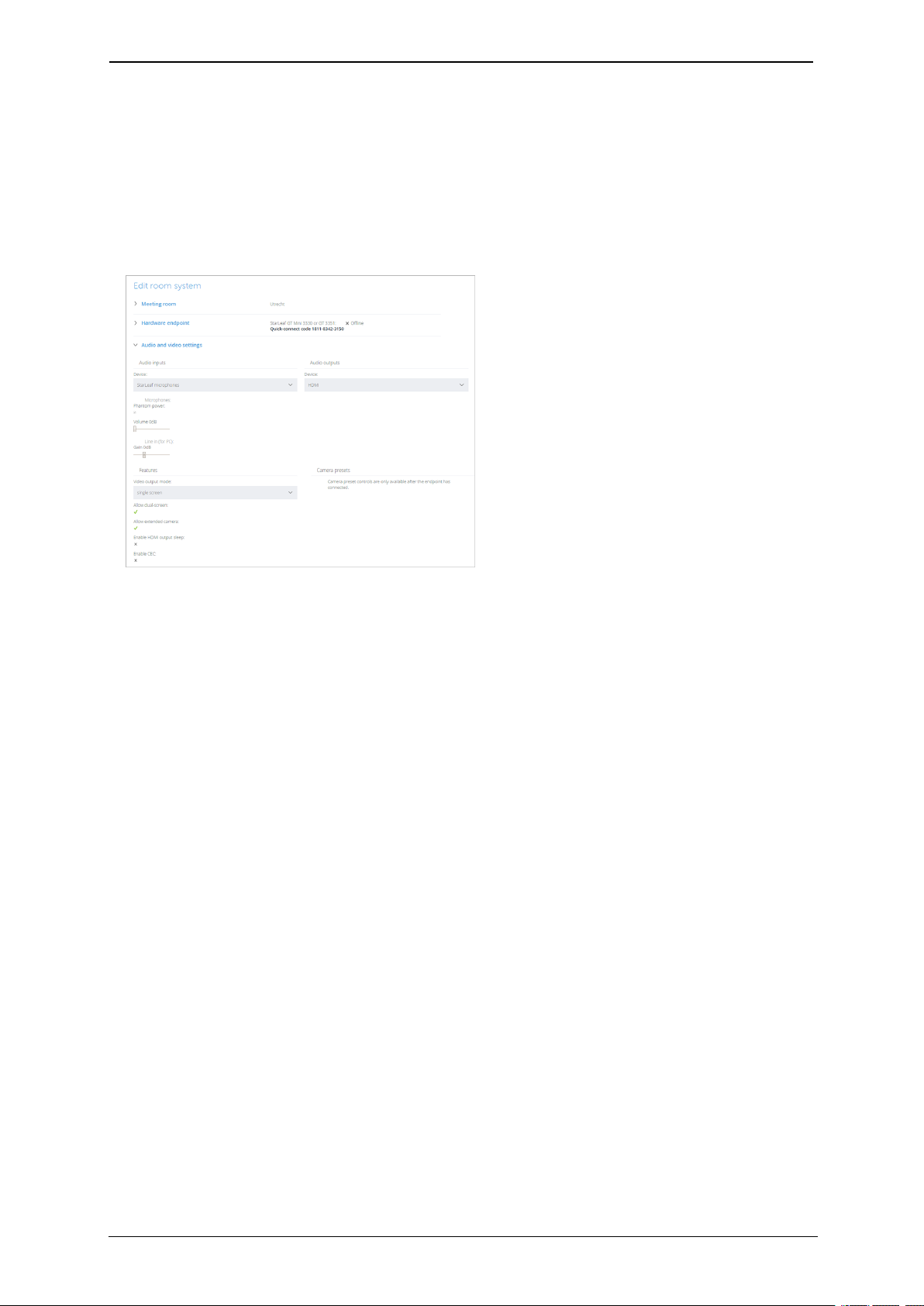

3. Select the Audio and video settings drop-down as shown below.
Microphone settings
StarLeaf microphones
If you are using StarLeaf microphones, choose Audio inputs > Device > StarLeaf
microphones. Do not alter other settings unless there is a particular problem:
nPhantom power is required and cannot be configured for StarLeaf microphones.
nVolume 0dB: The volume setting adjusts the loudness of the people who are in the
same room as the microphone, as heard by the other participants in the call. The
recommended setting is 0dB or 6dB. Only use 12dB in very large rooms or under
guidance from StarLeaf Support.
3rd party XLR microphones
If you are using 3rd party XLR microphones, choose Audio inputs > Device > 3rd-party
microphones.
nPhantom power: Phantom power is a way of providing power to a microphone. The
StarLeaf GT Mini 3330 and Group Telepresence 3351 both offer phantom power through
each of its XLR connectors for use by active microphones, such as the StarLeaf
Microphone. The phantom power supply can be enabled or disabled here. It is
compatible with active microphones, which are designed for 48V phantom power. If
you are using a third-party microphone, refer to your microphone's documentation to
discover whether or not you need to provide phantom power
nVolume: The volume setting adjusts the loudness of the people who are in the same
room as the microphone, as heard by the other participants in the call. For the volume,
StarLeaf installation guide, 01 April 2021 Page 19 of 34

Audio settings for Group Telepresence
the recommended setting is 0dB or 6dB. Only use 12dB in very large rooms or under
guidance from StarLeaf technical support
nGain: Using this setting alters the gain on the XLR connectors on the Group
Telepresence system
nDisable ECAN: This setting, when selected, disables echo cancellation. Do not disable
ECAN unless you have specific cause to do so. Only disable ECAN if you are using
additional equipment to suppress the loudspeaker signal on all microphone signals
Line in microphones
If you are using line-in microphones, choose Audio inputs > Device > line in. In this case, the
audio from the microphone source is sent to the far end and is not played out through the
device selected in Audio outputs. For more information, refer to 'Using the line-in
connector' in How to install GT Mini 3330 (p10).
nGain: Using this setting alters the gain on the line-in connector on the Group
Telepresence system
nDisable ECAN: This setting, when selected, disables echo cancellation. Do not disable
ECAN unless you have specific cause to do so. Only disable ECAN if you are using
additional equipment to suppress the loudspeaker signal on all microphone signals
Line out
Use this setting to adjust the audio gain on the line out from the Group Telepresence
system. This might be necessary to adjust the volume where you have connected external
speakers to the line out connectors.
Pink noise test tone
To help with the calibration of audio peripherals when you are installing the room system,
you can play a pink noise test tone on a Group Telepresence system.
When the Group Telepresence system is installed, use the touchscreen controller to play
the noise:
1. Double-tap the home button on the Touch.
2. Go to sound.
3. Select pink noise test. The pink noise begins to play.
StarLeaf installation guide, 01 April 2021 Page 20 of 34
