Teledyne Lecroy WaveSurfer 3000z r User manual

WaveSurfer 3000z Rackmount Accessory
Contact Us
For a complete list of Teledyne LeCroy offices by country, including our sales and
distribution partners, visit: teledynelecroy.com/support/contact
© 2021 Teledyne LeCroy, Inc. All rights reserved.
WaveSurfer and Teledyne LeCroy are trademarks of Teledyne LeCroy, Inc. Other product or brand names are
trademarks or requested trademarks of their respective holders. Information in this publication supersedes all
earlier versions. Specifications are subject to change without notice.
Unless otherwise specified, all materials and processes are compliant with RoHS Directive 2011/65/EU in its
entirety, inclusive of any further amendments or modifications of said Directive. For the full list of current
certifications, see the EC Declaration of Conformity shipped with the product.
933082-00 Rev A
wavesurfer-3000z-rackmount-instructions.pdf
February, 2021
4
WaveSurfer 3000z Rackmount Accessory
Thank you for purchasing a Teledyne LeCroy WaveSurfer 3000z rackmount accessory.
Please review these instructions before installing the rackmount.
Parts
The rackmount kit is shipped with the following parts. Contact our Customer Service if
parts are missing.
Parts
QTY
Front plate with attached handles
1
Base plate
1
Side plates with pre-installed positioning brackets
2
M4x10 pan-head Phillips screws
10
M4x6 pan-head Phillips screws
6
Note: The kit does not include the fasteners needed to attach the rackmount to your
rack. Consult your rack manufacturer regarding the appropriate type, size and number
of fasteners required to install the rackmount securely.
Tools
You will need a Phillips screwdriver to attach the rackmount to the oscilloscope.
Dimensions
The rackmount is designed to occupy 7U of a standard EIA 19-inch rack.
Installed Dimensions
Metric
English
Weight
8.5 kg
18.8 lbs
Height
310 mm
11.81 in
Width at face plate
480 mm
18.90 in
Width behind face plate
430 mm
16.93 in
Depth with handles
266 mm
10.47 in
Depth without handles
206 mm
8.11 in
933082-00 Rev A 1
WaveSurfer 3000z Rackmount Accessory
1.
Attach the side plates to the base plate using six M4x6 screws, three on each
plate.
2.
Attach the front plate to the side plates using the remaining M4x10 screws.
2
Assembly Instructions
3.
Place the oscilloscope inside the rackmount in front of the two, pre-installed
positioning brackets on the side plates. The screen should be visible through the
front plate.
Note: You may need to loosen and rotate the positioning brackets to fully insert
the body of the oscilloscope into the rackmount.
4.
Tilt the entire rackmount forward until it rests on its handles. This should cause
the oscilloscope to lie flush with the front plate.
5.
Slide each positioning bracket forward so that it is flush to the back of the
oscilloscope and tighten it.
6.
Place the oscilloscope on the base plate flush with the face plate. The screen
should be fully visible and the front bezel should extend slightly past the face
plate when seated properly.
3

Other Teledyne Lecroy Enclosure manuals

Teledyne Lecroy WavePro HD User manual

Teledyne Lecroy

Teledyne Lecroy WavePro HD User manual

Teledyne Lecroy WaveRunner 9000 User manual

Teledyne Lecroy

Teledyne Lecroy WaveRunner 9000 User manual

Popular Enclosure manuals by other brands

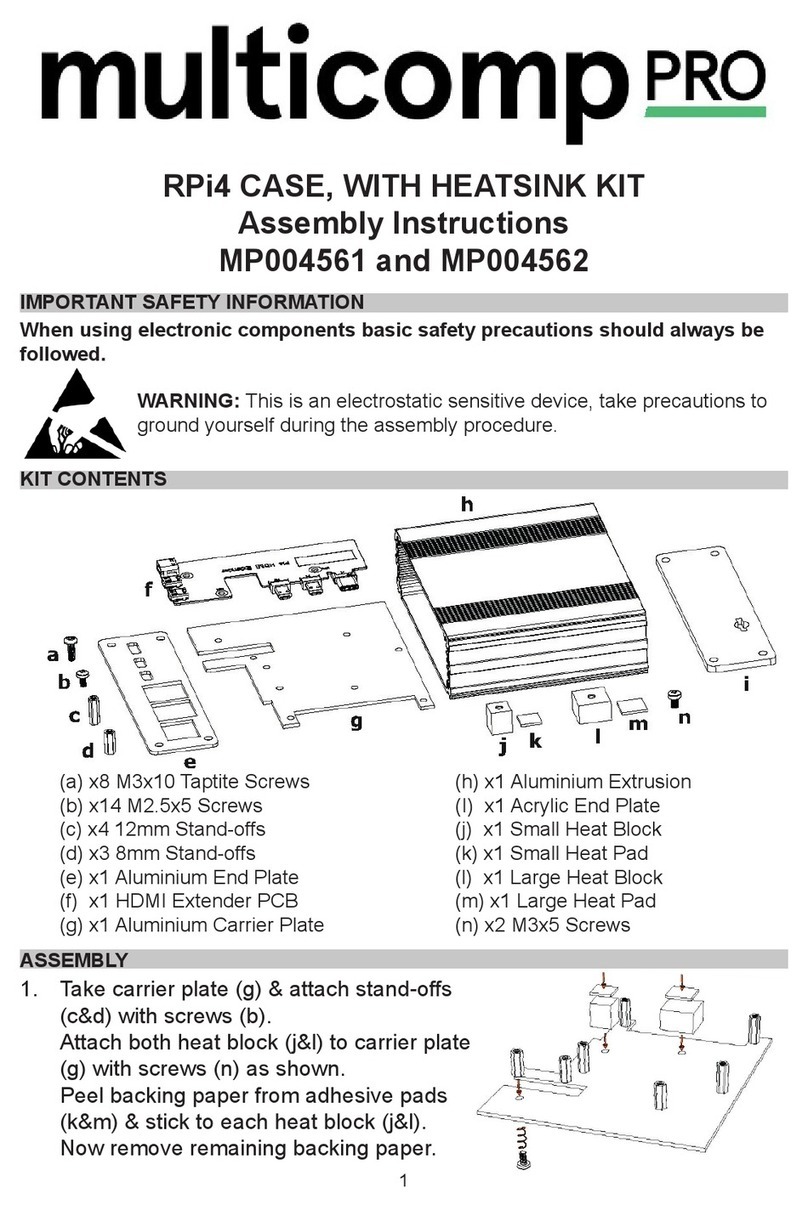

multicomp pro MP004561 Assembly instructions

multicomp pro

multicomp pro MP004561 Assembly instructions

Kicker KSR100 manual

Kicker

Kicker KSR100 manual

CTA PAD-ASVEB installation manual

CTA

CTA PAD-ASVEB installation manual

BEL cinch ModICE SE Series Assembly instructions

BEL

BEL cinch ModICE SE Series Assembly instructions

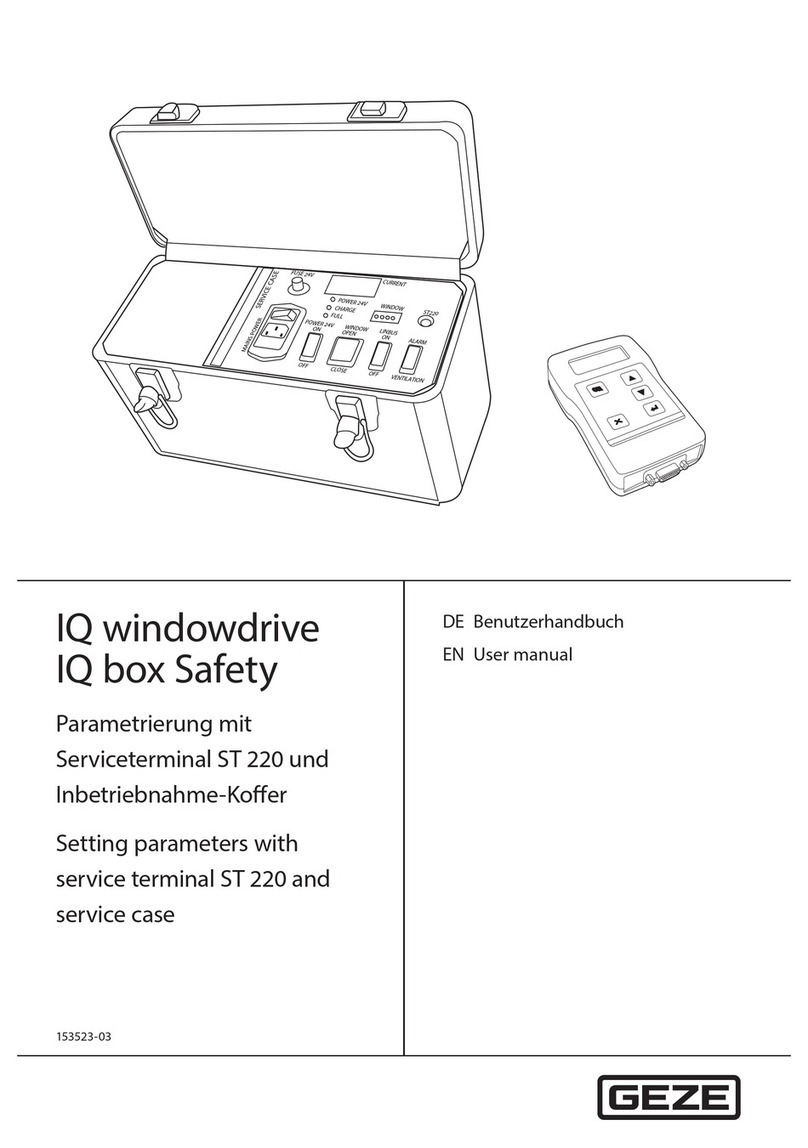

GEZE IQ windowdrive user manual

GEZE

GEZE IQ windowdrive user manual

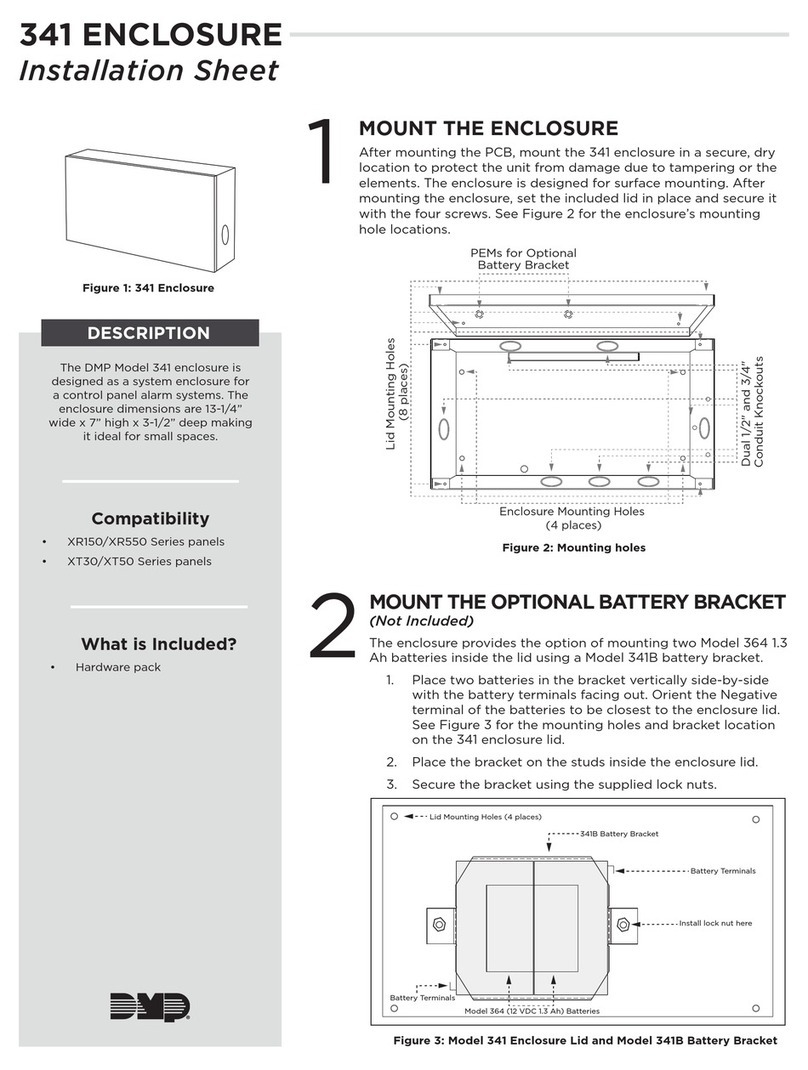

DMP Electronics 341 Installation sheet

DMP Electronics

DMP Electronics 341 Installation sheet

TOOQ TQE-2201R user manual

TOOQ

TOOQ TQE-2201R user manual

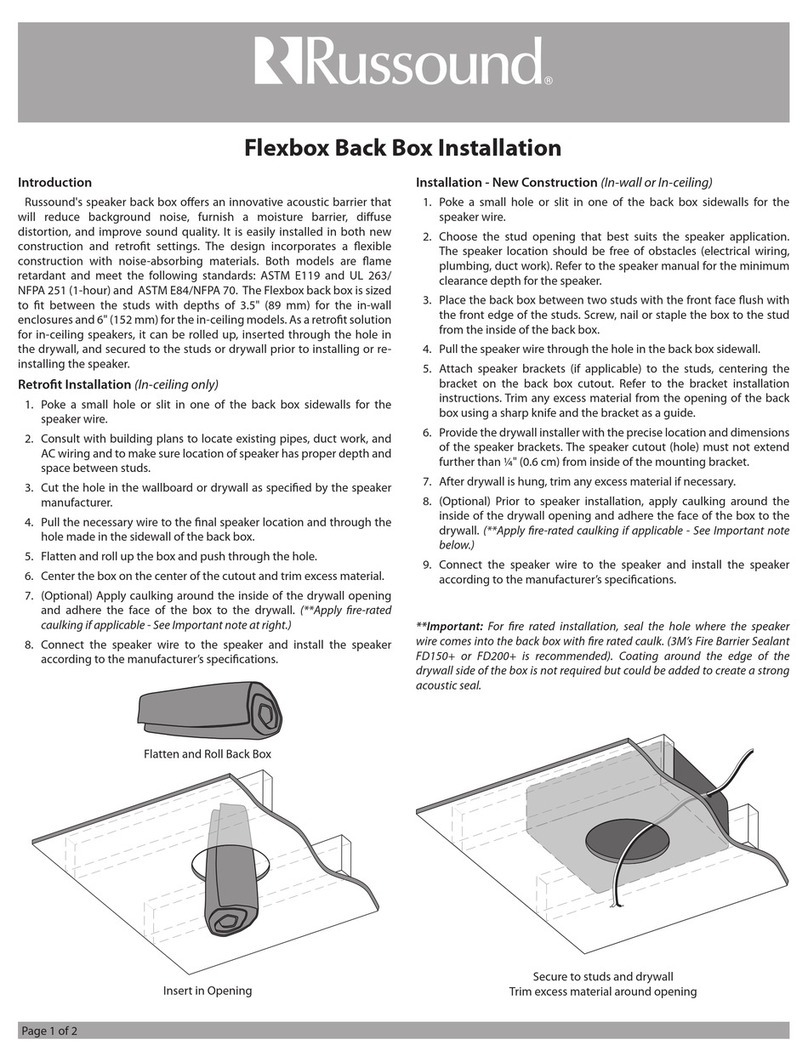

Russound Flexbox Installation guides
