Teledyne Lecroy Summit Z2-16 User manual

For PCI Express Protocol Suite software version 7.30
Generated: February 2, 2015, 14:26
PROTOCOL SOLUTIONS GROUP
3385 SCOTT BLVD
SANTA CLARA, CA 95054
Summit Z2-16™
PCI Express Multi-Lane Exerciser
User Manual

Summit Z2-16 Exerciser User Manual
Teledyne LeCroy
Document Disclaimer
The information in this document has been carefully checked and is believed to be
reliable. However, no responsibility can be assumed for inaccuracies that may not have
been detected.
Teledyne LeCroy reserves the right to revise the information in this document without
notice or penalty.
Trademarks and Servicemarks
Teledyne LeCroy, CATC Trace, PETracer Edge, PETracer EML, PETracer ML, PETracer,
PETrainer EML, PETrainer ML, PETracer Summit, Summit T2-16, Summit Z2-16,
Universal Protocol Analyzer System, UPAS, and BusEngine are trademarks of Teledyne
LeCroy.
Microsoft and Windows are registered trademarks of Microsoft Inc.
All other trademarks are property of their respective companies.
Copyright
© 2012 Teledyne LeCroy, Inc. All Rights Reserved.
This document may be printed and reproduced without additional permission, but all
copies should contain this copyright notice.

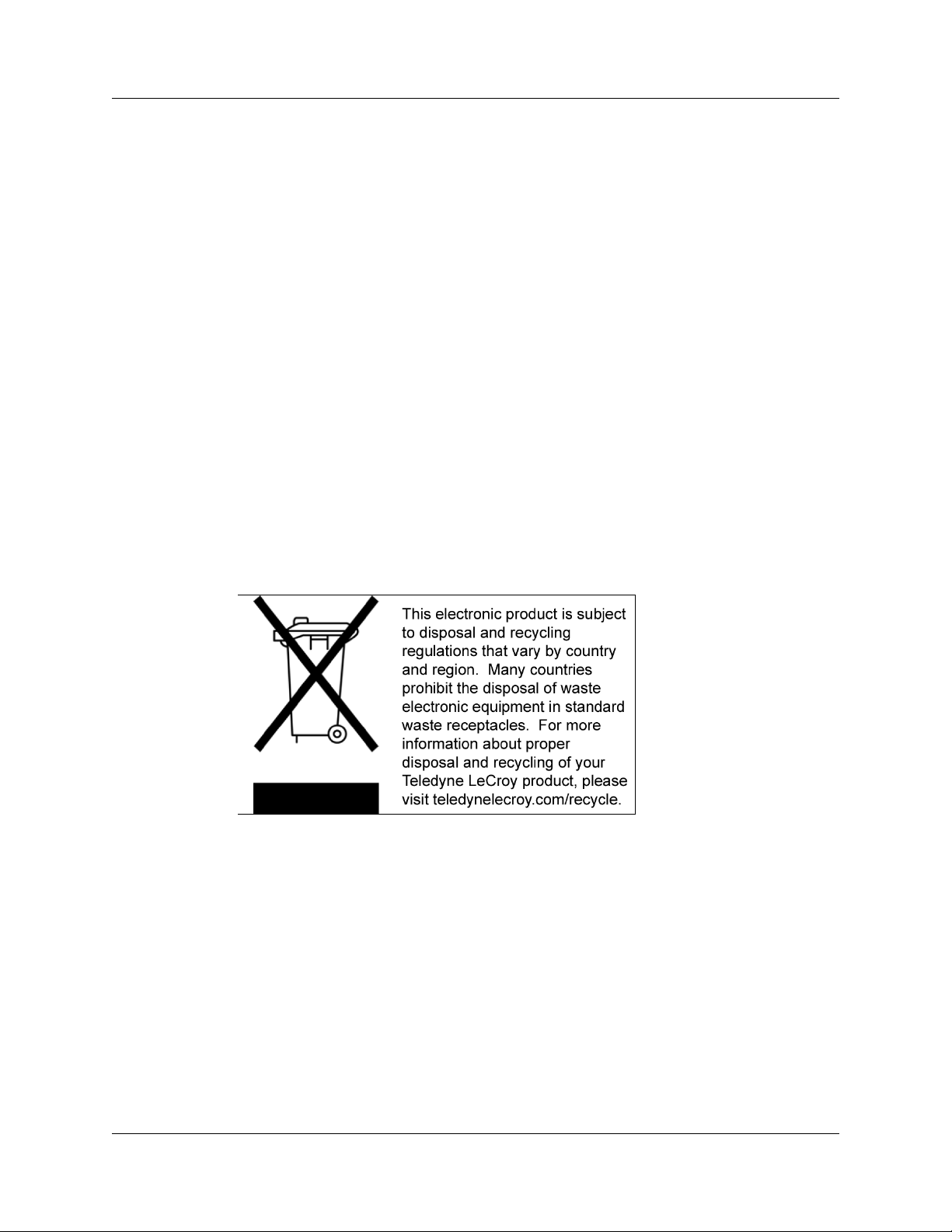

WEEE Program

Summit Z2-16 Exerciser User Manual
Teledyne LeCroy iii
TABLE OF CONTENTS
Section 1. General. . . . . . . . . . . . . . . . . . . . . 1
Chapter 1 Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
1.1 Summit Z2-16 Exerciser Hardware . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
1.2 Summit Z2-16 Exerciser . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
1.3 Other Documents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Chapter 2 Hardware Description . . . . . . . . . . . . . . . . . . . 7
2.1 System Components . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
2.2 Host Machine Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
2.3 Summit Z2-16 Exerciser . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
2.4 Summit Z2-16 Front Panel Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Outputs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Displays. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
2.5 Summit Z2-16 Rear Panel Description . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Chapter 3 Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
3.1 Installing the PETracer Software . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
3.2 Setting Up the Summit Z2-16 Exerciser using an Ethernet Connection . . 15
Connecting to a Summit Z2-16 Exerciser in the Local Network . . . . . . 15
3.3 Setting Up the Summit Z2-16 Exerciser using a USB Connection . . . . . . 18
3.4 Connecting Summit Z2-16 to the DUT . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Device Emulator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Host Emulation Test Fixture . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Final Steps: Power on the Exerciser and then DUT . . . . . . . . . . . . . . . 22
3.5 Connecting Summit Z2-16 to a T2-16 . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Section 2. Exerciser Traffic Generation . . 25
Chapter 4 Traffic Generation . . . . . . . . . . . . . . . . . . . . . 27
4.1 Theory of Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
4.1 Traffic Generation Files . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
4.2 Creating a Traffic Generation File . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Exporting a CATC Trace to a Traffic Generation File . . . . . . . . . . . . . . 31
Saving a Script to a New File . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Creating a New Empty Generation File. . . . . . . . . . . . . . . . . . . . . . . . . 33
4.3 Editing Generation Files with the Script Editor . . . . . . . . . . . . . . . . . . . . . 34
Script Editor Toolbar . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
Script Edit Window . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
Command Properties Window . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
Script Editor File Tabs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
Script Editor Error Log. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
View Options Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
4.4 Generation Options Dialogs Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
Opening the Dialog . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40

Summit Z2-16 Exerciser User Manual
iv Teledyne LeCroy
4.5 Generation Options for Summit Z2-16. . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
General . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
Link . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
Integrity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
Flow Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
Transactions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48
4.6 Generating Traffic: Set Generation Options . . . . . . . . . . . . . . . . . . . . . . . 51
4.7 Generating Traffic: Prepare Traffic Generation . . . . . . . . . . . . . . . . . . . . . 52
4.8 Generating Traffic: Begin Traffic Generation . . . . . . . . . . . . . . . . . . . . . . . 53
Chapter 5 Macros . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55
5.1 Macros. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55
Default Macros: Connect and Disconnect. . . . . . . . . . . . . . . . . . . . . . . 55
5.2 Adding New Script Macros . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56
Using the Generation Macros Dialog . . . . . . . . . . . . . . . . . . . . . . . . . . 56
Adding Script Files to the GenScriptMacros Directory . . . . . . . . . . . . . 57
5.3 Modifying Script Macros . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58
5.4 Changing the Order of Macro Icons on the Status Bar . . . . . . . . . . . . . . . 58
5.5 Deleting User-Defined Script Macros . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59
5.6 Restoring the Default Appearance of the Connect and Disconnect Icons. 59
Chapter 6 Configuration Space . . . . . . . . . . . . . . . . . . . 61
6.1 Configuration Space Editor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61
6.2 Launching the Configuration Space Editor . . . . . . . . . . . . . . . . . . . . . . . . 61
Configuration Space Files . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61
Editing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62
6.3 BARs Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65
6.4 Configuration Read and Write . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 66
Chapter 7 Address Spaces. . . . . . . . . . . . . . . . . . . . . . . 67
7.1 Memory/IO Space Editor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67
7.2 Memory Region for Host Emulation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 68
Chapter 8 Updates and Licensing . . . . . . . . . . . . . . . . . 69
8.1 Updating the Exerciser . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 69
8.2 License Keys . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 70
8.3 License Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 70
Appendix A Configuration Space Decoding . . . . . . . . . . 71
A.1 Mandatory Definitions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 71
A.2 Mandatory Module Functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 71
A.3 Configuration Register Types . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 72
A.4 Primitives . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 72
A.5 Helper File. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 73
Appendix B China Restriction of Hazardous Substances
Table74
How to Contact Teledyne LeCroy . . . . . . . . . . . . . . . . . . 75
Index 77

Summit Z2-16 Exerciser User Manual Section 1
Teledyne LeCroy 1
Section 1. General

Section 1 Summit Z2-16 Exerciser User Manual
2Teledyne LeCroy

Summit Z2-16 Exerciser User Manual Chapter 1: Overview
Teledyne LeCroy 3
Chapter 1: Overview
Designed for developers and validators, the Teledyne LeCroy Summit Z2-16™ is a
Gen1/Gen2 PCI Express advanced verification system.
By leveraging years of experience in protocol analysis tools for emerging markets,
Summit Z2-16 blends sophisticated functionality with practical features to speed the
development of PCI Express™ IP cores, semiconductors, bridges, switches, add-in
boards, and systems.
1.1 Summit Z2-16 Exerciser Hardware
Features and Benefits
Summit Z2-16 Exercisers have these features and benefits
Features Benefits
Bidirectional x1-x16,
2.5 GBps to 5.0 GBps
generation support
Accurate generation of PCI Express bus traffic
Script level traffic generation Programmability to test PCI Express components with
more precision and control
Manual Error injection Verify fault handling and identify error recovery
Host/End-Point Emulation Support Host emulation platform/end-point emulation
Interposer allows for design and stress testing.
Programmable Physical Layer Flexibility to program lane skews, link control bits, skip
intervals and link states for more robust verification
Programmable Data Link Layer Ability to modify flow control, ACK/NAK, and retry
behaviors
Flexible/programmable Transaction Layer User ability to define arbitrary sequence of
transactions, payload generation, and conditional
repeat of transactions provide users with maximum
flexibility
Point and Click Script Editor Complex scripts can be created quickly and easily
Read/modify/playback capability Allows automatic generation of Exerciser scripts
based on a captured CATC Trace recording.

Chapter 1: Overview Summit Z2-16 Exerciser User Manual
4Teledyne LeCroy
Programmable ACK/NAK behavior ACK all TLP packets
NAK all TLP packets
Automatic ACK/NAK behavior
ACK/NAK delay timer
Programmable Flow control behavior Set Credit values
Disable Credit checking
Set Update FC intervals
Automatic CRC
calculation and Sequence number
assignment
DLLP CRC calculation
TLP LCRC calculation
Replay buffer Programmable Transaction timeout timer
Auto Recovery behavior after 4 Replays
Programmable
configuration space
Full 4 KB configuration space configurable by user
Accessible through Configuration Reads and Writes
over PCI Express
Endpoint memory emulation Up to 1 GB memory accessible through memory read
and write
Fast Transit module Special hardware-accelerated module to increase
link utilization

Summit Z2-16 Exerciser User Manual Chapter 1: Overview
Teledyne LeCroy 5
1.2 Summit Z2-16 Exerciser
Teledyne LeCroy Summit Z2-16, a Gen2 PCI Express 16-lane advanced Exerciser
system, is a critical test and verification tool intended to assist engineers in improving the
reliability of their systems. It can emulate PCI Express root complexes or device
endpoints. You can test PCI Express IP cores, semiconductors, bridges, switches, and
systems.
The Summit Z2-16 is a stand-alone PCI Express Exerciser that can generate and
respond to all types of PCI Express transactions. The scripting language allows creation
of Transaction Layer Packets (TLPs), Data Link Layer Packets (DLLPs) and Ordered
Sets. ACK's and NAK's can be automatically generated under user control.
A Configuration Space can be easily created using the Configuration Space Editor.
The scripting language is powerful yet easy to use. One way to create test scripts is to
export traffic from a CATC Trace file captured with Teledyne LeCroy PETracer. You can
then modify the exported script to generate different test cases, insert errors, or create
loop tests. The “point and click” capability of the script editor simplifies modifying or
creating scripts.
1.3 Other Documents
For more information, refer to the following documents:
• Teledyne LeCroy Analyzers File-based Decoding Manual
• PETracer/Trainer Automation Manual
• PETracer VSE Manual
• PETracer Gen2 Multi Lead Probe User Manual
• PETrainer Scripting Language Reference Manual
•PETracer Online Help

Chapter 1: Overview Summit Z2-16 Exerciser User Manual
6Teledyne LeCroy

Summit Z2-16 Exerciser User Manual Chapter 2: Hardware Description
Teledyne LeCroy 7
Chapter 2: Hardware Description
The PCI Express™ system features Summit Exercisers.
2.1 System Components
• Summit Z2-16 exerciser system:
• Summit Z2-16™ exerciser box
• One or two (for x8 or x16 recording) probe data cables
• x16 to x1 Edge Adapter
• x16 to x4 Edge Adapter
• x16 to x8 Edge Adapter
•PETracer Software program CD-ROM
• Device Emulator Card or Host Emulation Test Fixture
2.2 Host Machine Requirements
Summit Z2-16 connects to a host machine. Please consult the readme file on the
installation CD for the latest host machine requirements.

Chapter 2: Hardware Description Summit Z2-16 Exerciser User Manual
8Teledyne LeCroy
2.3 Summit Z2-16 Exerciser
A Multi-lane PCI Express Exerciser is designed to assist engineers in improving reliability
of their solutions and providing advanced capabilities for stress and compliance testing.
• Summit Z2-16: x1 through x16 lane system
All models operate as standalone Exercisers capable of generating and responding to all
types of PCI Express transactions. Exercisers also have the ability to create protocol
variations and anomalies. Users may also create corner case and stress test scenarios
to evaluate the robustness of their solutions. By utilizing the error injection feature,
engineers can create worst-case PCI Express traffic scenarios allowing them to validate
the error handling capabilities of their solutions.
When used in conjunction with an Analyzer, a complete expert test and analysis system
is created. This integrated solution delivers traffic generation and expert protocol analysis
to assist developers with early validation of designs along with error injection and stress
testing in preparation for compliance testing.

Summit Z2-16 Exerciser User Manual Chapter 2: Hardware Description
Teledyne LeCroy 9
2.4 Summit Z2-16 Front Panel Description
When powered on, the Summit Z2-16 Exerciser activates the user-accessible controls
and LEDs on the front and rear panels.
Warning! Do not open the enclosure. There are no operator serviceable parts inside.
Refer servicing to Teledyne LeCroy.
Figure 2.1 Summit Z2-16 Front Panel
Power Switch
On/Off switch.
Outputs
To Device (15:8) Connector
Connects Summit Z2-16 to Device Emulator or Host Emulator (lanes 15:8).
Reference Clock In Connector
Connects external reference clock source to Summit Z2-16.
To Device (7:0) Connector
Connects Summit Z2-16 to Device Emulator or Host Emulator (lanes 7:0).
To Analyzer (15:8) Connector
Connects to PETracer Summit or Summit T2-16 Analyzer (lanes 15:8). This is an optional
connection for users adding a PETracer Summit or Summit T2-16 Analyzer to their setup.
Reference Clock Out Connector
Provides external reference clock output.
To Analyzer (7:0) Connector
Connects to PETracer Summit or Summit T2-16 Analyzer (lanes 7:0). This is an optional
connection for users adding a PETracer Summit or Summit T2-16 Analyzer to their setup.

Chapter 2: Hardware Description Summit Z2-16 Exerciser User Manual
10 Teledyne LeCroy
Displays
Screen
Displays the setup and activity.
Up-Arrow Button
Scroll the screen up.
Select Button
Push to select the current screen item.
Down-Arrow Button
Scroll the screen down.
Link Speed LED
Indicates link speed: blue = 2.5 GT/s or red = 5.0 GT/s.
Link State LED
Indicates state of the link between the Exerciser and the DUT: blue = good or red = error.
Status LED
Indicates status of the Exerciser: blue = good or red = error.
Manual Action Button
(Not used at this time)

Summit Z2-16 Exerciser User Manual Chapter 2: Hardware Description
Teledyne LeCroy 11
2.5 Summit Z2-16 Rear Panel Description
From left to right, the Summit Z2-16 rear panel contains the following components:
Figure 2.2 Summit Z2-16 Rear Panel
Wide-range AC Connector Module
• Power on/off switch
• Enclosed 5x20 mm 2.0A 250 V fast acting glass fuse
• Power socket
Warning! For continued protection against fire, replace fuse only with the type and
rating specified above.
Sync In and Sync Out Connectors
(not currently active) These connectors allow multiple Summit T2-16 or Summit Z2-16
analyzers to send synchronization and control messages to one another.
USB Type B Host Machine Connector
This connector links an Analyzer to the host machine for the purpose of transmitting
commands from the host machine to the Analyzer and uploading traces from the
Analyzer’s recording memory to the PETracer software for viewing and analysis.
This connector links an Exerciser to the host machine for the purpose of downloading
scripts and controlling the behavior of the Exerciser. Note: For each Analyzer or
Exerciser, use either USB or Ethernet, not both.
Ethernet Port
GIGE Connectivity allows connection to an Ethernet network and sharing of
Analyzer/Exerciser resources by multiple engineers. Note: For each Analyzer or
Exerciser, use either USB or Ethernet, not both.
BNC Connectors Trigger In and Trigger Out
These BNC connectors allow the Analyzer to transmit or receive trigger event signals.
Trigger In can receive a signal from another device and use that signal to trigger the
recording. Conversely, the Trigger Out connector can send an output signal from the
Analyzer to another device.

Chapter 2: Hardware Description Summit Z2-16 Exerciser User Manual
12 Teledyne LeCroy
RS-232 25-pin Data Input/Output Connector
This connector is not used by Summit Z2-16.
Teledyne LeCroy Bus Connector
The Teledyne LeCroy Bus Connector is not currently active.

Summit Z2-16 Exerciser User Manual Chapter 3: Installation
Teledyne LeCroy 13
Chapter 3: Installation
Summit Z2-16™ is a stand-alone system.
You can begin traffic generation after following the steps in this chapter.
3.1 Installing the PETracer Software
PETracer software operates all of Teledyne LeCroy’s PCI Express protocol Analyzer and
Exerciser products:
The PETracer software is installed on a Microsoft®Windows®-based host machine and
serves as the interface for the Exerciser and/or Analyzer. An Exerciser enables traffic
generation features.
To install the PETracer software on the host machine:
Step 1 Insert the CD into the CD ROM drive of the PC that controls the
Exerciser. The installation window opens and displays links to the
PETracer software, user manuals, a readme file, and Acrobat Reader.
Step 2 Select Install Software and follow the on-screen instructions.
The PETracer software installs automatically on the host machine’s hard disk.
During installation, all necessary USB drivers are loaded automatically. Drivers
included in the installation are:
•summit.sys: Summit T2-16/Summit Z2-16 driver
Step 3 To start the application, launch the PETracer program from the Start
menu:
Start > Programs > LeCroy > PETracer > LeCroy PETracer

Chapter 3: Installation Summit Z2-16 Exerciser User Manual
14 Teledyne LeCroy

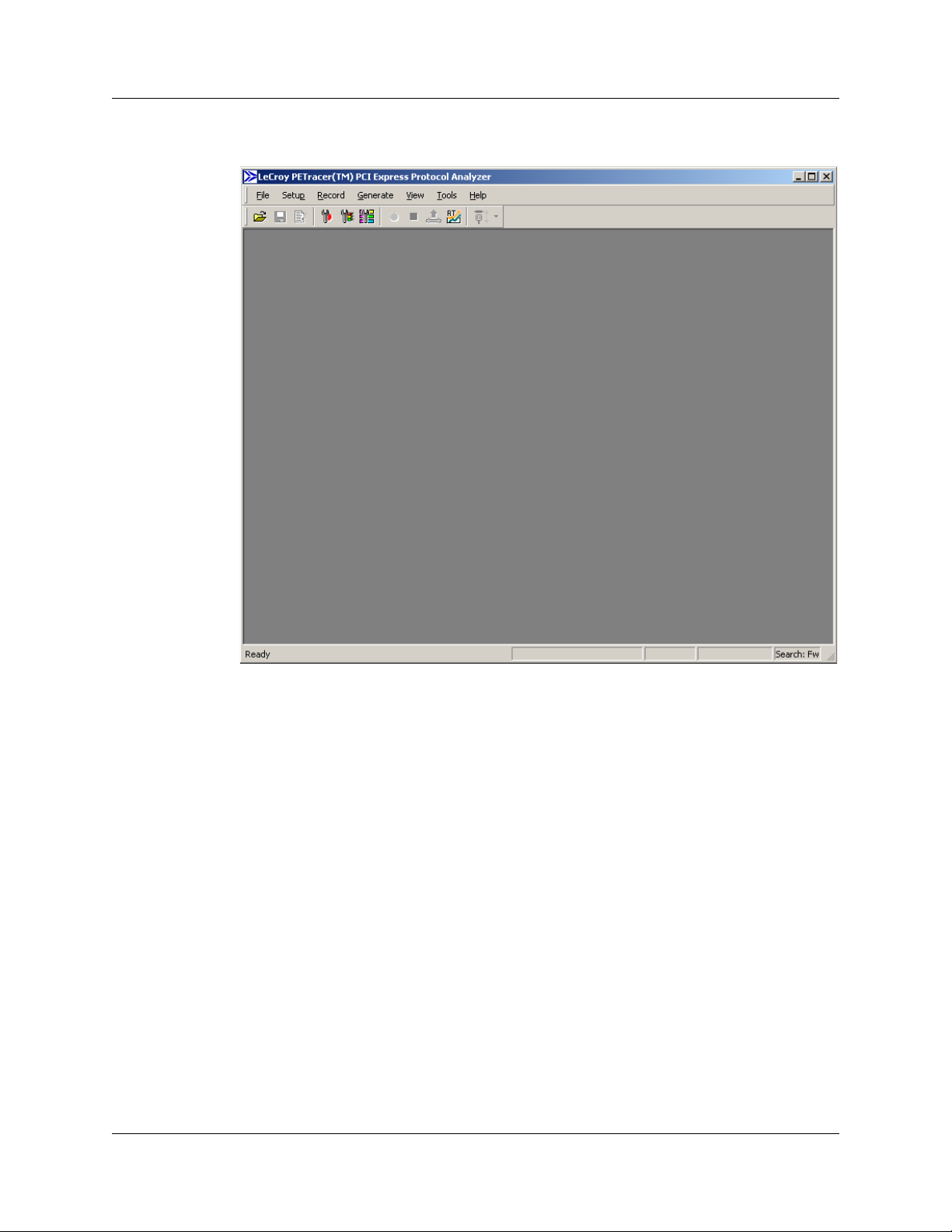

The PETracer program opens:
Note: The software may be used with or without the Exerciser or Analyzer. When
used without an Exerciser or Analyzer attached to the computer, the program
functions as a CATC Trace Viewer to view, analyze, and print captured
traffic.

Summit Z2-16 Exerciser User Manual Chapter 3: Installation
Teledyne LeCroy 15
3.2 Setting Up the Summit Z2-16 Exerciser using an
Ethernet Connection
Step 1 Remove the Exerciser from its shipping container.
Step 2 Connect the Exerciser to a 100-volt to 240-volt, 50 Hz to 60 Hz,
120 W power outlet using the provided power cord.
Note: The Exerciser is capable of supporting supply voltages between 100 volts
and 240 volts, 50 Hz or 60 Hz, thus supporting all known supply voltages around
the world.
Step 3 Connect the Ethernet cable between the Ethernet port on the back of the
Exerciser and a Ethernet port (hub, switch or wall) in your local network.
Continue with Step 4 below.
Note on USB: To connect using USB, see “Setting Up the Summit Z2-16
Exerciser using a USB Connection” on page 18.
Step 4 Turn on the rear power switch and the front power switch.
Note: At power-on, the Exerciser initializes itself in approximately five seconds
and performs an exhaustive self-diagnostic that lasts about forty seconds. The
results are reflected by messages on the Summit Z2-16 LCD display (see
“Summit Z2-16 Front Panel Description” on page 9). If the LCD display indicates
failure, call Teledyne LeCroy Customer Support for assistance.
Connecting to a Summit Z2-16 Exerciser in the
Local Network
After you have installed the PETracer application software, perform the following
procedure to connect to a Summit Z2-16 Exerciser in the local network.
Step 1 Select the Setup > All connected devices… menu in the PETracer
application to display the Analyzer Devices dialog.

Chapter 3: Installation Summit Z2-16 Exerciser User Manual
16 Teledyne LeCroy
The PETracer software fills the list with devices that are connected over USB or
discovered on the Ethernet network. The discovery mechanism works only within
one network subnet. If a Summit is connected to the network on a different
subnet, you can manually add the subnet to the list by clicking the Add Device
button and specifying the IP address.
The Summit devices in the list are marked:
•Locked: Some other client on the network is already connected to that
device
•Ready to connect: Available for connection
Step 2 If a Summit device is marked Ready To Connect, you can select that
device and press the Connect button to execute the connection
procedure.
After the connection is established, the application displays the Connection
Properties dialog:
Step 3 Select an option:
•Automatically connect to the device: When the application is started or
when the named device is added to the network while the PETracer
application is running on this computer, the PETracer application will try to
connect to the named device.
•Ask if I want to connect to the device: When the application is started or
when the named device is added to the network while the PETracer
application is running on this computer, the PETracer application will display a
message box allowing you to connect to the named device.
•Take no action: When you start the application or when you want to add the
named device to the network while the PETracer application is running on this
computer, you must connect manually to use the named device.
Note: When you close the application on this computer (or you perform manual
disconnect), the application disconnects from the device.
