Telefunken TF-RS9200 User manual

DIGITAL HD SATELLITE RECEIVER
TF-RS9200
TF-RS9200

- 1 -
Contents
Features ................................................................. 2
Accessories ............................................................ 2
Power Cord......................................................... 3
Markings on the Product......................................... 4
Overview of the Remote Control ............................ 5
Connections on the Set Top Box ............................ 6
Inserting Batteries in the Remote Control............... 7
Connection to the TV.............................................. 7
LNB Connection ..................................................... 8
Power On-Off.......................................................... 8
USB Disk Connection............................................. 8
USB Disk Connection ......................................... 8
Menu Interface / First Time Installation................... 9
Electronic Programme Guide (EPG) .................... 10
Changing Channels.............................................. 10
Adjusting the Volume............................................ 10
Volume Up / Down............................................ 10
Mute.................................................................. 10
On-Screen Information ......................................... 10
Channel List...........................................................11
SETUP.................................................................. 12
Installation......................................................... 12
Conguration .................................................... 13
Language.......................................................... 16
Viewing Media Browser........................................ 16
Viewing USB Disk Contents ............................. 16
Timers................................................................... 18
Remote Control .................................................... 20
Digital Capabilites................................................. 20
Front Panel........................................................... 20
Audio/Video & Data Input/Output ........................ 20

- 2 -
Introduction
• Thank you for choosing this product. This manual
will guide you through the proper operation of your
set top box.
• Before operating the set top box, please read this
manual thoroughly. Please keep this manual in a safe
place for future reference. Read the corresponding
instructions of this handbook prior to the rst use
of the device, even if you are familiar with using
electronic devices.
• Please keep this instruction book for future reference.
Features
• 4000 channels TV and Radio programs
• Media Browser ( USB 2.0 ) Support
• DVB-S2/S Compliant
• HDMI Output ( 576p, 720p, 1080i, 1080P resolutions
support)
• Channel lock
• Present/Next event information (7-DAY-EPG)
• Parental lock at menu
• Signal strength bar for transponders
• Multi language audio support
• Digital audio output (optic)
• Teletext function support ( DVB )
• Resetting to factory settings option
• Selectable satellite congurations (Presets: ASTRA,
HOTBIRD, EUTELSAT 16B, TURKSAT 2A/3A.etc
plus user dened)
• Signal strength and signal quality bars for antenna
adjustment
• Various channel search options:
• Automatic Satellite search for preset transponders
• Transponder search
• Network search
• Automatic search for newly added transponders
• FTA (Free- to- Air) search option for satellite and
auto search modes
• Auto FEC (Forward Error Correction) search
• Auto PID correction (except user dened PIDs)
• Digital Decoding Properties:
• Video Out: PAL
• 32-bit OSD color, 960x540 pixels for UI
• System switching (TV/RADIO)
• LNB short circuit and overload protection
• IR remote control
Accessories
Remote Control
Batteries: 2 x AAA
Adapter
Instruction Book
Quick Start Guide
NOTE:You should check the accessories after
purchasing. Make sure that each accessory is
included.

- 3 -
Safety Precautions
Power Source
• Always use the provided AC adaptor.
• Operate only from the power source specied on
the AC adaptor.
• The power adaptor may become hot during normal
operation. This is not a malfunction.
• Please make sure that the adaptor is not covered
while in operation. Leave a space of 15 cm
(minimum) around the AC adaptor.
• The rating information and safety caution of the AC
adaptor are provided on the adaptor.
WARNING: When the set is not in use for a long time,
disconnect from the power.
Power Cord
• Do not place the unit, a piece of furniture, etc., on
the power cord, or pinch the cord.
• Handle the power cord by the plug. Do not pull out
the plug by tugging the cord and never touch the
power cord when your hands are wet as this could
cause a short circuit or electric shock.
• Never make a knot in the cord or tie it with other
cords. The power cords should be routed in such
a way that they are not likely to be stepped on. A
damaged power cord can cause re or give you an
electrical shock.
• Check the power cord once in a while. When you
nd it damaged, ask closest service agent for help.
• Please do not place the set in a place subject to direct
sun light, excessive dust or mechanical shock or in
a location near heat sources.
• The device should be placed on a solid and safe
base.
• Do not place the apparatus on a soft surface such
as a rug that might block the ventilation holes on
the bottom.
• A location should not be selected such as a room
with high humidity, as the condensation, arising in
the kitchen for example, may cause malfunction or
damage the device.
• Heating or other thermal radiation under the set
also may cause malfunction or damage the device.
• The hot air, which arises during the operation,
should be ventilated with sufcient air circulation.
Please do not put the device into closed areas and
do not cover it.
• Please avoid contact of the device with water or
humidity. Do not put into operation near bath,
swimming pools.
• Take care to provide good air circulation. Place the
device in a location with adequate ventilation to
prevent heat build-up in the device.
• Should any solid object or liquid fall into the cabinet,
unplug the device and have it checked by qualied
personnel before operating it any further.
• The device should not be exposed to dripping or
splashing and no objects lled with liquids, such as
vases, shall be placed on the device.
CAUTION
• Batteries shall not be exposed to excessive heat
such as sunshine, re or the like.

- 4 -
Markings on the Product
The following symbols are used on the product as
a marker for restrictions and precautions and safety
instructions. Each explanation shall be considered
where the product bears related marking only. Note
such information for security reasons.
Class II Equipment: This appliance is designed
in such a way that it does not require a safety
connection to electrical earth.
Class II Equipment With Functional
Earthing: This appliance is designed in such
a way that it does not require a safety
connection to electrical earth, the earth connection is
used for functional purposes.
Protective Earth Connection: The marked
terminal is intended for connection of the
protective earthing conductor associated with
the supply wiring.
Hazardous Live Terminal: The marked
terminal(s) is/are hazardous live under normal
operating conditions.
Caution, See Operating Instructions: The
marked area(s) contain(s) user replaceable
coin or button cell batteries.
Class 1 Laser Product:
This product contains
Class 1 laser source that
is safe under reasonably
foreseeable conditions of
operation.
WARNING
Do not ingest the battery, Chemical Burn
Hazard
(The accessories supplied with or) This pro-
duct may contain a coin/button cell battery.
If the coin/button cell battery is swallowed,
it can cause severe internal burns in just 2
hours and can lead to death.
Keep new and used batteries away from
children.
If the battery compartment does not close
securely, stop using the product and keep it
away from children.
If you think batteries might have been swal-
lowed or placed inside any part of the body,
seek immediate medical attention.
i
CLASS 1
LASER PRODUCT

- 5 -
1-Standby/On
2-Numeric buttons
3-Switches between TV and Radio mode
4-Mute
5-Volume Up / Down
6-Menu on-off
7-Navigation buttons (Up/Down/Left/Right)
8-OK/ conrm/ Opens channel list
9-Back
10-Media Browser
11-Pressing once opens the info banner. Pressing
twice extends the info menu screen.
12-Displays a list of favourite channels
13-Coloured buttons
14-Displays the audio language setup menu
15-Fast backward
16-No Function
17-Pause
18-Play
19-Stop
20-Fast forward
21-Displays the subtitle setup menu (in DVB channels)
22-Wide
23-Options
24-Teletext
25-Electronic programme guide(in DVB channels)
26-Exit
27-Exit
28-No Function
29-Programme Up / Down
30-Previous programme
31-No Function
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17 18
19
20
21
22
23
25
26
27
28
29
30
31
24
Overview of the Remote Control

- 6 -
Connections on the Set Top Box
1. On /off
2. USB Input
3. Power Cable Input: DC IN (12V) power connection.
4. LNB Input: Connect satellite antenna cables.
5. HDMI Output: You connect the box to your TV’s HDMI input (if available) by using HDMI
connection cable.
6. SPDIF Audio Out: You can use this connector to output the digital audio to an external device. See your
audio system instruction book for further information.
7. SCART VIDEO OUTPUT : TV SCART connection.
Make sure that you connect all cables and connections before you plug the units adaptor into the mains
supply. After you connect the unit to the mains supply, the LED light located on the front panel will be red
(Standby mode).
TF-RS9200

- 7 -
Inserting Batteries in the Remote Control
• Remove the battery cover located on the back of the remote control by gently pulling backwards from the
indicated part.
• Insert two AAA/R3 (2 X 1.5Volt) or equivalent type batteries inside. Place the batteries in the correct direction
observing the polarity symbols (+/-) and replace the battery cover.
• While using the remote control, you should direct it towards the front panel of the receiver. Remote range
is approximately 7m/23ft.
• If your receiver no longer responds to the remote control. it is probable that the batteries are exhausted. If
so you can still use the local buttons of the receiver. You can replace batteries after they are exhausted.
1. 2.
3.
Note : Remove the batteries from the remote control when it is not to be used for a long period.
Otherwise it can be damaged due to batteries leaking.
Connection to the TV
You can connect the set top box to your TV by using the scart socket or HDMI input. Use a scart or HDMI cable
to connect the set top box to your TV. HDMI technology will provide you high quality picture performance. To
get the best HD quality, TV connection via HDMI is advised.
The set top box gives RGB or CVBS output from scart or high denition quality from HDMI output.

- 8 -
Power Connection
IMPORTANT: The set-top box is designed to
operate on 12 V DC. For this, an adaptor is used
which gives 12 V voltage. Connect this adaptor to
a system that supplies 220-240V AC, 50Hz.
• After unpacking, allow the set-top box to reach the
ambient room temperature before you connect the
set to the mains.
AC Adaptor
To POWER INPUT
DC12V Terminal
LNB Connection
Note: If there is a problem with the LNB connection, a
warning OSD will be displayed on the screen. Please
check and x LNB connection.
Power On-Off
Be sure that you put through all the cable connections.
After plugging in the AC adaptor for the set-top-box to
the mains supply, a red LED will be seen on the front
panel (Standby mode). When the set-top-box is rst
powered up please wait for a while before activating
the receiver since booting of software will take some
time. Then, you can turn on your digital set-top box by
pressing the standby button on the remote control. You
will see that the LED on the front panel will change to
green (Power on mode).
If the box is switched into the Standby mode using the
Standby/On button on the remote, it won’t be able to
turned on again for a short time.
Auto Power Down:
This box will automatically be switched from active
mode into standby mode, after less than three hours in
active mode, following the last user interaction and/or
a channel change with an alert message two minutes
before going to standby mode. The Automatic power-
down will be set as default and the user will be able to
change Automatic power down to on or off in the menu
USB Disk Connection
• You can connect a USB hard disk drive or USB
memory stick to your box by using the USB input . This
feature allows you to play les stored in a USB drive.
• 2.5” and 3.5” inch (hdd with external power supply)
external hard disk drives are supported.
IMPORTANT !
• You may back up your les before making any
connections to the box in order to avoid any possible
data loss. Note that manufacturer will not be
responsible for any le damage or dataloss.
• It is possible that certain types of USB devices (e.g.
MP3 Players) or USB hard disk drives/memory sticks
may not be compatible with this device.
IMPORTANT: The device may not support all
disk formats. If you connect a USB disk with an
unsupported format, then you will be asked to format
the content. See the section, “Format Disk” in
the following pages for more information on disk
formatting. Note that ALL the data stored on the
USB disk will be lost and then the disk format will be
converted to FAT32 in such a case.
USB Disk Connection
• Plug your USB device to the USB input of the box.
Note: Plug or unplug your USB disk while the box is
switched off.
Note: If you are going to connect a USB hard disk drive
to the box, USB connection cable used between the
disk drive and the box should have a USB logo and
should be as short as possible.
Note: While formatting a USB hard disk that has 1TB
(Tera Byte) or more le capacity, you can experience
problems with the formatting process. In such a
case, you should format the disk with your personal
computer and the formatted disk type is recommended
as FAT32.
CAUTION !
• Quickly plugging and unplugging USB devices,
is a very hazardous operation. Especially, do not
repeatedly quickly plug and unplug the drive. This
may cause physical damage to the USB player and
especially the USB device itself.

- 9 -
Menu Interface / First Time Installation
IMPORTANT: Ensure that the aerial is connected before switching on the set top box for the rst time.
When the box is opened from stand-by mode and if there is no channel stored in the database, First Time
Installation Menu window will be displayed on the screen. In the rst menu screen, menu language will be asked:
The appropriate operation language can be chosen by highlighting the desired language with “ ”/“ ” and
pressing OK. Then, Country, Time Zone Setting, TV type, Display Format and HD output resolution
selections screen will be shown:
Do your selections using “ ”/“ ” buttons and press OK to continue. After pressing the OK button, antenna type
will be displayed. Please select your connection type using “ ”/“ ” buttons and press OK to continue.
There are two types of antenna selection. You can select Antenna type, Direct or DiSEqC by using “ ”/“
” buttons.
Direct: If you have a single receiver and a direct satellite dish, select this antenna type. After selecting Direct,
another menu screen will be displayed. Select an available satellite and press OK to scan for services.

- 10 -
DiSEqC: If you have multiple satellite dishes and a DiSEqC switch, select this antenna type. After selecting
DiSEqC switch, another menu screen will be displayed. You can set four DiSEqC options (if available).
A message will appear asking you whether to load the Pre-Programmed List or perform Regular Scan.

- 11 -
If you select to load Pre-Programmed List according to the selected satellite(s) a warning message may appear
next, if any satellite(s) with preset list support is/are not selected. Preset list can not be loaded in this case,
press the OK button to return to the satellite selection screen. After the selections are made Pre-Programmed
List will be loaded and the results will be displayed in the end.
If you select to perform Regular Scan the box starts to scan services. The process of scanning will take a few
minutes. You can follow the scanning process from the scroll bar. After the scanning, rst time installation will be
completed and scan results will be displayed on the screen.
Electronic Programme Guide (EPG)
You can view the electronic programme guide (EPG) to view information about available programmes.
• Press GUIDE button to view the EPG menu screen.
• Press “ ” or “ ” buttons to navigate through channels.
• EPG menu displays available information on all channels.
• Please note that event information is updated automatically. If there are no event information data available
for channels, EPG will be displayed with blanks.
Search channel: Press Blue Button on the remote to select this option. A small menu will appear in which
you can do some adjustments for channels.
Options: Press OK button to select this option. Event options will appear.
Details: Press Info button to select this option. A small menu will appear giving information about the selected
programme.
EPG Menu: Press menu button to select this option. A menu giving information about the buttons’ functions will
appear.

- 12 -
/ : Move between channels (left pane) or programmes (right pane).
P + / P - : Shows the programmes of selected channel through the week.
Changing Channels
• You can change channels with the following methods.
• You can press the numeric buttons (0–9) to directly enter the channel number. You can press numeric buttons
consecutively to enter two or more digits.
• Press the P +/ P - buttons to move up or down to the next available channel.
Note: You can press OK button to display the channel list.
Adjusting the Volume
Volume Up / Down
• You can increase or decrease the volume by using V+ / V- buttons.
• The volume level selected will remain set, even when the receiver is turned off and on again, until you change
volume again.
• The audio volume adjustment for the receiver is independent of the volume control on your TV set.
IMPORTANT: You should be careful that both volume controls are kept within reasonable levels so that when
switching on, or when rst turning on your TV set, the sound level is not too high.
Mute
• You can press to mute the sound of your set top box. The sound will be muted once this button is pressed.
• To cancel mute, you can press button again or use the V +/- buttons.
On-Screen Information
• You can press the INFO button to display on-screen information. Details of the station and current programme
will be displayed on the information screen.
• The information screen will then display the current event name, next event name, starting and ending time,
duration bar, programme mode and the channel number and name.

- 13 -
Menu System
Main menu is accessed by pressing the MENU button on the remote control. Navigate with ”/“ keys among
the menus and press OK to activate menus. In some sub-menus, press the BACK button to return to the
previous menu, otherwise, use it to back from the menu. In all menus there is an Info banner at the bottom of
the screen. These are functions that can be used in the current menu

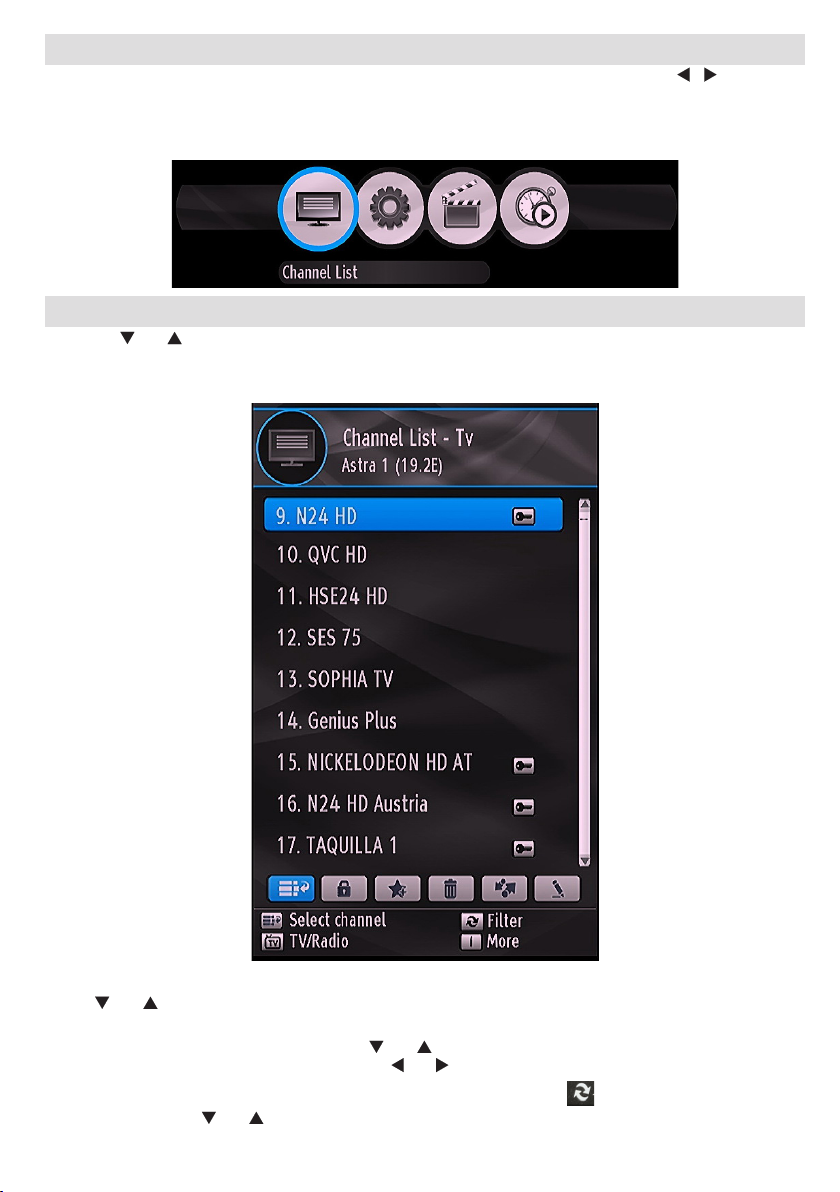

Channel List
Using the “ ” or “ ” button on the remote control, make sure that the rst item, Channel List, is highlighted and
press the OK button to display Channel List or you can press the OK button during watching programme and
get to the Channel List directly.
Navigating the Entire Channel List
Press “ ” or “ ” button for selecting the previous or next channel. You can press Red/Green buttons to move
page up or page down.
To watch a specic channel, highlight it using “ ” or “ ” button and then press “OK” button, while the “Select”
item on Channel List menu is highlighted by using “ ” or “ ” button.
Then the name and number of the selected channel will be displayed. Press button to activate Channel List
lter function and use “ ” or “ ” button to set desired option.Only ltered channels will be available and can be
watched if you do not disable lter mode.

- 14 -
Press the Info(İ) button to display information screen about available options.
Adding Locks to Channels
Channel locking provides a password-protected access to channels selected by parents. In order to lock a
channel you should know the parental lock password (default value is set to 0000 in the factory and can only
be changed from the Conguration menu).
Select the channel to be locked by highlighting it and select Lock option by pressing “ ” or “ ” button. Press
OK button. Afterwards, a dialog OSD asking for the password will be displayed.
Enter the password by using the numeric buttons on the remote control. The lock icon “ ” will be displayed
next to the selected channel. Repeat the same operation to cancel the lock.
Setting Favourites
To set a favourite you should highlight the “Favourites” item at the bottom of the Channel List menu.
Then press “OK” button and Edit Favourite List menu appears on the screen.

- 15 -
Adding a Channel to a Favourites List
• By pressing “ ” or “ ” buttons, highlight the channel that you want.
• By pressing “OK” button, the highlighted channel is selected as favourite channel.
• Favourite icon indicates that a channel is added to Favourite List.
Removing a Channel from Favourite List
• Highlight the channel that you want to remove from the favourite list and press OK button to remove.You
can press “OK” button again to re-add a channel.
Deleting the Channels in the Channel List
• Press “ ” or “ ” button to select the channel that should be deleted.
• Press “ ” or “ ” button to select the “Delete’’ item on Channel List menu.
• Press the OK button to delete the highlighted channel in the channel list. Then the message below appears
on the screen:
• Press “ ” or “ ” button to highlight the desired option. Highlight YES and press OK to delete the selected
channel. Highlight NO and press OK button to cancel.
Moving the channels in the channel list
• Press “ ” or “ ” buttons to select the channel that should be moved.
• Press “ ” or “ ” buttons to select the “Move” item on Channel List menu.
• Enter the new channel number to move the selected channel.

- 16 -
Renaming Channels
To rename a specic channel, the channel must be highlighted by pressing “ ” or “ ” button. Then highlight
Edit Name item by pressing “ ” or “ ” button as illustrated below. Press the OK button to activate the
rename feature.
Now pressing “ ” or “ ” button moves to the previous/next character. Pressing “ ” or “ ” button toggles the
current character, i.e., ‘b’ character becomes ‘a’ by “ ” and ‘c’ by “ ”. Pressing numeric buttons ‘0...9’ replaces
the highlighted character with the characters printed above the button one by one as the button is pressed.
Press the “MENU” button to cancel the editing or OK button to update the new name.
SETUP
The adjustments in this menu are;
Installation
The Installation menu is mainly intended to help you for creating a channel. Select Installation from the Setup menu
by pressing “ ” or “ ” buttons. This menu includes the following items:

- 17 -
Manual channel scan
This menu will be acivated by using the “ ”/“ ” buttons in the Installation menu. By pressing the OK button,
Menu items in manual search menu will be as the following:
1. Satellite
2. DiSEqC
3 Frequency.
4. Polarisation
5. Symbol rate
6. Network search
7. Scan Encrypted
• Satellite Name, Polarization values and Network Search requirements are changed by toggling.
• Frequency and Symbol Rate are entered directly using “0, 1, 2…, 9” keys.
• As soon as entering transponder frequency, the signal level and quality will be reected in the signal strength
bars (Signal Level and Signal Quality bars) at the bottom of the menu. Signal Level bar shows the strength of
the satellite signal. Signal Quality bar shows lock quality of the device for entered values.
• If Network Search item selected as YES, after tuning to that transponder, the parameters of other transponders
will be collected from NIT (Network Information Table) and tuning will be performed for other transponders.
• By pressing OK button values are stored and after the search, if a new program is found, it will be added to the
programme list. Found program’s name is shown as ‘Program’.

- 18 -
Automatic channel scan
With this menu, you can search selected or all satellites. To do this, select “Automatic channel scan” in the
Installation menu, by using the “ ”/“ ” buttons. If you press OK button, the “Automatic channel scan” menu
will appear. Settings in this screen may vary in accordance with antenna type selection dened in rst time
installation. You can set satellite values as desired. Press GREEN button to scan selected satellite. Press
BLUE button to view transponder list. You can use OK button to scan all satellites.
You can choose to load Pre-Programmed List or perform Regular Scan. Refer to the explanations in the Fist
Time Installation section for more details.
Antenna Installation
Settings in this screen may vary in accordance with antenna type selection dened in rst time installation.
You can set satellite values as desired by using the navigation buttons.
Satellite List
Use “ ” or “ ” button to select Satellite List and then press OK button to see listed satellites on your set-top
box. You can use Up/Down or RED/GREEN buttons to navigate in Satellite List menu. If you want to add a new
satellite press YELLOW button and enter the details of the desired satellite. To delete a satellite in the list press
BLUE button. A message will appear asking you whether to delete the selected satellite. Select Yes and press
OK button to delete. To edit a satellite in the list press OK button and Edit Satellite screen will be displayed. You
can change the name, orbital position and reference transponder for the selected satellite from this screen. Press
the EXIT button on the remote control to exit.
First Time Installation
This section is same with initial installation part. Please refer to Menu interface/First time installation section
for more information.
Conguration
You can congure the settings of your set-top box. Select Conguration from Setup menu and press “OK” to view
this menu. Press the “EXIT” button on the remote control to exit.

- 19 -
Country
Displays the current country, selected in the rst time installation.
Output Settings
TV Type
Satellite channels can be broadcast in a widescreen format whose output can be different for normal and
widescreen TV sets. This function enables to change the screen format of the TV connected, so that broadcasts
are displayed correctly. Highlight the TV Type line in the Conguration menu and use the “ ”/“ ” keys to
select 4:3 if you have a standard TV set connected or 16:9 if it is a widescreen TV. This function duplicates
the selection made at the time of rst installation and can be used if you change TV sets.
Display Format
Use “ ” or “ ” button to select Display Format and then press “ ” or “ ” button to set this setting as Auto,
Letter Box or Pan & Scan for 4:3 tv set and Auto, pillar box, zoom for 16:9 tv set.
Scart mode
