Telefunken TK1409 Instruction manual

COLOR TELEVISION RECEIVER
Chassis : K15BD
Model : TK1409
TK2009
TK2009ST
COLOR TELEVISION RECEIVER CONTENTS
Precautions
Specifications and IC Data
Disassembly and Reassembly
Alignment and Adjustment
Troubleshooting
Exploded View and Parts List
Electric Parts List
Block Diagram
PCB Layout Diagram
Wiring Diagram
Schematic Diagrams
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
MAY. 2001

1. Precautions
1-1 Safety Precautions
1. Be sure that all of the built-in protective
devices are replaced. Restore any missing
protective shields.
2. When reinstalling the chassis and its
assemblies, be sure to restore all protective
devices, including: nonmetallic control knobs
and compartment covers.
3. Make sure that there are no cabinet openings
through which people—particularly
children—might insert fingers and contact
dangerous voltages. Such openings include
the spacing between the picture tube and the
cabinet mask, excessively wide cabinet
ventilation slots, and improperly fitted back
covers.
If the measured resistance is less than 1.0
megohm or greater than 5.2 megohms, an
abnormality exists that must be corrected
before the unit is returned to the customer.
4. Leakage Current Hot Check (Figure 1-1):
Warning: Do not use an isolation
transformer during this test. Use a leakage-
current tester or a metering system that
complies with American National Standards
Institute (ANIS C101.1, Leakage Current for
Appliances), and Underwriters Laboratories
(UL Publication UL1410, 59.7).
5. With the unit completely reassembled, plug
the AC line cord directly into the power
outlet. With the unit’s AC switch first in the
ON position and then OFF, measure the
current between a known earth ground (metal
water pipe, conduit, etc.) and all exposed
metal parts, including: antennas, handle
brackets, metal cabinets, screwheads and
control shafts. The current measured should
not exceed 0.5 milliamp. Reverse the power-
plug prongs in the AC outlet and repeat the
test.

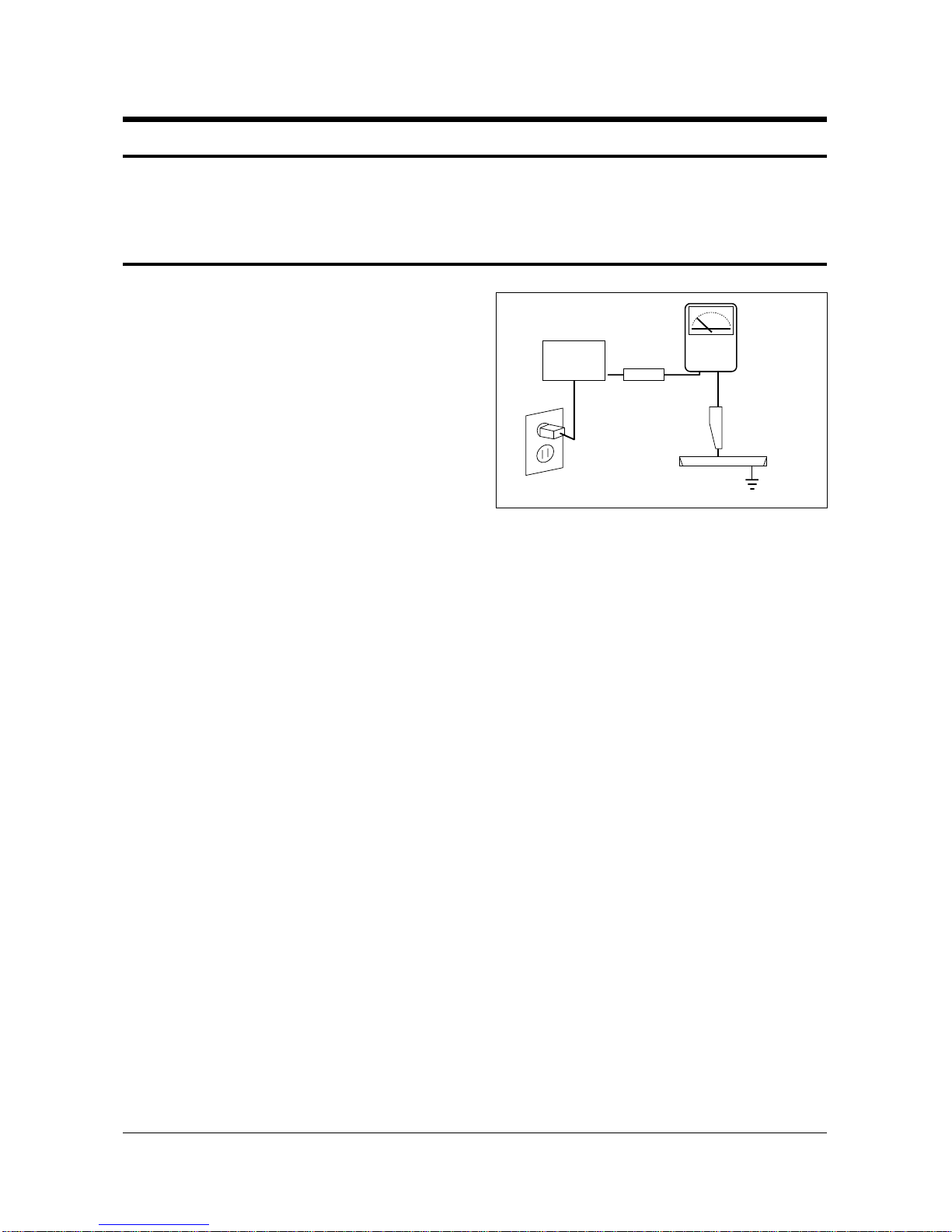

Fig. 1-1 AC Leakage Test
6. Antenna Cold Check:
With the unit’s AC plug disconnected from the
AC source, connect an electrical jumper across
the two AC prongs. Connect one lead of the
ohmmeter to an AC prong. Connect the other
lead to the coaxial connector.
7. X-ray Limits:
The picture tube is especially designed to pro-
hibit X-ray emissions. To ensure continued
X-ray protection, replace the picture tube only
with one that is the same type as the original.
Carefully reinstall the picture tube shields and
mounting hardware; these also provide X-ray
protection.
8. High Voltage Limits:
High voltage must be measured each time ser-
vicing is done on the B+, horizontal deflection
or high voltage circuits. Correct operation of
the X-ray protection circuits must be
reconfirmed whenever they are serviced.
(X-ray protection circuits also may be called
“horizontal disable” or “hold-down”.)
Heed the high voltage limits. These include
the X–ray Protection Specifications Label, and
the Product Safety and X-ray Warning Note on
the service data schematic.
Precautions
Samaung Electronics 1-1
LEAKAGE
CURRENT
TESTER
DEVICE
UNDER
TEST TEST ALL
EXPOSED METAL
SURFACES
2-WIRE CORD
ALSO TEST WITH
PLUG REVERSED
(USING AC ADAPTER
PLUG AS REQUIRED) EARTH
GROUND
(READING SHOULD
NOT BE ABOVE
0.5mA)
Follow these safety, servicing and ESD precautions to prevent damage and protect against potential
hazards such as electrical shock and X-rays.

1-1 Safety Precautions (Continued)
9. High voltage is maintained within specified
limits by close-tolerance, safety-related
components and adjustments. If the high
voltage exceeds the specified limits, check
each of the special components.
10. Design Alteration Warning:
Never alter or add to the mechanical or
electrical design of this unit. Example: Do not
add auxiliary audio or video connectors. Such
alterations might create a safety hazard. Also,
any design changes or additions will void the
manufacturer’s warranty.
11. Hot Chassis Warning:
Some TV receiver chassis are electrically
connected directly to one conductor of the AC
power cord. If an isolation transformer is not
used, these units may be safely serviced only
if the AC power plug is inserted so that the
chassis is connected to the ground side of the
AC source.
To confirm that the AC power plug is inserted
correctly, do the following: Using an AC
voltmeter, measure the voltage between the
chassis and a known earth ground. If the
reading is greater than 1.0V, remove the AC
power plug, reverse its polarity and reinsert.
Re-measure the voltage between the chassis
and ground.
12. Some TV chassis are designed to operate with
85 volts AC between chassis and ground,
regardless of the AC plug polarity. These units
can be safely serviced only if an isolation
transformer inserted between the receiver and
the power source.
13. Some TV chassis have a secondary ground
system in addition to the main chassis ground.
This secondary ground system is not
isolated from the AC power line. The two
ground systems are electrically separated by
insulating material that must not be defeated
or altered.
14. Components, parts and wiring that appear to
have overheated or that are otherwise
damaged should be replaced with parts that
meet the original specifications. Always
determine the cause of damage or overheat-
ing, and correct any potential hazards.
15. Observe the original lead dress, especially
near the following areas: Antenna wiring,
sharp edges, and especially the AC and high
voltage power supplies. Always inspect for
pinched, out-of-place, or frayed wiring. Do
not change the spacing between components
and the printed circuit board. Check the AC
power cord for damage. Make sure that leads
and components do not touch thermally hot
parts.
16. Picture Tube Implosion Warning:
The picture tube in this receiver employs
“integral implosion” protection. To ensure
continued implosion protection, make sure
that the replacement picture tube is the same
as the original.
17. Do not remove, install or handle the picture
tube without first putting on shatterproof
goggles equipped with side shields. Never
handle the picture tube by its neck. Some
“in-line” picture tubes are equipped with a
permanently attached deflection yoke; do not
try to remove such “permanently attached”
yokes from the picture tube.
18. Product Safety Notice:
Some electrical and mechanical parts have
special safety-related characteristics which
might not be obvious from visual inspection.
These safety features and the protection they
give might be lost if the replacement compo-
nent differs from the original—even if the
replacement is rated for higher voltage,
wattage, etc.
Components that are critical for safety are
indicated in the circuit diagram by shading,
( ) or ( ).
Use replacement components that have the
same ratings, especially for flame resistance
and dielectric strength specifications.
A replacement part that does not have the
same safety characteristics as the original
might create shock, fire or other hazards.
Precautions
1-2 Samaung Electronics

1-2 Servicing Precautions
1. Servicing precautions are printed on the
cabinet. Follow them.
2. Always unplug the unit’s AC power cord from
the AC power source before attempting to: (a)
Remove or reinstall any component or
assembly, (b) Disconnect an electrical plug or
connector, (c) Connect a test component in
parallel with an electrolytic capacitor.
3. Some components are raised above the printed
circuit board for safety. An insulation tube or
tape is sometimes used. The internal wiring is
sometimes clamped to prevent contact with
thermally hot components. Reinstall all such
elements to their original position.
4. After servicing, always check that the screws,
components and wiring have been correctly
reinstalled. Make sure that the portion around
the serviced part has not been damaged.
5. Check the insulation between the blades of the
AC plug and accessible conductive parts
(examples: metal panels, input terminals and
earphone jacks).
6. Insulation Checking Procedure: Disconnect the
power cord from the AC source and turn the
power switch ON. Connect an insulation
resistance meter (500V) to the blades of the AC
plug.
The insulation resistance between each blade
of the AC plug and accessible conductive parts
(see above) should be greater than 1 megohm.
7. Never defeat any of the B+ voltage interlocks.
Do not apply AC power to the unit (or any of
its assemblies) unless all solid-state heat sinks
are correctly installed.
8. Always connect a test instrument’s ground
lead to the instrument chassis ground before
connecting the positive lead; always remove
the instrument’s ground lead last.
Precautions
Samaung Electronics 1-3
Warning1: First read the “Safety Precautions” section of this manual. If some unforeseen circumstance creates a conflict between
the servicing and safety precautions, always follow the safety precautions.
Warning2: An electrolytic capacitor installed with the wrong polarity might explode.

1. Some semiconductor (“solid state”) devices
are easily damaged by static electricity. Such
components are called Electrostatically
Sensitive Devices (ESDs); examples include
integrated circuits and some field-effect
transistors. The following techniques will
reduce the occurrence of component damage
caused by static electricity.
2. Immediately before handling any semicon
ductor components or assemblies, drain the
electrostatic charge from your body by
touching a known earth ground. Alternatively,
wear a discharging wrist-strap device. (Be
sure to remove it prior to applying power—
this is an electric shock precaution.)
3. After removing an ESD-equipped assembly,
place it on a conductive surface such as
aluminum foil to prevent accumulation of
electrostatic charge.
4. Do not use freon-propelled chemicals. These
can generate electrical charges that damage
ESDs.
5. Use only a grounded-tip soldering iron when
soldering or unsoldering ESDs.
6. Use only an anti-static solder removal device.
Many solder removal devices are not rated as
“anti-static”; these can accumulate sufficient
electrical charge to damage ESDs.
7. Do not remove a replacement ESD from its
protective package until you are ready to
install it. Most replacement ESDs are
packaged with leads that are electrically
shorted together by conductive foam,
aluminum foil or other conductive materials.
8. Immediately before removing the protective
material from the leads of a replacement ESD,
touch the protective material to the chassis or
circuit assembly into which the device will be
installed.
9. Minimize body motions when handling
unpackaged replacement ESDs. Motions such
as brushing clothes together, or lifting a foot
from a carpeted floor can generate enough
static electricity to damage an ESD.
Precautions
1-4 Samaung Electronics
1-3 Precautions for Electrostatically Sensitive Devices (ESDs)

Specifications and IC Data
Samaung Electronics 2-1
2. Specifications and IC Data
2-1 Specifications
Television System
Power Consumption
Picture Tube
Power Requirements
Operating System
Tuning Ranges
Antenna Input Impedance
Intermediate Frequency
Speaker Impedance
14”/20” NTSC, PAL M/N Color TV Signal
14” : 57 Watts Nominal, 20” : 70 Watts Nominal
14” : A34KQV42X 20” : A48KRD82X (H)
AC 100 ~ 240V, 50/60Hz
Remocon System (SSM - 174PT)
VHF CH : 2 ~ 13
UHF CH : 14 ~ 69
CABLE CH : 1, 14~125
75 ohm Unbalanced for VHF/UHF
Picture 45.75 MHz, Sound 41.25 MHz
Color Sub Carrier 42.17 MHz
Single : 8 ohm 2.5W
Dual : 8 ohm 2.5W x 2.5W

2-2 IC Line Up
Specifications and IC Data
2-2 Samaung Electronics
Loc. No Specification Description Remark
IC201 TDA8841 SI NTSC, PAL M/N Philips
IC301 TDA8356 VERTICAL OUTPUT
IC501 TDA6107Q RGB DRIVE AMP
IC601 LA4425 SOUND-AMP (2.5W x 1CH)
IC602 LA4425 SOUND-AMP (2.5W x 1CH)
IC801 KA3S0680RF POWER IC (STR)
IC802 KA7630 CUSTOM REGULATOR (5V, 8V)
IC901 SSM-174PT µ-com (OSD Language : English, Spanish, Portuguese)
IC902 24C02/KS24C04O EEPROM
PC802 TCET1108 / LTV817B/PC123Y PHOTO COUPLER
Table 2-1 IC Line-up

2-3 Semiconductor Base Diagrams
Specifications and IC Data
Samaung Electronics 2-3
ELECTROLYTIC-
CONDENSER IC
DIODE
TDA884X(Pin 56)
SSM-174PT(Pin 42)
X24CO2P(Pin 8)
KS24C020(Pin 8)
IC TRANSISTOR
TDA8133
TDA8356
TDA6107Q
KA7630
TRANSISTOR
TRANSISTOR
2SD1651
2SD1650
KSD5072
KSD5071
KSD1711
KSC5386
BCEE B C
KSC815-Y
KSA539-Y
BC548
KTC9014
IC
UPC574J
or
KA33V
SAW-FILTER
E C B
KSR1012
KSR1010
KSR2010
KCT3197
1
1
1
M1963M
Fig. 2-1 Semiconductor Base Diagrams

Disassembly and reassembly
Samsung Electronics 3-1
3. Disassembly and Reassembly
3-1 Back Cover Removal

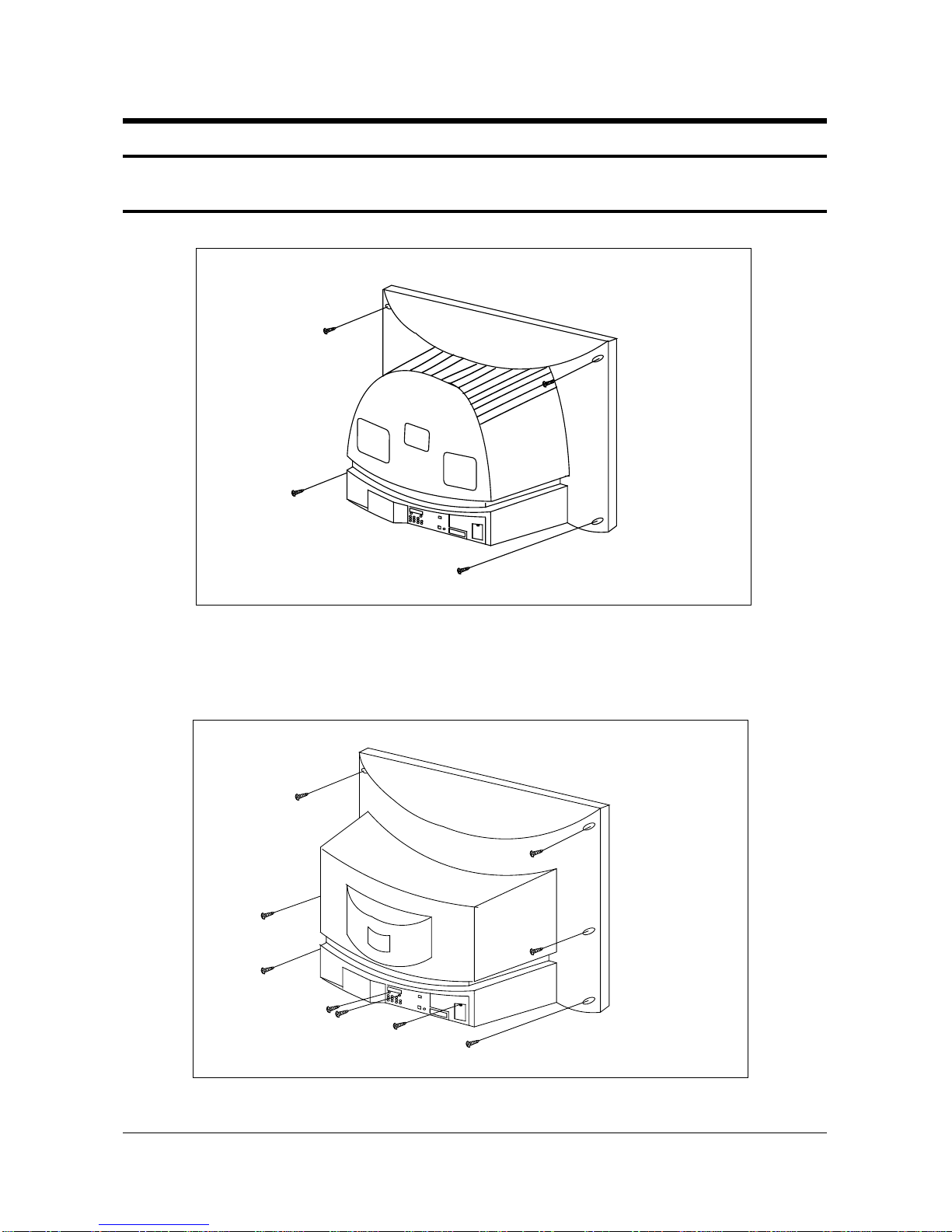

1. After removing the screws, press the tension rib and pull the cabinet backwards.
2. To reassemble, press the tension rib (see diagram).

3-2 Main Board Removal
Disassembly and reassembly
3-2 Samsung Electronics
1. Separate the socket board from the CRT neck.
2. Remove the Anode Cap from the CRT.
3. Remove the main board by pulling it with both hands.
Warning: The FBT is charged with high voltage.
Before removing the Anode Cap, discharge the voltage
through one of the heat sinks on the main board.

3-3 Speaker Removal
Disassembly and reassembly
Samsung Electronics 3-3
1. Remove the speaker by
pressing the tension rib.
1. Remove the screws.
2. Remove the speaker by
pressing the tension rib.

Disassembly and reassembly
3-4 Samsung Electronics
3-4 CRT Removal
1. Spread a soft mat on the floor. Place the TV set face
down.
2. Remove the 4 nuts mounting the CRT to the front cabi-
net. Lift the CRT.
3. Caution: Because of the high vacuum and large surface
area of the picture tube, be careful while handling it: (1)
Always lift the picture tube by grasping it firmly around
the faceplate, (2) Never lift the tube by its neck. (3) Do
not scratch the picture tube or apply excessive pressure.
Fractures of the glass may cause an implosion.

Alignment and Adjustments
4-1
4. Alignment and Adjustments
4-1 Preadjustment
4-1-1 Factory Mode
1. Do not attempt these adjustments in the Video
Mode.
2. The Factory Mode adjustments are necessary
when either the EEPROM (IC902) or the CRT
is replaced.
3. Do not tamper with the “Adjustment” screen
of the Factory Mode menu. This screen is
intended only for factory use.
4-1-2 When EEPROM (IC902) Is Replaced
1. When IC902 is replaced all adjustment data
revert to initial values. It is necessary to
re-program this data.
2. After IC902 is replaced, warm up the TV for
10 seconds.
4-1-3 When CRT Is Replaced
1. Make the following adjustments AFTER set-
ting up after setting up purity and conver-
gence :
White Balance
Sub-Brightness
Vertical Center
Vertical Size
Horizontal Center
4-2 Factory/Service Mode
4-2-1 Procedure for the “Adjustment” Mode
1. This mode uses the standard remote control.
The Service Mode is activated by entering the
following remote-control sequence :
(1) DISPLAY→FACTORY.
(2) STAND-BY→ MUTE→1→8→2
→POWER ON.
2. The “SERVICE (FACTORY)” message will be
displayed. The Service Mode has four compo-
nents: Adjustment, Option Bytes and Reset.
3. Access the Adjustment Mode by pressing the
“VOLUME” keys ( Up or Down). The adjust-
ment parameters are listed in the accompany-
ing table, and selected by pressing the CHAN-
NEL keys (s ,t).
4. Selection sequences for the PAL N system:
DOWN or UP key:
AGC>VCO>SBT>SCT>RG>GG>BG>SC>
PCR> PSL>PVS>PVA>PHS> HS>CDL
Selection sequences for the NTSC, PAL M
system: DOWN or UP key:
AGC>VCO>SBT>SCT>RG>GG>BG>SC>STT>
NCR>NSL>NVS>NVA>NHS>CDL
5. The VOLUME keys increase or decrease the
adjustment values (stored in the
non-volatile memory) when Adjustment Mode
is cancelled.
6. Cancel the Adjustment Mode by re-pressing
the “FACTORY” or “Power OFF” keys.

4-2-2 Main Adjustment Parameter
NOTE : Once a system (of PAL N/NTSCM, PALM System) is adjusted, another system is
automatically adjusted. (NHS=PHS + HS)
Alignment and Adjustments
4-2
INITIAL DATA REMARKRANGE
OSD ABBREVIATIONFUNCTION
Table 4-1 Main Adjustment Parameter (SSM-174PT, TDA8841)
AUTO GAIN CONTROL
VOLTAGE CONTROL OSCILLATOR
SUB BRIGHT
SUB CONTRAST
RED DRIVE GAIN
GREEN DRIVE GAIN
BLUE DRIVE GAIN
PAL SUB COLOR
S-CORRECTION
PAL VERTICAL SLOPE
PAL VERTICAL SHIFT
PAL VERTICAL AMPLITUDE
PAL HORIZONTAL SHIFT
HORIZONTAL SHIFT
SUB TINT
NTSC SUB COLOR
NTSC VERTICAL SLOPE
NTSC VERTICAL SHIFT
NTSC VERTICAL AMPLITUDE
NTSC HORIZONTAL SHIFT
0 ~ 63 STEP
0 ~ 128 STEP
0 ~ 23 STEP
0 ~ 23 STEP
0 ~ 63 STEP
0 ~ 63 STEP
0 ~ 63 STEP
0 ~ 23 STEP
0 ~ 63 STEP
0 ~ 63 STEP
0 ~ 63 STEP
0 ~ 63 STEP
0 ~ 63 STEP
0 ~ 7 STEP
1 ~ 23 STEP
0 ~ 23 STEP
0 ~ 63 STEP
0 ~ 63 STEP
0 ~ 63 STEP
0 ~ 63 STEP
AGC
VCO
SBT
SCT
RG
GG
BG
PCR
SC
PSL
PVS
PVA
PHS
HS
STT
NCR
NSL
NVS
NVA
NHS
05
48
9
8
25
25
25
10
34
32
28
42
5
14
00
34
32
28
47
FIX
FIX
FIX
FIX
FIX
FIX
FIX
10 (20 INCH)
0 (14 INCH)

Alignment and Adjustments
4-3
4-2-3 Option Table
543210
< VIDEO MUTE>
0 : VIDEO MUTE ON
1 : VIDEO MUTE OFF
< BLUE-SCREEN OPTION>
0 : BLUE-BACK ON
1 : BLUE-BACK OFF
<AUTO SOUND OPTION>
0 : AUTO SOUND OFF
1 : AUTO SOUND ON
< AUTO ON OPTION >
0 : AUTO POWER ON (LAST MEMORY
1 : DISABLE (STAND-BY)
< BLACK STRECTH >
0 : BLACK STRECTH ON
1 : BLACK STRECTH OFF
< INITIAL LANGUAGE OPTION >
0 : PORTUGUESE
1 : SPANISH
543210
00110 :Basic Option Byte
(Note : No. 5 is a Local Option)

4-2-2 Main Adjustment Parameter
N OTE : Once a system (of PA L N / N T SC M , PA L M System) is adjusted, another system is
automatically adjusted. (N H S=PH S + H S)
Alignment and Adjustments
4-2ST
INITIAL DATA REMARKRANGE
OSD ABBREVIATIONFUNCTION
Table 4-1 Main Adjustment Parameter (Z9036512PSC)
AUTO GAIN CONTROL
SUB BRIGHT
SUB CONTRAST
SUB TINT
NTSC SUB COLOR
PAL SUB COLOR
BLUE DRIVE GAIN
0 ~ 63 STEP
0 ~ 23 STEP
0 ~ 23 STEP
0 ~ 23 STEP
0 ~ 23 STEP
0 ~ 23 STEP
0 ~ 7 STEP
AGC
SBT
SCT
STT
NCR
PCR
CDL
05
9
8
14
00
10
4
FIX
HORIZONTAL SHIFT
NTSC VERTICAL SLOPE
NTSC VERTICAL SHIFT
NTSC VERTICAL AMPLITUDE
NTSC HORIZONTAL SHIFT
0 ~ 63 STEP
0 ~ 7 STEP
0 ~ 63 STEP
0 ~ 63 STEP
0 ~ 63 STEP
0 ~ 63 STEP
BG
dHS
NSL
NVS
NVA
NHS
25
5
34
32
28
47
FIX
FIX
FIX
GREEN DRIVE GAIN 0 ~ 63 STEP
GG 25
RED DRIVE GAIN 0 ~ 63 STEP
RG 25
10 (20 INCH)
0 (14 INCH)
S-CORRECTION 0 ~ 63 STEP
SCO FIX
PAL VERTICAL SLOPE 0 ~ 63 STEP
PSL 34
PAL VERTICAL SHIFT 0 ~ 63 STEP
PVS 32
PAL VERTICAL AMPLITUDE
PAL HORIZONT
0 ~ 63 STEP
0 ~ 63 STEP
PV
PHS
28
42

4-2-3 MTS Table
INITIAL DATA REMARKRANGE
OSD ABBREVIATIONFUNCTION
Table 4-2 MTS Adjustment Parameter (Z9036512PSC)
ATENUATION
SPECTRAL
WIDEBAND
0 ~ 15 STEP
0 ~ 63 STEP
0 ~ 63 STEP
ATT
SPECTRAL
WIDEBAND
13
46
32
4-2-4 Option
Byte 0 : 51
Byte 1 : 00
4-3ST

Alignment and Adjustments
4-4
4-3 Other Adjustments
4-3-1 General
1. Usually, a color TV needs only slight touch-
up adjustment upon installation. Check the
basic characteristics such as height, horizontal
and vertical sync and focus.
2. The picture should have good black and white
details. There should be no objectionable
color shading; if color shading is present, per-
form the purity and convergence adjustments
described below.
3. Use the specified test equipment or its equiva-
lent.
4. Correct impedance matching is essential.
5. Avoid overload. Excessive signal from a sweep
generator might overload the front-end of the
TV. When inserting signal markers, do not
allow the marker generator to distort test
results.
6. Connect the TV only to an AC power source
with voltage and frequency as specified on the
backcover nameplate.
7. Do not attempt to connect or disconnect any
wires while the TV is turned on. Make sure
that the power cord is disconnected before
replacing any parts.
8. To protect against shock hazard, use an isola-
tion transformer.
4-3-2 Automatic Degaussing
A degaussing coil is mounted around the pic-
ture tube, so that external degaussing after
moving the TV should be unnecessary. But
the receiver must be properly degaussed upon
installation.
The degaussing coil operates for about 1 sec-
ond after the power is switched ON. If the set
has been moved or turned in a different direc-
tion, disconnect its AC power for at least 30
minutes.
If the chassis or parts of the cabinet become
magnetized, poor color purity will result. If
this happens, use an external degaussing coil.
Slowly move the degaussing coil around the
faceplate of the picture tube and the sides and
front of the receiver. Slowly withdraw the coil
to a distance of about 6 feet before removing
power.
4-3-3 High Voltage Check
CAUTION: There is no high voltage adjustment on this chassis.
The B+ power supply must be set to +125 volts (Full color bar input
and normal picture level).
1. Connect a digital voltmeter to the second
anode of the picture tube.
2. Turn on the TV. Set the Brightness and
Contrast controls to minimum (zero beam cur-
rent).
3. The high voltage should not exceed 27.5KV.
4. Adjust the Brightness and contrast controls to
both extremes. Ensure that the high voltage
does not exceed 27.5KV under any conditions.

Alignment and Adjustments
4-5
4-3-4 FOCUS Adjustment
1. Input a black and white signal.
2. Adjust the tuning control for the clearest pic-
ture.
3. Adjust the FOCUS control for well defined
scanning lines in the center area of the screen.
4-3-5 Cathode Voltage Adjustment
(Screen Adjustment)
1. Connect CRT socket pin GK to an oscilloscope
probe.
2. Input a gray scale pattern. (Use a pattern gen-
erator, PM5518)
3. Use the P mode key (on the remote control)
for the STANDARD picture.
4. Adjust the Screen VR (on the FBT) so that the
voltage on the oscilloscope becomes 130+2.5V
(See Fig. 4-1).
4-3-6 Purity Adjustment
1. Warm up the receiver for at least 20 minutes.
2. Plug in the CRT deflection yoke and tighten
the clamp screw.
3. Plug the convergence yoke into the CRT and
set in as shown in Fig. 4-2.
4. Input a black and white signal.
5. Fully demagnetize the receiver by applying an
external degaussing coil.
6. Turn the CONTRAST and BRIGHTNESS con-
trols to maximum.
7. Loosen the clamp screw holding the yoke.
Slide the yoke backward or forward to pro-
vide vertical green belt. (Fig. 4-3).
8. Tighten the convergence yoke.
9. Slowly move the deflection yoke forward,
and adjust for the best overall green screen.
10. Temporarily tighten the deflection yoke.
11. Produce blue and red rasters by adjusting the
low-light controls. Check for good purity in
each field.
12. Tighten the deflection yoke.

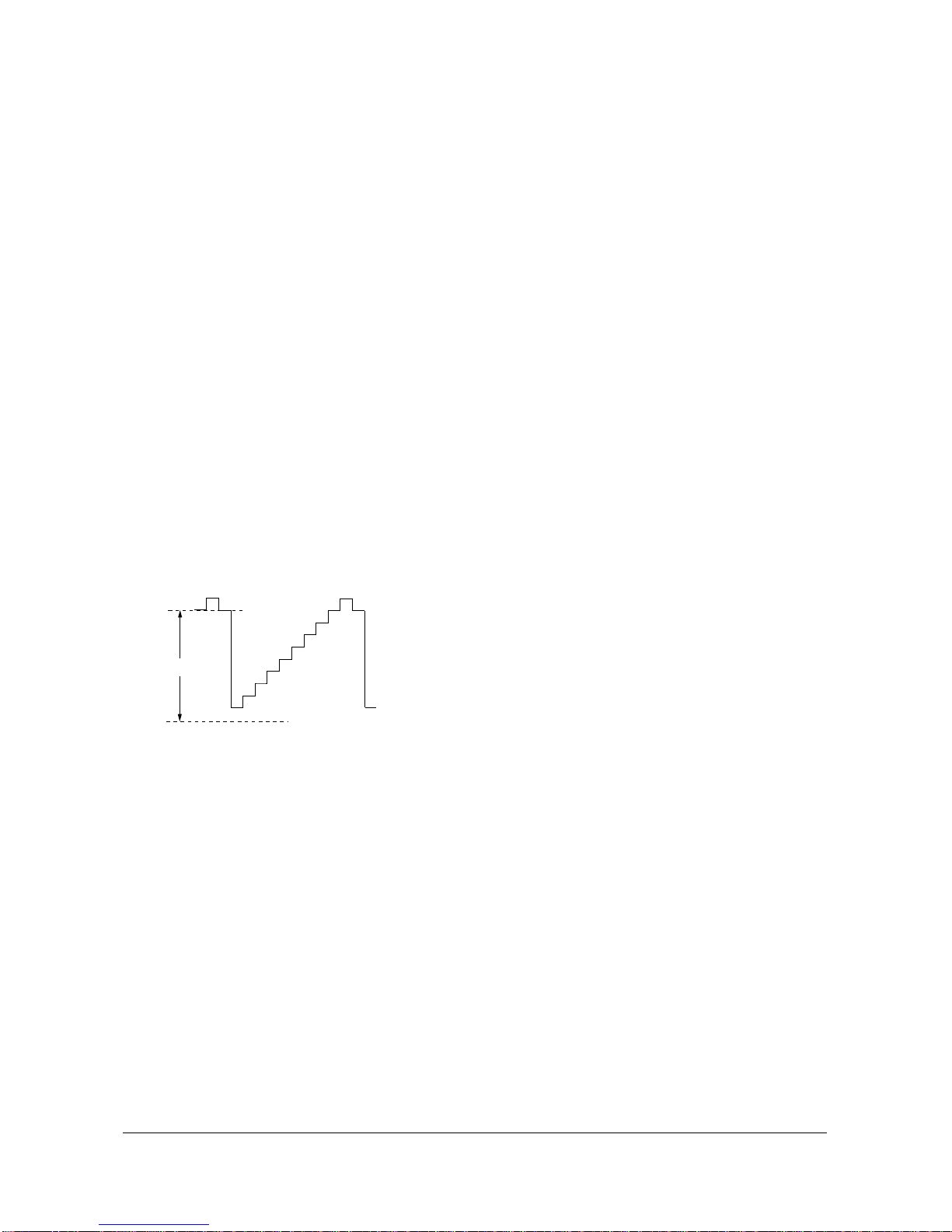

Fig. 4-1
130 2.5V
+
_
GND 14, 16" :120 2.5V
20, 21" : 130 2.5V
+
_
+
_
_

Alignment and Adjustments
4-6
4-3-7 White Balance Adjustment
Fig. 4-2 Convergence Magnet Assembly
4 Pole Magnet
6 Pole Magnet 2 Pole Magnet
Clamper
Screw
2 POLE
PURITY
YOKE
CLAMP
SCREW
6 POLE
CONVERGENCE
4 POLE
CONVERGENCE
ADJUST THE ANG
(VERTICAL LINES)
Fig. 4-3 Center Convergence Adjustment
31m/m
Vertical Green Belt
Fig. 4-4
1
2
(a) Set up
1. Warm up the TV for at least 30 minutes in the
Aging Mode (OSD White). This mode is dis-
played by entering the following sequence:
DISPLAY →FACTORY →FACTORY
2. Input a Toshiba pattern.
(b) Low-Light Adjustment
1. Set SBT to 1.3 ±0.2 fL in the Factory Service
Mode with using CA100. See Fig. 4-4 ¡.
2. Adjust RG,BG so that the levels are suitable to
each local area.
(c) High-Light Adjustment
1. Set SCT to 55 FL (20”), 65 FL(14”) in the
Factory Service Mode with using CA100. See
Fig. 4-4 ¨.
