1.1 Introduction
The Telindus 1120/1121 ADSL Router is the ultimate solution for any
office or home searching for ultra-fast access to the Internet and
remote networks over ADSL. ADSL Router is a stand-alone device
with true plug-and-play capability. It works with any computer using
an Ethernet port.
The purpose of this guide is to help you ease through the installation
process by providing simple step-by-step instructions in setting up
your ADSL Router. Please read this guide carefully before you start
installing the unit.
1.2 Package Includes
• Telindus 1120/1121 ADSL Router (x 1)
• AC to AC Power adapter (x 1)
• CD-ROM (x 1) includes:
User’s Guide in PDF format
• RJ-11 to RJ-11 ADSL phone cable (x 1)
• RJ-45 to RJ-45 straight-through Ethernet cable (x 1)

Before You Begin
6 User’s Guide
1.3 Minimum System Requirements
• ADSL line
• Microsoft Windows 98 or later version
• 166 MHz Pentium or equivalent processor
• 16 MB RAM or more
• 170 MB available free hard disk space before installation
• 28.8k or faster modem (optional for dial-up access)
• Available 10BaseT Ethernet or USB port on the main computer
• CD-ROM Drive

User’s Guide 7
Hardware
Installation 2
22
2
This Chapter Includes:
2.1 Diagram of the Telindus 1120/1121...................7
2.2 Hardware Installation.......................................10
2.2 Hardware Installation.......................................10
2.3 Setup Instructions ............................................10
2.4 Connect to the Ethernet....................................11
2.5 Connect to the DSL Interface ..........................12
2.6 Connect to Power.............................................13
2.6 Connect to Power.............................................13
2.1 Diagram of the Telindus 1120/1121
Front Panel Interfaces
Figure 2.1 Telindus 1120 ADSL Router
Figure 2.2 Telindus 1121 ADSL Router
PWR -- Power
A green PWR LED is ON when power is supplied to the NDS.
DIAG -- Diagnostic
The yellow DIAG LED indicates that the ADSL Router is in a self-
diagnostic mode during boot-up. Once the ADSL Router boots up
successfully, the DIAG LED stops flashing and remains off. If there is
a software malfunction or a problem with the ADSL Router, the DIAG
LED will remain on.
LAN LINK -- Local Area Network (Ethernet)
The green LAN LINK LED displays the 10BaseT Ethernet connection
between ADSL Router and your Ethernet network. The green LED is
on and remains solid if there is a valid link.
LAN ACT (Activity) -- Local Area Network (Ethernet)
A flashing yellow LED indicates Ethernet dataactivity between the PC

Hardware Installation
8 User’s Guide
and the ADSL Router. The LED flashes when there is data activity on
this port.

Hardware Installation
User’s Guide 9
WAN LINK -- Wide Area Network Link
The green WAN LINK LED displays the 10BaseT Ethernet connection
between the ADSL Router and the remote DSL network. The WAN
LED is on and remains solid if there is a valid link.
WAN ACT (Activity) -- Wide Area Network Activity
A flashing yellow WAN ACT LED indicates data activity between the
remote DSL network and the ADSL Router unit. The LED flashes
when there is data activity on this port.
Back Panel Interface
Figure 2.3 Back Panel Interface
DSL
The ADSL interface connects the ADSL Router to an ADSL line.
POWER
The power interface connects to the power adapter.
ETHERNET
The Ethernet interface connects the ADSL Router to a 10BaseT
network.

Hardware Installation
10 User’s Guide
2.2 Hardware Installation
CAUTION!!! Turn off all electronic devices, including your personal
computer, before you begin to connect and disconnect cables.
Personal Safety
• In case of emergency, locate the closest electricity power-off
switch.
• Refrain from touching any active wires or terminals.
• Remove jewelry before working on equipment connected to
electricity.
• Keep cables away from walkways.
• Dispose this product in accordance with national laws and
regulations.
Product Handling
• Keep ventilation slots clear.
• Operate in a clean and dust-free location.
• Cables must be attached to the correct interfaces; to do
otherwise may result in damaging the ADSL Router or produce
hazardous voltage.
• Do not operate or store the product in an environment that
surpasses temperature or humidity specifications.
2.3 Setup Instructions
• Choose a location for the Router close to a power outlet and a
nearby telephone outlet. In addition, select a convenient
location that does not experience too much foot traffic and is
away from sunlight.
• The optimum spot to place the Router is on a level surface –
such as a desktop, shelf, or table.
• Place the Router on the predetermined surface, so you can see
the back panel for accessible cable connection.

Hardware Installation
User’s Guide 11
2.4 Connect to the Ethernet
Step 1. Locate your Ethernet cable (included).
Step 2. Attach the Ethernet cable to the ETHERNET port of your
Router.
Step 3. Plug in the loose end of the Ethernet cable to your Ethernet
network
You have 3 options to connect to the Ethernet depending on your
network environment:
Option 1. Connecting to a single PC: Attach the included straight-
through Ethernet cable to the Ethernet port on a PC.
Figure 2.4 Connecting to an Ethernet Port on a PC
Option 2. Connecting to a network hub with uplink port
available: Attach the included straight-through Ethernet
cable to the uplink port on a hub.
Figure 2.5 Connecting to an Uplink Port on a Network Hub

Hardware Installation
12 User’s Guide

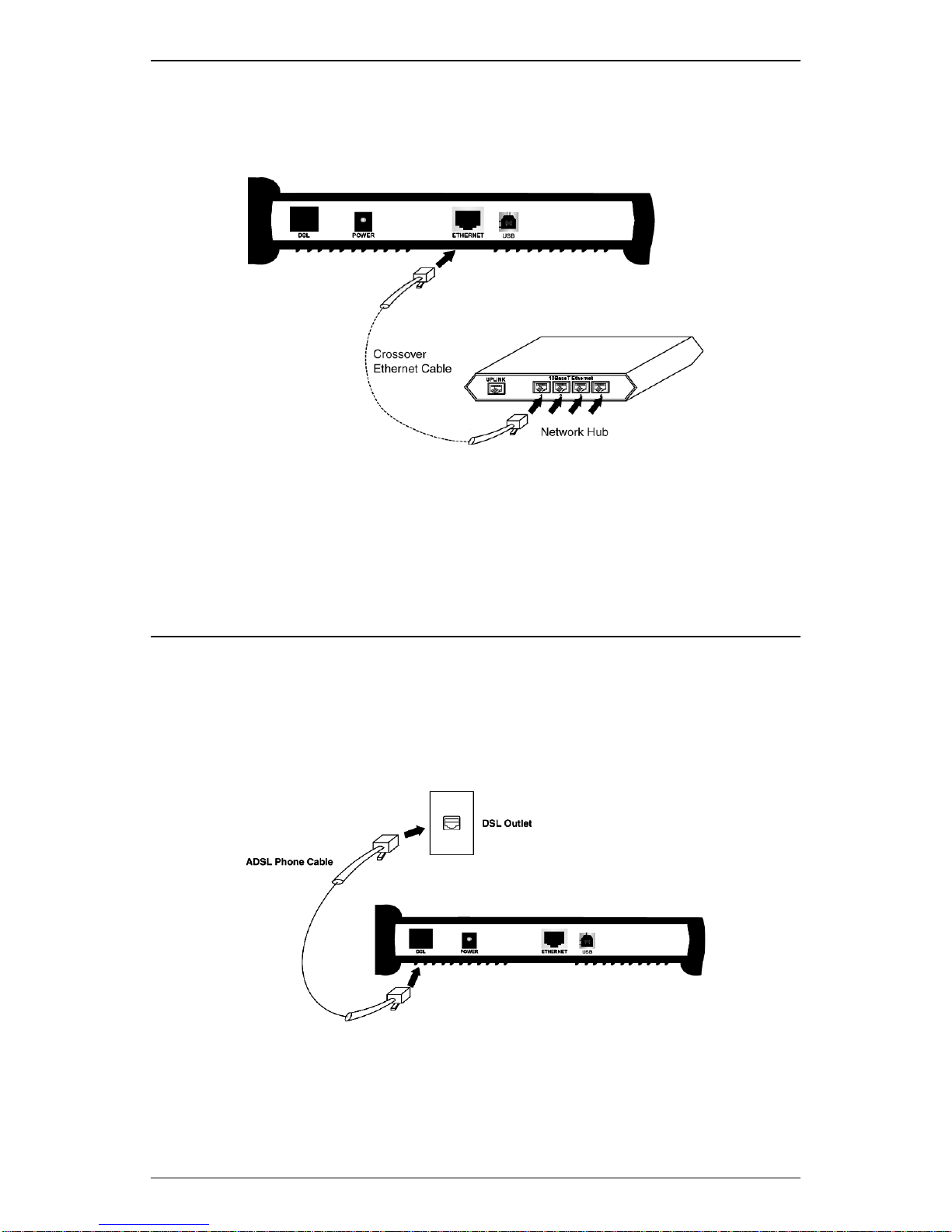

Option 3. Connecting to a network hub with non-uplink port
available: If the uplink port is unavailable, then you can
use a crossover Ethernet cable (Not included) and attach
it to the non-uplink ports on a hub.
Figure 2.6 Connecting to a Non-Uplink Port on a Network
Hub
Step 4. Once the Router is powered on, the LAN LINK LED on the
front panel should lit green to indicate a valid Ethernet
connection. If the LAN LINK LED is not lit, repeat steps 1
through 3 above.
2.5 Connect to the DSL Interface
Step 1. Plug the RJ-11 connector end of the telephone cable (included)
in the DSL port of the Router (RJ-11 to RJ-11).
Step 2. Connect the RJ-11 connector end of the telephone cable to the
DSL outlet on the wall.
Figure 2.7 Connecting to the DSL Interface
Step 3. The WAN LINK LED on the front panel should lit green to
indicate a valid WAN connection. If the WAN LINK LED is not
lit, repeat steps 1 and 2 above.

Hardware Installation
User’s Guide 13
2.6 Connect to Power
Step 1. Plug the power adapter in the POWER port of the Router.
Step 2. Insert the other end of the power adapter to the power outlet on
the wall.
Figure 2.8 Connecting the Power Supply
Step 3. Once the Router is powered on, the PWR LED on the front
panel should lit green to indicate a valid power connection. If
the PWR LED is not lit, turn off your Router and repeat steps 1
through 3 above.

Hardware Installation
14 User’s Guide

User’s Guide 15
f
Software
Installation 3
33
3
This Chapter Includes:
3.1 TCP/IP Installation ..........................................15
3.1 TCP/IP Installation
You must install a network protocol on each workstation on your LAN
so they can communicate with the Telindus 1120/1121 ADSL Router.
The ADSL Router requires the TCP/IP network protocol. The TCP/IP
Properties window in Windows®95/98/2000/NT/Me/XP connects the
workstation’s Ethernet information to the network’s protocol data.
Make sure that each PC on your LAN has TCP/IP available.
Your TCP/IP configuration is solely based on your ISP’s setup. The
following information should be provided by your ISP or company
server:
• IP Address
• Subnet Mask
• Gateway IP Address
NOTE: The ADSL Router is configured with a default IP address of
192.168.1.1 and subnet mask of 255.255.255.0.

Software Installation
16 User’s Guide
Detecting TCP/IP in Windows®95/98/Me
Step 1. Click on Start -> Settings ->
Control Panel.
Step 2. Double-click on Network.
Step 3. Click the Configuration tab.
A. If you see TCP/IP listed
under Network
Components, you already
have TCP/IP on your
Windows 95/98/Me.
Proceed to the section
titled “Configuring TCP/IP
in Windows® 95/98/Me.”
B. If you do not see TCP/IP
listed under Network
Components, you do not have TCP/IP on your Windows 95/
98/Me. Proceed to “Installing TCP/IP in Windows® 95/98/Me”
in the next section.

Software Installation
User’s Guide 17
Installing TCP/IP in Windows®95/98/Me
Step 1. From the Configuration
tab, click Add.
Step 2. Select Protocol and click
Add.
Step 3. Choose Microsoft ->
TCP/IP click OK.
Step 4. Check to see if TCP/IP
islistedunderNetwork
Components.
A. If you do not see
TCP/IP listed under
Network
Components, you
have not installed
TCP/IP. Repeat
steps 1 - 4.
B. If you see TCP/IP listed under Network Components, you
already have TCP/IP on your Windows 95/98/Me. Proceed to
the section titled “Configuring TCP/IP in Windows® 95/98/
Me.”
Configuring TCP/IP in Windows®95/98/Me
Step 1. From the Configuration tab, select TCP/IP -> XXXX Ethernet
Adapters (“XXXX” is the maker of your Ethernet card) listed
under Network Components and then click Properties.

Software Installation
18 User’s Guide
Step 2. Select the IP Address tab.
You now have the option of using
either dynamic or static IP
addressing.
To enable dynamic IP addressing:
Step 1. Click the radio button next to
Obtain an IP Address
automatically.
OPTIONAL: Click the DNS Configuration tab and select Disable DNS. If
you previously entered any parameters, clear all pre-existing settings.*
Step 2. Select the Gateway tab.
Step 3. Click Remove to clear all pre-
existing settings.
Step 4. Click OK to exit TCP/IP
Properties window and click
OK to exit the Network
window.
Step 5. If prompted to restart
Windows 95/98/Me, click Yes.
If you are not prompted to
restart Windows 95/98/Me, do
so manually.
* If specifically required by your ISP, you may need to enter DNS information.

Software Installation
User’s Guide 19
To enable static IP addressing:
Step 1. Click Specify an IP Address.
Step 2. Type the IP Address and Subnet Mask (for your PC).
Step 3. Click the Gateway tab.
Step 4. Type in your Gateway IP Address (the IP address for the
ADSL Router) from your ISP and then click Add.
Step 5. Click the DNS tab. Enter the
Host and Domain names,
and DNS Service Search
Order (foryourLAN)andclick
Add.
Step 6. Click OK to exit TCP/IP
Properties window.
Step 7. Click OK to exit Network.
Step 8. If prompted to restart
Windows 95/98/Me, click Yes.
If you are not prompted to
restart Windows 95/98/Me,
please do so manually.
Detecting TCP/IP in Windows®NT
Step 1. Click on Start -> Settings ->
Control Panel.
Step 1. Double-click on Network.
Step 2. Click the Protocols tab.
A. If you see TCP/IP listed
under Network Protocols,
you already have TCP/IP
on your Windows NT.
Proceed to the section
titled “Configuring TCP/IP
in Windows® NT.”
B. If you do not see TCP/IP
listed under Network
Protocols, you do not have
TCP/IP on your Windows NT. Proceed to the next section,
“Installing TCP/IP in Windows® NT.”

Software Installation
20 User’s Guide
Installing TCP/IP in Windows®NT
NOTE: Consult your Network Administrator if you do not have
authorization to change settings for your PC.
Step 1. From the Protocols tab
click Add.
Step 2. Select TCP/IP Protocol
and click OK.
Step 3. Check to verify TCP/IP
Protocol is listed under
Network Protocols, then
click OK.
A. If you do not see TCP/
IP Protocol listed under
Network Protocols, you have not installed TCP/IP. Repeat
steps 1 - 3.
B. If you see TCP/IP Protocol listed under Network Protocols,
then you have successfully installed TCP/IP. Proceed to the
section titled “Configuring TCP/IP in Windows® NT.”
Configuring TCP/IP in Windows®NT
Step 1. From the Protocols tab, select TCP/IP Protocol and click
Properties.
Step 2. Select the IP Address tab.
You now have the option of using either dynamic or static IP addressing.
