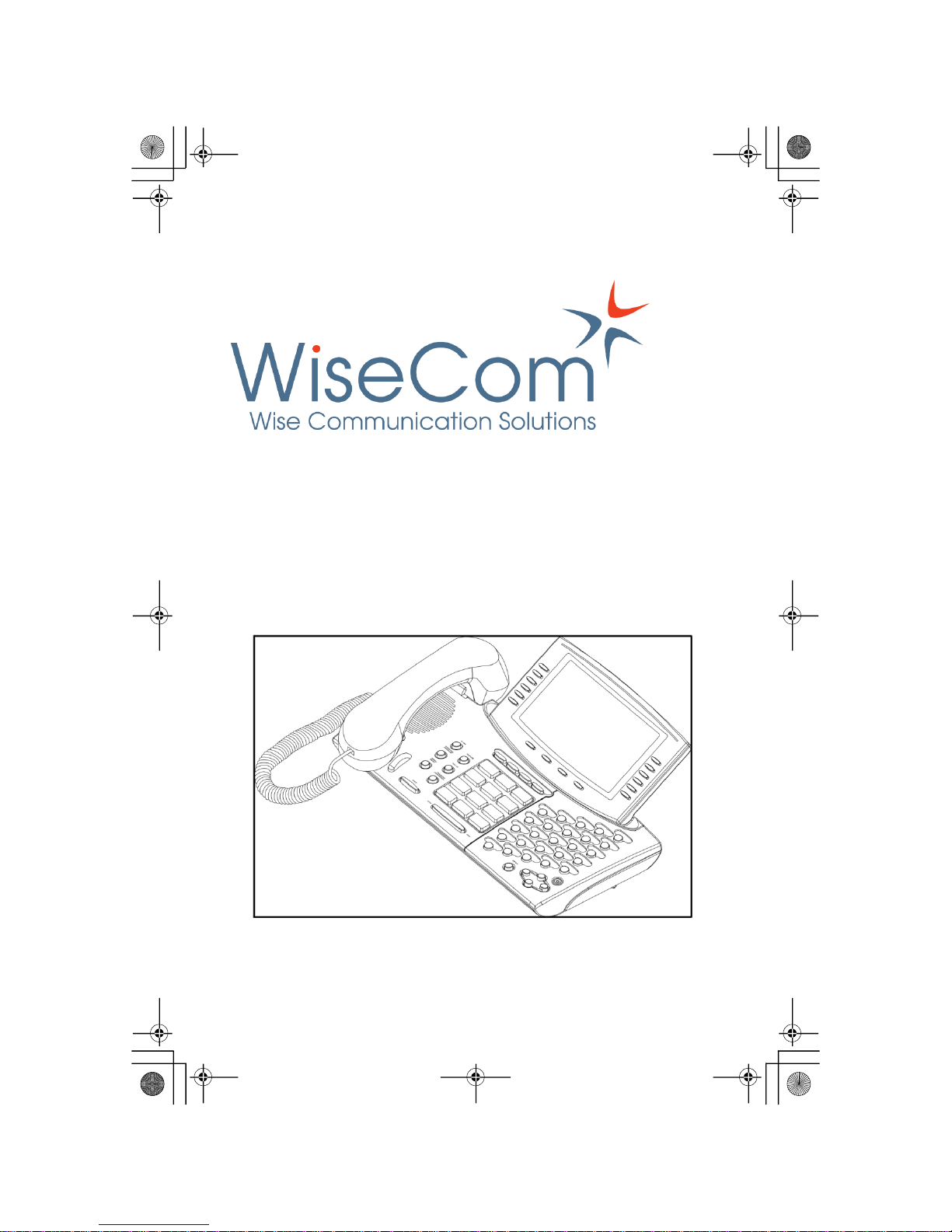

Avanti 3025 set
USER GUIDE

Avanti3025_cov.fm Page 3 Sunday, May 11, 2003 5:55 PM
79-610-0010/B, Issue 1
Avanti 3025 set
USER GUIDE
Avanti3025_cov.fm Page 5 Sunday, May 11, 2003 5:55 PM

NOTICE
This publication refers to Telrad Connegy's Avanti 3025 set
connected to Telrad Connegy’s UNITe system, Release
e2e-1, as of May, 2003.
Telrad Connegy reserves the right to modify the equipment
and the software described herein without prior notice.
However, changes made to the equipment or to the
software described herein do not necessarily render this
publication invalid.

Avanti3025_txt2oC.fm Page iii Sunday, May 11, 2003 5:48 PM
CONTENTS
ABOUT YOUR AVANTI TELEPHONE ...................... 1
TELEPHONE SET BUTTONS . . . . . . . . . . . . . . . . . .
.1
SOFTKEYS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
ICONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
USER-PROGRAMMABLE BUTTONS . . . . . . . . . . . .
.5 FIXED FEATURE BUTTONS . . . . . . . . . . . . . . . . . .
. .6
PROGRAMMABLE BUTTONS . . . . . . . . . . . . . . . . . .7
DN BUTTONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
OUTSIDE LINE BUTTONS . . . . . . . . . . . . . . . . . . . . .9
FLOATING BUTTONS . . . . . . . . . . . . . . . . . . . . . . . .9
TO SWITCH FROM HANDSET TO HANDSFREE . .
.10
DISTINCTIVE RINGING ........................................ 10
TO CHANGE THE RING
OF YOUR TELEPHONE . . . . . . . . . . . . . . . . . . . . . .10
MUTE ................................................................. 11
ALLOWING OTHER PEOPLE TO HEAR
YOUR CONVERSATION (SPEAKER MONITOR) . . .
.11
HOT DIALPAD .................................................... 12
MAKING INTERNAL CALLS .................................. 12
TO BARGE INTO A CONVERSATION ................... 13
PAGING CALLS ................................................... 13
ANSWERING CALLS ............................................ 14
TO ANSWER A RINGING OR FLASHING CALL 15
TO ANSWER AN INTERCOM CALL . . . . . . . . . . . . .15
TO ANSWER A SECOND CALL . . . . . . . . . . . . . . . .15
TO VIEW DETAILS OF A CALL . . . . . . . . . . . . . . . .
.15
MAKING OUTSIDE CALLS ................................... 16 TO
REDIAL THE LAST OUTSIDE NUMBER
YOU DIALED . . . . . . . . . . . . . . . . . . . . . . . . . . . .17

Avanti3025_txt2oC.fm Page iv Sunday, May 11, 2003 5:48 PM
CORRECTING DIALING MISTAKES (Clear) ............ 17
DISCONNECTING CALLS ..................................... 17
AUTOMATIC REDIAL .......................................... 18
Avanti 3025 set iii
CONTENTS (continued)
WAITING FOR AN AVAILABLE OUTSIDE LINE
(Trunk Queue) . . . . . . . . . . . . . . . . . . . . . . . . . . .19
HOLD ................................................................. 19 TO
PICK UP A CALL FROM HOLD . . . . . . . . . . . . .19
MANUAL HOLD . . . . . . . . . . . . . . . . . . . . . . . . . . .20
TRANSFERRING CALLS ........................................ 21
CONFERENCE CALLS .......................................... 21
PICKUP ............................................................... 23
MESSAGES ......................................................... 23
SENDING MESSAGES . . . . . . . . . . . . . . . . . . . . . . .24
RECEIVING MESSAGES . . . . . . . . . . . . . . . . . . . . .
.25
DO NOT DISTURB (DND) .................................... 26
DND MESSAGES . . . . . . . . . . . . . . . . . . . . . . . . . . .26
FORWARDING CALLS ......................................... 27 TO
PROGRAM CALL FORWARDING . . . . . . . . . . . .28
CANCELING CALL FORWARD TO ME . . . . . . . . .
.29
ABBREVIATED DIALING ...................................... 29
SPEED DIAL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .30
MEMORY BUTTONS . . . . . . . . . . . . . . . . . . . . . . . .30
PHONE BOOK . . . . . . . . . . . . . . . . . . . . . . . . . . . .32
BROWSING THROUGH HISTORY
(Call Log) ....................................................... 37
ALARM ............................................................... 38
TELEPHONE LOCK ............................................. 39
NOTE PAD ......................................................... 39
LOGGING IN AS A DIFFERENT EXTENSION

Avanti3025_txt2oC.fm Page v Sunday, May 11, 2003 5:48 PM
(VIRTUAL DN) ................................................ 40
TO BYPASS EXTENSION RESTRICTIONS ............... 41
TRAVELING CLASS OF SERVICE . . . . . . . . . . . . . .
.41 ACCESSING SPECIAL SERVICES
(CENTREX OR PBX) . . . . . . . . . . . . . . . . . . . . . .
.42
ADVANCED FEATURES ....................................... 42
FEATURE CODES ................................................ 43
iv Avanti 3025 set

Avanti3025_txt2oC.fm Page vi Sunday, May 11, 2003 5:48 PM
Avanti 3025 set v

Avanti 3025 set 1
ABOUT YOUR AVANTI TELEPHONE
The Avanti 3025 set has onhook dialing capability, full
speakerphone, and a “hot dialpad” which enables you to
make a call or operate any feature by just pressing the
dialpad buttons.
You may receive and disconnect calls, program features and
perform all operations without lifting the handset. But if you
prefer so, you may also lift the handset or switch between
handsfree and handset operation at any time.
NOTE The configuration of your particular system and
telephone may introduce differences in
operation. For example, some of the features and
buttons described in this Guide may not be
available on your telephone set. For more
information, ask your System Administrator.
TELEPHONE SET BUTTONS
Your telephone set has sixteen softkeys, a four-direction
cursor movement key, an [ENTER] button for selecting the
current cursor position, and an array of programmable and
fixed feature buttons (see Figure 1).

2 Avanti 3025 set
NOTE In this guide, fixed feature buttons and
programmable buttons appear in bold type, in
capital letters within square brackets, e.g.,
[HOLD].
Softkeys appear in bold and italicized type, in
capital letters within curly brackets, e.g.
{HOLD}.
SOFTKEYS
Softkeys have several functions, which change according to
the state of your telephone. A softkey's function, at any
particular moment, is indicated on the telephone display.
To operate a displayed function, press the softkey adjacent to
it or beneath it.
You can also use the four-direction cursor movement key to
select the desired function and then press [ENTER].
ICONS
When you move the cursor to an icon (using the four-
direction cursor movement key) an explanation of that icon’s
function briefly appears on the display.
Icons indicating the status of your set appear on the second
line of the screen and are for display only.
Icons indicating the status of a specific call appear on the right
hand side of the screen, next to the name or number of the
trunk or extension. They are activated by pressing the

Avanti 3025 set 3
appropriate softkey on the right hand side of the display, or
by pressing the [ENTER] key when the cursor is on the icon.
Icons for use in activating or programming features appear on
the bottom line of the display and are activated by pressing
the bottom softkeys on either side of the display, or the four
softkeys across the bottom of the display - or by using the four
direction cursor movement key to place the cursor on the
appropriate icon and pressing [ENTER].
The following list explains the meanings of the icons and
when and where they appear on the display.
Icon
Meaning
When you see it
r
Ring
An external call (or any call if your
telephone set has DN buttons) is
ringing at your extension. Appears
on the right side of the display, next
to the name or number of the ringing
outside line or the DN.
c
In use
The line is in use by you.
Appears on the right side of the
display, next to the name or
number of the current call .
V
Hold
The call is on hold.
Appears on the right side of the
display, next to the name or number
of the line on hold.
t
Transfer
A call was transferred to you by
another extension.
Appears on the right side of the
display, next to the name or number
of the line on which the transferred
call was made.

4 Avanti 3025 set
b
Background
music
You are listening to background
music. Appears on the second line.
d
DND
Your set is in Do Not Disturb mode.
Appears on the second line.
Z
Alarm
The alarm is set to ring on your set.
Appears on the second line.
Icon
Meaning
When you see it
s
Recall/Trunk
queue
Your set is ringing for a call that you
left on hold or for a previously busy
outside line that you requested.
Appears on the right side of the
display, next to the name or number
of the line or extension.
D
Program
Appears on the bottom line. Press to
program Phone Book, speed dial,
DND message, ECC code, or time
alarm.
x
Exit
Appears on the bottom line. When
engaged in a conference call, press
to exit the conference.
When in programming mode, press
to exit.
E
Message
Appears on the bottom line. Press to
send a message, reply to a message,
or cancel messages.
e
Drop/Cancel
Appears on the bottom line of the
display when you a call is ringing or
you are in conversation, or you are
programming Call Forward.
o
Save
Appears on the bottom line when
you want to save the current
programming procedure.

Avanti 3025 set 5
v
Call Forward
(cancel)
Appears on the bottom line, after
pressing {CANCEL}. Press to
cancel Call Forwarding.
n
Next page
When programming any feature that
uses more than one page of your
display (Message, DND message),
press to scroll to the next page.
Icon
Meaning
When you see it
m
Time
Appears on the bottom line, after
pressing D.
Press to program the time alarm.
j
Pause
Appears on the bottom line.
Pressing this button while dialing on
an external line inserts a pause in a
dialing sequence.
Q
Voice message
When calling another extension,
press to leave a voice message. This
option requires that the emaGEN
Mesage System be installed in your
system.
If the emaGEN Message System is installed in your office,
you may also see additional icons on your display. See the
emaGEN User Guide for an explanation of how to use these
and other icons that appear when operating emaGEN.
USER-PROGRAMMABLE BUTTONS
Some of the buttons on your telephone may be user-
programmable Speed Dial or Memory buttons. You may
program these to access extensions, features, or outside
numbers.

6 Avanti 3025 set
The programmable buttons have dual-color light indicators.
The color and flash rate of the indicators show the status of
the programmed line, feature, or extension.
What the colors say
In general, red indicates non-availability (for example, a busy
line). Green indicates that you are using the feature or line, or
that it is available to you.
FIXED FEATURE BUTTONS
The following fixed feature buttons appear on your telephone
set.
[HOLD]
This button places a call on hold.
[FEATURE]
Press [FEATURE] and then dial a feature code to activate
features (see the Feature Codes table at the end of this
guide).
[PICK UP]
Press this button to pick up calls.
[TRANSFER/CONFERENCE]
Press this button to transfer calls and when establishing and
exiting conference calls.
[SPEED DIAL/PROGRAM]
This button is used for speed dialing and for programming
various features.

Avanti 3025 set 7
[REDIAL/PAUSE]
This button lets you automatically redial the last outside
number you dialed.
Pressing this button while dialing on an external line inserts a
pause in a dialing sequence.
NOTE In this Guide, the
[TRANSFER/CONFERENCE] button appears
as either [TRANSFER] or
[CONFERENCE], depending on the operation
being described. The same applies to
[REDIAL/PAUSE] and
[SPEED DIAL/PROGRAM].
[LOW HIGH]
This button adjusts the volume of the speaker, handset,
headset, ringer and background music when any of these is
active. You can see the volume level on the bottom line of the
display.
Pressing this button when the telephone is idle changes the
display contrast.
[FLASH]
Depending on system programming, this button is used to
disconnect or to send Flash Signal to the connected remote
exchange.

8 Avanti 3025 set
PROGRAMMABLE BUTTONS
The following buttons on your set have already been
programmed to perform specific functions. The System
Administrator can program these buttons to perform other
functions. If the function of certain buttons does not match
those appearing in the figure at the beginning of this guide,
consult your System Administrator.
NOTE With the default configuration, the following features
are programmed on the four buttons above the
dialpad: [MSG], [DND], [MUTE] and [SPKR].
[MSG] This button is used to send messages to
other extensions and to reply to messages
left at your extension.
[DND]
This button activates and deactivates Do
Not Disturb.
[MUTE]
This button disables and enables your
telephone microphone.
[SPKR]
For handsfree operation, press [SPKR]
instead of lifting or replacing the handset.
NOTE Whenever this Guide instructs you to lift or
replace the handset, you may press [SPKR]
instead.

Avanti 3025 set 9
DN BUTTONS
DN buttons are buttons associated with specific Directory
Numbers.
The first DN button is your Primary DN button, which has
the same number as your extension. The Primary DN button
is used for making and receiving most of your calls.
Whenever you pick up the handset, your Primary DN button,
or - if it is not available - another DN button lights green.
If no DN buttons are available, no DN button lights, you do
not receive dial tone, and you cannot place or answer calls.
NOTE Not all telephone sets are programmed with DN
buttons. The instructions in this Guide often
contain references to DN indicators and displays
of DN numbers. If your telephone set is
not programmed with DN buttons, disregard
these references.
Some of the features operate slightly differently
on a telephone set that is not programmed with
DN buttons. These differences are pointed out in
a note for each applicable feature. Consult your
System Administrator for further details about
the programming of your telephone set.
DN buttons may be programmed in three different modes:
•ringing mode - the telephone rings and the DN button
flashes green when a call is received.

10 Avanti 3025 set
•flashing mode - the DN button flashes green when a call
is received, but there is no ringing.
•delayed ringing mode - a call rings first at another set or
group of sets, for a programmed length of time, before
beginning to ring at your set.
OUTSIDE LINE BUTTONS
One or more of the buttons on your telephone may be
associated with either specific lines or outside line groups.
To access a line for dialing outside the system, press an
outside line button.
FLOATING BUTTONS
Calls on outside lines for which no button has been defined,
may be associated with a button just for the duration of the
call. These buttons are called “floating” buttons.
NOTE Some of the function codes in your system may
be different from those indicated here. If so, see
your System Administrator for the correct codes.
TO SWITCH FROM HANDSET TO
HANDSFREE
During a call conducted via the handset:
1. Press [SPKR].
2. Replace the handset and talk via the telephone set
microphone.

Avanti 3025 set 11
DISTINCTIVE RINGING
TO CHANGE THE RING
OF YOUR TELEPHONE
1. Press [*] and [#] simultaneously.
2. Press {RING SELECT}.
3. Press one of the dialpad buttons ([1]-[9]).
When you hear the ring that you want:
4. Press {Save}. The softkey changes briefly to {Saved!}.
5. Lift and replace the handset.
Your telephone set reinitializes and all telephone rings
(internal, external, recall, etc.) sound with the distinctive
ring selected.
MUTE
If you want to talk to someone in your office during a call
without the connected party hearing, you can disable the
handset or telephone set microphone.
To enable or disable the microphone Press [MUTE]
during a conversation. To enable or disable the
handset microphone (HANDSET MUTE)

12 Avanti 3025 set
During a handset call:
•Press the [HS MUTE] button (if programmed).
NOTE If your set is Single Audio Path (SAP), pressing
[MUTE] deactivates both microphones.
ALLOWING OTHER PEOPLE TO HEAR
YOUR CONVERSATION (SPEAKER
MONITOR)
While you are speaking through the handset, the
conversation can be directed through your telephone speaker,
so that people next to you can hear the other end of the
conversation.
1. Press [FEATURE].
2. Press [SPKR].
The [SPKR] button indicator turns on.
Both you and the other party are heard via the speaker.
HOT DIALPAD
The hot dialpad enables you to dial and activate features
without lifting the handset or pressing [SPKR] first.
