Teltonika FMC800 Installation guide

FMC800
Simple OBDII tracker
Quick Manual v1.6

Quick Manual v1.6 // FMC800 2
Telematics
CONTENT
Know your device................................................................................................................................................................................................3
Pinout ...................................................................................................................................................................................................................4
Set up your device ..............................................................................................................................................................................................5
PC Connection (Windows)..................................................................................................................................................................................6
How to install USB drivers (Windows) ..............................................................................................................................................................6
Conguration.......................................................................................................................................................................................................7
Quick SMS conguration....................................................................................................................................................................................9
Mounting recommendations.......................................................................................................................................................................... 11
Basic characteristics ........................................................................................................................................................................................ 12
LED indications................................................................................................................................................................................................. 12
Safety information .......................................................................................................................................................................................... 15
Certication and Approvals ............................................................................................................................................................................ 16
Warranty ........................................................................................................................................................................................................... 17
Warranty disclaimer ....................................................................................................................................................................................... 17

Quick Manual v1.6 // FMC800 3
Telematics
KNOW YOUR DEVICE
STATUS
LED
NAVIGATE
LED
BATTERY
SOCKET
MICRO-USB
OBDII
CONNECTOR
MICRO-SIM
SLOT
TOP VIEW TOP VIEW (WITHOUT COVER)

Quick Manual v1.6 // FMC800 4
Telematics
Pin number Pin name Description
4 GND (-) Ground
5 GND (-) Ground
16 VCC (10 - 30)V
DC (+)
Power supply (+10-30
V DC)
PINOUT
PIN4 PIN5
PIN16
FMC800 OBDII socket pinout

Quick Manual v1.6 // FMC800 5
Telematics
SET UP YOUR DEVICE
HOW TO INSERT MICRO-SIM CARD AND CONNECT THE BATTERY
Device is ready to be
connected.
4
1COVER REMOVAL 3BATTERY CONNECTION 2MICRO-SIM CARD INSERT ATTACHING COVER BACK
Gently remove FMC800
cover using plastic pry tool
from both sides.
Insert Micro-SIM card as
shown with PIN request
disabled or read our Wiki1
how to enter it later in
Teltonika Congurator2.
Make sure that Micro-
SIM card cut-o corner is
pointing forward to slot.
1wiki.teltonika-gps.com/view/
FMC800_Security_info
2 wiki.teltonika.lt/view/Teltonika_
Configurator
Connect battery as shown to
device. Position the battery
in place where it does not
obstruct other components.
Attach device cover back.

Quick Manual v1.6 // FMC800 6
Telematics
PC CONNECTION (WINDOWS)
HOW TO INSTALL USB DRIVERS (WINDOWS)
1. Please download COM port drivers from here1.
2. Extract and run TeltonikaCOMDriver.exe.
3. Click Next in driver installation window.
4. In the following window click Install button.
5. Setup will continue installing the driver and eventually the conrmation window will appear. Click Finish to complete the
setup.
1 teltonika.lt/downloads/en/FMC800/TeltonikaCOMDriver.zip
1. Power-up FMC800 with DC voltage (10 – 30 V) power supply using supplied power cable. LED’s should start blinking, see “LED
indications1”.
2. Connect device to computer using Micro-USB cable or Bluetooth connection:
• Using Micro-USB cable
• You will need to install USB drivers, see “How to install USB drivers (Windows)2”
• Using Bluetooth
• FMC800 Bluetooth is enabled by default. Turn on Bluetooth on your PC, then select Add Bluetooth or other device >
Bluetooth. Choose your device named – “FMC800_last_7_imei_digits”, without LE in the end. Enter default password 5555,
press Connect and then select Done.
3. You are now ready to use the device on your computer.
1 wiki.teltonika-gps.com/view/FMC800_LED_status
2 Page 6, "How to install USB drivers"

Quick Manual v1.6 // FMC800 7
Telematics
MS .Net requirements
Operating system MS .NET Framework version Version Links
Windows Vista
Windows 7
Windows 8.1
Windows 10
MS .NET Framework 4.6.2 32 and 64 bit www.microsoft.com1
1 dotnet.microsoft.com/en-us/download/dotnet-framework/net462
At rst FMC800 device will have default factory settings set. These settings should be changed according to the users needs. Main
conguration can be performed via Teltonika Congurator1software. Get the latest Congurator version from here2. Congurator
operates on Microsoft Windows OS and uses prerequisite MS .NET Framework. Make sure you have the correct version installed.
1 wiki.teltonika-gps.com/view/Teltonika_Configurator
2 wiki.teltonika-gps.com/view/Teltonika_Configurator_versions
CONFIGURATION

Quick Manual v1.6 // FMC800 8
Telematics
Downloaded Congurator will be in compressed archive.
Extract it and launch Congurator.exe. After launch software
language can be changed by clicking 🌐 in the right bottom
corner.
Conguration process begins by pressing on connected device.
FMC800
Various Status window1 tabs display information about GNSS2,
GSM3, I/O4, Maintenance5and etc. FMC800 has one user
editable prole, which can be loaded and saved to the device.
After any modication of conguration the changes need to
be saved to device using Save to device button. Main buttons
oer following functionality:
 Load from device – loads conguration from device.
 Save to device – saves conguration to device.
 Load from le – loads conguration from le.
 Save to le – saves conguration to le.
 Update rmware – updates rmware on device.
 Read records – reads records from the device.
 Reboot device – restarts device.
 Reset conguration – sets device conguration to
default.
Most important congurator section is GPRS – where all
your server and GPRS settings6 can be congured and Data
Acquisition7 – where data acquiring parameters can be
congured. More details about FMC800 conguration using
Congurator can be found in our Wiki8.
After connection to Congurator Status window will be
displayed.
FMC800
1 wiki.teltonika-gps.com/view/FMC800_Status_info
2 wiki.teltonika-gps.com/view/FMC800_Status_info#GNSS_Info
3 wiki.teltonika-gps.com/view/FMC800_Status_info#GSM_Info
4 wiki.teltonika-gps.com/view/FMC800_Status_info#I.2FO_Info
5 wiki.teltonika-gps.com/view/FMC800_Status_info#Maintenance
6 wiki.teltonika-gps.com/view/FMC800_GPRS_settings
7 wiki.teltonika-gps.com/view/FMC800_Data_acquisition_settings
8 wiki.teltonika-gps.com/view/FMC800_Configuration

Quick Manual v1.6 // FMC800 9
Telematics
QUICK SMS CONFIGURATION
Default conguration has optimal parameters present to ensure best performance of track quality and data usage.
Quickly set up your device by sending this SMS command to it:
Note: Before SMS text, two space symbols should be inserted.
GPRS SETTINGS:
 2001 – APN
 2002 – APN username (if there are no APN username,
empty eld should be left)
 2003 – APN password (if there are no APN password,
empty eld should be left)
SERVER SETTINGS:
 2004 – Domain
 2005 – Port
 2006 – Data sending protocol (0 – TCP, 1 – UDP)
« setparam 2001:APN;2002:APN_username;2003:APN_password;2004:Domain;2005:Port;2006:0»
1 2 3 4 5 6
1
2
3
4
5
6

Quick Manual v1.6 // FMC800 10
Telematics

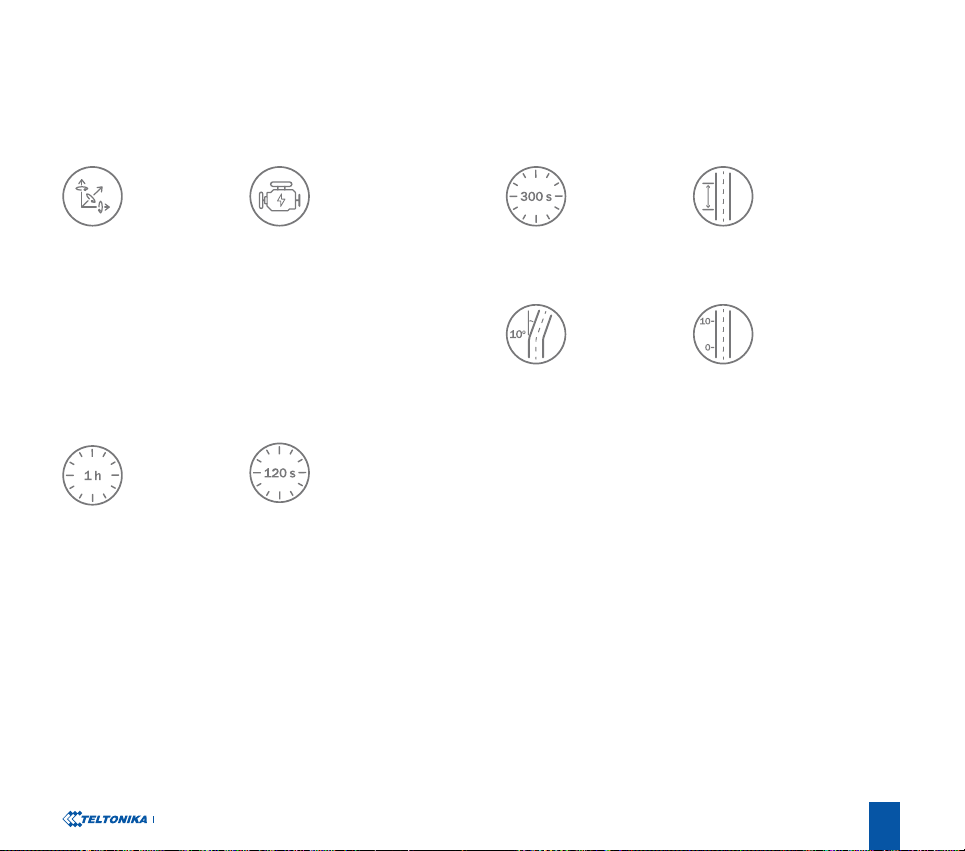

DEFAULT CONFIGURATION SETTINGS
MOVEMENT AND IGNITION DETECTION: DEVICE MAKES A RECORD ON MOVING
IF ONE OF THESE EVENTS HAPPEN:
SPEED DIFFERENCE
between last coordinate
and current position is
greater than 10 km/h
VEHICLE DRIVES
100 meters
VEHICLE TURNS
10 degrees
PASSES
300 seconds
After successful SMS conguration, FMC800 device will synchronize time and update records to congured server. Time intervals
and default I/O elements can be changed by using Teltonika Congurator1or SMS parameters2.
1 wiki.teltonika-gps.com/view/Teltonika_Congurator
2 wiki.teltonika-gps.com/view/Template:FMB_Device_Family_Parameter_list
VEHICLE MOVEMENT
will be detected by
accelerometer
DEVICE MAKES A
RECORD ON STOP IF:
1 HOUR PASSES
while vehicle is
stationary and
ignition is o
IGNITION
will be detected by
vehicle power voltage
between 13,2 – 30 V
RECORDS SENDING TO
SERVER:
EVERY 120 SECOND
it is sent to the server
If device has made a
record

Quick Manual v1.6 // FMC800 11
Telematics
MOUNTING RECOMMENDATIONS
CONNECTING THE DEVICE TO THE VEHICLE:
Find OBDII connector in your vehicle.
Most common OBDII connector locations.

Quick Manual v1.6 // FMC800 12
Telematics
Behaviour Meaning
Permanently
switched on GNSS signal is not received
Blinking every
second Normal mode, GNSS is working
O
GNSS is turned o because:
Device is not working or Device is in
sleep mode
Blinking fast
constantly Device rmware is being ashed
Behaviour Meaning
Blinking every
second Normal mode
Blinking every two
seconds Sleep mode
Blinking fast for a
short time Modem activity
O Device is not working or Device is in
boot mode
LED INDICATIONS
NAVIGATION LED INDICATIONS
STATUS LED INDICATIONS
BASIC CHARACTERISTICS
Module
Name FMC800-QJIB0: Quectel EG915U-EU
with Teltonika TM2500
Technology LTE CAT 1/GSM/GPRS/GNSS/
BLUETOOTH
GNSS
GNSS GPS, GLONASS, GALILEO, BEIDOU,
QZSS, AGPS
Receiver 33 channel
Tracking sensitivity -165 dBM
Accuracy < 3 m
Hot start < 1 s
Warm start < 25 s
Cold start < 35 s
Cellular
2G bands FMC800-QJIB0: GSM: B2/B3/B5/B8
4G bands FMC800-QJIB0: LTE FDD: B1/B3/B7/
B8/B20/B28
Data transfer
LTE: LTE FDD: Max 10Mbps (DL)/
Max 5Mbps (UL)
GSM: GPRS: Max 85.6Kbps (DL)/Max
85.6Kbps (UL)

Quick Manual v1.6 // FMC800 13
Telematics
Data support SMS (text/data)
Power
Input voltage range 10 - 30 V DC with overvoltage
protection
Back-up battery 170 mAh Li-Po battery 3.7 V (0.63
Wh)
Internal fuse 3A, 125V
BLUETOOTH
Specication 4.0 + LE
Supported
peripherals
Temperature and Humidity
sensor1, Inateck Barcode Scanner,
Universal BLE sensors support
INTERFACE
Connection OBDII socket
GNSS antenna Internal High Gain
GSM antenna Internal High Gain
USB 2.0 Micro-USB
LED indication 2 status LED lights
SIM Micro-SIM
Memory 128MB internal ash memory
1 teltonika.lt/product/bluetooth-sensor
PHYSICAL SPECIFICATION
Dimensions 67,2 x 49,6 x 25 mm (L x W x H)
Weight 63 g
OPERATING ENVIRONMENT
Operating
temperature
(without battery)
-40 °C to +85 °C
Storage temperature
(without battery) -40 °C to +85 °C
Operating humidity 5% to 95% non-condensing
Ingress Protection
Rating IP41
Battery charge
temperature 0 °C to +45 °C
Battery discharge
temperature -20 °C to +60 °C
Battery storage
temperature
-20 °C to +45 °C for 1 month
-20 °C to +35 °C for 6 months
FEATURES
Sensors Accelerometer

Quick Manual v1.6 // FMC800 14
Telematics
Scenarios
Green Driving1, Over Speeding
detection2, Jamming detection3,
GNSS Fuel Counter4, Excessive
Idling detection5, Unplug
detection6, Towing detection7,
Crash detection8, Auto Geofence9,
Manual Geofence10, Trip11
Sleep modes GPS Sleep12, Online Deep Sleep13,
Deep Sleep14, Ultra Deep Sleep15
1wiki.teltonika.lt/view/FMC800_Features_settings#Green_Driving
2 wiki.teltonika.lt/view/FMC800_Features_settings#Over_Speeding
3 wiki.teltonika.lt/view/FMC800_Features_settings#Jamming
4 wiki.teltonika.lt/view/FMC800_Features_settings#GPS_Fuel_Counter
5 wiki.teltonika.lt/view/FMC800_Accelerometer_Features_settings#Excessive_Idling
6 wiki.teltonika.lt/view/FMC800_Accelerometer_Features_settings#Unplug_Detection
7 wiki.teltonika.lt/view/FMC800_Accelerometer_Features_settings#Towing_Detection
8 wiki.teltonika.lt/view/FMC800_Accelerometer_Features_settings#Crash_Detection
9 wiki.teltonika.lt/view/FMC800_Auto_Geofence_settings
10 wiki.teltonika.lt/view/FMC800_Manual_Geofence_settings
11 wiki.teltonika.lt/view/FMC800_Trip/Odometer_settings
12wiki.teltonika.lt/view/FMC800_Sleep_modes#GPS_Sleep_mode
13wiki.teltonika.lt/view/FMC8000_Sleep_modes#GPS_Sleep_mode
14wiki.teltonika.lt/view/FMC800_Sleep_modes#Deep_Sleep_mode
15wiki.teltonika.lt/view/FMC800_Sleep_modes#Ultra_Deep_Sleep_mode
Conguration and
rmware update
FOTA Web16, FOTA17, Teltonika
Congurator18 (USB, Bluetooth),
FMBT mobile application19
(Conguration)
SMS Conguration, Events, Debug
GPRS commands Conguration, Debug
Time
Synchronization GPS, NITZ, NTP
Ignition detection Accelerometer, External Power
Voltage
16wiki.teltonika.lt/view/FOTA_WEB
17 wiki.teltonika-gps.com/view/FOTA_Desktop
18 wiki.teltonika.lt/view/Teltonika_Congurator
19 teltonika.lt/product/fmbt-mobile-application/

Quick Manual v1.6 // FMC800 15
Telematics
This message contains information on how to operate FMC800
safely. By following these requirements and recommendations,
you will avoid dangerous situations. You must read these
instructions carefully and follow them strictly before operating
the device!
• The device uses SELV limited power source. The nominal
voltage is +12 V DC. The allowed voltage range is +10…+30
V DC.
• To avoid mechanical damage, it is advised to transport
the device in an impact-proof package. Before usage,
the device should be placed so that its LED indicators are
visible. They show the status of device operation.
• Before unmounting the device from vehicle, ignition
MUST be OFF.
SAFETY INFORMATION Do not disassemble the device. If the device is
damaged, the power supply cables are not isolated
or the isolation is damaged, DO NOT touch the
device before unplugging the power supply.
All wireless data transferring devices produce
interference that may aect other devices which are
placed nearby.
The programming must be performed using a PC
with autonomic power supply.
Please consult representatives of your vehicle
model regarding OBDII location on your vehicle.
In case you are not sure about proper connection,
please consult qualied personnel.
Installation and/or handling during a lightning storm
is prohibited.
The device is susceptible to water and humidity.
Teltonika is not responsible for any harm caused by
wrong cables used for connection between PC and
FMC800
WARNING! Do not use FMC800 device if it distracts
driver or causes inconvenience due to OBDII
placement. Device must not interfere with driver.
Battery should not be disposed of with general
household waste. Bring damaged or worn-out
batteries to your local recycling center or dispose
them to battery recycle bin found in stores.

Quick Manual v1.6 // FMC800 16
Telematics
CERTIFICATION AND APPROVALS
This sign on the package means that it is necessary
to read the User‘s Manual before your start using the
device. Full User‘s Manual version can be found in
our Wiki1.
1 wiki.teltonika-gps.com/view/FMC800
This sign on the package means that all used
electronic and electric equipment should not be
mixed with general household waste.
CHECK ALL CERTIFICATES
All newest certicates may be found in our Wiki2.
2wiki.teltonika-gps.com/view/FMC800_Certification_%26_Approvals

Quick Manual v1.6 // FMC800 17
Telematics
WARRANTY
TELTONIKA guarantees its products to be free of any manufacturing defects for a period of 24 months. With additional agreement
we can agree on a dierent warranty period, for more detailed information please contact our sales manager.
Contact us teltonika-gps.com/about-us/contacts
All batteries carry a reduced 6 month warranty period.
If a product should fail within this specic warranty time, the product can be:
• Repaired
• Replaced with a new product
• Replaced with an equivalent repaired product fullling the same functionality
• TELTONIKA can also repair products that are out of warranty at an agreed cost.
WARRANTY DISCLAIMER
TELTONIKA PRODUCTS ARE INTENDED TO BE USED BY PERSONS WITH TRAINING AND EXPERIENCE. ANY OTHER USE RENDERS THE
LIMITED WARRANTIES EXPRESSED HEREIN AND ALL IMPLIED WARRANTIES NULL AND VOID AND SAME ARE HEREBY EXCLUDED.
ALSO EXCLUDED FROM THIS LIMITED WARRANTY ARE ANY AND ALL INCIDENTAL OR CONSEQUENTIAL DAMAGES INCLUDING BUT
NOT LIMITED TO, LOSS OF USE OR REVENUE, LOSS OF TIME, INCONVENIENCE OR ANY OTHER ECONOMIC LOSS.
More information can be found at teltonika-gps.com/warranty-repair
