Teltonika TAT140 Installation guide

TAT140
Asset Tracker PLUS LTE
Quick Manual v1.1

Quick Manual v1.1 // TAT140 2
Telematics
CONTENT
Know your device................................................................................................................................................................................................3
Set up your device ..............................................................................................................................................................................................4
PC Connection (Windows)..................................................................................................................................................................................5
How to install USB drivers (Windows) ..............................................................................................................................................................5
Conguration.......................................................................................................................................................................................................6
Quick SMS conguration....................................................................................................................................................................................8
MOUNTING RECOMMENDATIONS................................................................................................................................................................. 10
LED indications................................................................................................................................................................................................. 11
Basic characteristics ........................................................................................................................................................................................ 11
Safety information .......................................................................................................................................................................................... 13
Certication and Approvals ............................................................................................................................................................................ 14
Warranty ........................................................................................................................................................................................................... 15
Warranty disclaimer ....................................................................................................................................................................................... 15

Quick Manual v1.1 // TAT140 3
Telematics
KNOW YOUR DEVICE
BATTERY
ON/OFF
BUTTON
MICRO-USB
MICRO-SIM
SLOT

Quick Manual v1.1 // TAT140 4
Telematics

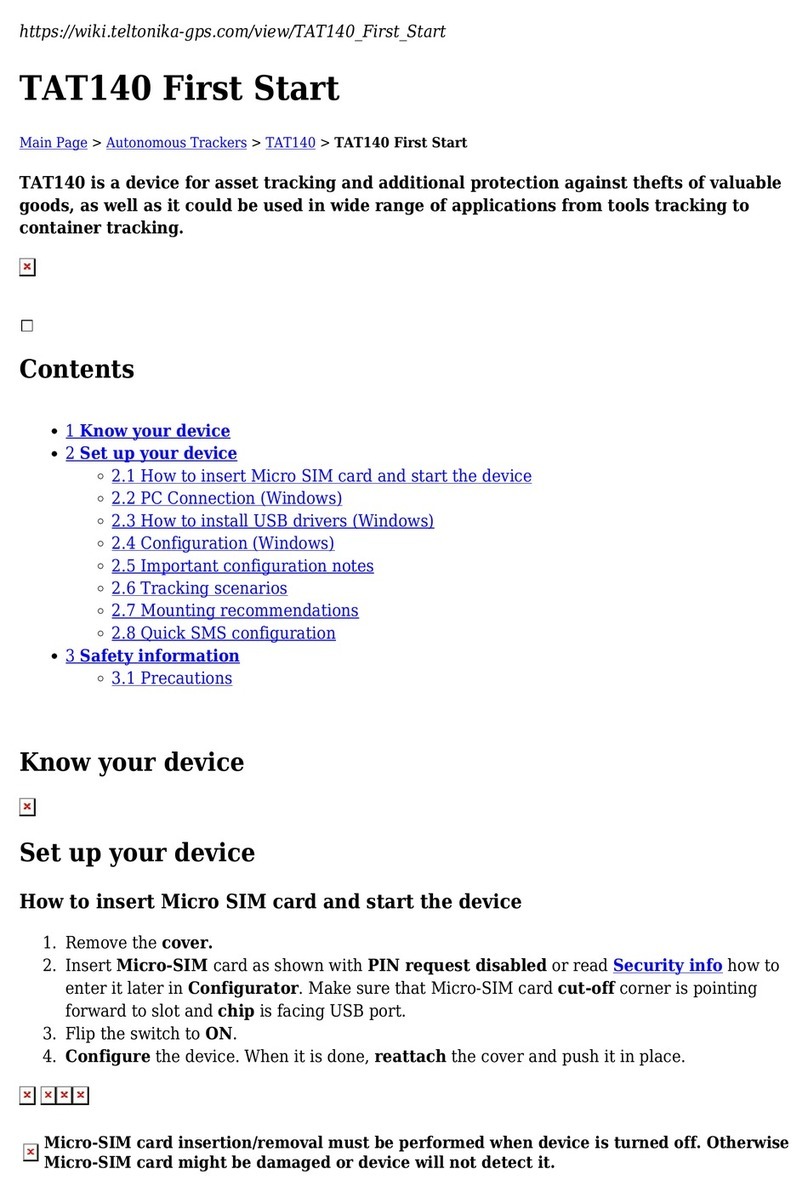

SET UP YOUR DEVICE
HOW TO INSERT MICRO-SIM CARD AND CONNECT THE BATTERY
4
1COVER REMOVAL 3TURN ON 2MICRO-SIM CARD INSERT ATTACHING COVER BACK
Remove the cover. Insert Micro-SIM card as
shown with PIN request
disabled or read our Wiki1
how to enter it later in
Teltonika Congurator2.
Make sure that Micro-
SIM card cut-o corner is
pointing forward to slot.
1 wiki.teltonika.lt/index.
php?title=TAT140_Security_info
2 wiki.teltonika.lt/view/Teltonika_
Congurator
Flip the switch to ON. After conguration, see PC
Connection (WINDOWS)1.
When it is done, reattach the
cover and push it in place.
1 Page 5, “PC Connection
(Windows)”

Quick Manual v1.1 // TAT140 5
Telematics
PC CONNECTION (WINDOWS)
HOW TO INSTALL USB DRIVERS (WINDOWS)
1. Please download COM port drivers from here1.
2. Extract and run TeltonikaCOMDriver.exe.
3. Click Next in driver installation window.
4. In the following window click Install button.
5. Setup will continue installing the driver and eventually the conrmation window will appear. Click Finish to complete the
setup.
1 wiki.teltonika-mobility.com/images/d/d0/TeltonikaCOMDriver.zip
1. Power-up TAT140 device. LED should start blinking, see ‘’LED indications’’1.
2. Connect your device to computer using Micro-USB cable:
• You will need to install USB drivers, see ‘’How to install USB Drivers (WINDOWS)“2
3. You are now ready to use the device on your computer.
1 Page 11 “LED indications”
2 Page 5, “PC Connection (Windows)”

Quick Manual v1.1 // TAT140 6
Telematics
MS .Net requirements
Operating system MS .NET Framework version Version Links
Windows Vista
Windows 7
Windows 8.1
Windows 10
MS .NET Framework 4.6.2 32 and 64 bit www.microsoft.com1
1 dotnet.microsoft.com/en-us/download/dotnet-framework
At rst TAT140 device will have default factory settings set. These settings should be changed according to the users needs. Main
conguration can be performed via Teltonika Congurator1software. Get the latest Congurator version from here2. Congurator
operates on Microsoft Windows OS and uses prerequisite MS .NET Framework. Make sure you have the correct version installed.
1 wiki.teltonika-gps.com/view/Teltonika_Congurator
2 wiki.teltonika-gps.com/view/Teltonika_Congurator_versions
CONFIGURATION

Quick Manual v1.1 // TAT140 7
Telematics
Downloaded Congurator will be in compressed archive.
Extract it and launch Congurator.exe. After launch software
language can be changed by clicking 🌐 in the right bottom
corner.
Conguration process begins by pressing on connected device.
TAT140
Various Status window1 tabs display information about GNSS2,
GSM3, I/O4, Maintenance5and etc. TAT140 has one user
editable prole, which can be loaded and saved to the device.
After any modication of conguration the changes need to
be saved to device using Save to device button. Main buttons
oer following functionality:
 Load from device – loads conguration from device.
 Save to device – saves conguration to device.
 Load from le – loads conguration from le.
 Save to le – saves conguration to le.
 Update rmware – updates rmware on device.
 Read records – reads records from the device.
 Reboot device – restarts device.
 Reset conguration – sets device conguration to
default.
Most important congurator section is GPRS – where all
your server and GPRS settings6 can be congured and Data
Acquisition7 – where data acquiring parameters can be
congured. More details about TAT140 conguration using
Congurator can be found in our Wiki8.
After connection to Congurator Status window will be
displayed.
TAT140
1 wiki.teltonika-gps.com/view/TAT140_Status_info
2 wiki.teltonika-gps.com/view/TAT140_Status_info#GNSS_Info
3 wiki.teltonika-gps.com/view/TAT140_Status_info#GSM_Info
4 wiki.teltonika-gps.com/view/TAT140_Status_info#I.2FO_Info
5 wiki.teltonika-gps.com/view/TAT140_Status_info#Maintenance
6 wiki.teltonika-gps.com/index.php?title=TAT140_GPRS_settings
7 wiki.teltonika-gps.com/index.php?title=TAT140_Data_acquisition_
settings
8 wiki.teltonika-gps.com/index.php?title=TAT140_Conguration

Quick Manual v1.1 // TAT140 8
Telematics
QUICK SMS CONFIGURATION
Default conguration has optimal parameters present to ensure best performance of track quality and data usage.
Quickly set up your device by sending this SMS command to it:
Note: Before SMS text, two space symbols should be inserted.
GPRS SETTINGS:
 2001 – APN
 2002 – APN username (if there are no APN username,
empty eld should be left)
 2003 – APN password (if there are no APN password,
empty eld should be left)
SERVER SETTINGS:
 2004 – Domain
 2005 – Port
 2006 – Data sending protocol (0 – TCP, 1 – UDP)
« setparam 2001:APN;2002:APN_username;2003:APN_password;2004:Domain;2005:Port;2006:0»
1 2 3 4 5 6
1
2
3
4
5
6

Quick Manual v1.1 // TAT140 9
Telematics
DEFAULT CONFIGURATION SETTINGS
IMPORTANT CONFIGURATION NOTES
MOVEMENT AND IGNITION
DETECTION:
DEVICE MAKES A RECORD ON MOVING
IF ONE OF THESE EVENTS HAPPEN:
Time intervals and default I/O elements can be changed by using Teltonika Congurator1.
1 wiki.teltonika-mobility.com/view/Teltonika_Congurator
We strongly recommend testing the network connection from device to the server before
adjusting TAT140 conguration to your needs. Use the following steps to perform this test:
• Congure these parameters: APN, server Domain and server Port;
• Save conguration to the device by clicking on a Save to device button;
• Initiate connection by pressing the Test Connection button.
At this point, TAT140 will create one high-priority record and initiate connection to the server
immediately.
If connection was not initiated, it can mean any of the following:
• Improperly inserted SIM Card
• Incorrect values are set to these elds: APN, Domain or Port;
• GPRS functionality disabled by GSM provider;
• No GSM coverage;
• Server cannot be reached.
Try solving this problem before proceeding with further device conguration.
VEHICLE MOVEMENT
will be detected by
accelerometer
DEVICE MAKES A RECORD ON
STOP IF:
28800 s 28800 s
28800
Seconds passes
28800
Seconds passes

Quick Manual v1.1 // TAT140 10
Telematics
Periodic: This mode is used to get positioning data at xed
intervals. Conguration range is from 360 to 259200 (in
seconds).
Scheduler: This mode is used to get positioning data at xed
schedule. Device can send positioning data up to 6 times on
set days.
We recommend mounting the TAT140 in such a way that the GNSS antenna is pointed at the sky and the device itself is not covered
by various obstructions that would interfere with the reception of the GNSS x.
More details about device conguration using Teltonika Congurator can be found in the Teltonika wiki knowledge base
wiki.teltonika-mobility.com
MAIN RULES OF SETTING SCHEDULE:
• Intervals between dierent times must be at least 6
minutes;
• Days of the week must be selected and highlighted for
the device to send records according to the set schedule.
MOUNTING RECOMMENDATIONS

Quick Manual v1.1 // TAT140 11
Telematics
Behaviour Meaning
On Start-up and self-tests
O Device is in sleep mode or turned
o
Blink every 5
seconds
Device is working, modem turned
on.
LED INDICATIONS
STATUS LED INDICATIONS
BASIC CHARACTERISTICS
Module
Name Quectel EG915U-EU with Teltonika
TM2500
Technology LTE Cat 1/GSM/GPRS/GNSS/
Bluetooth
GNSS
GNSS GPS, GLONASS, GALILEO, BEIDOU
Receiver 33 channel
Tracking sensitivity -165 dBM
Position accuracy < 2.5 CEP
Celluar
Technology LTE CAT 1, GSM
2G bands B2/B3/B5/B8
4G bands LTE-FDD B1/B3/B5/B7/B8/B20/B28
Data transfer
LTE: LTE FDD : Max 10Mbps (DL)/
Max 5Mbps (UL)
GSM: GPRS: Max 85.6Kbps (DL)/Max
85.6Kbps (UL)
Data support SMS (Text)
Power
Input voltage range
Extremely low self-discharge
Li-SOCl2 swappable battery, 7,2V
2200mAh (10,8V 2200mAh version
available)
Bluetooth
Specication Bluetooth 4.2 + LE
Supported
peripherals
ELA Temperature, Humidity,
Movement and Magnet sensors,
EYE sensor, Universal BLE sensor
support

Quick Manual v1.1 // TAT140 12
Telematics
Physical specification
Dimensions 78 x 63 x 28 mm (L x W x H)
Weight 119g
Interface
GNSS antenna Internal High Gain
Cellular antenna Internal High Gain
USB 2.0 Micro-USB
LED indication 1 status LED lights
SIM Micro-SIM
Memory 128 MB internal ash memory
Operating Environment
Operating
temperature -20 °C to +60 °C
Ingress Protection
Rating IP68
Battery discharge
temperature -55 °C to +60 °C
Battery storage
temperature Recommended max. 30°C
Features
Sensors Accelerometer
Sleep modes Single custom sleep mode
Conguration and
rmware update
FOTA Web, Teltonika Congurator
(USB)
SMS Conguration, Events, Debug
GPRS commands Conguration, Debug
Time
Synchronization GNSS, NITZ, NTP
Certification & Approvals
Regulatory CE/RED E-Mark UKCA RCM

Quick Manual v1.1 // TAT140 13
Telematics
This message contains information on how to operate TAT140 safely. By following these requirements and recommendations,
you will avoid dangerous situations. Please read these instructions carefully and follow them strictly before operating the device!
SAFETY INFORMATION
INTERFERENCE
All wireless devices are sensitive to electromagnetic
interference, as a result wireless devices might
aect the performance of each other.
OPERATE THE DEVICE IN SUITABLE CONDITIONS
Comply with local trac laws, do not operate the
device with your hands while driving. Your safety is
of utmost importance when you drive.
The programming must be performed using a PC
with autonomic power supply.
Be cautious near ammable materials and liquids
Battery should not be disposed of with general
household waste. Bring damaged or worn-out
batteries to your local recycling center or dispose
them to battery recycle bin found in stores.
USE ONLY ORIGINAL BATTERIES
Using uncertied manufacturer or dierent type
batteries may cause the device to malfunction or
even explode
USE BATTERIES SAFELY
Protect batteries from moisture. Avoid extensive
operation at high temperatures.
OTHER
In order to prevent device from mechanical damage
it is advisable to transport it in a shock–resistant
packaging. If device stopped working properly
regardless of the settings only a qualied specialist
can help. It is recommended to contact your local
seller or your UAB Teltonika Telematics manager in
such a case.
Do not attempt to charge the batteries. Doing so will
void the warranty and may cause an explosion.

Quick Manual v1.1 // TAT140 14
Telematics
CERTIFICATION AND APPROVALS
This sign on the package means that it is necessary
to read the User‘s Manual before your start using the
device. Full User‘s Manual version can be found in
our Wiki1.
1 wiki.teltonika-gps.com/index.php?title=TAT140
This sign on the package means that all used
electronic and electric equipment should not be
mixed with general household waste.
CHECK ALL CERTIFICATES
All newest certicates may be found in our Wiki2.
2 wiki.teltonika-gps.com/view/TAT140_Certication_%26_Approvals

Quick Manual v1.1 // TAT140 15
Telematics
WARRANTY
We guarantee our products 24-month1warranty period. All batteries carry a 6-month warranty period. Post-warranty repair
service for products is not provided.
1 additional agreement for extended warranty period can be available with the additional agreement
WARRANTY DISCLAIMER
• Customers are only allowed to return products as a result of the product being defective, due to order assembly or
manufacturing fault.
• Products are intended to be used by personnel with training and experience.
• Warranty does not cover defects or malfunctions caused by accidents, misuse, abuse, catastrophes, improper maintenance
or inadequate installation – not following operating instructions (including failure to heed warnings) or use with equipment
with which it is not intended to be used.
• Warranty does not apply to any consequential damages.
• Warranty is not applicable for supplementary product equipment (i. e. PSU, power cables, antennas) unless the accessory is
defective on arrival.
More information can be found at teltonika-gps.com/warranty-repair
Contact us teltonika-gps.com/about-us/contacts
All batteries carry a 6-month warranty period.
If a product stops operating within this specic warranty time, the product can be:
• repaired;
• replaced with a new product;
• replaced with an equivalent repaired product fullling the same functionality;
• replaced with an equivalent dierent product fullling the same functionality in case of end of manufacturing for product.
