Temelsan MAKASMN User manual

MAKASMN CUTTING MACHINE
USER MANUAL
Congratulation to your new TEMELSAN Cutting Machine MAKASMN

P a g e | 1
TEMELSAN MAKİNA SAN. VE TİC. LTD. ŞTİ.
Akçaburgaz Mah. Muhsin Yazıcıoğlu Cad. No:55/1 Esenyurt İstanbul / TÜRKİYE
TEL: [phone] FAX: [phone] www.temelsan.com [email protected]
INDEX
BASIC INFORMATIONS........................................................................................................................2
APPROPRIATE USE........................................................................................................................2
WARRANTY AND LIABILITY...........................................................................................................2
SAFETY.............................................................................................................................................2
QUALIFIELD PERSONNEL .............................................................................................................3
PLANNING ANG SET-UP................................................................................................................3
OPERATIONS...................................................................................................................................3
SAFETY DEVICES ...........................................................................................................................3
AREAS OF USAGE..........................................................................................................................3
MAINTENANCE................................................................................................................................3
ISSUES..............................................................................................................................................4
SAFETY MEASURED RELATED WITH THE MACHINE...............................................................4
REQUIREMENTS OF WORKING PLACE......................................................................................4
FIRST INSTALLATION AND ADJUSTMENTS.......................................................................................4
ASSEMBLY AND USING THE MACHINE..............................................................................................4
OPERATION STEPS..............................................................................................................................5
EQUIPMENTS........................................................................................................................................5
SERVICE THE CUTTER........................................................................................................................6
CHANGING THE BLADE .................................................................................................................6
ADJUSTMENT OF UPPER BLADE BACK OFF.............................................................................7
ADJUSTMENT OF SUPPORT PLATE............................................................................................7
ADJUSTMENT OF CUTTING PLATE .............................................................................................8

P a g e | 2
TEMELSAN MAKİNA SAN. VE TİC. LTD. ŞTİ.
Akçaburgaz Mah. Muhsin Yazıcıoğlu Cad. No:55/1 Esenyurt İstanbul / TÜRKİYE
TEL: [phone] FAX: [phone] www.temelsan.com [email protected]
BASIC INFORMATIONS
This manual user guide is prepared to be useful in order to get familiar with the machine and
the functions of the machine. By the help of this manual guide, the operator becomes a
capable to use the machine in an optimal way in order to operationalize safely, ergonomically
and properly.
This manual user guide allows the operators not to take risk, minimize the idle and repair time.
It also helps to increase lifetime of the machine.
This manual user guide should be kept in a proper place and be accessible easily when
needed. The local regulations included safety and environmental requirements must be
followed in addition to the statements based on this manual user guide.
In case of an issue, complaint, request, demand on spare parts etc. please note the following
information along with the below message
Concerning following Object:
Machine Model: TEMELSAN MAKASMN
Mfg. year: 2018
Serial Number:
APPROPRIATE USE
The machine is designed to cut the all dimensions of steel and band saw blades.
In the event of using the machine rather than described in which case the machine would be out
of warranty situation of Temelsan.
WARRANTY AND LIABILITY
In the event of involving a personal injury or physical damages are not covered by the warranty if the
following events occur as below.
-
Using the machine for a purpose rather than intended
- Technically, improper installation, start-up operation or maintenance of the machine
- In the act of using the machine while any of safety equipment is a broken or
protective device inappropriately running.
- Making constructional changes on running parameters.
- Insufficient control of abrasion parts
- Inappropriate repairs
- The catastrophic failures due to the action of foreign objects / Bodies and excessive force applied
SAFETY
Below safety requirements must be applied without skipping anything and priority case to carry
out.

P a g e | 3
TEMELSAN MAKİNA SAN. VE TİC. LTD. ŞTİ.
Akçaburgaz Mah. Muhsin Yazıcıoğlu Cad. No:55/1 Esenyurt İstanbul / TÜRKİYE
TEL: [phone] FAX: [phone] www.temelsan.com [email protected]
QUALIFIELD PERSONNEL
Certain tasks must be carried out on the machine by a professional qualified personnel. Not
third parties neither the children should be near the machine working area.
PLANNING ANG SET-UP
Planning, transportation, installation, programming, start-up, maintenance, repairs and other
works must be done by qualified personnel. Authorized technician must check it also.
The following matters must be noted:
- Technical data and details concerning the permissible use of the machine and its
accessories.
- General and specific local preparation and safety measures.
- Personal usage and the use of general safety equipment must be related the norms.
- Especially listed on this manual guide but specifically not listed in the operating instructions
that has been explicitly forbidden. Such as a handicapped to use the machine is such
cases it is necessary to contact the manufacturing company.
OPERATIONS
Dangers hidden in disregards of safety regulations.
SAFETY DEVICES
The machine is equipped with the safety devices corresponding to current state of the art. In the
matter of safety equipment, the machine may not be disabled, removed, dismantled, damaged.
It applies in particular to:
- Finger protection glass
AREAS OF USAGE
The Cutting machine of Temelsan MAKASMN is used for any kind of steel bands and band saw
blades or bi-metal or carbide tipped band saw blades.
The cutting capacity for Band Saw Blades is from minimum 6x0.65mm up to a maximum 100
x1.60mm. The machine is capable to cut all kinds of band saw blades which are called
carbon, wood, bi-metal, CT Work.
The machine need to be assembled on the desk.
The machine can be set-up by the customer’s own staff if officially approved by Temelsan.
Please read the following sections thoroughly and carefully before the initial start-up and ensure
that you clearly understand it.
MAINTENANCE
In order to insure a safe operation on the machine and prevent accidents, the job listed in the
section “Servicing” must be carried out regularly. If the owner of machine is not in a position to
do that also must be arranged by an authorized service agent.

P a g e | 4
TEMELSAN MAKİNA SAN. VE TİC. LTD. ŞTİ.
Akçaburgaz Mah. Muhsin Yazıcıoğlu Cad. No:55/1 Esenyurt İstanbul / TÜRKİYE
TEL: [phone] FAX: [phone] www.temelsan.com [email protected]
ISSUES
The machine must be cut off from air supply at once in case of any problem occurs during the
operation and then locked for not being restarted accidently by an unauthorized person.
The machine must be cut off from air supply in this case.
-
Unusual sounds, vibrations, smells
SAFETY MEASURED RELATED WITH THE MACHINE
REQUIREMENTS OF WORKING PLACE
-Flat and smooth desk
-Required big enough area around the machine
-Environmental conditions
-The client is obliged to local air distributor notified technical requirements
FIRST INSTALLATION AND ADJUSTMENTS
Authorized professionals, who must read this user guide, must do first installation and
adjustments. In case of questions, is an immediately contact with manufacturer/supplier required.
ASSEMBLY AND USING THE MACHINE
The costumer is free to montage it on place that is decided from technical personnel.
WARNING!
Only suitably qualified personnel must service the machine!
WEAR PROTECTIVE GLASSES!
Welding beads produced during welding work could damage your eyes.
WEAR GLOVES!
The sharp edges of the blades can cause hand injuries.

P a g e | 5
TEMELSAN MAKİNA SAN. VE TİC. LTD. ŞTİ.
Akçaburgaz Mah. Muhsin Yazıcıoğlu Cad. No:55/1 Esenyurt İstanbul / TÜRKİYE
TEL: [phone] FAX: [phone] www.temelsan.com [email protected]
OPERATION STEPS
1- Pull up the “CLAMPING HANDLE”
2- Push the band saw on place and be sure that back edge of band saw is touching the
“SUPPORT PLATE”
3- Pull down the “CLAMPING HANDLE”when you reach the dimension that you want to cut
4- Push the “CUTING ARM”to cut the band saw
5- Pull up the “CLAMPING HANDLE”
6- Operation is over
EQUIPMENTS
CLAMPING
HANDLE
FINGER
PROTECTION
GLASS
CUTING ARM
UPPER BLADE BACKOFF
ADJUSTMENT SCREWS
UPPER BLADE AND
REMOVING SCREWS
BACK EDGE SUPPORT
AND SUPPORT
ADJUSTMENT SCREWS
LOWER BLADE
CUTTING PLATE

P a g e | 6
TEMELSAN MAKİNA SAN. VE TİC. LTD. ŞTİ.
Akçaburgaz Mah. Muhsin Yazıcıoğlu Cad. No:55/1 Esenyurt İstanbul / TÜRKİYE
TEL: [phone] FAX: [phone] www.temelsan.com [email protected]
SERVICE THE CUTTER
The machine has parts that have to be serviced frequently. Please follow the steps when you do
service by your own personnel.

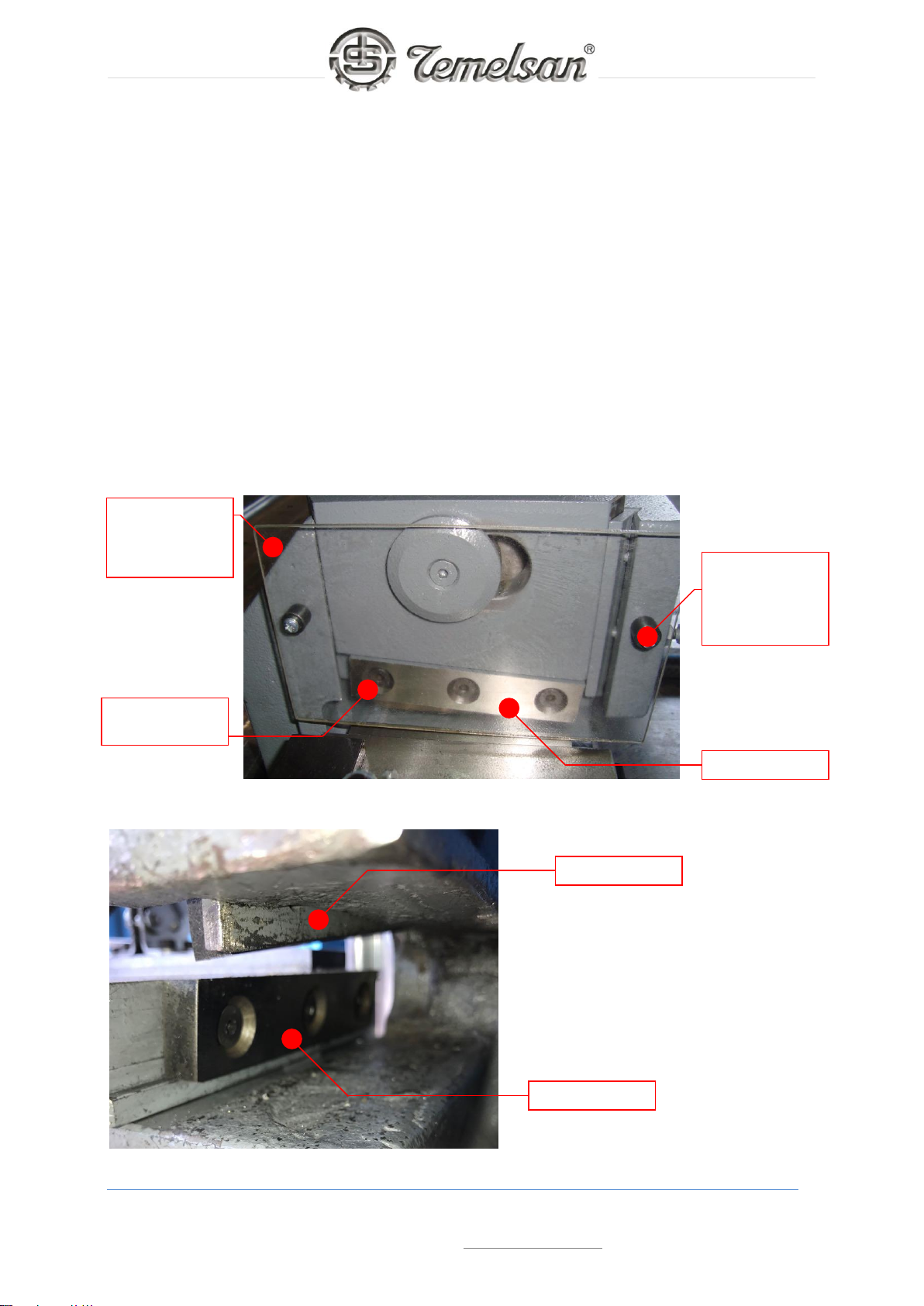

1- CHANGING THE BLADE
-Remove the two screws of Finger Protection Glass
-Take off the protection glass
-Unscrew the three screws of Upper Blade
-Take off the upper blade
-Do same operation for lower blade
-Make grinding on blades and replace it back
FINGER
PROTECTION
GLASS
UPPER BLADE
SCREWS
UPPER BLADE
FINGER
PROTECTION
GLASS
SCREWS
ALT BIÇAK
ÜST BIÇAK

P a g e | 7
TEMELSAN MAKİNA SAN. VE TİC. LTD. ŞTİ.
Akçaburgaz Mah. Muhsin Yazıcıoğlu Cad. No:55/1 Esenyurt İstanbul / TÜRKİYE
TEL: [phone] FAX: [phone] www.temelsan.com [email protected]
2- ADJUSTMENT OF UPPER BLADE BACK OFF
-In case of blade is not back off easily unscrew a little those screws (Upper Blade BackOff
Adjustment Screws) to make it more smooth to slide back off easily.
-In case blade is back off so fast in this case you can’t make proper cut. Screw those two screws
to make it proper to slide back off
3- ADJUSTMENT OF SUPPORT PLATE
-Use the allen key to unscrew two of screws
-Press the Pedal to close the blade
-Use the mitre to make the support plate to be 90owith Blade face
-Screw it too hard the Support plate do not lose position.
SUPPORT PLATE

P a g e | 8
TEMELSAN MAKİNA SAN. VE TİC. LTD. ŞTİ.
Akçaburgaz Mah. Muhsin Yazıcıoğlu Cad. No:55/1 Esenyurt İstanbul / TÜRKİYE
TEL: [phone] FAX: [phone] www.temelsan.com [email protected]

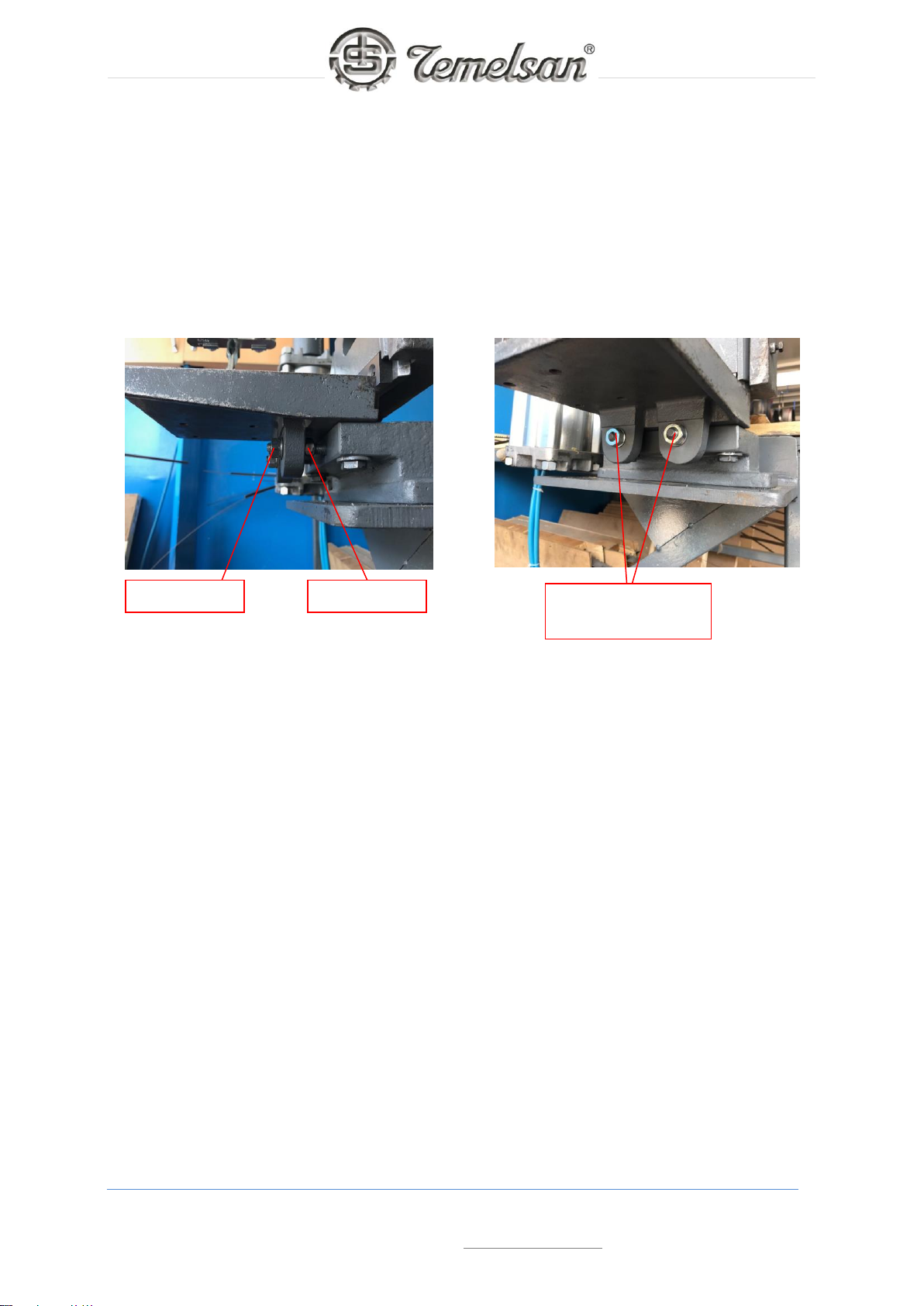

4- ADJUSTMENT OF CUTTING PLATE
Cutting plate should be checked and adjusted frequently or on each operation of blades.
-Use the keys to unscrew those nuts
-Make cutting plate on exactly position
-Screw first nut nr 1 then block it with nut nr 2
-Try to cut paper to check the proper position of cutting plate
-In case of cutting is not same on each place of cutting table try to find exactly adjustment and
screw the nuts.
-
NUT NR 1
NUT NR 2
CUTTING PLATE
ADJUSTMENT NUTS
