Tempest VentMaster 3120K User manual

EE
EE nn nn gg ggll llii iiss sshh hh
Powerhead
Husqvarna K1250
Please read the operator’s manual carefully and make sure you understand the
instructions before using the machine.
Tempest Technology
4708 N. Blythe Ave. • Fresno, CA 93722
800.346.2143 • t: 559.277.7577 • f: 559.277.7579
www.tempest-edge.com • [email protected]
Operations Manual
Cutoff
Saw

2 –
English
KEY TO SYMBOLS
Key to symbols
WARNING! The machine can be a
dangerous tool if used incorrectly or
carelessly, which can cause serious or
fatal injury to the operator or others.
Please read the operator’s manual
carefully and make sure you understand
the instructions before using the machine.
Always wear:
• Protective helmet
• Hearing protection
• Protective goggles or a visor
• Breathing mask
This product is in accordance with
applicable EC directives.
WARNING! Dust forms when cutting, this
can cause injuries if inhaled. Use an
approved breathing mask. Avoid inhaling
petrol fumes and exhaust fumes. Always
provide for good ventilation.
WARNING! Sparks from the cutting blade
can cause fire in combustible materials
such as: petrol (gas), wood, dry grass etc.
Noise emission to the environment
according to the European Community’s
Directive. The machine’s emission is
specified in chapter Technical data and on
label.
Switch off the engine by moving the stop
switch to the STOP position before carrying
out any checks or maintenance.
Always wear protective gloves.
Regular cleaning is required.
Visual check.
Protective goggles or a visor must be worn.
Run position.
Stop, with the return spring to the operating
position.
Stop, in the fixed position.
Other symbols/decals on the machine refer to special
certification requirements for certain markets.

English – 3
CONTENTS
Contents
KEY TO SYMBOLS
K ey to symbols ............................................................. 2
CONTENTS
Contents ...................................................................... 3
WHA T IS WHAT?
What is what on the po wer cutter? ............................... 4
SAFETY INSTR UCTIONS
Steps bef ore using a new power cutter. ....................... 5
Personal protective equipment ..................................... 5
Machine ′ s safety equipment ........................................ 6
Checking, maintaining and servicing the machine ′ s
safety equipment .......................................................... 7
General safety precautions .......................................... 8
General working instructions ....................................... 9
Cutting blades .............................................................. 11
ASSEMBL Y
Assemb ling the cutting head ........................................ 13
Checking the drive axle and flange washers ............... 13
Fitting the cutting blade ................................................ 13
Guard for the blade ...................................................... 13
FUEL HANDLING
Fuel .............................................................................. 14
Fuelling ........................................................................ 14
ST ARTING AND STOPPING
Star ting and stopping ................................................... 15
MAINTENANCE
T ensioning the drive belt .............................................. 16
Replacing the drive belt ............................................... 16
Belt pulley and clutch ................................................... 16
Carburettor ................................................................... 16
Fuel filter ...................................................................... 17
Air filter ......................................................................... 17
Starter .......................................................................... 18
Spark plug .................................................................... 19
Cooling system ............................................................ 19
Muffler .......................................................................... 19
General maintenance instructions ............................... 20
TECHNICAL D ATA
Cutting equipment ........................................................ 21
EC-declaration of conformity ........................................ 22

4 – English
WHA T IS WHA T?
What is what on the po wer cutter?
17
13
12
9
10
8
11
18
15
2
22
19
14
1
5
6
7
3
16
20
21
4
23
1 Cylinder cover
2 Muffler
3 Fuel tank
4 Start throttle lock
5 Choke
6 Throttle lockout
7 Stop switch
8 Cutting head
9 Cutting arm
10 Belt tensioner
11 Cutting blade
12 Throttle control
13 Combination spanner
14 Air filter cover
15 Blade guard/spray guard
16 Starter handle
17 Operator ′ s manual
18 Adjustment handle for blade guard
19 Front handle
20 Starter
21 Decompression valve
22 Warning decal
23 Rating plate

English – 5
SAFETY INSTR UCTIONS
Steps bef ore using a new power
cutter.
• Please read the operator’s manual carefully.
• Check the cutting blade’s mounting, see the chapter
”Assembly”.
• Start the engine and check the idling setting, see
instructions under the heading Maintenance. When the
carburettor is set correctly the cutting blade should be still
while idling. Setting of the idle speed is described in the
Operator’s Manual. Set the correct speed according to
these instructions. Do not use the power cutter if the idle
speed is not adjusted correctly!
• Let your Husqvarna dealer regularly check the power
cutter and make essential adjustments and repairs.
Husqvarna Construction Products has a policy of continuous
product development. Husqvarna reserves the right to modify
the design and appearance of products without prior notice
and without further obligation introduce design modifications.
All information and all data in the Operator’s Manual were
applicable at the time the Operator’s Manual was sent to print.
P ersonal protective equipment
• Protective helmet
• Hearing protection
• Protective goggles or a visor
• Breathing mask
• Heavy-duty, firm grip gloves.
• Tight-fitting, heavy-duty and comfortable clothing that
permits full freedom of movement.
• Use leg-guards recommended for the material to be cut.
• Boots with steel toe-caps and non-slip sole
• Always have a first aid kit nearby.
!
W ARNING! Under no circumstances may the
design of the machine be modified without
the permission of the manufacturer. Always
use genuine accessories. Non-authorized
modifications and/or accessories can result
in serious personal injury or the death of the
operator or others.
!
W ARNING! Use of products which cut, grind,
drill, sand or shape material can generate
dust and vapors which may contain harmful
chemicals. Know the nature of the material
being worked on and wear appropriate dust
mask or respirator protection.
!
W ARNING! A power cutter is a dangerous
tool if used carelessly or incorrectly and can
cause serious, even fatal injuries. It is
extremely important that you read and
understand the contents of this Operator’s
Manual.
!
W ARNING! The ignition system of this
machine produces an electromagnetic field
during operation. This field may under some
circumstances interfere with pacemakers.To
reduce the risk of serious or fatal injury, we
recommend persons with pacemakers to
consult their physician and the pacemaker
manufacturer before operating this machine.
!
W ARNING! You must use approved personal
protective equipment whenever you use the
machine. Personal protective equipment
cannot eliminate the risk of injury but it will
reduce the degree of injury if an accident
does happen. Ask your dealer for help in
choosing the right equipment.

6 – English
SAFETY INSTR UCTIONS
Mac hine ′ s safety equipment
This section descr ibes the machine ′ s safety equipment, its
purpose, and how checks and maintenance should be carried
out to ensure that it operates correctly. See the ”What is
what?” section to locate where this equipment is positioned
on your machine.
Vibration damping system
Y our machine is equipped with a vibration damping system
that is designed to minimize vibration and make operation
easier.
The machine ′ s vibration damping system reduces the transfer
of vibration between the engine unit/cutting equipment and
the machine ′ s handle unit.
The engine body, including the cutting equipment, is insulated
from the handles by vibration damping units.
Stop s witch
Use the stop s witch to switch off the engine.
Muffl er
The m uffler is designed to keep noise levels to a minimum
and to direct exhaust fumes away from the user.
Thr ottle lockout
The throttle tr igger lock is designed to prevent accidental
operation of the throttle. When the lock (A) is pressed in this
releases the throttle (B).
The trigger lock remains pressed in as long as the throttle is
pressed. When the grip on the handle is released the throttle
trigger and the throttle trigger lock both return to their original
positions. This is controlled by two independent return spring
systems. This means that the throttle trigger is automatically
locked in the idle position.
Guar d for the blade
This guard is fi tted above the cutting blade and is designed to
prevent parts of the blade or cutting fragments from being
thrown towards the user.
!
W ARNING! Never use a machine that has
faulty safety equipment! Carry out the
inspection, maintenance and service
routines listed in this section.
!
W ARNING! The muffler gets very hot in use
and remains so for a short time afterwards.
Do not touch the muffler if it is hot!
!
W ARNING! The exhaust fumes from the
engine are hot and may contain sparks
which can start a fire. Never start the
machine indoors or near combustible
material!
IMPOR TANT INFORMATION
F or mufflers it is very important that you follow the
instructions on checking, maintaining and servicing your
machine. See instructions under the heading Checking,
maintaining and servicing the machine’s safety equipment.
!
W ARNING! The inside of the muffler contain
chemicals that may be carcinogenic. Avoid
contact with these elements in the event of a
damaged muffler.
!
W ARNING! Always check that the blade
guard is fitted correctly before starting the
machine.
A
B

English – 7
SAFETY INSTR UCTIONS
Chec king, maintaining and servicing
the machine
′ s safety equipment
Vibration damping system
Regular ly check the vibration damping units for cracks or
deformation.
Make sure the vibration damping units are securely attached
to the engine unit and handle unit.
Stop switch
Start the engine and make sure the engine stops when you
move the stop switch to the stop setting.
Muffler
Never use a machine that has a faulty muffler.
Regularly check that the muffler is securely attached to the
machine.
Throttle lockout
• Make sure the throttle control is locked at the idle setting
when the throttle lockout is released.
• Press the throttle lockout and make sure it returns to its
original position when you release it.
• Check that the throttle control and throttle lockout move
freely and that the return springs work properly.
• Start the power cutter and apply full throttle. Release the
throttle control and check that the cutting blade stops and
remains stationary. If the cutting blade rotates when the
throttle is in the idle position you should check the
carburettor’s idle adjustment. See instructions under the
heading Maintenance.
Checking the blade guard
Never use a defective guard or a guard that has not been
fitted correctly.
Check that the guard is complete and without any cracks or
deformations.
!
WARNING! All servicing and repair work on
the machine requires special training.This is
especially true of the machine′s safety
equipment. If your machine fails any of the
checks described below you must contact
your service agent.When you buy any of our
products we guarantee the availability of
professional repairs and service. If the
retailer who sells your machine is not a
servicing dealer, ask him for the address of
your nearest service agent.
!
WARNING! Always check that the guard is
correctly fitted before starting the machine.
Check that the cutting blade is fitted
correctly and does not show signs of
damage. A damaged cutting blade can cause
personal injury. See instructions under the
heading Assembly.

8 – English
SAFETY INSTRUCTIONS
General safety precautions
•A power cutter is designed to cut hard materials, such as
masonry. Observe the increased risk of kickback when
cutting soft materials. See instructions under the heading
How to avoid kickback.
• Do not use the power cutter until you have read the entire
contents of this Operator’s Manual.
All servicing, in addition to the points listed in the section
”Control, maintenance and service of the power cutter’s
safety equipment”, should be carried out by trained
service specialists.
• Never use the machine if you are tired, if you have drunk
alcohol, or if you are taking medication that could affect
your vision, your judgement or your co-ordination.
• Wear personal protective equipment. See instructions
under the heading Personal protective equipment.
• Never use a machine that has been modified in any way
from its original specification.
• Never use a machine that is faulty. Carry out the checks,
maintenance and service instructions described in this
manual. Some maintenance and service measures must
be carried out by trained and qualified specialists. See
instructions under the heading Maintenance.
• Never allow anyone else to use the machine without first
ensuring that they have understood the contents of the
operator’s manual.
• Never use the machine indoors. Be aware of the dangers
of inhaling the engine’s exhaust fumes.
Transport and storage
Do not store or transport the power cutter with the cutting
blade fitted.
Store the power cutter in a lockable area so that it is out of
reach of children and unauthorised persons.
All blades should be removed from the cutter after use and
stored carefully. Store cutting blades in dry, frost free
conditions.
Special care should be taken with abrasive discs. Abrasive
discs must be stored on a flat, level surface. If blades are
supplied with a backing pad then a spacer should be used to
keep them flat. If an abrasive disc is stored in humid
conditions, this can cause imbalance and result in injury.
Inspect new blades for transport or storage damage.

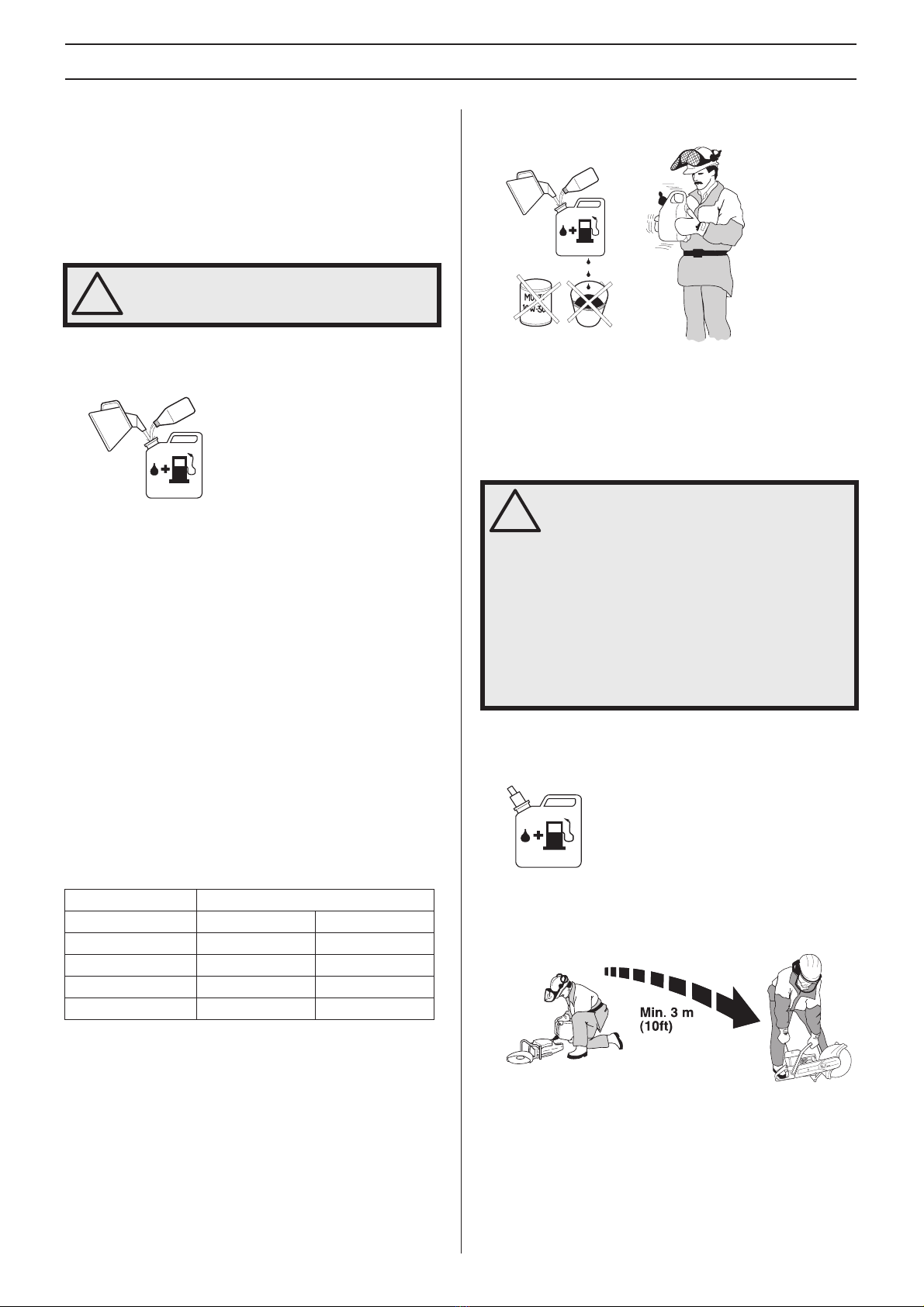

Fuel safety
(Refuelling/Fuel mixture/Storage.)
• Never refuel the machine while the engine is running.
• Make sure there is plenty of ventilation when refuelling or
mixing fuel (petrol and 2-stroke oil).

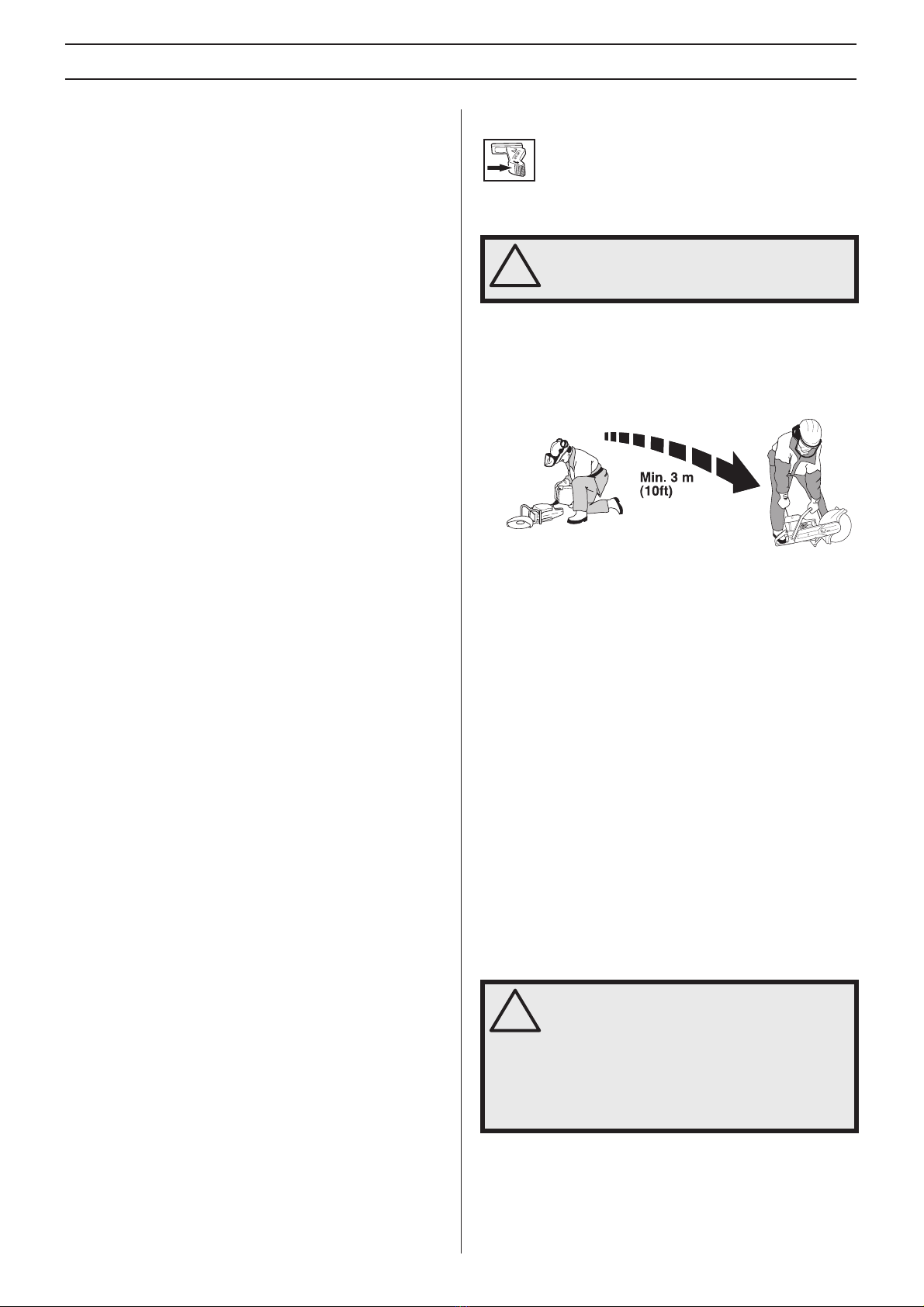

• Move the machine at least 3 m from the refuelling point
before starting it.
• Never start the machine:
- If you have spilt fuel on it. Wipe off the spillage and allow
remaining fuel to evaporate.
- If you have spilt fuel on yourself or your clothes, change
your clothes.Wash any part of your body that has come in
contact with fuel. Use soap and water.
- If the machine is leaking fuel. Check regularly for leaks
from the fuel cap and fuel lines.
• Store and transport the machine and fuel so that there is
no risk of any leakage or fumes coming into contact with
sparks or naked flames, for example, from electrical
machinery, electric motors, electrical relays/switches or
boilers.
• Always store fuel in an approved container designed for
that purpose.
• When storing the machine for long periods the fuel tank
must be emptied. Contact your local petrol station to find
out where to dispose of excess fuel.
• Always use a Husqvarna fuel container with an anti-spill
valve.
!
WARNING! Take care when handling fuel.
Bear in mind the risk of fire, explosion and
inhaling fumes.
!
WARNING! Bear in mind the risk of fire,
explosion and inhaling fumes. Stop the
engine before fuelling. Do not fill so that the
fuel runs over. Wipe up all spillage on the
ground and machine. If you spill fuel on
yourself or your clothes. Change your
clothes. Move the machine at least 3 metres
away from the refuelling area before starting.

English – 9
SAFETY INSTRUCTIONS
General working instructions
Basic safety rules
• Look around you:
- To ensure that people, animals or other things cannot affect
your control of the machine.
- To make sure that none of the above come into contact with
the cutting blade.
• Do not use the machine in bad weather, such as dense
fog, rain, strong wind, intense cold, etc. Working in bad
weather is tiring and can lead to dangerous conditions,
e.g. slippery surfaces.
• Never start to work with the power cutter before the
working area is clear and you have a firm foothold. Look
out for any obstacles with unexpected movement. Ensure
when cutting that no material can become loose and fall,
causing operating injury.Take great care when working on
sloping ground.
• Make sure that no clothes or parts of the body come in
contact with the cutting equipment when it is rotating.
• Keep at a safe distance from the cutting equipment when
it is rotating.
• The guard for the cutting equipment must always be on
when the machine is running.
• Ensure that the working area is sufficiently illuminated to
create a safe working environment.
• Always ensure you have a safe and stable working
position.
• Make sure that no pipes or electrical cables are routed in
the area to be cut.
Cutting
General
• Start cutting with the machine running at maximum
speed.
• Always hold the machine in a firm grip with both hands.
Hold it so that the thumbs and fingers grip round the
handles.
Cutting technique
The technique described below is of a general character.
Check information for each blade regarding individual cutting
characteristics (for example, diamond blades requires less
feeding pressure than an abrasive discs).
• Support the work piece in such a way that it is possible to
predict what will happen, and so that the cut remains open
while cutting.
• Check that the blade is not in contact with anything when
the machine is started
• Always cut at maximum speed.
• Start cutting smoothly, allowing the machine to work
without forcing or pressing in the blade.
!
WARNING! This section describes basic
safety directions for using a power cutter.
This information is never a substitute for
professional skills and experience. If you get
into a situation where you feel unsafe, stop
and seek expert advice. Contact your dealer,
service agent or an experienced power
cutter user. Do not attempt any task that you
feel unsure of!
!
WARNING! Do not move the machine when
the cutting equipment is rotating.
!
WARNING! Only use the machine in areas
with good ventilation. Neglect can result in
serious injury or death.
!
WARNING! The safety distance for the power
cutter is 15 metres.You are responsible to
ensure that animals and onlookers are not
within the working area. Do not start cutting
until the working area is clear and you are
standing firmly.
!
WARNING! Overexposure to vibration can
lead to circulatory damage or nerve damage
in people who have impaired circulation.
Contact your doctor if you experience
symptoms of overexposure to vibration.
These symptoms include numbness, loss of
feeling, tingling, pricking, pain, loss of
strength, changes in skin colour or
condition.These symptoms normally appear
in the fingers, hands or wrists.

10 – English
SAFETY INSTRUCTIONS

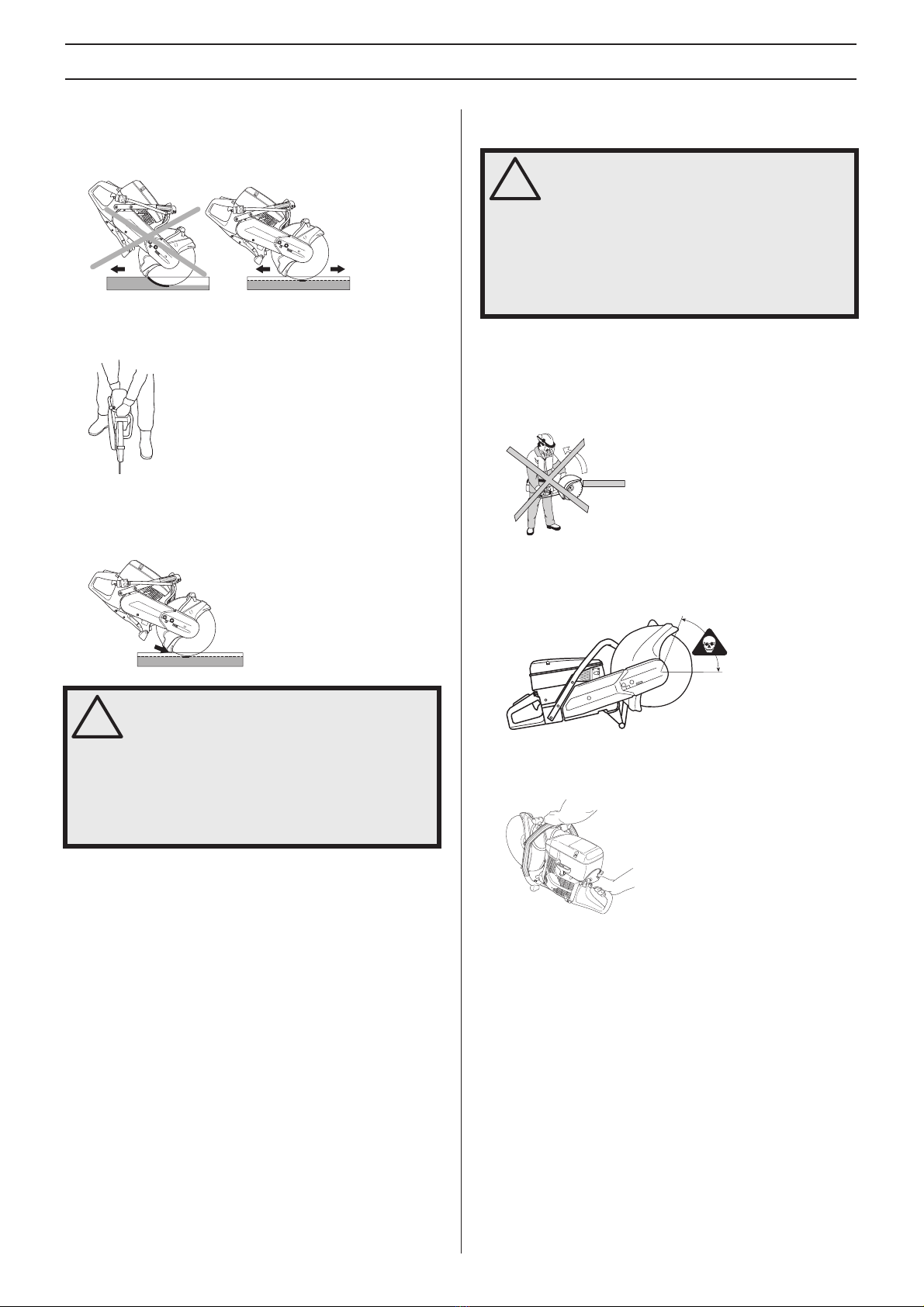

•Move the blade slowly forwards and backwards to achieve
a small contact area between the blade and the material
to be cut. This reduces the temperature of the blade and
ensures effective cutting.
• Feed down the machine in line with the blade. Pressure
from the side can damage the blade and is very
dangerous.
• The guard for the cutting equipment should be adjusted so
that the rear section is flush with the work piece. Spatter
and sparks from the material being cut are then collected
up by the guard and led away from the user.
Sharpening diamond blades
Diamond blades can become dull when the wrong feeding
pressure is used or when cutting certain materials such as
heavily reinforced concrete. Working with a blunt diamond
blade causes overheating, which can result in the diamond
segments coming loose.
Sharpen the blade by cutting in a soft material such as
sandstone or brick.
Blade vibration
The blade can become out-of-round and vibrate if an
excessive feed pressure is used.
A lower feed pressure can stop the vibration. Otherwise
replace the blade. The blade must be of the recommended
type for the material to be cut.
How to avoid kickback
What is kickback?
The word kickback is used to describe the sudden reaction
that causes the power cutter and cutting blade to be thrown
from an object when the upper quadrant of the blade, known
as the kickback zone, touches an object.
General rules
•Never start to cut with the upper quadrant of the blade as
shown in the figure, also known as the kickback zone.
• Always hold the machine in a firm grip with both hands.
Hold it so that the thumbs and fingers grip round the
handles.
• Keep a good balance and a firm foothold.
• Always cut at maximum speed.
• Stand at a comfortable distance from the work piece.
• Take care when inserting the blade in an existing cut.
• Never cut above shoulder height.
• Be alert to movement of the work piece or anything else
that can occur, which could cause the cut to close and
pinch the blade.
Pull in
Pull in occurs when the disc’s lower section suddenly stops or
when the cut closes. (To avoid, see the heading ”Basic rules”
and ”Jamming/rotation”, here below.)
!
WARNING! Under all circumstances avoid
grinding using the side of the blade; it will
almost certainly be damaged, break and can
cause immense damage. Only use the
cutting section.
Do not pull the power cutter to one side, this
can cause the blade to jam or break
resulting in injury to people.
!
WARNING! Kickback can happen very
suddenly and violently; kicking the power
cutter and cutting blade back at the user. If
this happens when the cutting blade is
moving it can cause very serious, even fatal
injuries. It is vital you understand what
causes kickback and that you can avoid it by
taking care and using the right working
technique.

English – 11
SAFETY INSTRUCTIONS
Pinching/rotation
If the cut is pressed together this can lead to jamming. The
machine can be pulled down suddenly with a very powerful
jerk.
How to avoid pinching
Support the work piece in such a way that the cut remains
open during the cutting operation and when the cut is
finished.
Cutting blades
General
Cutting blades are available in two basic designs; abrasive
discs and diamond blades.
Always remove the cutting blade when the machine is
transported.
Make sure that the right bushing is used for the cutting blade
to be fitted on the machine. See the instructions under the
heading Assembling the cutting blade.
High-quality blades are often most economical. Lower quality
blades often have inferior cutting capacity and a shorter
service life, which results in a higher cost in relation to the
quantity of material that is cut.
Water cooling
After using an abrasive disc with water cooling, run the disc
dry for about half a minute. If an abrasive disc is stored in
humid conditions, this can cause imbalance and result in
injury.
High speed handheld machines
Our cutting blades are manufactured for high-speed, portable
power cutters. If blades from other manufacturers are used,
ensure that the blades conform to all regulations and
demands that concern this type of power cutter.
Special blades
Some cutting blades are designed for stationary equipment
and for use with attachments.Such cutting blades must not be
used on portable power cutters.
Always contact local authorities and make sure you are
following applicable directives.
!
WARNING! A cutting blade may burst and
cause injury to the operator.
Never use a cutting blade at a lower speed
rating than that of the power cutter.
Never use a cutting blade for any other
materials than that it was intended for.
!
WARNING! Cutting plastics with a diamond
blade or rescue blade can cause kickback
when the material melts due to the heat
produced when cutting and sticks to the
blade.
!
WARNING! Water cooling, which is used
when cutting concrete, cools the blade and
increases its service life while also reducing
the formation of dust. Disadvantages include
difficulties at very low temperatures, the risk
of damaging floors and other structural
elements, and the risk of slipping.

12 – English

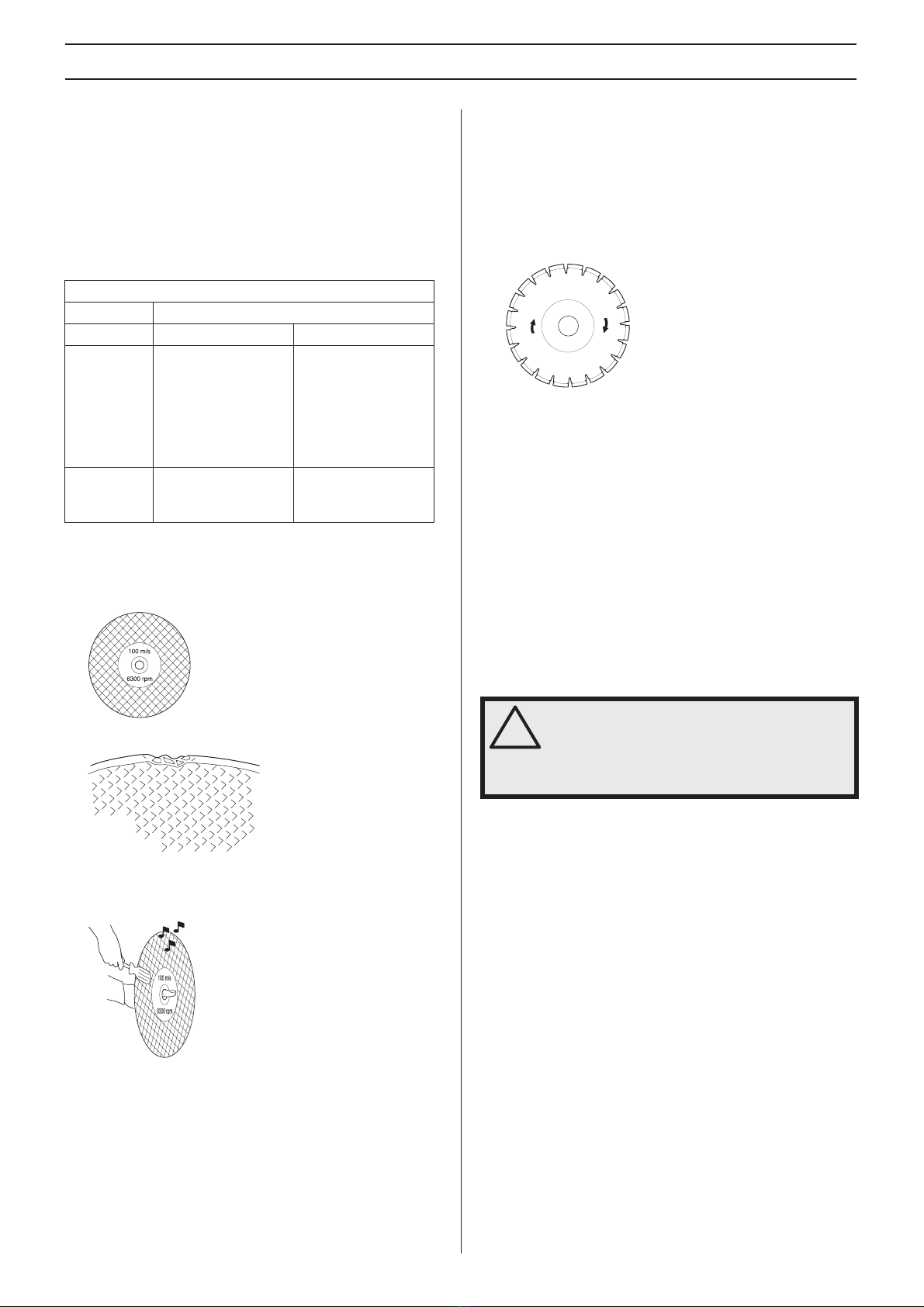

SAFETY INSTRUCTIONS
Abrasive discs
The cutting material on abrasive discs consists of grit bonded
using an organic binder. ”Reinforced blades” are made up of
a fabric or fibre base that prevents total breakage at maximum
working speed if the blade should be cracked or damaged.
A cutting blade’s performance is determined by the type and
size of abrasive corn, and the type and hardness of the
bonding agent.
Check that the blade is approved for the same or higher
speed according to the aproval plate of the engine. Never use
a cutting blade with a lower speed rating than that of the
power cutter.
Ensure the blade it not cracked or damaged in any other way.
Test the abrasive disc by hanging it on your finger and tapping
it lightly with a screwdriver or the like. If the disc does not
produce a resonant, ringing sound it is damaged.
Diamond blades
Diamond blades consist of a steel body provided with
segments that contain industrial diamonds.
Diamond blades ensure lower costs per cutting operation,
fewer blade changes and a constant cutting depth.
When using diamond blades make sure that it rotates in the
direction indicated by the arrow on the blade.
Always use a sharp diamond blade. Sharpen the blade by
cutting in a soft material such as sandstone or brick.
Diamond blades are available in several hardness classes. A
"soft" diamond blade has a relatively short service life and
large cutting capacity. It is used for hard materials such as
granite and hard concrete. A "hard" diamond blade has a
longer service life and reduced cutting capacity, and should
be used for soft materials such as brick and asphalt.
Material
Diamond blades are ideal for masonry, reinforced concrete
and other composite materials. Diamond blades are not
recommended for cutting metal.
Diamond blades for wet cutting
Diamond blades for wet cutting should have water poured
over them during the cutting to cool the blade and bond the
dust.
Diamond blades for dry cutting
Diamond blades for dry cutting are a new generation of
blades that do not require water cooling. However, the blades
will still be damaged by excessive heat. It is most economical
to allow the blade to cool by simply lifting it out from the cut
every 30–60 seconds and letting it rotate in the air for 10
seconds.
Abrasive discs, types and use
Use
Disc type Material Water cooling
Concrete
Concrete, asphalt,
stone masonry, cast
iron, aluminium,
copper, brass,
cables, rubber,
plastic, etc.
Can be used to
reduce dust. Run the
disc dry for about a
half minute after
using an abrasive
disc with water
cooling.
Metal
Steel, steel alloys
and other hard
metals.
NOT recommended
!
WARNING! Cool diamond blades for wet
cutting continuously with water to prevent
overheating, which can cause the blade to
break up and eject pieces that can cause
injury.

English – 13

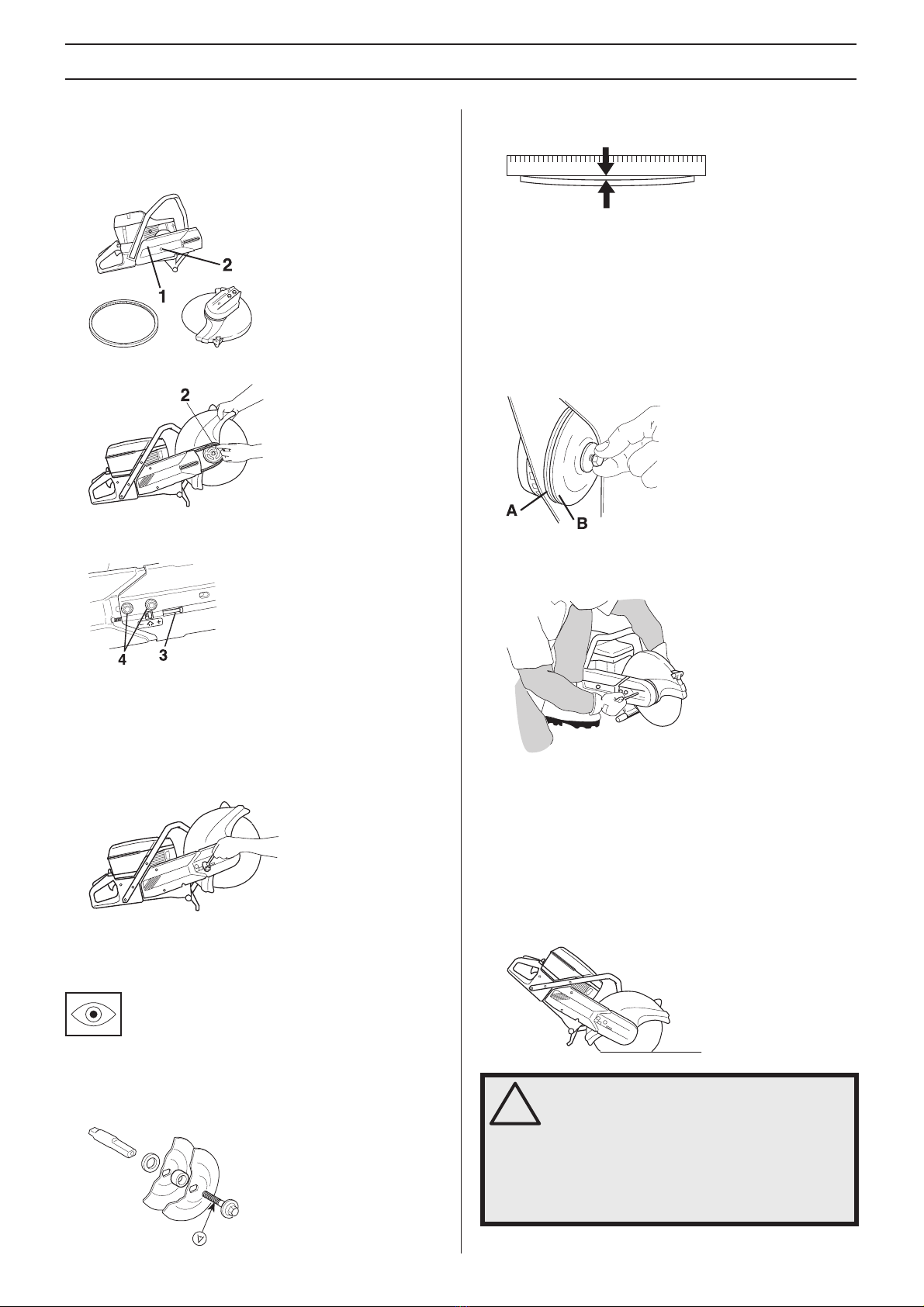

ASSEMBLY
Assembling the cutting head
Remove the bolt (1) and nut (2). Remove the guard. Fit the
drive belt on the clutch drum. Fit the guard and tighten the
screws.
Run the drive belt over the cutting head’s belt pulley (2).
Position the belt guard and secure the cutting head together
with the belt guard. Tighten both bolts (4) by hand.
Screw in the tension screw (3) so that the square nut aligns
with the arrow on the belt guard. Shake the head to ensure
the spring can tension the belt. This automatically adjusts the
belt to the correct tension. Tighten both bolts (4) using the
combination spanner. NOTE! When a belt is fitted the belt
tension must be readjusted after the first two tanks of fuel
have been used.
Checking the drive axle and flange
washers
Check that the threads on the drive shaft are undamaged.
Check that the contact surfaces on the blade and the flange
washers are undamaged, of the correct dimension, clean,
and that they run properly on the drive axle.
Do not use warped, notched, indented or dirty flange
washers. Do not use different dimensions of flange washers.
Fitting the cutting blade
Husqvarna cutting blades are manufactured and approved for
freehand cutting. The paper labels on each side of the blade
are there to distribute the pressure from the flange washer
and prevent the blade from slipping.
The blade is placed on the bushing (C) between the inner
flange washer (A) and the flange washer (B). The flange
washer is turned so that it fits on the axle.
The shaft can be locked using a screwdriver, steel pin or the
like. This is slid in as far as possible. The blade is tightened
clockwise.
Tightening torque for the bolt holding the blade is: 15-25 Nm
(130-215 in.lb).
Guard for the blade
The guard must always be fitted on the machine. The guard
for the cutting equipment should be adjusted so that the rear
section is flush with the work piece. Spatter and sparks from
the material being cut are then collected up by the guard and
led away from the user.
!
WARNING! A 16 inch blade guard should
only be used on power cutters initially
equipped with a 16 inch blade guard. If a
guard obtained as a spare part is fitted on a
power cutter which is equipped with a 12 or
14 inch guard, a 16 inch blade will run too
fast. A cutting blade running at a too high
speed can break or cause serious damage.

14 – English
FUEL HANDLING
Fuel
CAUTION! The machine is equipped with a two-stroke engine
and must always been run using a mixture of petrol and two-
stroke engine oil. It is important to accurately measure the
amount of oil to be mixed to ensure that the correct mixture is
obtained. When mixing small amounts of fuel, even small
inaccuracies can drastically affect the ratio of the mixture.
Petrol
• Use good quality unleaded or leaded petrol.
• The lowest octane recommended is 90 (RON). If you run
the engine on a lower octane grade than 90 so-called
knocking can occur. This gives rise to a high engine
temperature, which can result in serious engine damage.
Two-stroke oil
•For best results and performance use HUSQVARNA two-
stroke engine oil, which is specially formulated for our air-
cooled two-stroke engines.
• Never use two-stroke oil intended for water-cooled
engines, sometimes referred to as outboard oil (rated
TCW).
• Never use oil intended for four-stroke engines.
Mixing ratio
1:50 (2%) with HUSQVARNA two-stroke oil or equivalent.
1:33 (3%) with oils class JASO FB or ISO EGB formulated for
air-cooled, two-stroke engines.
Mixing
•Always mix the petrol and oil in a clean container intended
for fuel.
• Always start by filling half the amount of the petrol to be
used. Then add the entire amount of oil. Mix (shake) the
fuel mixture. Add the remaining amount of petrol.
• Mix (shake) the fuel mixture thoroughly before filling the
machine’s fuel tank.
• Do not mix more than one month’s supply of fuel at a time.
• If the machine is not used for some time the fuel tank
should be emptied and cleaned.
Fuelling
• Keep the handle dry and free from oil and fuel.
• Ensure that the fuel is well mixed by shaking the container
before filling the tank.
• Always exercise care when refilling the fuel. Move the
machine at least three metres from the fuelling area
before it is started. Check that the fuel cap is tightened
correctly.
• Clean around the fuel cap. Clean the fuel and oil tank
regularly. The fuel filter should be changed at least once a
year. Contamination in the tanks causes malfunction.
!
WARNING! Always ensure there is adequate
ventilation when handling fuel.
Petrol, litre Two-stroke oil, litre
2% (1:50) 3% (1:33)
50,10 0,15
10 0,20 0,30
15 0,30 0,45
20 0,40 0,60
!
WARNING! Taking the following precautions,
will lessen the risk of fire:
Do not smoke or place hot objects near fuel.
Always shut off the engine before refuelling.
When refuelling, open the fuel cap slowly so
that any excess pressure is released gently.
Tighten the fuel cap carefully after refuelling.
Always move the machine away from the
refuelling area before starting.

English – 15
STARTING AND STOPPING
Starting and stopping
Starting a cold engine
Ignition: Slide the ignition switch to the left.
Choke: Pull the choke control fully out.
Start throttle lock: Press in the throttle trigger lock, throttle
control and then the start throttle lock (A). Release the throttle
control and it is locked in the half throttle position. The lock
releases when the throttle control is pressed in fully.
Automatic decompression valve
The machine is equipped with an automatic decompression
valve to facilitate the start of the power cutter.
Starting a warm engine
Use the same starting procedure as for a cold engine but
without setting the choke control in the choke position.
Starting
Grip the front handle with your left hand. Put your right foot on
the lower section of the rear handle pressing the machine
against the ground. Never twist the starter cord around
your hand.
Grip the starter handle, slowly pull out the cord with your right
hand until you feel some resistance (the starter pawls grip),
now quickly and powerfully pull the cord.
CAUTION! Do not pull the starter cord all the way out and do
not let go of the starter handle when the cord is fully extended.
This can damage the machine.
When the engine starts, quickly apply full throttle to
automatically disengage fast idle.
Stopping
The engine is stopped by switching the ignition off using the
stop switch.
!
WARNING! Note the following before
starting:
Do not start the power cutter without the belt
guard fitted. Otherwise the clutch could
come loose and cause personal injuries.
Always move the machine away from the
refuelling area before starting.
Ensure that you and the machine have a
good working stance and that the cutting
blade can rotate freely.
Keep people and animals well away from the
working area.
!
WARNING! The cutting blade rotates when
the engine is started. Make sure it can rotate
freely.

16 – English
MAINTENANCE
Tensioning the drive belt
• The drive belt is fully enclosed and well protected from
dust and dirt.
• When tensioning the drive belt, slightly loosen the nuts (A)
holding the cutting head and belt guard.
• Turn the tension screw so that the nut (B) aligns with the
arrow on the guard. Shake the head to ensure the spring
can tension the belt. The belt now automatically has the
right tension.
• Tighten the nuts holding the cutting head.
Replacing the drive belt
• Loosen the two screws (A).
• Turn the tension screw (B) until tensioning stops.
• Remove the two screws (A).
• Remove the front belt guard (C)
• Remove the belt from the belt pulley.
• Remove the cutting head.
• Remove the screw (D). Remove the side cover.
• Replace the drive belt.
• Assemble in the reverse order as set out for dismantling.
• Check that the blade guard over the cutting blade is not
cracked or damaged in any other way. Replace when
damaged.
Belt pulley and clutch
Never start the engine when the belt pulley and clutch are
removed for maintenance.
Carburettor
Your Husqvarna product has been designed and
manufactured to specifications that reduce harmful
emissions. After the engine has used 8-10 tanks of fuel the
engine will be run-in.To ensure that it continues to run at peak
performance and to minimise harmful exhaust emissions
after the running-in period, ask your dealer/service workshop
(who will have a rev counter at their disposal) to adjust your
carburettor.
Function
•The carburettor governs the engine speed via the throttle.
Air and fuel are mixed in the carburettor.
High speed jet
The carburetor is equipped with fixed H-jet to ensure the
engine always receives the correct fuel air mixture. If the
engine lacks power or accelerates poorly do the following:
• Check the air filter and replace if necessary.
• When this does not help, contact an authorised service
workshop.
Low speed jet L
Apply full throttle a couple of times and check that the saw is
accelerating without hesitation. Basic setting L: 1 1/4 turn
open. If an adjustment is necessary, try to reach the
maximum idle speed, by slowly closing the low speed needle
L clockwise until the engine starves from fuel. Then open
(counter-clockwise) 1/8 of a turn. Check the engine
acceleration.
CAUTION! A too lean adjusted low speed needle (the L-
needle closed too much) results in starting difficulties.
IMPORTANT INFORMATION The tension of a new drive
belt must be readjusted after one or two tanks of fuel have
been used.
!
WARNING! Never use the power cutter
without a blade guard over the cutting blade.
!
WARNING! Do not start the machine without
the cutting arm or cutting head fitted.
Otherwise the clutch could come loose and
cause personal injuries.

English – 17
MAINTENANCE
Fine adjustment of the idle speed T
Adjust the idle speed using the T screw. When an adjustment
is necessary, first turn the screw clockwise until the blade
starts to rotate. Now turn the screw anti-clockwise until the
blade stops rotating. A correctly adjusted idle speed is set
when the engine accelerates without hesitation.
Rec. idle speed: 2500 rpm
Fuel filter
• The fuel filter sits inside the fuel tank.
• The fuel tank must be protected from contamination when
filling. This reduces the risk of operating disturbances
caused by blockage of the fuel filter located inside the
tank.
• The filter cannot be cleaned but must be replaced with a
new filter when it is clogged. The filter should be
changed at least once per year.
Air filter
Air filters must be regularly cleaned to remove dust and dirt in
order to avoid:
• Carburettor malfunctions
• Starting problems
• Loss of engine power
• Unnecessary wear to engine parts.
• Excessive fuel consumption.
The air filter system consists of an oiled foam plastic filter (1)
and a paper filter (2):
1 The foam plastic filter is easily accessible under the filter
cover A. This filter should be checked weekly and
replaced if necessary. In order to obtain a good filtering
effect, the filter must be replaced regularly or cleaned and
oiled. A special HUSQVARNA oil has been produced for
this purpose.
Remove the foam plastic filter. Wash the filter well in tepid
soapy water. After cleaning, rinse the filter well in clean
water. Squeeze out and allow the filter to dry. NOTE! High
pressure compressed air can damage the foam.
Put the filter in a plastic bag and pour the filter oil over it.
Knead the plastic bag to distribute the oil. Squeeze the
excess oil out of the filter inside the plastic bag and pour
off the excess before fitting the filter to the machine. Never
use common engine oil.This would drain through the filter
quite quickly and collect in the bottom.
2 The paper filter is accessible under cover B. This filter
must be replaced/cleaned when the engine’s power drops
or after one-two weeks.The filter is cleaned by shaking or
by careful blowing with compressed air. Note that the filter
must not be washed.
An air filter that has been in use for a long time cannot be
cleaned completely.The filter must therefore be replaced with
a new one at regular intervals. A damaged air filter must
always be replaced.
!
WARNING! If the idle speed cannot be
adjusted so that the cutting attachment
stops, contact your dealer/service
workshop. Do not use the machine until it
has been correctly adjusted or repaired.
IMPORTANT INFORMATION
Poor maintenance of the air filter will cause carbon build-up
on the spark plug and abnormal wear to engine parts.
A
B

18 – English
MAINTENANCE
Starter
Changing a broken or worn starter cord
• Loosen the screws that hold the starter against the
crankcase and remove the starter.
• Pull out the cord approx. 30 cm and hook it into the notch
in the rim of the pulley. Release the recoil spring by letting
the pulley rotate slowly backwards.
• Undo the screw in the centre of the pulley and remove the
pulley. Insert and fasten a new starter cord to the pulley.
Wind approx. 3 turns of the starter cord onto the pulley.
Connect the pulley to the recoil spring so that the end of
the spring engages in the pulley. Fit the screw in the
centre of the pulley. Insert the starter cord through the
hole in the starter housing and the starter handle. Make a
secure knot in the end of the starter cord.
Tensioning the recoil spring
• Hook the starter cord in the notch in the pulley and turn
the starter pulley about 2 turns clockwise.
CAUTION! Check that the pulley can be turned at least a
further 1/2 turn when the starter cord is pulled all the way
out.
Changing a broken recoil spring
• Lift up the starter pulley. See instructions under the
heading Changing a broken or worn starter cord.
Remember that the recoil spring is coiled under tension in
the starter housing.
• Loosen the bolts holding the spring cassette.
• Remove the recoil spring by tapping the starter, with the
inside facing downwards, gently on a work bench. If the
spring pops out during assembly, coil it up from the
outside, working inwards.
• Lubricate the recoil spring with light oil. Fit the pulley and
tension the recoil spring.
Fitting the starter
•To fit the starter, first pull out the starter cord and place the
starter in position against the crankcase. Then slowly
release the starter cord so that the pulley engages with
the pawls.
• Fit and tighten the screws that hold the starter.
!
WARNING! When the recoil spring is wound
up in the starter housing it is under tension
and can, if handled carelessly, pop out and
cause personal injury.
Always be careful when changing the recoil
spring or the starter cord. Always wear
protective goggles.

English – 19
MAINTENANCE
Spark plug
The spark plug condition is influenced by:
• Incorrect carburettor adjustment.
• Wrong fuel mixture (too much oil).
• A dirty air filter.
These factors cause deposits on the spark plug electrodes,
which may result in operating problems and starting
difficulties.
• If the machine is low on power, difficult to start or runs
poorly at idle speed: always check the spark plug first
before taking any further action. If the spark plug is dirty,
clean it and check that the electrode gap is 0.5 mm. The
spark plug should be replaced after about a month in
operation or earlier if necessary.
CAUTION! Always use the recommended spark plug type!
Use of the wrong spark plug can damage the piston/cylinder.
Cooling system
To keep the working temperature as low as possible the
machine is equipped with a cooling system.
The cooling system consists of:
1 Air intake on the starter.
2 Air guide plate.
3 Fins on the flywheel.
4 Cooling fins on the cylinder.
5 Cylinder cover
Clean the cooling system with a brush once a week, more
often in demanding conditions. A dirty or blocked cooling
system results in the machine overheating which causes
damage to the piston and cylinder.
Muffler
The muffler is designed to reduce the noise level and to direct
the exhaust gases away from the operator. The exhaust
gases are hot and can contain sparks, which may cause fire
if directed against dry and combustible material.
Never use a machine with a defective muffler.

20 – English
MAINTENANCE
General maintenance instructions
Below you will find some general maintenance instructions. If you have more questions, contact your service agent.
Daily maintenance
1 Check that the components of the throttle control work smoothly (throttle control and throttle trigger lock).
2 Check the tension of the drive belt.
3 Check the condition of the blade and the drive gear.
4 Check the condition of the blade guard.
5 Check the starter and starter cord and clean the outside of the starter unit’s air intake.
6 Check that nuts and screws are tight.
7 Check that the stop switch works correctly.
Weekly maintenance
8 Check, clean or replace the main filter.
9 Check that the handles and vibration damping elements are not damaged.
10 Clean the spark plug. Check that the electrode gap is 0.5 mm.
11 Clean the fins on the flywheel. Check the starter and the recoil spring.
12 Clean the cooling fins on the cylinder.
13 Check that the muffler is securely attached and not damaged.
14 Check the operation of the carburettor.
Monthly maintenance
15 Check the paper filter
16 Check the clutch centre, drive gear and clutch spring for wear.
17 Clean the outside of the carburettor.
18 Check the fuel filter and the fuel hose. Replace if necessary.
19 Clean the inside of the fuel tank.
20 Check all cables and connections.
4
11
2
9
15
17
1
8
191812
20
5
6
16 10 3
7
13 14
