Delta UniSaw 36-L31 User manual

INSTRUCTION MANUAL
UNISAW®
10" Left Tilting Arbor Saw
(Models 36-L31, 36-L31X, 36-L51, 36-L51X
36-L51L, 36-L53L)
PART NO. 422-40-651-0017 - 06-13-05
Copyright © 2005 Delta Machinery
To learn more about DELTA MACHINERY
visit our website at: www.deltamachinery.com.
For Parts, Service, Warranty or other Assistance,
please call 1-800-223-7278 (In Canada call 1-800-463-3582).

2
TABLE OF CONTENTS
Read and understand all warnings and operating instructions before using any tool or equipment. When
using tools or equipment, basic safety precautions should always be followed to reduce the risk of personal injury.
Improper operation, maintenance or modification of tools or equipment could result in serious injury and property
damage. There are certain applications for which tools and equipment are designed. Delta Machinery strongly
recommends that this product NOT be modified and/or used for any application other than for which it was designed.
If you have any questions relative to its application DO NOT use the product until you have written Delta Machinery
and we have advised you.
Online contact form at www.deltamachinery.com
Postal Mail: Technical Service Manager
Delta Machinery
4825 Highway 45 North
Jackson, TN 38305
(IN CANADA: 125 Mural St. Suite 300, Richmond Hill, ON, L4B 1M4)
Information regarding the safe and proper operation of this tool is available from the following sources:
Power Tool Institute
1300 Sumner Avenue, Cleveland, OH 44115-2851
www.powertoolinstitute.org
National Safety Council
1121 Spring Lake Drive, Itasca, IL 60143-3201
American National Standards Institute, 25 West 43rd Street, 4 floor, New York, NY 10036 www.ansi.org
ANSI 01.1Safety Requirements for Woodworking Machines, and
the U.S. Department of Labor regulations www.osha.gov
IMPORTANT SAFETY INSTRUCTIONS
SAVE THESE INSTRUCTIONS!
IMPORTANT SAFETY INSTRUCTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
SAFETY GUIDELINES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
GENERAL SAFETY RULES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
ADDITIONAL SPECIFIC SAFETY RULES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
FUNCTIONAL DESCRIPTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
CARTON CONTENTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
OPERATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16
TROUBLESHOOTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26
MAINTENANCE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .29
SERVICE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .29
ACCESSORIES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .30
WARRANTY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .30
SERVICE CENTER LOCATIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .back cover

3
Indicates an imminently hazardous situation which, if not avoided, will result in death or serious injury.
Indicates a potentially hazardous situation which, if not avoided, could result in death or serious injury.
Indicates a potentially hazardous situation which, if not avoided, may result in minor or moderate injury.
Used without the safety alert symbol indicates potentially hazardous situation which, if not avoided, may
result in property damage.
It is important for you to read and understand this manual. The information it contains relates to protecting
YOUR SAFETY and PREVENTING PROBLEMS. The symbols below are used to help you recognize this
information.
SAFETY GUIDELINES - DEFINITIONS
SOME DUST CREATED BY POWER SANDING, SAWING, GRINDING, DRILLING, AND OTHER
CONSTRUCTION ACTIVITIES contains chemicals known to cause cancer, birth defects or other reproductive harm.
Some examples of these chemicals are:
· lead from lead-based paints,
· crystalline silica from bricks and cement and other masonry products, and
· arsenic and chromium from chemically-treated lumber.
Your risk from these exposures varies, depending on how often you do this type of work. To reduce your exposure to
these chemicals: work in a well ventilated area, and work with approved safety equipment, always wear NIOSH/OSHA
approved, properly fitting face mask or respirator when using such tools.
CALIFORNIA PROPOSITION 65

4
GENERAL SAFETY RULES
1. FOR YOUR OWN SAFETY, READ THE INSTRUCTION
MANUAL BEFORE OPERATING THE MACHINE.
Learning the machine’s application, limitations, and
specific hazards will greatly minimize the possibility
of accidents and injury.
2. WEAR EYE AND HEARING PROTECTION.
ALWAYS USE SAFETY GLASSES. Everyday
eyeglasses are NOT safety glasses. USE CERTIFIED
SAFETY EQUIPMENT. Eye protection equipment
should comply with ANSI Z87.1 standards. Hearing
equipment should comply with ANSI S3.19
standards.
3. WEAR PROPER APPAREL. Do not wear loose
clothing, gloves, neckties, rings, bracelets, or other
jewelry which may get caught in moving parts.
Nonslip footwear is recommended. Wear protective
hair covering to contain long hair.
4. DO NOT USE THE MACHINE IN A DANGEROUS
ENVIRONMENT. The use of power tools in damp or
wet locations or in rain can cause shock or
electrocution. Keep your work area well-lit to
prevent tripping or placing arms, hands, and fingers
in danger.
5. MAINTAIN ALL TOOLS AND MACHINES IN PEAK
CONDITION. Keep tools sharp and clean for best and
safest performance. Follow instructions for lubricating and
changing accessories. Poorly maintained tools and
machines can further damage the tool or machine and/or
cause injury.
6. CHECK FOR DAMAGED PARTS. Before using the
machine, check for any damaged parts. Check for
alignment of moving parts, binding of moving parts,
breakage of parts, and any other conditions that
may affect its operation. A guard or any other part
that is damaged should be properly repaired or
replaced. Damaged parts can cause further
damage to the machine and/or injury.
7. KEEP THE WORK AREA CLEAN. Cluttered areas and
benches invite accidents.
8. KEEP CHILDREN AND VISITORS AWAY. Your shop is a
potentially dangerous environment. Children and visitors
can be injured.
9. REDUCE THE RISK OF UNINTENTIONAL STARTING.
Make sure that the switch is in the “OFF” position
before plugging in the power cord. In the event of a
power failure, move the switch to the “OFF”
position. An accidental start-up can cause injury.
10. USE THE GUARDS. Check to see that all guards are
in place, secured, and working correctly to reduce
the risk of injury.
11. REMOVE ADJUSTING KEYS AND WRENCHES
BEFORE STARTING THE MACHINE. Tools, scrap
pieces, and other debris can be thrown at high
speed, causing injury.
12. USE THE RIGHT MACHINE. Don’t force a machine
or an attachment to do a job for which it was not
designed. Damage to the machine and/or injury may
result.
13. USE RECOMMENDED ACCESSORIES. The use of
accessories and attachments not recommended by
Delta may cause damage to the machine or injury to
the user.
14. USE THE PROPER EXTENSION CORD. Make sure
your extension cord is in good condition. When
using an extension cord, be sure to use one heavy
enough to carry the current your product will draw.
An undersized cord will cause a drop in line voltage,
resulting in loss of power and overheating. See the
Extension Cord Chart for the correct size depending
on the cord length and nameplate ampere rating. If
in doubt, use the next heavier gauge. The smaller
the gauge number, the heavier the cord.
15. SECURE THE WORKPIECE. Use clamps or a vise to
hold the workpiece when practical. Loss of control
of a workpiece can cause injury.
16. FEED THE WORKPIECE AGAINST THE DIRECTION OF
THE ROTATION OF THE BLADE, CUTTER, OR
ABRASIVE SURFACE. Feeding it from the other
direction will cause the workpiece to be thrown out
at high speed.
17. DON’T FORCE THE WORKPIECE ON THE MACHINE.
Damage to the machine and/or injury may result.
18. DON’T OVERREACH. Loss of balance can make
you fall into a working machine, causing injury.
19. NEVER STAND ON THE MACHINE. Injury could occur if
the tool tips, or if you accidentally contact the cutting tool.
20. NEVER LEAVE THE MACHINE RUNNING
UNATTENDED. TURN THE POWER OFF. Don’t leave the
machine until it comes to a complete stop. A child or visitor
could be injured.
21. TURN THE MACHINE “OFF”, AND DISCONNECT THE
MACHINE FROM THE POWER SOURCE before
installing or removing accessories, before adjusting
or changing set-ups, or when making repairs. An
accidental start-up can cause injury.
22. MAKE YOUR WORKSHOP CHILDPROOF WITH
PADLOCKS, MASTER SWITCHES, OR BY
REMOVING STARTER KEYS. The accidental start-
up of a machine by a child or visitor could cause
injury.
23. STAY ALERT, WATCH WHAT YOU ARE DOING,
AND USE COMMON SENSE. DO NOT USE THE
MACHINE WHEN YOU ARE TIRED OR UNDER
THE INFLUENCE OF DRUGS, ALCOHOL, OR
MEDICATION. A moment of inattention while
operating power tools may result in injury.
24. USE OF THIS TOOL CAN GENERATE
AND DISBURSE DUST OR OTHER
AIRBORNE PARTICLES, INCLUDING WOOD DUST,
CRYSTALLINE SILICA DUST AND ASBESTOS
DUST. Direct particles away from face and body.
Always operate tool in well ventilated area and provide
for proper dust removal. Use dust collection system
wherever possible. Exposure to the dust may cause
serious and permanent respiratory or other injury,
including silicosis (a serious lung disease), cancer, and
death. Avoid breathing the dust, and avoid prolonged
contact with dust. Allowing dust to get into your mouth
or eyes, or lay on your skin may promote absorption of
harmful material. Always use properly fitting
NIOSH/OSHA approved respiratory protection
appropriate for the dust exposure, and wash exposed
areas with soap and water.
FAILURE TO FOLLOW THESE RULES MAY RESULT IN SERIOUS INJURY.

5
ADDITIONAL SAFETY RULES FOR TABLE SAWS
1. DO NOT OPERATE THIS MACHINE until it is
assembled and installed according to the
instructions.
2. OBTAIN ADVICE FROM YOUR SUPERVISOR,
instructor, or another qualified person if you are not
familiar with the operation of this machine.
3. FOLLOW ALL WIRING CODES and recommended
electrical connections.
4. USE THE GUARDS WHENEVER POSSIBLE. Check
to see that they are in place, secured, and working
correctly.
5. KICKBACK IS THE NATURAL TENDENCY OF THE
WORKPIECE TO BE THROWN BACK AT THE
OPERATOR when the workpiece initially contacts the
blade or if the workpiece pinches the blade. Kickback
is dangerous and can result in serious injury.
AVOID KICKBACK by:
A. keeping blade sharp and free of rust and pitch.
B. keeping rip fence parallel to the saw blade.
C. using saw blade guard and spreader for every
possible operation, including all through sawing.
D. pushing the workpiece past the saw blade prior to
release.
E. never ripping a workpiece that is twisted or
warped, or does not have a straight edge to guide
along the fence.
F. using featherboards when the anti-kickback device
cannot be used.
G. never sawing a large workpiece that cannot be
controlled.
H. never using the fence as a guide when
crosscutting.
I. never sawing a workpiece with loose knots or other
flaws.
6. ALWAYS USE GUARDS, SPLITTER, AND ANTI-
KICKBACK FINGERS whenever possible.
7. REMOVE CUT-OFF PIECES AND SCRAPS from the
table before starting the saw. The vibration of the
machine may cause them to move into the saw blade
and be thrown out. After cutting, turn the machine off.
After the blade has come to a complete stop, remove
all debris.
8. NEVER START THE MACHINE with the workpiece
against the blade.
9. NEVER run the workpiece between the fence and a
moulding cutterhead.
10. CUTTING THE WORKPIECE WITHOUT THE USE OF
A FENCE OR MITER GAUGE IS KNOWN AS
“FREEHAND” CUTTING. NEVER perform “free-hand”
operations. Use either the fence or miter gauge to
position and guide the workpiece.
11. HOLD THE WORKPIECE FIRMLY against the miter
gauge or fence.
12. CUTTING COMPLETELY THROUGH THE WORK-
PIECE IS KNOWN AS “THROUGH-SAWING”.
Ripping and cross-cutting are through-sawing
operations. Cutting with the grain (or down the length
of the workpiece) is ripping. Cutting across the grain (or
across the workpiece) is cross-cutting. Use a fence or
fence system for ripping. DO NOT use a fence or fence
system for cross-cutting. Instead, use a miter gauge.
USE PUSH STICK(S) for ripping a narrow workpiece.
13. AVOID AWKWARD OPERATIONS AND HAND
POSITIONS where a sudden slip could cause a hand
to move into the blade.
14. KEEP ARMS, HANDS, AND FINGERS away from the
blade.
15. NEVER have any part of your body in line with the path
of the saw blade.
16. NEVER REACH AROUND or over the saw blade.
17. NEVER attempt to free a stalled saw blade without first
turning the machine “OFF”.
18. PROPERLY SUPPORT LONG OR WIDE workpieces.
19. NEVER PERFORM LAYOUT, assembly or set-up work
on the table/work area when the machine is running.
20. TURN THE MACHINE “OFF” AND DISCONNECT
THE MACHINE from the power source before
installing or removing accessories, before adjusting or
changing set-ups, or when making repairs.
21. TURN THE MACHINE “OFF”, disconnect the machine
from the power source, and clean the table/work area
before leaving the machine. LOCK THE SWITCH IN
THE “OFF” POSITION to prevent unauthorized use.
22. ADDITIONAL INFORMATION regarding the safe
and proper operation of power tools (i.e. a safety
video) is available from the Power Tool Institute,
1300 Sumner Avenue, Cleveland, OH 44115-2851
(www.powertoolinstitute.com). Information is also
available from the National Safety Council, 1121 Spring
Lake Drive, Itasca, IL 60143-3201. Please refer to the
American National Standards Institute ANSI 01.1
Safety Requirements for Woodworking Machines and
the U.S. Department of Labor OSHA 1910.213
Regulations.
SAVE THESE INSTRUCTIONS.
Refer to them often
and use them to instruct others.
FAILURE TO FOLLOW THESE RULES MAY RESULT IN SERIOUS INJURY.

6

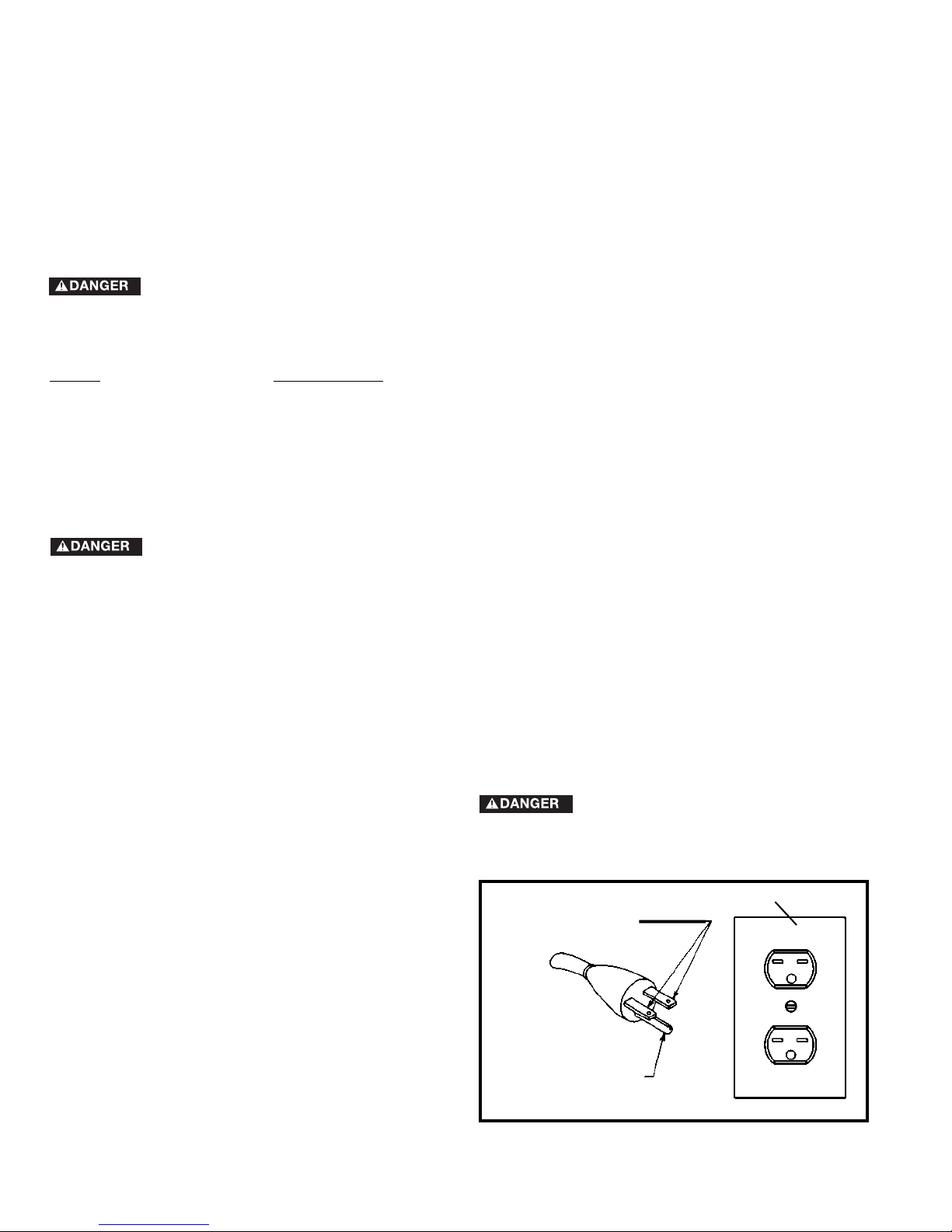

THIS MACHINE MUST BE GROUNDED WHILE IN USE TO PROTECT THE OPERATOR FROM
ELECTRIC SHOCK.
machine will have a grounding plug that looks like the
plug illustrated in Fig. A. Make sure the machine is
connected to an outlet having the same configuration as
the plug. No adapter is available or should be used with
this machine. If the machine must be re-connected for
use on a different type of electric circuit, the re-
connection should be made by qualified service
personnel; and after re-connection, the machine should
comply with all local codes and ordinances.
NOTE: In Canada, the use of a temporary adapter is
not permitted by the Canadian Electric Code.
IN ALL CASES, MAKE CERTAIN THE
RECEPTACLE IN QUESTION IS
PROPERLY GROUNDED. IF YOU ARE NOT SURE HAVE
A QUALIFIED ELECTRICIAN CHECK THE RECEPTACLE.
A separate electrical circuit should be used for your machines:
FOR SINGLE PHASE UNITS (EXCEPT THE FIVE HORSEPOWER): This circuit should not be less than #12 wire
and should be protected with a 20 Amp time lag fuse.
FOR FIVE HORSEPOWER, SINGLE PHASE UNITS: The circuit should not be less than #10 wire and should be protected
with a 40 Amp time lag fuse.
FOR PERMANENTLY CONNECTED MACHINES: See No. 3 in “GROUNDING INSTRUCTIONS.”
If an extension cord is used, use only 3-wire extension cords which have 3-prong grounding type plugs and matching
receptacle which will accept the machine’s plug. Before connecting the machine to the power line, make sure the
switch is in the “OFF” position and be sure that the electric current is of the same characteristics as indicated on the
machine. All line connections should make good contact. Running on low voltage will damage the machine. (See
“THREE PHASE OPERATION” and “LVC MAGNETIC MOTOR CONTROL” sections for more information on power
connections.)
DO NOT EXPOSE THE MACHINE TO RAIN OR OPERATE THE MACHINE IN DAMP LOCATIONS.
1. All grounded, cord-connected machines:
In the event of a malfunction or breakdown, grounding
provides a path of least resistance for electric current to
reduce the risk of electric shock. This machine is equipped
with an electric cord having an equipment-grounding
conductor and a grounding plug. The plug must be plugged
into a matching outlet that is properly installed and grounded
in accordance with all local codes and ordinances.
Do not modify the plug provided - if it will not fit the outlet,
have the proper outlet installed by a qualified electrician.
Improper connection of the equipment-grounding
conductor can result in risk of electric shock. The conductor
with insulation having an outer surface that is green with or
without yellow stripes is the equipment-grounding
conductor. If repair or replacement of the electric cord or
plug is necessary, do not connect the equipment-grounding
conductor to a live terminal.
Check with a qualified electrician or service personnel if the
grounding instructions are not completely understood, or if
in doubt as to whether the machine is properly grounded.
Use only 3-wire extension cords that have 3-prong
grounding type plugs and matching 3-conductor
receptacles that accept the machine’s plug. Repair or
replace damaged or worn cord immediately.
POWER CONNECTIONS
MOTOR SPECIFICATIONS
GROUNDING INSTRUCTIONS
GROUNDED OUTLET BOX
CURRENT
CARRYING
PRONGS
GROUNDING BLADE
IS LONGEST OF THE 3 BLADES
All Unisaw motors are rated for 60 HZ alternating current, but voltage and HP varies according to model:
Model: Specifications:
36-L31, 36-L31X 3HP, 230V single phase motor
36-L51, 36-L51X, 36-L51L 5HP, 230V single phase motor
36-L53L 5 HP, 208-230V/460V three phase motor (Wired for 230V unless otherwise specified.)
Before connecting the machine to the power source, make sure the switch is in the “OFF” position.
2. Grounded, cord-connected machines intended for
use on a supply circuit having a nominal rating
between 150 - 250 volts, inclusive:
If the machine is intended for use on a circuit that has an
outlet that looks like the one illustrated in Fig. A, the

7
3. Permanently connected machines:
If the machine is intended to be permanently connected, all
wiring must be done by a qualified electrician and conform
to the National Electric Code and all local codes and
ordinances.
*THREE PHASE OPERATION: Three phase machines
are not supplied with a power cord and must be
permanently connected to a building’s electrical system.
Extension cords can’t be used with a three phase
machine.
* LVC MAGNETIC MOTOR CONTROL: If you
purchased a machine that has a Low Voltage Magnetic
Motor Control System, refer to its instruction manual for
installation guidance.
EXTENSION CORDS
Use proper extension cords. Make sure your extension cord is in good condition and is a 3-wire
extension cord which has a 3-prong grounding type plug and matching receptacle which will accept the machine’s
plug. When using an extension cord, be sure to use one heavy enough to carry the current of the machine. An
undersized cord will cause a drop in line voltage, resulting in loss of power and overheating. Fig. D-1 shows the correct
gauge to use depending on the cord length. If in doubt, use the next heavier gauge. The smaller the gauge number,
the heavier the cord.
Fig. D-1
MINIMUM GAUGE EXTENSION CORD
RECOMMENDED SIZES FOR USE WITH STATIONARY ELECTRIC MACHINES
Ampere Total Length Gauge of
Rating Volts of Cord in Feet Extension Cord
0-6 240 up to
50 18 AWG
0-6 240 50-100 16 AWG
0-6 240 100-200 16 AWG
0-6 240 200-300 14 AWG
6-10 240
up to 50 18 AWG
6-10 240 50-100 16 AWG
6-10 240 100-200 14 AWG
6-10 240 200-300 12 AWG
10-12 240
up to 50 16 AWG
10-12 240 50-100 16 AWG
10-12 240 100-200 14 AWG
10-12 240 200-300 12 AWG
12-16 240
up to 50 14 AWG
12-16 240 50-100 12 AWG
12-16 240
GREATER THAN 100 FEET NOT RECOMMENDED
FOREWORD
The Delta Unisaw is a 10" left tilting arbor saw. The Delta Unisaw features set the standards in the table saw industry.
A RIP FENCE ASSEMBLY IS NOT PACKAGED WITH THE PRODUCT. YOU MUST INSTALL AND USE A
RIP FENCE SYSTEM FOR RIPPING OPERATIONS.
FUNCTIONAL DESCRIPTION
NOTICE: THE PHOTO ON THE MANUAL COVER ILLUSTRATES THE CURRENT PRODUCTION
MODEL. ALL OTHER ILLUSTRATIONS CONTAINED IN THE MANUAL ARE REPRESENTATIVE ONLY
AND MAY NOT DEPICT THE ACTUAL COLOR, LABELING OR ACCESSORIES AND ARE INTENDED
TO ILLUSTRATE TECHNIQUE ONLY.
UNPACKING AND CLEANING
Carefully unpack the machine and all loose items from the shipping container(s). Remove the protective coating from
all unpainted surfaces. This coating may be removed with a soft cloth moistened with kerosene (do not use acetone,
gasoline or lacquer thinner for this purpose). After cleaning, cover the unpainted surfaces with a good quality household
floor paste wax.
REMOVE THE STYROFOAM PACKING AND ANY OTHER LOOSE ITEMS FROM THE INSIDE OF THE
SAW CABINET. THE MOTOR COVER MUST BE REMOVED IN ORDER TO REMOVE ITEMS AND PACKING
MATERIAL FROM INSIDE THE SAW CABINET. TO REMOVE THE MOTOR COVER, USE AN ALLEN WRENCH TO
REMOVE THE 1/4-20x5/8" HEX HEAD SCREW FROM LOCATION (B) FIG. 1, AND PUSH MOTOR COVER FIRMLY
TO ONE SIDE TO DEPRESS CLIPS, AND PULL MOTOR COVER OFF. SEE SECTION “MOTOR COVER”.
IMPORTANT: The saw is shipped with the saw arbor in the 45 degree position. NOTE: THE HAND WHEEL MUST BE
ASSEMBLED TO THE SAW, SEE THE SECTION “BLADE TILTING HANDWHEEL”, THEN PROCEED WITH THE
FOLLOWING. Loosen locking knob on the handwheel, and turn handwheel until the saw arbor is in the 90 degree
position and remove the styrofoam packing from inside the saw cabinet. Tighten locking knob.
CARTON CONTENTS

8
34 5
67
8
9
10
11
12 13 14
15 1617 18
19
20
21
22
23
24
25
26
27
28
29
31
32
33
34
35
30
Fig. 1 Fig. 2
1
B
2
ASSEMBLY
ASSEMBLY TOOLS REQUIRED
* 1/8" Hex wrench (supplied)
* 5/64" Hex wrench (supplied)
* 7/8" Open end arbor wrench (supplied)
* 7/8"x1/2" Closed end arbor wrench (supplied)
* Various other open-end wrenches or a socket set (not
supplied)
ASSEMBLY TIME ESTIMATE - 2 to 3 hrs.
FOR YOUR OWN SAFETY, DO NOT CONNECT THE MACHINE TO THE POWER SOURCE UNTIL
THE MACHINE IS COMPLETELY ASSEMBLED AND YOU READ AND UNDERSTAND THE ENTIRE
INSTRUCTION MANUAL.
Fig. 1

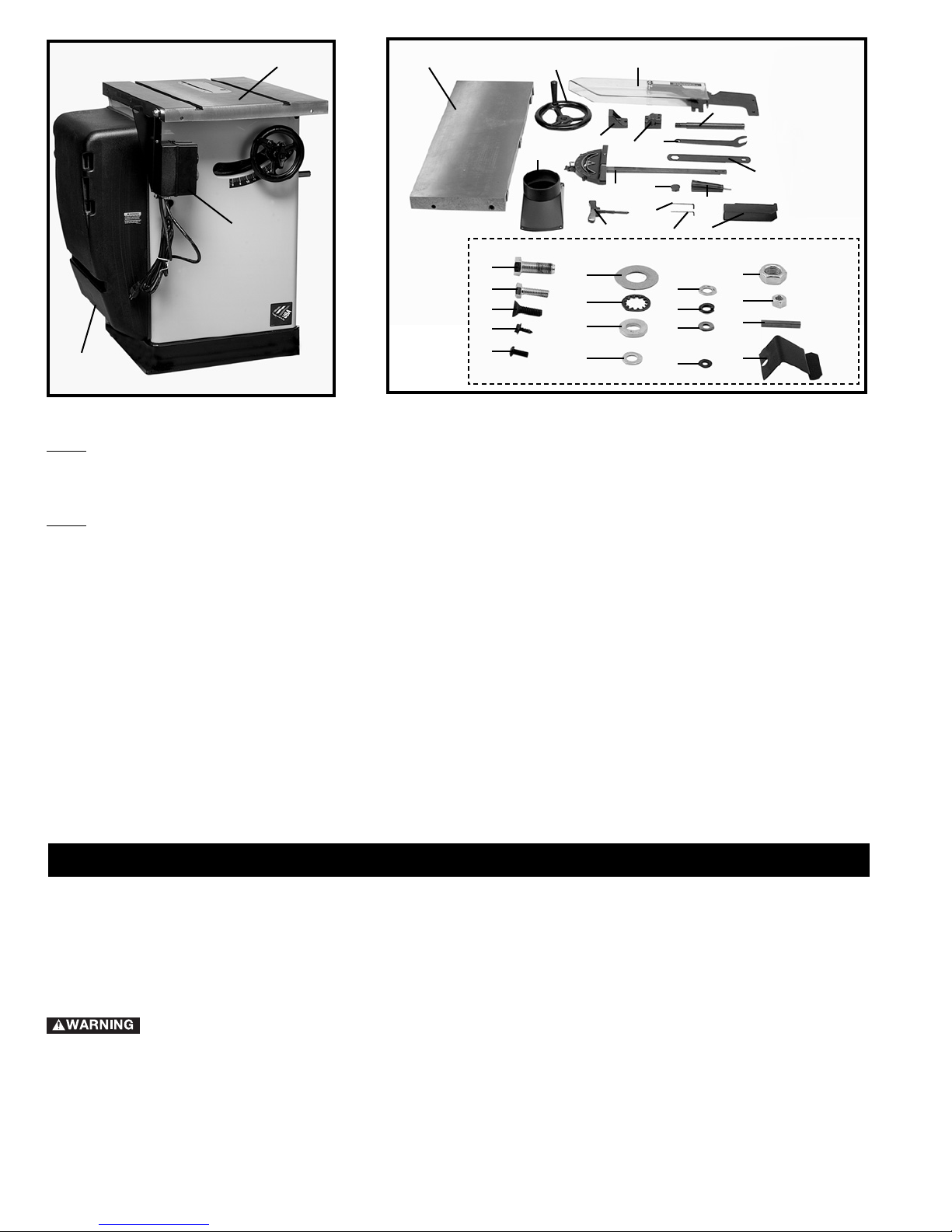

1. Unisaw
2. Switch (shown with a magnetic starter)
Fig. 2
3. Extension wing (2)
4. Handwheel
5. Blade guard and splitter assembly
6. Upper bracket for splitter
7. Lower bracket for support rod
8. Support rod
9. 7/8" Open end arbor wrench
10. 7/8"x1/2" Closed end arbor wrench
11. Dust chute
12. Miter gage
13. Cap for miter gage handle
14. Handle for miter gage
15. Handwheel lock knob
16. 1/8" Hex wrench
17. 5/64" Hex wrench
18. Hanger for rip fence (2)
19. 7/16-20x1¼" Hex head screw (6)
20. 5/16-18x1" Hex head screw (4)
21. 5/16-18x1" Flat Head Screw (1)
22. #10x1/2" Hex washer head screw (8)
23. 10-32x1/2" Pan head screw (2) (use w/ LVC starters)
24. 3/4" I.D. Fiber washer (1)
25. 5/8" I.D. Internal tooth washer (1)
26. 7/16" I.D. Flat washer (6)
27. 5/16" I.D. Flat washer (2)
28. 5/16" I.D. Flat washer (1) (use w/ magnetic starters)
29. 5/16" I.D. Lockwasher (3)
30. 1/4" I.D. Fiber washer (1)
31. 13/64" I.D. Flat washer (2) (use w/ LVC starters)
32. 5/8-18 Jam nut (1)
33. 5/16-18 Hex nut (1) (use w/ magnetic starters)
34. 1-3/8" Key (1)
35. Spring clip (2) (use w/ LVC starters)

9
BLADE TILTING HANDWHEEL

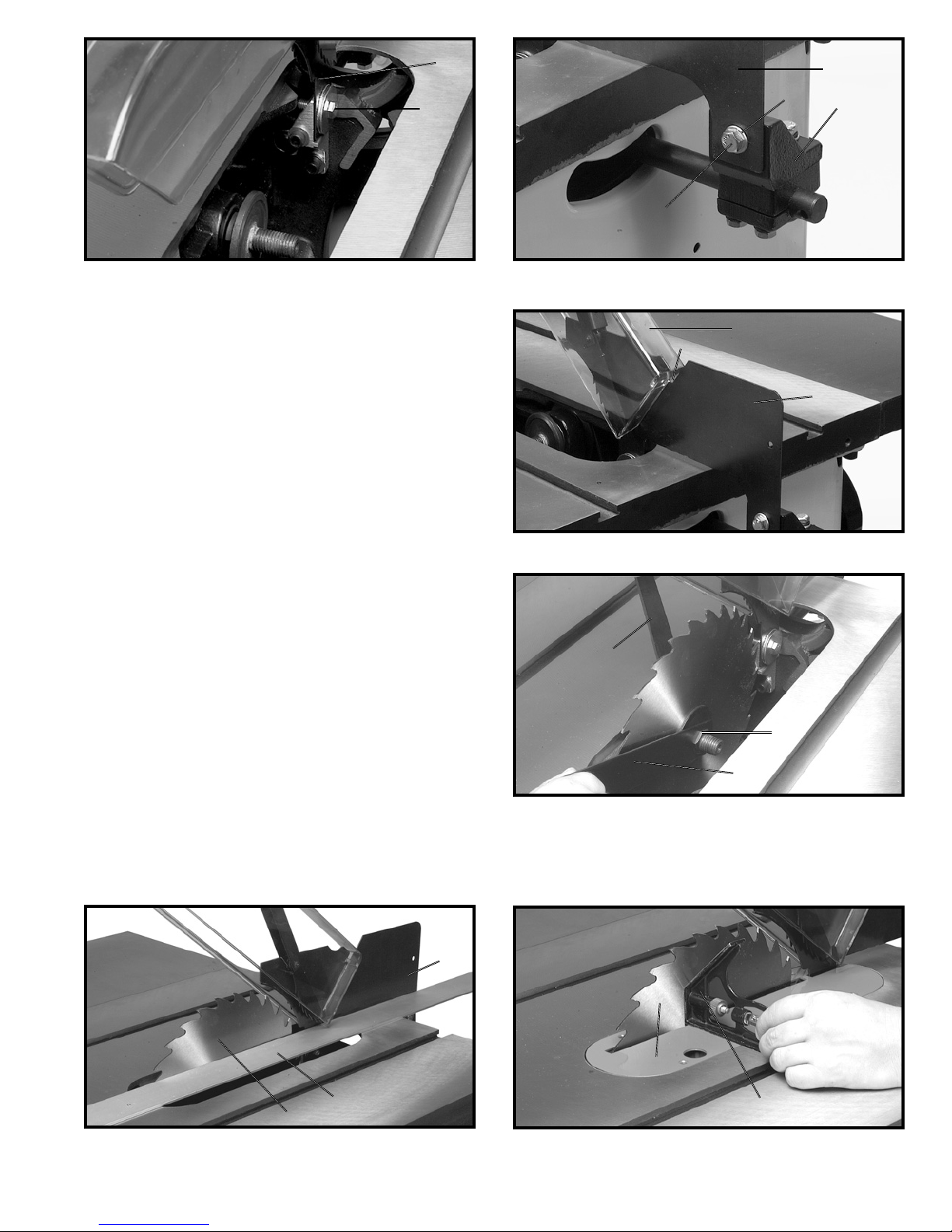

1. Install fiber washer (A) Fig. 3, on the blade tilting
handwheel shaft (B). Install key (C), into shaft keyway.
2. Place handwheel (D) on shaft (B) Fig. 3. Make sure
the groove (E), in the handwheel lines up with the key (C).
3. Push the handwheel snugly against the fiber washer
and tighten the set screw.
4. Install lock knob (F) Fig. 4, into threaded end of the
shaft (B). Hand-tighten lock knob at this time.
Fig. 3
Fig. 4
EXTENSION WINGS
NOTE: CHECK TO SEE WHAT TYPE OF STARTER
BOX WAS SHIPPED WITH YOUR SAW (MAGNETIC
STARTER OR LVC). MOST MAGNETIC STARTERS
HAVE A RECTANGULAR “ON” BUTTON AND A
ROUND “OFF” BUTTON. (SOME HAVE TWO ROUND
BUTTONS) AN LVC STARTER HAS RECTANGLE “ON”
AND “OFF” BUTTONS.
NOTE FOR MAGNETIC STARTER BOX: If your Unisaw
was shipped with a magnetic starter box, the
“ON/OFF” switch must be removed from the left side
of the Unisaw. When assembling the left extension
wing, do not install the front screw and washer at this
time, it will be installed when assembling the on/off
switch.
NOTE FOR LVC STARTER BOX: If your Unisaw was
shipped with an LVC starter box, the LVC “ON/OFF”
switch must be removed from the left side of the
Unisaw. Save the hardware that attached the LVC
“ON/OFF” switch to the Unisaw because it will be
used to re-attach the “ON/OFF” switch to the left
extension wing in the section “ASSEMBLING LVC
ON/OFF SWITCH.”
Assemble the extension wing (A) Fig. 5 , to the left side of
the saw table using the three 7/16"-20x1¼" hex head
screws (B) and 7/16" flat washers supplied. NOTE:
MAKE SURE FRONT EDGE OF WING IS FLUSH TO
OR SLIGHTLY BEHIND THE FRONT EDGE OF THE
TABLE. Use a straight edge (C) Fig. 6, to make sure the
extension wing (A) is level with the saw table before
tightening the screws (B) Fig. 5.
Assemble the right extension wing in the same manner.
Fig. 5
Fig. 6
C
A
A
B
C
DE
F
B
A
B

10
LVC STARTER BOX TO CABINET
If you purchased the machine with magnetic push
button electrical controls (LVC), the saw is shipped with
the starter box completely wired to the switch and
motor. However, the starter box must be mounted to the

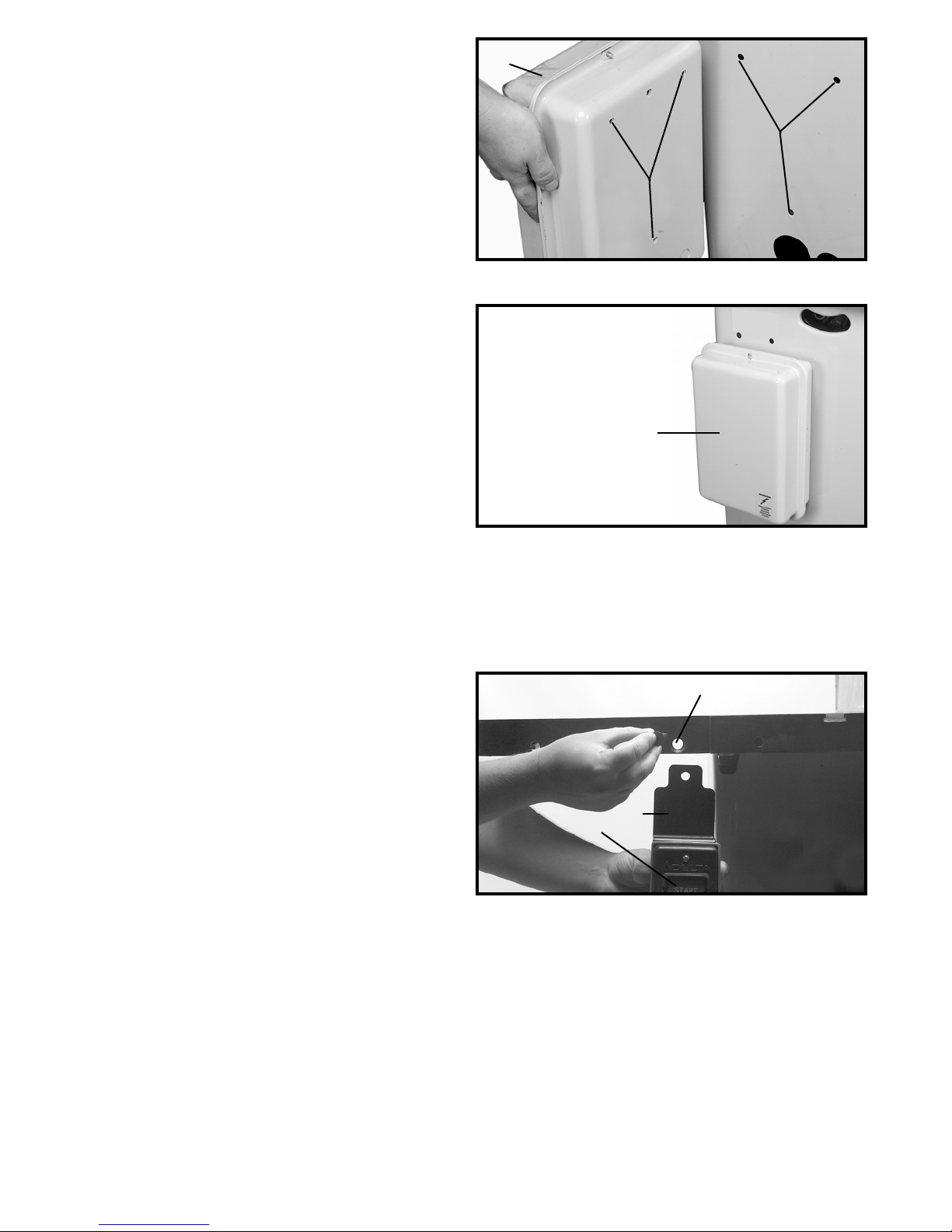

saw cabinet. To assemble the starter box (A) Fig. 7, to
the saw cabinet, proceed as follows:
1. Place a 1/4" lockwasher then a 1/4" flat washer onto
a 1/4-20x1/2" hex head screw. From the inside rear of
the saw cabinet, insert the 1/4-20 x 1/2" hex head screw
into the hole (B) Fig. 7, in the cabinet. Repeat this
process for the two remaining screws.
2. Line up the three tapped holes (C) Fig. 7, in the
starter box with the screws and secure the starter box
(A), to the saw cabinet.
3. Figure 8 illustrates the starter box (A) assembled to
the saw cabinet.
Fig. 7
Fig. 8
A
C
B
A
LVC ON / OFF SWITCH
1. Locate the LVC switch and hardware that was
removed in the section “ EXTENSION WING.”
2. Mount the switch bracket (C) Fig. 9, to the inside of
through hole D) on the left front edge of the extension
wing with the hardware that was removed.
NOTE: If you have a magnetic starter switch see
“MAGNETIC STARTER ON/OFF SWITCH”
instructions.
Fig. 9
D
C
A

11
MAGNETIC STARTER
ON / OFF SWITCH
1. Locate the magnetic starter switch and hardware
that was removed in the section “EXTENSION WINGS.”
2. Loosely assemble switch and switch bracket (A) Fig.
12, to the inside front lip of extension wing. Insert a 5/16-
18x1" flat head screw (D) through hole (G), place a 5/16"
flat washer (E) on screw and secure with a 5/16" hex nut
(F).
3. Attach the side of switch bracket (A) Fig. 13, to the
inside of extension wing at the front of the saw using the
7/16-20x1-1/4" screw (C) and 7/16" flat washer. Tighten
screws (C) and (D) securely.
Fig. 12
Fig. 13
D
A
C
GUARD AND SPLITTER ASSEMBLY
DISCONNECT MACHINE FROM POWER
SOURCE.
1. Remove the table insert Fig. 14. Raise the saw arbor,
by turning the locking handle on the front of the saw,
counter clockwise and then turn the wheel on the front of
the saw clockwise as far as it will go, and remove the saw
blade from the machine by following the instructions in
section “CHANGING THE SAW BLADE”.
2. The inside splitter mounting bracket (A) Fig. 15, is
assembled to the inside of the saw and aligned with the
inside blade flange (B) at the factory.
3. To check the alignment, remove screw and fastener
plate (C) Fig. 15. Using a straight edge (D) Fig. 16, check
to see if the splitter bracket (A) is aligned with the inside
blade flange (B). Check both the top and bottom of
bracket (A) with the top and bottom of flange (B). Fig. 14
Fig. 15 Fig. 16
A
D
E
FG
A
B
C
A
D
B

12
Fig. 17 Fig. 18
Fig. 19
Fig. 21
Fig. 20
4. If an adjustment is necessary, loosen two screws (F)
Fig. 17, and adjust splitter bracket (A) until it is aligned
with the inside blade flange (B) Fig. 15. Tighten two
screws (F). Loosely assemble screw and fastener plate
(C), which were removed in STEP 3.
5. Insert threaded end of support rod (G) Fig. 18,
through slot in rear of saw and into hole in rear trunnion
(H). Fasten support rod (G) to trunnion with star washer
and 5/8-18 hex jam nut (J) Fig. 19. NOTE: Thread nut (J)
Fig. 19, onto threads of support rod (G) as much as
possible by hand.
6. Using a wrench to hold the 5/8-18 hex jam nut (J) Fig.
19, tighten rod (G) Fig. 20, with a small screwdriver (K) or
similar device through the hole in the end of the rod as
shown in Figure 20.
7. Assemble lower bracket (L) Fig. 21, to rod (G) and
loosely tighten with two 5/16-18x1" hex head screws (S)
and 5/16" lockwashers (T) from underneath bracket (L).
8. Align the hole in the upper splitter bracket (M) Fig. 22,
with the hole in the lower splitter bracket (L). Place a
5/16" lockwasher, then a 5/16" flat washer, onto a 5/16-
18x1" hex head screw (N), insert the screw (N) through
the hole in the upper splitter bracket (M) and thread the
screw into the lower splitter bracket (L). NOTE: Do not
tighten screw (N) at this time.
Fig. 22
A
FH
G
J
K
G
G
S
L
TT
M
L
N

13
Fig. 23 Fig. 24
Fig. 25
Fig. 27
Fig. 26
9. Insert the front end of splitter (P) Fig. 23, inside the
splitter mounting bracket behind splitter fastener plate
and screw (C). Push splitter down as far as possible,
making certain the bottom edge of splitter (P) is parallel
with the table surface. Tighten screw (C). Fasten splitter
and blade guard assembly (P) Fig. 24, to bracket (M)
using a 5/16-18x1" hex head screw (V) and 5/16" flat
washer (O).
10. IMPORTANT: The splitter (P) Fig. 25, features a
notch (W) cut into the top edge. Raise the front of the
clear blade guard (G) Fig. 25, until the rear edge of the
guard slips into notch (W) of the splitter. This notch
enables the blade guard to stay in the raised position and
makes changing blades easier.
11. Reassemble the saw blade, making certain the teeth
are pointing down at the front of the saw table as shown
in Fig. 26, and assemble the outside blade flange and
arbor nut (X). With open end wrench (Y) on the flats of the
arbor to keep it from turning, tighten arbor nut by turning
box end wrench (Z) clockwise.
12. Using a straight edge (A) Fig. 27, make certain the
splitter (P) is aligned with the saw blade (B). Using a
square (C) Figs. 28 and 29, make certain saw blade (B)
Fig. 28, and splitter (P) Fig. 29, are 90 degrees to the
table surface. Once you are certain the splitter is aligned
to the saw blade and table, tighten all splitter mounting
hardware (D) Fig. 29 and recheck alignment.
Fig. 28
C
P
V
M
P
O
P
WG
X
Y
Z
A
P
BC
B

14
Fig. 29 Fig. 30
13. Holding the clear blade guard, lower the saw blade
and assemble the table insert (E) Fig. 30, into the open-
ing on the saw table.
14. Place a straight edge (B) across the table at both
ends of the table insert as shown in Fig. 31.
THE TABLE INSERT (A) SHOULD
ALWAYS BE LEVEL WITH THE TABLE.
If an adjustment is necessary, turn the adjusting screws
(C), as needed, with the 1/8" allen wrench supplied.
Fig. 31
Fig. 33
A
MOTOR COVER
NOTE: IF YOUR UNISAW HAS AN LVC STARTER
BOX, YOU WILL HAVE TO ATTACH TWO BOTTOM
SPRING CLIPS TO THE MOTOR COVER. IF YOUR
UNISAW HAS A MAGNETIC STARTER BOX, THE
SPRING CLIPS ARE ALREADY ATTACHED TO THE
MOTOR COVER.
1. Attach the two motor cover clips to the motor cover.
Align the hole in the motor cover clip with the hole in the
motor cover. Place a 13/64 flat washer onto a 10-32x1/2"
screw (A), insert screw through the hole in the motor
cover clip and thread screw (A) into the tapped hole in the
motor cover, repeat this process for the remaining motor
cover clip, Fig. 33.
P
C
D
E
CB
C
A

15
2. Place the motor cover (A) in the opening of the
Unisaw as shown in Fig. 34. Place the rear motor cover
clips inside the motor opening and push the front of the
motor cover until all four motor cover clips are engaged
with the motor cover opening in the Unisaw.
3. Align the hole (B) Fig. 35 in the bottom of the motor
cover with the hole in the side of the saw cabinet. Place
a 1/4" flat washer on a 1/4-20x5/8" hex head screw.
Insert screw through hole in motor cover and thread
screw into hole in side of motor cabinet and tighten
securely.
4. Fig. 35 shows the motor cover attached to the
Unisaw.
NOTE: TO REMOVE THE MOTOR COVER, REMOVE
THE 1/4-20x5/8" HEX HEAD SCREW (B) FIG. 35, AND
PUSH MOTOR COVER TO ONE SIDE TO DEPRESS
CLIPS, AND PULL MOTOR COVER OFF. Fig. 34
Fig. 35
RIP FENCE HOLDER BRACKETS

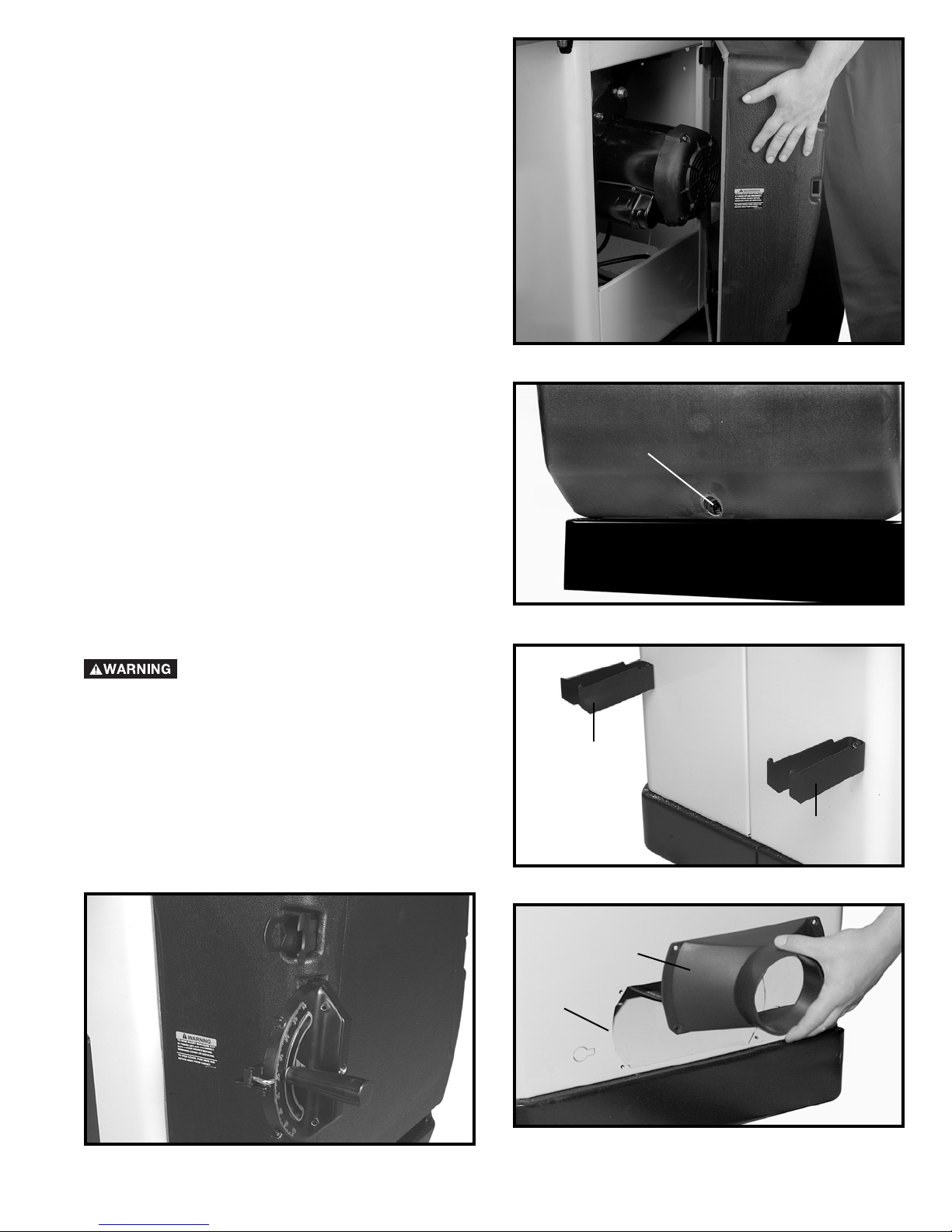

Assemble the rip fence holder brackets (A) and (B) Fig.
36, to the four holes located in the right hand side of the
saw cabinet using four #10 x 1/2" sheet metal screws
supplied.
Fig. 36
A
B
DUST CHUTE ADAPTER
The Unisaw is supplied with a dust chute connector to
provide a means of connecting a 4" diameter dust
collector hose to the machine. Align the four holes in the
dust chute adapter (A) Fig. 37,with the four holes in the
back of the saw cabinet (B) and attach the dust chute
adapter with four #10 x 1/2" sheet metal screws.
DO NOT MOUNT THE DUST CHUTE
ADAPTER UNLESS A DUST
COLLECTION SYSTEM IS USED IN CONJUNCTION
WITH THE SAW, FOR THE DUST CHUTE ADAPTER
WILL RESTRICT THE GRAVITY FEED OPENING FOR
SAW DUST REMOVAL.
Fig. 37
A
B
B
The miter gage and arbor wrenches can be stored in the
slots provided in the motor cover, as shown in Fig. 37A.
Fig. 37A
MITER GAGE AND WRENCH STORAGE

16
Fig. 41
BLADE RAISING HANDWHEEL

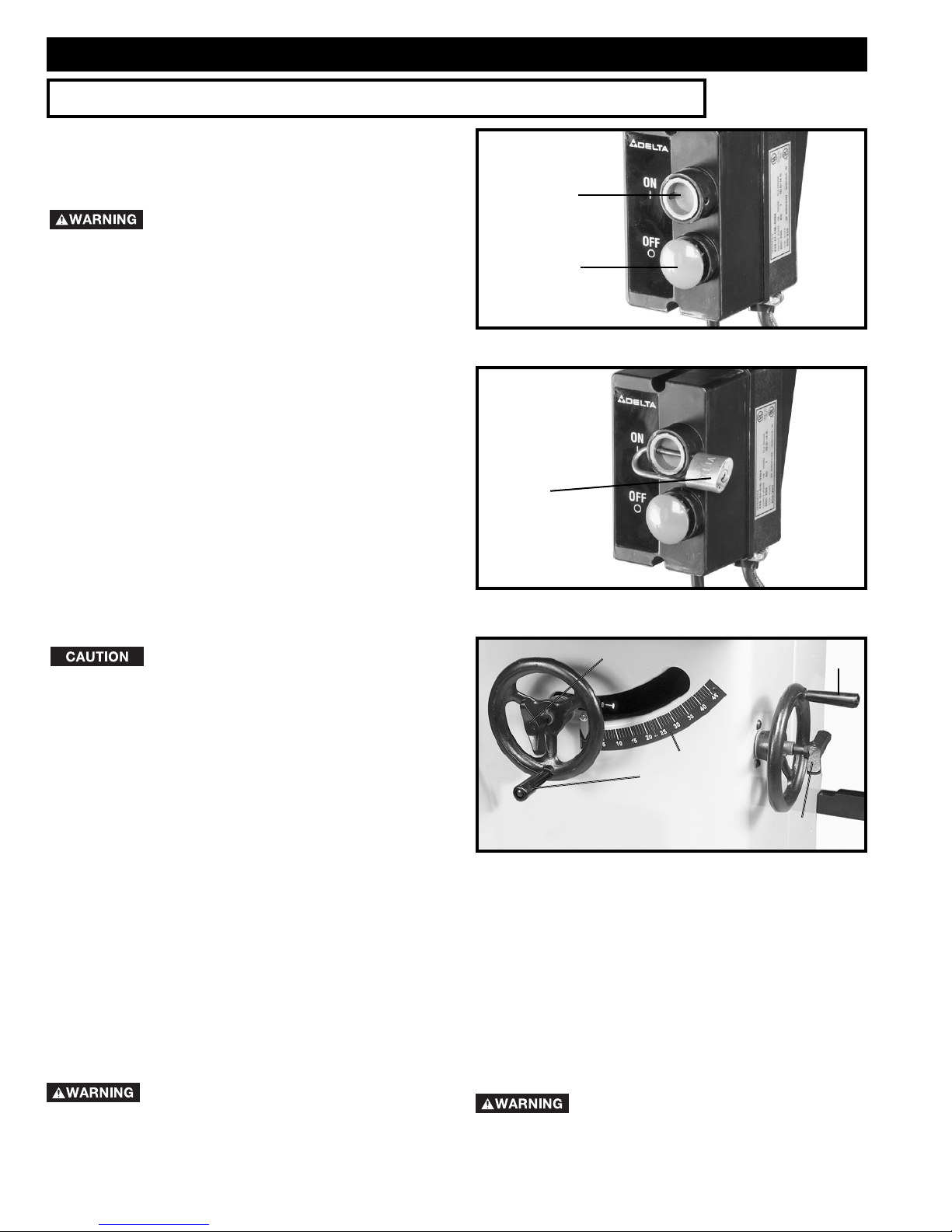

The saw blade is raised and lowered with the front
handwheel (A) Fig. 41. With the exception of hollow
ground blades, the blade should be raised 1/8" to 1/4"
above the top surface of the material being cut. With
hollow ground blades, the blade should be raised the
maximum to provide greater clearance. To raise the saw
blade, loosen lock knob (B) Fig. 41, and turn the
handwheel (A), clockwise. To lower the saw blade, turn
handwheel (A) counterclockwise.
The saw blade is locked at any height by turning the lock
knob (B) Fig. 41, clockwise. Due to the wedge action of
this locking device, only a small amount of force is
required to lock the blade raising mechanism securely.
Any added force merely puts unnecessary strain on the
locking device. Limit stops for raising or lowering are
permanently built into the mechanism and need no
further adjustment.
ALWAYS LOCK THE BLADE IN POSITION
BEFORE STARTING THE SAW.
BLADE TILTING HANDWHEEL
The blade tilting mechanism allows the blade to be tilted
up to 45 degrees to the right.
To tilt the saw blade to the desired angle, loosen lock
knob (D) Fig. 41, and turn handwheel (C). A pointer
indicates the angle of tilt on scale (E), which is marked in
one-degree increments. To lock the saw blade in the
desired angle of tilt, tighten lock knob (D).
ALWAYS LOCK THE BLADE IN POSITION
BEFORE STARTING THE SAW.
A
BC
D
E
Fig. 39
A
B
Fig. 40
C
OVERLOAD PROTECTION
Your saw is supplied with overload protection. If the
motor shuts off or fails to start due to overloading
(cutting stock too fast, using a dull blade, using the saw
beyond its capacity, etc.) or low voltage, let the motor
cool three to five minutes. The overload will
automatically reset itself and the machine can then be
started again by pressing the “ON” button.
IF THE MOTOR CONTINUALLY SHUTS
OFF DUE TO OVERLOADING, THE
CAUSE OF OVERLOADING MUST BE CORRECTED.
IF THIS HAPPENS, IT IS RECOMMENDED THAT YOU
CONTACT A QUALIFIED ELECTRICIAN.
OPERATION
STARTING AND STOPPING THE SAW
1. To start the machine, push the “ON” button (A) Fig. 39.
2. To stop the machine, push the “OFF” button (B).
MAKE SURE THAT THE SWITCH IS IN
THE “OFF” POSITION BEFORE
PLUGGING IN THE POWER CORD. IN THE EVENT OF A
POWER FAILURE, MOVE THE SWITCH TO THE “OFF”
POSITION. AN ACCIDENTAL START-UP CAN CAUSE
INJURY.
LOCKING SWITCH IN “OFF” POSITION
IMPORTANT: When the machine is not in use, the switch
should be locked in the “OFF” position to prevent
unauthorized use, using a padlock (C) Fig. 40 with a
3/16" diameter shackle. NOTE: Magnetic starter switch
shown.
OPERATIONAL CONTROLS AND ADJUSTMENTS

17
ADJUSTING 90 AND 45 DEGREE
POSITIVE STOPS
Positive stops are provided to quickly and accurately
position the blade at 90 and 45 degrees to the table. To
check and adjust the positive stops, proceed as follows:
DISCONNECT MACHINE FROM POWER
SOURCE.
1. Raise the saw blade all the way to the top and turn
the blade tilting handwheel clockwise as far as it will go.
2. Using a square, check to see if the blade is 90
degrees to the table Fig. 41A. If an adjustment is
necessary, turn the blade tilting handwheel
counterclockwise. Loosen locknut (A) Fig. 42, and tighten
or loosen adjusting screw (B) until head of screw (B)
contacts casting on front trunnion when the blade is at 90
degrees to the table. Then tighten locknut (A).
3. Check to see if the tilt indicator pointer points to the
zero mark on the scale. Adjust if necessary.
4. Turn the blade tilting handwheel counterclockwise as
far as it will go. Using a square, check to see if the blade
is at 45 degrees to the table Fig. 41B. If an adjustment is
necessary, turn the blade tilting handwheel clockwise
until the adjusting screw (D) Fig. 43, and locknut (C) are in
view, in the opening in the front of the saw cabinet, as
shown. Loosen locknut (C) and tighten or loosen
adjusting screw (D) until head of screw (D) contacts
casting on front trunnion when the blade is at 45 degrees
to the table. Then tighten locknut (C).
Fig. 42
Fig. 43
ADJUSTING TABLE
The saw table has been aligned at the factory so the miter
gage slots are parallel to the saw blade; however, it is
recommended to check the alignment before initial
operation as follows:
DISCONNECT MACHINE FROM POWER
SOURCE.
1. Place a combination square (A) Fig. 44, on the table
with one edge of the square in the miter gage slot, as
shown, and adjust the square so the rule just touches one
of the teeth on the saw blade at the forward position, as
shown in Fig. 44. Lock the square in this position.
2. Rotate the saw blade so that the same tooth you
used in STEP 2 is in the rear position, as shown in Fig. 45,
and check this distance. Both the front and rear measure-
ments should be identical.
3. If an adjustment is necessary, loosen the four screws
that hold the table to the saw cabinet.
4. Shift the table until a position is found which brings
the saw blade in the center of the table insert slot, and
parallel to the miter gage slot.
5. Tighten the four screws that were loosened in STEP 3.
6. Tilt the blade to 45 degrees, and turn the saw blade by
hand, and insure it does not contact the table insert.
Fig. 44
Fig. 45
Fig. 41A
Fig. 41B
A
B
A
D
C

18

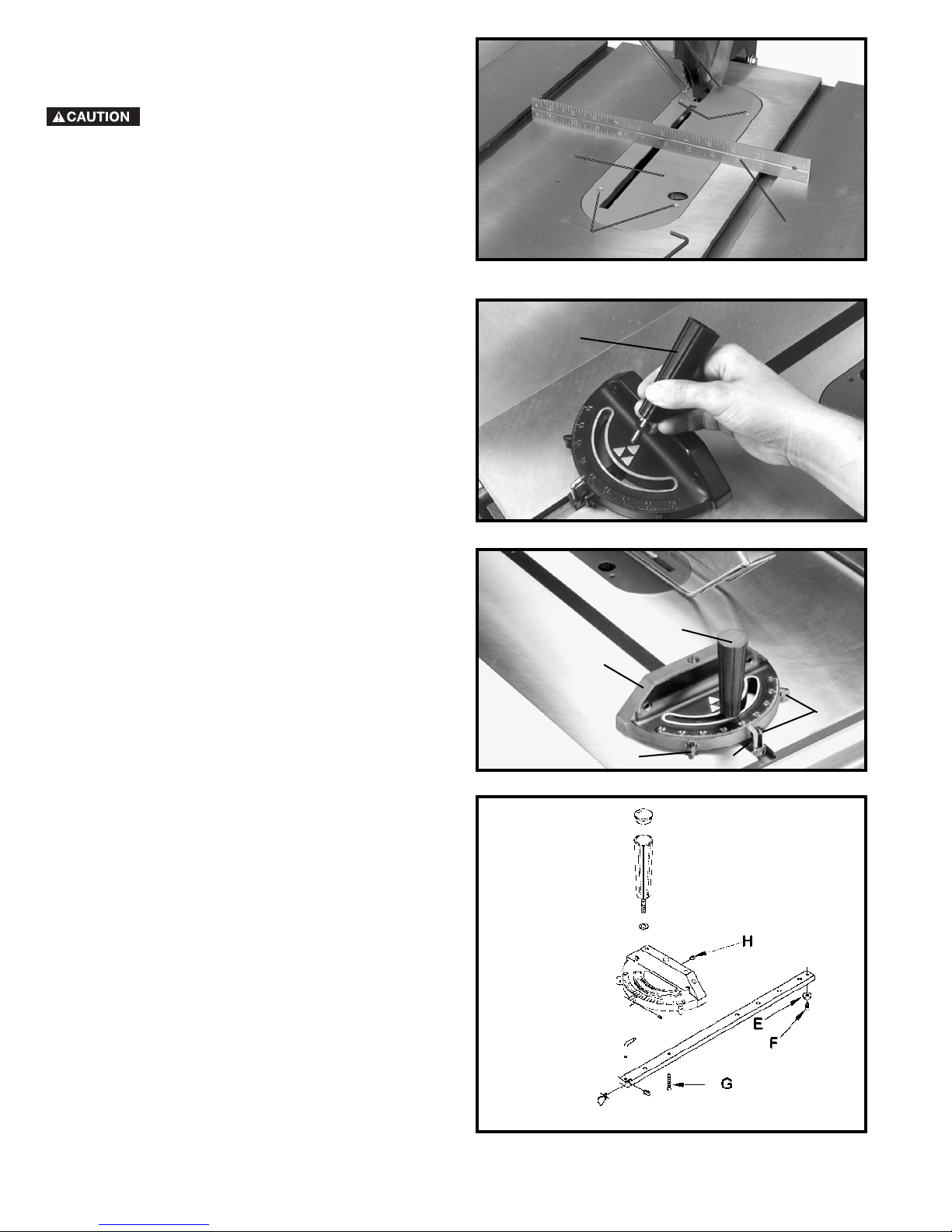

ADJUSTING TABLE INSERT
Place a straight edge (B) across the table at both ends of
the table insert as shown in Fig. 46.
The table insert (A) should always be level
with the table.
If an adjustment is necessary, turn the adjusting screws
(C), as needed, with allen wrench supplied. NOTE: THE
MITER GAGE HANDLE CAN BE USED TO STORE THE
HEX WRENCHES WHEN NOT IN USE. REMOVE THE
TOP CAP OF THE MITER GAGE HANDLE FOR THE
HEX WRENCH STORAGE COMPARTMENT.
Fig. 46
MITER GAGE OPERATION
AND ADJUSTMENT
Insert the miter gage bar into the miter gage slot and
assemble the washer and lock handle (A) Fig. 47, to the
miter gage bar as shown.
The miter gage is equipped with adjustable index stops at
90 degrees and 45 degrees right and left. Adjustment to
the index stops can be made by tightening or loosening
the three adjusting screws (B) Fig. 48, with allen wrench
supplied.
To rotate the miter gage, loosen lock knob (A) Fig. 48, flip
the stop link (D) down and out of the way, and move the
body of the miter gage (C), to the desired angle.
The miter gage body (C) can stop at 90 degrees and 45
degrees both right and left by flipping the stop link down
and out of the way and moving the miter gage body (C)
past the 90 and 45 degrees mark and flipping the stop
link (D) back up so that the stop link (D) will be able to
contact the adjusting screws (B) at the desired 90 or 45
degree angle. To rotate the miter gage body past these
points, the stop link (D) Fig. 48, must be down and out of
the way.
The head of the miter gage pivots on a special tapered
screw (G) that fastens the head to the miter gage bar. If
the miter gage head does not pivot freely, or pivots too
freely, it can be adjusted by loosening set screw (H) Fig.
49, and turning the screw (G) in or out. Be certain to
tighten screw (H) after adjustment is made.
Your miter gage is equipped with a plate (E) Fig. 49, which
fits into the T-Slot groove in the table. This allows the
miter gage to be pulled off the front edge of the table
without falling. This allows for a longer cut off capacity in
front of the blade.
Fig. 47
Fig. 48
Fig. 49
A
A
C
B
B
D
CB
C
A

19

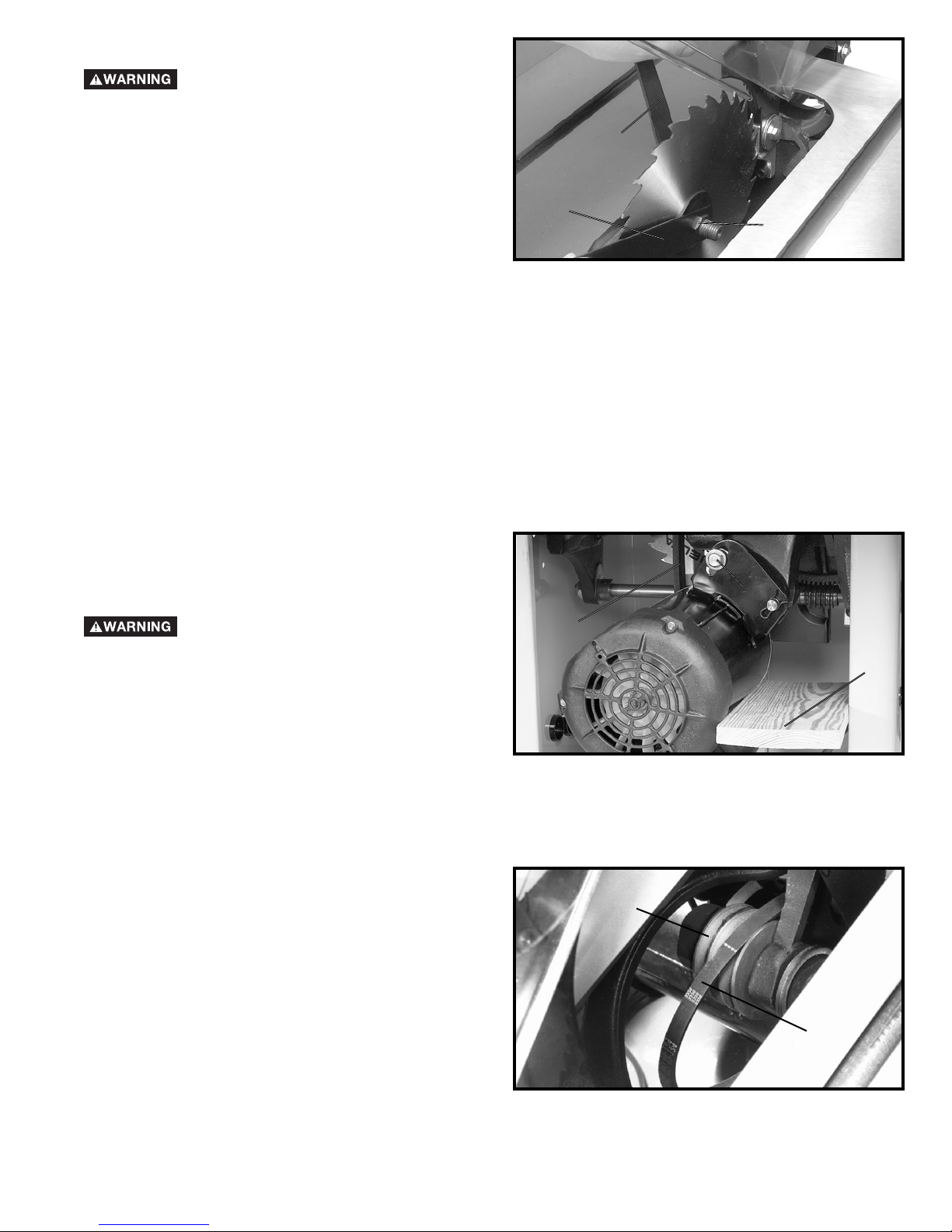

REPLACING BELTS AND ADJUSTING
BELT TENSION
DISCONNECT MACHINE FROM POWER
SOURCE.
1. Remove motor cover to gain access to the motor.
2. Place a block of wood (C) Fig. 49B, between the
motor and saw cabinet as shown. NOTE: It may be
necessary to raise the saw arbor in order to insert the
wooden block. Lower the saw arbor until the motor
contacts the wood.
3. Loosen bolt (D) Fig. 49B, and continue to lower the
saw arbor until all tension is removed from the belts (E).
Tighten bolt (D).
4. Raise the saw arbor slightly and remove the block of
wood (C) Fig. 49B.
5 Lower the saw arbor. Remove the belts (E) Fig. 74,
one at a time from the motor pulley.
6. Remove the belts (E) Fig. 49C, one at a time from the
arbor pulley (F).
7. Assemble the three new belts, one at a time in the
grooves of the arbor pulley (F) Fig. 49C, and onto the
motor pulley.
8. When the new belts are assembled on the arbor
pulley (F) Fig. 49C and the motor pulley, loosen screw (D)
Fig. 49B, and carefully let the motor rest on the belts.
9. Correct belt tension is when there is approximately
1/4" deflection in the center span of the pulleys, using
light finger pressure. After tension is applied, tighten
screw (D) Fig. 49B.
Fig. 49B
Fig.49C
D
E
C
F
E
CHANGING THE SAW BLADE
DISCONNECT MACHINE FROM POWER
SOURCE.
1. NOTE: Two 7/8” wrenches are supplied with the saw
for changing the saw blade; a box end wrench and open
end wrench.
2. Remove table insert and raise saw blade to its
maximum height.
3. Place the open end wrench (B) Fig. 49A on the flats
of the saw arbor to keep the arbor from turning, and using
box end wrench (A), turn the arbor nut (C) toward the front
of the saw. Remove arbor nut, blade flange and saw
blade.
4. Assemble the new blade, making certain the teeth are
pointing down at the front of the saw table and assemble
outside blade flange and arbor nut. With wrench (B) Fig.
49A, on the flats of the arbor to keep it from turning,
tighten arbor nut by turning box end wrench (A) toward
the rear of the saw.
5. Replace table insert.
NOTE: Use only 10" saw blades with 5/8" arbor
holes, rated for at least 4000 RPM.
Fig. 49A
C
A
B

COMMON SAWING OPERATIONS
Common sawing operations include ripping and crosscutting plus a few other standard operations of a fundamental
nature. As with all power machines, there is a certain amount of hazard involved with the operation and use of the
machine. Using the machine with the respect and caution demanded as far as safety precautions are concerned, will
considerably lessen the possibility of personal injury. However, if normal safety precautions are overlooked or
completely ignored, personal injury to the operator can result. The following information describes the safe and proper
method for performing the most common sawing operations.

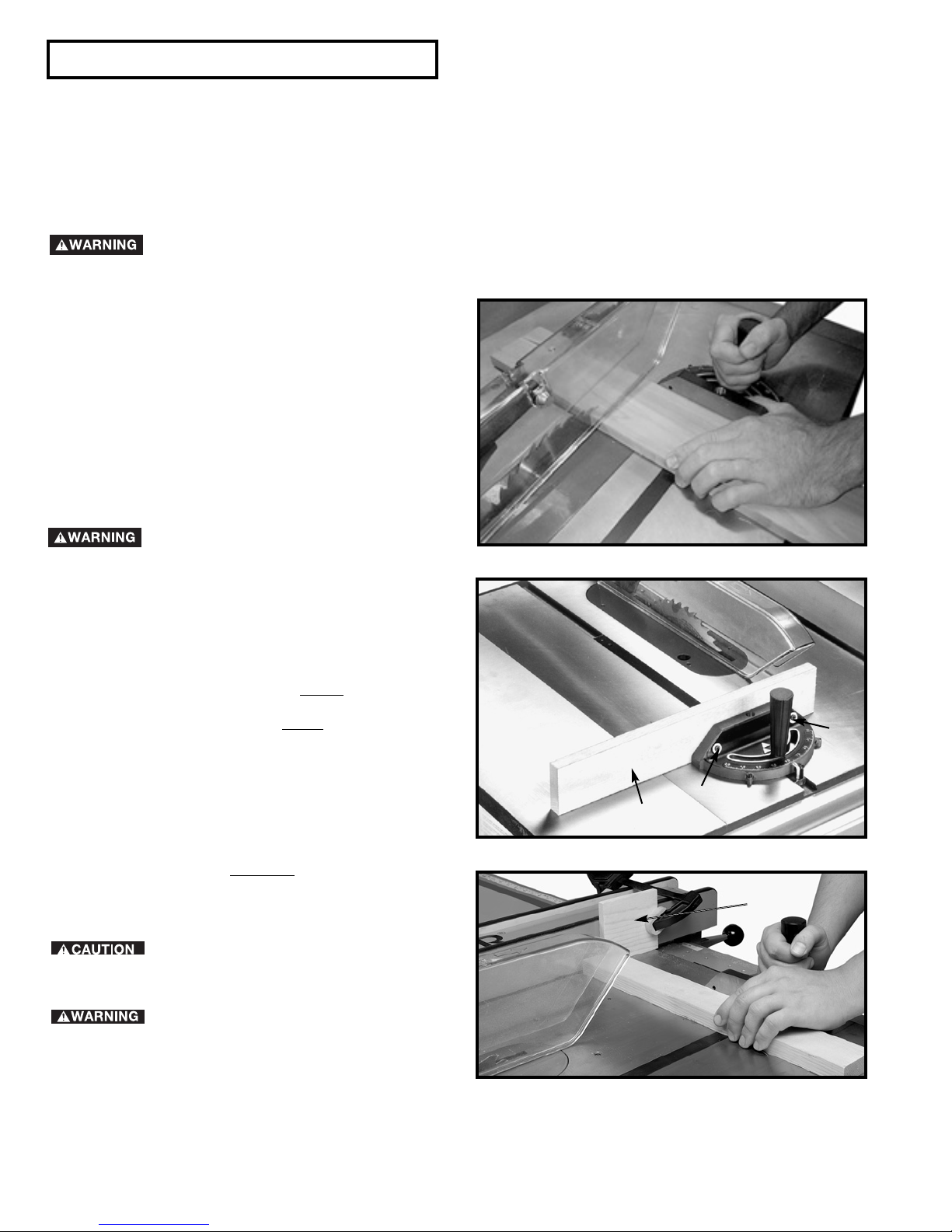

CROSS-CUTTING
Cross-cutting requires the use of the miter gage to
position and guide the work. Place the work against the
miter gage and advance both the gage and work toward
the saw blade, as shown in Fig. 50. The miter gage may
be used in either table slot. When bevel cutting (blade
tilted), use the table groove that does not cause
interference of your hand or miter gage with the saw
blade guard.
Start the cut slowly and hold the work firmly against the
miter gage and the table.
ONE OF THE RULES IN RUNNING A
SAW IS THAT YOU NEVER HANG
ONTO OR TOUCH THE PART OF THE WORKPIECE
THAT WILL BE CUT OFF. Hold the supported piece,
not the free piece that is cut off. The feed in cross-
cutting continues until the work is cut in two, and the
miter gage and work are pulled back to the starting
point. Before pulling the work back, it is good practice
to give the work a little sideways shift to move the work
slightly away from the saw blade. Never pick up any
short length of free work from the table while the saw is
running. While blade is running, never touch a cut-off
piece unless it is at least a foot long.
For added safety and convenience the miter gage can
be fitted with an auxiliary wood-facing (C), as shown in
Fig. 51, that should be at least 1 inch higher than the
maximum depth of cut, and should extend out 12
inches or more to one side or the other depending on
which miter gage slot is being used. This auxiliary
wood-facing (C) can be fastened to the front of the
miter gage by using two wood screws (A) through the
holes provided in the miter gage body and into the
wood-facing.
When using the block (B) Fig. 52, as a cut-
off gage, it is very important that the rear end of the block
be positioned so the work piece is clear of the block before
it enters the blade.
NEVER USE THE FENCE AS A CUT-OFF
GAGE WHEN CROSS-CUTTING.
When cross-cutting a number of pieces to the same length,
a BLOCK OF WOOD (B), can be clamped to the fence and
used as a cut-off gage as shown in Fig. 52. It is important
that this block of wood always be positioned in front of the
saw blade as shown. Once the cut-off length is determined,
secure the fence and use the miter gage to feed the work
into the cut. This block of wood allows the cut-off piece to
Fig. 50
Fig. 51
C
A
A
Fig. 52
B
MACHINE USE
move freely along the table surface without binding between
the fence and the saw blade, thereby lessening the
possibility of kickback and injury to the operator.
THE USE OF ATTACHMENTS AND ACCESSORIES NOT RECOMMENDED BY DELTA MAY RESULT
IN THE RISK OF INJURY TO THE USER OR OTHERS.
20
