  9. Tenn-Tex Plastics QuickTRAY Rollout System Operator's manual

Tenn-Tex Plastics QuickTRAY Rollout System Operator's manual

2 Bumpers
2 HAR-048 #6 x 1/2 TH Phillips Type
(50 bags per box)
1000 Bumpers
per box
January 2014
Bumpers
Undermount
Bumper
B-373
B-374
B-375
B-376
2 Bumpers
2 HAR-048 #6 x 1/2 TH Phillips Type
(50 bags per box)
2000 Bumpers
per box
18mm
Natural
White
Beige
B-336
B-337
B-338
T-160-00
T-160-01
T-160-02
Bulk w/ Bumpers Only 100 PackPolybag

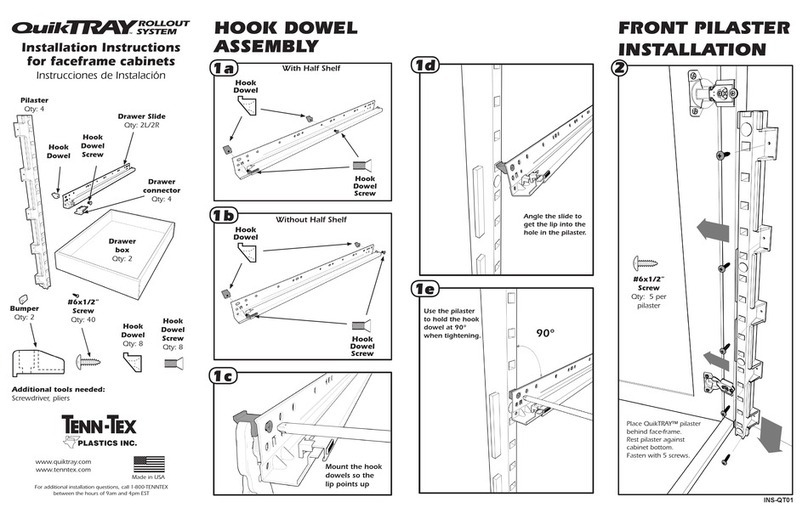

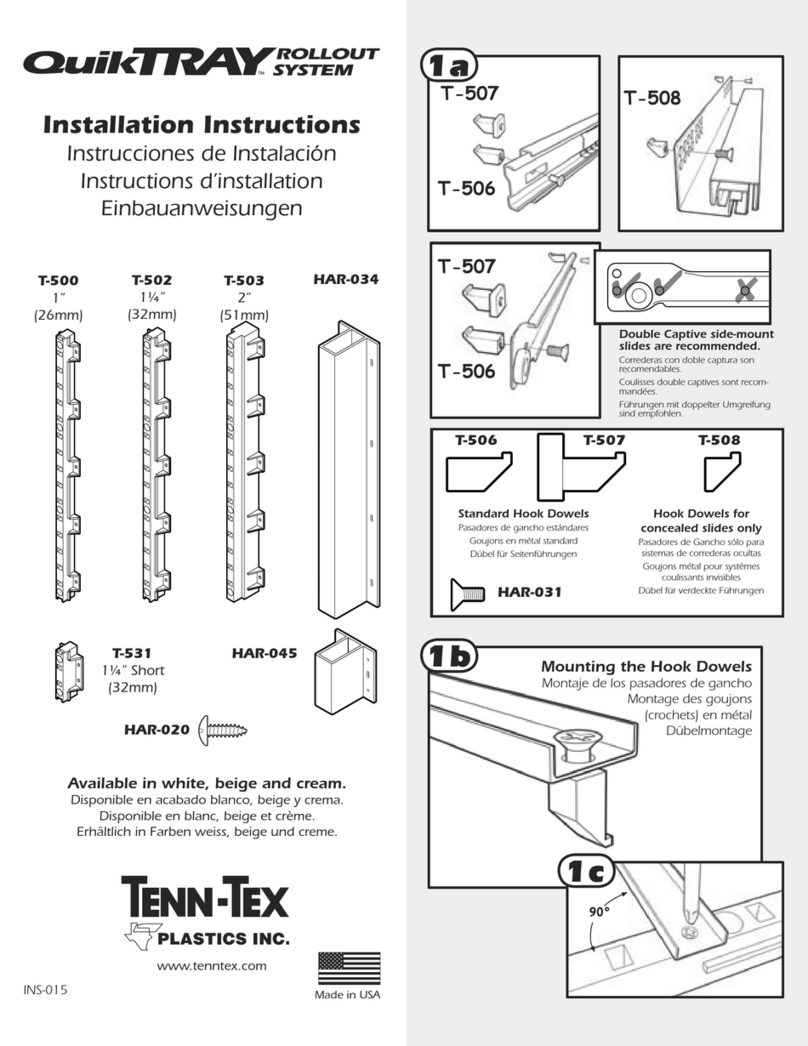

Installation
1
3
4
2
Place QuikTRAY™ pilaster behind
face-frame or set back, according to type
of cabinet construction or hinges being
used. Rest pilaster against cabinet
bottom. Fasten with 5 wood screws
or 4 Euro screws. Attach hook dowels
(hook pointing up) at front and back of
drawer slide. Front hook dowels on
slides must be mounted as far forward
as possible.
To position back pilaster, insert two drawer
slides of your choice to top and bottom of
secured front pilaster and to unattached
rear pilaster. Float rear pilaster into position
and fasten with screws. Repeat procedure
on the other side.
Move slides to desired position, inserting at
slight angle.
With patented hook dowels, no tools are
required to install slides and trays. Just
insert dowel with hook pointing up, then
push down to lock into place.
Hook dowels allow slides to move
laterally to adjust for cabinet and drawer
width tolerances.
Install drawers or trays.
1
2
3
3a
3b
4
More installation information and video available at www.quiktray.com.
3a 3b
Natural
White
Beige
Gray
C-247-00
C-247-01
C-247-02
C-247-03
1.800.TENN.TEX
8011 National Service Road
Colfax, NC 27235
WWW.QUIKTRAY.COM
WWW.TENNTEX.COM
WWW.BRACKETSOLUTIONS.COM
2 Bumpers
2 HAR-048 #6 x 1/2 TH Phillips Type
(50 bags per box)
2000 Bumpers
per box
11.5mm
Natural
White
Beige
B-333
B-334
B-335
T-161-00
T-161-01
T-161-02
B-400-00
B-400-01
B-400-02
B-402-00
B-402-01
B-402-02
B-402-03
B-401-00
B-401-01
B-401-02
1.03”
26mm
1.03”
26mm
.62”
16mm
2.50”
64mm
2.50”
64mm
1.28”
33mm
1.28”
33mm
1.28”
33mm
2.00”
51mm
2.00”
51mm
20.157”
512mm
3.76”
96mm 1 1/4” Short
Support
4” Center
Partition
20” Center
Partition

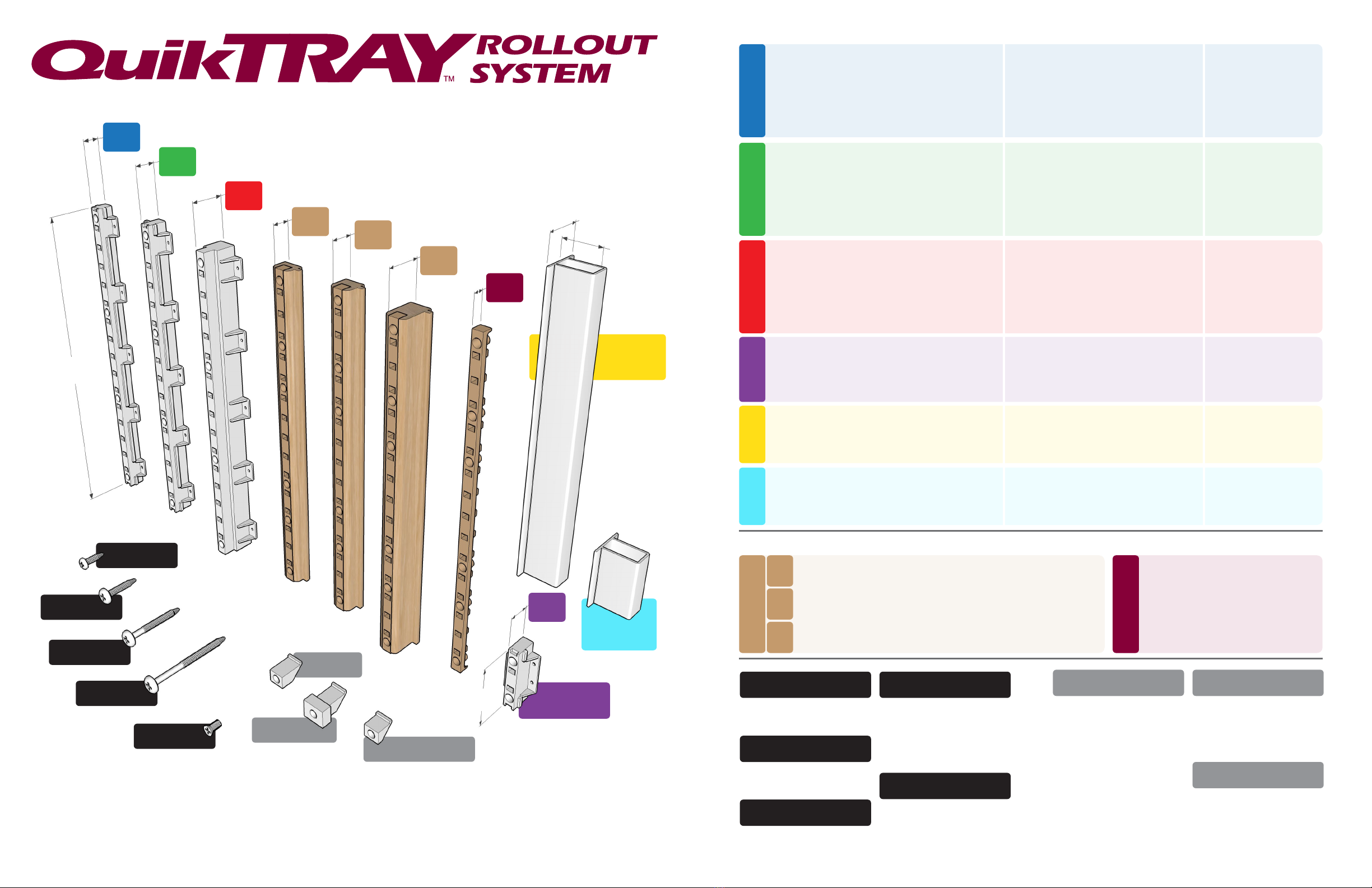

T-506
Hook Dowel
T-507
Spacer Hook Dowel T-508
Undermount Hook Dowel
HAR-079
2”Wood Screw
HAR-031
Machine Screw
HAR-100
1.25”Wood Screw
HAR-020
7/16”Wood Screw
HAR-101
1”Wood Screw
T-500-00
T-500-01
T-500-02
T-500-03
T-500-04
1” Pilaster1 1/4” Pilaster2” Pilaster
Wood Pilaster
(Maple)
T-506
Hook Dowel
T-507
Spacer Hook Dowel
T-508
Undermount Hook Dowel
1 1/4”2” 1”
5/8” Pilaster
(Insert)
Color Bulk w/ Pilasters Only
Color Bulk Inserts
Polybag Contents
Insert Color Single Kit Contents Bulk
Bulk w/ Hardware
White
Beige
Cream
Black
Metallic
White
Beige
Cream
Black
Metallic
White
Beige
Cream
Black
Metallic
B-520-00
B-520-01
B-520-02
B-520-03
B-520-04
B-500-00
B-500-01
B-500-02
B-500-03
B-500-04
T-504-00
T-504-01
T-504-02
T-504-03
T-504-04
White
Beige
Cream
Black
Metallic
Beige
Beige
Beige
B-510-01
B-512-01
B-513-01
T-510-01
T-512-01
T-513-01
4 Pilasters
B-231 (20 HAR-020 Mounting Screws)
B-266 (8 T-506 Hook Dowels &
8 HAR-031 Machine Screws)
INS-015 Instruction Sheet
(20 Bags/Box)
4 Pilasters
B-231 (20 HAR-020 Mounting Screws)
B-266 (8 T-506 Hook Dowels &
8 HAR-031 Machine Screws)
INS-015 Instruction Sheet
(10 Bags/Box)
4 Pilasters
B-231 (20 HAR-020 Mounting Screws)
B-266 (8 T-506 Hook Dowels &
8 HAR-031 Machine Screws)
INS-015 Instruction Sheet
(20 Bags/Box)
B-268 200 Hook Dowels per Bag
B-311 100 Hook Dowels per Bag
B-266 8 Hook Dowels &
8 Machine Screws
(50 Bags per Box)
B-310 4 Hook Dowels &
4 Machine Screws
(50 Bags per Box)
HAR-079
2”Wood Screw
B-241 16 Screws per Bag
(100 Bags per Box)
B-244 100 Screws per Bag
HAR-100
1.25”Wood Screw
B-242 16 Screws per Bag
(100 Bags per Box)
B-245 100 Screws per Bag
HAR-101
1”Wood Screw
B-243 16 Screws per Bag
(100 Bags per Box)
B-246 100 Screws per Bag
B-306 200 Hook Dowels per Bag
B-308 8 Hook Dowels &
8 Machine Screws
(50 Bags per Box)
B-307 200 Hook Dowels per Bag
B-309 8 Hook Dowels &
8 Machine Screws
(50 Bags per Box)
4 Pilasters
B-243 (1”) or B-242 (1.25”) or B-241 (2”)
based on size (16 Mounting Screws)
B-266 (8 T-506 Hook Dowels &
8 HAR-031 Machine Screws)
B-309 (8 T-508 Hook Dowels &
8 HAR-031 Machine Screws)
INS-030 Instruction Sheet
(40 per Box)Uses 1” Screw
Uses 1.25” Screw
Uses 2” Screw
Pilasters w/ Insert - No Hardware (No Wood/No Hardware)
(40 per Box)
(20 per Box)
100 Pilasters
per box
100 Pilasters
per box
195 Pilaster
Inserts per box
48 Pilasters
per box
100 Pilasters
B-268 (200 T-506 Hook Dowels)
B-267 (200 HAR-031 Machine Screw)
INS-015 Instruction Sheet
100 Pilasters
B-268 (200 T-506 Hook Dowels)
B-267 (200 HAR-031 Machine Screw)
INS-015 Instruction Sheet
48 Pilasters
B-311 (100 T-506 Hook Dowels)
B-312 (100 HAR-031 Machine Screw)
INS-015 Instruction Sheet
T-502-00
T-502-01
T-502-02
T-502-03
T-502-04
T-503-00
T-503-01
T-503-02
T-503-03
T-503-04
B-522-00
B-522-01
B-522-02
B-522-03
B-522-04
B-525-00
B-525-01
B-525-02
B-525-03
B-525-04
B-502-00
B-502-01
B-502-02
B-502-03
B-502-04
B-503-00
B-503-01
B-503-02
B-503-03
B-503-04
20” Center
Partition
4” Center
Partition
White
Beige
Cream
White
Beige
Cream
2 Center Partitions
INS-008 Instruction Sheet
B-231 (20 HAR-020 Mounting Screws)
(12 Bags/Box)
2 Center Partitions
INS-008 Instruction Sheet
B-231 (20 HAR-020 Mounting Screws)
(12 Bags/Box)
24 Center Partitions
B-302 (200 HAR-020 Mounting Screws)
INS-008 Instruction Sheet
24 Center Partitions
B-301 (100 HAR-020 Mounting Screws)
INS-010 Instruction Sheet
24 Center
Partitions
per box
24 Center
Partitions
per box
HAR-034
HAR-035
HAR-036
HAR-045
HAR-046
HAR-047
B-235-00
B-235-01
B-235-02
B-263-00
B-263-01
B-263-02
B-232-00
B-232-01
B-232-02
B-264-00
B-264-01
B-264-02
1 1/4” Short
Pilaster
White
Beige
Cream
4 Pilasters
B-231 (20 HAR-020 Mounting Screws)
B-310 (4 T-506 Hook Dowels &
4 HAR-031 Machine Screws)
INS-010 Instruction Sheet
(20 Bags/Box)
100 Pilasters
per box
100 Pilasters
B-311 (100 T-506 Hook Dowels)
B-312 (100 HAR-031 Machine Screw)
INS-010 Instruction Sheet
T-531-00
T-531-01
T-531-02
B-523-00
B-523-01
B-523-02
B-524-00
B-524-01
B-524-02
HAR-031
Machine Screw
HAR-020
7/16”Wood Screw
B-267 200 Screws per Bag
B-312 100 Screws per Bag
(25 Bags per Box)
B-231 20 Screws per Bag
(100 Bags per Box)
B-301 100 Screws per Bag
B-302 200 Screws per Bag
