Tenn-Tex Plastics QuickTRAY User manual

Parts and Order Information

1.03”
26mm
2.50”
64mm
2.50”
64mm
1.28”
33mm
1.28”
33mm
2.00”
51mm
20.157”
512mm
3.76”
96mm
1 1/4” Short
Support
4” Center
Partition
20” Center
Partition
T-506
Hook Dowel
T-507
Spacer Hook Dowel
T-508
Undermount Hook Dowel
HAR-031
Machine Screw
HAR-020
7/16”Wood Screw

1.03”
26mm
.62”
16mm
1.28”
33mm 2.00”
51mm
1.03”
26mm 1.28”
33mm
Frameless
1.28”
33mm
Frameless
1.28”
33mm
1.28”
33mm
2.00”
51mm
2.00”
51mm
HAR-079
2”Wood Screw
HAR-100
1.25”Wood Screw
HAR-101
1”Wood Screw
1.03”
26mm
Clear Coated Maple Molding Strips used with regular pilasters
To apply molding strip, a super glue type adhesive can be used

T-500-00
T-500-01
T-500-02
T-500-03
T-500-04
1” Pilaster
1” Pilaster
for Undermount
1 1/4” Pilaster
1 1/4” Pilaster
for Undermount
2” Pilaster
2” Pilaster
for Undermount
Color Bulk w/ Pilasters OnlyPolybag Contents
Undermount
Polybags
Undermount
Polybags
Undermount
Polybags
White
Beige
Cream
Black
Metallic
White
Beige
Cream
Black
Metallic
White
Beige
Cream
Black
Metallic
B-520-00
B-520-01
B-520-02
B-520-03
B-520-04
B-500-00
B-500-01
B-500-02
B-500-03
B-500-04
4 Pilasters
B-231 (20 HAR-020 Mounting Screws)
B-266 (8 T-506 Hook Dowels &
8 HAR-031 Machine Screws)
INS-015 Instruction Sheet
(20 Bags/Box)
4 Pilasters
B-231 (20 HAR-020 Mounting Screws)
B-266 (8 T-506 Hook Dowels &
8 HAR-031 Machine Screws)
INS-015 Instruction Sheet
(10 Bags/Box)
4 Pilasters
B-231 (20 HAR-020 Mounting Screws)
B-266 (8 T-506 Hook Dowels &
8 HAR-031 Machine Screws)
INS-015 Instruction Sheet
(20 Bags/Box)
White
Beige
Cream
Black
Metallic
B-520-00-U
B-520-01-U
B-520-02-U
B-520-03-U
B-520-04-U
4 Pilasters
B-231 (20 HAR-020 Mounting Screws)
B-309 (8 T-508 Hook Dowels &
8 HAR-031 Machine Screws)
INS-015 Instruction Sheet
(20 Bags/Box)
100 Pilasters
per box
100 Pilasters
per box
48 Pilasters
per box
100 Pilasters
B-268 (200 T-506 Hook Dowels)
B-267 (200 HAR-031 Machine
Screw)
INS-015 Instruction Sheet
100 Pilasters
B-268 (200 T-506 Hook Dowels)
B-267 (200 HAR-031 Machine
Screw)
INS-015 Instruction Sheet
48 Pilasters
B-311 (100 T-506 Hook Dowels)
B-312 (100 HAR-031 Machine
Screw)
INS-015 Instruction Sheet
T-502-00
T-502-01
T-502-02
T-502-03
T-502-04
T-503-00
T-503-01
T-503-02
T-503-03
T-503-04
B-522-00
B-522-01
B-522-02
B-522-03
B-522-04
B-525-00
B-525-01
B-525-02
B-525-03
B-525-04
White
Beige
Cream
Black
Metallic
4 Pilasters
B-231 (20 HAR-020 Mounting Screws)
B-309 (8 T-508 Hook Dowels &
8 HAR-031 Machine Screws)
INS-015 Instruction Sheet
(10 Bags/Box)
B-525-00-U
B-525-01-U
B-525-02-U
B-525-03-U
B-525-04-U
B-502-00
B-502-01
B-502-02
B-502-03
B-502-04
White
Beige
Cream
Black
Metallic
4 Pilasters
B-231 (20 HAR-020 Mounting Screws)
B-309 (8 T-508 Hook Dowels &
8 HAR-031 Machine Screws)
INS-015 Instruction Sheet
(20 Bags/Box)
B-522-00-U
B-522-01-U
B-522-02-U
B-522-03-U
B-522-04-U
B-503-00
B-503-01
B-503-02
B-503-03
B-503-04
20” Center
Partition
4” Center
Partition
White
Beige
Cream
White
Beige
Cream
2 Center Partitions
INS-008 Instruction Sheet
B-231 (20 HAR-020 Mounting Screws)
(12 Bags/Box)
2 Center Partitions
INS-008 Instruction Sheet
B-231 (20 HAR-020 Mounting Screws)
(12 Bags/Box)
24 Center Partitions
B-302 (200 HAR-020 Mounting
Screws)
24 Center Partitions
B-301 (100 HAR-020 Mounting
Screws)
24 Center
Partitions
per box
24 Center
Partitions
per box
HAR-034
HAR-035
HAR-036
HAR-045
HAR-046
HAR-047
B-235-00
B-235-01
B-235-02
B-263-00
B-263-01
B-263-02
B-232-00
B-232-01
B-232-02
B-264-00
B-264-01
B-264-02
1 1/4” Short
Pilaster
White
Beige
Cream
4 Pilasters
B-231 (20 HAR-020 Mounting Screws)
B-310 (4 T-506 Hook Dowels &
4 HAR-031 Machine Screws)
INS-010 Instruction Sheet
(20 Bags/Box)
100 Pilasters
per box
100 Pilasters
B-311 (100 T-506 Hook Dowels)
B-312 (100 HAR-031 Machine
Screw)
INS-010 Instruction Sheet
T-531-00
T-531-01
T-531-02
B-523-00
B-523-01
B-523-02
B-524-00
B-524-01
B-524-02

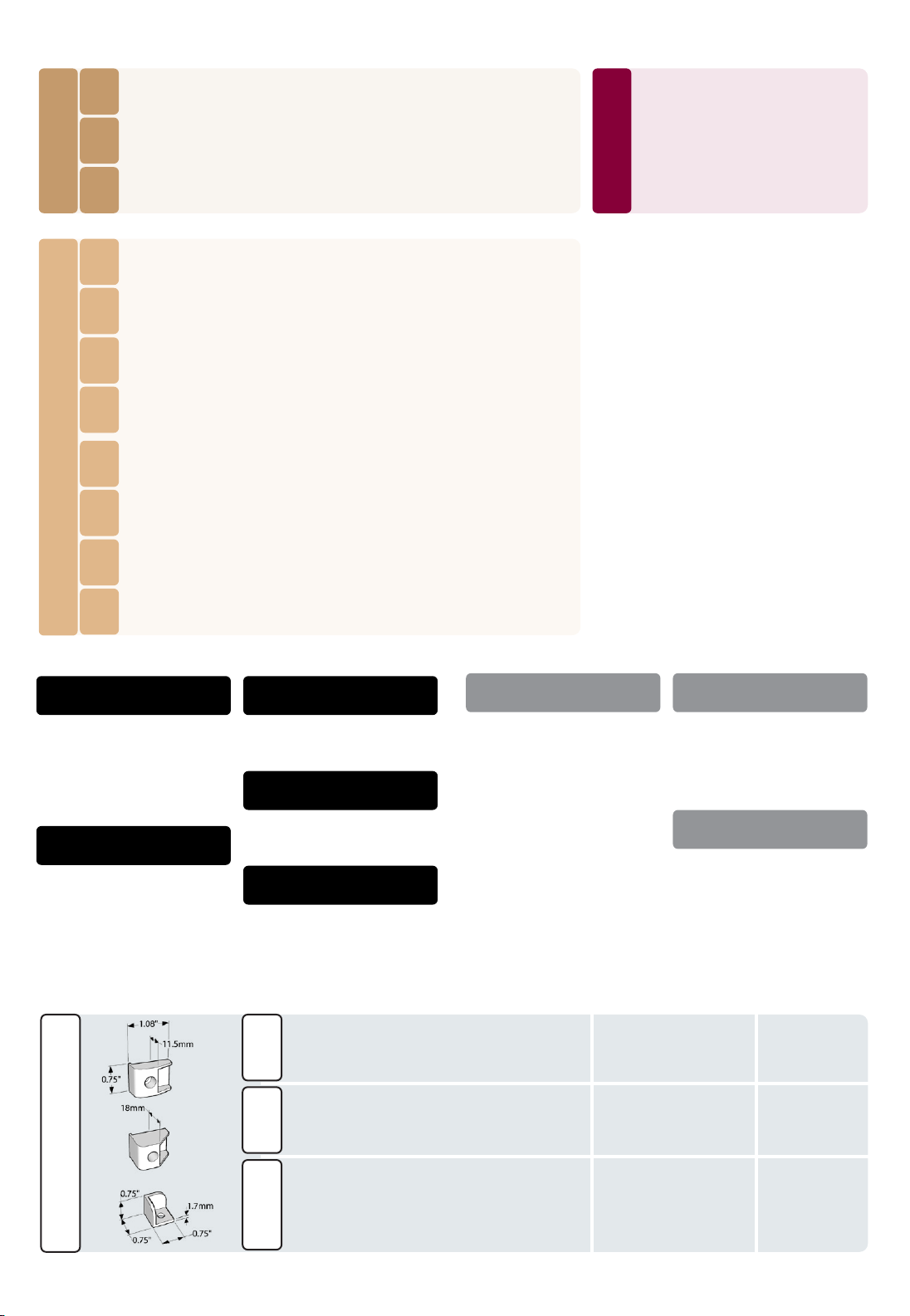

Bulk w/ Hardware

2 Bumpers
2 HAR-048 #6 x 1/2 TH Phillips Type
(50 bags per box)
1000 Bumpers
per box
Bumpers
Undermount
Bumper
B-373
B-374
B-375
B-376
2 Bumpers
2 HAR-048 #6 x 1/2 TH Phillips Type
(50 bags per box)
2000 Bumpers
per box
18mm
Natural
White
Beige
B-336
B-337
B-338
T-160-00
T-160-01
T-160-02
Bulk with
Bumpers Only 100 PackPolybag
Natural
White
Beige
Gray
C-247-00
C-247-01
C-247-02
C-247-03
2 Bumpers
2 HAR-048 #6 x 1/2 TH Phillips Type
(50 bags per box)
2000 Bumpers
per box
11.5mm
Natural
White
Beige
B-333
B-334
B-335
T-161-00
T-161-01
T-161-02
B-400-00
B-400-01
B-400-02
B-402-00
B-402-01
B-402-02
B-402-03
B-401-00
B-401-01
B-401-02
Wood Pilaster
(Maple)
1 1/4”2” 1”
5/8” Pilaster
(Insert)
Color Bulk InsertsInsert Color Single Kit Contents Bulk
T-504-00
T-504-01
T-504-02
T-504-03
T-504-04
White
Beige
Cream
Black
Metallic
Beige
Beige
Beige
B-510-01
B-512-01
B-513-01
T-510-01
T-512-01
T-513-01
4 Pilasters
B-243 (1”) or B-242 (1.25”) or B-241 (2”)
based on size (16 Mounting Screws)
B-266 (8 T-506 Hook Dowels &
8 HAR-031 Machine Screws)
B-309 (8 T-508 Hook Dowels &
8 HAR-031 Machine Screws)
INS-030 Instruction Sheet
(40 per Box)Uses 1” Screw
Uses 1.25” Screw
Uses 2” Screw
Pilasters w/ Insert - No Hardware (No Wood/No Hardware)
(40 per Box)
(20 per Box)
Molding Strips
(Maple)
1 1/4” 1 1/4”
Frameless
2” 1”1 1/4” 1 1/4”
Frameless
2” 1”
B-532
B-538
B-533
B-534
B-535
B-539
B-536
B-537
2 Clear Coated Maple Molding Strips 1"
2 Clear Coated Maple Molding Strips 1.25" for Frameless Cabinets
2 Clear Coated Maple Molding Strips 1.25" with Stand-O
2 Clear Coated Maple Molding Strips 2"
10 Clear Coated Maple Molding Strips 1"
10 Clear Coated Maple Molding Strips 1.25" for Frameless Cabinets
10 Clear Coated Maple Molding Strips 1.25" with Stand-O
10 Clear Coated Maple Molding Strips 2"
(10 Pack)
(10 Pack)
(10 Pack)
(10 Pack)
195 Pilaster
Inserts per box
T-506
Hook Dowel
T-507
Spacer Hook Dowel
T-508
Undermount Hook Dowel
B-268 200 Hook Dowels per Bag
B-311 100 Hook Dowels per Bag
B-266 8 Hook Dowels &
8 Machine Screws
(50 Bags per Box)
B-310 4 Hook Dowels &
4 Machine Screws
(50 Bags per Box)
HAR-079
2”Wood Screw
B-241 16 Screws per Bag
(100 Bags per Box)
B-244 100 Screws per Bag
HAR-100
1.25”Wood Screw
B-242 16 Screws per Bag
(100 Bags per Box)
B-245 100 Screws per Bag
HAR-101
1”Wood Screw
B-243 16 Screws per Bag
(100 Bags per Box)
B-246 100 Screws per Bag
B-306 200 Hook Dowels per Bag
B-308 8 Hook Dowels &
8 Machine Screws
(50 Bags per Box)
B-307 200 Hook Dowels per Bag
B-309 8 Hook Dowels &
8 Machine Screws
(50 Bags per Box)
HAR-031
Machine Screw
HAR-020
7/16”Wood Screw
B-267 200 Screws per Bag
B-312 100 Screws per Bag
(25 Bags per Box)
B-231 20 Screws per Bag
(100 Bags per Box)
B-301 100 Screws per Bag
B-302 200 Screws per Bag

January 2017

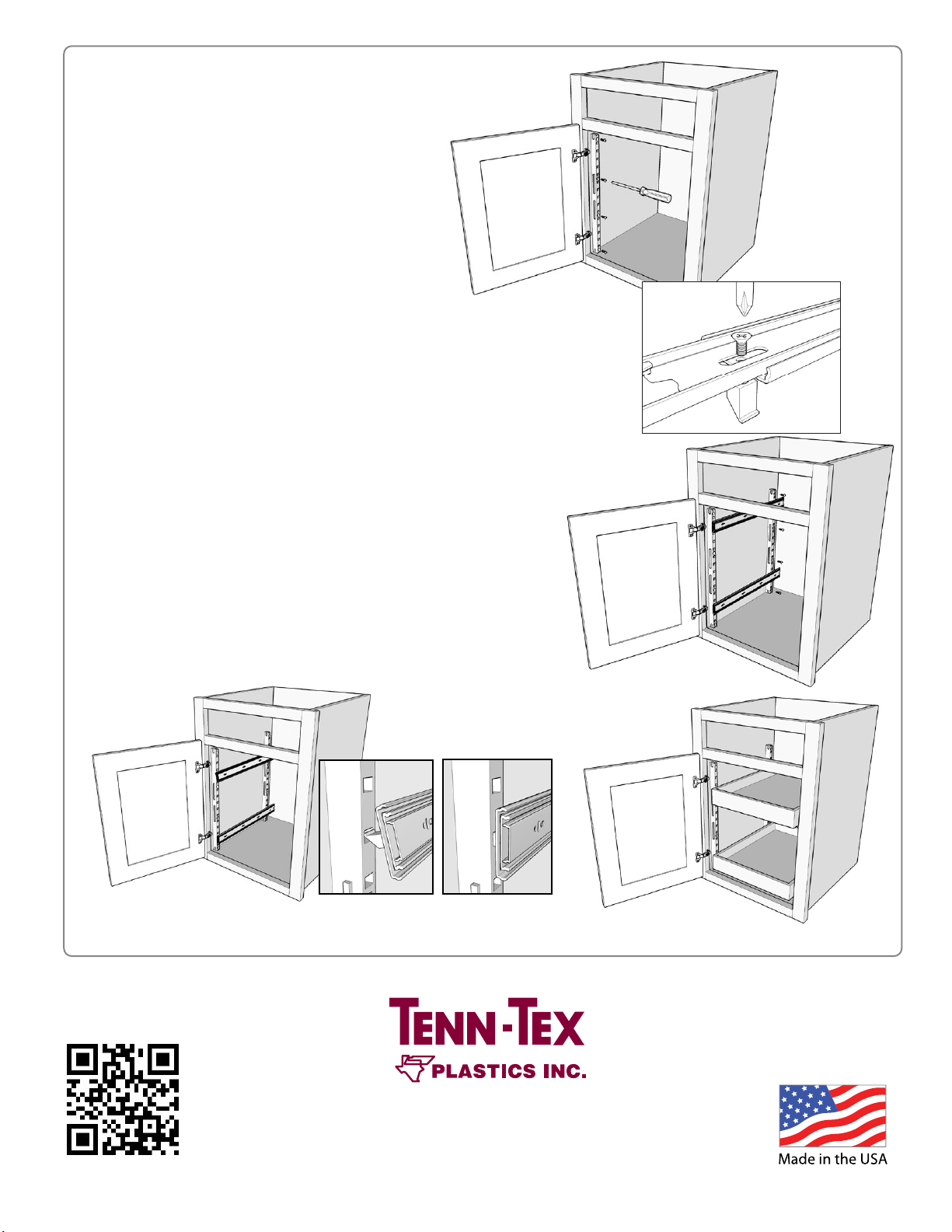

Installation
1
2
45
3
Place QuikTRAY™ pilaster behind face-frame
or set back, according to type of cabinet
construction or hinges being used. Rest
pilaster against cabinet bottom. Fasten with 5
wood screws or 4 Euro Screws.
Attach hook dowels (hooks pointing up) at front
and back of drawer slide. Front hook dowels on
slides must be mounted as far forward as possi-
ble.
To position back pilaster, insert two drawer slides
of your choice to top and bottom of secured front
pilaster and to unattached rear pilaster. Float rear
pilaster into postion and fasten with screws. Repeat
procedure on the other side.
Move slides to desired position, inserting at slight
angle.
With patented hook dowels, no tools are required to
install slides and trays. Just insert dowel with hook
pointing up, then push down to lock into place.
Hook dowels allow slides to move laterally to adjust
for cabinet and drawer width tolerances.
Install drawers or trays.
1
2
3
4a
4b
4
5
More installation information and video available at www.quiktray.com.
