Laredo Fire pit
With Grills
Version 2014/
type. No 1069.

P140170-TEPRO_1069_Laredo_Feuerstelle_Grill_20140923. 2 24/9/14 9:01 AM
D
E
C
A
B
G
F
H

P140170-TEPRO_1069_Laredo_Feuerstelle_Grill_20140923. 4 24/9/14 9:01 AM
No description nu
mb
er

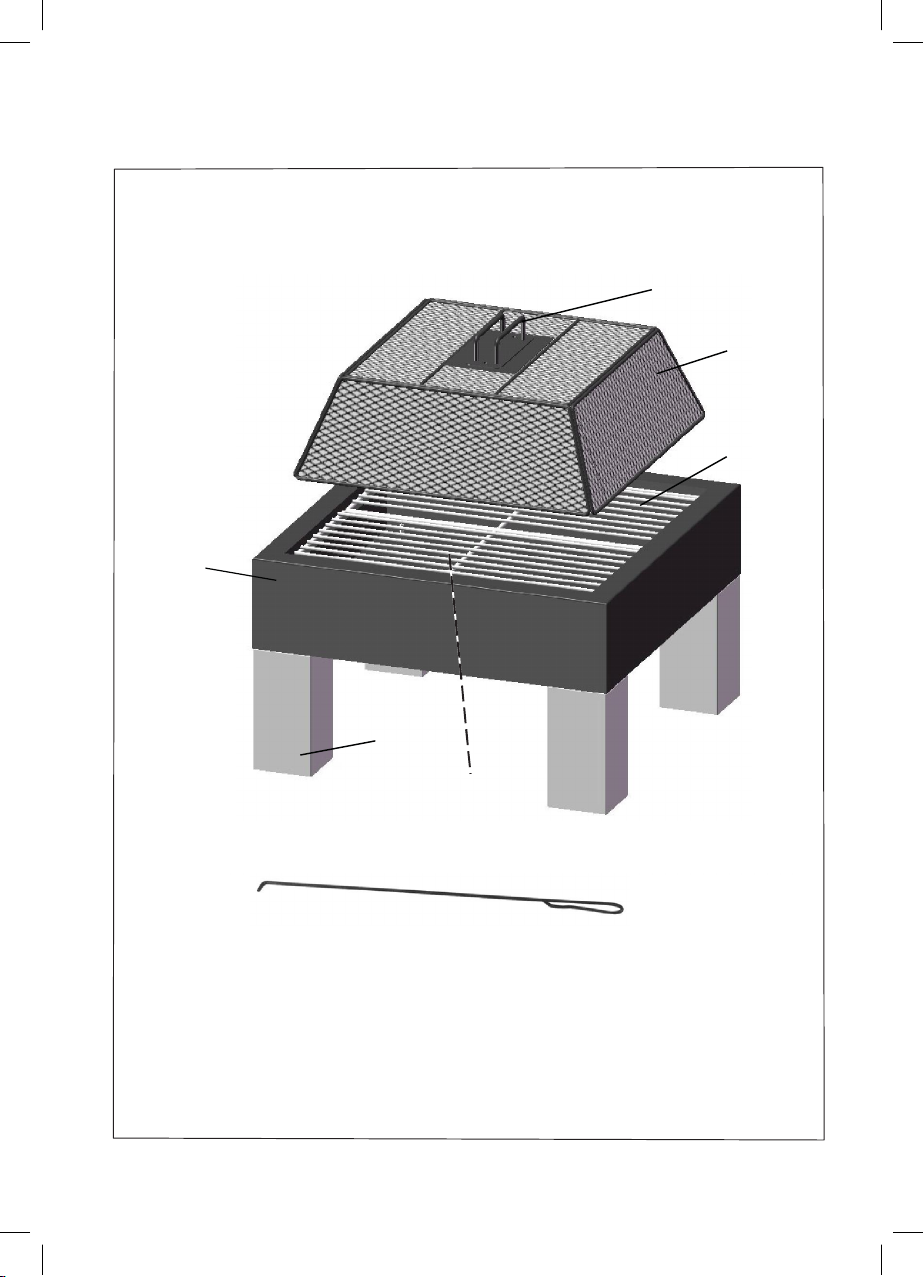

a Fire Pit 1
B Leg 4
C barbecue grill
2
D Handle 1
E Fire Guard 1
F Poker 1
S1 thumbscrew 4
S2 Phillips-head screw 2
T1 wing nut 2
Before you use the appliance
After unpacking, check before each use, whether the item is damaged.
Please do not use if significantly damaged.
The operator's manual is based on the valid standards and rules of the European
Union. Note abroad also country-specific guidelines and laws!
Read first the safety instructions before starting and the owner's manual
carefully. Only in this way can you use all functions safely and reliably.
Keep the manual in a safe place for future reference.
Supplied with
Please check whether the all
components are included before
assembly.
3

P140170-TEPRO_1069_Laredo_Feuerstelle_Grill_20140923. 5 24/9/14 9:01 AM
We cannot rectify any missing
components.
Best Practice
This Firepit is used to burn firewood or
charcoal and charcoal which can then be
used for heating, cooking and grilling of
food.
.
Use the article only, as described in this
Owner's Manual. Any other use is considered
improper use and can result in damage to the
equipment damage or even lead to personal
injury.
The manufacturer assumes no liability
for any damage caused by not
provisions Best practice use.
High Risk – Can be harmful to life and
property
Medium Risk – Can be harmful to
property
Low Risk – Warnings should be
considered to avoid harm
General Warnings
– Must never be used in Enclosed
spaces!
– Warning! No petrol or spirits to be
used for lighting your fire
– Use only According to EN 1860-3
– Warning! This grill is very hot and
should not be moved whilst lit!
– Warning! Keep children and pets
away from the lit fire and heat!
4

P140170-TEPRO_1069_Laredo_Feuerstelle_Grill_20140923. 6 24/9/14 9:01 AM
General Safety
Fire hazard!
– The glowing charcoal, wood and parts
of the Grills are very hot during the
fueling of the wood or charcoal & can
ignite fires.
– In principle, a fire extinguisher and a
first aid kit should readily available,
and in the case of an accident or fire
be prepared.
– Place the fire pit or Grill on a flat,
horizontal surface
– Grill so that he at least 1 m away from
easy flammable materials such as
awnings, outhouse or furniture.
– The device is used as a fireplace and
you should take care on the surface it
sits on – in particular wooden decking
or tiles. You should consider placing
sand or slabs under the fireplace.
– Grill during operation, do not try whilst
moving
– Only coal and wood in the fire tray burn
area.
– Fireplace/grill with a maximum of 5 kg of
charcoal or wood filling.
– Some foods generate flammable oils
and fats and juices. Regularly clean the
grill after each use.
– Dump ashes only when the fire is
burnt out and cold.
– Do not leave the fire pit unsupervised
when lit or hot.
Danger incineration
and risk of accident!
– The firepit should not be operated by
Children or any other incapable
person.
– Any changes or modifications to the
product are a major safety hazard and
are prohibited. In the event of
damage, repairs or other problems on
the grill at our service center or
contact a specialist on site.
– Children and pets away from the unit.
– Be Aware – the grill becomes very hot
and so does any food being cooked
on it
– Please keep sufficient distance when
the fire pit or grill is lit to prevent injury
and burns
– To grill always use kitchen gloves.
– Do not wear clothes with loose fitting that
could be caught by flames
– Only dry firelighters or special Grill-
lighters are to be used according to
the EN 1860-3 standards.
– Allow the Grill to cool down completely
before cleaning or storing
5

P140170-TEPRO_1069_Laredo_Feuerstelle_Grill_20140923. 7 24/9/14 9:01 AM
Danger!
– Keep Away from Flammable materials
– Never use petrol or spirit
Danger risk of poisoning!
The burning of wood, coal,
grill briquettes etc. forms
carbon monoxide. This gas is
odorless and can be lethal in
closed rooms and lead to
Death
Health hazard!
Do not use chemicals that can
harm your health to clean the grill or
fire pit.
WARNING dangers for children!
– Keep Children away form the
packaging as they could suffocate
– Make sure children do not play with
the Packaging.
– Make sure that children do not eat or
swallow or play with small assembly
parts in the mouth
–
Warning injury
At the grill and fire pit area
there is potentially sharp
edges.
– During the grilling process always
exercise utmost care. Do not loose
control of the fire.
– You must always be aware. Do not
use the product if you un-concentrated
or are tired or under the influence of
drugs, alcohol or medications.
Attention damage!
During time of use the fittings
may become loose – please
check them occasionally.
– Check the strength of the bolts before
each use. If necessary, remove all
screws to ensure a solid state.
Attention damage!
Do not use strong solvents or
abrasive – it may cause damage
and leave it vulnerable.
6

P140170-TEPRO_1069_Laredo_Feuerstelle_Grill_20140923. 8 24/9/14 9:01 AM
Specific instructions for use as a
fire pit
– The fireplace in the interior may only
be placed for decoration. The
operation in the inside is not allowed.
– Never use fire pit under a canopy.
– Safe operation of the fireplace is only
guaranteed, if it is based on a solid,
level and sufficient load enabled
ground is established.
Installing
– Only dry igniters or special
According to EN 1860-3 you must
also Follow the manufacturer's
instructions.
– Never use liquids such as gasoline,
Turpentine, Spirit etc. for lighting or
use
– Never leave unsupervised. Open
flames and embers can cause
Personal injury and fire!
– Hold a bucket with sand for use in
emergencies
– Discard embers and coals only when coal
and in a metal container.
– Only use dried and seasoned timber – to
ensure a pleasant experience
Risk of injury!
The failure to comply with the
instructions, problems can
arise and risks involved in the
use of the grill.
– Follow all instructions listed here.
1. Read the Instructions - to complete
assembly.
2. Spend enough time on the assembly
and create a level work surface of
one to two square meters.
3. Small parts may already pre-assembled.
4. Watch for sharp edges on the panels
and consider using protective gloves
Tool required
1 X Phillips screwdriver
7

P140170-TEPRO_1069_Laredo_Feuerstelle_Grill_20140923. 9 24/9/14 9:01 AM
Assemble
1. Fireplace unpacking
Remove all packaging and dispose of
away from children
2. Fireplace and legs attach
Attach under the fire pit base
(A) On every corner a stand leg
( B) with a thumb screw (S1).
S1
A
4. Place (G) the charcoal pan/tray in
the fire pit (A) place.
G
A
5. Hang up grills and put the two
grills (C) on the fire pit base (A) .Be
sure to correctly insert them so that
the grills sit in the recesses of the side
walls & locked-in. Place the Lid (E)
onto the top
E
C
B
A
3. Fix the Handle on the fire guard by
using (D) fixed on with (E) with two
cross-slotted screws (S2) and two
wing nuts (T1).
S2 6. Assembly is complete
The assembly is completed
D
When using the fire pit – be sure to
use the poker to arrange the coals
and logs and the shovel for ash
removal
All screws must be tight.
8

P140170-TEPRO_1069_Laredo_Feuerstelle_Grill_20140923.indd 10 24/9/14 9:01 AM
Attention damage!
Check the strength of the screw - before
each use. If necessary, remove all
screws to ensure a solid state.
Using the grill
• Wash before first use the grills with
warm soapy water.
• A fire
The grill must be on and hot for 30 minutes
before with a temperature of 100 degrees -
200 degrees C bin the fire.
A maximum of 5kg fuel should be used
– charcoal or wood embers
Distribute the wood evenly
Oil your grills before use
Do not place food on the grills until the
flames have died away and the coals
are glowing
Ensure food is properly cooked
through
– Keep sufficient distance to hot parts,
since each contact can cause severe
burns. To grill always a grill or kitchen
gloves.
– Use only long stem with heat-resistant
handles.
– Do not wear clothes with loose fitting.
– Only dry igniters or special Grill-
lighters according to the EN 1860-3 as
use.
Use as fireplace
1. Remove the fire protector guard (E)
and the grills (C) from the fire
bowl (A).
2. Insert 1-2 solid ignition aid in the
middle of the fire bowl - (G). Note the
manufacturer instructions on the
packaging. With a single strike ignite
wood.
3. Layers a few small pieces Dry
Seasoned firewood in the shape of a
pyramid over the top
4. Wait until there is a sufficiently large
flame has developed, before you add
more wood. Insert the fire guard lid (E)
on the base (A) in order to AVOID
sparks. Use the Poker to fuelling the
fire (F).
5. Warning! Note that the fire pit
becomes very very hot. Touch or
move only with heat proof gloves.
9

P140170-TEPRO_1069_Laredo_Feuerstelle_Grill_20140923.indd 11 24/9/14 9:01 AM
Using as a Grill
1. Remove the lid (E) and the grills (C)
from the pit (A).
2. Insert 1-2 solid ignition aid in the
middle of the coals (G). Note the
manufacturer instructions on the
packaging. With a single strike to
ignite wood.
Maintenance and
cleaning your fireplace is made of
high-quality manufactured materials.
In order to clean the surfaces and to
maintain, please observe the following:
Let the Grill cool down
completely before you clean it.
– Tilt the ashes only when the fuel is
completely burned out and go out.
Layer 5 kg charcoal or lumpwood.
3. The fire pit must be lit for 30 minutes
before cooking
See section before grilling.
health hazard!
As soon as the charcoal is hot
enough and grey – distribute to
organize your heat
4. Rub the grills (C) with a little cooking
oil before adding food. Make sure that
the grills are sitting properly in the
recesses of the base.
• Drain the cold ashes with the help of
the shovel supplied (H).
It is very important that the ashes
are removed from the fire bowl,
before moisture combines with the
cold ashes. Ash is saline and can
cause rust if not removed
• Regularly clean the grill after each use
• Remove the grill and clean thoroughly
ith soapy water. Rinse with clean water
and carefully-
The packaging consists of to--
ped in environmentally friendly
materials that you have the local
recycling bodies can dispose.
• Remove loose debris on the grill with a
wet sponge.
• Use a soft, clean cloth to dry. Do not
scratch the surface when dry.
• Clean the interior and surfaces in general
with warm soapy water.
• Tighten all the bolts before each use
check back regularly each time to
ensure a fixed date of the grill.
IMPORTANT: The Grill should always be kept
protected from moisture.
Do not discard of the fire pit in
normal household rubbish
Ensure it is disposed of through a
waste disposal area or local
council run facility

P140170-T EPR0_1 009_Laredo_Feuerstelle_ Gnll_20140923 .1ndd 16
24/9/ 14 901 A M
I
