viii. Reboot System
1) Click [Reboot System] button, you can restart the system
<Reboot>: reboot system automatically.
ix. Logout
1) Click Logout button once setup / configuration of WiPS1000 is completed.
Specifications are subject to change without notice.
Check www.teqavit.com for latest update and information.

Teq AVIT www.teqavit.com [e-mail] 1-949-709-4040
30
To execute the Hardware Factory Reset to Default, Please follow below
procedures.
1. Press [Reset] button and Hold.
2. Turn on WiPS1000 box.
3. Wait for over 10 seconds and release [Reset] button.
4. It will take effect to restore factory default settings.
vii. BrowserSlides Setup
1) Click [BrowserSlides Setup] button to setup the BrowserSlides Feature.
2) Auto Refresh Interval: choose “Manual Refresh”, “10”, “20”, or “30” seconds
3) Access Password Control: choose “Disable”, “Use the samepassword as Code”
or “Use the following Code”
Teq AVIT www.teqavit.com [e-mail] 1-949-709-4040
3
1. Overview
WiPS1000 is the first wireless interactive presentation system. By enabling the
innovative “interactive” and “wireless” functions, you can display your presentations
wirelessly from a PC, Mac, iPad, iPhone, or Android devices to a projector or a TV or
LCD Display. WiPS100 also allows one to use ipad, Android tablet, iPhone or
smartphone to control your PC/Mac, or view the presenting slides.
WiPS1000 Features:
Icon
Feature
Description
DoWiFi No more wires … Display-over-WiFi for
Windows & Mac
Plug&Show No software installation required. Just plug
in the Plug N Show Token into USB drive
to your PC or Mac.
MobiShow Interactive PPT presentation via
iPhone/iPad or Android devices
WiFi-Doc High quality presentation via iPhone/iPad
or Android devices
SidePad Control the presentation on PC or Mac via
iPhone/iPad or Android devices
BrowserSlides Broadcast slides to your devices with WiFi
and web browser
4-to-1 projection Project four PC/Mac screens to one
projector at once.
Conference Control Open WiPS1000's web page to control
screen projection centrally. Or use
mouse/keyboard to select a PC to show
from WiPS1000's UI.
Basic Features
Wireless screen and audio projection
Remote desktop control feature via USB Keyboard and mouse
Supports WindowsWin7, Vista, XP
Supports Mac version 10.5 and above
Plug and Show! No installation required … just plug in the accompanied
PnS Token to a USB port.
MobiShowApp supports iOS, Android, Blackberry, Windows Mobile 5/6
handheld devices

Teq AVIT www.teqavit.com [e-mail] 1-949-709-4040
4
WiFi-Doc App supports for iOS/Android mobile devices
Up to 30FPS high speed screen projection on VGAor HDMI ports
Multi-source 4-to-1 Split Screen Projection.
Conference control- Moderator based presentations.
Session security login code
Wireless WEP/WPA/WPA2 key encryption
Gatekeeper function to interface securely with connected network.
Web management including client software download and device
settings
2. Package Contents
WiPS1000 Box
Plug N Show USB Token
Power Adapter (DC +5V, 2.5A)
2 WiFi Antenna
User Guide
3. Unit Details
Power Button and LED USB Port for mouse & keyboard
Teq AVIT www.teqavit.com [e-mail] 1-949-709-4040
29
v. Change Passwords
1) Click [Change Password] button, you can change the password setting.
(Length: up to 8 characters)
<Enter New Password>: enter new password you want to change for each
category.
<Confirm New Password>: Confirm the new password again.
<Apply>: Confirm and Save modifications.
vi. Reset to Default
1) Click [Reset to Default] button to restore factory default settings.
<Apply>: Confirm and take action.

Teq AVIT www.teqavit.com [e-mail] 1-949-709-4040
28
iv. OSD Setup
1) Click [OSD Setup] button, you can change the standby Logo image
Change Logo Image
<Reset to default>: Restore to default Logo image.
<Image File Upload>: Upload the customized Logo Image.
Teq AVIT www.teqavit.com [e-mail] 1-949-709-4040
5
4. Quick Installation
1) Connect WiPS1000 device to Projector through VGA port or HDMI port and turn
on projector power.
2) Connect the power adaptor to WiPS1000 device and press the power button to
Power
VGA
output
10/100 Mbps
RJ-45 Audio
Output
HDMI
Output
Antenna USB Port for
IWB (HID)
Reset Button
Screw hole
(Optional kit for Wall Mount)

Teq AVIT www.teqavit.com [e-mail] 1-949-709-4040
6
turn on WiPS1000 device. It will show the default standby screen as below on
projector when system is ready.
3) Attach the speaker cable to WiPS1000 audio output jack to amplifier or speaker.
4) Attach USB mouse and keyboard to WiPS1000 front USB port for OSD control
and remote desktop control
5) Attach the USB IWB cable to WiPS1000 rear USB port for IWB control
6) It will show the Quick Guide, WiFi Network Name, IPAddress and Code on
standby screen. If you need more advance information, please click the
“Advance” icon, you can find the FW version, resolution and WiFi security
information. Or one can changethe Quick Guide Language (EN/SC/TC/JP/KO)
here.
7) System will enter the Screen Saver
mode if none is connected, it will restore to
standby status immediately when there is
any sender connected.
5. DoWiFi for Windows / Mac OS
Install the application
1) Make sure your PC or Mac Client
computer’s WiFi is enabled already, and
connect your PC/Mac to WiPS1000 or
Teq AVIT www.teqavit.com [e-mail] 1-949-709-4040
27
Default Gateway: The default value is 192.168.100.10
DNS Server: The default value is 192.168.100.10
< Wireless Setup>
Wireless LAN: The default value is “Enable”
Region: default value is “Worldwide”.
SSID: SSID string, max. Length is 32 bytes.
SSID Broadcast: The default value is “Enable”
Channel: to set fixed channel or Auto. The “Auto” means after power on
WiPS1000, it will scan all of wireless channel and select clear one
channel automatically.
Encryption: you can select “Disable” or one of WEP/WPA/WPA2 64bit or
128bit inASCII or HEX string.
Key: If Encryption is enabled, you have to set key value according to the
encryption mode you selected.
< AP Client> for non-controller based WiFi AP
Connect to ExistingAP: Input the SSID of WiFiAPyou want to connect.
Encryption: you can select “Disable” or one of WEP/WPA/WPA2 64bit or
128bit inASCII or HEX string.
Key: If Encryption is enabled, you have to set key value according to the
encryption mode you selected.
PressApply button, and follow the reboot instruction to make it work.
< Gatekeeper>
Gatekeeper is designed for ensuring network security through WiPS1000 box
All Block can block Guest Users(through wireless) to access all office
network(LAN),
All Allow can pass any Users( access all network resources
Internet Only can block Guest Users (through wireless) from office
network (LAN) but still reserve internet connection capability.
<Apply >: press button to select this mode.
<Cancel>: press button to abort action.

Teq AVIT www.teqavit.com [e-mail] 1-949-709-4040
26
iii. Network Setup
1) Click [Network Setup] button, it will show the network setting items,
<Note: Auto-Configuration Network Setup on WiPS1000>
The default setting of the WiPS1000 box is DHCP client. When the WiPS1000 box is
connected to a LAN that already has a DHCP server present, theWiPS1000 box
takes an IP address assigned to it by the server. When the WiPS1000 box is
connected to a LAN that does not have a DHCP server, the WiPS1000 box becomes
the DHCP server in the network.
< IP Setup>
You can select “obtain IP address automatically” or “Use the following IP
address”
IP Address: The default value is 192.168.100.10.
Subnet Mask: The default value is 255.255.255.0
Default Gateway: The default value is 192.168.100.10
DNS Server: The default value is 192.168.100.10
<DHCP Server Setup>
You can select “auto(Enable/Disable DHCP Server” or “Disable”)
Start IP: The start IP address of DHCP Server.
End IP: The end IP address of DHCP Server
Subnet Mask: The default value is 255.255.255.0
Teq AVIT www.teqavit.com [e-mail] 1-949-709-4040
7
provided SSID seen on screen.
2) Open your browser and enter the IP address shown on the left corner of
projector screen to access theWiPS1000 home page. (Default IP:
192.168.100.10)
3) Download the client software for “Windows 7/Vista / XP” and install on your PC
or Mac version to install on Macbook. Open or install the application. If you do
not want to install then launch the application from PnS token directly.
4) Launch WiPS1000 client software by clicking on desktop icon or through Quick
Launch icon. Make sure your personal firewall allows WiPS1000 software to
pass through.
5) WiPS1000 will memorize the last successful connection profile and open the
quick connect dialog, you can enter the code and press the “Connect” button to
connect this WiPS1000 directly.
6) If you want to connect to another WiPS1000 receiver, please press the “Rescan”
button.

Teq AVIT www.teqavit.com [e-mail] 1-949-709-4040
8
7) WiPS1000 will search available WiFi Network and list all WiPS1000 Device.
One can select a network and press the “Connect” button to connect the
selected WiFi Device.
8) If changing e theWiFi Network is not needed to keep the connection to current
network, one can press the “Skip” button.
9) WiPS1000 will search and list the WiPS1000 receiver Device. You can select
the target receiver device and press the “OK” button to connect the selected
receiver device.
10) If target WiPS receiver device is not in the list, press the “Manual” button to
enter the receiver IP address manually and connect.
11) A 4-digit session login code seen on the upper right corner of screen of
attached display needs to be entered to make connection.
Teq AVIT www.teqavit.com [e-mail] 1-949-709-4040
25
Subnet Mask：subnet mask Default Gateway：default gateway
Wireless MAC address：wireless MAC address
Wire MAC address：wire MAC address
Connection Status:
Projecting status: “Waiting for projecting” or “Projecting”
Total Users: It shows howmany users login to WiPS1000.
ii. Device Setup
1) Click [Device Setup] button, it will show the device setting items,
Choose <VGA> or <HDMI> output option
<Resolution>: HDMI: 720p, 1080i, 1080p
VGA: UXGA(1600*1200), WXGA+(1440*900), WXGA(1360*768, 1280x768,
1280x800) ,XGA(1024*768), and SVGA(800*600).
<Code>: You can select “Disable”, “Random”, or “Use the following code” to
set a specified 4-characters Number.
<IWB USB Port>: You can configure the IWB USB port to support “IWB
(HID)” device or “Mouse/Keyboard” device
<Apply>：Confirmation and Save modifications
<Cancel>: Cancel all the modifications

Teq AVIT www.teqavit.com [e-mail] 1-949-709-4040
24
d. BrowserSlides
1) Press the “BrowserSlides” button to enter the BrowserSlides page.
2) Enter the password if necessary. (Default password: Same as Code)
3) Start to receive the projecting slides.
e. Admin (Setuo and Configuration of WiPS1000 device)
1) Click [Admin] and then enter the password to login web admin page. (Default
Password: admin)
i. System Status
1) Click [System Status], it will show current system status.
Model Name: Product model name
Firmware version no.: Product firmware version
Network Status:
IP address：IP address of WiPS1000 device.
Teq AVIT www.teqavit.com [e-mail] 1-949-709-4040
9
12)
If you want to connect to another receiver or cancel the login, please press the
“Cancel” button.
User Interface
Button
Description
Full Screen projection
Project to Split #1
Project to Split #2
Project to Split #3
Project to Split #4
Stop projecting
Pause projecting
Enable the Windows Magnifier function
Control Area for Screen
Projection Feature
Menu Area
Status Indicator

Teq AVIT www.teqavit.com [e-mail] 1-949-709-4040
10
8.1 Menu
1) Press “Menu” button from the main UI, you will find the menu to enable the
additional feature or to change the application options.
Windows OS Menu
Item
Description
Show Receiver In
formation
Show Receiver Information on desktop
Web Admin
Open web admin page
Search Receiver
Search another receiver device
Launch SidePad
-
> MirrorOp
Receiver Launch SidePad sender
Enable BrowserSlides
Enable BrowserSlides feature
Select Projection D
esktop
Select different projection desktop
Projection Quality
Change projection quality
Projection Latency Control
Change projection latency option
Enable IWB USB Bridge
Enable IWB USB bridge
Advanced Screen Capture
Enable advance screen capture
Send
Audio to Display
Enable audio projection
Auto Power Management
Enable Auto Power management feature
Auto WiFi Connect
Enable Auto WiFi connect feature
Make Plug&Show Token
Make Plug&Show USB token
Copy Application to Desktop
Copy the application to desktop
About
About this application
Exit
Exit the application Teq AVIT www.teqavit.com [e-mail] 1-949-709-4040
23
b. Download
1) Select “Download” function.
2) Please select the “Win 7 / Windows Vista / XP” or “Mac Utility” and execute the
installation program.
Please disable the “Smart Screen Filter” on IE browser; otherwise you might not
able to downloadthe file.
c. Conference Control
1) Select “Conference Control” function, it will show current connected sender list.
2) Enter password and then press [Login]. (default password: moderator)
3) After login, you can see a User List on the screen which indicates all of users
connected to WIPS1000 box.
4) There are three columns, “Computer Name”, “Play Control” and “IP Address”.
5) Play Control，There are six buttons, including Play(Full) , Play Split #1
, Play Split #2 ,Play Split #3 , Play Split #4 and Stop .
6) Uncheck the “Allow Control from this page only”, it will disable the centralized
control and user can project the screen to WiPS1000 freely.

Teq AVIT www.teqavit.com [e-mail] 1-949-709-4040
22
8.1.16 Exit
1) Click “Exit” to exit this application. It will stop current playing status and close
the application immediate.
9. Web Management
a. Home Page
1) Make sure your PC connect to WiPS1000 box successfully.
2) Enter the receiver IP address on browser; you can find the IPaddress on the
projector screen. (Default IP is 192.168.100.10)
Teq AVIT www.teqavit.com [e-mail] 1-949-709-4040
11
Mac OS Menu
Item
Description
Show Receiver Information
Show Receiver Information on desktop
Web Admin
Open web admin page
Search Receiver
Search another receiver device
Launch SidePad
-
> MirrorOp
Receiver Launch SidePad sender
Enable BrowserSlides
Enable BrowserSlides feature
Projection Quality
Change projection quality
Projection Latency Control
Change projection latency option
Send Audio to Display
Enable audio projection
Auto Wi
Fi Connect
Enable Auto WiFi connect feature
About
About this application
Exit
Exit the application
8.1.1 Show Receiver Information
1) Click “Show Receiver Information”, it will display the Receiver Information, such
as WiFi Name, IPAddress and code on the upper of desktop, it will close
automatically after 30 seconds or you can also click on the area to close this
window manually.

Teq AVIT www.teqavit.com [e-mail] 1-949-709-4040
12
8.1.2 Web Admin
1) Click “WebAdmin”, it will open the browser and connect to the receiver web
admin page automatically.
(You can find the details of web admin page from another chapter.)
Teq AVIT www.teqavit.com [e-mail] 1-949-709-4040
21
8.1.14 Make WiPS1000 Token
1) Click “Make WiPS1000 Token” to make a USB WiPS1000 Token, you can
insert a USB thumb drive and follows the wizard to make the Token.
8.1.15 Copy Application to desktop
1) Click the “Copy Application to desktop”, it will copythe application to your
desktop immediately even you don’t have the system privilege

Teq AVIT www.teqavit.com [e-mail] 1-949-709-4040
20
function and restore you power scheme immediately.
8.1.13 Auto WiFi Connect
1) Click “Auto WiFi Connect” to enable the WiFi connect feature through
WiPS1000 application.
Teq AVIT www.teqavit.com [e-mail] 1-949-709-4040
13
8.1.3 Search Receiver Device
1) Click “Search Receiver Device”, it will disconnect from current receiver and
search the receiver again.

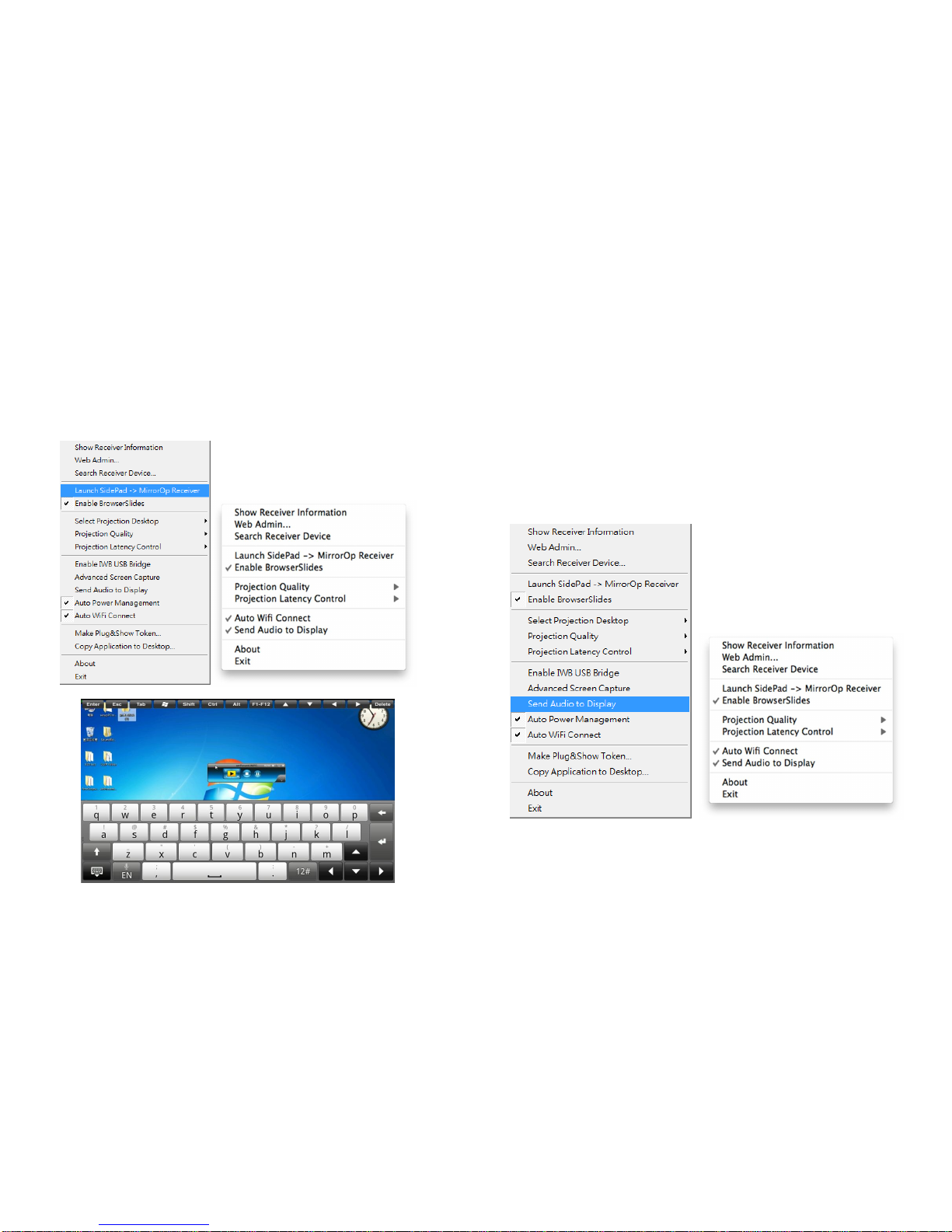

8.1.4 Launch SidePad -> MirrorOp Receiver
1) Open the main menu of the WiPS1000 application(Win/Mac), and choose the

Teq AVIT www.teqavit.com [e-mail] 1-949-709-4040
14
item, “Launch SidePad -> MirrorOp Receiver (SidePad)”
Note: You have to download the “MirrorOp receiver” on your Android/iOS
device, then connect theAndroid/iOS to WiPS1000 device through WiFi and
Launch “‘MirrorOp Receiver”.
2) In seconds, you shall see the PC desktop shown on the iOS Device. Use two
fingers to pinch or one finger to pan the desktop image and control it by single or
double clicks!
8.1.5 Enable BrowserSlides
1) Click the “Enable BrowserSlides”, it will start to broadcast your slides to the
Teq AVIT www.teqavit.com [e-mail] 1-949-709-4040
19
8,1,11 Audio Projection
When doing the full screen projection, one can also choose to project the audio
to WiPS1000 receiver for the multimedia or video scenario.
Note: For Windows XP system, please install theAudio driver (“VAC.exe”,
Virtual Audio Control Driver) on PC first from USB PnS Token. For Windows
Vista and Windows 7 is not necessary to install VAC.
Please install the Soundflower audio driver on your computer first, you can find
the software from USB PnS Token.
Click “Send Audio to Display” to start the audio projection feature. It will mute
your local speaker during the projection and restore it when it closes the
application.
8.1.12 Auto Power Manager
1) To make the highest projection performance, application will turn the PC’s
windows power scheme from current settings to “highest performance”,
however, you can click the “Auto Power Manage” to enable or disable this

Teq AVIT www.teqavit.com [e-mail] 1-949-709-4040
18
your PC screen.
Disable “Advanced Screen Capture”.
Enable “Advanced Screen Capture”.
8.1.11 Send Audio to Display
Tip windows is shown in projector
Tip windows is not shown in projector
Teq AVIT www.teqavit.com [e-mail] 1-949-709-4040
15
browser on connected mobile devices.
Note: Audience need to connect to WiPS1000 WiFi Network, open the
browser and click the “BrowserSlides” button to start receiving the slides.
8.1.6 Select Projection Source
Main / Extended Screen Projection
1) Click the “Select Projection Source”
then you can select to project themain
screen of desktop or the virtual extended
screen.
Note: For Windows XP system, you need to install “VDD.exe” driver first from

Teq AVIT www.teqavit.com [e-mail] 1-949-709-4040
16
USB PnS Token. For Windows 7/Vista Professional and Ultimate and Home
editions are supported but Starter edition can’t support extended screen. For Mac
OS only Main Screen is projected.
8.1.7 Projection Quality
1) Click the “Projection Quality”, choose “Normal” for faster projection speed with
lower screen image quality, and “Best” for clear screen image quality but slower
projection speed.
8.1.8 Projection Latency Control
1) The Projection Latency Control provides the option to support “Auto” latency
control and “Shortest (Application Mode)”.
2) For the “Auto” mode, it will trigger the longer latency but much smooth
performance when you are watching video, and change backto shortest latency
mode when it detect you are moving the mouse cursor.
3) For the “Shortest (Application Mode)”, it will always keep the shortest latency to
Teq AVIT www.teqavit.com [e-mail] 1-949-709-4040
17
provide the most responsive operation performance.
8.1.9 Enable USB IWB Bridge (Windows OS only)
1) Click the “Enable USB IWB Bridge”, it will enable the USB IWB Bridge feature.
When you start the full screen projection, it will bridge the IWB device to your
PC wirelessly. You have to install the USBoIP driver first from USB PnS token.
8.1.10 Advanced Screen Capture
1) Click the “Advanced Screen Capture”, you will be able to see tip windows and
other layered windows (include themain UI) on the connected display.
However, the mouse cursor may blink from time to time when you are projecting
