TEQSAS LAP-TEQ User manual

Operating Manual

Table of contents
2 V-11/2018
Table of contents
1Before you get started… .................................................................. 4
1.1 Intended use ....................................................................................... 4
1.2 What do the symbols used here mean? ............................................. 4
2For your safety .................................................................................. 6
2.1 General safety information ................................................................. 6
2.2 About laser beams .............................................................................. 7
2.3 Workplace safety ................................................................................ 7
2.4 Electrical safety .................................................................................. 7
2.5 About strong magnets ........................................................................ 8
2.6 Human safety ..................................................................................... 8
2.7 Service ................................................................................................ 9
2.8 Special instructions concerning the device ........................................ 9
3Description of product ................................................................... 11
3.1 Scope of delivery .............................................................................. 11
3.2 Your device at a glance .................................................................... 12
4First operation ................................................................................ 14
4.1 Connection........................................................................................ 14
4.2 Connection of a LAP-TEQ Sensor PLUS (optional) ......................... 17
4.3 Fastening the magnetic mounting bracket ....................................... 18
5Operation ......................................................................................... 19
5.1 Power on/off ..................................................................................... 19

Table of contents
LAP-TEQ Elevation 3
6Trigonometric correction / length unit ......................................... 20
7Cleaning and care........................................................................... 22
8Malfunctions and troubleshooting ............................................... 23
8.1 Service centre ................................................................................... 24
8.2 Observe ambient conditions ............................................................. 25
9Storage ............................................................................................ 26
10 Disposal ........................................................................................... 27
11 Technical data ................................................................................. 28
12 Declaration of Conformity ............................................................. 29

Before you get started…
4 V-11/2018
1 Before you get started…
1.1 Intended use
The LAP-TEQ Elevation Sensor is designed to determine the correct mounting
height for speakers.
The LAP-TEQ Elevation Sensor measures the vertical distance between the
unit and the surface directly beneath. The measured distance is displayed on a
LAP-TEQ Display PLUS or a LAP-TEQ Motion System, to be purchased
separately.
Any other use not described in this operating manual is unauthorised misuse.
The manufacturer will not be liable for damages incurred from such misuse.
Never use the device in public transport (road traffic, aviation, etc.).
1.2 What do the symbols used here mean?
Danger notices and warnings are clearly designated in the operating manual.
The following symbols are used:
Danger!
Immediate danger of death or injury!
Immediately dangerous situation that will result in death or
severe injuries.
Warning!
Probable danger of death or injury!
Generally dangerous situation that can result in death or
severe injuries.

Before you get started…
LAP-TEQ Elevation 5
Caution!
Potential danger of injury!
Dangerous situation that can result in injuries.
Attention!
Danger of damage to device!
Situation that can result in material damage.
Notice
Information provided for better understanding of the processes.

For your safety
6 V-11/2018
2 For your safety
Warning!
Failure to comply with the safety information and
instructions can cause electric shock, fire and/or
severe injuries.
► Read all safety information and instructions.
2.1 General safety information
 Store all safety information and instructions for future reference. The term
device used in the safety information refers to mains-powered devices
(with a mains cable) and to battery-powered devices (without a mains
cable).
 Danger of death and accident for small children and children! Never leave
children unattended with the packaging material and the product. There is
a danger of suffocation from the packaging material and danger of death
from strangulation. Children often underestimate dangers. Always keep
children away from the product. The product is not a toy.
 For safe use of this device the user of the device must have read and
understand this operating manual prior to the first use of the device.
 If you sell or pass on the device, be sure to include this operating manual
with the device.
 This device is not intended for use by persons (including children) with
impaired physical, sensory or mental capacities or insufficient experience
and/or insufficient knowledge, unless they are supervised by a person who
is responsible for their safety or receive instructions from that person on
how to use the device.
 The device may be used only if it is in perfect working order and
completely mounted. If the device or a component thereof is defective, it
must be taken out of operation and repaired by a specialist or properly
disposed of.

For your safety
LAP-TEQ Elevation 7
 Use the device only for the purpose for which it is intended.
 Keep children away from the device! Store the device safely out of the
reach of children and unauthorised persons.
 Use and store the device only within the permissible ambient conditions
(temperatures, humidity, etc.).
2.2 About laser beams
 Do not look into the beam, even at large distances.
 Never point the measuring beam at people, other living beings or reflective
surfaces.
 Commercially available laser glasses do not provide protection against the
dangers of laser beams. They only help to better recognise the laser
beam.
2.3 Workplace safety
 Keep your workplace clean and well lighted. Disorder and unlighted
workplaces can cause accidents.
Observe the applicable workplace and accident prevention regulations for
your country.
 Do not use the electrical device in potentially explosive environments
containing flammable liquids, gases or dusts. Electric tools generate
sparks, which can ignite dust or vapours.
2.4 Electrical safety
 In dry environments it is possible for static electricity to occur. In dry
rooms, touch a metal object to discharge static electricity before operating
the device.
 Do not misuse the cables to carry or suspend the device or to pull the plug
from the electrical outlet. Keep cables away from heat, oil, sharp edges or
moving device components. Damaged or tangled cables increase the risk
of damage to the device.
 If you use the device outdoors, use only extension cables that are suitable
for outdoor use. The use of an extension cable that is suitable for outdoor
use reduces the risk of damage to the device.

For your safety
8 V-11/2018
2.5 About strong magnets
 Magnets can affect the functioning of pacemakers and implanted
defibrillators. If you wear one of these devices, stay out of the direct
vicinity of the magnets!
 The holding force of magnets can weaken. Be aware at all times that a
magnet can become demagnetised, causing the unit to fall. The unit and
mounting brackets must therefore always be secured with arrester cables!
 Magnets have a strong magnetic force. When handling magnets, be
careful that they do not pinch your fingers or skin. Wear safety gloves, if
necessary.
 Magnets are brittle and can crack or shatter. Avoid magnets striking each
other or hard surfaces. Do not expose them to mechanical stress such as
drilling or grinding.
 Magnets and their coatings can contain nickel. Regular contact with them
can trigger nickel allergies. Avoid contact between magnets and bare skin.
In persons with a nickel allergy, contact can cause allergic reactions. If you
have a nickel allergy, you should not handle magnets.
 The magnetic field of a magnet can cause irreversible damage to objects.
Maintain a sufficient safety distance of at least 1 metre. Objects that can
be damaged include, for example:
- electronic devices such as hearing aids, laptops and monitors
- objects that contain iron, such as mechanical watches
- data carriers such as magnetic strips on credit cards, hard drives, etc.
2.6 Human safety
 Be attentive, pay attention to what you are doing, and use common sense
while working. Do not use the device if you are tired or under the influence
of drugs, alcohol or medications. One moment of carelessness during use
of the device can result in serious injuries. The sensor and the magnetic
mounting bracket must be secured against falling by suitable means.

For your safety
LAP-TEQ Elevation 9
2.7 Service
 Have your device repaired only by qualified specialists, and only using
original replacement parts. This will ensure the long-term safety of the
electric tool.
 Provide for adequate lighting when working with the device. Poor visibility
can increase the risk of accidents.
 Use only accessories that are intended especially for use with this device
and recommended by the manufacturer. The fact that you can attach
accessories to the device is no guarantee for their safe and trouble-free
use.
 The device can show signs of wear over time.
 The use of non-approved accessories can result in damage or wear that is
not covered by the warranty.
2.8 Special instructions concerning the device
 Do not use the device in potentially explosive areas or in the vicinity of
flammable liquids or gases!
 Paint and labels can cause moving parts to stick, therefore impairing
correct operation.
 If you are have an allergic reaction to the paint or metal parts of the
device, the result may be itching, eczemas or swelling of the skin. If this is
the case, discontinue using the device and consult a physician.
 Broken glass or plastic can cause injuries. Have the device repaired in the
service centre.
 Do not allow the device to fall or expose it to shocks.
 The device or parts of it can become damaged from falling, bending or
deformation.
 The device features safeguards to limit the emitted laser beam: Do not
make any modifications to the optical system.
 This device is classified as a class 2 laser product in accordance with the
international standard IEC 60825. It operates with a visible laser beam,
which is not dangerous in normal operation.
 Do not remove or cover symbols located on your device. Illegible
information must be replaced immediately.

For your safety
10 V-11/2018
Read and comply with the operating manual prior to operating the
device.
Danger of eye injuries!
Never look directly into the laser beam.

Description of product
LAP-TEQ Elevation 11
3 Description of product

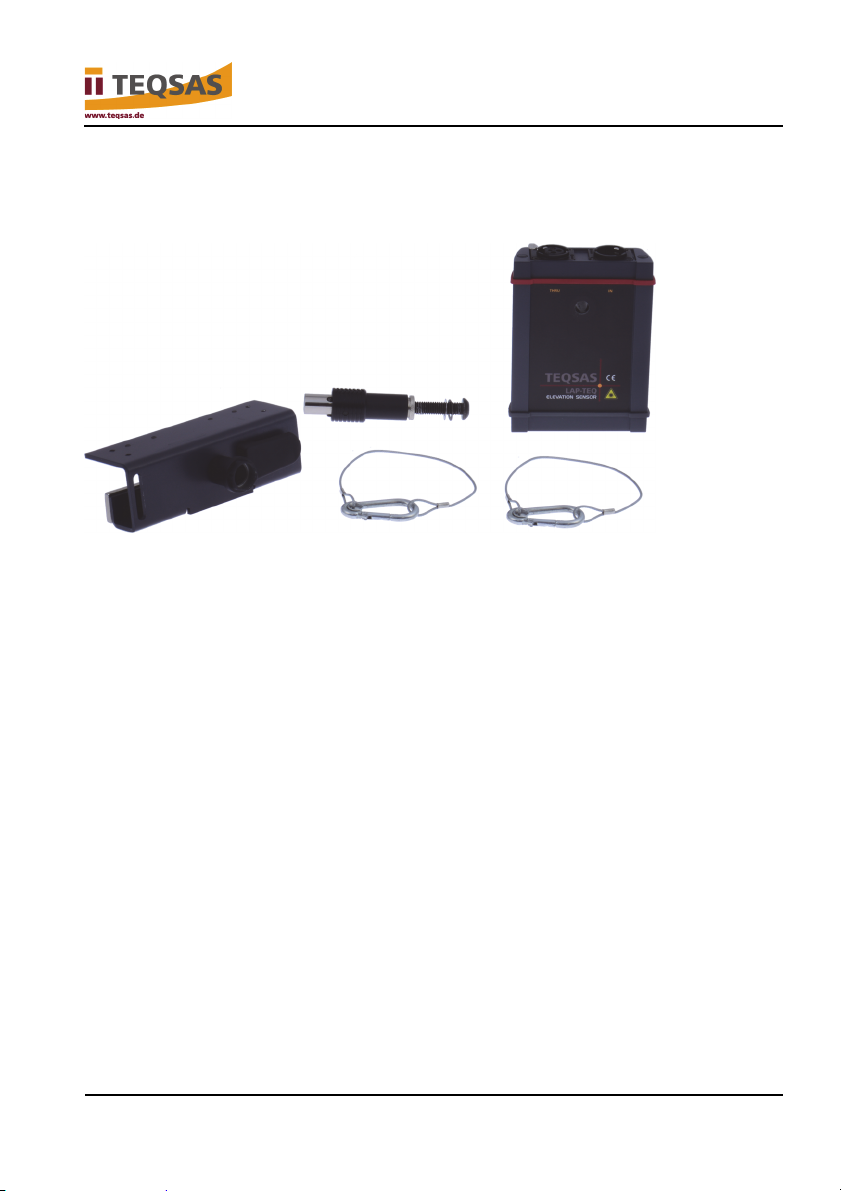

3.1 Scope of delivery
The standard set includes the following components:
 2x: LAP-TEQ Elevation
 2x: LAP-TEQ mounting bracket (magnetic)
 2x: Mechanical quick-release connector (already mounted on the unit and
on the mounting bracket at time of delivery)
 4x: Arrester cable
 1x: Safety data sheet
 1x: Transport case
Of course, all components can also be ordered separately.

Description of product
12 V-11/2018

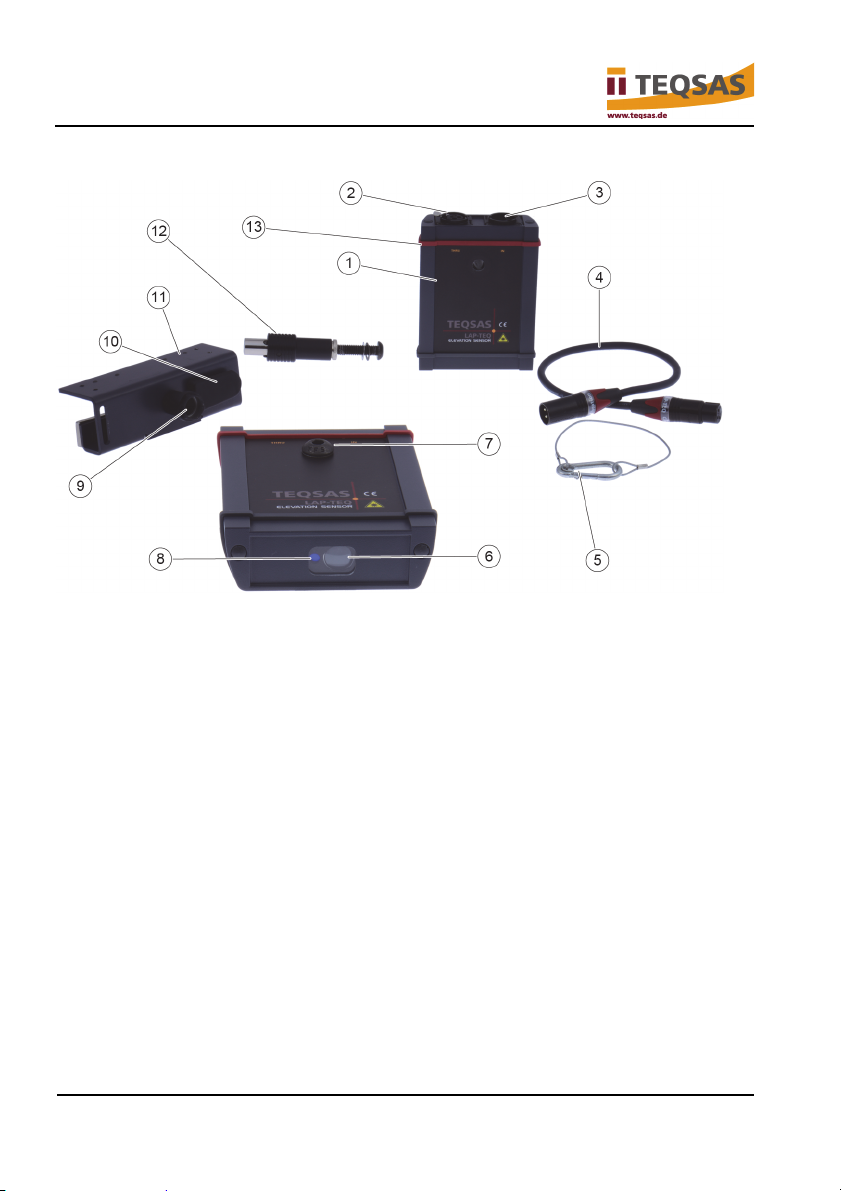

3.2 Your device at a glance
1. LAP-TEQ Elevation Sensor
2. Socket for XLR cable (for LAP-TEQ Sensor PLUS (optional))
3. Socket for XLR cable (to display unit)
4. XLR cable for display unit / LAP-TEQ Sensor PLUS (not included)
5. Arrester cable
6. Measuring optic
7. Holder for mechanical quick-release connector
8. Laser beam output
9. Holder for mechanical quick-release connector
10. Strain relief for XLR cable to display unit (or for XLR cable to LAP-TEQ
Sensor PLUS)
11. LAP-TEQ mounting bracket (magnetic)
12. Mechanical quick-release connector with swivel joint (already mounted on
unit at time of delivery)
13. The reference level for the height measurement is the RED bumper (zero
line).

Description of product
LAP-TEQ Elevation 13
Notice
In the factory setting, the trigonometric correction is activated
and unit is set to “m” (metres). To deactivate the trigonometric
correction and/or to change the unit to “ft” (feet), refer to
“Trigonometric correction / length unit” on page 20 and follow
the instructions provided there.
A complete LAP-TEQ Elevation distance measuring system consists of an
elevation unit mounted on a magnetic mount and a connected display system
such as LAP-TEQ Display PLUS or LAP-TEQ Motion System.
The elevation unit is designed for mounting on a flying frame, for example, and
measures the vertical distance between the zero line on the unit (see Your
device at a glance on page 12 ) and the surface beneath. This provides
information on the height of the speaker element and/or of the entire array.
The laser beam of the elevation unit is used for visually checking the area of
the surface to which the measurement is made. This allows you to determine
whether the end point of the measurement is correct.
The magnetic mounting bracket can also be used to mount a LAP-TEQ Sensor
PLUS. It is then possible to simultaneously measure the height and the vertical
alignment. Both values are shown simultaneously on the display. Use of a
LAP-TEQ Motion System as the display unit allows simultaneous adjustment
of the height and alignment.

First operation
14 V-11/2018
4 First operation
4.1 Connection
Attention!
Danger of damage to device!
Moisture and liquids can damage the components or
electronic circuits in the device.
► Do not switch the device on if it is damp.
► If the device is already switched on, switch it off.
► If the device cannot be switched off, allow it to dry in
this state.
► Dry the device with a dry cloth and take it to the service
centre.
Attention!
Danger of damage to device
► All components are maintenance free. Never open the
device; otherwise, the warranty will be voided. The only
exception is opening the lower cover to set the
measuring unit and the correction mode.

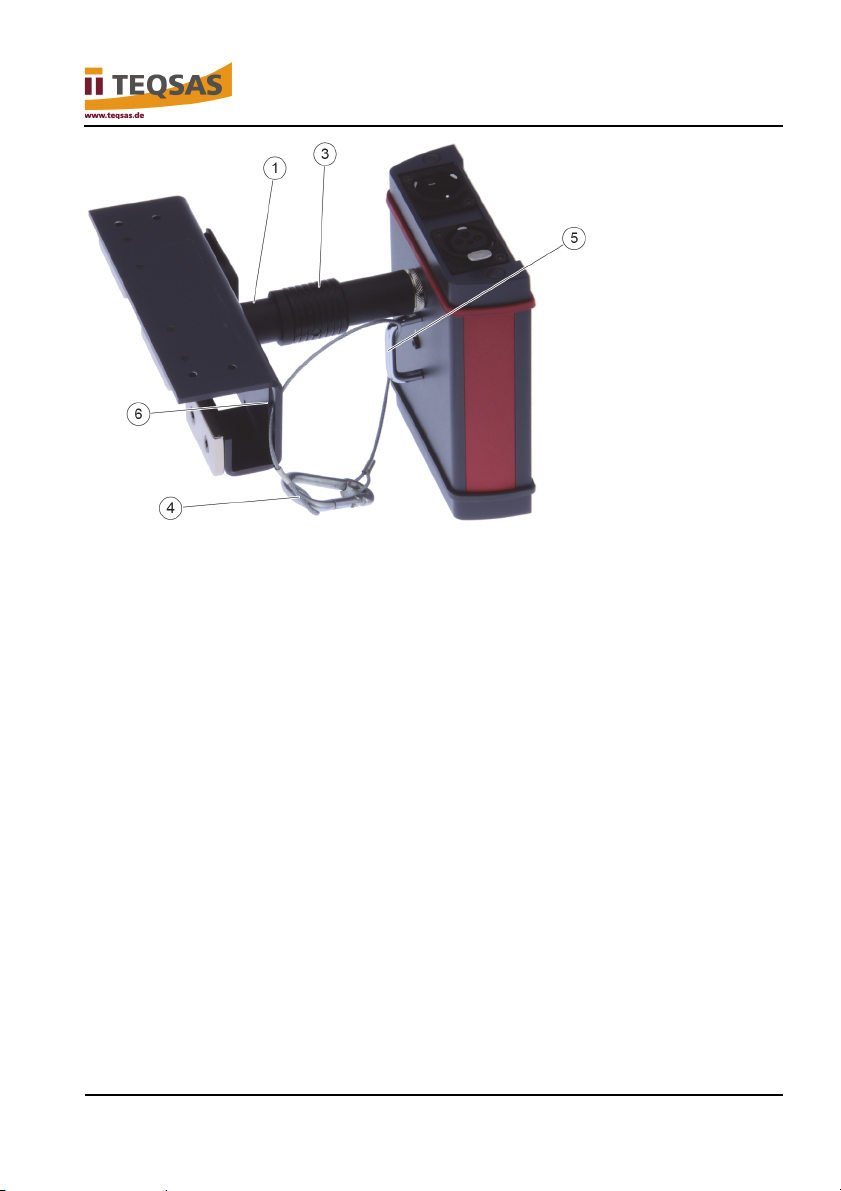

► If not already mounted, screw the sleeve of the mechanical quick-release
connector (1) into the magnetic mounting bracket (2).

First operation
LAP-TEQ Elevation 15
► Pull the ring (3) on the mechanical quick-release connector and press the
quick-release connector into the sleeve (1) of the magnetic mounting
bracket.
► Insert the arrester cable (4) through the safety shackle (5) and the slot (6)
on the magnetic mounting bracket.
► Connect the snap hook of the arrester cable (4) to the loop.

First operation
16 V-11/2018
► Connect the elevation unit (1) to the input “IN”, and the display unit (3)
using a standard 3-pin XLR cable (2).
There is no limit to the number of elevation units that can be connected
successively to a display unit. For example, three elevation units can be used
to check the correct orientation of a left and right PA system, as well as a
centre cluster.
To function correctly, the display unit must be connected to a elevation unit
using a standard XLR connection cable. The elevation unit is supplied with
power by means of the XLR cable. There are no rechargeable batteries or
other batteries in the elevation unit.
Notice
The length of the cable (2) between the display unit and the
elevation unit must not exceed 70 m.
For a distance greater than 70 m, you must use an XLR cable
with a larger cross section than 0.22 mm². This will reduce the
voltage drop along the cable route.

First operation
LAP-TEQ Elevation 17

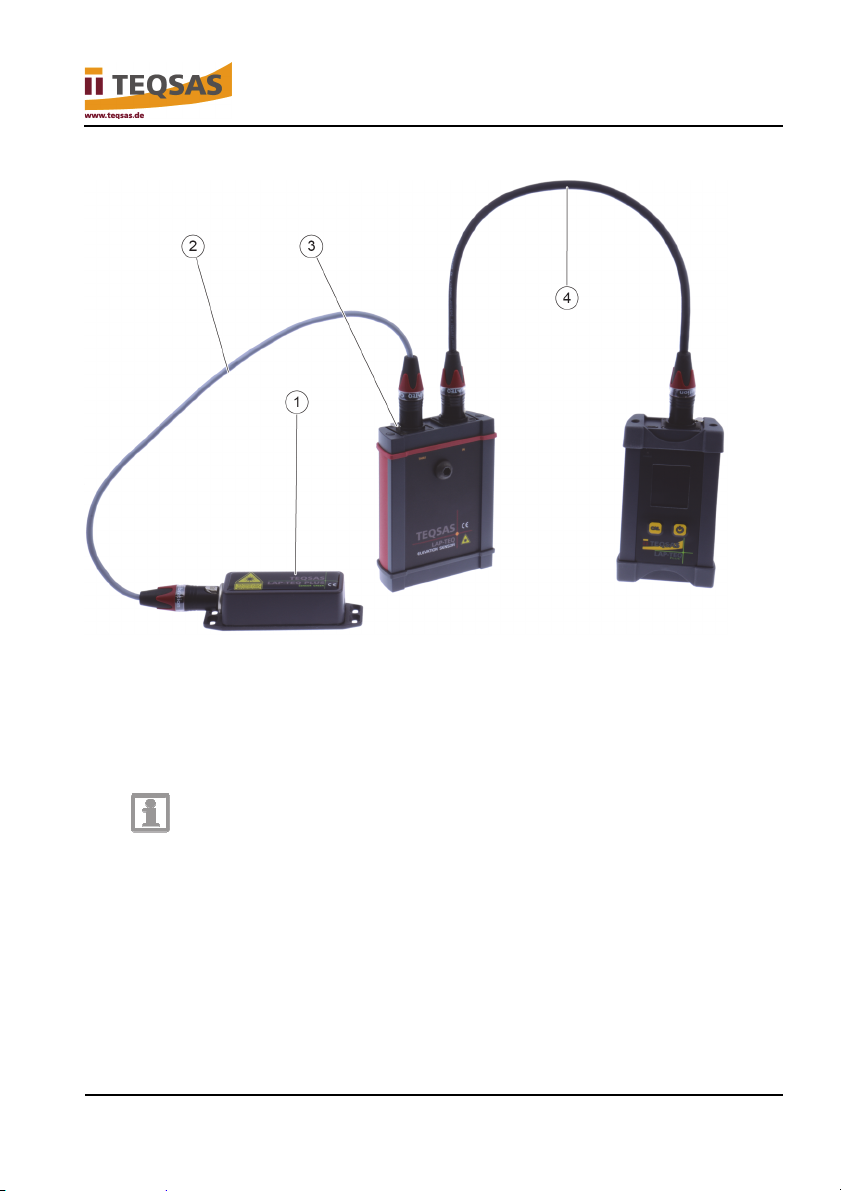

4.2 Connection of a LAP-TEQ Sensor PLUS (optional)
► Mount the LAP-TEQ Sensor PLUS (1) likewise on the flying frame of the
magnetic mounting bracket (see operating instructions for LAP-TEQ
PLUS).
► Connect the LAP-TEQ Sensor PLUS (1) to the “THRU” socket of the
elevation unit (3) by means of a standard 3-pin XLR cable (2).
Notice
The entire length of the cables (2) + (4) between the LAP-TEQ
Sensor PLUS, the elevation unit and the display unit must not
exceed 45 m.
For a distance greater than 45 m, you must use an XLR cable
with a larger cross section than 0.22 mm². This will reduce the
voltage drop along the cable route.

First operation
18 V-11/2018

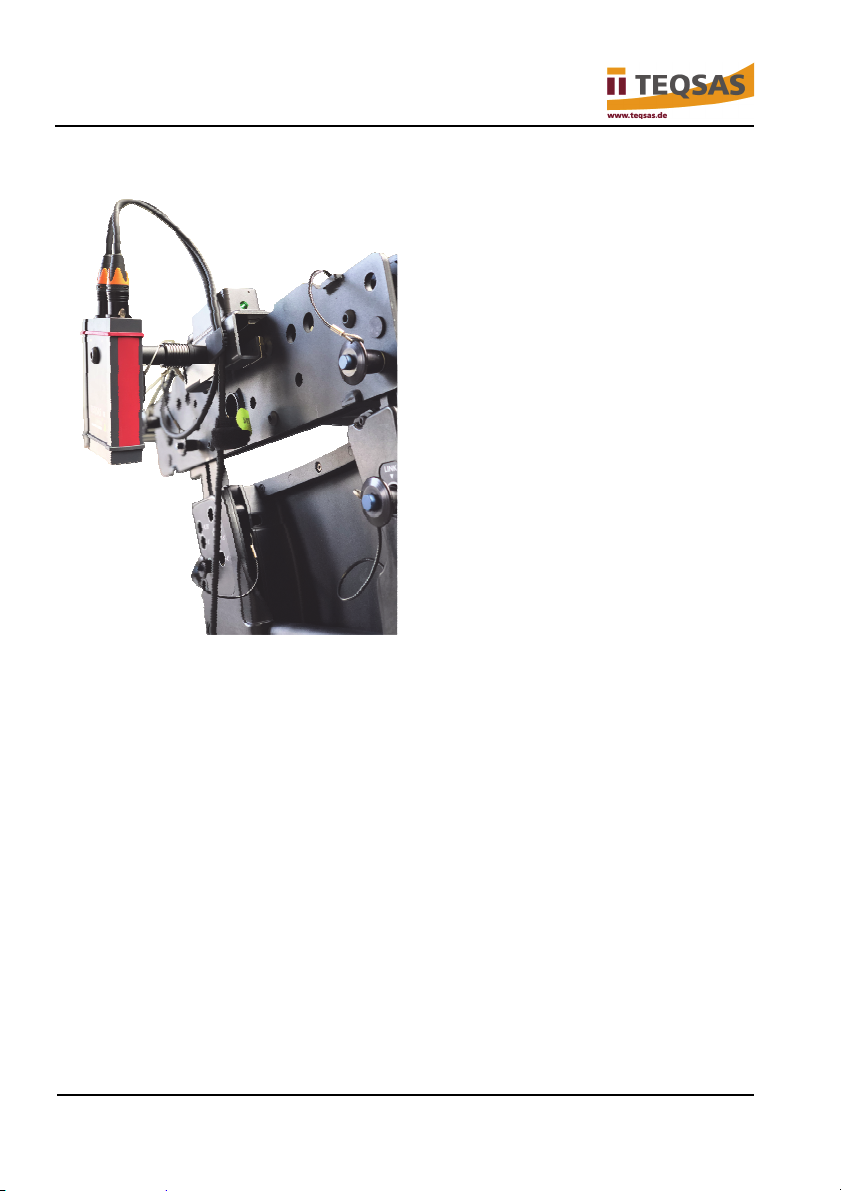

4.3 Fastening the magnetic mounting bracket
► Place the magnetic mounting bracket on the upper edge of the flying
frame.
► Use the arrester cable to secure the magnetic mounting bracket on the
flying frame against falling down.
► Insert the XLR cable in a loop through the strain relief on the magnetic
mounting bracket.
► Check to ensure that the elevation unit can stabilise freely.
► Make sure that there are no objects in the measuring path. This could
result in incorrect measurements.

Operation
LAP-TEQ Elevation 19
5 Operation
5.1 Power on/off
Notice
Make sure that the reference point for the measurement is
correct. If the deviation to perpendicular is so large that the
laser detects an object, for example, this will result in an
incorrect measurement.
Check the condition of the device:
► Check for visible defects.
► Check to make sure that all parts of the device are firmly mounted.
Warning!
Danger of eye injuries from laser beams!
If the laser beam hits the eyes via optical devices, this can
result in irreparable damage.
► Never look into the laser or direct the laser beam onto
reflecting surfaces!
► Make sure that no one is within the effective range of the laser.
► Power on: Press the “Power” button on the display unit for about 3
seconds.
If the system has started up correctly, the red laser lights up and the current
distance is displayed. If a LAP-TEQ Sensor PLUS is connected in addition, the
current angle reading will be displayed simultaneously.
The measurement is refreshed continuously; in unfavourable conditions (cp.
Observe ambient conditions on page 25 ) this can take up to 3 seconds.
► Power off: Press the “Power” button on the display unit again.

Trigonometric correction / length unit
20 V-11/2018
6 Trigonometric correction / length unit
Notice
In the factory setting, the length unit is set to “m” (metres). It can
be changed to “ft” (feet).
Notice
In the factory setting, the trigonometric correction is activated.
If the elevation unit cannot stabilise freely (e.g. due to cable tension), the
trigonometric correction can correct the deviation.
If the trigonometric correction is activated, a deviation from perpendicular is
corrected. The corrected value is shown on the display. If it is deactivated, the
actual reading of the crooked measurement, which could be incorrect, will be
displayed.
► Remove the two caps (1) on the display unit with a small screwdriver.
► Unscrew both screws (2).
► Remove the cover.
► Set DIP switches (3) and (4).
► Set length unit to metres or feet – DIP switch 1, left (3):
- Metres: Set DIP switch 1 to “ON”.
- Feet: Set DIP switch 1 to “OFF”.
► Activate/deactivate trigonometric correction – DIP switch 2, right (4):
