Teracom TSM400-4-TH User manual

TSM400-4-TH_R1.2 –March 2023 Page 2
1. Short description
TSM400-4-TH is a humidity and temperature sensor that supports MODBUS RTU protocol over the RS-
485 interface. A unique capacitive element is used for measuring relative humidity while the
temperature is measured by a band gap sensor. Both sensors are seamlessly coupled to a 12-bit analog
to digital-converter. This results in superior signal quality.
The TSM400-4-TH multi-sensor is housed in a slim plastic enclosure. The bottom part of the enclosure
is suitable for installation on standard flush-mounted/cavity wall boxes ø68mm, with installation
openings on 61 mm.
2. Features
•LED indicator for status of communication;
•Long-term stability based on digital signal processing;
•RS-485 interface carrying up to 32 nodes;
•Changeable bitrate and other communication parameters;
•Firmware update via the interface.
3. Applications
•Environmental quality monitoring and assessment for offices
•Server room and data centers humidity and temperature monitoring
•Smart ventilation systems
4. Specifications
•Physical characteristics
Dimensions: 81 x 81 x 30 mm
Weight: 66 g
•Environmental limits
Operating temperature range: -20 to 60°C
Operating relative humidity range: 10 to 90% (non-condensing) *
Long term drift typical: ±0.25 %RH/year, ±0.05 °C /year **
Storage temperature range: -20 to 60°C
Storage relative humidity range: 10 to 90% (non-condensing)
Ingress protection: IP20
•Power requirements
Operating voltage range (including -15/+20% according to IEC 62368-1): 4.5 to 26 VDC
Current consumption: 10 mA@5VDC
•Humidity measurements
Accuracy (min): ±3.0 %RH (in 20 to 80 %RH range)
Accuracy (max): ±5.0 %RH (in 10 to 90 %RH range)
Resolution: 0.1 %RH

TSM400-4-TH_R1.2 –March 2023 Page 3
•Temperature measurements
Accuracy (min): ±0.4 °C (in -10 to +60°C range)
Accuracy (max): ±0.6 °C (in -20 to +60°C range)
Resolution: 0.1 °C
•Warranty
Warranty period: 3 years
* Recommended operating range is 20% to 80% RH (non-condensing) over –10 °C to 60 °C
Prolonged operation beyond these ranges may result in a shift of sensor reading, with slow recovery time.
** Higher drift values might occur due to contaminant environments with vaporized solvents, out-gassing tapes, adhesives,
packaging materials, etc.

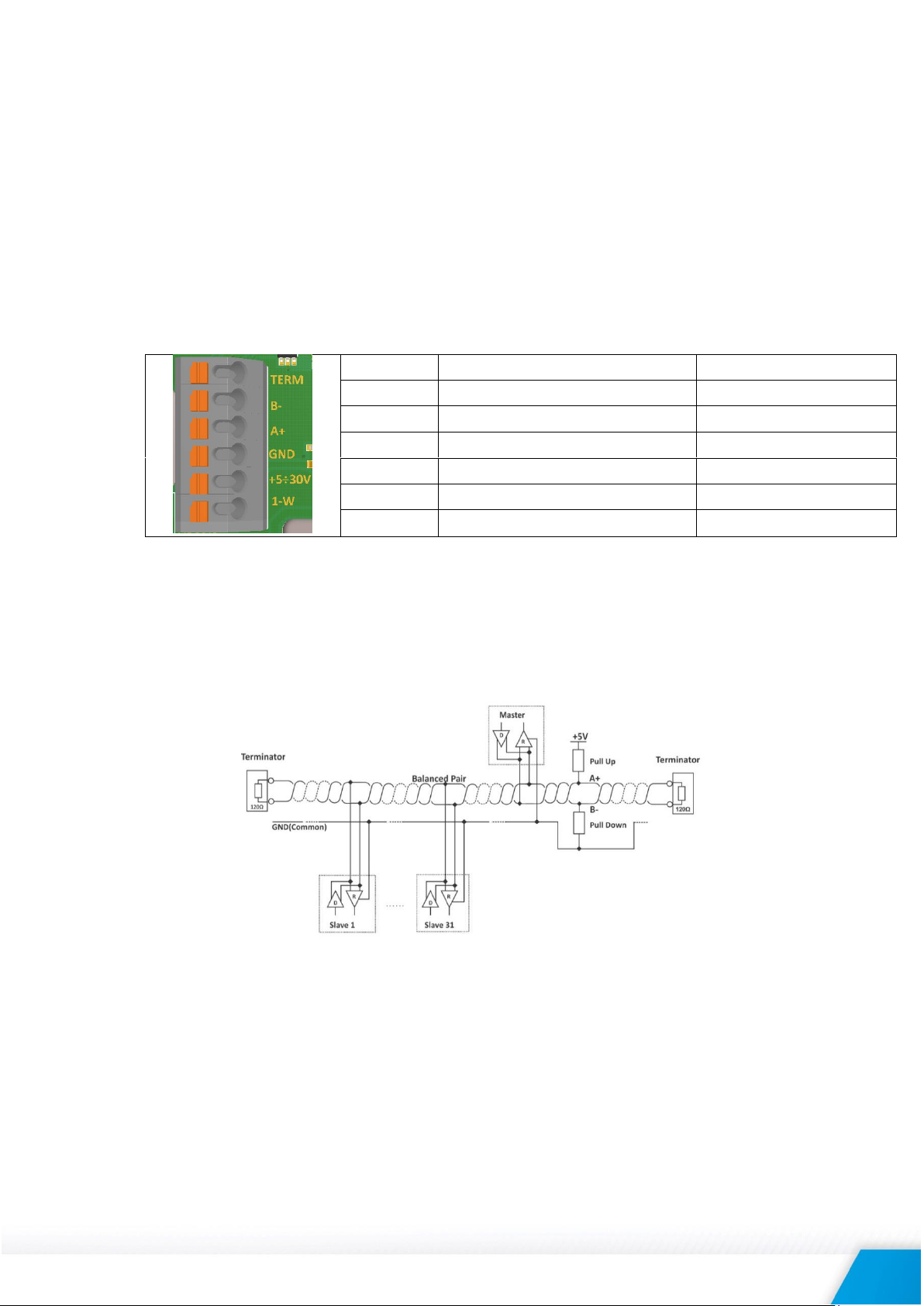

5. Pinout
Pin
Description
UTP wires color
1-W
Not used
+5÷30V
Positive power supply
Brown/White Tracer
GND
Ground (negative) supply
Brown
A+
Line A+ of RS-485
Blue/White Tracer
B-
Line B- of RS-485
Blue
TERM
For termination, connect to B-
6. Installation
Two-Wire MODBUS definition according to modbus.org:
“A MODBUS solution over a serial line should implement a “Two-Wire” electrical interface in
accordance with EIA/TIA-485 standard. On such a “Two-Wire” topology, at any time one driver only
has the right for transmitting. In fact, a third conductor must also interconnect all the devices of the
bus - the common.”
Attention:
For proper operation of the interface, terminators (120 ohms resistors) must be installed at both ends of the
bus. The device has a built-in 120-ohm resistor and to terminate the line, “B-“and “TERM” must be
shortened.
A daisy-chained (linear) topology for multiple sensors should be used. UTP/FTP cables are
mandatory for interconnection.

TSM400-4-TH_R1.2 –March 2023 Page 4
7. Installation tips
The location and the mounting position of the sensor have a direct effect on the accuracy of the
measurement. The tips below will ensure good measuring results:
•Sensor shall be installed about 1.2-1.4 m above the floor;
•To avoid solar radiation, the sensor should not be installed next to windows or directly in the
sunlight;
•Sensors shall be installed in a place with sufficient air circulation.
TSM400-4-TH sensor is intended for installation on a cavity wall box with 68mm diameter and 61
mm screw spacing.
8. Status indicator
The status of the device is shown by a single LED, located inside the box:
•If the LED blinks for a period of 1 second, the sensor works properly;
•If the LED blinks for a period of 3 seconds, there isn‘t communication with the controller;
•If LED doesn‘t blink, there isn‘t a power supply.
9. Factory default settings
Disconnect the sensor from the bus (switch off the power supply).
Press and hold the “config” button. Don’t release the button, connecting the sensor to the bus
(switch on the power supply).
The “status” LED will be ON for 3 seconds and after this will flash for 7 seconds. After the 10th
second the LED will be ON.
Release the button. The sensor will restart with factory default settings.
10. Firmware update
The firmware of the sensor can be updated with a Teracom controller which supports
MODBUS RTU or MBRTU-Config software. For more details ask your dealer.

TSM400-4-TH_R1.2 –March 2023 Page 5
11.Modbus address table
Register name
R/W
FC
PDU
Address
(Decimal)
Logical
Address
(Decimal)
Offset
(Decimal)
Data size
Default
Valid values
RS-485 address
R/W
03/06
10
40011
40001
16-bit uns. integer
1
1-247
Baud rate*
R/W
03/06
11
40012
40001
16-bit uns. integer
19200
2400, 4800, 9600,
19200, 38400, 57600
Parity, data, stop bits *
R/W
03/06
12
40013
40001
16-bit uns. integer
1
1=E81, 2=O81, 3=N81
Data order
R/W
03/06
13
40014
40001
16-bit uns. integer
1
1=MSWF (MSW, LSW)
2=LSWF (LSW, MSW)
Sub-family number
R
3
14
40015
40001
16-bit uns. integer
1
0xC9
FW version
R
3
15
40016
40001
16-bit uns. integer
Vendor URL
R
3
16
40017
40001
64 bytes UTF-8
teracomsystems.com
Float test value (MSWF)
R
3
82
40083
40001
32-bit float
-9.9(0xC11E6666)
Float test value (LSWF)
R
3
84
40085
40001
32-bit float
-9.9(0xC11E6666)
Signed integer test value
R
3
86
40087
40001
16-bit sig. integer
-999(0xFC19)
Signed integer test value
(MSWF)
R
3
87
40088
40001
32-bit sig. integer
-99999(0xFFFE7961)
Signed integer test value
(LSWF)
R
3
89
40090
40001
32-bit sig. integer
-99999(0xFFFE7961)
Unsigned integer test value
R
3
91
40092
40001
16-bit uns. integer
999(0x03E7)
Unsigned integer test value
(MSWF)
R
3
92
40093
40001
32-bit uns. integer
99999(0x0001869F)
Unsigned integer test value
(LSWF)
R
3
94
40095
40001
32-bit uns. integer
99999(0x0001869F)
Temperature °C
R
3
100
40101
40001
32-bit float
Humidity %RH
R
3
102
40103
40001
32-bit float
Dew point °C
R
3
104
40105
40001
32-bit float
Temperature °F
R
3
400
40401
40001
32-bit float
Humidity %RH
R
3
402
40403
40001
32-bit float
Dew point °F
R
3
404
40405
40001
32-bit float
Temperature °C x 100
R
3
600
40601
40001
16-bit sig. integer
Humidity %RH x 100
R
3
601
40602
40001
16-bit uns. integer
Dew point °C x 100
R
3
602
40603
40001
16-bit sig. integer
Temperature °F x 100
R
3
1000
41001
40001
16-bit sig. integer
Humidity %RH x 100
R
3
1001
41002
40001
16-bit uns. integer
Dew point °C x 100
R
3
1002
41003
40001
16-bit sig. integer
MSWF - Most significant word first - (bits 31 … 16), (bits 15 … 0); LSWF - Least significant word first - (bits 15 … 0), (bits 31 … 16);
PDU address - Actual address bytes used in a Modbus Protocol Data unit
A “NaN” value is returned for unavailable floating-point values (e.g. in case of measurement error)
* The settings will take effect after restarting the device by power off, power on.
12.Recycling
Recycle all applicable material.
Do not dispose of with regular household refuse.
