CDGT0216
Grass Trimmer
User guide
Original Instructions Tesco CDGT0216
IMPORTANT SAFETY INFORMATION..............................1
Grass Trimmer safety warnings...................................1
1. Training ......................................................................1
2. Work Area..................................................................1
3. Electrical Safety.......................................................2
4. Personal Safety........................................................2
5. Use and Care............................................................2
6. Service........................................................................2
7. Preparation...............................................................3
8. Operation..................................................................3
9. Maintenance and Storage...................................4
10. Vibration and noise reduction.........................4
ELECTRICAL INFORMATION ..............................................5
SYMBOLS.................................................................................5
INTENDED USE.......................................................................6
UNPACKING ............................................................................6

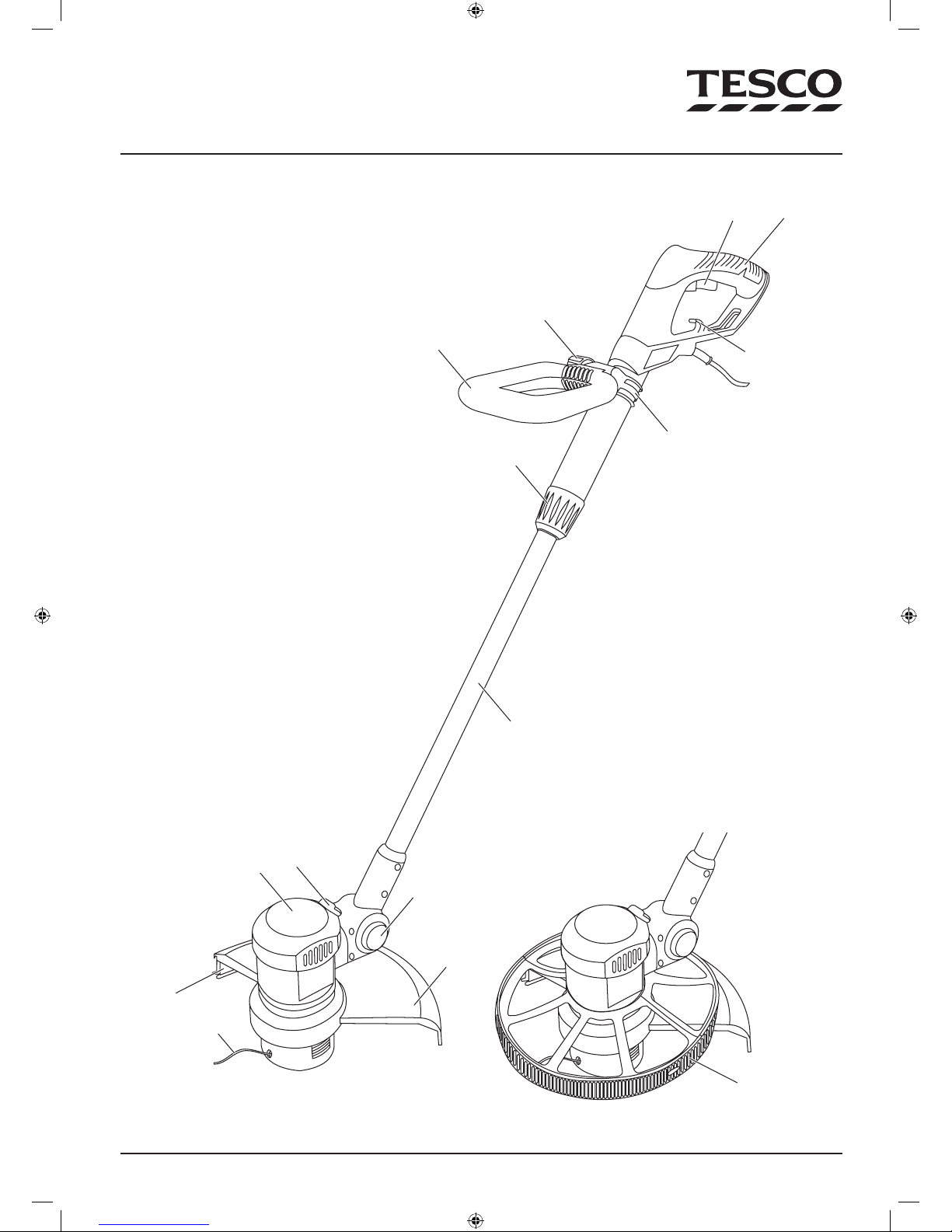

Grass Trimmer components.........................................6
ASSEMBLY ...............................................................................8
Fitting Protective Guard................................................8
Assembling the Front Handle. ....................................8
Assembling the edging wheel....................................8
ADJUSTMENT....................................................................9
Adjusting the height ......................................................9
Adjusting the Cutting Angle........................................9
PREPARING THE GRASS TRIMMER...................................9
Before each use................................................................9
OPERATION .......................................................................... 10
Power cable .................................................................... 10
Trimming grass.............................................................. 10
trimming......................................................................... 10
CUTTING LINE ..................................................................... 11
Feeding more line ........................................................ 11
Replacing the cutting line......................................... 11
Remove the spool.................................................... 11
Fit the new line .........................................................11
CLEANING AND MAINTENANCE................................... 12
AFTER USE............................................................................ 12
STORAGE............................................................................... 12
REPAIR.................................................................................... 12
TROUBLESHOOTING......................................................... 13
SPECIFICATIONS................................................................. 13
WARRANTY .......................................................................... 13
DISPOSAL ............................................................................. 13
CONTENTS
Original InstructionsTesco CDGT0216
1
To ensure your safety and satisfaction, carefully read
through this MANUAL before using the product.
IMPORTANT SAFETY INFORMATION
This product is not intended for use by persons•
(includingchildren)withreducedphysical,sensory
or mental capabilities, or lack of experience
and knowledge, unless they have been given
supervision or instruction concerning use of the
product by a person responsible for their safety.
Children should be supervised to ensure that they•
do not play with the product.
Warning! When the operator is tired, ill or under•
the inuence of alcohol or other drugs, DO NOT
use the machine.
Grass Trimmer safety warnings
1. Training
Read the instructions carefully. Be familiar with•
the controls and the correct use of the Grass
Trimmer.
Never allow children to use the Grass Trimmer.•
Never allow people unfamiliar with these•
instructions to use the Grass Trimmer.
Never operate the GrassTrimmer while people,•
especially children, or pets are nearby.
Theoperatoror userisresponsibleforaccidents•
or hazards occurring to other people or their
property.
Do not operate the product without guards or•
if it is damaged.
Never use the product indoors.•
Prolonged use of the product exposes the•
user to vibrations that can cause a range of
conditions collectively known as hand-arm
vibration syndrome (HAVS) e.g. ngers going
white; as well as specic diseases such as carpal
tunnel syndrome.
To reduce this risk when using the product,•
always wear protective gloves and keep your
hands warm.
The symptoms of HAVS include any•
combination of the following: Tingling and
numbness in the ngers; Not being able to feel
things properly; Loss of strength in the hands;
Fingers going white (blanching) and becoming
red and painful on recovery (particularly in the
cold and wet, and probably only in the tips at
rst). Seek medical advice immediately if such
symptoms are experienced.
2. Work Area
Do not operate the Grass Trimmer in explosive•
atmospheres, such as in the presence of
ammable liquids, gases, or dust. Electric tools
create sparks which may ignite the dust or
fumes.
Keep children and bystanders away while•
operating the Grass Trimmer. Distractions can
cause you to lose control. Do not let others
in the vicinity make contact with the tool or
extension cord.
Keep the work area well lit.•
Keep the workplace clean and tidy, cluttered•
work areas invite accidents and injury.
Original Instructions Tesco CDGT0216
2
3. Electrical Safety
It is strongly recommended that mains power•
be supplied to the Grass Trimmer through a
residual current device (RCD) having a rated
residual current rating not exceeding 30mA.
Where necessary, use a suitable waterproof•
extension lead, rated for outdoor use and no
longer than 25 metres.
Plugs and connectors must be protected from•
getting wet.
Turn o and remove the plug from the socket•
when leaving the Grass Trimmer or when
attempting to clear any debris or blockage.
Should the power cord become damaged in•
any way, turn o the mains power supply at
the socket and immediately unplug the cord.
When the cable is totally disconnected it can
be removed by qualied personnel.
Do not use when it is raining or in wet•
conditions. Avoid all contact with water.
Power tool plugs must match the outlet.•
Never modify the plug in any way.•
Avoid body contact with earthed or grounded•
surfaces such as pipes, radiators, ranges
and refrigerators. There is an increased risk
of electric shock if your body is earthed or
grounded.
Never use the power cable for carrying, pulling•
or unplugging the Grass Trimmer.
Keep the power cable away from heat, oil,•
sharp edges or moving parts. Damaged or
entangled power cables increase the risk of
electric shock.
When operating the Grass Trimmer outdoors,•
use an outdoor extension power cable suitable
for outdoor use.
Take care to keep the mains cable away from•
thecuttingline.Alwaysbeawareoftheposition
of the cable.
4. Personal Safety
Never operate the Grass Trimmer when you•
are tired, ill or under the inuence of alcohol,
drugs or medicine.
Use safety equipment. Always wear eye and•
ear protection. Safety equipment such as a
dust mask and non-skid safety shoes used for
appropriate conditions will reduce personal
injuries.
Remove any adjusting wrench before using the•
GrassTrimmer. A wrench that is left attached to
a rotating part of the Grass Trimmer may result
in personal injury.
While operating the GrassTrimmer always wear•
substantial footwear and long trousers. Do not
operate the Grass Trimmer when barefoot or
wearing open sandals. Avoid wearing clothing
that is loose tting or that has hanging cords
or ties.
Be aware of harmful/toxic dusts arising•
from grass trimming etc, (e.g. fertilizers,
insecticides).
During assembly take great care when tting•
the guard as this has a very sharp cutting edge
on one side for cutting the nylon line.
5. Use and Care
Do not use the Grass Trimmer if the switch lever•
does not turn it on and o.
Use the Grass Trimmer and accessories in•
accordance with these instructions and in the
mannerintended,takingintoaccounttheworking
conditions and the work to be performed. Use of
the Grass Trimmer for operations dierent from
intended could result in a hazardous situation.
6. Service
Have your Grass Trimmer serviced by a qualied•
repair technician using only identical replacement
parts. This will ensure that the safety of the Grass
Trimmer is maintained.
Original InstructionsTesco CDGT0216
3
7. Preparation
The Grass Trimmer must be fully assembled•
before connection to the power supply.
Thoroughly inspect the area where the Grass•
Trimmer is to be used and remove all objects
which can be thrown by the Grass Trimmer.
Before use, check the supply and extension•
cord for signs of damage or aging. If the cord
becomes damaged during use, disconnect the
cord from the supply immediately. DO NOT
TOUCH THE CORD BEFORE DISCONNECTING
THE SUPPLY. Do not use the machine if the
cord is damaged or worn.
8. Operation
Be familiar with the controls and the proper•
use of the equipment.
Only operate the Grass Trimmer in daylight or•
in good articial light.
Avoid operating the Grass Trimmer in wet•
grass.
Do not overreach, keep proper footing and•
balance at all times.
Always be sure of your footing on slopes.•
On steep slopes cut across the slope, never in•
an up and down direction.
Walk, never run when operating the Grass•
Trimmer.
Do not cross roads or gravel paths while•
operating Grass Trimmer.
NeveroperatetheGrassTrimmerwithdefective•
guards or shields.
Do not put hands or feet near or under the•
trimming head.
Always check that the switch is in the OFF•
position before plugging in the tool to the
power supply. Do not carry a plugged in tool
with your nger on the switch.
Never hold the cutter head above foot height•
or point it towards people or animals when in
use.
Never touch the cutting line while the tool is•
running.
Do not put the tool down until the cutting line•
has come to a complete standstill.
Be careful not to touch the line trimming•
blade.
Make sure that all moving parts have come to a
complete stop and disconnect the Grass Trimmer
from mains power:
Whenever you leave the Grass Trimmer•
unattended.
Before checking, cleaning or working on the•
Grass Trimmer.
Cleaning or when clearing a blockage.•
Adjusting the working position of the cutting•
attachment.
After striking a foreign object. Inspect the Grass•
Trimmer for damage and make repairs before
operating again.
If the Grass Trimmer starts to vibrate abnormally,
disconnect it from mains power and (check
immediately):
Inspect the Grass Trimmer for signs of•
damage.
Replace or repair any damaged parts.•
Check the Grass Trimmer for and tighten any•
loose parts.
Thoroughly inspect the area to be trimmed,•
remove all stones, sticks, string, wire and
any other objects that could hinder your
trimming.
Original Instructions Tesco CDGT0216
4
9. Maintenance and Storage
Follow the maintenance and repair•
instructions for this product. Never carry out
any modications of the product.
Inspect the product before each use, after•
dropping the product or exposing to other
impacts to identify signicant defects.
When not in use store the product out of the•
reach of children.
Use only manufacturers recommended•
replacement parts and accessories.
Keep all nuts, bolts and screws tight to•
ensure the Grass Trimmer is in safe working
condition.
Replace worn or damaged parts for safety.•
Use only genuine replacement parts and
accessories.
Use only the appropriate type of cutting line.•
Never use metal cutting line or shing line.
Always ensure that the ventilation openings•
are kept clear of debris.
Store the Grass Trimmer only in a dry place.•
Refer all servicing which involves the taking•
or putting on of parts (other than those
specically referred to in this User Guide), to a
qualied person or approved service agent.
Do not use harsh abrasives, or caustic cleaners•
when cleaning this Grass Trimmer.
10. Vibration and noise reduction
To reducetheimpactofnoiseandvibrationemission,
limit the time of operation, use low-vibration and
low-noise operating modes as well as wear personal
protective equipment.
Take the following points into account to minimise
the vibration and noise exposure risks:
Only use the product as intended by its design•
and these instructions.
Ensure that the product is in good condition•
and well maintained.•
Use correct application tools for the product•
and ensure they in good condition.
Keep tight grip on the handles/gripping•
surface.
Maintain this product in accordance with these•
instructions and keep it well lubricated (where
appropriate).
Plan your work schedule to spread any high•
vibration tool use across a longer period of
time.
Original InstructionsTesco CDGT0216
5
ELECTRICAL INFORMATION
Before use check that the voltage of your electricity
supply is the same as that shown on the rating plate
of the Grass Trimmer. In the UK this is 230-240 volts.
If the supply cord is damaged, it must be
replaced by the manufacturer, its service
agent or a similarly qualied person in order
to avoid a hazard.
The power cord is terminated with a UK approved
mains plug tted with a 13A fuse. If the fuse needs
to be replaced, an ASTA or BSI approved BS1362 fuse
rated at 13A must be used.
If you change the mains plug, remove the fuse and
dispose of the old plug safely and immediately after
cutting it from the power cord.The wires in the mains
lead are coloured in accordance with the code:
If these colours do not correspond to the those
found in your plug, do as follows:
ThewirecolouredBLUEorBLACKmustbeconnected
to the terminal marked with the letter N.
ThewirecolouredBROWNorREDmustbe connected
to the terminal marked with the letter L.
SYMBOLS
Some of the following symbols may be used on your
tool. Please study them and learn their meaning.
Proper interpretation of these symbols will allow
you to operate the tool more safely and eectively.
Caution/Warning
Read instructions before operating.
Disconnect the mains cord if it is
damaged or entangled.
Do not expose to rain or moisture.
Keep bystanders away.
Double insulation.
Switch o. Remove plug from mains
before cleaning or maintenance.
Wear hearing protection.
Wear eye protection.
Original Instructions Tesco CDGT0216
6
INTENDED USE
The Grass Trimmer is intended to be used only for
trimming domestic lawns. The Grass Trimmer has
been designed for use only in private gardens and is
not suitable for use in public grounds, parks, sports
elds or for agricultural or forestry purposes. Only
trim the lawn when the grass is relatively dry.
UNPACKING
Unpack all parts and lay them on a at, stable
surface.
The Package should include the following items:
Grass Trimmer components
Grass trimmer•
Guard•
Front handle•
Edging wheel (two separate halves)•
2 x Screws for xing the edging wheel•
Remove all packing materials and shipping devices
if applicable. Retain the packaging. If you dispose of
it, do so having regard to any recycling regulations
in your area.
Make sure the delivery contents are complete and
free of any damage. If you nd that parts are missing
or show damage do not use the product but contact
your nearest Tesco store. Using an incomplete or
damaged product represents a hazard to people
and property.
Original InstructionsTesco CDGT0216
7
ab
c
d
e
f
g
h
i1)
1!
1@
1#
1$
CONTROLS & FEATURES
On/O trigger1.
Upper handle2.
Front handle3.
Handle lock knob4.
Cable hook5.
Handle mounting ring6.
Shaft locking collar7.
Shaft8.
Motor body9.
Rotation lock10.
Angle adjust button11.
Guard12.
Line cutting blade13.
Trimming line14.
Wheel for edge trimming (tting is optional)15.
1%
Original Instructions Tesco CDGT0216
8
ASSEMBLY
Fitting Protective Guard
Remove the guard securing screws (x 2, arrowed).•
Fit the guard onto the motor housing as shown
and re-t the screws to secure the guard.
Carefully peel o the protective tape over the•
cutting blade tted into the guard.
Assembling the Front Handle.
Remove the Lock Knob and bolt, then re-assemble•
these with the front handle tted to the bracket
as shown.
Adjust the handle to a comfortable position.•
Lock the handle in place by tightening the Handle•
Lock Knob (arrowed).
Adjust Lock
Assembling the edging wheel
The edging wheel is provided to enable trimming
for lawn edges etc. It can be tted as an option if you
need to use the edging feature.
The wheel is supplied in two halves which are xed
together with screws.
Assemble the two halves of the wheel to the•
trimmer head as shown.
Fix the two halves of the wheel together with the•
two screws provided.
Once tted, the wheel can remain in place whether
trimming horizontally or edging.
Original InstructionsTesco CDGT0216
9
ADJUSTMENT
Adjusting the height
Make sure the height of line Grass Trimmer is in the
most comfortable position before use. Adjust the
height as follows:
Loosen the locking collar.•
Pull or push the tubes to a comfortable length .•
Tighten the locking collar.•
Adjusting the Cutting Angle
Press and hold the yellow angle push button and•
then rotate the cutting head to a comfortable
position.
Release the button to lock it in position.•
Lock
Unlock
Adjust
Press
Adjust
PREPARING THE GRASS TRIMMER
Before each use
WARNING! Danger of injury!
Check the product as well as accessories for•
damage before each use. Do not use the product
if it is damaged or shows wear.
Double check that accessories or application tools•
are properly xed.
Original Instructions Tesco CDGT0216
10

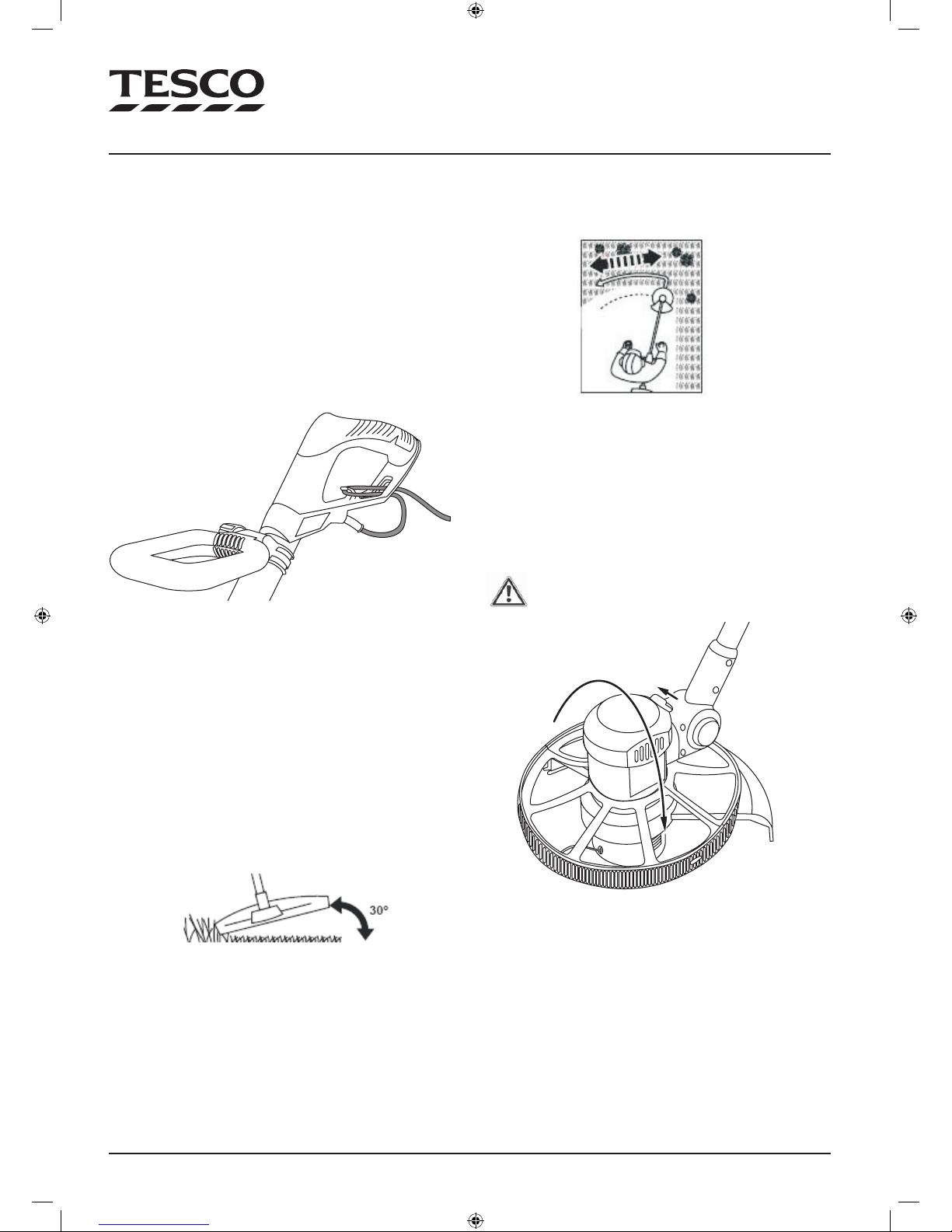

Move the trimmer with a slow regular arc from•
left to right before moving it back to the starting
position before trimming the next area.
Use the edge of the guard as a guide when•
cutting near fences and walls, etc. Moving the
Grass Trimmer in a backwards direction will avoid
damage.
Do not overload the Grass Trimmer. Cut in small
sections which will greatly improve eciency by
keeping the Grass Trimmer running at high speed.
Edging
WARNING! Disconnect mains power before
rotating the head.
Slide the Rotation lock upward as shown.•
The trimming head can now be rotated through•
90 degrees until the catch clicks.
CAUTION: The trimmer must only be used when the
head is locked at either end of its travel.
Rest the trimmer on the wheel while edging.•
The wheel height is set to position the trimmer at the
optimum height for edging.
OPERATION
Power cable
Note: To avoid detaching the power cable always
check that it is attached rmly to the cable hook,
before using the Grass Trimmer.
Make a loop with the power cable and push it•
through the square hole under the grip of the
trigger.
Place the end of the loop round the cable hook•
and ensure it is pulled rmly enough to prevent it
coming loose while operating the Grass Trimmer.
Trimming grass
When you are ready to use the Grass Trimmer,•
plug the power cable into a mains outlet.
Hold the Grass Trimmer in the operating position•
with both hands and switch on by pressing the
On/O trigger. To switch o, release the On/O
trigger.
Stand upright when trimming, do not lean•
forward and pay attention to posture. Keep both
feet apart to help retain your balance.
Hold the cutting head just above the ground at an•
angle of approximately 30°.
Original InstructionsTesco CDGT0216
11
CUTTING LINE
Feeding more line
The trimming head is equipped with a bumper•
to release and cut the trimming line. To release
more line, tap the bumper on a rm surface while
running and the spool will release fresh trimming
line.
A new length of line will feed out automatically.
Let the Grass Trimmer run for a few seconds•
without touching the working area to allow the
blade xed in the guard to cut the line after it
lengthens.

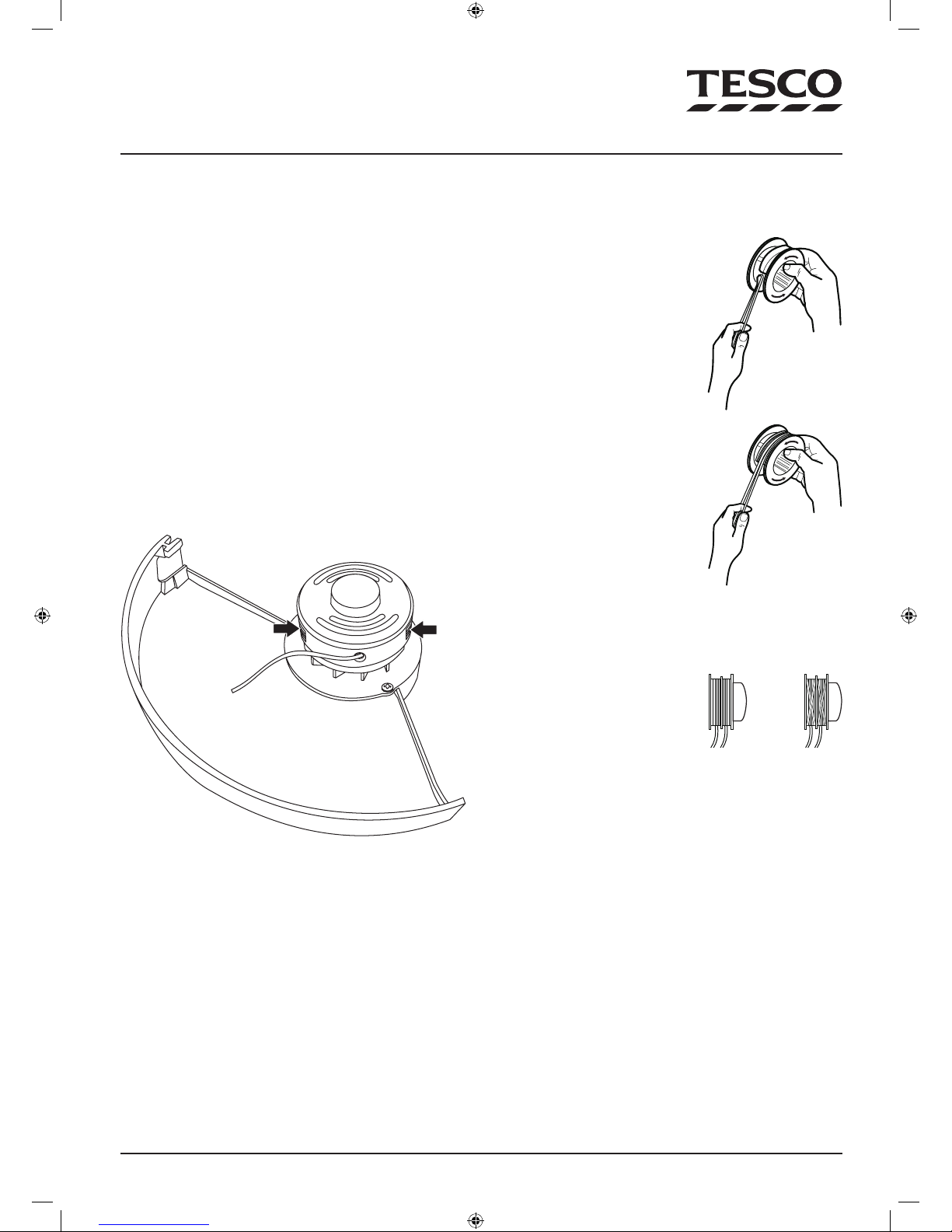

Replacing the cutting line
Remove the spool
Firmly squeeze the two spool cover release•
buttons in.
This releases the spool cover.
Fit the new line
Cut a replacement nylon line of approximate•
length 10 m.
Remove the cover.•
Lift out the spool.•
Remove any remaining nylon cutting line from•
the spool.
Fold the replacement•
cutting line in half and
hook it into the slot in
the centre divider of
the spool.
Wind the cutting line•
onto the two sections
of the spool.
Wind the line onto both
spools in the direction
of the arrow on the
bottom of the spool.
NOTE: One line end can
be hooked into the slots
or holes in the edges of
the spool to prevent it
from unravelling while
you wind the other.
Continue until all•
the line is wound
smoothly onto the
spool.
Unhook the line from the slots in the spool ends•
and thread the ends of the cutting line through
the guide holes in the spool holder with about
120mm visible length.
Press the spool down and replace the spool cover,•
pressing it into position until the release buttons
click into place.
7
3
Original Instructions Tesco CDGT0216
12
CLEANING AND MAINTENANCE
NOTE: Do not use chemical, alkaline, abrasive or
other aggressive detergents or disinfectants to
clean this product as they might be harmful to its
surfaces.
Do not spray or wet the appliance with water.
To ensure a long and reliable service life, the
following maintenance should be carried out on the
Grass Trimmer:
After each cutting operation, brush out the grass•
and soil from -
The spool and its slot,•
The whole Grass Trimmer and in particular the•
guard.
Brush loose grass out of the ventilation slots.•
Take special care to clean around the inside of•
cutting head guard, the cap and motor housing
cooling vents.
The body of the Grass Trimmer can be wiped•
with a damp cloth. Dry thoroughly before use or
storage.
If the wire cutting blade no longer cuts or breaks,•
have this replaced by contacting an authorized
service centre.
CAUTION! The blade xed in the guard is sharp!•
AFTER USE
Check, clean and store the product as instructed in
this User Guide.
STORAGE
Clean the product as previously described.
Alwaysstoretheproductinaplacethatisinaccessible
to children, away from strong sunlight and extremes
of temperature.
Store the product vertically, hanging by the handle.
Ensure that the Grass Trimmer is not resting on the
guard during storage, this may distort the guard.
If possible, cover the product with a suitable cloth or
enclosure to protect it from dust.
REPAIR
This product does not contain any parts that can be
repaired by the consumer. Contact an authorised
service centre or a similarly qualied person to have
it checked and repaired.
Original InstructionsTesco CDGT0216
13
TROUBLESHOOTING
WARNING! Only perform the steps described
within these instructions! All further
inspection, maintenance and repair work
must be performed by an authorised service
centre or a similarly qualied specialist if you
cannot solve the problem yourself!
Remember to disconnect mains power
before attempting to resolve any operational
problems.
No power
Mains connection
problem.
Check that the Trimmer
is securely plugged in
and switched on.
Power cord damaged. Switch o immediately
and disconnect from
the mains. Check the
condition of the power
cord and arrange for
replacementbyaservice
technician if necessary.
Cutting line is not feeding
Line may be tangled or
sticking.
Remove cutting line
spool and check that
the line is free to feed.
Line has run out. Replace line.
Cutting head is hard to turn
Grass trimmings may be
blocking rotation.
Clean the aected area.
SPECIFICATIONS
Supply voltage ..................................230 - 240 V~, 50 Hz
Rated power.................................................................500 W
No load speed................................................... 11,000 rpm
Cutting line diameter.............................................1.2 mm
Cutting line length...................................................2 x 5 m
Cutting width...........................................................300 mm
LpA........................................................82.5dB(A) K=3dB(A)
LwA.......................................................... 96dB(A) K=3dB(A)
Vibration Value: ...............................3.19m/s² K=1.5m/s²
Weight ............................................................................ 2.5 kg
Class II construction double insulated. This
product must not be connected to earth.
WARRANTY
This appliance is intended only for household
use. It must be properly installed and operated in
accordance with these instructions. Failure to do
this will invalidate the warranty.
Your Tesco appliance is covered by a warranty for 12
months from the date of purchase. If a fault develops
during this period, please contact the Tesco helpline
on 0800 323 4060 (free from BT landlines) or 0330
123 4060 (from mobiles). Please have your original
purchase receipt with you when you call. This
warranty in no way aects your consumer rights.
DISPOSAL
UK: Waste products should not be disposed
of with household waste. Separate disposal
facilities exist, for your nearest facilities see
www.recycle-more.co.uk or in-store details.
ROI: Produced after 13th August 2005.
Waste products should not be disposed of
with household waste. Please recycle where
facilities exist. Check with your local authority
or retailer for recycling advice.
CDGT0216 ENV0.4
Tesco Helplines:
Landlines 0800 323 4060 (Freephone from a BT landline).
Mobiles 0330 123 4060 (Calls cost no more than calls to geographic numbers eg. 01 or 02 and are included in inclusive minutes and discount schemes).
Made in China
Tesco Stores Ltd., Welwyn Garden City AL7 1GA, U.K.
Table of contents
Other Tesco Trimmer manuals
