TI28000-654 Reel
Table of Contents
Section 1 – Safety Review 1
1.1 – Safety Notices 1
1.2 – Symbols 1
1.3 – Hazards 1
Section 2 – Product Overview 2
2.1 – Features and Overview 2
2.2 – Introduction 3
2.3 – General Specications 3
2.4 – Physical Dimensions 4
Section 3 – Operation Procedures 5
3.1 – Installing the Line Cord on Reel 5
3.2 – Mounting Procedures 5
3.3 – Adjust Reel Drag 6
3.4 – Unit Care 6
Repair Request Form 7

TI28000-654 Reel 1
Figure 1.2.1 – Different types of hazard and caution symbols
1.1 - Safety Notices
Safety notices appear throughout this manual to alert the user to important information regarding proper
installation, operation, maintenance and storage of the unit. These notices, as illustrated below, contain a
key word that indicates the level of hazard and a triangular icon that indicates the specic type of hazard.
WARNING Indicates a condition, operating procedure or practice, which if not
adhered to could result in serious injury or death.
CAUTION Indicates a condition or operating procedure, which if not strictly
adhered to could result in damage or destruction of equipment.
NOTE Indicates a condition, operating procedure or practice, which is
essential to highlight.
1.2 - Symbols
The following symbols will appear within the warning triangles to alert the user to the specic type of danger
or hazard.
General Warning Electrical Hazard Guard from Moisture
!
Section 1 – Safety Review
!
!
!
1.3 – Hazards
WARNING Shock Hazard Potential
Severe injury or death from electrical shock may occur, if either user or the unit is wet, while the line cord
in unit is connected to a power source. If the unit has come into contact with water, disconnect from the
power source.
CAUTION Bodily Injury and Unit Damage Potential
Do not wear loose tting clothing while operating reel. Be aware of other machinery in work area. Treat
and respect the cord reel as any other piece of machinery, observing all common safety practices. When
line cord is released, be aware of tripping hazards, as well as sharp objects that my cut or damage the
line cord.

TI28000-654 Reel
2
Section 2 – Product Overview
2.1 – Features and Overview
Cranking Handle1. – Reels in and out the line cord.
Swivel Tension Assembly2. – This adjusts the reel drag by loosening or tightening
hub casting on manual driven reel.
Mounting Holes3. – Four 1/2” diameter holes located on the base for securely
mounting the reel to a sturdy base.
1
3
2

TI28000-654 Reel 3
2
Product Overview
2.2 – Introduction
This manual contains the complete operating instructions, safeguards and procedures for the TI28000-654
Reel. The heavy duty reel provides a simple way to operate and maneuver a long, heavy line cord.

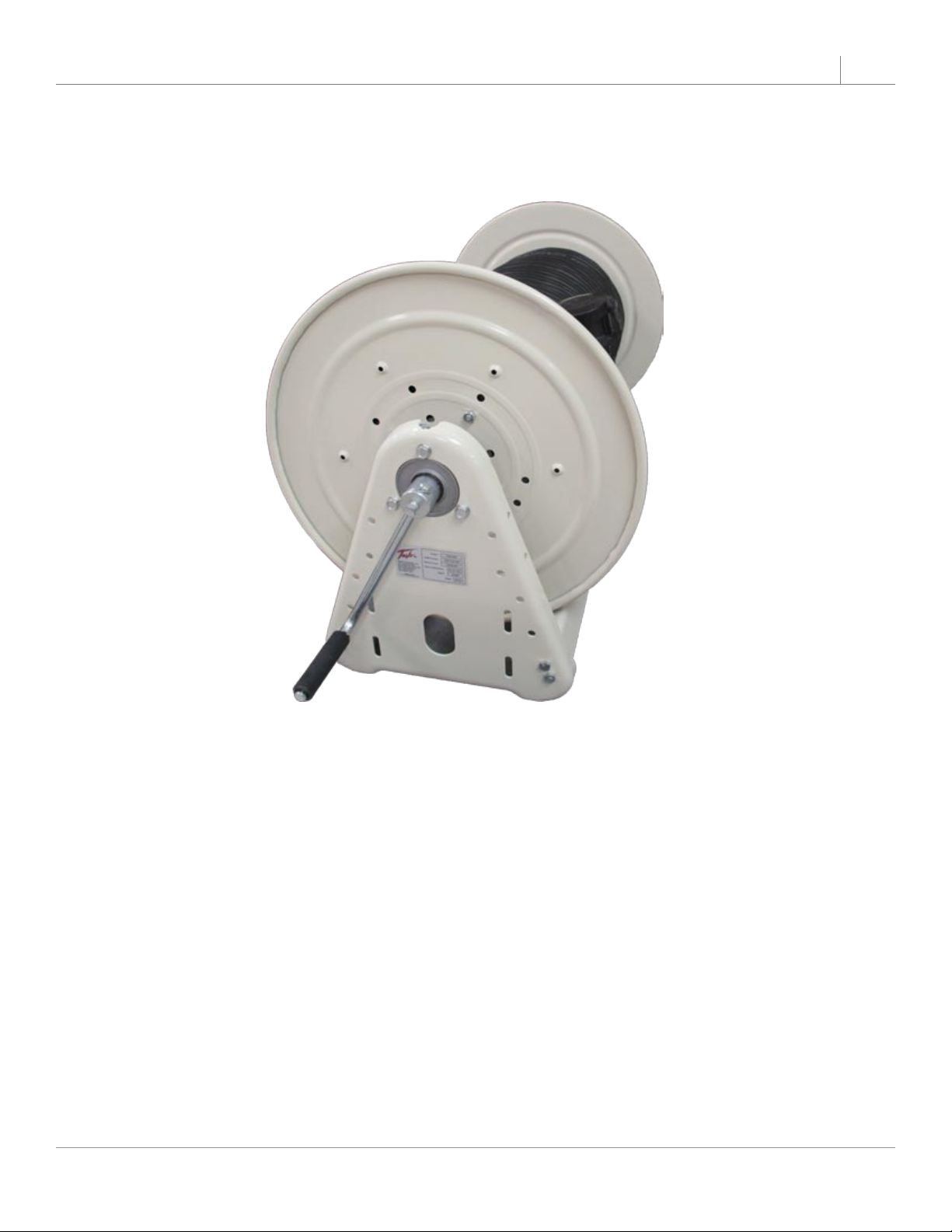

Figure 2.2.1 – Handle to Reel
2.3 – General Specications
Size:
40.72”W x 20.281”H x 17.75”D•
1034.29mm x 515.14mm x 450.85mm•
Weight
55 lbs (24.95 kg)•
Warranty:
2 years (3 years optional)•

TI28000-654 Reel
4
2Product Overview
30.771 [781.58]
9.000 [228.6]
26.956 [684.68]
6.275 [159.39]
5.804
[147.42]
32.011 [813.08] 2.905
[73.79]
40.720 [1034.29]
11.406
[289.71]
20.281 ±.060
[515.14 ±1.52]
17.750 ± .060
[450.85 ± 1.52]
Ø.531 [13.49]
TYP. 4-PLCS.
12.678 [322.02]
30.771 [781.58]
9.000 [228.6]
26.956 [684.68]
6.275 [159.39]
5.804
[147.42]
32.011 [813.08] 2.905
[73.79]
40.720 [1034.29]
11.406
[289.71]
20.281 ±.060
[515.14 ±1.52]
17.750 ± .060
[450.85 ± 1.52]
Ø.531 [13.49]
TYP. 4-PLCS.
12.678 [322.02]

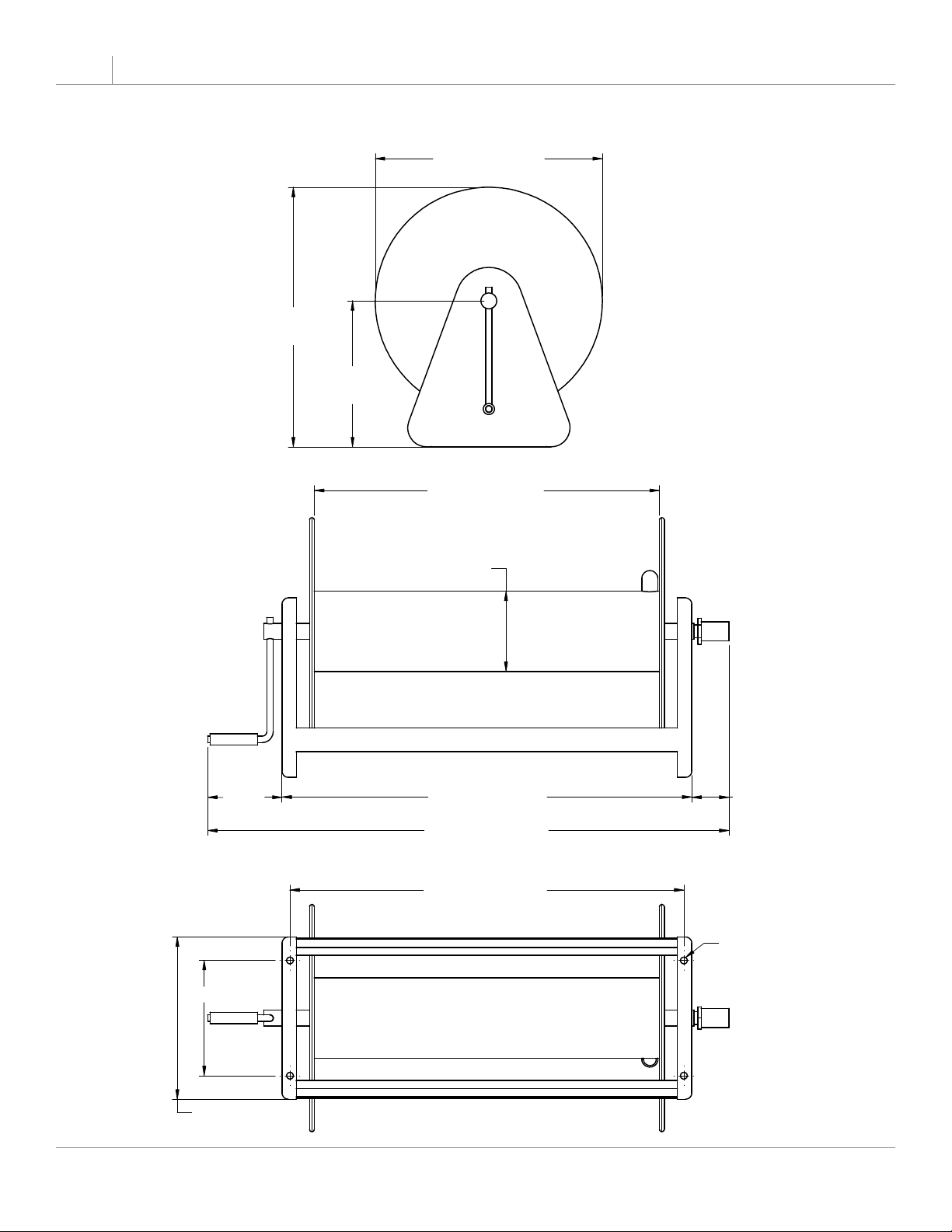

2.4 – Physical Dimensions
Side View
* All dimensions are in inches [millimeters]
30.771 [781.58]
9.000 [228.6]
26.956 [684.68]
6.275 [159.39]
5.804
[147.42]
32.011 [813.08] 2.905
[73.79]
40.720 [1034.29]
11.406
[289.71]
20.281 ±.060
[515.14 ±1.52]
17.750 ± .060
[450.85 ± 1.52]
Ø.531 [13.49]
TYP. 4-PLCS.
12.678 [322.02]
Top View
Front View

TI28000-654 Reel 5
Section 3 – Operation Procedures
3.1 – Installing the Line Cord on Reel
Put the open end of the reel facing up and towards you. Tighten the crank (Figure1.
3.3.1) on the side of the reel to lock the cylinder in place.
Place the cable, being put on the reel, onto a cart with the2. plug end on top (see
Figure 3.1.1). Strap the plug inside the reel. The Velcro strap should go over the
plug, through the loop, under the metal rod, then connect back with itself. (see
Figure 3.1.2)
3.1.2 Location of Male Plug Inside the reel
When doing the rst wrap, make sure the cable stays inside the 3.
cylinder. Have one person turning the handle clockwise to wrap
the cable onto the reel and another person feeding the cable
over from the cart. (see Figure 3.1.3)
Continue wrapping the cable onto the reel, making sure the4.
cable stays tight and aligned the whole time.
Once completed, use a Velcro strap to hold down the connector5.
on the wrap. (see Figure 3.1.4) Lock the reel into place when
nished.
Figure 3.1.4
Figure 3.1.1
Plug end of
cable
Figure 3.1.3 Wrapping the
cable onto the reel

TI28000-654 Reel
6
3Operation Procedures
3.2 – Mounting Procedures
Ensure that mounting surface is at and structurally sound to prevent binding on reel and after it is mounted.
Position reel to mounting surface and secure into place, using four secure fasteners (not included).

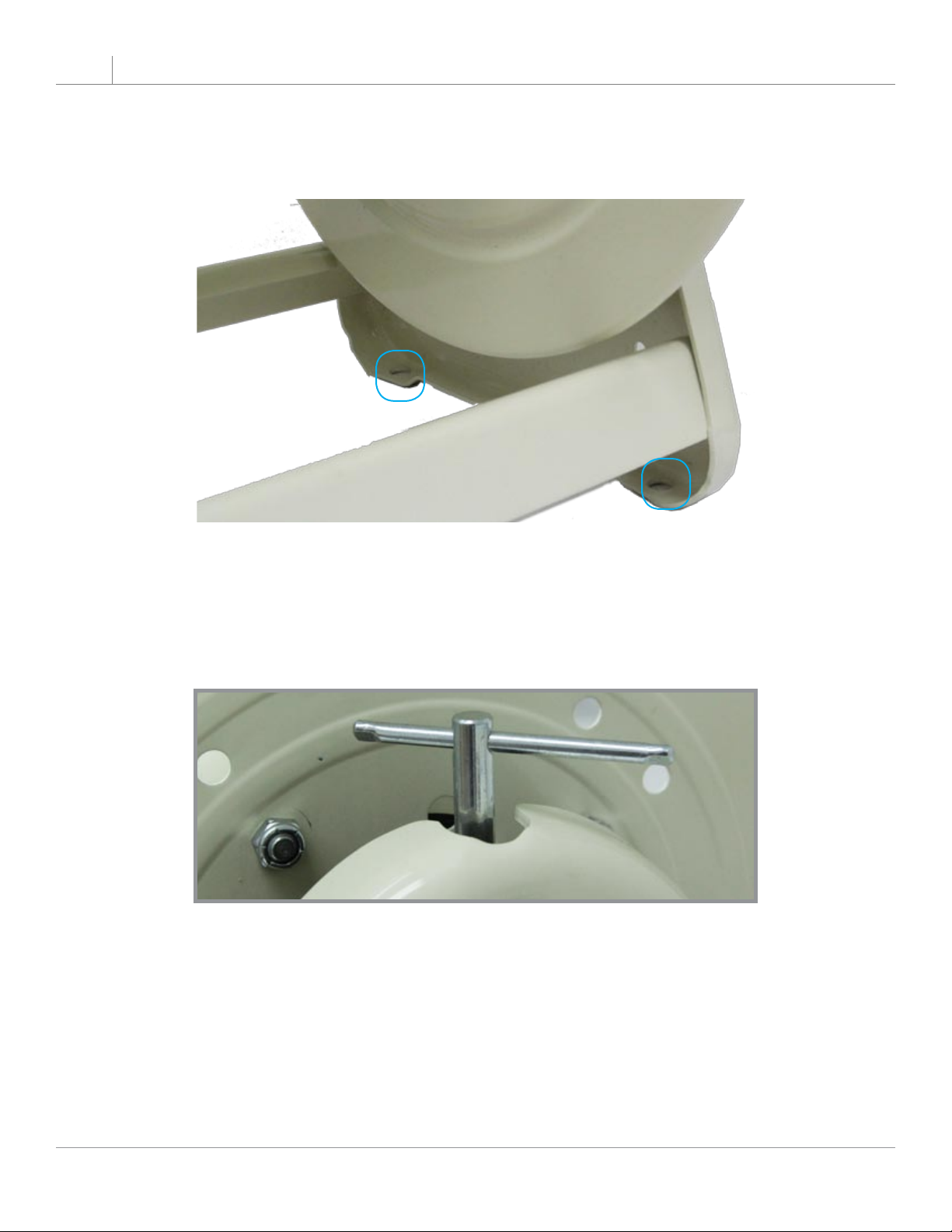

Figure 3.2.1 - Mounting Holes at the base of the Reel (outlined in blue)
3.3 – Adjust Reel Drag
You can control the tension of the turning of the reel, by adjusting the reel drag. Turning clockwise will tighten
to create more drag. Tightening all way will lock the cylinder in place. Turning counter-clockwise will loosen.
(see gure 3.3.1)
Figure 3.3.1 - Crank to adjust the reel drag.
3.4 – Unit Care
Protect the cables from damage. Do not cut or crush the cables when handling the unit. Always inspect
cables prior to use. If no damage is evident, proceed to the next step.
Avoid prolonged exposure to extremely damp environments. Keep unit clean and guard from moisture when
not in use.
Keep an eye on foreign objects when reeling in and out line cords during use.

TI28000-654 Reel 7
Repair Request Form
Please complete the information below to ensure prompt and accurate service. Include this form with the unit you are returning.
Thank you.
Date of return: ________________________
Company name & ____________________________________________________________________
____________________________________________________________________
____________________________________________________________________
Billing address: ____________________________________________________________________
____________________________________________________________________
____________________________________________________________________
Contact person: ________________________________________________________________________________
Phone #: _____________________________________ Fax #: ______________________________________
Email: _______________________________________________________________________________________
Purchase Order #: ______________________________________________________________________________
Model #: ____________________________________ Serial #: ________________________________________
Model #: ____________________________________ Serial #: ________________________________________
Shipping method to Tesla™: ______________________________________________________________________
Description of shipping package: ________________________________________________________________
Description of problem: _________________________________________________________________________
_________________________________________________________________________________________________
_________________________________________________________________________________________________
_________________________________________________________________________________________________
Return to Tesla™
101 Centerpoint Boulevard, New Castle, DE 19720 Attention: Repair Department
