Tesla RC3220FC User manual

ENG FIN SWE
Product images are for illustrative purposes only and may differ from the actual product.
REFRIGERATOR
FREEZER
RC3220FC
User Manual

2
ENG
SAFETY INFORMATION
In the interest of your safety and to ensure the correct use, before installing
and first using the appliance, read this user manual carefully, including
its hints and warnings. To avoid unnecessary mistakes and accidents, it is
important to ensure that all people using the appliance are thoroughly
familiar with its operation and safety features. Save these instructions and
make sure that they remain with the appliance if it is moved or sold, so that
everyone using it through its life will be properly informed on appliance use
and safety.
For the safety of life and property keep to the precautions of these user
instructions as the manufacturer is not responsible for damages caused by
omission.
Children and vulnerable people safety
• This appliance can be used by children aged of 8 years and above and
persons with reduced physical, sensory or mental capabilities, or lack
of experience and knowledge if they have supervision or have been
given instructions concerning the use of the appliance in a safe way and
understand the hazards involved.
• Children aged from 3 to 8 years are allowed to load and unload this
appliance.
• Children should be supervised to ensure that they do not play with the
appliance.
• Cleaning and user maintenance should not be done by children unless
they are aged from 8 years and above and supervised.
• Keep all packaging well away from children. There is risk of suffocation.
• If you are discarding the appliance pull the plug out of the socket, cut the
connection cable (as close to the appliance as you can) and remove the
door to prevent playing children from suffering electric shock or closing
themselves in.
• If this appliance features a magnetic door seal to replace an older
appliance having a spring lock (latch) on the door or lid, be sure to make
that spring lack unusable before you discard the old appliance. This will
prevent it from becoming a death trap for a child.
General safety
WARNING! Keep ventilation openings, in the appliance enclosure or in
the built-in structure, clear of obstruction.
WARNING! Do not use mechanical devices or other means to accelerate
the defrosting process, other than those recommended by the manufacturer.

3
ENG
WARNING! Do not damage the refrigerant circuit.
WARNING! Do not use other electrical appliances (such as ice cream
makers) inside of refrigerating appliances, unless they are approved for this
purpose by the manufacture.
WARNING! Do not touch the light bulb if it has been on for a long period
of time because it could be very hot.1
WARNING! When positioning the appliance, ensure the supply cord is
not trapped or damaged.
WARNING! Do not locate multiple portable socket-outlets or portable
power suppliers at the rear of the appliance.
• Do not store explosive substances such as aerosol cans with a flammable
propellant in this appliance.
• The refrigerant isobutene (R600a) is contained within the refrigerant
circuit of the appliance, a natural gas with a high level of environmental
compatibility, which is nevertheless flammable.
• During transportation and installation of the appliance, be certain that none
of the components of the refrigerant circuit become damaged.
- avoid open flames and sources of ignition
- thoroughly ventilate the room in which the appliance is situated
• It is dangerous to alter the specifications or modify this product in any way.
Any damage to the cord may cause a short circuit, fire and/or electric shock.
• This appliance is intended to be used in a household and similar
applications such as
- staff kitchen areas in shops, offices and other working environments;
- farm houses and by clients in hotels, motels and other residential type
environments;
- bed and breakfast type environments;
- catering and similar non-retail applications.
WARNING! Any electrical components (plug, power cord, compressor
and etc.) must be replaced by a certified service agent or qualified service
personnel.
WARNING! The light bulb supplied with this appliance is a “special use
light bulb” usable only with the appliance supplied. This “special use lamp” is
not usable for domestic lighting.1
• Power cord must not be lengthened.
• Make sure that the power plug is not squashed or damaged by the back
of the appliance. A squashed or damaged power plug may overheat and
cause a fire.
1If there is a light in the compartment.

4
ENG
• Make sure that you can come to the main plug of the appliance.
• Do not pull the main cable.
• If the power plug socket is loose, do not insert the power plug. There is a
risk of electric shock or fire.
• You must not operate the appliance without the lamp.
• This appliance is heavy. Care should be taken when moving it.
• Do not remove nor touch items from the freezer compartment if your hands
are damp/wet, as this could cause skin abrasions or frost/freezer burns.
• Avoid prolonged exposure of the appliance to direct sunlight.
Daily use
• Do not put hot things on the plastic parts in the appliance.
• Do not place food products directly against the rear wall.
• Frozen food must not be re-frozen once it has been thawed out. 2
• Store pre-packed frozen food in accordance with the frozen food
manufacture, s instructions. 2
• Appliance, s manufactures storage recommendations should be strictly
adhered to. Refer to relevant instructions.
• Do not place carbonated of fizzy drinks in the freezer compartment as it
creates pressure on the container, which may cause it to explode, resulting
in damage to the appliance.2
• Ice lollies can cause frost burns if consumed straight from the appliance.2
To avoid contamination of food, please respect the following
instructions
• Opening the door for long periods can cause a significant increase of the
temperature in the compartments of the appliance.
• Clean regularly surfaces that can come in contact with food and accessible
drainage systems.
• Clean water tanks if they have not been used for 48h; flush the water
system connected to a water supply if water has not been drawn for 5 days.
• Store raw meat and fish in suitable containers in the refrigerator, so that it is
not in contact with or drip onto other food.
• Two-star frozen-food compartments (if they are presented in the appliance)
are suitable for storing pre-frozen food, storing or making ice-cream and
making ice cubes.
• One-, two- and three -star compartments (if they are presented in the
appliance) are not suitable for the freezing of fresh food.
2If there is a freezer compartment.

5
ENG
• If the appliance is left empty for long periods, switch off, defrost, clean,
dry and leave the door open to prevent mount developing within the
appliance.
Care and cleaning
• Before maintenance, switch off the appliance and disconnect the main plug
from the power socket.
• Do not clean the appliance with metal objects.
• Do not use sharp objects to remove frost from the appliance. Use a plastic
scraper. 2
• Regularly examine the drain in the refrigerator for defrosted water. If
necessary, clean the drain. If the drain is blocked, water will collect at the
bottom of the appliance. 3
Installation
• IMPORTANT! For electrical connection carefully follow the instructions
given in specific paragraphs.
• Unpack the appliance and check if there are damages on it. Do not connect
the appliance if it is damaged. Report possible damages immediately to
the place you bought it. In that case retain packing.
• It is advisable to wait at least four hours before connecting the appliance to
allow the oil to flow back in the compressor.
• Adequate air circulation should be provided around the appliance, lacking
this leads to overheating. To achieve sufficient ventilation, follow the
instructions relevant to installation.
• Wherever possible the spacers of the product should be against a wall
to avoid touching or catching warm parts (compressor, con- denser) to
prevent possible burn.
• The appliance must not be located close to radiators or cookers.
• Make sure that the main plug is accessible after the installation of the
appliance.
Service
• Any electrical work required to do the servicing of the appliance should be
carried out by a qualified electrician or competent person.
• This product must be serviced by an authorized Service Center, and only
genuine spare parts must be used.
2If there is a freezer compartment.
3If there is a fresh-food storage compartment.

6
ENG
Energy saving
• Do not put hot food in the appliance;
• Do not pack food close together as this prevents air circulating;
• Make sure food does not touch the back of the compartment(s);
• If electricity goes off, do not open the door(s);
• Do not open the door(s) frequently;
• Do not keep the door(s) open for a long time;
• Do not set the thermostat on exceeding cold temperatures;
• All accessories, such as drawers, shelves balconies, should be kept there for
lower energy consumption.
Environment Protection
This appliance does not contain gasses which could damage the ozone
layer, in either its refrigerant circuit or insulation materials. The appliance shall
not be discarded together with the urban refuse and rubbish. The insulation
foam contains flammable gases: the appliance shall be disposed according
to the appliance regulations which can be obtained from your local
authorities. Avoid damaging the cooling unit, especially the heat exchanger.
The materials used on this appliance marked by the symbol are recyclable.
The symbol on the product or on its packaging indicates that this
product may not be treated as household waste. Instead it should be
taken to the appropriate collection point for the recycling of electrical
and electronic equipment. By ensuring this product is disposed of correctly,
you will help prevent potential negative consequences to the environment
and human health, which could otherwise be caused by inappropriate waste
handling of this product. For more detailed information about recycling of
this product, please contact your local council, your household waste
disposal service or the shop where you purchased the product.
Packaging materials
The materials with the symbol are recyclable.
Dispose the packaging in a suitable collection container to recycle it.
Disposal of the appliance
1. Disconnect the mains plug from the mains socket.
2. Cut off the mains cable and discard it.

7
ENG
OVERVIEW
Note: Picture is for reference only. Real appliance probably is different.
WARNING!
During using, service and disposal the appliance, please pay
attention to symbol similar as left side, which is located on rear of
appliance (rear panel or compressor) and with yellow or orange
color.
It’s risk of fire warning symbol. There are flammable materials in
refrigerant pipes and compressor.
Please be far away fire source during using, service and disposal.
No Description
1Temperature modes & LED Light
2Fridge glass shelves
3Crisper cover
4Salad crisper
5freezer drawers
6Leveling feet
7Bottle racks

8
ENG
INSTALLATION

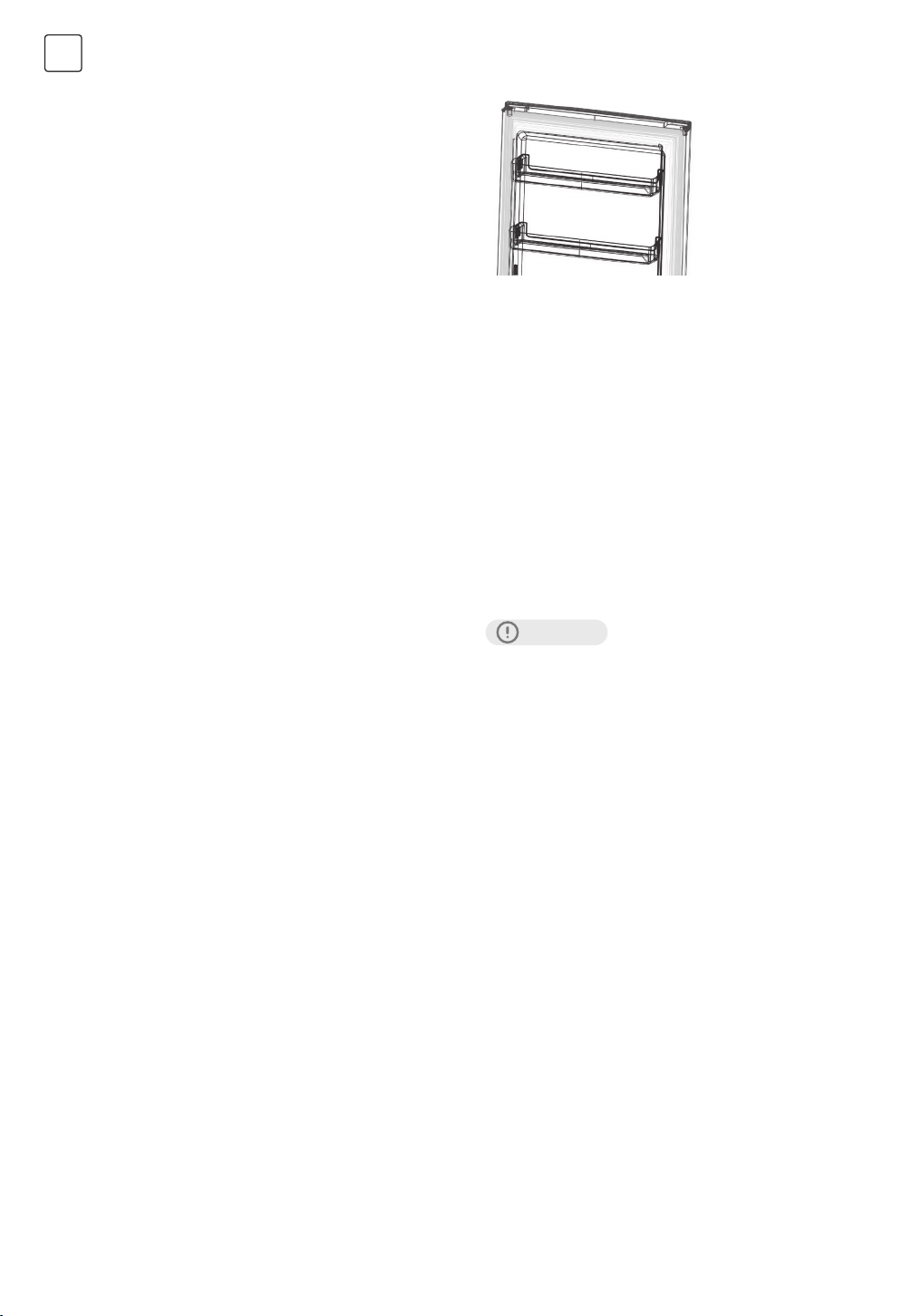

Door Reversibility
Space Requirement
• Select a location without direct exposure to sunlight;
• Select a location with enough space for the refrigerator doors to
open easily;
• Select a location with level (or nearly level) flooring;
• Allow sufficient space to install the refrigerator on a flat surface;
• Allow clearance to the right, left, back and top when installing. This
will help reduce power consumption and keep your energy bills
lower.
• Keep at lest 50mm gap at two sides and back. this refrigerating
appliance is not intended to be used as a built-in appliance
Positioning
Install this appliance at a location where the ambient temperature
corresponds to the climate class indicated on the rating plate of the
appliance:
For refrigerating appliances with climate class:
• extended temperate: this refrigerating appliance is intended to be
used at ambient temperatures ranging from 10 °C to 32 °C (SN);
• temperate: this refrigerating appliance is intended to be used at
ambient temperatures ranging from 16 °C to 32 °C (N);
• subtropical: this refrigerating appliance is intended to be used at
ambient temperatures ranging from 16 °C to 38 °C (ST);
• tropical: this refrigerating appliance is intended to be used at
ambient temperatures ranging from 16 °C to 43 °C (T);
Location
The appliance should be installed well away from sources of heat
such as radiators, boilers, direct sunlight etc. Ensure that air can
circulate freely around the back of the cabinet to ensure best
performance. If the appliance is positioned below an overhanging
wall unit, the minimum distance between the top of the cabinet and
the wall unit must be at least 100 mm. Ideally, however, the appliance
should not be positioned below overhanging wall units. Accurate
leveling is ensured by one or more adjustable feet at the base of the
cabinet.
This refrigerating appliance is not intended to be used as a built-in
appliance.
WARNING!
It must be possible to disconnect the appliance from the mains
power supply; the plug must therefore be easily accessible after
installation.
Electrical connection
Before plugging in, ensure that the voltage and frequency shown
on the rating plate correspond to your domestic power supply.
The appliance must be grounded. The power supply cable plug
is provided with a contact for this purpose. If the domestic power
supply socket is not grounded, connect the appliance to a separate
grounder in compliance with current regulations, consulting a
qualified electrician.
The manufacturer declines all responsibility if the above safety
precautions are not observed. This appliance complies with the
E.E.C. Directives.
1 Remove the screw hole cover from the top left side of the
cabinet. Remove the upper hinge cover and the upper hinge
fr.om the top right side of the cabinet. Remove the freezer door
from the cabinet.
3 Remove the llower hinge from the bottom right side of the
cabinet.
2 Remove the center hinge fr.om the right side of the cabinet.
Remove the refrigerator door from the cabinet. Remove the
screw holle covers from the left side of the cabinet. Remove the
refrigerator door from the cabinet.
4 Remove the pin shaft to the right holle on the lower hinge, then
insert the pin shaft into the lleft holle on the lower hinge.
5 Install the lower hinge onto the lower left siide of the cabinet.
If the applliance is placed on its back m side dming this process it must be allowed to stand upright for 6 hours before pllugging in to avoid
damage to internal components.

9
ENG
6 Remove the freezer door stop from the lower right side to the left
side of the door.Get the left door stoop from the aooes.sory bag,
install it on bottom left side of the refrigerator door.
8 Install the freezer door onto the cabinet. Install the center hinge
on the lleft side of the cabinet. Install the screw ho lie oovers on
the right side of the cabinet.
7 Move the door bushing from the top right siide of the
refrigerator door and remove the hinge hole oover from the top
lleft side of the door. Exchange their positions.
9Install the refrigerator door onto the cabinet. Install the upper
hinge on the top left side of thhe cabinet. Install the screw holle
cover onto the top right side of the cabinet.
Note: These instructions reference the models that come fr.om the factory with a right hand swing door. If your appliance comes with a left
hand swing, ensure that you flip the “left” and “right” in these instructions.
Space Requirement
• Keep enough space for opening of doors.
• Keep at least 50mm gap at two sides and back.
W595
D635
H1855
A966
B1176
C (°) 130
E50
F100
Levelling the unit
To do this adjust the two levelling feet at front of the unit.
If the unit is not level, the doors and magnetic seal alignments will not be covered properly.
Doors
Lenghten Shorten

10
ENG
Use environment Recommended mode setting on the
display panel
Recommended air regulating rod
position Notes
Higher than 35�C
1. It is recommended
to set at the middle
mode.
2. The temperature
modes can be adjusted
as recommended in
the left table in case of
change to the ambient
temperature around
the refrigerator
16�C - 35�C
Lower than 16 �C
USER CONTROL PANEL
Temperature setting of the Fridge
Compartment
Temperature adjustment
Temperature can be adjusted by pressing the ‘SET’ key. Every time
hen the “SET” key is pressed, the current mode indicator lights off
while the next mode indicator lights up, with the said mode setting
validated if no key operation within 5s (or else, the mode setting
will be invalid). After the setting takes effect, temperature will be
immediately controlled as per the mode setting.
The temperature modes cycle as following:
“5->4->3->2->1->FAST COOL->5”
• When the temperature mode keeps unchanged, adjust the air
regulating rod from left to right, the fridge temperature gets
decreased while the freezer temperature increased.
• When the temperature mode keeps unchanged, adjust the air
regulating rod from right to left, the fridge temperature gets
increased while the freezer temperature decreased.
• It is recommended to adjust the air regulating rod in the middle
position. When the user needs a lower freezer temperature,
adjust the air regulating rod to the left properly, then the freezer
temperature decreases while the fridge temperature rises. When
the temperature meets the requirement, adjust the air regulating
rod back to the middle position again in a timely manner.
• When the ambient temperature around the refrigerator is higher
than 35 �C, do not set the thermostat at Mode 5 and adjust the
air regulating rod to the leftmost position, so as not to affect the
normal refrigeration of the refrigerator.
• Do not set the thermostat at Mode 5 and adjust the air regulating
rod to the rightmost position, in order to avoid the fridge
compartment undercooling.
• If the fridge temperature is not cool or undercooled, set the
thermostat at the middle mode and adjust the air regulating rod in
the middle position.
• In case the ‘Fastcool’ function is enabled, adjust the air regulating
rod to the middle position.
COLDEST
COLD
5When the user needs a colder temperature.
4
3When in normal use.
2When the user does not need a colder
temperature.
1
