Tesla RD2101H1 User manual

Product images are for illustrative purposes only and may differ from the actual product.
REFRIGERATOR
FREEZER
RD2101H1
User Manual
ROGR HR SLO SRBENG BiH/
CG

2
ENG
SAFETY INFORMATION
In the interest of your safety and to ensure the correct use, before installing
and first using the appliance, read this user manual carefully, including
its hints and warnings. To avoid unnecessary mistakes and accidents, it is
important to ensure that all people using the appliance are thoroughly
familiar with its operation and safety features. Save these instructions and
make sure that they remain with the appliance if it is moved or sold, so that
everyone using it through its life will be properly informed on appliance use
and safety.
For the safety of life and property keep to the precautions of these user
instructions as the manufacturer is not responsible for damages caused by
omission.
Children and vulnerable people safety
• This appliance can be used by children aged of 8 years and above and
persons with reduced physical, sensory or mental capabilities, or lack
of experience and knowledge if they have supervision or have been
given instructions concerning the use of the appliance in a safe way and
understand the hazards involved.
• Children aged from 3 to 8 years are allowed to load and unload this
appliance.
• Children should be supervised to ensure that they do not play with the
appliance.
• Cleaning and user maintenance should not be done by children unless
they are aged from 8 years and above and supervised.
• Keep all packaging well away from children. There is risk of suffocation.
• If you are discarding the appliance pull the plug out of the socket, cut the
connection cable (as close to the appliance as you can) and remove the
door to prevent playing children from suffering electric shock or closing
themselves in.
• If this appliance features a magnetic door seal to replace an older
appliance having a spring lock (latch) on the door or lid, be sure to make
that spring lack unusable before you discard the old appliance. This will
prevent it from becoming a death trap for a child.
General safety
WARNING! Keep ventilation openings, in the appliance enclosure or in
the built-in structure, clear of obstruction.
WARNING! Do not use mechanical devices or other means to accelerate
the defrosting process, other than those recommended by the manufacturer.

3
ENG
WARNING! Do not damage the refrigerant circuit.
WARNING! Do not use other electrical appliances (such as ice cream
makers) inside of refrigerating appliances, unless they are approved for this
purpose by the manufacture.
WARNING! Do not touch the light bulb if it has been on for a long period
of time because it could be very hot.1
WARNING! When positioning the appliance, ensure the supply cord is
not trapped or damaged.
WARNING! Do not locate multiple portable socket-outlets or portable
power suppliers at the rear of the appliance.
• Do not store explosive substances such as aerosol cans with a flammable
propellant in this appliance.
• The refrigerant isobutene (R600a) is contained within the refrigerant
circuit of the appliance, a natural gas with a high level of environmental
compatibility, which is nevertheless flammable.
• During transportation and installation of the appliance, be certain that none
of the components of the refrigerant circuit become damaged.
- avoid open flames and sources of ignition
- thoroughly ventilate the room in which the appliance is situated
• It is dangerous to alter the specifications or modify this product in any way.
Any damage to the cord may cause a short circuit, fire and/or electric shock.
• This appliance is intended to be used in a household and similar
applications such as
- staff kitchen areas in shops, offices and other working environments;
- farm houses and by clients in hotels, motels and other residential type
environments;
- bed and breakfast type environments;
- catering and similar non-retail applications.
WARNING! Any electrical components (plug, power cord, compressor
and etc.) must be replaced by a certified service agent or qualified service
personnel.
WARNING! The light bulb supplied with this appliance is a “special use
light bulb” usable only with the appliance supplied. This “special use lamp” is
not usable for domestic lighting.1
• Power cord must not be lengthened.
• Make sure that the power plug is not squashed or damaged by the back
of the appliance. A squashed or damaged power plug may overheat and
cause a fire.
1If there is a light in the compartment.

4
ENG
• Make sure that you can come to the main plug of the appliance.
• Do not pull the main cable.
• If the power plug socket is loose, do not insert the power plug. There is a
risk of electric shock or fire.
• You must not operate the appliance without the lamp.
• This appliance is heavy. Care should be taken when moving it.
• Do not remove nor touch items from the freezer compartment if your hands
are damp/wet, as this could cause skin abrasions or frost/freezer burns.
• Avoid prolonged exposure of the appliance to direct sunlight.
Daily use
• Do not put hot things on the plastic parts in the appliance.
• Do not place food products directly against the rear wall.
• Frozen food must not be re-frozen once it has been thawed out. 2
• Store pre-packed frozen food in accordance with the frozen food
manufacture, s instructions. 2
• Appliance, s manufactures storage recommendations should be strictly
adhered to. Refer to relevant instructions.
• Do not place carbonated of fizzy drinks in the freezer compartment as it
creates pressure on the container, which may cause it to explode, resulting
in damage to the appliance.2
• Ice lollies can cause frost burns if consumed straight from the appliance.2
To avoid contamination of food, please respect the following
instructions
• Opening the door for long periods can cause a significant increase of the
temperature in the compartments of the appliance.
• Clean regularly surfaces that can come in contact with food and accessible
drainage systems.
• Clean water tanks if they have not been used for 48h; flush the water
system connected to a water supply if water has not been drawn for 5 days.
• Store raw meat and fish in suitable containers in the refrigerator, so that it is
not in contact with or drip onto other food.
• Two-star frozen-food compartments (if they are presented in the appliance)
are suitable for storing pre-frozen food, storing or making ice-cream and
making ice cubes.
• One-, two- and three -star compartments (if they are presented in the
appliance) are not suitable for the freezing of fresh food.
2If there is a freezer compartment.

5
ENG
• If the appliance is left empty for long periods, switch off, defrost, clean,
dry and leave the door open to prevent mount developing within the
appliance.
Care and cleaning
• Before maintenance, switch off the appliance and disconnect the main plug
from the power socket.
• Do not clean the appliance with metal objects.
• Do not use sharp objects to remove frost from the appliance. Use a plastic
scraper. 2
• Regularly examine the drain in the refrigerator for defrosted water. If
necessary, clean the drain. If the drain is blocked, water will collect at the
bottom of the appliance. 3
Installation
• IMPORTANT! For electrical connection carefully follow the instructions
given in specific paragraphs.
• Unpack the appliance and check if there are damages on it. Do not connect
the appliance if it is damaged. Report possible damages immediately to
the place you bought it. In that case retain packing.
• It is advisable to wait at least four hours before connecting the appliance to
allow the oil to flow back in the compressor.
• Adequate air circulation should be provided around the appliance, lacking
this leads to overheating. To achieve sufficient ventilation, follow the
instructions relevant to installation.
• Wherever possible the spacers of the product should be against a wall
to avoid touching or catching warm parts (compressor, con- denser) to
prevent possible burn.
• The appliance must not be located close to radiators or cookers.
• Make sure that the main plug is accessible after the installation of the
appliance.
Service
• Any electrical work required to do the servicing of the appliance should be
carried out by a qualified electrician or competent person.
• This product must be serviced by an authorized Service Center, and only
genuine spare parts must be used.
2If there is a freezer compartment.
3If there is a fresh-food storage compartment.

6
ENG
Energy saving
• Do not put hot food in the appliance;
• Do not pack food close together as this prevents air circulating;
• Make sure food does not touch the back of the compartment(s);
• If electricity goes off, do not open the door(s);
• Do not open the door(s) frequently;
• Do not keep the door(s) open for a long time;
• Do not set the thermostat on exceeding cold temperatures;
• All accessories, such as drawers, shelves balconies, should be kept there for
lower energy consumption.
Environment Protection
This appliance does not contain gasses which could damage the ozone
layer, in either its refrigerant circuit or insulation materials. The appliance shall
not be discarded together with the urban refuse and rubbish. The insulation
foam contains flammable gases: the appliance shall be disposed according
to the appliance regulations which can be obtained from your local
authorities. Avoid damaging the cooling unit, especially the heat exchanger.
The materials used on this appliance marked by the symbol are recyclable.
The symbol on the product or on its packaging indicates that this
product may not be treated as household waste. Instead it should be
taken to the appropriate collection point for the recycling of electrical
and electronic equipment. By ensuring this product is disposed of correctly,
you will help prevent potential negative consequences to the environment
and human health, which could otherwise be caused by inappropriate waste
handling of this product. For more detailed information about recycling of
this product, please contact your local council, your household waste
disposal service or the shop where you purchased the product.
Packaging materials
The materials with the symbol are recyclable.
Dispose the packaging in a suitable collection container to recycle it.
Disposal of the appliance
1. Disconnect the mains plug from the mains socket.
2. Cut off the mains cable and discard it.

7
ENG
WARNING!
During using, service and disposal the appliance, please pay
attention to symbol similar as left side, which is located on rear of
appliance (rear panel or compressor) and with yellow or orange
color.
It’s risk of fire warning symbol. There are flammable materials in
refrigerant pipes and compressor.
Please be far away fire source during using, service and disposal.
OVERVIEW
Note: Picture is for reference
only. Real appliance probably
is different.
Baclonies
Freezer Shelf
Thermostat
and Light
Glass
Shelves
Crisper
Cover
Crisper

8
ENG

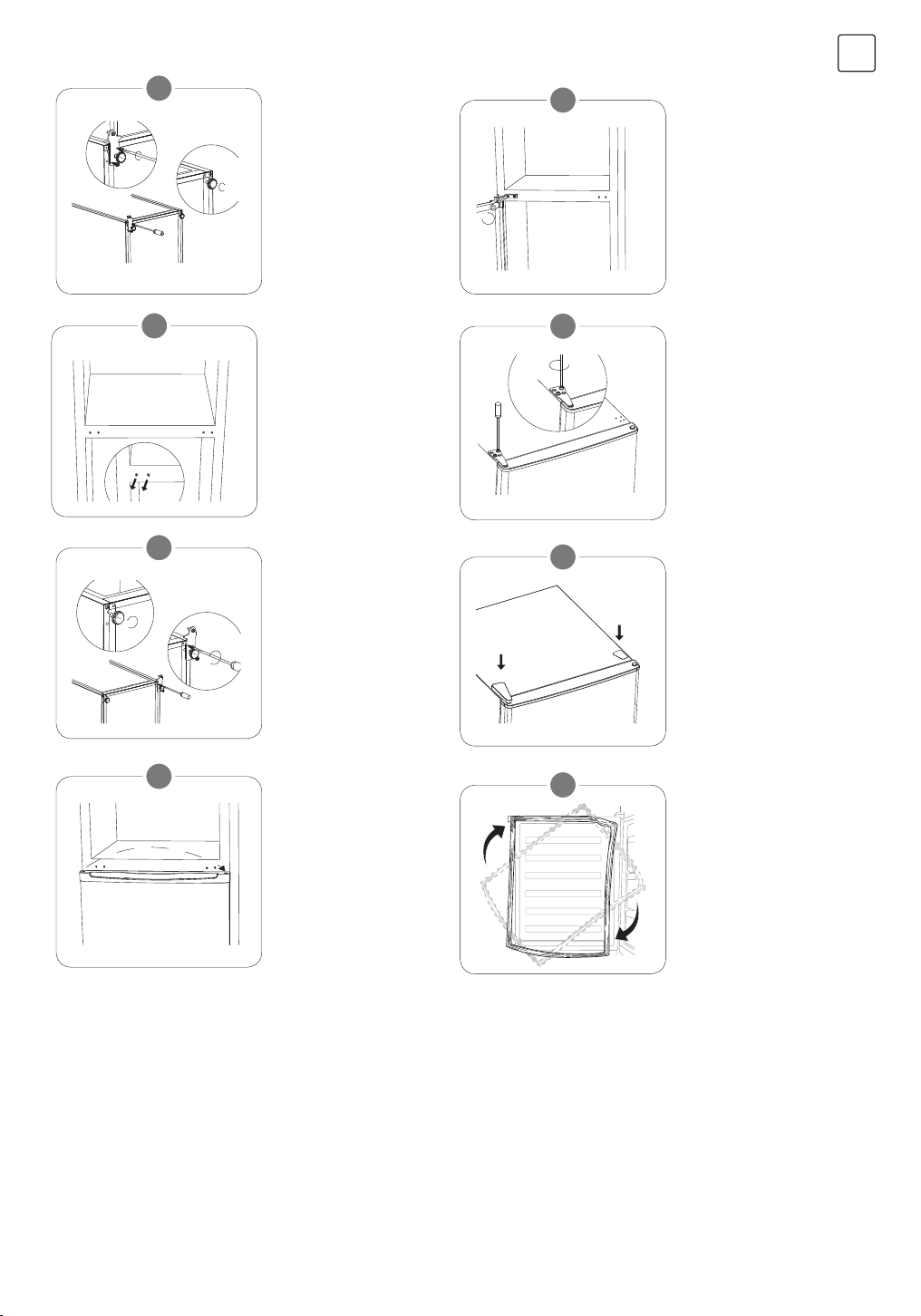

REVERSE DOOR
Tools required: Philips screwdriver, Flat bladed screwdriver, Hexagonal spanner.
• Ensure the unit is unplugged and empty.
• To take the door off, it is necessary to tilt the unit backwards.You should rest the unit on something solid so that it will not slip during the
door reversing process.
• All parts removed must be saved to do the reinstallation of the door.
• Do not lay the unit flat as this may damage the coolant system.
• It’s better that 2 people handle the unit during assembly.
Carefully remove the top
hinge coverwith a flat
screw driver.
Unscrew the top hinge
with a philiphs screw
driver.
2
1
Remove the hole
coverwith a flat screw
driver.
Move the core cover
from left side to right
side. And then lift the
upper door and place
it on a padded surface
to prevent it from
scratching.
3
4
Unscrew the middle
hinge and then lift the
bottom door and put it
on a soft pad to avoid
scratch.
Move two middle hole
covers from left to right.
Lie down the rear of
cabinet on a soft pad.
And unscrew the bottom
hinge and leveling foot.
5
6
7
Unscrew and remove the bottom hinge pin, turn the bracket over
and replace it.
8
screw
unscrew

9
ENG
Clap in the hinge cover
and hole cover on the
top of unit.
Detach the Fridge and
the Freezer door gaskets
and then attach them
after rotating.
15
16
13
14
Install the middle hinge.
Install the upper door
with the upper hinge.
9
lnstall the hinge at left
side and foot base at
right side. Then screw
two leveling feet with
their original parts.
Move two middle hole
covers from left to right.
Lie down the rear of
cabinet on a soft pad.
And unscrew the bottom
hinge and leveling foot.
Stand up the unit and
put the door on the
bottom hinge. Make sure
the bottom hinge core is
inserted in the door hole.
Then move the hinge
hole cover of bottom
door from left side to
right side.
10
11
12

10
ENG
INSTALLATION
Install door external handle (if external handle is present)
Space Requirement
• Keep enough space for opening of doors.
F F
F
I
A555
B555
C1430
Dmin=50
Emin=50
Fmin=50
G1110
H1110
I135°
Levelling the unit
To do this adjust the two levelling feet at front of the unit.
If the unit is not level, the doors and magnetic seal
alignments will not be covered properly.
Lenghten Shorten

11
ENG
Position different food in different compartments according to be below table
Refrigerator compartments Type of food
Door or balconies of fridge compartment • Foods with natural preservatives, such as jams, juices, drinks, condiments.
• Do not store perishable foods.
Crisper drawer (salad drawer) • Fruits, herbs and vegetables should be placed separately in the crisper bin.
• Do not store bananas, onions, potatoes, garlic in the refrigerator.
Fridge shelf – middle • Dairy products, eggs
Fridge shelf – top • Foods that do not need cooking, such as ready-to-eat foods, deli meats, leftovers.
Freezer drawer(s)/shelf
• Foods for long-term storage.
• Bottom drawer/shelf for raw meat, poultry, fish.
• Middle drawer/shelf for frozen vegetables, chips
• Top drawer/shelf for ice cream, frozen fruit, frozen baked goods.
DAILY USE
Positioning
Install this appliance at a location where the ambient temperature
corresponds to the climate class indicated on the rating plate of the
appliance:
Climate class Ambient temperature
SN +10ºC to +32ºC
N+16ºC to +32ºC
ST +16ºC to +38ºC
T+16ºC to +43ºC
Location
The appliance should be installed well away from sources of heat
such as radiators, boilers, direct sunlight etc. Ensure that air can
circulate freely around the back of the cabinet to ensure best
performance. If the appliance is positioned below an overhanging
wall unit, the minimum distance between the top of the cabinet and
the wall unit must be at least 50 mm. Ideally, however, the appliance
should not be positioned below overhanging wall units. Accurate
leveling is ensured by one or more adjustable feet at the base of the
cabinet.
WARNING!
It must be possible to disconnect the appliance from the mains
power supply; the plug must therefore be easily accessible after
installation.
Electrical connection
Before plugging in, ensure that the voltage and frequency shown
on the rating plate correspond to your domestic power supply.
The appliance must be grounded. The power supply cable plug
is provided with a contact for this purpose. If the domestic power
supply socket is not grounded, connect the appliance to a separate
grounder in compliance with current regulations, consulting a
qualified electrician.
The manufacturer declines all responsibility if the above safety
precautions are not observed. This appliance complies with the
E.E.C. Directives.
First use
Cleaning the interior
Before using the appliance for the first time, wash the interior and
all internal accessories with lukewarm water and some neutral soap
so as to remove the typical smell of a brand new product, then dry
thoroughly.
IMPORTANT! Do not use detergents or abrasive powders, as these
will damage the finish.
Temperature Setting
• Plug in your appliance. The internal temperature is controlled by
a thermostat. There are 8 setting levels 1 is warmest setting, 7 is
coldest setting and 0 is off.
• The appliance may not operate at the correct temperature if it is in
a particularly hot environment or if you open the door often.

12
ENG
Environment Temperature Freezer compartment Fridge compartment
Summer
(Above 38�C) /
Set on 2~4
Normal /
Set on 4
Winter
(Below 16�C) /
Set on 4~6
Temperature setting recommendation
Impact on Food Storage
• Information above give users recommendation of temperature setting.
• Under Recommended setting, the best storage time of fridge is no more than 3 days.
• Under Recommended setting, the best storage time of freezer is no more than 1 month.
• The best storage time may reduce under other settings.
Freezing fresh food
• The freezer compartment is suitable for freezing fresh food and
storing frozen and deep-frozen food for a long time.
• Place the fresh food to be frozen in the freezer compartment.
• The maximum amount of food that can be frozen in 24 hours is
specified on the rating plate.
• The freezing process lasts 24 hours: during this period do not
add other food to be frozen.
Storing frozen food
When first starting-up or after a period out of use, before putting
food in the compartment let the appliance run at least 2 hours on a
higher setting.
IMPORTANT! In the event of accidental defrosting, for example the
power has been off for longer than the value shown in the technical
characteristics chart under “rising time”, the defrosted food must be
consumed quickly or cooked immediately and then re-frozen (after
cooked).
Thawing
• Deep-frozen or frozen food, prior to being used, can be thawed
in the fridge compartment or at room temperature, depending
on the time available for this operation.
• Small pieces may even be cooked still frozen, directly from the
freezer. In this case, cooking will take longer.
Ice-cube
This appliance may be equipped with one or more ice-cube trays to
produce ice.
Accessories
Movable shelves
The walls of the refrigerator are equipped with a series of runners so
that the shelves can be positioned as desired.

13
ENG
Positioning the door balconies
To permit storage of food packages of various sizes, the door
balconies can be placed at different heights. To make these
adjustments proceed as follows: gradually pull the balcony in the
direction of the arrows until it comes free, then reposition as required.
Helpful hints and tips
To help you make the most of the freezing process, here are some
important hints:
• the maximum quantity of food which can be frozen in 24 hrs. is
shown on the rating plate;
• the freezing process takes 24 hours. No further food to be frozen
should be added during this period;
• only freeze top quality, fresh and thoroughly cleaned, foodstuffs;
• prepare food in small portions to enable it to be rapidly and
completely frozen and to make it possible subsequently to thaw
only the quantity required;
• wrap up the food in alumi num foil or polythene and make sure
that the packages are airtight;
• do not allow fresh, unfrozen food to touch food which is already
frozen, thus avoiding a rise in temperature of the latter;
• lean foods store better and longer than fatty ones; salt reduces the
storage life of food;
• water ices, if consumed immediately after removal from the
freezer compartment, can possibly cause the skin to be freeze
burnt;
• removal from the freezer compartment, can possibly cause the
skin to be freeze burnt; it is advisable to show the freezing in date
on each individual pack to enable you to keep tab of the storage
time.
• it is advisable to show the freezing in date on each individual
pack to enable you removal from the freezer compartment, can
possibly cause the skin to be freeze burnt;
• it is advisable to show the freezing in date on each individual pack
to enable you to keep tab of the storage time.
Hints for storage of frozen food
To obtain the best performance from this appliance, you should:
• make sure that the commercially frozen foodstuffs were
adequately stored by the retailer;
• be sure that frozen foodstuffs are transferred from the food store
to the freezer in the shortest possible time;
• do not open the door frequently or leave it open longer than
absolutely necessary.
• once defrosted, food deteriorates rapidly and cannot be re-frozen;
• do not exceed the storage period indicated by the food
manufacture.
Hints for fresh food refrigeration
To obtain the best performance:
• Do not store warm food or evaporating liquids in the refrigerator
• Do cover or wrap the food, particularly if it has a strong flavor
• Meat (all types): wrap in polythene bags and place on the glass
shelves above the vegetable drawer.
• For safety, store in this way only one or two days at the most.
• Cooked foods, cold dishes, etc...: these should be covered and
may be placed on any shelf.
• Fruit and vegetables: these should be thoroughly cleaned and
placed in the special drawer(s) provided.
• Butter and cheese: these should be placed in special airtight
containers or wrapped in aluminum foil or polythene bags to
exclude as much air as possible.
• Milk bottle: these should have a cap and should be stored in the
balconies on the door.
• Bananas, potatoes, onions and garlic, if not packed, must not be
kept in the fridge.
Cleaning
For hygienic reasons the appliance interior, including interior
accessories, should be cleaned regularly.
CAUTION!
The appliance may not be connected to the mains during cleaning.
Danger of electrical shock! Before cleaning switch the appliance
off and remove the plug from the mains, or switch off or turn out
the circuit breaker or fuse. Never clean the appliance with a steam
cleaner. Moisture could accumulate in electrical components, danger
of electrical shock! Hot vapors can lead to the damage of plastic
parts. The appliance must be dry before it is placed back into service.
IMPORTANT! Ethereal oils and organic solvents can attack plastic
parts, e.g. lemon juice or the juice form orange peel, butyric acid,
cleanser that contain acetic acid.
Clean drain hole
To avoid defrost water overflowing into the fridge, periodically clean
the drain hole at back of fridge compartment. Use a cleaner to clean
the hole as showed in the picture.
• Do not allow such substances to come into contact the appliance
parts.
• Do not use any abrasive cleaners
• Remove the food from the freezer. Store them in a cool place, well
covered.
• Switch the appliance off and remove the plug from the socket, or
switch off the circuit breaker or fuse.
• Clean the appliance and the interior accessories with a cloth and
lukewarm water. After cleaning wipe with fresh water and rub dry.
• After everything is dry place appliance back into service.
Defrosting of the freezer
The freezer compartment, however, will become progressively
covered with frost. This should be removed. Never use sharp metal
tools to scrape off frost from the evaporator as you could damage
it. However, when the ice becomes very thick on the inner liner,
complete defrosting should be carried out as follows:
• pull out the plug from the socket;
• remove all stored food, wrap it in several layers of newspaper and
put it in a cool place;
• keep the door open, and placing a basin underneath of the
appliance to collect the defrost water;
• when defrosting is completed, dry the interior thoroughly
• replace the plug in the power socket to run the appliance again.
1If the condenser is at the back of appliance.

14
ENG
Replace the lamp
CAUTION!
The product is equipped with LED light, please contact after sales
service in case of replacement.
CAUTION!
Before troubleshooting, disconnect the power supply. Only a qualified electrician of competent person must do the troubleshooting that is not
in this manual.
IMPORTANT! There are some sounds during normal use (compressor, refrigerant circulation).
If the malfunction shows again, contact the Service Center.
TROUBLESHOOTING
Problem Possible cause Solution
Appliance does not
work
Temperature regulation knob is set at number “0”. Set the knob at other number to switch on the appliance.
Power plug is not plugged in or is loose Insert power plug.
Fuse has blown or is defective Check fuse, replace if necessary.
Socket is defective Socket malfunctions are to be corrected by an electrician.
The food is too warm.
Temperature is not properly adjusted. Please look in the initial Temperature
Setting section.
Door was open for an extended period. Open the door only as long as necessary.
A large quantity of warm food was placed in the
appliance within the last 24 hours.
Turn the temperature regulation to a colder setting
temporarily.
The appliance is near a heat source. Please look in the installation location section.
Appliance cools too
much Temperature is set too cold. Turn the temperature regulation knob to a warmer setting temporarily.
Unusual noises
Appliance is not level. Re-adjust the feet.
The appliance is touching the wall or other
objects. Move the appliance slightly.
A component, e.g. a pipe, on the rear of the
appliance is touching another part of the
appliance or the wall.
If necessary, carefully bend the component out of the way.
Water on the floor Water drain hole is blocked. See the Cleaning section.
Side panel is hot Condenser is inside the panel. It’s normal.

15
BiH/CG
BEZBEDNOSNA UPUTSTVA
Radi sopstvene bezbjednosti obezbedite sigurnu upotrebu, prije instalacije
i prve upotrebe uređaja, pročitajte ovo korisničko uputstvo, uključujući i
savjete i upozorenja. Da biste izbjegli nepotrebne greške
i nezgode, važno je da se postarate da sve osobe koje koriste uređaj budu
detaljno upoznate s njegovim operacijama i bezbjedonosnim funkcijama.
Sačuvajte ova uputstva i pobrinite se da budu u sklopu uređaja ako bude
premješten ili prodat, kako bi svako, ko ga
koristi tokom svog života bio upoznat sa pravilnom upotrebom i
bezbjednošću uređaja.
Imajte na umu ovo korisničko uputstvo radi svoje lične sigurnosti i sigurnosti
imovine, budući da proizvođač nije odgovoran za štetu učinjenu propustima.
Bezbjednost djece i nesamostalnih osoba
• Ovaj uređaj mogu koristiti djeca starosti 8 ili više godina i osobe sa
smanjenim fizičkim, čulnim ili mentalnim sposobnostima, ili manjkom
iskustva i znanja ukoliko su pod nadzorom, ili su im data uputstva u vezi sa
bezbjednom upotrebom uređaja, i svjesni su mogućeg rizika.
• Djeci uzrasta od 3 do 8 godina je dozvoljeno da stavljaju predmete u i
uzimaju predmete iz ovog uređaja.
• Djeca bi trebalo da budu pod nadzorom, kako biste osigurali da se ne
igraju uređajem.
• Čišćenjem i održavanjem ne bi trebalo da se bave djeca, osim ako nisu
starosti 8 ili više godina i moraju biti pod obaveznim nadzorom.
• Svu ambalažu čuvajte van domašaja djece. Postoji opasnost od gušenja.
• Ukoliko ste odlučili da više ne koristite uređaj, prekinite napajanje uređaja
strujom, presijecite kabl za napajanje (što je bliže moguće uređaju) i
uklonite vrata, kako biste spriječili mogućnost da djeca, koja se igraju,
pretrpe strujni udar ili se zatvore u uređaj.
• Ukoliko ovaj uređaj ima magnetnu gumu na vratima, a želite da njime
zamijenite stariji uređaj, koji se zatvarao pomoću opruge na vratima ili
poklopcu, onemogućite funkcionisanje zatvaranja starijeg uređaja pomoću
opruge. Na ovaj način ćete spriječiti da uređaj postane smrtonosna zamka
za dijete.
Opšta bezbjednost
UPOZORENJE! Održavajte ventilacione otvore u kućištu frižidera ili
ugradnoj strukturi čistima od začepljenja.
UPOZORENJE! Nemojte koristiti mehaničke uređaje ili druge naprave
kako biste ubrzali proces odmrzavaja, osim proizvoda preporučenih od

16
BiH/CG
strane proizvođača uređaja.
UPOZORENJE! Nemojte oštetiti sistem za hlađenje.
UPOZORENJE! Nemojte stavljati druge električne uređaje (kao što su
uređaji za pravljenje sladoleda) u uređaj za hlađenje, osim ako ih proizvođač
nije odobrio u ovu svrhu.
UPOZORENJE! Ne dirajte sijalicu ukoliko radi duže vremena, jer može biti
veoma vruća.1
UPOZORENJE! PPrilikom postavljanja uređaja, uvjerite se da ništa ne
pritiska priključni kabl, kao i da kabl nije oštećen.
UPOZORENJE! Ne postavljajte višestruke prenosive utičnice ili prenosivo
napajanje iza uređaja.
• Nemojte čuvati eksplozivne supstance, kao što su ambalaže sprejeva sa
zapaljivim gasom u ovom uređaju.
• Supstanca za hlađenje, izobutan (R600a), se nalazi u sistemu za hlađenje
uređaja, to je prirodni gas s visokim nivoom ekološke kompatibilnosti, ali
izuzetno zapaljiv.
• obrinite se da tokom transporta ili postavljanja uređaja ne bude oštećena
nijedna komponenta sistema za hlađenje uređaja.
- izbijegavajte otvoren plamen i izvore zapaljivosti
- temeljno provjetrite prostoriju, u kojoj se nalazi uređaj
• Opasno je menjati specifikacije ili modifikovati proizvod na bilo koji način.
Bilo kakvo oštećenje kabla može prouzrokovati kratak spoj, požar i/ili strujni
udar.
• Ovaj uređaj je namenjen za upotrebu u domaćinstvima i za slične primjene,
kao što su
- prostori za zaposlene u kuhinji, u prodavnicama, kancelarije i druga radna
okruženja;
- poljoprivredna domaćinstva i od strane hotelskih i motelskih gostiju, kao i
drugih vrsta ovakvih objekata;
- objekti koji pružaju uslugu noćenja sa doručkom;
- ketering i slične neprodajne namjene.
UPOZORENJE! Bilo koju električnu komponentu (utikač, kabl za
napajanje, kompresor itd.) mora zamijeniti ovlašćeni serviser ili kvalifikovano
osoblje.
UPOZORENJE! Sijalica, dostavljena sa ovim uređajem, je “sijalica za
specijalnu namjenu” i može se koristiti samo za uređaj uz koji je dostavljena.
Ova “sijalica za specijalnu namjenu” se ne može koristiti za kućno osvjetljenje1
• Kabl za napajanje se ne smije produžavati.
• Provjerite da li je utikač, na zadnjoj strani uređaja, zgnječen ili oštećen.
1Ukoliko u uređaju postoji.

17
BiH/CG
Zgnječen ili oštećen utikač može dovesti do pregrijavanja i izazvati požar.
• Pobrinite se da vam glavni utikač uređaja bude dostupan.
• Nemojte izvlačiti glavni kabl.
• Ukoliko utičnica nije fiksirana, nemojte priključivati aparat. Postoji rizik od
strujnog udara ili vatre.
• Ne smijete raditi ništa na uređaju bez osvetljenja.
• Uređaj je težak. Budite oprezni tokom pomijeranja uređaja.
• Nemojte uklanjati ili dodirivati elemente iz dijela za zamrzavanje ako su
vam ruke vlažne/mokre, budući da to može prouzrokovati ogrebotine ili
promrzline na koži.
• Izbjegavajte duže izlaganje aparata direktnoj sunčevoj svijetlosti.
Dnevna upotreba
• Ne stavljajte vruće stvari na plastične dijelove uređaja.
• Ne stavljate prehrambene proizvode uza zadnji zid.
• Zamrznuta hrana se ne smije ponovo zamrzavati nakon što se otopi.2
• Već zapakovanu zamrznutu hranu čuvajte u skladu sa instrukcijama
proizvođača, u vezi sa zamrznutom hranom.2
• Striktno se pridržavajte preporuka proizvođača u pogledu držanja stvari u
uređaju. Pridržavajte se relevantnih instrukcija.
• Ne stavljate gazirana pića u dio za zamrzavanje, budući da to stvara pritisak,
koji može prouzrokovati pucanje ambalaže, što može dovesti do oštećenja
uređaja.2
• Voćni sladoledi mogu izazvati promrzline ukoliko se konzumiraju odmah po
uzimanju iz uređaja.2
Kako biste izbjegli kontaminiranje hrane, pratite sledeća uputstva
• Držanje uređaja otvorenim tokom dugih vremenskih perioda može da
dovede do značajnog rasta temperature unutar odjeljaka uređaja.
• Redovno čistite površine koje mogu da dođu u dodir sa hranom, kao i
pristupačne djelove odvodnog sistema.
• Očistite rezervoare za vodu ukoliko ih nijeste koristili tokom vremenskog
perioda dužeg od 48 h; ukoliko tokom vremenskog perioda od 5 dana
nijeste uzimali vodu iz uređaja, isperite sistem za protok vode vodom iz
vodovodne mreže.
• Sirovo meso i ribu unutar frižidera držite u odgovarajućim posudama, kako
ove namirnice ne bi došle u dodir sa ili kako ne bi kapale po ostaloj hrani.
• Odjeljci za smrznutu hranu označeni sa dvije zvjezdice (ukoliko postoje
u okviru uređaja) pogodni su za držanje prethodno smrznute hrane, za
držanje ili pravljenje sladoleda i za pravljenje kockica leda.
2Ukoliko postoji dio za zamrzavanje.

18
BiH/CG
• Odjeljci označeni jednom, dvijema i trima zvjezdicama (ukoliko postoje u
okviru uređaja) nijesu pogodni za zamrzavanje svježe hrane.
• Ukoliko će uređaj biti prazan tokom dužeg vremenskog perioda, isključite
ga, odledite, očistite i osušite, a zatim ostavite vrata uređaja otvorenim kako
biste spriječili razvoj buđi u unutrašnjosti uređaja.
Održavanje i čišćenje
• Prije održavanja, isključite uređaj, ili prekinite dotok električne energije.
• Uređaj nemojte čistiti metalnim predmetima.
• Ne koristite oštre predmete, da bi uklonili led sa uređaja. Koristite plastična
sredstva za struganje.
• Redovno provjeravajte odvod za odleđenu vodu u frižideru. Ukoliko je
potrebno, očistite odvod. Ukoliko je odvod blokiran, voda će se sakupljati
na dnu uređaja. 3
Instalacija uređaja
• VAŽNO! Za priključivanje na električnu mrežu, pažljivo pratite uputstva data
u specifičnim dijelovima uputstva.
• Raspakujte uređaj i provjerite da li postoje na njemu oštećenja. Ne
povezujte uređaj na struju, ukoliko je oštećen. Moguća oštećenja odmah
prijavite u mjestu gdje ste ga kupili. U tom slučaju zadržite ambalažu
uređaja.
• Preporučuje se, da sačekate najmanje četiri sata prije nego što priključite
uređaj, kako bi se ulje vratilo u kompresor.
• Potrebno je obezbijediti adekvatno strujanje vazduha oko uređaja,
nepostojanje ovoga može dovesti do pregrijevanja. Za postizanje
odgovarajućeg protoka vazduha, pratite uputstva potrebna za instalaciju
uređaja.
• Gdje god je moguće, razmaknica mora biti postavljena između uređaja
i zida, kako bi se izbjeglo dodirivanje ili hvatanje za vruće dijelove
(kompresor, kondenzator) kako bi se izbjegle moguće opekotine.
• Uređaj ne smije biti postavljen blizu radijatora ili štednjaka.
• Pobrinite se da bude obezbijeđen lak pristup glavnom utikaču i nakon
postavljanja uređaja.
Servisiranje
• Bilo kakvo servisiranje uređaja, koje zahtjeva električne radove, treba da
bude obavljen od strane kvalifikovanog električara ili kompetentne osobe.
2Ukoliko postoji dio za zamrzavanje.
3Ukoliko postoji dio za čuvanje sveže hrane

19
BiH/CG
• Samo ovlašćeni centar za servisiranje može obaviti popravke na uređaju, i
mogu se koristiti samo originalni rezervni dijelovi.
Ušteda energije
• Ne stavljate vruću hranu u uređaj;
• Ne pakujte svu hranu zajedno, budući da to sprječava cirkulaciju vazduha;
• Pobrinite se da hrana ne dotiče zadnji dio pregrade(a);
• Ukoliko nestane struje, ne otvarajte vrata;
• Ne otvarajte često vrata;
• Ne držite vrata otvorena drugo;
• Nemojte postavljati termostat na izuzetno niske temperature
• Potrebno je sve dodatne elemente, poput fioka, polica, polica u vratima
uređaja, tamo držati u cilju smanjenja utroška energije.
Zaštita životne sredine
Ovaj uređaj ne sadrži gasove, koji mogu oštetiti ozonski omotač, ni u
sistemu za hlađenje, ni u materijalima za izolaciju. Uređaj ne bi trebalo
odlagati zajedno sa gradskim ili kućnim otpadom. Izolaciona pjena sadrži
zapaljive gasove: uređaj bi trebalo odložiti u skladu sa propisima za uređaje,
koje su izdale lokale vlasti. Izbjegavajte pravljenje oštećenja dijela za
hlađenje, posebno dijela za razmjenu toplote. Materijali korišćeni za ovaj
uređaj, mogu se reciklirati ukoliko su označeni simbolom za reciklažu.
Oznaka na proizvodu, ili njegovom pakovanju, ukazuje da ovaj proizvod
ne smije biti tretiran kao otpad nastao u domaćinstvu. Umjesto toga,
treba ga ostaviti na odgovarajućem mjestu, na kojem se sakuplja
električna i elektronska oprema.
Osiguravanjem da je proizvod ispravno odložen, pomoćićete sprečavanju
potencijalnih negativnih posljedica po životnu sredinu i ljudsko zdravlje, koje
inače mogu biti uzrokovane nepravilnim odlaganjem otpada ovog uređaja.
Za više detalja o recikliranju ovog proizvoda, molimo vas da kontaktirate
svoju lokalni organ za zaštitu životne sredine, preduzeće za odlaganje
komunalnog otpada ili prodavnicu, u kojoj ste kupili proizvod.
Materijali ambalaže
Materijali označeni ovim simbolom mogu se reciklirati. Ambalažu odložite u
odgovarajući konterjner za prikupljanje otpada za reciklažu.
Odlaganje uređaja
1. Prekinite napajanje uređaja strujom.
2. Odsijecite kabl za napajanje i odložite ga.

20
BiH/CG
UPOZORENJE!
Prilikom upotrebe, servisiranja i odlaganja uređaja, imajte u vidu
oznaku nalik oznaci prikazanoj na slici lijevo, koja se nalazi na
zadnjem dijelu uređaja (tabla ili kompresor na zadnjem delu
uređaja), a koja je žute ili narandžaste boje.
Ova oznaka predstavlja simbol rizika od požara. U cijevima za
rashladno sredstvo i u kompresoru se nalaze zapaljivi materijali.
Molimo Vas da tokom upotrebe, servisiranja i odlaganja, uređaj
držite dalje od izvora požara.
PREGLED
Ova ilustracija je samo okvirna,
molimo vas da za detalje
pogledajte svoj uredjaj.
Police
Police u delu za
zamrzavanje
Termostat
i osvjetljenje
Staklene
police
Poklopac za korpu
sa kontrolom
vlažnosti
Korpa sa
kontrolom
vlažnosti
