Tesla RI2500H User manual

Product images are for illustrative purposes only and may differ from the actual product.
RI2500H
User Manual
ENG SRB
BiH/
CG
BUILT-IN
REFRIGERATOR
FREEZER

2
ENG
In the interest of your safety and to ensure the correct
use, before installing and first using the appliance,
read this user manual carefully, including its hints and
warnings. To avoid unnecessary mistakes and accidents,
it is important to ensure that all people using the
appliance are thoroughly familiar with its operation and
safety features. Save these instructions and make sure
that they remain with the appliance if it is moved or sold,
so that everyone using it through its life will be properly
informed on appliance use and safety.
For the safety of life and property keep to the precautions
of these user instructions as the manufacturer is not
responsible for damages caused by omission.
Children and vulnerable people safety
• This appliance can be used by children aged of 8 years
and above and persons with reduced physical, sensory
or mental capabilities, or lack of experience and
knowledge if they have supervision or have been given
instructions concerning the use of the appliance in a
safe way and understand the hazards involved.
• Children aged from 3 to 8 years are allowed to load
and unload this appliance.
• Children should be supervised to ensure that they do
not play with the appliance.
• Cleaning and user maintenance should not be done by
children unless they are aged from 8 years and above
and supervised.
• Keep all packaging well away from children. There is
risk of suffocation.
• If you are discarding the appliance pull the plug out
of the socket, cut the connection cable (as close to the
appliance as you can) and remove the door to prevent
SAFETY INFORMATION

3
ENG
playing children from suffering electric shock or closing
themselves in.
• If this appliance features a magnetic door seal to
replace an older appliance having a spring lock (latch)
on the door or lid, be sure to make that spring lack
unusable before you discard the old appliance. This will
prevent it from becoming a death trap for a child.
General safety
Keep ventilation openings, in the appliance enclosure or
in the built-in structure, clear of obstruction.
Do not use mechanical devices or other means to
accelerate the defrosting process, other than those
recommended by the manufacturer.
Do not damage the refrigerant circuit.
Do not use other electrical appliances (such as ice cream
makers) inside of refrigerating appliances, unless they
are approved for this purpose by the manufacture.
Do not touch the light bulb if it has been on for a long
period of time because it could be very hot.1
When positioning the appliance, ensure the supply cord
is not trapped or damaged.
Do not locate multiple portable socket-outlets or
portable power suppliers at the rear of the appliance.
• Do not store explosive substances such as aerosol cans
with a flammable propellant in this appliance.
• The refrigerant isobutene (R600a) is contained within
the refrigerant circuit of the appliance, a natural gas
with a high level of environmental compatibility, which
is nevertheless flammable.
• During transportation and installation of the appliance,
be certain that none of the components of the
refrigerant circuit become damaged.

4
ENG
- avoid open flames and sources of ignition
- thoroughly ventilate the room in which the appliance
is situated
• It is dangerous to alter the specifications or modify
this product in any way. Any damage to the cord may
cause a short circuit, fire and/or electric shock.
• This appliance is intended to be used in a household
and similar applications such as
- staff kitchen areas in shops, offices and other working
environments;
- farm houses and by clients in hotels, motels and other
residential type environments;
- bed and breakfast type environments;
- catering and similar non-retail applications.
Any electrical components (plug, power cord,
compressor and etc.) must be replaced by a certified
service agent or qualified service personnel.
The light bulb supplied with this appliance is a “special
use light bulb” usable only with the appliance supplied.
This “special use lamp” is not usable for domestic
lighting.1
• Power cord must not be lengthened.
• Make sure that the power plug is not squashed or
damaged by the back of the appliance. A squashed or
damaged power plug may overheat and cause a fire.
• Make sure that you can come to the main plug of the
appliance.
• Do not pull the main cable.
• If the power plug socket is loose, do not insert the
power plug. There is a risk of electric shock or fire.
• You must not operate the appliance without the lamp.

5
ENG
• This appliance is heavy. Care should be taken when
moving it.
• Do not remove nor touch items from the freezer
compartment if your hands are damp/wet, as this could
cause skin abrasions or frost/freezer burns.
• Avoid prolonged exposure of the appliance to direct
sunlight.
Daily use
• Do not put hot things on the plastic parts in the
appliance.
• Do not place food products directly against the rear
wall.
• Frozen food must not be re-frozen once it has been
thawed out. 2
• Store pre-packed frozen food in accordance with the
frozen food manufacture, s instructions. 2
• Appliance, s manufactures storage recommendations
should be strictly adhered to. Refer to relevant
instructions.
• Do not place carbonated of fizzy drinks in the freezer
compartment as it creates pressure on the container,
which may cause it to explode, resulting in damage to
the appliance.2
• Ice lollies can cause frost burns if consumed straight
from the appliance.2
To avoid contamination of food, please respect the
following
instructions
• Opening the door for long periods can cause
a significant increase of the temperature in the
compartments of the appliance.
• Clean regularly surfaces that can come in contact with

6
ENG
food and accessible drainage systems.
• Clean water tanks if they have not been used for 48h;
flush the water system connected to a water supply if
water has not been drawn for 5 days.
• Store raw meat and fish in suitable containers in the
refrigerator, so that it is not in contact with or drip onto
other food.
• Two-star frozen-food compartments (if they are
presented in the appliance) are suitable for storing pre-
frozen food, storing or making ice-cream and making
ice cubes.
• One-, two- and three -star compartments (if they are
presented in the appliance) are not suitable for the
freezing of fresh food.
• If the appliance is left empty for long periods, switch off,
defrost, clean, dry and leave the door open to prevent
mount developing within the appliance.
Care and cleaning
• Before maintenance, switch off the appliance and
disconnect the main plug from the power socket.
• Do not clean the appliance with metal objects.
• Do not use sharp objects to remove frost from the
appliance. Use a plastic scraper. 2
• Regularly examine the drain in the refrigerator for
defrosted water. If necessary, clean the drain. If the
drain is blocked, water will collect at the bottom of the
appliance. 3
Installation
• For electrical connection carefully follow the
instructions given in specific paragraphs.
• Unpack the appliance and check if there are damages

7
ENG
on it. Do not connect the appliance if it is damaged.
Report possible damages immediately to the place you
bought it. In that case retain packing.
• It is advisable to wait at least four hours before
connecting the appliance to allow the oil to flow back in
the compressor.
• Adequate air circulation should be provided around
the appliance, lacking this leads to overheating. To
achieve sufficient ventilation, follow the instructions
relevant to installation.
• Wherever possible the spacers of the product should
be against a wall to avoid touching or catching warm
parts (compressor, con- denser) to prevent possible
burn.
• The appliance must not be located close to radiators or
cookers.
• Make sure that the main plug is accessible after the
installation of the appliance.
Service
• Any electrical work required to do the servicing of
the appliance should be carried out by a qualified
electrician or competent person.
• This product must be serviced by an authorized Service
Center, and only genuine spare parts must be used.
Energy saving
• Do not put hot food in the appliance;
• Do not pack food close together as this prevents air
circulating;
• Make sure food does not touch the back of the
compartment(s);
• If electricity goes off, do not open the door(s);

8
ENG
• Do not open the door(s) frequently;
• Do not keep the door(s) open for a long time;
• Do not set the thermostat on exceeding cold
temperatures;
• All accessories, such as drawers, shelves balconies,
should be kept there for lower energy consumption.
1If there is a light in the compartment.
2If there is a freezer compartment.
3If there is a fresh-food storage compartment.
OVERVIEW
Note: Picture is for reference only.
Balconies
Control panel
and Light
Glass
Shelves
Crisper
Cover(s)
Crisper(s)
Drawers
Levelling feet

9
ENG
Tool required: Philips screwdriver, Flat bladed screwdriver, Hexagonal spanner.
• Ensure the unit is unplugged and empty.
• To take the door off, it is necessary to tilt the unit backwards. You should rest the unit on something solid
so that it will not slip during the door reversing process.
• All parts removed must be saved to do the reinstallation of the door.
• Do not lay the unit flat as this may damage the coolant system.
• It`s better that 2 people handle the unit during assembly.
Unscrew the top hinge. Then lift the upper
door and place it on a padded surface to avoid
scratching.
Move middle bracket from left to right. Than re-fit
bottom door.
Unscrew middle hinge and then lift bottom
door and place it on a padded surface to avoid
scratching.
Remove bottom hinge pin from right to left.
1 4
5
63
Detach the Fridge and the Freezer door gaskets
and then attach them after rotating.
Re-fit middle hinge to left side. Ensure bottom
door is aligned horizontally and vertically, so that
the seals are closed on all sides before finally
tightening the middle hinge.
2
REVERSE DOOR

10
ENG
Guide x 4
Short Screw x 27
Guide Cover x 4
Long Screw x 2
Slider x 4
Rubber Seal x 1
Slider Cover x 4
Middle Bracket Cover x 2
Re-fit upper door and then upper hinge
on left side. Ensure upper door is aligned
horizontally and vertically, so that the
seals are closed on all sides before finally
tightening the upper hinge. If necessary, a
spanner to tighten the hinge.
8
Unscrew top hinge pin from the hinge. Then turn the hinge
over and screw hinge pin.
7
INSTALLATION
Kits for installation
Install the appliance
25 mm
1769 mm
1036 mm
52 mm
672 mm
1770 - 1785 mm
1785 mm
1
Ensure the size of cabinet and
ventilation are enough.

11
ENG
Slowly and carefully push the appliance into the
cabinet. Ensure the opening side is as close to the
cabinet wall as possible.
4. Open appliance door and wooden door
together and mark the position of slider when
the slider can function well at all angle during
door closes or opens. Take slider out of guide
and fix slider with wooden door by two short
screws. Then fix slider cover onto the slider.
5. Unscrew the guide from appliance door.
6. Repeat step 2 to 5 to fix other three sliders and
covers.
Screw a guide to holes in the side of appliance
door by short screw. Insert the slider into the
guide, then fully open and close appliance door
and wooden door to check whether wooden
door can close totally and smoothly.
2
Fit four guides with sliders and fix them with short
screws. Then fix guide covers with guides.
3
4 65
7
Slider
Guide
8
Double check the door can close and open
smoothly and appliance is sealed well. If not,
slightly adjust the unit. Then fix bottom bracket
with wooden cabinet by 2 long screws.
Fix top bracket with wooden cabinet by short screws.
9
Attached rubber seal to the gap between unit and
wooden cabinet at door open side.
10

12
ENG
Screw two middle brackets with wooden cabinet by short screws.Then fit
middle bracket covers with brackets at two sides.
Middle bracket
Middle bracket cover
11
Positioning
Install this appliance at a location where the
ambient temperature corresponds to the climate
class indicated on the rating plate of the appliance:
For refrigerating appliances with climate class:
• extended temperate: this refrigerating
appliance is intended to be used at ambient
temperatures ranging from 10 °C to 32 °C (SN);
• temperate: this refrigerating appliance is
intended to be used at ambient temperatures
ranging from 16 °C to 32 °C (N);
• subtropical: this refrigerating appliance is
intended to be used at ambient temperatures
ranging from 16 °C to 38 °C (ST);
• tropical: this refrigerating appliance is intended
to be used at ambient temperatures ranging
from 16 °C to 43 °C (T);
Location
The appliance should be installed well away from
sources of heat such as radiators, boilers, direct
sunlight etc.
WARNING!
It must be possible to disconnect the appliance
from the mains power supply; the plug must
therefore be easily accessible after installation.
Electrical connection
Before plugging in, ensure that the voltage and
frequency shown on the rating plate correspond
to your domestic power supply. The appliance
must be grounded. The power supply cable plug
is provided with a contact for this purpose. If the
domestic power supply socket is not grounded,
connect the appliance to a separate grounder in
compliance with current regulations, consulting a
qualified electrician.
The manufacturer declines all responsibility if the
above safety precautions are not observed. This
appliance complies with the E.E.C. Directives.

13
ENG
DAILY USE
First use
Cleaning the interior
Before using the appliance for the first time, wash the interior and all internal accessories with lukewarm
water and some neutral soap so as to remove the typical smell of a brand new product, then dry
thoroughly.
IMPORTANT! Do not use detergents or abrasive powders, as these will damage the finish.

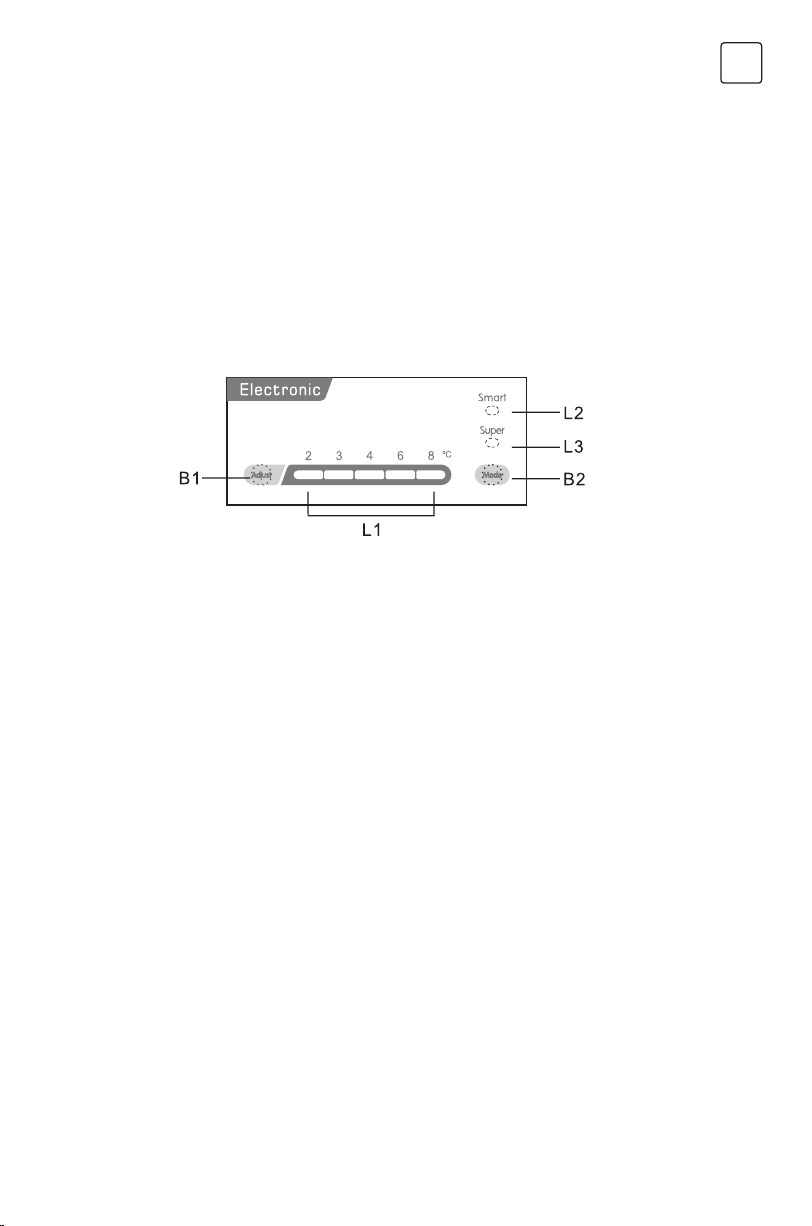

Control Panel
Operation
Buttons
B1- Press to adjust temperature of fridge
compartment in cycle of 2,3,4,6,to 8.
B2- Press to select mode from SMART, SUPER and
user’s setting.
Lights
L1 - show the setting temperature of fridge
compartment.
L2 - light on once SMART mode is selected.
L3 - light on once SUPER mode is selected.
Temperature Setting
1. Press Mode button to select user’s setting.
2. Press Adjust button to adjust the setting temperature of fridge. The temperature of freezer is
automatically controlled at around -18°C.
Smart Mode
Press Mode button to select SMART mode.
The appliance will runs automatically according to ambient temperature around the appliance.
Super Mode
Press Mode button to select SUPER mode.
The appliance will runs to make freezer compartment coldest. After 54 hours, the original temperature set
will be automatically restored.
Turn off the appliance
Press and hold Adjust button for 5 seconds, the appliance will turn off. Press again to turn on the appliance.
Door open alarm
The alarm will sound when door is left open for 90 seconds and it will not stop until the door is closed.

14
ENG
Position different food in different compartments according to be below table
Refrigerator
compartments Type of food
Door or balconies of
fridge compartment
• Foods with natural preservatives, such as jams, juices, drinks, condiments.
• Do not store perishable foods.
Crisper drawer (salad
drawer)
• Fruits, herbs and vegetables should be placed separately in the crisper bin.
• Do not store bananas, onions, potatoes, garlic in the refrigerator.
Fridge shelf – middle • Dairy products, eggs
Fridge shelf – top • Foods that do not need cooking, such as ready-to-eat foods, deli meats,
leftovers.
Freezer drawer(s)/
shelf
• Foods for long-term storage.
• Bottom drawer/shelf for raw meat, poultry, fish.
• Middle drawer/shelf for frozen vegetables, chips
• Top drawer/shelf for ice cream, frozen fruit, frozen baked goods.
Environment Temperature Freezer compartment Fridge compartment
Summer /
Set on 2~4
Normal /
Set on 4
Winter /
Seton 4~6
Temperature setting recommendation
Impact on Food Storage
• Under Recommended setting, the best storage time of fridge is no more than 3 days.
• Under Recommended setting, the best storage time of freezer is no more than 1 month.
• The best storage time may reduce under other settings.

15
ENG
Freezing fresh food
• The freezer compartment is suitable for freezing
fresh food and storing frozen and deep-frozen
food for a long time.
• Place the fresh food to be frozen in the freezer
compartment.
• The maximum amount of food that can be
frozen in 24 hours is specified on the rating
plate.
• The freezing process lasts 24 hours: during this
period do not add other food to be frozen.
Storing frozen food
When first starting-up or after a period out of use,
before putting food in the compartment let the
appliance run at least 2 hours on a higher setting.
IMPORTANT! In the event of accidental defrosting,
for example the power has been off for longer than
the value shown in the technical characteristics
chart under “rising time”, the defrosted food must
be consumed quickly or cooked immediately and
then re-frozen (after cooked).
Thawing
• Deep-frozen or frozen food, prior to being used,
can be thawed in the fridge compartment or
at room temperature, depending on the time
available for this operation.
• Small pieces may even be cooked still frozen,
directly from the freezer. In this case, cooking
will take longer.
Ice-cube
This appliance may be equipped with one or more
ice-cube trays to produce ice.
Accessories
Movable shelves
The walls of the refrigerator are equipped with
a series of runners so that the shelves can be
positioned as desired.
Positioning the door
balconies
To permit storage of food packages of various
sizes, the door balconies can be placed at different
heights. To make these adjustments proceed as
follows: gradually pull the balcony in the direction
of the arrows until it comes free.
Helpful hints and tips
To help you make the most of the freezing process,
here are some important hints:
• the maximum quantity of food which can be
frozen in 24 hrs. is shown on the rating plate;
• the freezing process takes 24 hours. No further
food to be frozen should be added during this
period;
• only freeze top quality, fresh and thoroughly
cleaned, foodstuffs;
• prepare food in small portions to enable it to
be rapidly and completely frozen and to make it
possible subsequently to thaw only the quantity
required;
• wrap up the food in alumi num foil or polythene
and make sure that the packages are airtight;
• do not allow fresh, unfrozen food to touch food
which is already frozen, thus avoiding a rise in
temperature of the latter;
• lean foods store better and longer than fatty
ones; salt reduces the storage life of food;
• water ices, if consumed immediately after
removal from the freezer compartment, can
possibly cause the skin to be freeze burnt;
• it is advisable to show the freezing in date on
each individual pack to enable you removal
from the freezer compartment, can possibly
cause the skin to be freeze burnt;
• it is advisable to show the freezing in date on
each individual pack to enable you to keep tab
of the storage time.
Hints for storage of frozen
food
To obtain the best performance from this
appliance, you should:

16
ENG
• make sure that the commercially frozen
foodstuffs were adequately stored by the
retailer;
• be sure that frozen foodstuffs are transferred
from the food store to the freezer in the shortest
possible time;
• do not open the door frequently or leave it
open longer than absolutely necessary.
• once defrosted, food deteriorates rapidly and
cannot be re-frozen;
• do not exceed the storage period indicated by
the food manufacture.
Hints for fresh food
refrigeration
To obtain the best performance:
• Do not store warm food or evaporating liquids
in the refrigerator
• Do cover or wrap the food, particularly if it has a
strong flavor
• Make (all types): wrap in polythene bags and
place on the glass shelves above the vegetable
drawer.
• For safety, store in this way only one or two days
at the most.
• Cooked foods, cold dishes, etc...: these should
be covered and may be placed on any shelf.
• Fruit and vegetables: these should be
thoroughly cleaned and placed in the special
drawer(s) provided.
• Butter and cheese: these should be placed
in special airtight containers or wrapped in
aluminum foil or polythene bags to exclude as
much air as possible.
• Milk bottle: these should have a cap and should
be stored in the balconies on the door.
• Bananas, potatoes, onions and garlic, if not
packed, must not be kept in the fridge.
Cleaning
For hygienic reasons the appliance interior,
including interior accessories, should be cleaned
regularly.
CAUTION!
The appliance may not be connected to the mains
during cleaning. Danger of electrical shock! Before
cleaning switch the appliance off and remove the
plug from the mains, or switch off or turn out the
circuit breaker or fuse. Never clean the appliance
with a steam cleaner. Moisture could accumulate in
electrical components, danger of electrical shock!
Hot vapors can lead to the damage of plastic parts.
The appliance must be dry before it is placed back
into service.
IMPORTANT! Ethereal oils and organic solvents
can attack plastic parts, e.g. lemon juice or the
juice form orange peel, butyric acid, cleanser that
contain acetic acid.
• Do not allow such substances to come into
contact the appliance parts.
• Do not use any abrasive cleaners
• Remove the food from the freezer. Store them in
a cool place, well covered.
• Switch the appliance off and remove the plug
from the socket, or switch off the circuit breaker
or fuse.
• Clean the appliance and the interior accessories
with a cloth and lukewarm water. After cleaning
wipe with fresh water and rub dry.
• After everything is dry place appliance back into
service.
Clean drain hole
To avoid defrost water overflowing into the fridge,
periodically clean the drain hole at back of fridge
compartment. Use a cleaner to clean the hole as
showed in the picture.

17
ENG
Replace the lamp
CAUTION!
Before replacing the lamp, shall disconnect the
appliance from mains power supply.
Lamp specification is listed in rating label.
Follow below process to replace the lamp:
1. Set the temperature regulation knob at
number “0” to switch off the appliance.
2. Unplug the appliance to make sure the
appliance is disconnected from main power
supply.
3. Remove the screw of the lamp cover.
4. Pull the lamp cover out.
5. Unscrew the lamp.
6. Fit new lamp according to the opposite
direction, then replace the lamp cover and
screw.
7. Plug in the appliance and regulate the knob to
right position.
Defrosting of the freezer
The freezer compartment, however, will become
progressively covered with frost. This should be
removed. Never use sharp metal tools to scrape off
frost from the evaporator as you could damage it.
However, when the ice becomes very thick on the
inner liner, complete defrosting should be carried
out as follows:
• pull out the plug from the socket;
• remove all stored food, wrap it in several layers
of newspaper and put it in a cool place;
• keep the door open, and placing a basin
underneath of the appliance to collect the
defrost water;
• when defrosting is completed, dry the interior
thoroughly
• replace the plug in the power socket to run the
appliance again.

18
ENG
CAUTION!
Before troubleshooting, disconnect the power supply. Only a qualified electrician of competent person
must do the troubleshooting that is not in this manual.
IMPORTANT! There are some sounds during normal use (compressor, refrigerant circulation).
If the malfunction shows again, contact the Service Center.
TROUBLESHOOTING
Problem Possible cause Solution
Appliance does not
work
Appliance is turned off.
Press “Adjust” button for
5 seconds to turn on the
appliance.
Power plug is not plugged in or is loose Insert power plug.
Fuse has blown or is defective Check fuse, replace if necessary.
Socket is defective Socket malfunctions are to be
corrected by an electrician.
The food is too warm.
Temperature is not properly adjusted. Please look in the initial
Temperature Setting section.
Door was open for an extended period. Open the door only as long as
necessary.
A large quantity of warm food was placed
in the appliance within the last 24 hours.
Turn the temperature regulation
to a colder setting temporarily.
The appliance is near a heat source. Please look in the installation
location section.
Appliance cools too
much Temperature is set too cold.
Turn the temperature regulation
knob to a warmer setting
temporarily.
Unusual noises
Appliance is not level. Re-adjust the feet.
The appliance is touching the wall or
other objects. Move the appliance slightly.
A component, e.g. a pipe, on the rear of
the appliance is touching another part of
the appliance or the wall.
If necessary, carefully bend the
component out of the way.
Water on the floor Water drain hole is blocked. See the Cleaning section.

19
ENG
Environment Protection
This appliance does not contain gasses which could
damage the ozone layer, in either its refrigerant circuit or
insulation materials. The appliance shall not be discarded
together with the urban refuse and rubbish. The insulation
foam contains flammable gases: the appliance shall
be disposed according to the appliance regulations
which can be obtained from your local authorities. Avoid
damaging the cooling unit, especially the heat exchanger.
The materials used on this appliance marked by the
symbol are recyclable.
The symbol on the product or on its packaging
indicates that this product may not be treated as
household waste. Instead it should be taken to the
appropriate collection point for the recycling of electrical
and electronic equipment. By ensuring this product is
disposed of correctly, you will help prevent potential
negative consequences to the environment and human
health, which could otherwise be caused by inappropriate
waste handling of this product. For more detailed
information about recycling of this product, please
contact your local council, your household waste disposal
service or the shop where you purchased the product.
Packaging materials
The materials with the symbol are recyclable.
Dispose the packaging in a suitable collection container
to recycle it.
Disposal of the appliance
1. Disconnect the mains plug from the mains socket.
2. Cut off the mains cable and discard it.

20
ENG
WARNING!
During using, service and disposal the
appliance, please pay attention to symbol
similar as left side, which is located on rear of
appliance (rear panel or compressor) and with
yellow or orange color.
It’s risk of fire warning symbol. There are
flammable materials in refrigerant pipes and
compressor.
Please be far away fire source during using,
service and disposal.
