Introduction
Congratulations on choosing to buy a Tevion® product. By doing so you now have
the assurance and peace of mind that comes with purchasing a product made by
one of Europe’s leading manufacturers.
All products brought to you by Tevion® are manufactured to the highest
standards of performance and safety, and, as part of our philosophy of customer
service and satisfaction, are backed by our comprehensive 3 Year Warranty.
Please fill in and return the Warranty Card to the address provided.
We hope you will enjoy using your purchase for many years to come.
Overview
LCD-TV

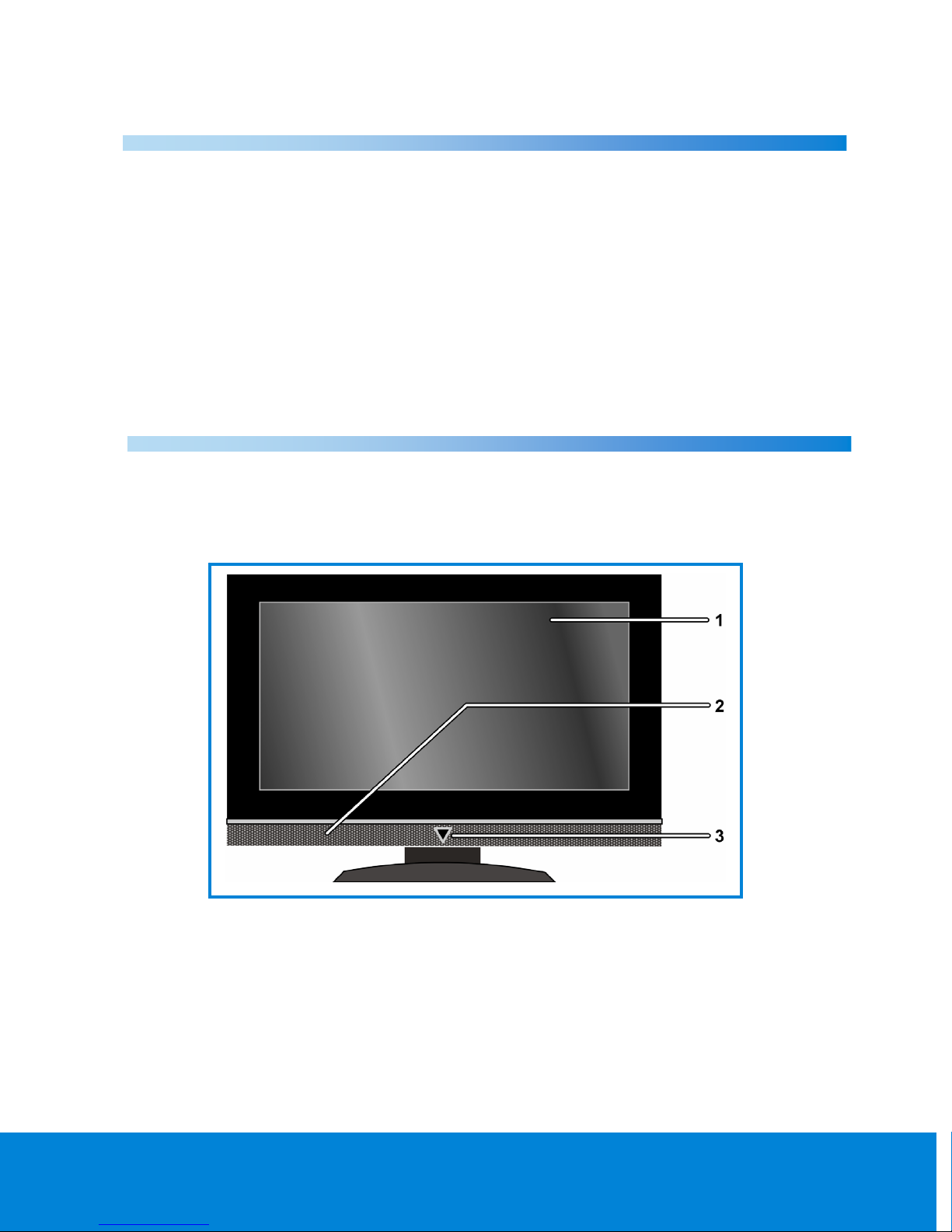

Front
1. TFT screen
2. Loudspeakers
3. On/off light with integrated infra-red sensor
On/off light: the blue light will come on when the device is in stand-by
mode. It will go off if the device is switched on.
Infra-red sensor: receiving area for infra-red signals from the remote
control.
2
1
Helpline No. UK
/
North Ireland 0871 37 61 020 Rep. Ireland 1-800-992 508
Web Support www.medion.co.uk
Model Number: 30113 6

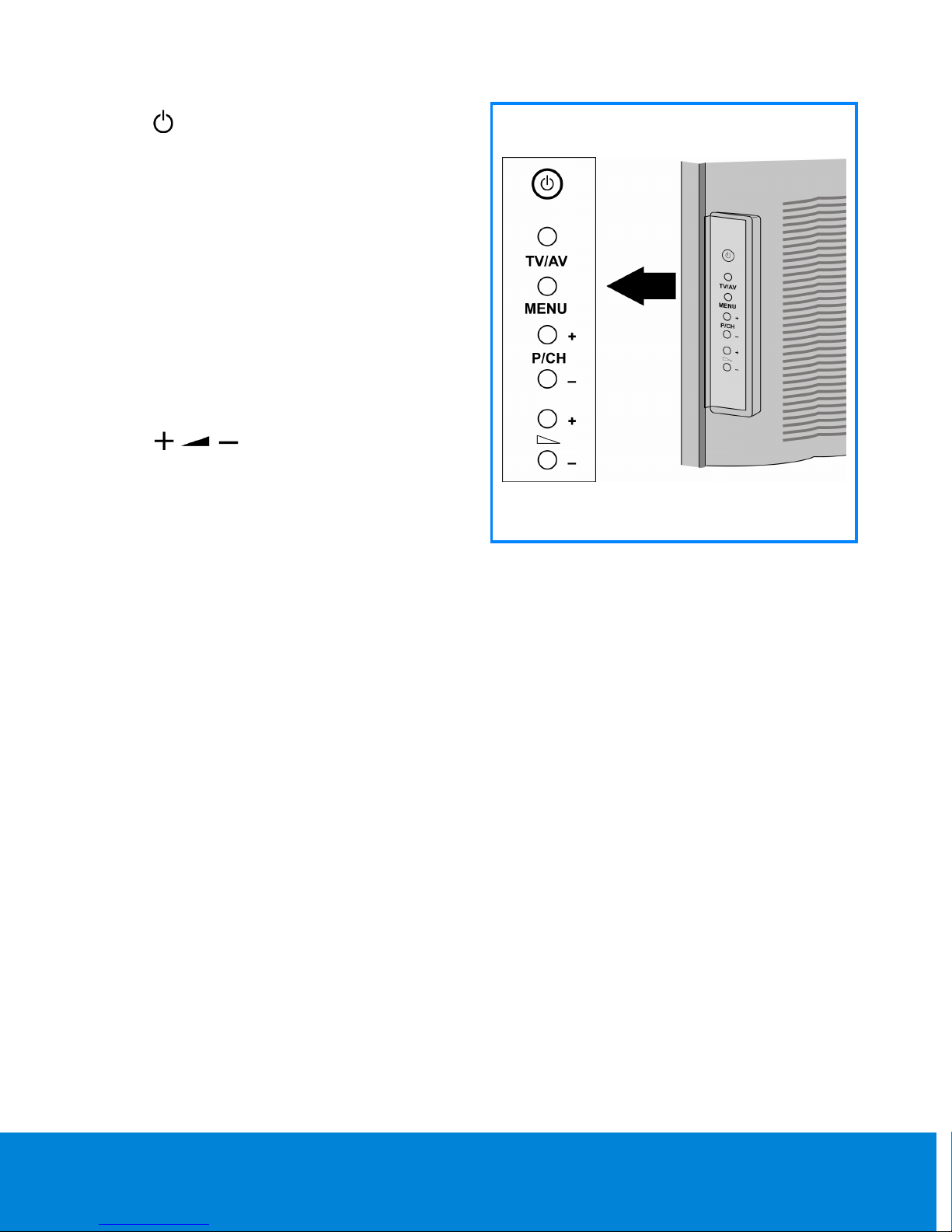

Operating controls on the side
1. STANDBY: to switch the LCD-TV
off temporarily.
2. TV/AV: to select the input signal: TV
(antennea, EXT–1,
EXT–2, EXT–1 S, BAV, S-Video,
HDMI 1, HDMI 2,
YPbPr, PC.
3.
MENU
: with this key you can display
the screen menu to make
adjustments to your equipment.
4.
+ P/CH –
: you can switch TV
channel using these keys.
5. : you can regulate the
volume of your equipment with
these keys.
Helpline No. UK
/
North Ireland 0871 37 61 020 Rep. Ireland 1-800-992 508
Web Support www.medion.co.uk
Model Number: 30113 7
Rear
1. Aerial – connection for co-axial aerial
2. VIDEO-input (yellow) and AUDIO-inputs (red/white): to connect a device using an
RCA cable.
3. Headphone connection: to connect headphones with a 3.5 mm TRS stereo
connector.
4. S-VHS input: to connect a device using an S-VHS cable.
5.
L - R
Audio output: to connect devices with Audio input
6.
L - R
Audio input: to connect devices with Component Audio output.
7.
Y - PB – PR
Component inputs: to connect devices with Component output.
8. SCART 1: 1st SCART connecting
9. SCART 2: 2nd SCART connection
10.
VGA-INPUT
: to connect a PC.
11.
HDMI-1; HDMI-2
inputs: to connect a device with a HDMI output
12. .
Common Interface
: insert slot for the use of pay-TV cards
13.
SUB OUT
: output to connect an external active sub woofer
14.
SPDIF
: digital audio output (optical) to connect devices with optical audio input
15. Power in: to connect the supplied power cable.
16. On/off switch: to put the device into stand-by mode and switch it off again.
Helpline No. UK
/
North Ireland 0871 37 61 020 Rep. Ireland 1-800-992 508
Web Support www.medion.co.uk
Model Number: 30113 8
Remote control
Helpline No. UK
/
North Ireland 0871 37 61 020 Rep. Ireland 1-800-992 508
Web Support www.medion.co.uk
Model Number: 30113 9

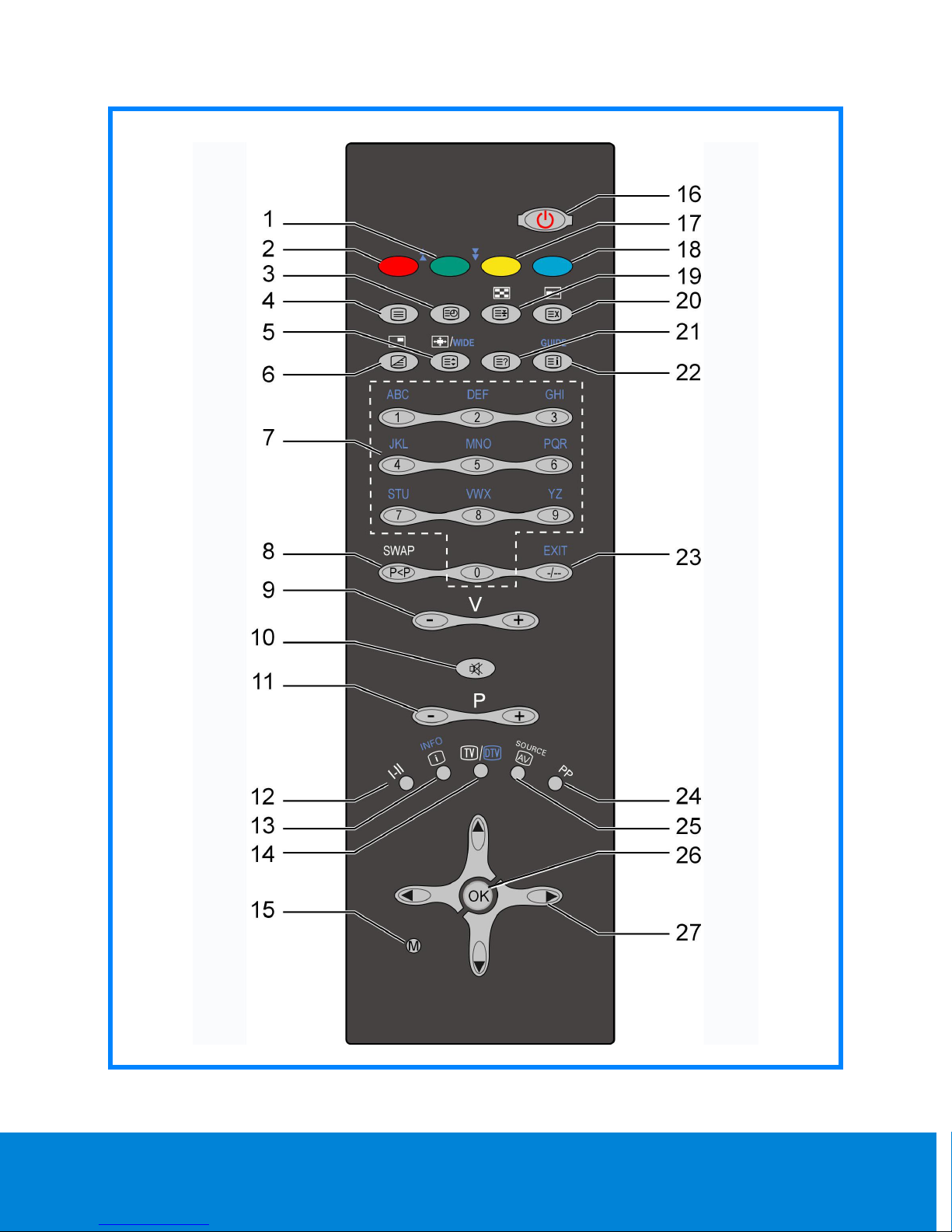

1. Red key opens SOUND menu
2. Green key opens PICTURE menu
3. : Display time/Video text open sub-page
4. : Switch video text on and off
5. : : select picture format;
6. : video text: Mix (transparent picture); opens a second picture in the
picture (PIP)
7. Digit keys in the TV mode: channel selection; in video text mode: page selection
8.
P<P SWAP
: set previous TV channel
9.
V + / -
: to increase (+) or decrease (-) volume.
10. Mute: Switch volume off
11. Channel selection keys
P + / –
.
Select the following (+) or the previous (-) channel in TV mode.
Select the following (+) or the previous (-) channel in video text mode.
12.
I-II
: select sound mode
13.
INFO
: to display information, such as current channel number and picture format
14.
TV/DTV
: select TV or DTV operation
15.
M
: open menu.
16. STANDBY: to switch the LCD-TV off temporarily.
17. Yellow key opens FUNCTION menu
18. Blue key opens INSTALLATION menu
19. : video text: stop page; : select the PIP position
20. : video text: hidden searching; opens a second picture at the picture (PAP)
21. : video text: hidden text/switching from TV mode to PC mode
22.
GUIDE
: call up EPG ; : video text: call up index page
23.
-/--
: enter a number with two digits;
EXIT
: close menu.
24.
PP
: select PICTURE mode
25.
AV/SOURCE
: select input signal from connected devices
26.
OK:
in certain menus to confirm selection
27. Direction keys
Helpline No. UK
/
North Ireland 0871 37 61 020 Rep. Ireland 1-800-992 508
Web Support www.medion.co.uk
Model Number: 30113 10
General Information
Read these instructions carefully under all circumstance and follow all
the instructions listed. You will guarantee the reliable operation and a
long life expectancy of your LCD TV in this way. Always keep these
instructions at hand, close to your LCD TV. In the event that you
transfer ownership of this LCD TV, please provide these instructions to
the new owner.
Purpose of use
•This device serves to receive and transmit television channels. The
different connection possibilities will enable an additional expansion of
the sources of reception and transmission (Receiver, DVD-Player, DVD-
Recorder, Video Recorder etc.).
•This device is only suitable for using in dry, internal rooms.
•This device is not suitable as a data screen for office use.
•This device is intended for personal use only. It not intended for
commercial use in a heavy industry environment. Use under extreme
environmental conditions can result in damage to your device.
HD ready
Your LCD-TV is equipped with the 'HD ready' feature. This means that it can
display high resolution television programmes (HDTV) in principle.
It is the prerequisite that an HDTV signal is sent to the LCD TV by an external set-
top box (HD-STB).
Included in the box
Check that nothing is missing from the packaging and inform us of any missing
parts within 14 days after purchase. The delivery of the LCD-TV you have
purchased includes:
1. LCD-TV
2. Connection cable
3. Remote control incl. 2 batteries type R03 (AAA) 1,5V
4. Set for wall mounting (see Wall mounting).
5. Documentation
3
Helpline No. UK
/
North Ireland 0871 37 61 020 Rep. Ireland 1-800-992 508
Web Support www.medion.co.uk
Model Number: 30113 11
Safety instruction
Safety
•Do not allow children to play unattended on electrical equipment.
Children may not always correctly recognize danger.
•Keep the packing materials, such as foil away from children. The danger of
suffocation could arise in the case of misuse.
•Never open the housing of the TFT display (electric shock, short-circuit and
the danger of fire)!
•Do not insert any objects through the slots and openings into the inside of
the TFT (electrical shock, short-circuit and the danger of fire)!
•The remote control has a class 1m infrared diode. Do not examine the LED
with optical instruments!
•Slots and openings in the TFT display are for ventilation purpose. Do not
cover these openings, as otherwise this may lead to overheating
(overheating, danger of fire)!
•Never exert pressure on the display. This could damage the display.
•An injury hazard exists when the display breaks. Wear protective gloves to
pack the broken parts and send them into your service center for proper
disposal. Then wash your hands with soap, because it is possible for
chemicals to escape.
•Do not touch the display with your fingers or with sharp objects to avoid
damage.
•Please proceed as outlined in the service center section:
– if the AC cable overheats or is damaged
– if liquid has gotten into the display
– if the device does not work properly
– if the device is dropped or the housing damaged
Point of use
•In the first hours of operation, new devices may emit a typical, unavoidable
but completely harmless smell, which will decline increasingly in the
course of time.
•We recommend you to ventilate the room regularly, in order to counteract
the formation of the smell.
4
Helpline No. UK
/
North Ireland 0871 37 61 020 Rep. Ireland 1-800-992 508
Web Support www.medion.co.uk
Model Number: 30113 12
•Keep your LCD TV and all units connected to it away from moisture and
avoid dust, heat and direct sunlight. Failure to observe these instructions
can lead to malfunctions or damage to the LCD TV.
•Do not operate your device in the open air, because external influences,
such as rain, snow, etc. could damage the device.
•Do not subject the device to drops or splashes of water and do not place
any vessels filled with water, such as vases, on the device. Water
penetrating the device can impair its electrical safety.
•Do not place any open sources of fire (candles or similar objects) on the
device.
•Leave sufficiently large clearances to allow for ventilation, particularly
when mounting in a cupboard or alcove. Maintain a minimum clearance of
10 cm around the device for sufficient ventilation.
•Place and operate all units on a stable, level and vibration-free surface in
order to avoid the LCD TV from falling.
•Avoid dazzle, reflections, extreme light/dark contrast in order to save your
eyes and ensure a pleasant viewing experience.
•The optimum viewing distance is 5 times the screen diagonal.
Helpline No. UK
/
North Ireland 0871 37 61 020 Rep. Ireland 1-800-992 508
Web Support www.medion.co.uk
Model Number: 30113 13
Repair
•Leave all repairs of your LCD TV to authorized and qualified personnel only.
•Should a repair be necessary, please contact one of our authorized service
center.
Intended Environment
•The device can be operated at an ambient temperature of between 5° C to
35° C and at a relative humidity between 20% and 85% (without
condensation).
•When switched off, the LCD-TV can be stored most reliably between -20° C
- +60° C).
•Provide an interval of at least one meter from high-frequency and
magnetic sources of interference (television sets, loudspeakers, mobile
telephones, etc.) in order to avoid malfunctions.
•After transporting your LCD TV please wait until it has assumed the
ambient temperature before connecting and switching it on.
•Large variations in temperature and humidity can cause condensation to
occur inside the LCD-TV, which may cause an electrical short circuit.
•Disconnect the power plug from the power socket and the aerial from the
aerial connection during storms or if the device is not being used for a long
time.
Power Supply
Please pay attention: Parts of the device are still live, even if the
mains switch is switched off. Pull the mains plug out of the
socket, to interrupt the power supply to your LCD TV completely.
•Operate your TFT display mains (power supply) only on grounded sockets
with 230 V ~ 50 Hz. If you have doubts about the power supply in the
location where the LCD-TV is installed, consult your energy supplier.
•For additional safety we recommend use of an excessive voltage
protection device to protect your LCD TV from damage resulting from
voltage surges or lightning.
•The power socket must be in the vicinity of your LCD TV and within reach
of the power cables.
Helpline No. UK
/
North Ireland 0871 37 61 020 Rep. Ireland 1-800-992 508
Web Support www.medion.co.uk
Model Number: 30113 14
•If you use an extension cable, please ensure that it complies with the VDE
requirements. If necessary consult your electrical equipment supplier.
•You should lay the TFT Display cables in a manner that no one can trip or
step on it.
•To avoid damage of cable do not place any objects or furniture on the
cable.
Standards/electro-magnetic compatibility
Your display fulfils the requirements for electro-magnetic compatibility and
electrical safety specified in the following standards:
Standards/electro-magnetic compatibility
EN 55013 Limit values and measuring methods for radio interference
by radios and television receivers and accessories
EN 55020 Electromagnetic immunity of broadcast receivers and
associated equipment
EN 60065 Audio, video and similar electronic apparatus—Safety
requirements
EN 61000-3-2 Electromagnetic compatibility (EMC)—Part 3-2:Limits—
Limits for harmonic current emissions (equipment input
current up to and including
16 A per phase)
EN 61000-3-3 Electromagnetic compatibility (EMC)—Part 3-3:Limits—
Limitation of voltage changes, voltage fluctuations and
flicker in public low-voltage supply systems, for
equipment with rated current <= 16 A per phase and not
subject to conditional connection
Batteries and Proper Treatment
Batteries may contain combustible materials. By misuse, this may cause battery
leakage, heat, explosion or ignition, bringing about injury or damage to the
device.
Helpline No. UK
/
North Ireland 0871 37 61 020 Rep. Ireland 1-800-992 508
Web Support www.medion.co.uk
Model Number: 30113 15
Please observe strictly the following matters:
•Keep children away from batteries. If by any chance, the batteries are
swallowed, consult a doctor immediately.
•Do not charge batteries (except rechargeable batteries).
•Do not forcibly discharge batteries.
•Do not short-circuit batteries.
•Do not heat or dispose off in fire. .
•Do not disassemble or deform batteries. Your hands and fingers may be
injured, or the liquid of the battery may get into your eyes or adhere to
your skin. If this happens, rinse with a large quantity of water immediately
and consult a doctor.
•Do not expose batteries to strong impact by dropping or throwing the
batteries.
•Do not reverse the positive (+) and negative (-) terminals to avoid short-
circuit.
•Do not mix used and new or different types of batteries together.
•Remove promptly the used batteries from the device.
•Remove the batteries from your device if it is not to be used for a longer
period.
•Clean the battery and device contacts, if necessary, before inserting
batteries.
•Replace all batteries with new batteries of the same type at the same time.
Helpline No. UK
/
North Ireland 0871 37 61 020 Rep. Ireland 1-800-992 508
Web Support www.medion.co.uk
Model Number: 30113 16
Setting Up
NOTE:
Read the Safety Information Chapter under all circumstances before
bringing the device into operation.
Unpacking
1. Have someone help you when unpacking the equipment.
2. Do not carry the equipment alone, otherwise it could fall or cause personal
injury.
3. Open the box very carefully to prevent the equipment from being
damaged. Damage can occur if a knife with a long blade is used to open
the box.
4. There are various small parts in the packaging (batteries, screws, etc.). Keep
these out of the reach of children. There is a risk of swallowing the parts.
5. Please keep the packaging material well and use it exclusively to transport
the television.
Putting the batteries into the remote control
1. Remove the small cover on the battery
compartment on the back of the remote control.
2. Install two AAA size, type R03 batteries according
to the correct polarity (marked in the battery
compartment).
3. Close the battery compartment.
ATTENTION!
Remove the batteries from the remote, if the
device will not be used for a longer period.
The remote could be damaged by leaking
batteries.
5
Helpline No. UK
/
North Ireland 0871 37 61 020 Rep. Ireland 1-800-992 508
Web Support www.medion.co.uk
Model Number: 30113 17

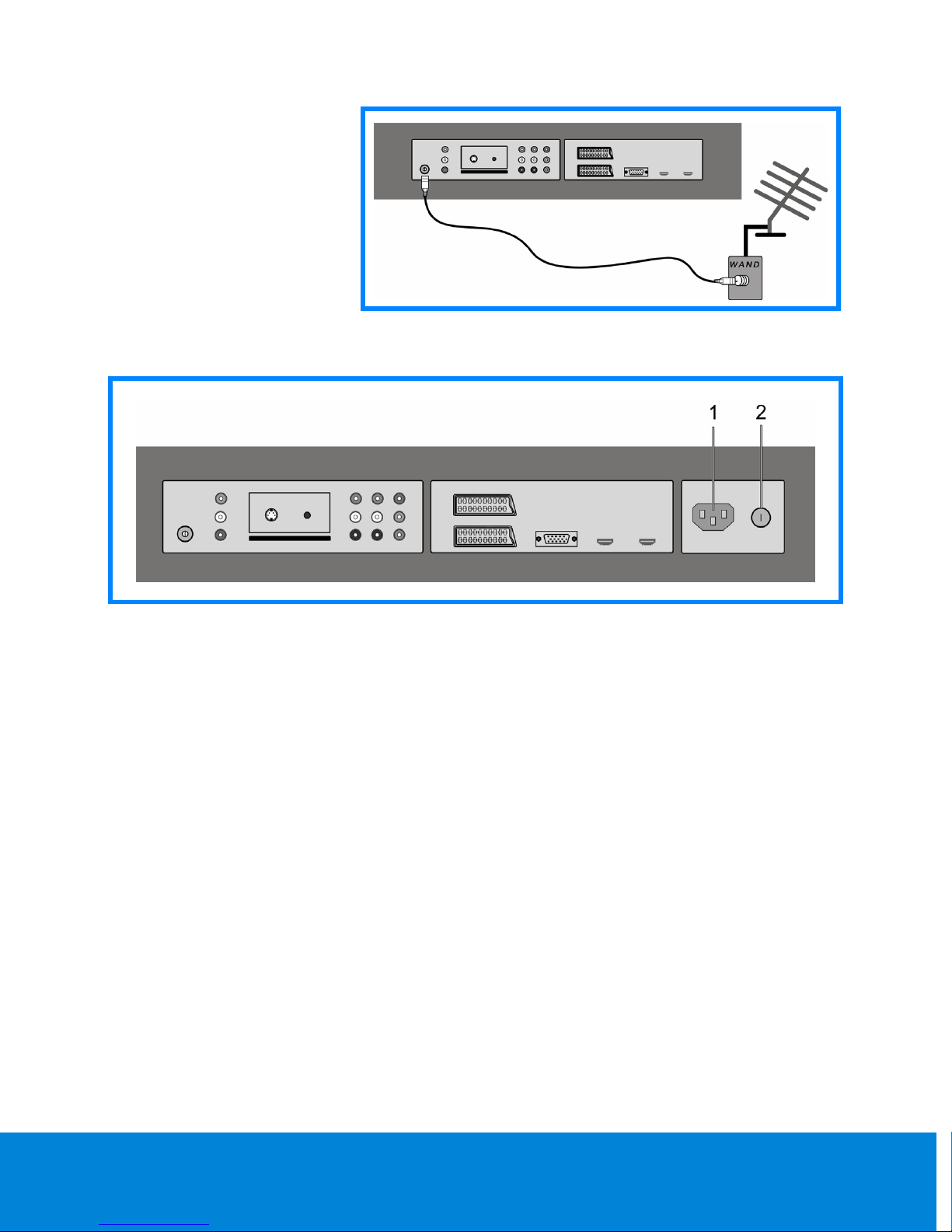

Connecting an antenna
Connect the aerial
connection and the LCD-
TV by means of a double
screened aerial cable (not
supplied) when
connecting the device to
the room aerial or cable
system.
Connecting the power supply
Insert the plug on the supplied power cable into the connecting bush (1)
(220-240 V ~ 50 Hz) on the device and insert the other end into an easily
accessible 230 V ~ 50 Hz power socket.
Turning the LCD TV on and off
1. Press the on/off switch (2) on the back of the device. The stand-by mode
will be activated and a blue light on the front will come on.
2. You can switch on the device by pressing a
digit key
on the remote
control or a
P/CH
channel selection key on the remote control or on the
device itself. The light on the front will go out.
3. You can put the device back into stand-by mode with the stand-by key on
the remote control or with the stand-by key on the right side of the device.
4. Press the on/off switch on the back of the device again to switch the
device off completely.
Helpline No. UK
/
North Ireland 0871 37 61 020 Rep. Ireland 1-800-992 508
Web Support www.medion.co.uk
Model Number: 30113 18
First Time Installation
The IDTV Menu will appear when you switch your device on for the first time. You
will be greeted in different languages and requested to select the language of the
IDTV Menu.
You will be able to move upwards or downwards in the Menu by means of
thedirectional buttons. Press the
OK
button to confirm your selection.
You will receive information about using the IDTV Menu in the Help Menu; press
the
INFO
button to call up the Help Menu. You will leave the Help Menu by
pressing the
INFO
button again.
Searching for digital channels
The initial installation will start after you have confirmed the language with
OK
.
Select the country required with the _` directional buttons and press
OK
. The
digital transmitter, the query concerning the automatic search process of the
transmitter, will appear.
Click on Yes with the _` directional buttons and press
OK
to start the digital
search process of the transmitter.
Click on No with the _` directional buttons and press
OK
to stop the process.
IDTV will search through the UHF channels 21 to 68 and for terrestrial digital TV
channels automatically.
6
Helpline No. UK
/
North Ireland 0871 37 61 020 Rep. Ireland 1-800-992 508
Web Support www.medion.co.uk
Model Number: 30113 19
The names of the channels found will be displayed. This process will last about
five minutes. You will be able to press the
M
button at any time, to stop the
search. The following Menu will be displayed during the automatic search
process of the transmitter:
You will be requested to start the search for analogue channels after the
conclusion of the digital search process of the transmitter.
Click on No with the _` directional buttons and press
OK
to stop the process.
Click on Yes with the _` directional buttons and press
OK
to start the
analogue search process of the transmitter.
The TV device will switch to the analogue TV mode.
Helpline No. UK
/
North Ireland 0871 37 61 020 Rep. Ireland 1-800-992 508
Web Support www.medion.co.uk
Model Number: 30113 20
Seeking analogue channels
•If you wish to change the pre-set
country setting, set the required
country with the directional
key. The country setting has an
effect on the sequence in which
channels are stored.
•Then select if necessary the Language message with the directional key
and choose the required language with the directional keys.
•If you wish to change the pre-set for the video text language, use the
directional key to select the message TXT Language (Language for
teletext) and use the directional keys to select the required language
region Westen, Ost (East), Turk/Gre (Turkish/Greek), Kyrillisch
or Arabisch.
•Then confirm the message "CHECK ANTENNA CABLE" by pressing the
OK
key or pressing the red key.
•You can cancel this process by pressing the blue key.
Automatic channel seeking
Automatic channel seeking will now
commence. This takes a few minutes.
You can cancel this process with the
blue
key
.
The channels are stored in a country-
specific sequence in the channel locations. It is possible to store a maximum of
100 channels.
After automatic storage of channels is complete, the programme table will be
displayed. If this table is not modified further, it will close after a few minutes. The
channel on channel location 1 will appear.
Table of contents
Other Tevion LCD TV manuals
