Texas Instruments bq2014HEVM-001 User manual

 
  
May 2001 Advanced Analog Products
User’s Guide
SLUU105

IMPORTANT NOTICE
TexasInstruments andits subsidiaries(TI) reservethe rightto makechanges totheir productsor todiscontinue
any product or service without notice, and advise customers to obtain the latest version of relevant information
to verify, before placing orders, that information being relied on is current and complete. All products are sold
subject to the terms and conditions of sale supplied at the time of order acknowledgment, including those
pertaining to warranty, patent infringement, and limitation of liability.
TI warrants performance of its products to the specifications applicable at the time of sale in accordance with
TI’sstandardwarranty.TestingandotherqualitycontroltechniquesareutilizedtotheextentTIdeemsnecessary
to support this warranty. Specific testing of all parameters of each device is not necessarily performed, except
those mandated by government requirements.
Customers are responsible for their applications using TI components.
In order to minimize risks associated with the customer’s applications, adequate design and operating
safeguards must be provided by the customer to minimize inherent or procedural hazards.
TIassumesnoliabilityforapplicationsassistance orcustomer productdesign. TIdoes notwarrantorrepresent
thatanylicense,eitherexpressorimplied,isgrantedunderanypatentright,copyright,maskworkright,orother
intellectual property right of TI covering or relating to any combination, machine, or process in which such
products or services might be or are used. TI’s publication of information regarding any third party’s products
or services does not constitute TI’s approval, license, warranty or endorsement thereof.
Reproduction of information in TI data books or data sheets is permissible only if reproduction is without
alterationand isaccompanied byall associatedwarranties,conditions,limitationsandnotices. Representation
or reproduction of this information with alteration voids all warranties provided for an associated TI product or
service, is an unfair and deceptive business practice, and TI is not responsible nor liable for any such use.
Resale of TI’s products or services with statements different from or beyond the parameters stated by TI for
that product or service voids all express and any implied warranties for the associated TI product or service,
is an unfair and deceptive business practice, and TI is not responsible nor liable for any such use.
Also see: Standard Terms and Conditions of Sale for Semiconductor Products. www.ti.com/sc/docs/stdterms.htm
Mailing Address:
Texas Instruments
Post Office Box 655303
Dallas, Texas 75265
Copyright 2001, Texas Instruments Incorporated

Running Title—Attribute Reference
iii
Chapter Title—Attribute Reference
Contents
1 Introduction 1-1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
1.1 Features 1-2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
1.2 Kit Contents 1-2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
1.3 Ordering Information 1-2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
2 DM2014H—bq2014H-Based Circuit Module 2-1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
2.1 Pin Descriptions 2-2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
2.2 Programming 2-2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
2.2.1 Full Capacity 2-2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
2.2.2 Self-Discharge Settings for Chemistry 2-2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
2.2.3 Pack Voltage 2-3. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
2.2.4 Programming Hardware Changes 2-3. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
3 DM2014H Schematic 3-1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
3.1 Schematic 3-2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
4 DM2014H Physical Layouts 4-1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
4.1 Board Layout 4-2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
5 DM2014H Bill of Materials 5-1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
5.1 Bill of Materials 5-2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
6 DM2014H Performance Specification Summary 6-1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
7 EVM Hardware and Software Setup 7-1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
7.1 Software Installation 7-2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
7.2 Hardware Connection 7-2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
7.2.1 Connecting the DM2014H to a Battery Pack 7-2. . . . . . . . . . . . . . . . . . . . . . . . . . . .
7.2.2 PC Interface Connection 7-3. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
8 Operation 8-1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
8.1 Starting the Program 8-2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
8.2 Initialization 8-2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
8.2.1 Device Program Settings 8-2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
8.2.2 HDQ Port 8-2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
8.2.3 Setup Parameters 8-2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
8.3 Data Screen 8-4. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
8.4 Status Screen 8-5. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
8.5 Pro Screen 8-5. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
8.6 Data Logging 8-6. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Running Title—Attribute Reference
iv
Figures
3–1 DM2014H Schematic 3-2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

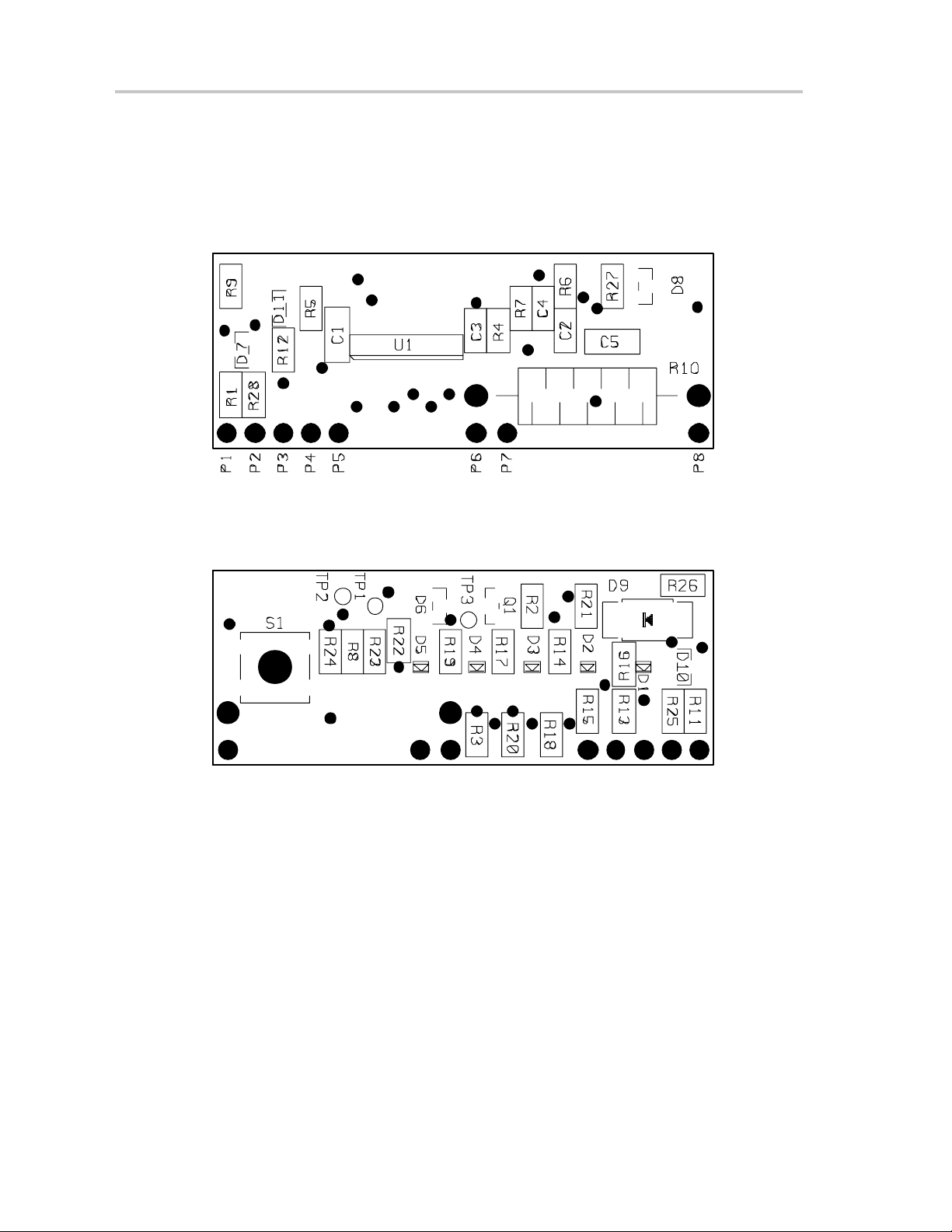

4–1 DM2014H Layout 4-2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
7–1 DM2014H Connection to Cells, Sense Resistor, and System Load/Charger 7-2. . . . . . . . . . .
8–1 Initial Data Screen 8-2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
8–2 Setup Screen 8-3. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
8–3 bq2014H Data Screen 8-4. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
8–4 Status Screen 8-5. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
8–5 Pro Screen 8-5. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Tables
1–1 Ordering Information 1-2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
2–1 Full Capacity Programming 2-2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
2–2 Self-Discharge Programming 2-3. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
2–3 Pack Voltage Programming 2-3. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
5–1 Bill of Materials 5-2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
6–1 Performance Specification Summary 6-1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
7–1 DM2014H-to-EV2200 Connection 7-3. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
8–1 Resistor Designations for Setup Screen Input 8-3. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

1-1
Introduction
Introduction
The bq2014H EVM is a complete evaluation system for the bq2014H
gas-gauge IC for NiCd and NiMH. The EVM includes a DM2014H circuit
module, an EV2200 PC interface board for gas-gauge vvaluation, a PC serial
cable, and Windows-based PC software. The DM2014H circuit module
includes one bq2014H IC, five LEDs to display remaining capacity, and all
other components onboard necessary to monitor capacity and other critical
parameters in NiCd or NiMH battery packs. The DM2014H connects directly
across the cells in a battery. With the EV2200 interface board and software,
theusercanreadthebq2014Hdataregistersandevaluatethefunctionsofthe
bq2014H under different charge and discharge conditions.
Topic Page
1.1 Features 1-2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
1.2 Kit Contents 1-2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
1.3 Ordering Information 1-2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Chapter 1

Features
1-2
1.1 Features
-Complete evaluation system for the bq2014H gas-gauge IC
-Preprogrammed DM2014H module for quick setup
-PC software and interface board for easy evaluation
-Software that allows data logging for system analysis
1.2 Kit Contents
-DM2014H preconfigured circuit module with sense resistor
-EV2200 PC interface board
-Set of evaluation software disks entitled EV2200-HDQ
-PC serial cable
-Set of support documentation
1.3 Ordering Information
Table 1–1.Ordering Information
EVM Part Number Chemistry Pack Voltage Capacity
bq2014HEVM–001 NiCd/NiMH†12.0 V†650 mAh†
†Can be changed by reprogramming through resistor replacements.

2-1
DM2014H—bq2014H-Based Circuit Module
DM2014H—bq2014H-Based Circuit Module
The DM2014H circuit module is a complete and compact example solution of
a bq2014H circuit for capacity monitoring of NiCd or NiMH packs. The
DM2014H incorporates a bq2014H gas-gauge IC and all other components
necessary to accurately monitor and display the capacity of up to 14 nickel
cells.
TheDM2014H includes five LEDsto display remaining capacityin 20% incre-
ments of the programmed capacity. The LEDs are activated with the onboard
pushbutton switch.
Contacts on the DM2014H provide direct connection to the battery stack
(BAT+, BAT–) and the serial communications port (HDQ). The system load
and charger connect across BAT+ and PACK–.
Topic Page
2.1 Pin Descriptions 2-2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
2.2 Programming 2-2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Chapter 2

Pin Descriptions
2-2
2.1 Pin Descriptions
P1 HDQ/Serial communications port
P2 NC/No connect
P3 BAT+/Battery positive/pack positive
P4 NC/No connect
P5 RBI/Register backup input
P6 GND/Ground
P7 PACK–/Pack negative
P8 BAT–/Battery negative
2.2 Programming
The DM2014H circuit module is preconfigured for battery-pack chemistry,
voltage,andpackcapacity.Thecircuitmodulecanbereprogrammed forpack
chemistry, voltage, capacity, and other operating parameters via the
programming resistors on the board. The resistors set the programming pins
to a high (H), low (L), or float (Z) state on initialization. A high (H) state for a
programming pin requires the pullup resistor, a low (L) state requires the
pulldown resistor, and the float (Z) requires no resistors on the programming
pin. The shaded area of the tables indicates the bq2014HEVM-001
configuration. See the bq2014H data sheet for a complete description of how
the bq2014H is programmed.
2.2.1 Full Capacity
Pins2–5 of the bq2014H determine the full capacity or programmed full count
(PFC)oftheDM2014H.ResistorsR12–R15andR17–20setthepinstoahigh
(H), low (L), or float (Z) state during board initialization.
Table 2–1.Full Capacity Programming
PFC Input Settings
Pin 4 Pin 5 Sense Resistor mΩCapacity (mAh)
H Z 50 1300
Z Z 50 650
L L 50 2600
2.2.2 Self-Discharge Settings for Chemistry
Battery chemistries have different self-discharge rates. Pin 6 of the bq2014H
determines the self-discharge factors of the DM2014H. Resistors R23 and
R24setthepintoahigh(H),low(L),orfloat(Z)stateduringboardinitialization.

Programming
2-3
DM2014H—bq2014H-Based Circuit Module
Table 2–2.Self-Discharge Programming
Self-Discharge Setting
Pin 6 Chemistry
HSelf-discharge disabled
Z NiCd
L NiMH
Note: Select the self-discharge setting that most closely models the battery pack to be used.
2.2.3 Pack Voltage
TheDM2014Hispreconfiguredforpackvoltage(numberofcells).R2,R6,and
R7configurethisasshownintheschematicandaresetasshowninTable2–3.
Table 2–3.Pack Voltage Programming
EVM Part Number R2 R18 R19 End-of-Discharge
Level 1 End-of-Discharge Level 2
bq2014HEVM-001 1.2 MΩ1.2 MΩ100 K 10 V 9.5 V
2.2.4 Programming Hardware Changes
The following procedure changes the configuration of DM2014H to other
(unshaded) options listed in the tables above:
1) Ensure that the DM2014H is disconnected from the battery.
2) Determine the resistors required to achieve the high (H), low (L), or float
(Z) states on the program pin inputs.
3) Remove the 200k resistors as necessary.
4) Place required 200k resistors where needed.
5) If required, change the voltage programming resistors as outlined on the
schematic.
6) Reconnect the DM2014H to the battery pack.
TheEV2200andthePCsoftwarecanconfirmthenewsettingsbyreadingthe
PPU and PPD data registers and the Setup screen.

2-4

3-1
DM2014H Schematic
DM2014H Schematic
TheDM2014Hschematicshowsallpossiblecomponentsontheboardforvar-
ious configurations, including all configuration resistors. Only those resistors
thatset the desired configurationshould be installed. The schematic notes in-
dicate where variations exist.
Topic Page
3.1 Schematic 3–2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Chapter 3

Schematic
3-2
3.1 Schematic
Figure 3–1 is the DM2014H schematic diagram.
Figure 3–1.DM2014H Schematic

4-1
DM2014H Physical Layouts
DM2014H Physical Layouts
This chapter contains the board layout and assembly drawings for the
DM2014H.
Topic Page
4.1 Board Layout 4-2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Chapter 4

Board Layout
4-2
4.1 Board Layout
Figure 4–1 shows the PCB layers and assembly drawing for the DM2014H.
Figure 4–1.DM2014H Layout
04/06/99 Rev. A
Layer 1 Side Silkscreen
04/06/99 Rev. A
Layer 2 Side Silkscreen

5-1
DM2014H Bill of Materials
DM2014H Bill of Materials
This chapter contains the bill of materials required for the DM2014H.
Topic Page
5.1 Bill of Materials 5-2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Chapter 5

Bill of Materials
5-2
5.1 Bill of Materials
Table 5–1 lists materials required for the DM2014H.
Table 5–1.Bill of Materials
Ref Des Qty–001 Description MFG MFG PART# Size
PCB 1 Printed-circuit board, 0.031,
FR4, SMOBC, HASL Any REV. A See FAB DWG
C1, C5 2Capacitor, ceramic, 1 µF, 25
V, ±20%, X7R Panasonic ECJ–3YB1E105K 3216
C2, C3, C4 3Capacitor, ceramic, 0.1 µF, 25
V, ±20%, X7R Venkel C0805X7R250–104MNE 2012
R1, R9 4Resistor, 100 Ω, 1/10 W, 5% Venkel CR0805–10 W101JT 805
R2 1 Resistor, 1.2 MΩ, 1/10 W, 1% Venkel CR0805–10 W1204FT 805
R3, R12, R15,
R24 4Resistor, 200 kΩ, 1/10 W, 5% Venkel CR0805–10 W1204JT 805
R4 3 Resistor, 100 KΩ, 1/10 W, 5% Venkel CR0805–10 W104JT 805
R6 1 Resistor, 1.2 MΩ, 1/10 W, 1% Venkel CR0805–10 W1204FT 805
R7 1 Resistor, 100 KΩ, 1/10 W, 1% Venkel CR0805–10 W1003FT 805
R10 1 Resistor, 0.050 Ω, 3 W, 1%,
LVR–3, AXIAL Dale LVR–3 R050 1% 3 W, TH
R16, R21, R22 3Resistor, 330 Ω, 1/10 W, 5% Venkel CR0805–10 W331JT 805
R26 1 Resistor, 300 KΩ, 1/10 W, 5% Venkel CR0805–10 W304JT 805
R5, R27 1Resistor, 10 KΩ, 1/10 W, 5% Venkel CR0805–10 W103JT 805
D1, D2, D3, D4,
D5 5LED, green, S Type Panasonic LN1371G–(TR)
D6, D8 2Diode,dual series switching,
SOT–23 Zetex BAV99 SOT–23
D7, D11 3Diode, Zener, 5.6V , .30 W,
(BZX84C5V6), SOT–23 Motorola BZX84C5V6 SOT–23
Q1 1 Transistor, MOSFET N–Ch Zetex BSS138 SOT–23
S1 1 Switch, momentary, N.O.,
5 mm x 1.5 mm thick Panasonic EVQ–PLHA15 5 mm
R8, R11, R13,
R14, R17, R18,
R19, R20, R23,
R25, R28
NOT USED
D9, D10 NOT USED

6-1
DM2014H Performance Specification Summary
DM2014H Performance Specification Summary
This chapter summarizes the performance specifications of the DM2014H.
Table 6–1 gives the performance specifications of the circuit.
Table 6–1.Performance Specification Summary
Specification Min Typ Max Units
Charge and Discharge Current 0.05 3 A
Note: Charge and discharge maximums are limited by the PCB design.
Chapter 6

6-2

7-1
EVM Hardware and Software Setup
EVM Hardware and Software Setup
This section describes how to install the bq2014H EVM PC software and how
to connect the different components of the EVM.
Topic Page
7.1 EVM Hardware and Software Setup 7-2. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
7.2 Hardware Connection 7-2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Chapter 7

Software Installation
7-2
7.1 Software Installation
The following steps install the EV2200–HDQ software:
1) Insert disk 1 into a 3 1/2 inch floppy drive.
2) Select the 3 1/2 inch drive using My Computer or File Manager.
3) Double-click the Setup.exe icon.
The setup program prompts for the remaining disks and installs a Windows
application group.
7.2 Hardware Connection
There are three hardware components to the bq2014H EVM:
1) DM2014H circuit module
2) EV2200 PC interface board
3) PC
7.2.1 Connecting the DM2014H to a Battery Pack
Figure 7–1 shows how to connect the DM2014H to a stack of cells, the sense
resistor, and the system load/charger.
Figure 7–1.DM2014H Connection to Cells, Sense Resistor, and System Load/Charger
Battery Pack
PACK–PACK+
Charger
Load
DM2014H
P8
P7 P3
Cells
