Huawei SmartLi-512V-80AHF-01 User manual

1
Issue: 02
Part Number: 31500DAE
Date: 2020-03-23
SmartLi-80Ah Quick Guide
Copyright © Huawei Technologies Co., Ltd. 2020. All rights reserved.

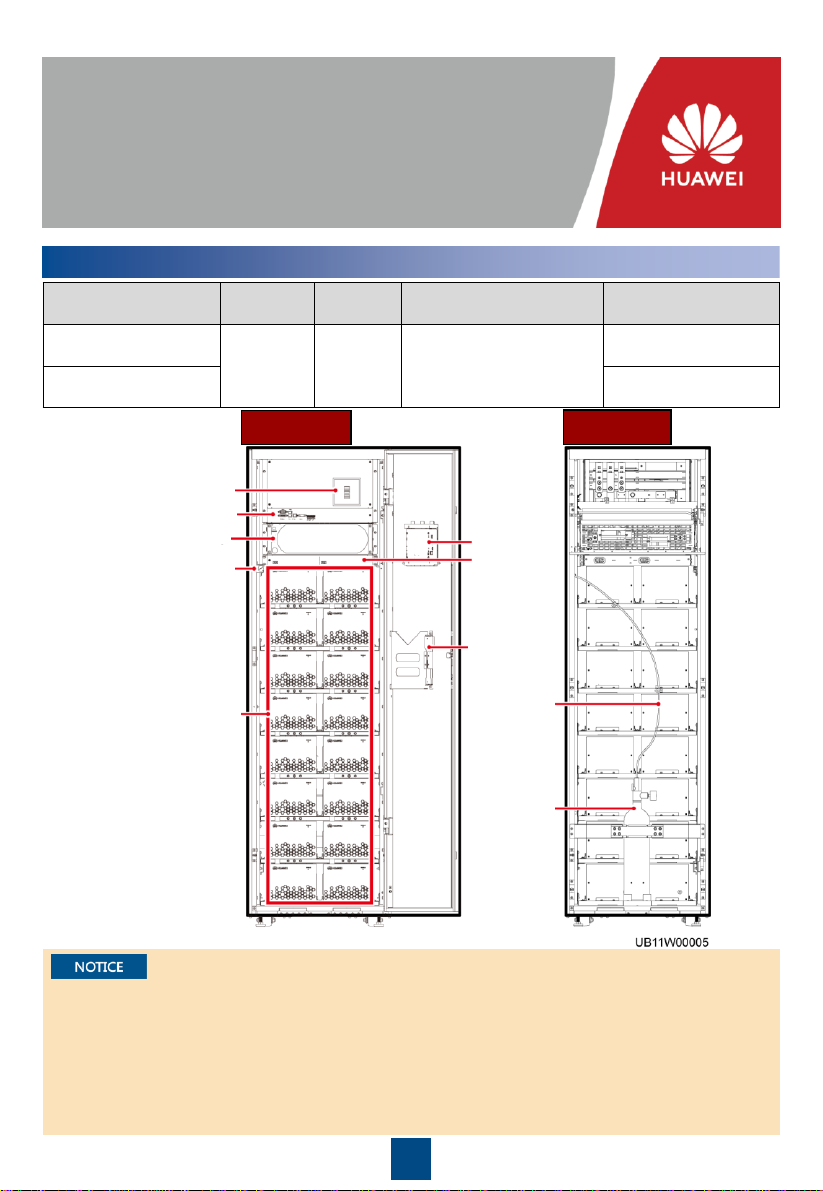

1Overview
Model Capacity Weight Dimensions (H x W x D) Configuration type
SmartLi-512V-80AH-
F-01 80 Ah < 800 kg 2000 mm x 600 mm x
850 mm
With an LCD
(master cabinet)
SmartLi-512V-80AH-
S-01 Without an LCD
(slave cabinet)
Front View Rear View
End pressure gauge
Battery circuit breaker
Monitoring interface unit
Battery monitor unit
Battery module
MDU
Auxiliary
wrench
Fire-trace
tube
Fire
cylinder
Fuse
1. Before installation, read the user manual carefully to get familiar with product information and
safety precautions.
2. Use insulated tools during installation and operation.
3. Only Huawei engineers or engineers certified by Huawei are allowed to install, commission, and
maintain the battery cabinet. Otherwise, personal injury or equipment damage may occur, and
the resulting battery cabinet faults are beyond the warranty scope of Huawei.
4. This document describes how to install a singlebattery cabinet. For details about how to install
parallel systems, contact Huawei technical support.

2

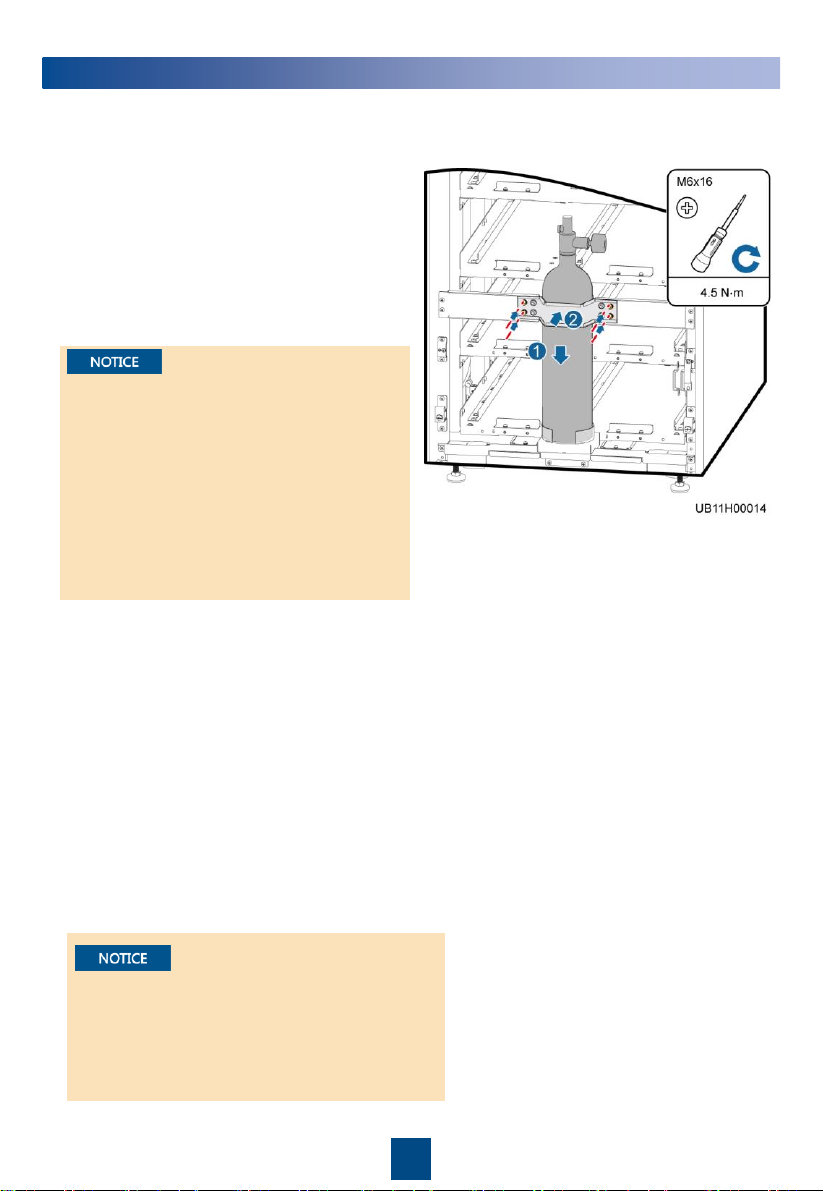

1. Remove the rear panel of the cabinet.
2. Remove the fire cylinder.
a) Remove the fire cylinder fastener.
b) Take out the fire cylinder.
3. Check the fire cylinder and all components
for any damage, abrasion, or corrosion. If
there is any visible abrasion or corrosion,
replace the damaged components and all
corroded components.
4. Send the fire cylinder to the gas station to fill
extinguishant. Heptafluoropropane or
perfluorohexone is recommended. The
required amount is 3 kg.
2Installing a Fire Cylinder
5. Check the status of the fire cylinder after filling extinguishing agent. If the fire cylinder is not
installed in the cabinet immediately after extinguishing agent is filled, check the status of the fire
cylinder again before installation.
•Check that the ball valve is closed (vertical to the cylinder).
•Check that the reading of the pressure gauge on the fire cylinder is greater than 1.6Mpa at
20℃and the pointer is in the green zone.
•Keep the fire cylinder upright.
•Ensure that the front of the pressure gauge
faces the right side of the cabinet (as shown in
the figure) and that the cylinder does not
interfere with the battery trays and the rear
cover of the cabinet.
6. Install the fire cylinder.
•In the process of assembling and filling,
please pay attention that the valve,
container and other parts should keep
clean and not polluted.
•This filling instruction only refers to the
process of valve installation and
extinguishing agent filling, and the rest
should be performed according to the
filling process of each filling station
(including bottle washing, pressure
testing, etc.).
a) Install the hose to the fire cylinder and tighten the connection nut.
b) Remove the valve positioning kit and open the valve.
c) Fill extinguishant into the fire cylinder through the hose.
d) After the extinguishant is filled, close the valve.
e) Slowly fill the drive gas (nitrogen) through the hose and open the valve again.
f) Shake the cylinder evenly and keep the pressure in the cylinder in the range of 1.7–1.8 MPa at
20℃.
g) After the pressure is stable, close the valve.
h) Reinstall the valve positioning kit.

3

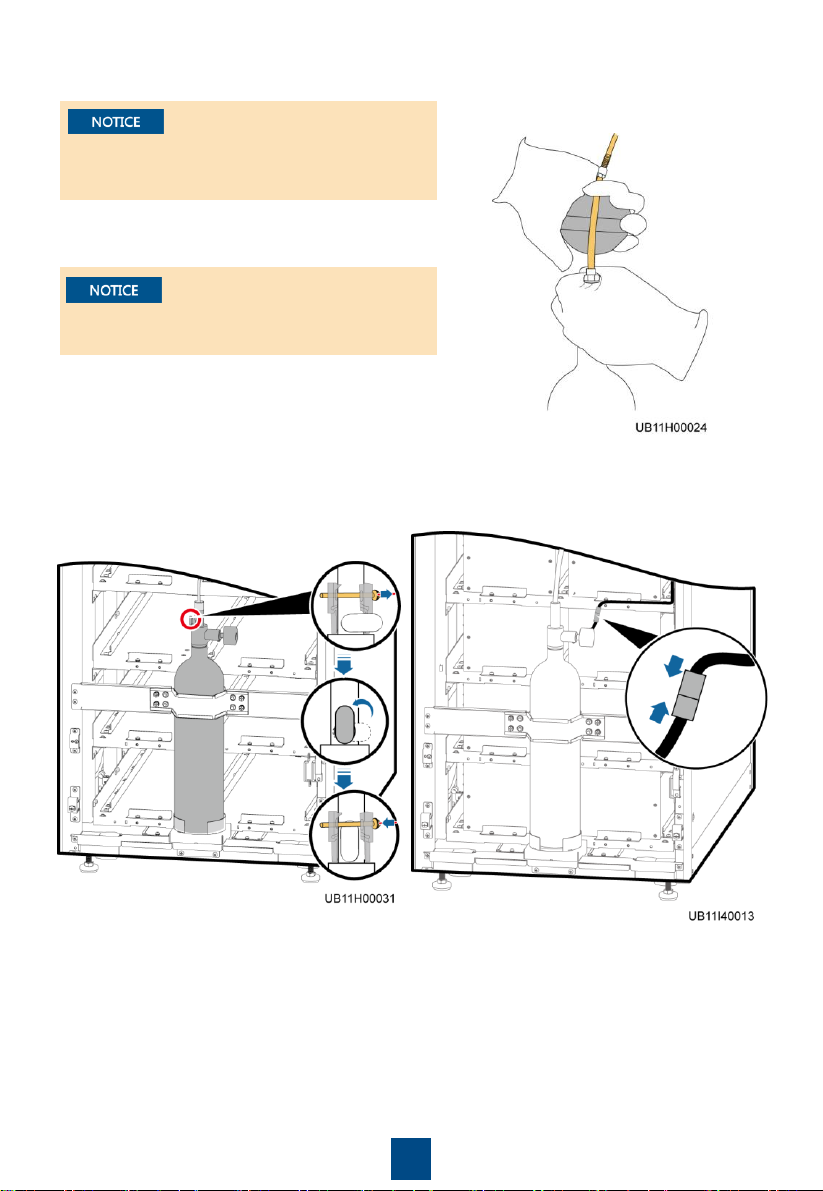

7. Install the fire-trace tube on the fire cylinder.
Do not bend or twist the fire-trace tube or bind
the tube using cable ties. Otherwise, the fire
cylinder may fail.
a) Clamp the end of the fire-trace tube to the threaded
nozzle using a pipe holder.
Hold the pipe holder close to the end to avoid
bending the tube during pipe insertion.
b) Tighten the connection nut to 7
N·m using an adjustable torque
wrench.
8. Remove the valve positioning kit, open
the valve, reinstall the positioning kit,
and secure it.
10.Check the end pressure gauge on the front of the cabinet. The pointer should be in the green
zone and the pressure reading should be greater than 1.6 Mpa at 20℃. Record the reading of
the pressure gauge. 8 hours later, observe the pressure gauge again. The pressure reading
should remain unchanged.
9. Interconnect the dry contact cable of the fire
cylinder and the cable reserved in the cabinet.
3

4

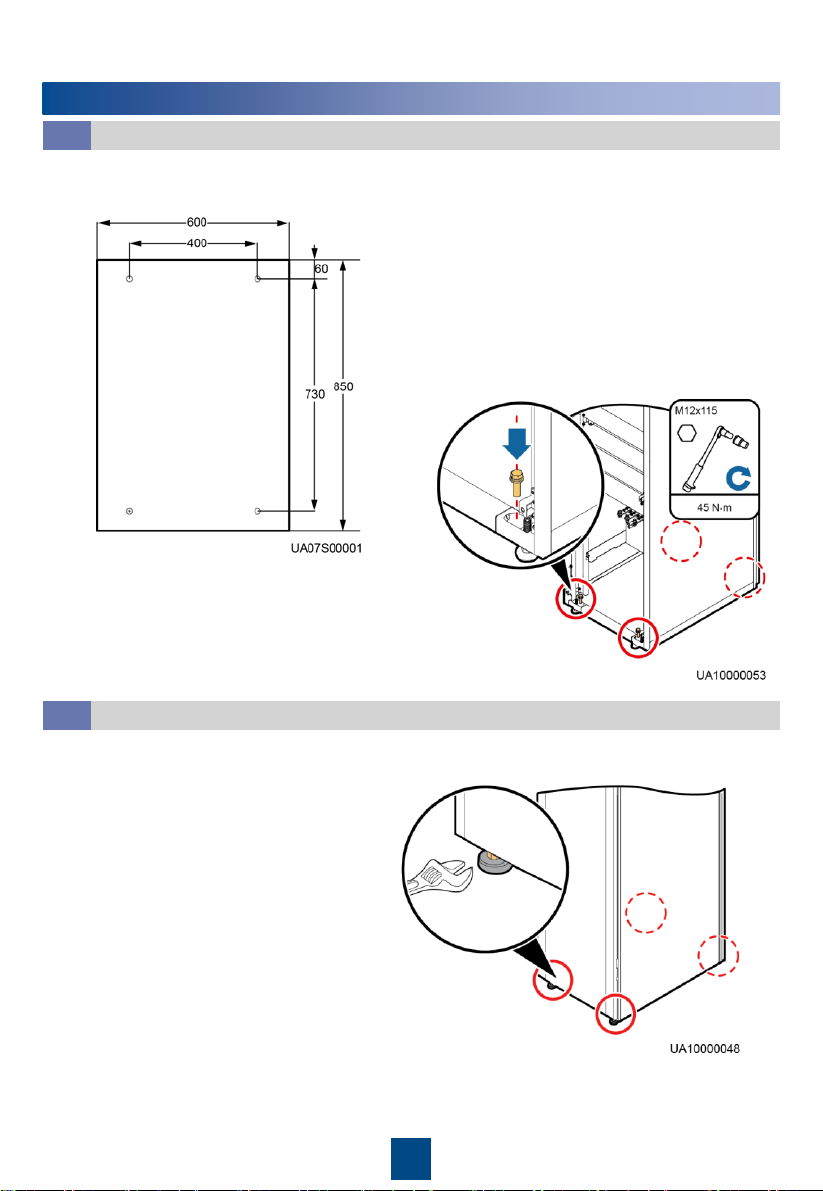

3Installing a Cabinet
1. Determine the position for installing the
cabinet. Mark mounting holes based on the
drawings (unit: mm).
3. Slide the cabinet on its castors to the
installation position.
4. (Optional) If the castors of the SmartLi need
to be lifted from the ground, perform Step 1
to Step 2 in Non-Secured Installation.
5. Open the front door, and remove the four
rubber plugs from the bottom of the cabinet.
6. Insert four M12x115 expansion bolts into
the expansion bolt holes in the floor, and
tighten the expansion bolts.
2. Use a hammer drill to drill four holes for
installing expansion bolts and then install
four expansion bolts in the holes. Remove
the bolt, spring washer, and flat washer.
Secured Installation
1. Lower the four leveling feet at the
bottom of the cabinet by using a
wrench until all the four castors at the
bottom hang in the air and the leveling
feet bear the whole cabinet weight.
2. Check whether the bottom of the
cabinet is horizontal by using a level
instrument. If the cabinet is not leveled,
adjust the leveling feet.
Non-Secured Installation

5

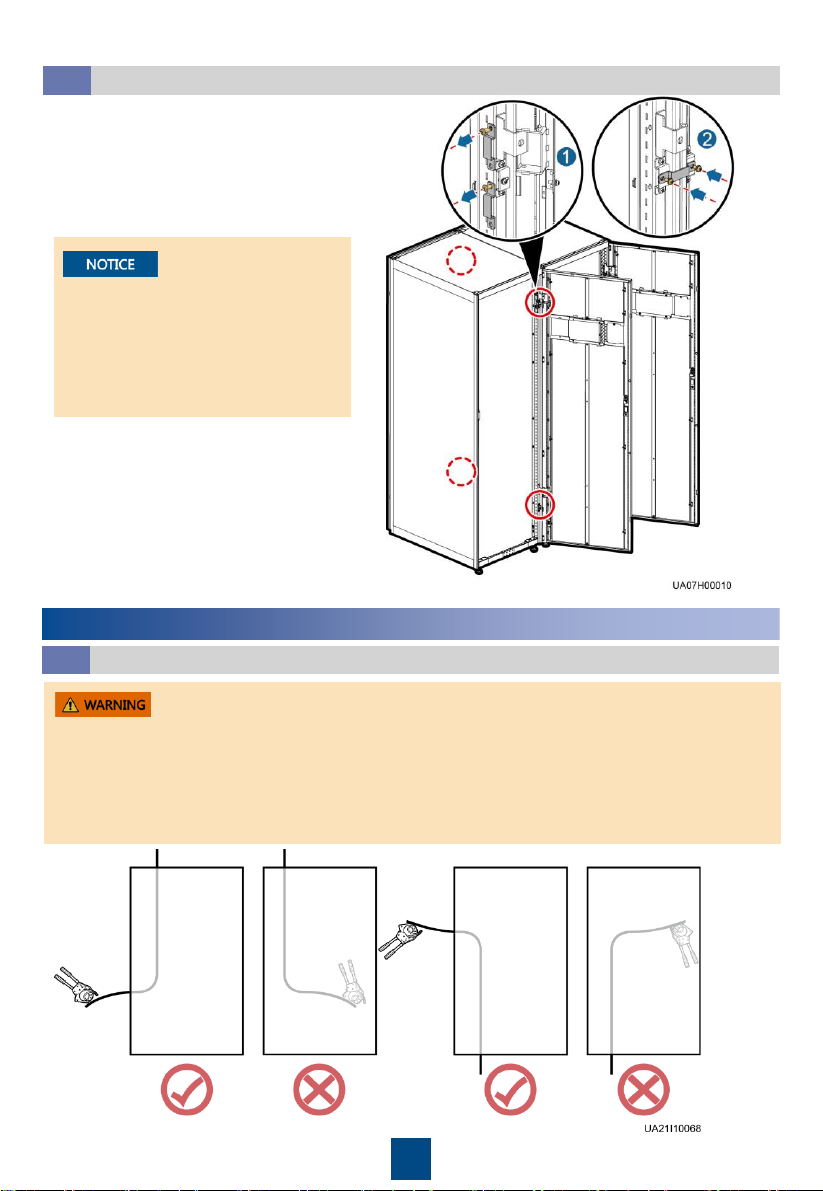

1. Install each cabinet in sequence
according to the installation method
of a single cabinet.
2. Combine cabinets..
1. The SmartLi supports the
combination of up to eight
cabinets.
2. When multiple cabinets are
connected in parallel, only the
basic cabinet has an LCD.
Combining Cabinets
4Cable Connection Reference
Cable Connection Reference
4.1
•Prepare cables away from the cabinets to prevent scraps from falling inside. Cable scraps may
ignite and cause personal injury or device damage.
•After cables have been installed, clean the cabinets in a timely manner. Keep the cabinets and
surrounding environment clean and tidy.
•You need to prepare terminals onsite. The stripped length of the copper wire should be the
same as that of the part of the terminal that covers the conductor.

6

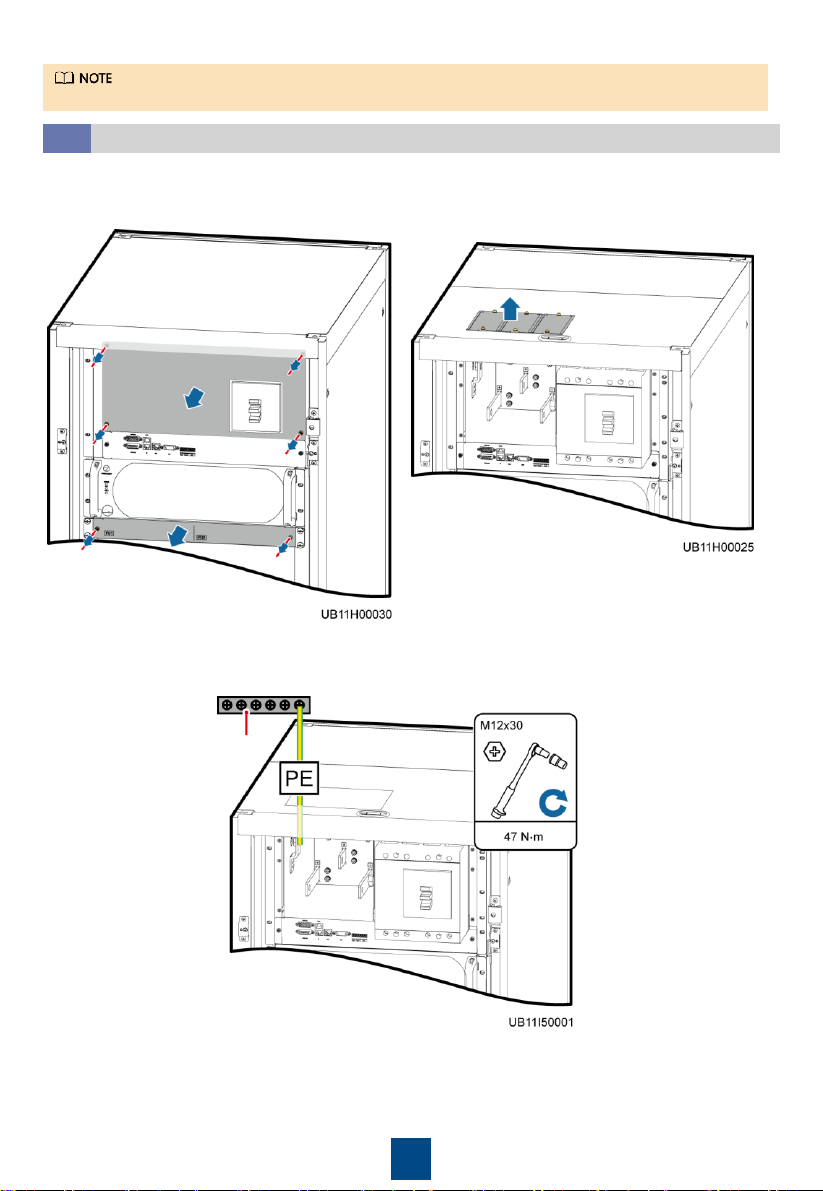

1. Remove the PDU and fuse cover. 2. Remove the cover from the top of the cabinet
based on the cable route and cable
dimensions.
Installing a Ground Cable
4.2
The cabling route is for reference only. Connect cables based on site requirements.
3. Connect the ground cable.
Site ground bar

7

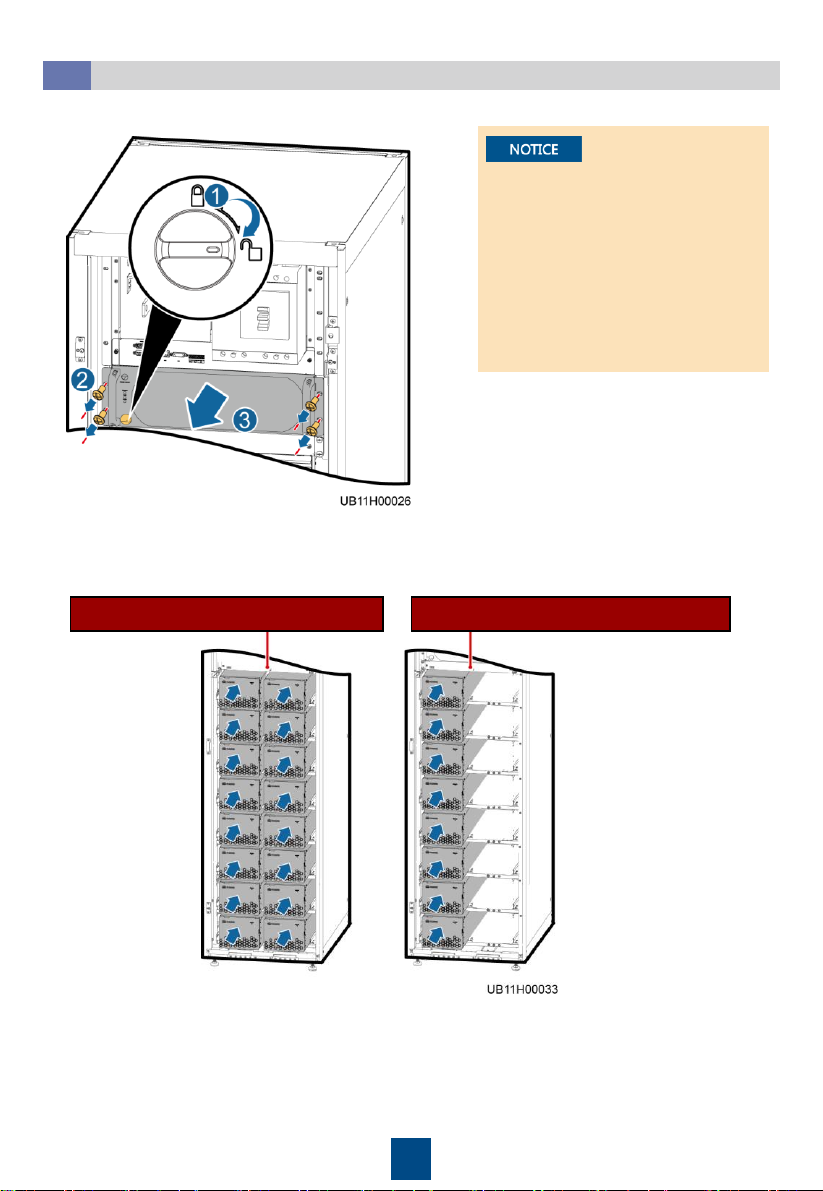

1. Pull out the battery monitor unit for about 10 cm.
•Install the battery modules from
bottom to top and from left to
right to prevent falling over due
to imbalance.
•Two persons are required to
install the battery modules.
•Place the front cover properly to
prevent the light pipe from
falling off.
InstallingBattery Modules and Cables
4.3
2. Install battery modules.
Full-capacity Cabinet Configuration Half-capacity Cabinet Configuration

8

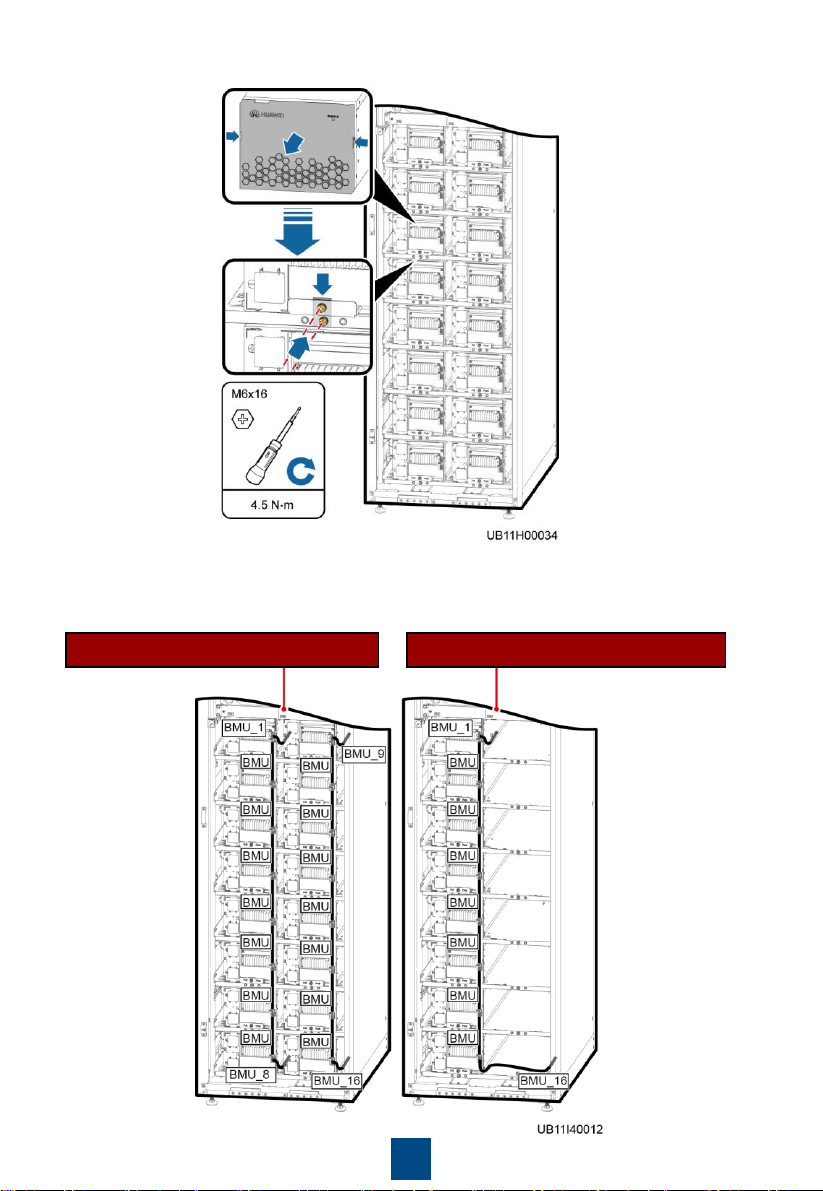

3. Remove front cover from the battery module, and install battery baffle plate.
4. Install battery communications cables.
a. Install communications cables between battery modules.
b. Connect communications cables (reserved in the cabinet) between the battery
modules and the battery monitor unit .
Full-capacityCabinet Configuration Half-capacityCabinet Configuration

Full-capacity Cabinet Configuration Half-capacity Cabinet Configuration
9

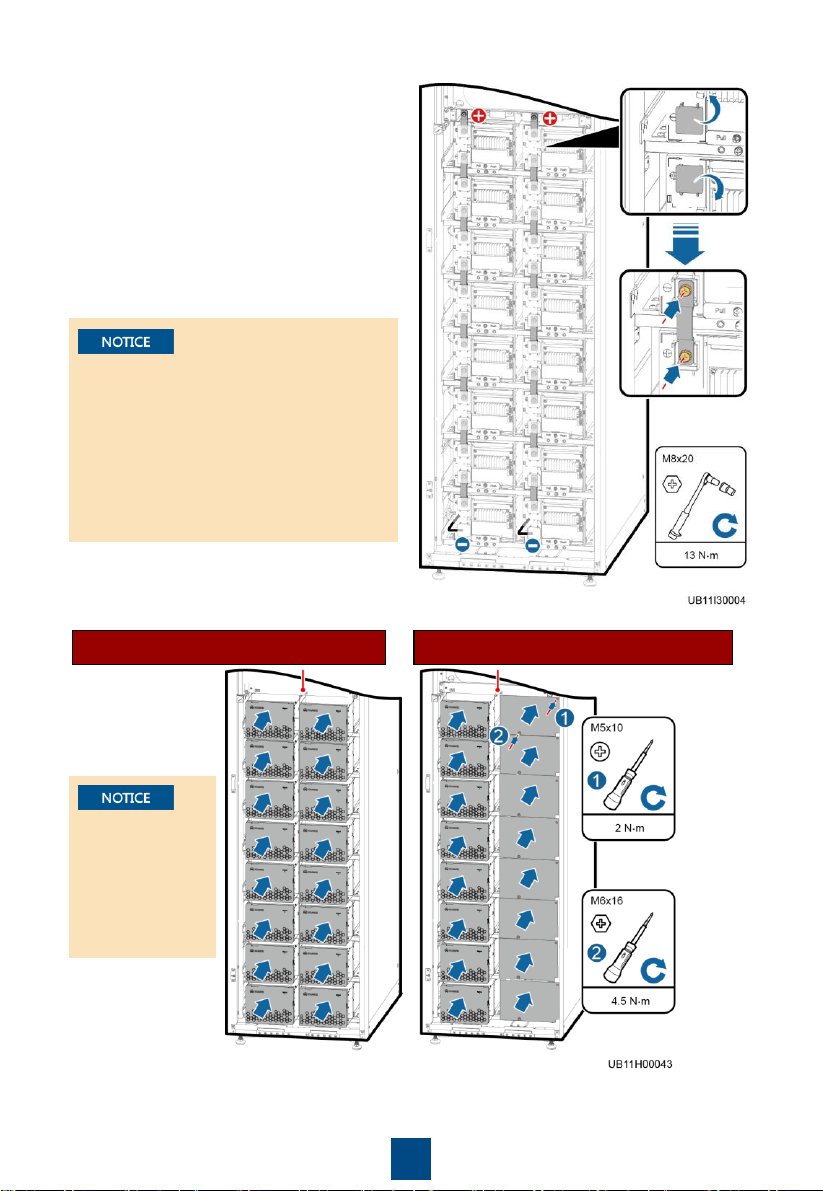

5. Install battery copper bars and cables.
a. Open the terminal protective covers,
install copper bars between battery
modules, and close the terminal
protective covers.
b. Open the terminal protective covers,
install copper bars between battery
modules and fuses, and close the
terminal protective covers.
c. Open the terminal protective covers,
install the battery cables reserved in the
cabinet, and close the terminal protective
covers.
•During installation, wear insulation
gloves and use insulated tools.
•Connect the round hole of the copper
bar to the upper battery module, and
then connect the waist hole of the
copper bar to the lower battery
module.
•Excessive bolts will be used as spare
parts.
6. Install the battery module covers.
Place the
cables at the
notches and
ensure that the
covers do not
press the
cables.

10

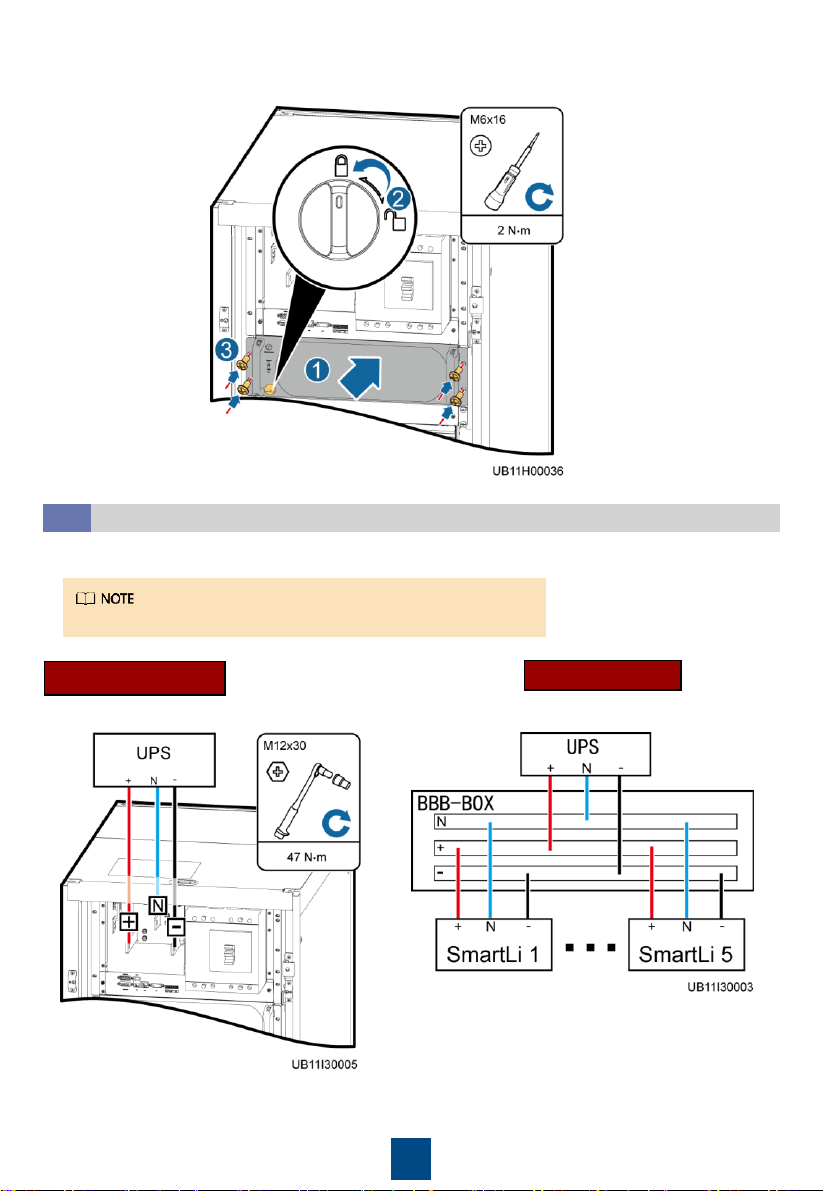

7. Reinstall the battery monitor unit .
Connect power cables to the UPS.
InstallingOutput Cables
4.4
Without a BBB-BOX With a BBB-BOX
The following uses the UPS with a neutral wire as an example.

11

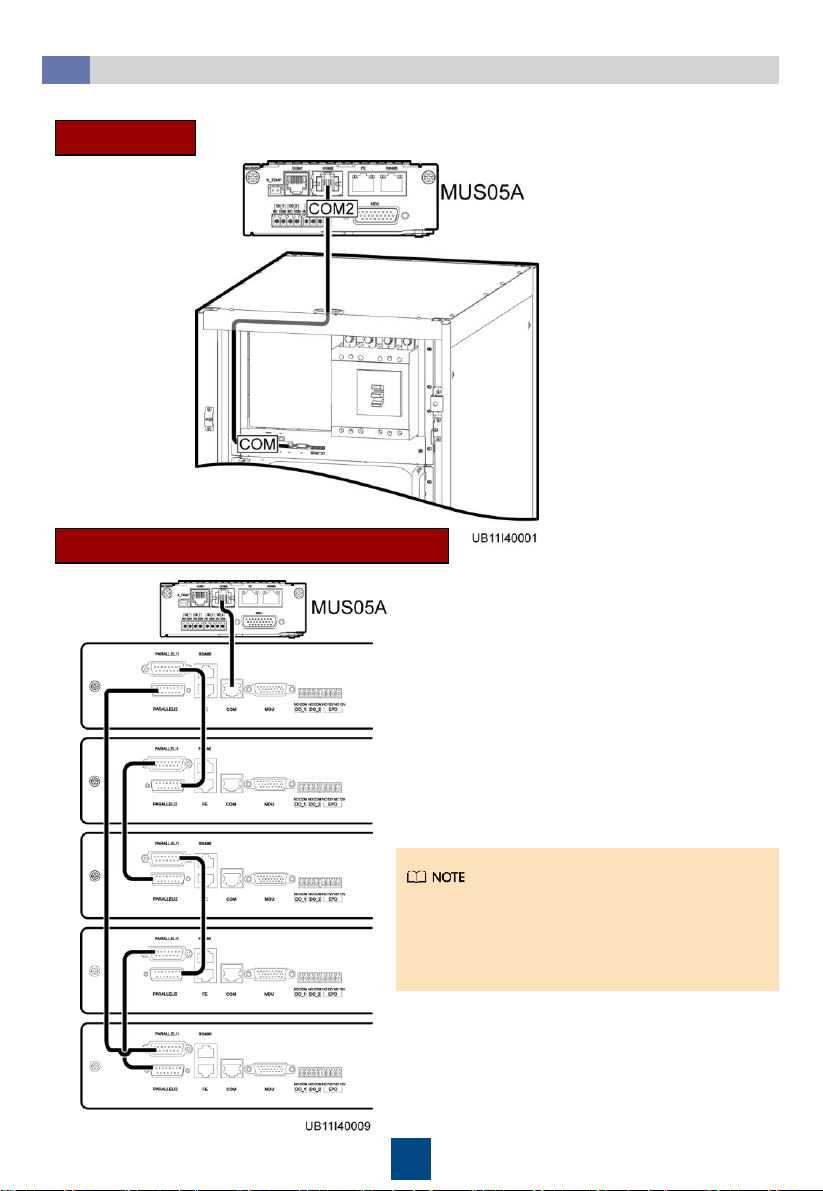

Installing Communications Cables
4.5
Connect a communications cable to the UPS.
Single Cabinet
The numbers of cabinets in a parallel system
depend on the connection of control cables. After
the control cables are connected according to the
preceding figure, the cabinets are numbered 1, 2,
3, 4, and 5 from top to bottom.
Parallel System, for Example,Five Cabinets

Sealing putty
Paper
protective film
12

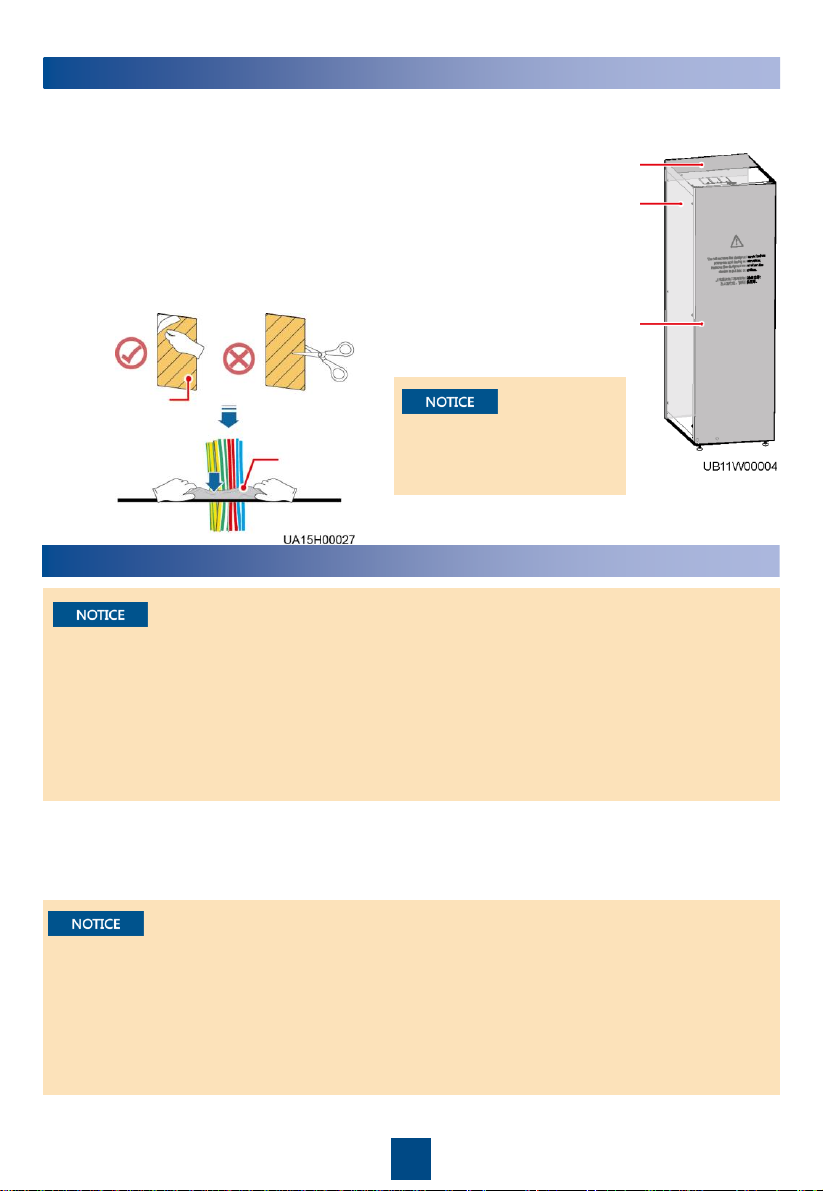

5Verifying the Installation
1. Check that there is no foreign matter at the top
and bottom of the cabinets, copper bars,
switches, and the rear of units.
2. Check that the battery cables are correctly
connected.
3. After verifying the installation, reinstall all the
covers.
4. (Remove the paper protective film from the
sealing putty.) After routing cables and verifying
cable connections, seal the gap between cables
and the cabinet using sealing putty.
5. Do not remove the dustproof cover before
power-on to prevent dust inside the SmartLi.
Sealing putty must be used
as a whole and the gap can
be sealed only from the top.
Top dustproof cover
Rear dustproof cover
Front dustproof cover
6Powering On
1. On the UPS LCD screen, set System Info > Settings > Battery Settings > Battery Type to
Lithium battery.
•The BCB off alarm is displayed on the UPS LCD and SmartLi LCD (the red indicator is steady
on). No action is required. After the battery circuit breaker is closed, the alarm is automatically
cleared.
•After the battery monitor unit is started, the green indicator is on for 1s and then off for 4s.
•If multiple SmartLi cabinets are combined, press and hold the POWER ON/OFF button on the
battery monitor unit of the master cabinet for more than 2 seconds to power on the master
cabinet. Then, power on slave cabinets one by one in the same way.
•Upgrade the UPS software to the version that supports lithium battery connection. See
UPS5000 The Relationship of Software Version to check the version number.
•Thres. of low batt. volt. over dry contact (V/cell): If you set Batt. Volt. Below Threshold for
an output dry contact and the battery voltage is lower than this threshold, the output dry
contact will output signals accordingly. (Set on the UPS)
•Turn on the ready switch on the battery monitor unit.
•When the UPS is in normal mode, ensure that the UPS is running stably before turning on the
battery circuit breaker on the SmartLi.
2. Press and hold the POWER ON/OFF button on the battery monitor unit for more than 2s. The
green indicator of the battery monitor unit blinks at 4 Hz.

13

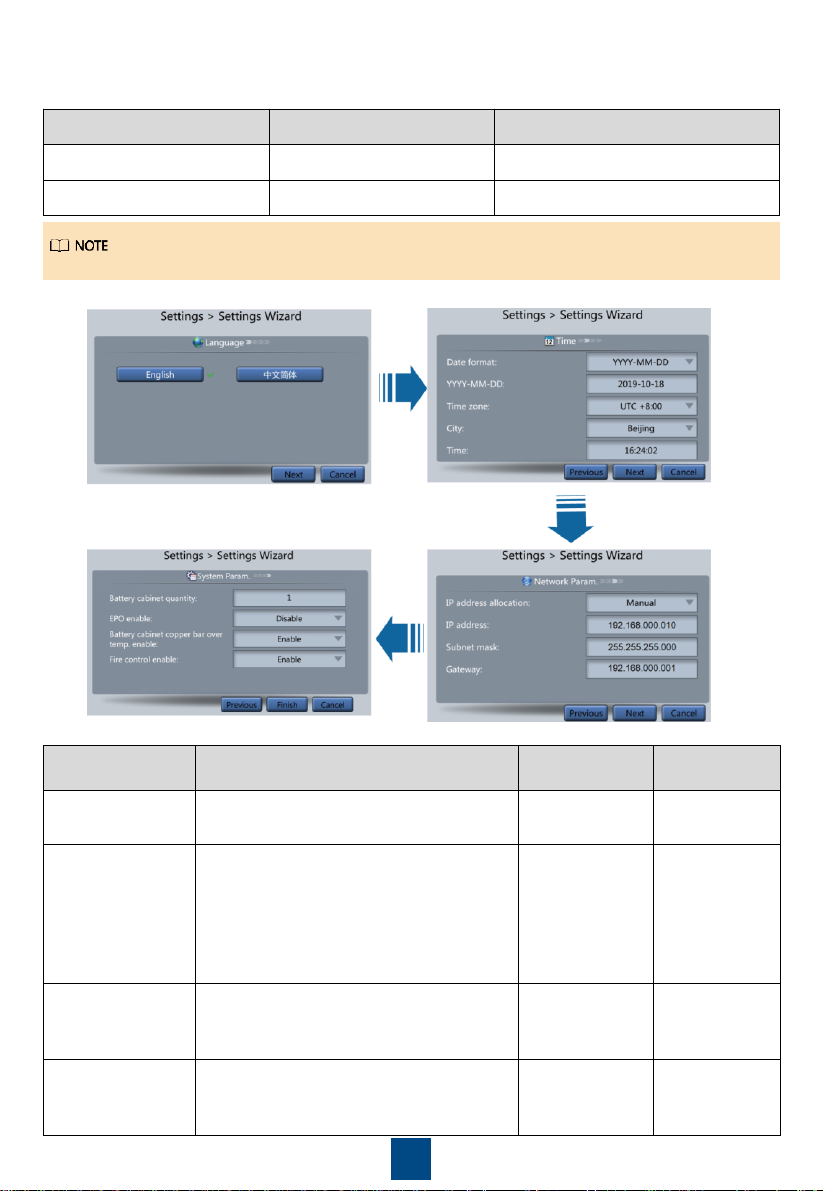

System User LCD Preset Password WebUI Preset Password
admin (system administrator) 000001 Changeme
operator (common user) 000001 Changeme
To ensure system security, change the LCD and WebUI passwords after the first login.
3. Set the language, time, date, network parameters, and system parameters on the Settings
Wizard screen.
Item LCD Preset Password Default Value Value Range
Battery cabinet
quantity
Specifies the total number of combined
cabinets.
1 1–8
EPO enable
EPO (emergency power-off) is performed
only when this parameter is enabled and
the EPO switch is triggered.
When EPO detection is changed from
Disable to Enable, check that the EPO
cable is connected correctly.
Disable Disable,
Enable
Battery cabinet
copper bar over
temp. enable
If this parameter is set to Enable, an alarm
is reported when the copper bar is
overheated.
Enable Disable,
Enable
Fire control enable
If this parameter is set to Enable, an alarm
is reported after the fire extinguishing
action is triggered.
Enable Disable,
Enable

14
4. After the green indicator of the battery monitor unit blinks at 10 Hz, turn on the battery circuit
breaker on the SmartLi.
5. When multiple SmartLi cabinets are combined:
•If the green indicator of the battery monitor unit blinks at 10 Hz, you cannot start the UPS in
cold mode.
•If the green indicator of the battery monitor unit blinks at 1 Hz or is steady on, you can start the
UPS in cold mode.
7Powering Off
Switch off the battery circuit breakers. (Perform this operation for multiple SmartLi cabinets
one by one.)
Press and hold down the POWER ON/OFF button on the battery monitor unit for at least 5
seconds. (Perform this operation for multiple SmartLi cabinets one by one.)
In this case, the green indicators of all battery monitor units are on for 1s and then off for 4s, you
cannot turn on the battery circuit breakers on other SmartLi cabinets or start the UPS in cold
mode.
1) If the green indicator of one battery monitor unit blinks at 10 Hz, turn on the battery circuit
breaker on any SmartLi.
2) After the green indicators of other battery monitor units blink at 10 Hz, turn on the battery circuit
breaker on the SmartLi where the battery monitor unit blinks at 10 Hz one by one.

15
Huawei TechnologiesCo., Ltd.
Huawei Industrial Base, Bantian, Longgang
Shenzhen 518129 People's Republic of China
www.huawei.com
Scan here for more documents:
You can also log in to Huawei technical support website:
https://support.huawei.com/enterprise
https://support.huawei.com
SupportSupport-E WeChat
Scan here for technical support (enterprise):
Scan here for technical support (carrier):
Huawei App Store
Huawei App Store
