RANSOMES
GB
OPERATORS INSTRUCTIONS
Publication No. 24087G (rev.1) (RSJ 001 101997)
TMM48R
MID MOUNTED MOWER

1
This operator’s manual has been prepared to provide
the information you need to correctly install, operate
and maintain your mower attachment. Carefully read
and follow the instructions in this manual. With
proper care and operation you will obtain long and
efficient service.
Any reference made in this Operator’s Manual
concerning the right-or left-hand sides are
determined by the direction the operator is facing
when in the tractor seat.
RANSOMES policy is one of continuous improvement, and the right to
change prices, specification or equipment at any time without notice is
reserved.
All date given in this book is subject to production variations. Dimensions and
weights are approximate only and the illustrations do not necessarily show
tractors/ implements in standard condition. For exact information about any
particular tractor/implement please consult your RANSOMES tractor dealer.

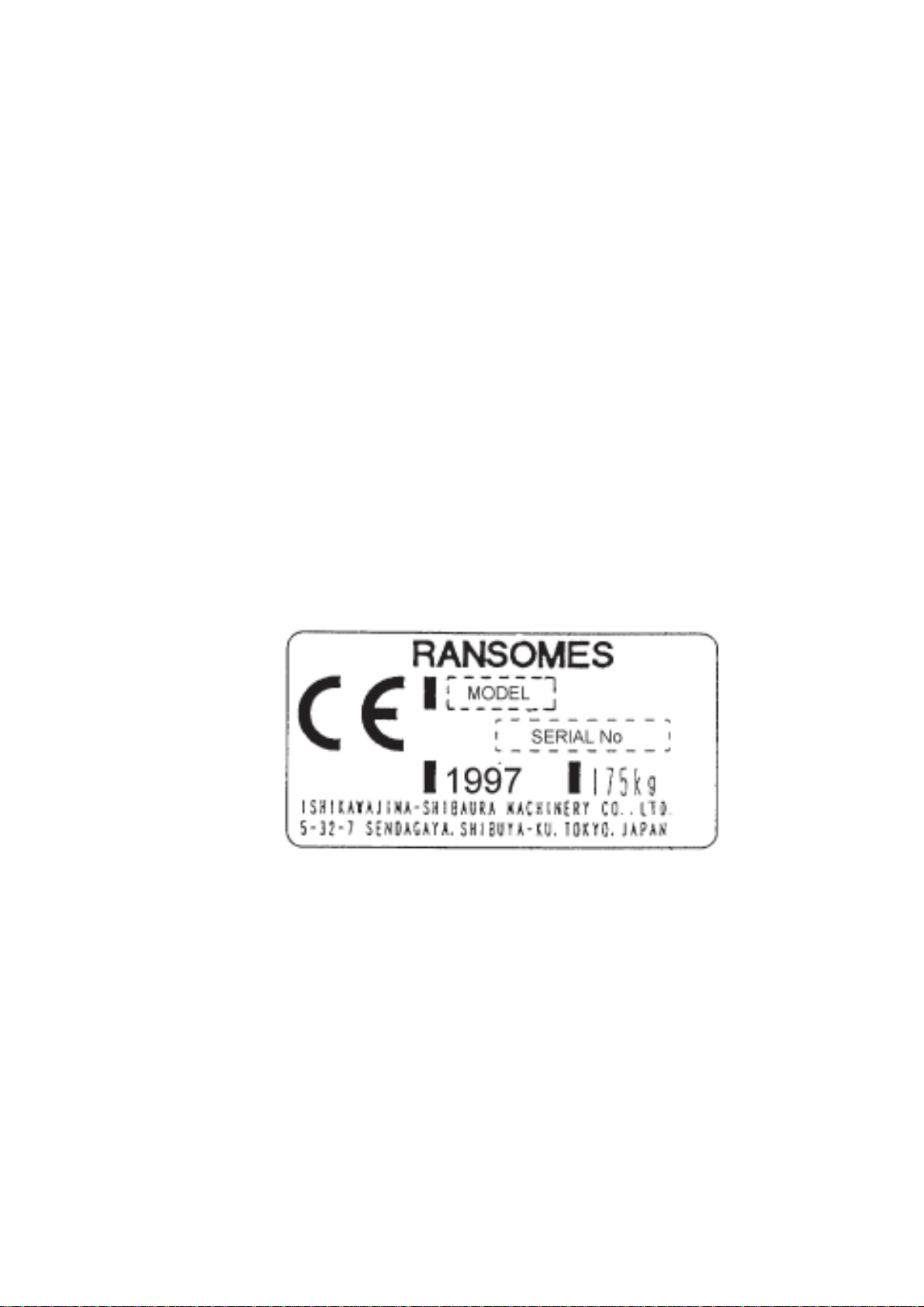

A PRODUCT IDENTIFICATION PLATE is located on the left-hand side of the deck.
The numbers on the plate are important should your mower require future service.
For your convenience, have your dealer record the numbers in the appropriate
spaces below.
Be sure safety precautions are observed. They are
for your benefit.
The replacement of any part on this product by other
than the manufacturer’s authorised replacement part
may adversely affect the performance, durability or
safety of this product.
INTRODUCTION

2
SAFETY PRECAUTIONS ......................................................................... 3-4
CONTROLS AND OPERATION................................................................ 5-8
MOWER ADJUSTMENT ........................................................................... 5-6
MOWER OPERATION................................................................................6
CUTTING HEIGHT.................................................................................... 6-7
CUTTING SPEED .......................................................................................7
GRASS DISCHARGE .................................................................................7
CUTTING PATTERNS ................................................................................8
REMOVING MQWER FROM TRACTOR....................................................8
LUBRICATION AND MAINTENANCE ..................................................... 9-15

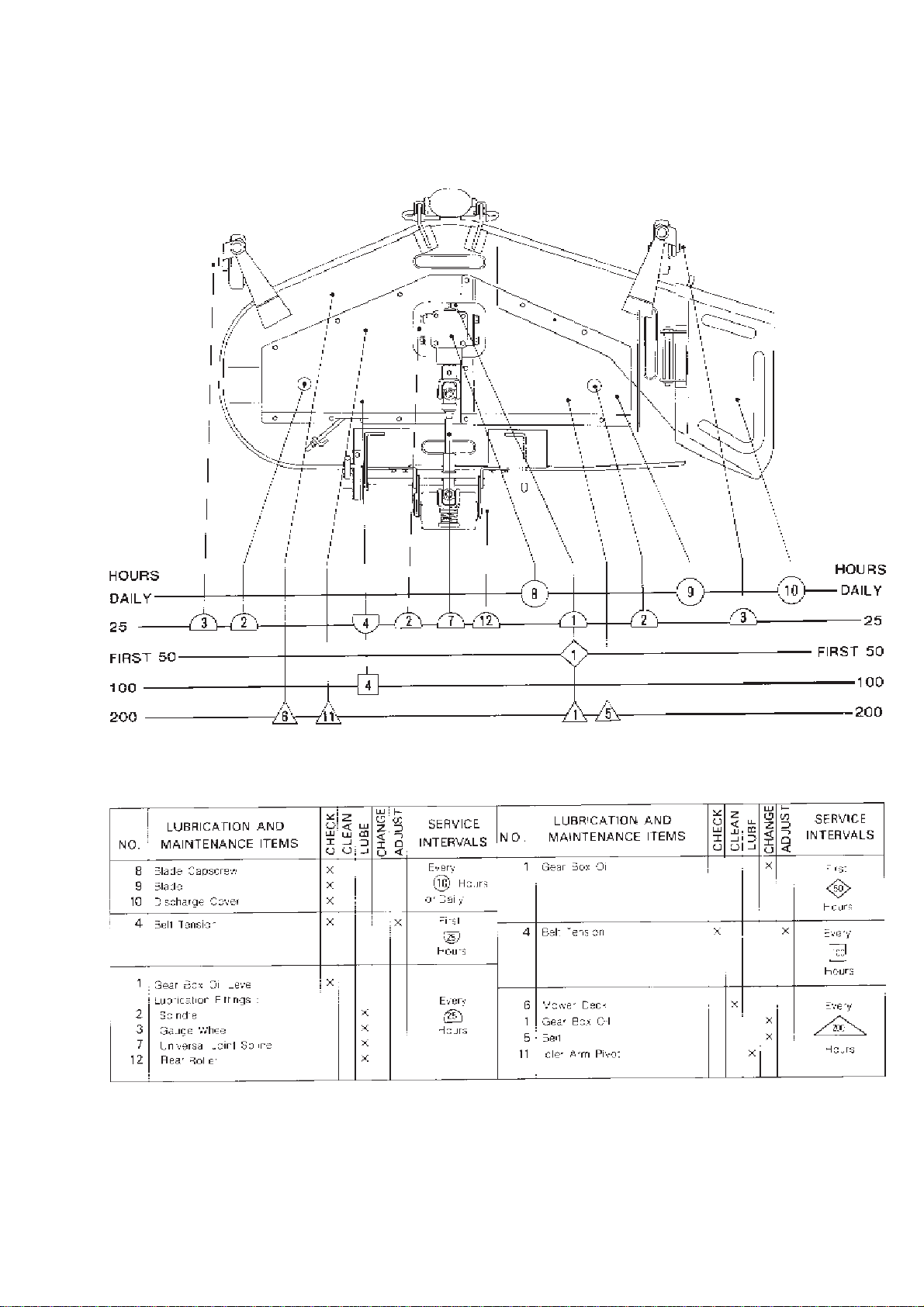

LUBRICATION AND MAINTENANCE CHART ...........................................9
LUBRICATION ........................................................................................ 10-11

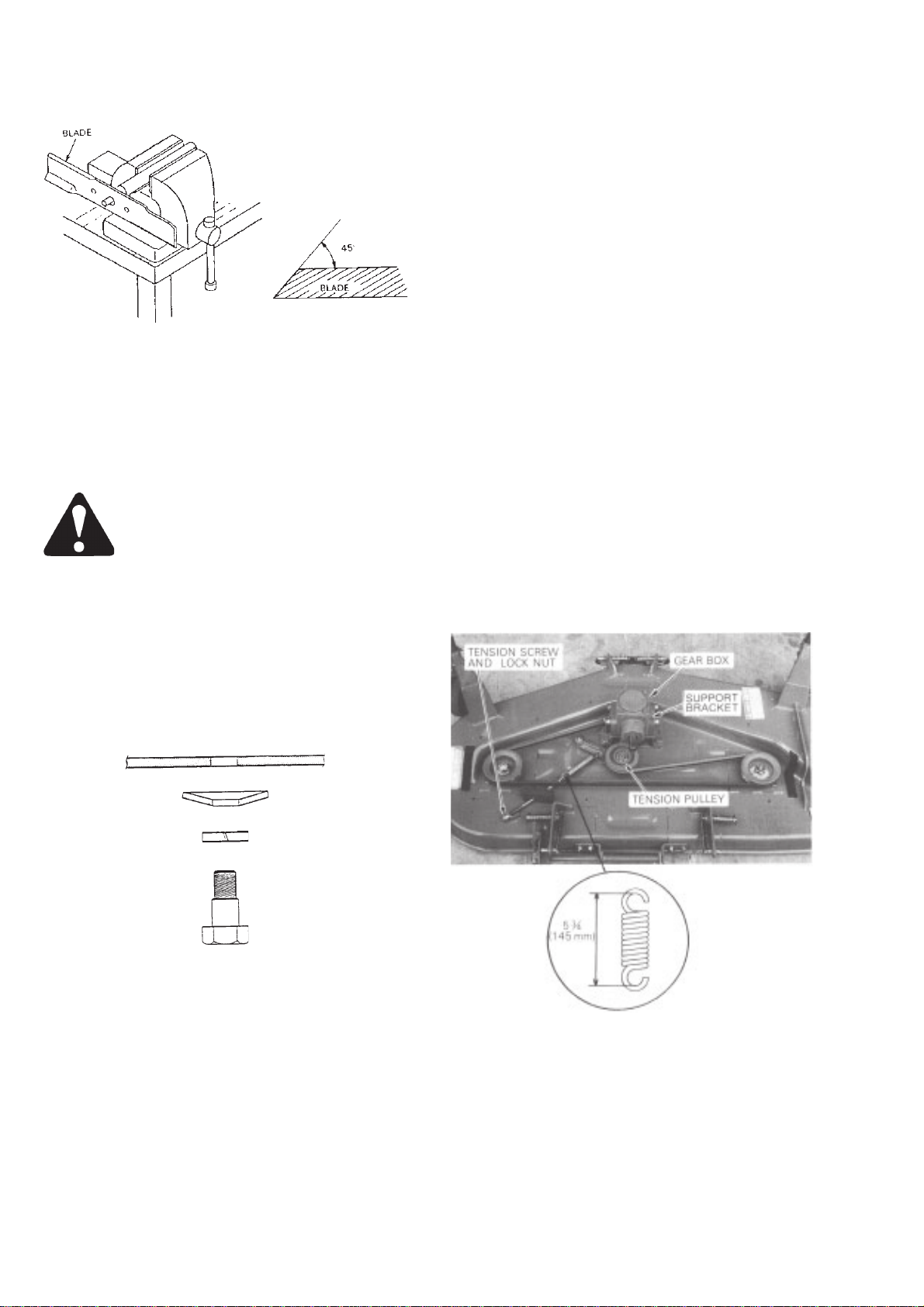

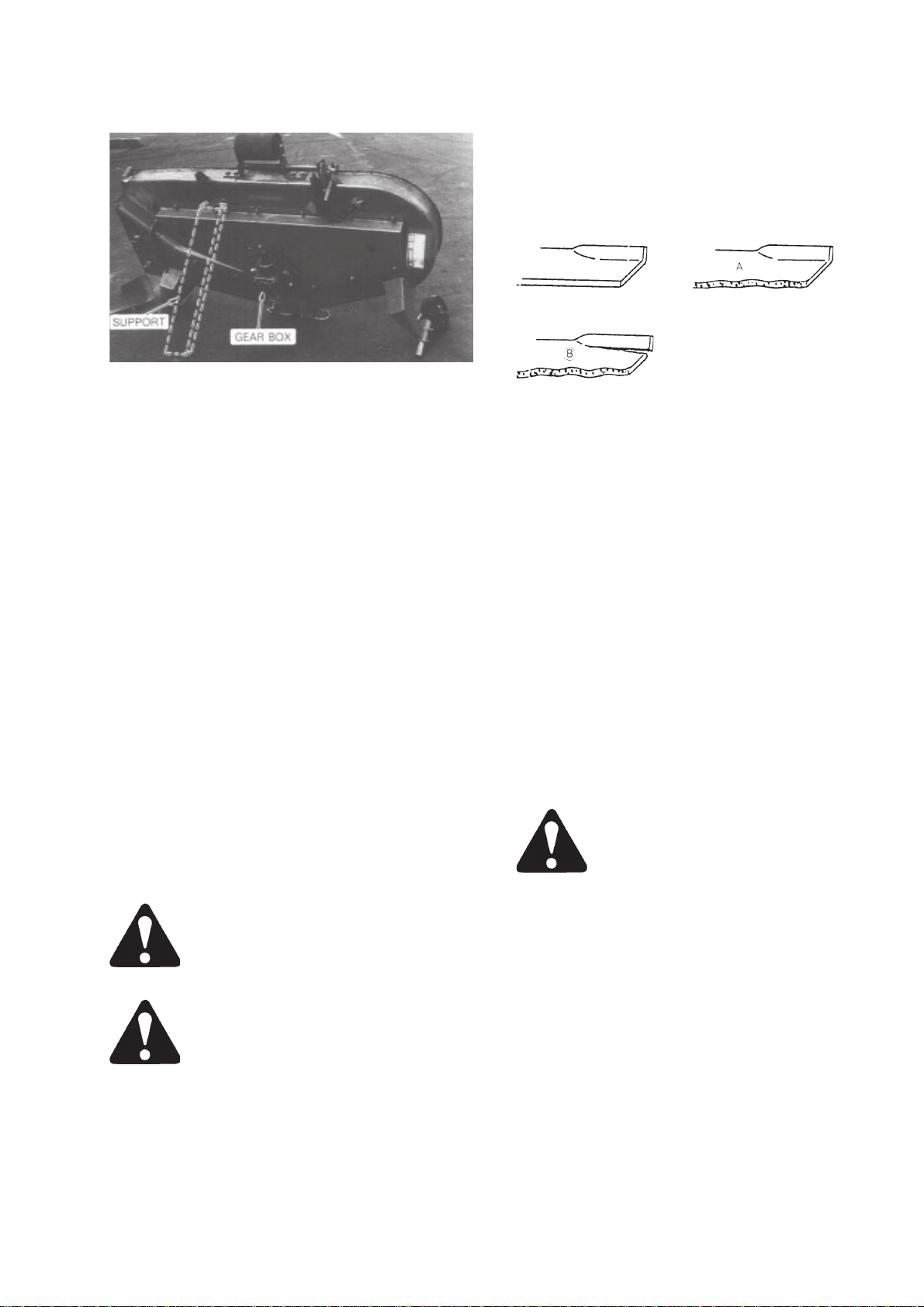

BLADE REPLACEMENT AND SHARPENING ....................................... 11-12
BELT ADJUSTMENT .............................................................................. 12-13
BELT REPLACEMENT ..............................................................................13
STORAGE AND TROUBLE SHOOTING ................................................ 13-14
SPECIFICATIONS .....................................................................................14

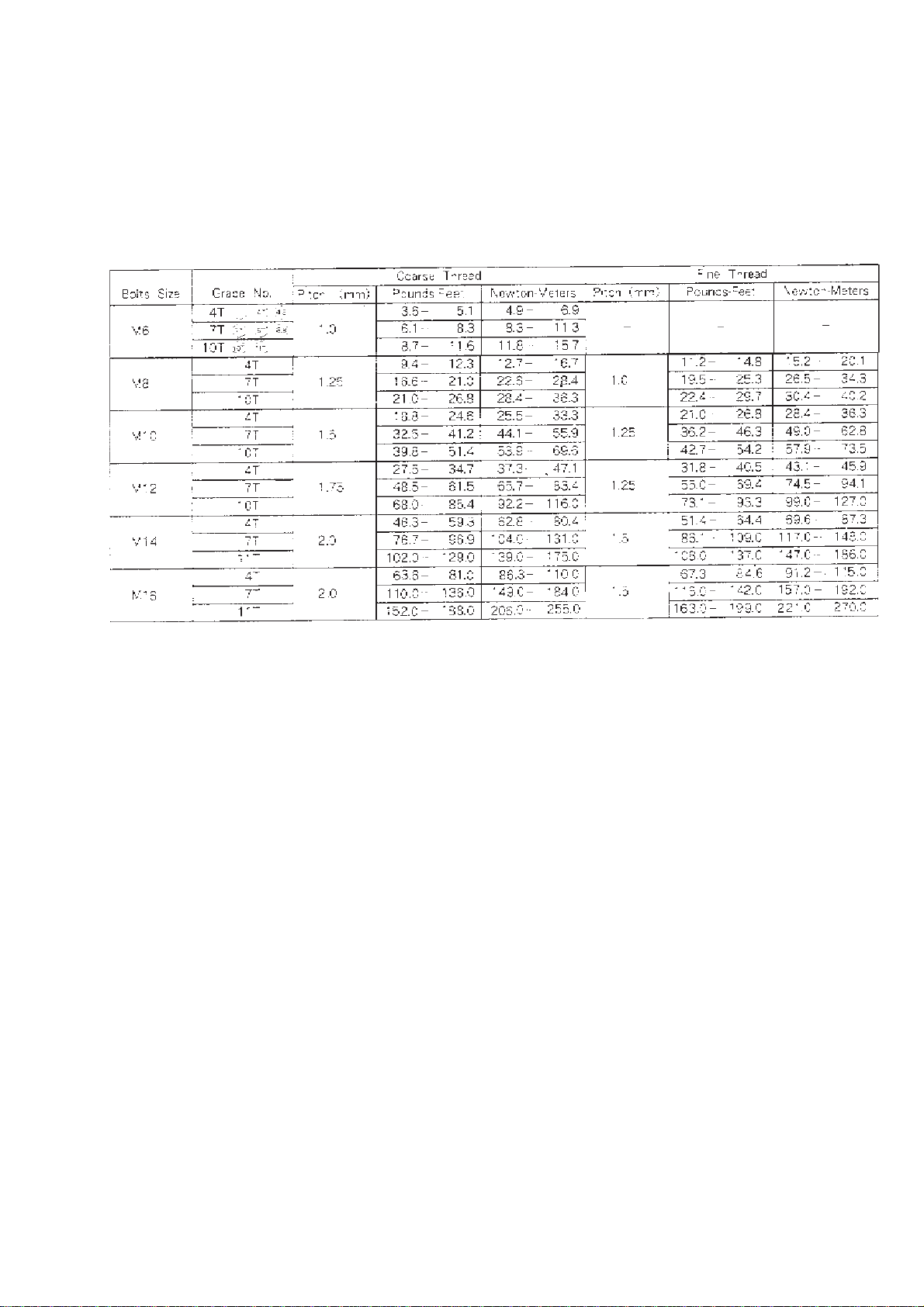

GENERAL TORQUE SPECIFICATION TABLE.........................................15
PREPARING MOWER FOR OPERATION ............................................. 16-24

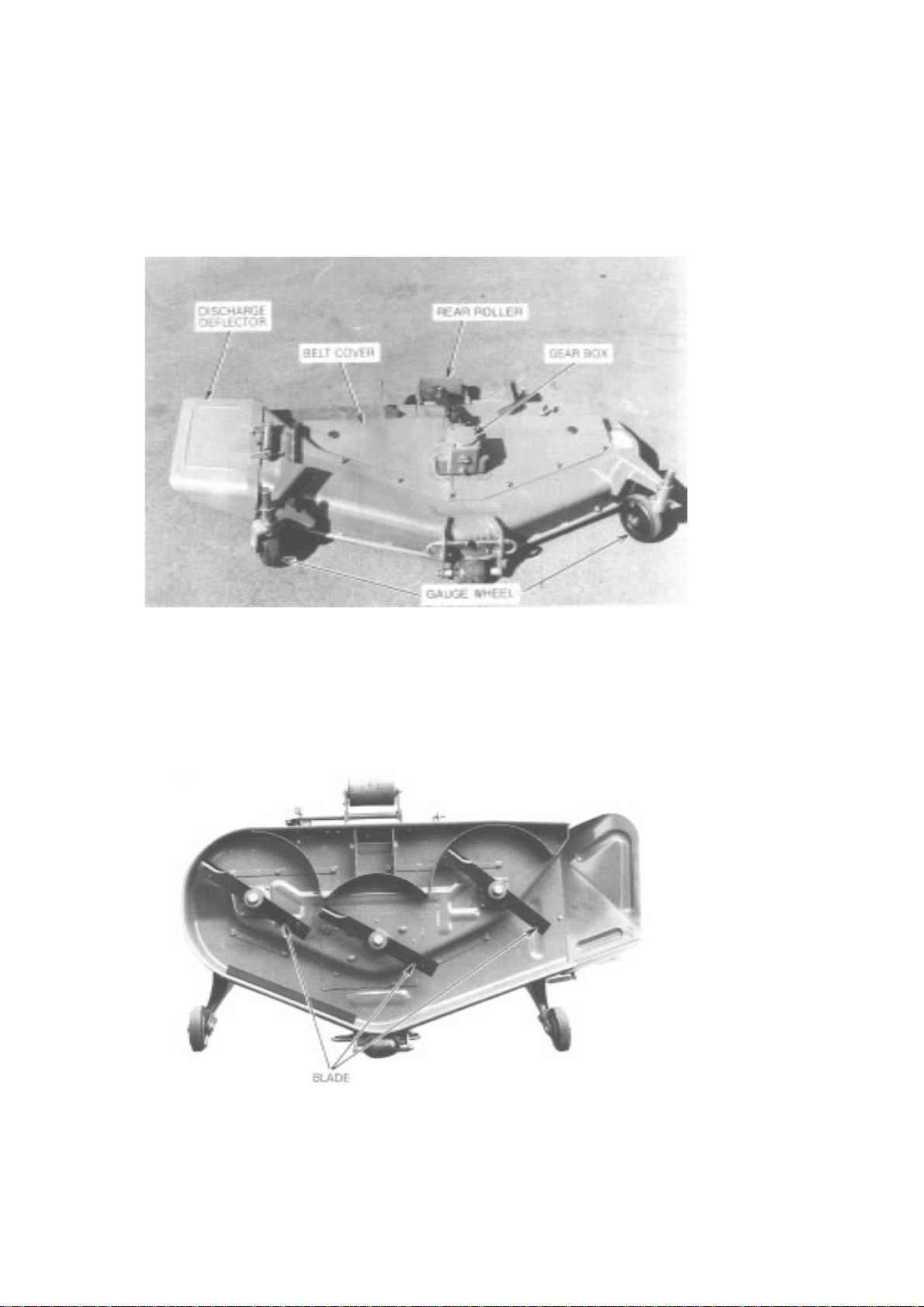

MOWER TERMINOLOGY..................................................................... 16-17
ASSEMBLY OF MOWER TO TRACTOR ................................................18
ATTACHING THE MOWER LIFT LINKS TO THE TRACTOR .............. 18-21
ATTACHING THE MOWER TO THE TRACTOR.................................. 22-24
SAFETY AND INSTRUCTION DECALS................................................. 25-26
CONTENTS

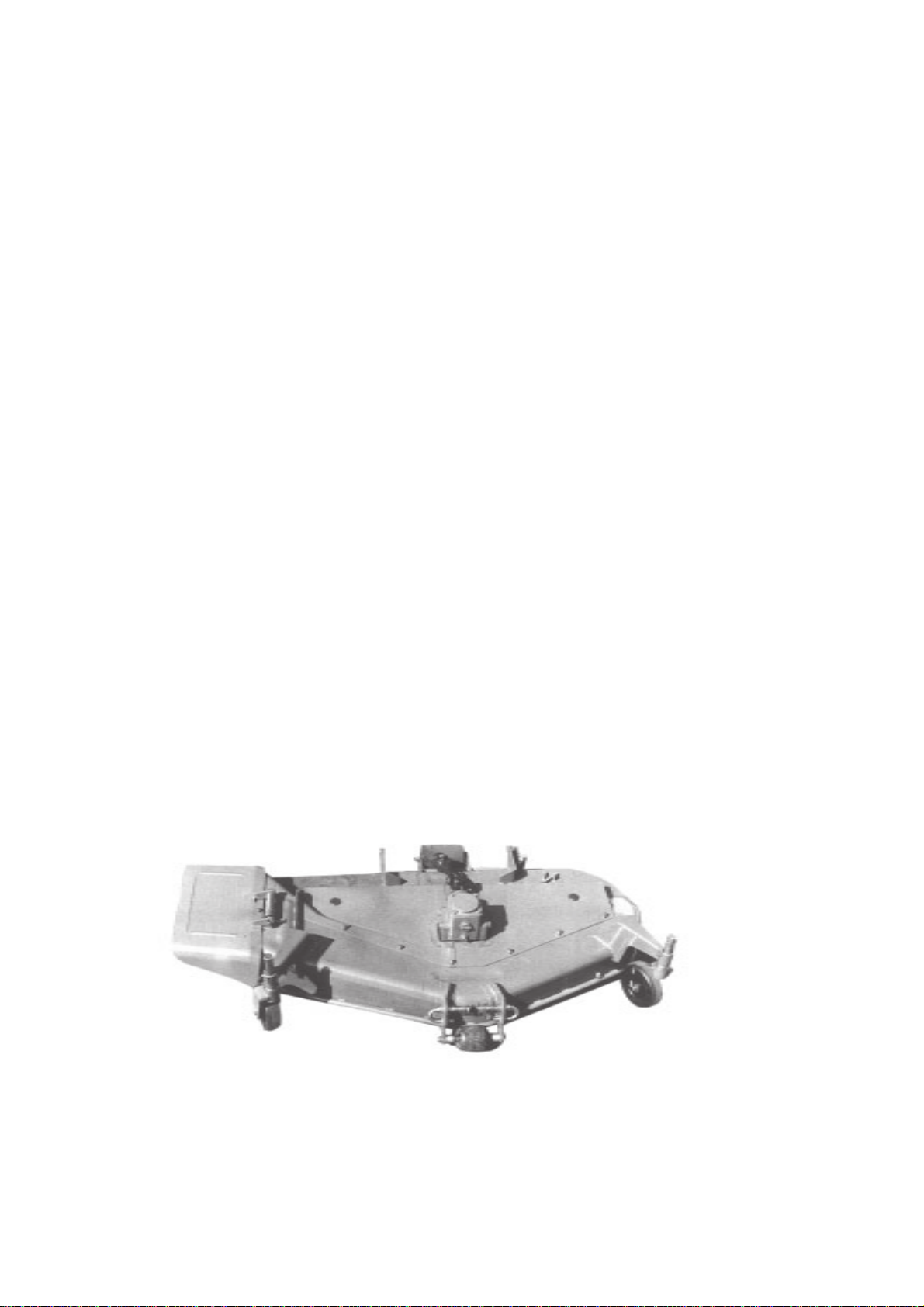

Model TMM48R
48" Mower Attachment

3
• Watch for holes in terrain and other hidden
hazards.
• Do not stop or start suddenly when going uphill or
downhill. Mow up and down the face of steep
slopes, never across the face.
• Disengage power to attachment(s) and stop the
engine (motor) before leaving the operator’s
position.
• Never leave equipment in the raised position.
• Always keep the discharge side of the cutter
directed away from people and objects which could
be struck by debris thrown from the cutter.
• Upon striking a foreign object, stop and inspect the
front mower and the mower for damage. Repair the
damage before resuming equipment operation.
SERVICING & MAINTENANCE
• Keep all shields in place.
• Replace safety and warning decals when they
become illegible.
• The vehicle and attachments should be stopped
and inspected for damage after striking a foreign
object and the damage should be repaired before
restarting and operating the equipment.
• Do not lubricate or make mechanical adjustments
while the unit is in motion or when the engine is
running. However, if minor engine adjustments
must be made, apply the parking brake securely,
block the wheels and use extreme caution.
• Periodically maintain mower. Tighten nuts, bolts
and fittings periodically for safe operation. Check
blade for tightness.
SAFETY PRECAUTIONS
THE FOLLOWING PRECAUTIONS ARE SUGGESTED TO HELP PREVENT ACCIDENTS.
CAREFUL OPERATOR IS THE BEST OPERATOR. MOST ACCIDENTS CAN BE AVOIDED BY OBSERVING CERTAIN
PRECAUTIONS. READ AND CARE THE FOLLOWING PRECAUTIONS BEFORE OPERATING THIS EOUIPMENT TO
HELP
PREVENT ACCIDENTS. EOUIPMENT SHOULD BE OPERATED ONLY BY THOSE WHO ARE RESPONSIBLE AND
INSTRUCTED TO DO SO.
THE MOWER
• Read your Tractor and Mower operator’s manual
carefully before using the equipment. Lack of
operating knowledge can lead to accidents.
• Keep the vehicle and attachments in good
operating condition and keep safety devices in
place.
• Do not modify or alter or permit anyone else to
modify 0 alter this mower or any of its components
or any tractor function.
• Keep people and pets a safe distance away from
the machine.
• Clear the work area of objects which might be
picked up and thrown.
MOWER OPERATION
• Disengage power to mower when transporting or
not in use.
• Disengage power to mower before backing up. Do
not mow in reverse unless absolutely necessary
and then only after careful observation of the entire
area behind the mower.
• When mowing proceed as follows:
a) Mow only in daylight or in good artificial
light.
b) Never make a cutting height adjustment
while the engine (motor) is running if the
operator must dismount to do so.
c) Check the blade mounting bolts for proper
tightness at frequent intervals.
d) Shut the engine (motor) off when removing
the grass catcher or unclogging chute.
The signal word “WARNING” indicates that a source of
danger to a person on or near a machine exists which
may result in death or injury if the recommended
precautions are not taken.
The signal word “DANGER” signifies that a source of
extreme danger to a person on or near a machine exists
as a result of the very nature of the machine itself. This
danger to persons is such that it would result in a high
likelihood of death or permanent injury it the
recommended precautions are not taken.
Whenever you see this symbol it means: ATTENTION! BECOME ALERT! YOUR SAFETY IS INVOLVED!
SAFETY DEFINITIONS

4
• Reduce speed on all side slopes and sharp turns
to prevent tipping or losing control.
• Do not allow anyone to ride on tractor or any of its
attachments.
• Never allow tractor to discharge grass toward
anyone.
• The discharge guard must be down at all times
during mowing operation.
• If safety decals become illegible, they should be
replaced.
• Make certain mower or tractor cannot be started by
unauthorised persons before leaving tractor.
Safety is NO accident Be Alert!
This symbol is Used to attract your attention
to the safety precautions that should be
understand by the operator to avoid
accidents
When you see this symbol-HEED ITS WARNING!
• Be sure to read all tractor and engine instructions
before operation.
• Know your controls. Know how to stop tractor and
engine in an emergency.
• All guards must be in place before operating
mower.
• Stop operation when another person approaches.
• Keep children and pets away. Children and pets
should be kept a good safe distance away from
mower.
• Set parking brake and stop engine before leaving
seat.
• Be sure lawn is clean. Remove stones, wires,
sticks, toys, anything that might catch or be thrown
by the mower blade.
• Do not wear loose fitting clothing that might get
caught in moving parts. Also, keep hands and feet
away from moving parts.
• Loose clothing could become entangled in moving
parts, causing personal injury.
SAFETY PRECAUTIONS

5
CONTROLS AND OPERATION

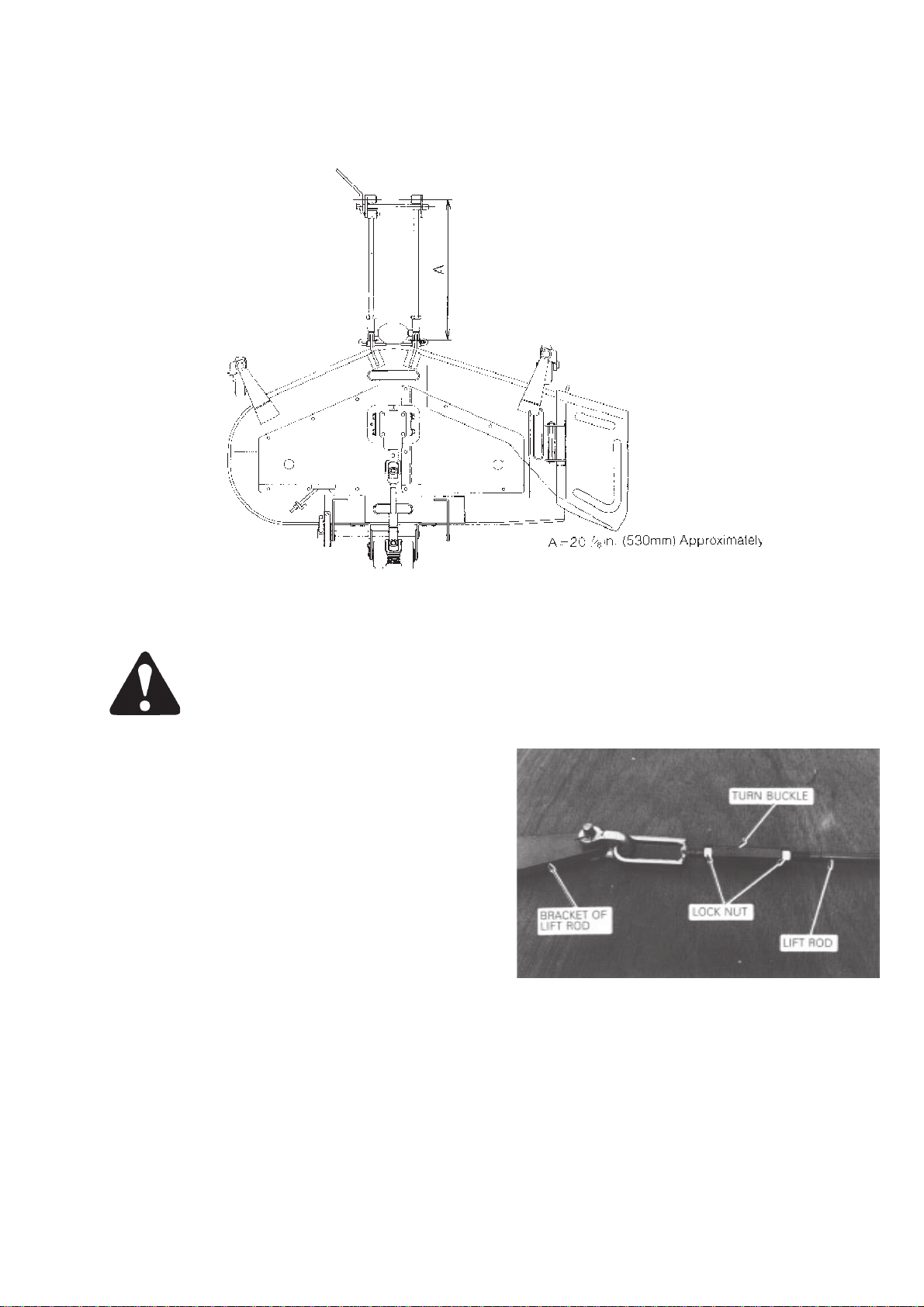

Figure 1 Adjusting the Mower
WARNING: To avoid personal injury,
stop the engine, lower mower to the
ground and allow the blades to stop
before adjusting the mower.
1. Position the tractor on a level surface. Lock the
parking brake, stop the engine and remove the key.
2.Adjust tire pressure to 12psi in all turf tires, to
16psi in AG tires.
3.Set the lower link hitch point inner spread to
category 1 (26 7/8 inches) with adjusting check
chain. Heights of rear and left lower link hitch points
should be adjusted in same each other.
4.Set the gauge wheel and rear roller to the “setting
position” cutting height, Figure 3, 4,
5. Adjust the front links so the pins can be removed
easily from the mower.
6.Start the engine and raise the mower slowly.
Loosen the lift rod, if not previously done so that the
mower will not bind against the tractor or u~ stop.
7.Stop the engine and remove the key.
8. Adjust the tumbuckles on lift rod to obtain 5mm
(1/4") space between the plate (in front of deck) and
up stop and gauge wheels are equal height from the
ground. Tighten the lock nuts, Figure 2.
Figure 2 - Adjusting the Mower
9. If major changes are made in the cutting height,
repeat steps 5 to 8.
Reinstall the gauge wheel to the arm of the deck with

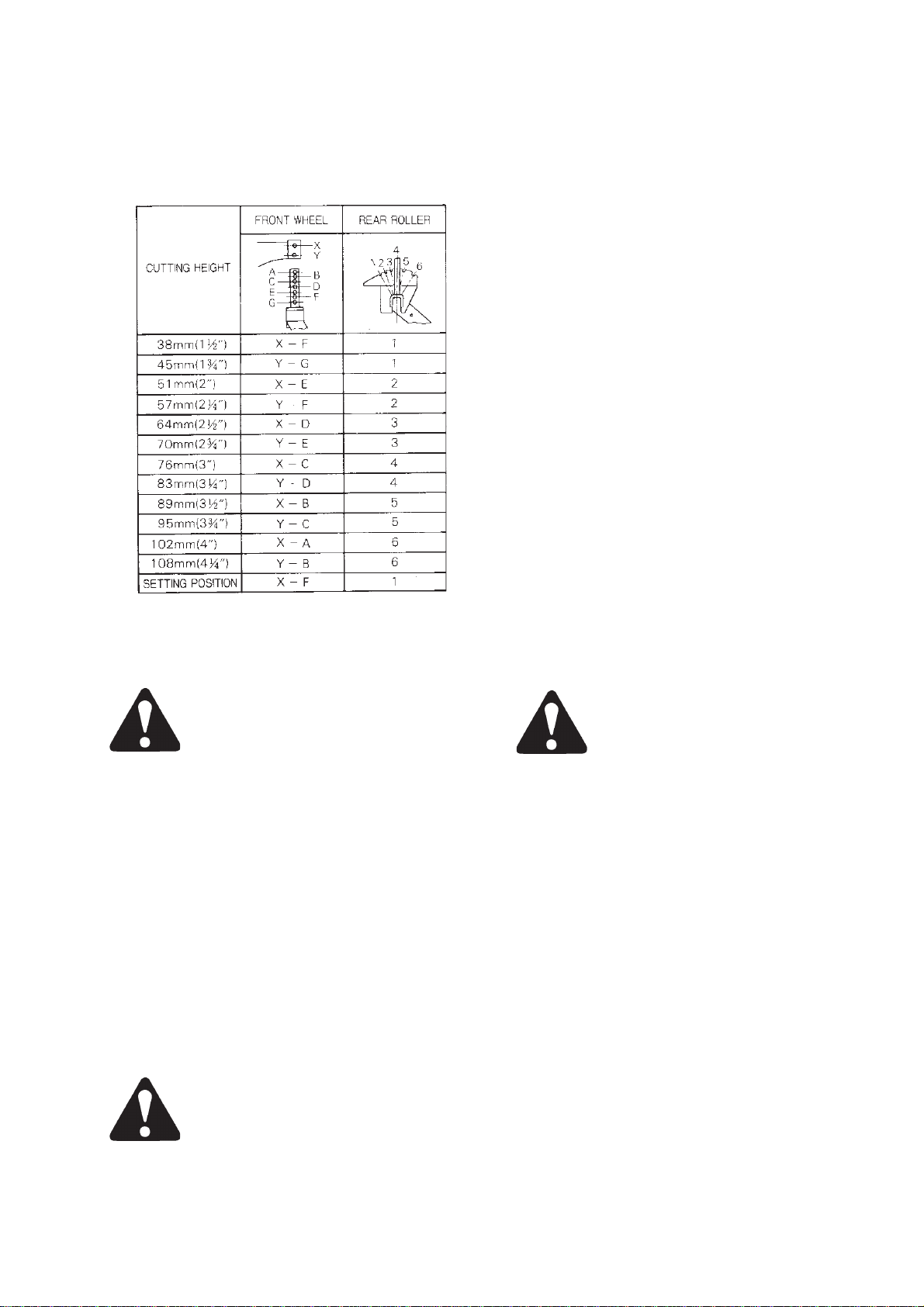

a clevis pin and hair pin clip. Select the desired
cutting height, as shown in Figure 3.
MOWER ADJUSTMENT

6
Figure 3 - Reinstalling the Gauge Wheel
MOWER OPERATION
MAKING THE MOST OF YOUR MOWER
1 When Using your mower for the first time,
choose a smooth level area and cut in straight
and slightly overlapping strips.
2. The size and type of the area to be mowed will
determine the proper mowing pattern. Take
into account obstruction, such as trees, fences
and buildings. To keep grass cuttings off
fences, sidewalks, etc., it is advisable to go
around the outside of the area to be mowed
several times in a clockwise direction. To mow
the area remaining, work in a
counterclockwise direction so the cuttings are
dispersed onto the previously cut area.
3. Always keep the left side “Trimming side” of
the mower toward trees, posts or other
obstacles on the first trip around the obstacle.
4. Most lawns should be mowed to keep the
grass approximately 2 to 3 in. (51 -76mm)
high. Best results are obtained by cutting often
and not too short. To keep a green lawn,
never mow more than one third off the height
of the grass or a maximum of 1 in. (25mm) in
one mowing. For extremely tall grass, set the
cutting height at maximum for the first mowing,
then reset to the desired height and mow
again. Allow the grass to grow to three inches,
then cut off only the top inch.
5. On thick or springy grass or soft ground, the
mower rollers may sink into the ground giving
too low a cut. Readjust the cutting height to
obtain the desired height of cut.
6. For best appearance, grass should be cut only
when it is free of moisture.
WARNING: Some illustrations in the
manual show the mower with safety
shields removed to provide a better
view. The mower should never be
operated with any safety shielding
removed.
CUTTING HEIGHTS
WARNING: To avoid injury do not
operate the mower in the transport
position.
This mower can be adjusted to cut from 1 1/2" to
4 1/4" high. Cutting heights should be determined by
cutting conditions and personal preference. The
following recommendations will provide a guide for
height selection.
Lawns .......................................1 1/2" - 2 3/4"
Field Cutting .............................2 3/4" - 41/4"
To change from one cutting height to another it is
necessary to adjust the gauge wheel and rear roller
as following
1. Start the engine and pull the lift control lever
rearward.
2. Stop the engine, remove the key and lock the
parking brake.
3. After determining the cutting height, as shown
in Figure 4, remove the pin securing the
gauge wheels and reinstall the pin in the
desired position.
4. Change the latch position which mounts the
rear roller, if necessary.
5. Make sure that the gauge wheels and rear
roller are secured.
6. Lower the mower deck with the lift control
lever pushed forward.
7. lf desired, the mower can be carried with
minimum weight on the gauge wheels by
lowering the mower so that gauge wheels are
1/4 inch from the ground. Set the stop on the
tractor lift
CONTROLS AND OPERATION

7
control lever at that point. Returning the lift lever to
the stop each time will return the mower to the pre-
set height.
Figure 4 Approximate Cutting heights at various
wheels and roller settings
WARNING: Stop mower and tractor
immediately upon striking an
obstruction. Inspect mower and repair
any damage before resuming operation.
CUTTING SPEED
For best mowing results, it is important that blades
be run at maximum speed. Set engine throttle lever
in FAST position, thus providing proper blade speed
and maximum engine horsepower.
Choose a ground speed which will provide the
desired finish cut, maximum operator comfort and
will not overload the mower drive. A slower ground
speed will provide a smoother operating machine
UNEVEN TERRAIN
WARNING: Be careful when operating
tractor and mower on uneven ground.
In extremely uneven terrain rear wheel weights, front
tractor weights and/or front tire ballast should be
used to improve stability.
Pass diagonally through sharp dips and avoid sharp
drops to prevent “hanging up” of the tractor and
mower. Practice will improve your skills in
manoeuvring rough terrain.
Avoid sudden starts and stops when travelling up or
down hill.
Always mow down slopes, never up or across the
face. Avoid operation on steep slopes.
Slow down on sharp turns and slopes to prevent
tipping or loss of control.
GRASS DISCHARGE
This mower was designed to provide a strong
discharge to scatter clippings and prevent clogging in
heavy cuttings. When cutting lush, thick tall or wet
grass shift to a slow ground speed setting and/or
reduce width of cut to prevent possible belt damage.
FOR BEST CUTTING DO NOT MOWWHEN
GRASS IS WET. Wet grass will cause clogging and
produce unsightly clumping on lawn.
WARNING: To avoid injury from
thrown objects keep discharge guard in
position and secure at all times. The
under side of mower deck should be
cleaned out (sprayed with water) after
each cutting with the engine stopped
and blades not rotating.
In medium and heavy cuttings plan your mowing to
discharge clippings away from uncut grass. In light
mowing discharge clippings can be directed onto
uncut grass so cut area is free of clippings and
discharged grass is re cut into finer clippings.
If mower becomes clogged, back unit out of uncut
grass and try to clear deck by engaging the
P.T.O. with the deck in the highest position. If deck
does not clear itself STOP engine, remove starter
key and clean underside of deck using a stick or
scraper. If grass build-up is excessive remove
mower from tractor and clean underside of deck
thoroughly.
CONTROLS AND OPERATION

8
CUTTING PATTERNS
1 Cut counterclockwise patterns as shown in
Figure 5. The blade arrangement of the
mower will then eliminate streaks of uncut
grass when the tractor turns.
2. Changing direction wastes time. Plan to keep
mower moving forward as much as possible.
3. Plan for the longest straight runs that are
possible.
4. Save the close trimming for the end.
5. Sometimes it is easier to divide a large
irregular shaped area into smaller sections,
Figure 5 centre, to keep the mower working
more steadily or to keep from reversing turning
or repeating too often.
6. In a small area, where tight turns would cause
lost time in the centre if the normal round and
round methods were used, try the cutting
method in Figure 5 right. Make the second
pass down the centre of the area rather than
down the opposite side from the pass. This
allows you to swing wide at the end of each
pass and still cut all the grass with a minimum
of reversing.
WARNING: For safe operation, when
transporting the tractor, the mower must
be locked in the transport position. It is
also necessary to lock the mower in
transport position when using the tractor
with a loader or for 3 point lift
implement. Raise the mower and lock
the lift links using the hook and pin at
the rear bracket, Figure 15.
REMOVING MOWER FROM TRACTOR
1 Drive the tractor front wheels onto a suitable
block, such as a 2x6 board, and turn the
wheels full to the left.
2. Lock the brakes, stop the engine and remove
the key.
3. Set the cutting height gauge wheels and roller
at the lowest cut position (1 1/2").
4. Lower the mower deck.
5. Pull out the lock pin of the quick attachment
and push down the quick attach lever,
removing the front links from the front bracket.
6. Pull the hooks on the mower deck and remove
the front link assembly.
7. Remove the hair pin and clevis pin holding the
lift links to the mower deck. Lock the lift links in
the transport position with the hook and pin
provided, Figure 15.
8. Remove the universal joint from the P. T. 0.
shaft of tractor.
9. Pull the mower out from under the right side of
the ‘tractor. Be careful that the gauge wheel
spindles do not damage the front wheel drive
shaft and rubber boot while pulling the mower
from under four wheel drive tractor.
10 Three-point lift implements can now be used
without further disassembly of mower
attaching parts.
11. To install the mower, reverse the above
procedure.
REMOVING MOWER FROM TRACTOR
Divide Larger Or Irregular Areas Into
Two Sections For Easier Mowing
Normal Round And Round
Method For Large, Easy Areas Over-Lap In Tight Corners Give Yourself Room To Turn
It’s Possible To Cut Small
Areas Without Losing Time
Turning In The Middle

9
LUBRICATION AND MAINTENANCE
CHART
LUBRICATION AND MAINTENANCE
NOTE : Refer to page 23 for lubrication pivots and links.

10
LUBRICATION AND MAINTENANCE
LUBRICATION
MAINTENANCE
WARNING: To avoid personal injury,
lower mower to the ground, turn engine
off and remove key before performing
any maintenance. Always use personal
protection devices such as eye and
hearing protection when performing
maintenancefunctions.
WARNING: To avoid personal injury,
when completing a maintenance or
service function, make sure all safety
shields are in good condition and in-
stalled before placing mower in service.
WARNING: Never work under
equipment supported by the tractor
three point hitch or any other hydraulic
device because it may drop if the
control is actuated (even with the
engine stopped) or in the event of
failure. Always use a secure support for
equipment which must be serviced
while in the raised position.
WARNING: To avoid personal injury
shut off the engine and wait until the
equipment stops turning before
servicing.
GENERAL
The mower should be serviced according to the
LUBRICATION AND MAINTENANCE CHART on
page 8.
Check the blade capscrew, blade and discharge
cover daily for damage or looseness; Make a general
visual inspection of the mower for loose or damaged
parts. Check nuts and bolts periodically
to insure against looseness caused by vibration or
rough handling. Damaged parts should be repaired
or replaced before using the mower again.

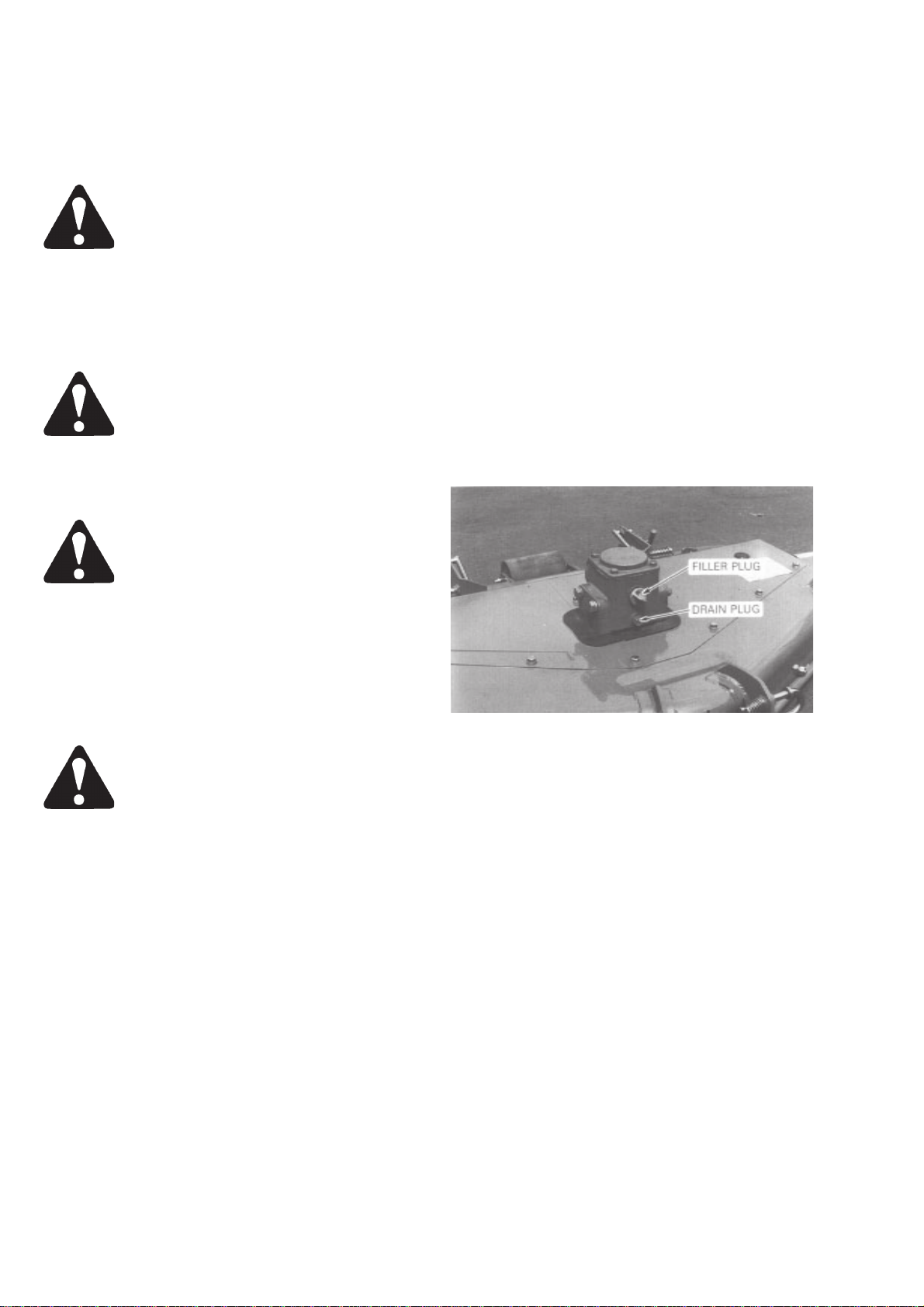

GEAR BOX OIL
Checking Gear Box Oil Level;
Check the oil level every 25 hours.
1. With the mower standing level, and after the
mower has been stopped for a period of time,
check the oil level at the check plug, Figure 6.
Figure 6 Gear Box Oil Checking and Filler Plug
2. If the oil level is lower than the plug, add oil to
the transmission through the filler hole. Be
careful not to overfill. Use SAE 90 gear oil.
3. Install the checking plug.
Changing the Gear Box Oil;
Change the oil after the first 50 hours of operation
and every 200 hours as follows;
1. Remove the mower from the tractor and block
securely in position.

11
For best cutting results the mower blades should be
kept sharp. Ragged cut indicates the blade may be
dull. The blades should be sharpened when they
become as shown in Figure 8 left 'A' and should be
replaced when they become as shown in Figure 8
right 'B'.
New Blade Early Blade Wear
Wear
Figure 8 - Blade Wear
To sharpen or replace the blade;
1. Remove the mower from the tractor and turn
upside down.
2. Secure the blade to prevent it from turning,
using a piece of wood as a wedge between
one blade and the housing while loosening or
tightening the mounting bolt for blade.
3. Loosen the bolt with a socket wrench and
remove the blade.
WARNING: To avoid injury hands must
be protected with heavy gloves when
removing or installing blade.
NOTE: Use the proper metric size box or socket
wrench to tighten or loosen bolts.
4. Sharpen the blade maintaining the blade
sharpening angle of 45°, see inset Figure 9.
Figure 7 - Draining Oil from Gear Box
2. Drain the oil by unscrewing the drain plug.
Discard the oil.
3. With the mower standing level, add new oil,
until the oil reaches to the check plug hole.
Use SAE 90 gear oil.
4. Install the filler plug.
LUBRICATION FITTINGS
Clean off all 7 lubrication fittings, refer to page 8,
before using grease gun. Lubricate until grease is
visible. All pivots of linkage should be lubricated,
refer to page 23.
Use NLG1 No.2
BLADE REPLACEMENT AND SHARPENING
WARNING: To avoid injury always be
careful when removing or installing
blades.
WARNING: Your dealer can supply
factory authorised replacement blades.
They are made of special steel alloy
and subjected to rigid heat treatment
and inspection requirements. Substitute
blades may not meet these rigid
specifications and may be dangerous.
LUBRICATION AND MAINTENANCE

12
Figure 9 - Sharpening Blade
5. After sharpening, check blade for balance by
supporting blade as shown in Figure 9 using
the centre hole as a guide. File or grind metal
from the heavy end of the blade until the blade
balances.
WARNING: To reduce the possibility of
personal injury while sharpening the
blade, protective glasses and heavy
gloves must be worn.
6. If blades become badly worn or damaged,
replace with new blades. Order new blades
from your dealer. It is recommended that
blades be replaced in sets. For your
convenience keep a spare set of blades on
hand. Install the blade as shown in Figure 10.
The mounting bolt for blade should be torqued
to 87-108 lbs.ft. (118-147N.m)
Figure 10 - Installing Blade
IMPORTANT: Be sure to install “Conical Spring
Washer” facing to blade. Marks on washer must be
away from blade.
BELT ADJUSTMENT
This belt is located on top of the mower deck under
the belt covers. This belt is properly adjusted at the
factory. When the belt begins to slip adjust the belt
as follows;
1. Remove the mower from the tractor.
2. Remove the left hand and right hand belt
covers by removing bolts and washers. Clean
around the gearbox.
3. Adjust the length of tension spring to 5¾
inches (145 mm) with tension screw and
locknut, as shown in Figure 11, or adjust the
belt tension by pushing the belt midway
between the L.H. Pulley and R.H. Pulley, as
shown in Figure 1 lA. Be sure the idler arm is
moving freely on its pivot pin.
4. After adjusting the belt, tighten the tension
screw and locknut. Reinstall the belt covers.
Figure 11 - Adjusting the Belt Tension
LUBRICATION AND MAINTENANCE

13
Figure 11 Adjusting the Belt Tension
If the belt is worn or cracked, it must be
replaced.
BELT REPLACEMENT
If replacement is required order original replacement
belt from your dealer
1. Remove the mower from the tractor.
2. Remove the left and right hand belt covers by
removing bolts and washers.
3. Remove the tension screw and lock nut, in
Figure 11.
4. Remove the R.H. gear box support bracket,
shown in Figure 11.
5. Remove the belt from the tension pulley over
the top of gear box and discard the used belt.
6. Install the new belt by reversing the above
procedure. The belt tension should be
adjusted as described under BELT
ADJSUTMENT.
7. lnstall the gear box bracket (R.H.) and belt
covers securely.
8. Install the mower on the tractor, see page 21
to 22 for installation instructions
STORAGE/TROUBLE SHOOTING
STORAGE
If your mower attachment is to be stored for an
extended period, it is advisable to do the following,
1. Remove grass build-up from underside of
deck.
2. Clean and wash entire mower deck.
3. Lubricate mower deck thoroughly. See
MAINTENANCE AND LUBRICATION
CHART.
4. Before operating mower again, check mower
belt and blades.
It is not advisable to store your mower in an area
where it will come in contact with fertiliser fumes.
Fertiliser fumes can damage your mower’s paint
finish.
TROUBLE SHOOTING
STREAKING: Leaving strips of uncut grass.
Possible Causes : Deck not level front to rear, dull
blades, tip of blade not square, blade lift worn off, low
engine RPM. Incorrect length replacement blade, not
enough overlapping between cutting rows, ground
speed too high, belt slippage, wet grass, blade
upside down.
SCALPING: Blades hitting dirt or cutting very close
to the ground.
Possible Causes: Ground speed too high, rough
terrain, deck mounted improperly blade upside down,
cutting too low, incorrect blade pitch, incorrect anti-
scalp roller setting.
STRINGERS: Occasional blades of uncut grass.
Possible Causes: Low RPM, plugged deck, dull
blades, ground speed too high, belt slippage, wet
grass, blade upside down.
UNEVEN CUT: Wavy appearance, high, low, high.
Possible Causes: Too much blade (deck) pitch, bent
deck, uneven ground, deck mounted improperly,
plugged deck, lift worn off blade, dull blades, bent
spindle mounting area, bent blades, ground speed
too high.
LUBRICATION AND MAINTENANCE

14
STEP CUT: Clear ridges in grass height. Possible
Causes Deck not level side to side, tire pressures
not equal, bent deck, bent blade, blade upside down,
deck mounted incorrectly, wrong spindle assembly,
internal spindle failure, bent spindle, wheels uneven.
The following is a check list of possible causes. They
are arranged in the best manner for eliminating any
of the preceding problems.
1 .Check that the deck is mounted correctly. The
correct pins are positioned and properly
clipped.
2. Blades should be sharp (see LUBRICATION
AND MAINTENANCE section) and mounted
correctly. Blades should be straight with
cutting edge down.
3. Engine RPM. Unit must be run at full engine
RPM. Reducing RPM slows blade tip speed
which reduces the cutting efficiency of the
mower deck.
4. The tire pressure must be correct. (see
MOWER ADJUSTMENT).
5. Check tension on drive belts as per Operator’s
Manual. A slipping belt will cause a loss in
blade tip speed.
6. Ground speed should be at about an average
walking pace, to suit height and density of
grass.
7. The length of grass being removed should be
no more than ½ the height of the grass before
it is cut.
8. Clean out any accumulation of grass and
debris from the underside of the mower deck.
9. Lubricate the idler control linkages and all
other pivot points.
10. The conditions of the ground. Uneven ground
may show scalping or uneven cutting. Raise
the cutting height of the mower deck.
11. Pitch or level of the deck and blades is
incorrect. Check for proper adjustment of the
gauge wheels and lift linkages.
SPECIFICATIONS
Cutting Width 48 in. (122cm)
Cutting Height 11/2 to 4 1/4 in
(3.8 - 10.8cm)
1 ‘/2, 1 3/4, 2,
2 1/4, 2 1/2, 2 3/4, 3,
3 1/4, 3 1/2, 3 3/4, 4, 4 1/4
Adjustment of
Cutting Height Gauge Wheel
Gauge Roller
Blade Speed 3600 r.p.m
Blade Tip Speed 15695ft/min.
Number of Blades 3
BLADE SBA645310111
5t x 50 x 420mm
(0.2t x 2 x 16.5inch)
WARNING: Use these blades only with
Blade Bolt SBA-499430882. Yellow
Coloured)
MountingMethod Parallel Linkage
Weight Approximate282Pounds
(128kg)
LUBRICATION AND MAINTENANCE

15
LUBRICATION AND MAINTENANCE
GENERAL TORQUE SPECIFICATION TABLE
USE THE FOLLOWING TORQUES WHEN SPECIAL TORQUES ARE NOT GIVEN
NOTE: These values apply to fasteners as received from supplier, dry, or when lubricated with normal
engine oil. They do not apply if special graphite or moly disulphide greases or other extreme pressure lubricants
are used. This applies to both metric coarse and fine threads.

16
PREPARING MOWER FOR OPERATION
MOWER TERMINOLOGY

17
1. LIFT ROD ASSY (2) 7. REAR BRACKET
2. LIFT LINK ASS’Y(RH) 8. PIVOT SHAFT
3. LIFT LINK ASS’Y(LH) 9. FRONT BRACKET
4. UNIVERSALJOINT 10. STABILIZER 2
5. FRONT LINK ASSY 11. BRACKET 2
6. UP STOP 12. DISCHARGE DEFLECTOR (Not shown)
Qty
13. PARTS FOR DISCHARGE
DEFLECTOR
SHAFT 13 x 164 1
SPRING PIN 4 x 2O 2
TORSION SPRING 1
SPACERS
11/32(t9) 1
t 7/32(t6) 1
COLLARS
t 7/32(t6) 2
t ‘’,’32(t9) 2
l 1 9/16 (l40) 1
BOLTS AND PINS
BOLTS M12x25 (11T) 8
BOLTS M12x3O (11T) 1
BOLTS M12x35 (11T) 4
BOLTS M12x45 (11T) 6
NUT M12 4
SPRING WASHER FOR M12 15
WASHER FOR M12 2
WASHER FOR M20 2
SPLIT PIN 4 X 4O 2
PREPARING MOWER FOR OPERATION

18
ASSEMBLY OF MOWER TO TRACTOR
PREPARING THE TRACTOR
1 When optional large tires (AG5.00-12, AG6-12
with AG9 .5-16) are attached to the tractor, the
mower can not be mounted. Use standard
tires or turf tires only. The front wheel tread
setting in two wheel drive tractor should be
adjusted only as shown in Figure 23 when the
mower is mounted.
2. Set tractor lift links at the lift rods for full lift
height to prevent lift links from being too low
when mower is in operating position, Figure
20.
ATTACHING THE MOWER LIFT LINKS TO THE
TRACTOR
NOTE: Tighten all of mounting bolts and nuts with
the correct torque’s after all bolts are in place. See
bolt torque’s, page 14.
1. Install the front bracket to the inside of tractor
front support, Figure 12.
NOTE: If a loader bracket is installed, put it to the
out side of the tractor front support. These brackets
should be tightened together, Figure 13.
Figure 12 - Installing the Front Bracket without
Loader
Figure 13 - Installing Front Bracket
with Loader Mounting Bracket
2. Install the rear bracket below the transmission
housing, Figure 14.
Figure 14 - Installing the Rear Bracket
TRANSPORTING THE MOWER
WARNING: For safe operation, when
transporting the tractor using 3-point
hitch or loader with mower attach, the
mower must be locked in transport
position. Raise the mower and lock the
lift link using the hook and pin to the
rear bracket. Figure 15.
Figure 15 - Locking the Mower when transporting
PREPARING MOWER FOR OPERATION
