The Handy THBCATT Installation and maintenance instructions

OPERATOR’S MANUAL AND PARTS LIST
BRUSHCUTTER ATTACHMENT
FOR MULTI TOOL - THBCATT
Spares & Support: 01793 333212
www.thehandy.co.uk
Before use please read & understand this manual, paying particular
attention to the safety instructions.
24/07/2013

SAFETY INSTRUCTIONS
Read and understand the owner’s manual and labels affixed to the to
the machine. Learn its application and limitations as well as the
specific potential hazards. Retain these instructions for future
reference.
• Use sturdy footwear and a helmet with eye and ear protection. Protect
exposed parts of your body. Wear heavy duty gloves, preferably made of
leather.
• Do not wear loose clothing or jewellery. Keep hair, clothing and gloves
away from moving parts.
• Do not operate the machine if you are tired, ill or under the influence of
alcohol or drugs.
• Do not smoke when using the machine and ensure caution when
handling fuel. We recommend you fuel the machine at least 3m away
from where you wish to work to prevent spilt fuel igniting when starting
the engine.
• Ensure that bystanders, children and pets keep well away when starting
or trimming - at least 15m.
• Inspect the machine and all attachments before use for any worn or
damaged parts. Do not use until the parts are repaired or replaced.
• Before starting the engine make sure the attachment is not in contact
with anything and have a clear work area and secure footing.
• The machine should not be exposed to high temperatures or damp and
wet conditions.
• Clean the machine after each use and, if storing for a prolonged period,
drain down the fuel in the tank. Remove the spark plug and put a few
drops of oil into the cylinder before pulling the starter a 2-3 times to
distribute the oil evenly. Replace the spark plug.
• Regularly check that screws, bolts and nuts are correctly fitted.
• Remove tools from the machine before starting, to prevent them being
thrown by the machine which may cause injuries to the user or
bystanders.
• Do not force the machine. Use the correct machine for the task. The
correct machine will do the job better and safer at the rate for which it
was designed.
• Do not use this machine if the switch does not turn it on and off.
Any machine that cannot be controlled with the switch is dangerous and
must be repaired or replaced before use.
• Where possible make use of a shoulder harness when using the
machine. Adjust the harness to a comfortable operating position before
using the machine. Maintain a firm grip on both handles during use. Keep
your body clear of the cutting area of the machine.
• Do not attempt to remove a blockage from a jammed machine before first
switching the engine off.
• If you are interrupted when operating the machine, switch off the engine
immediately. Do not allow yourself to be distracted while the machine is
on. Turn the machine off before talking to any bystanders.
Page2

Page 3

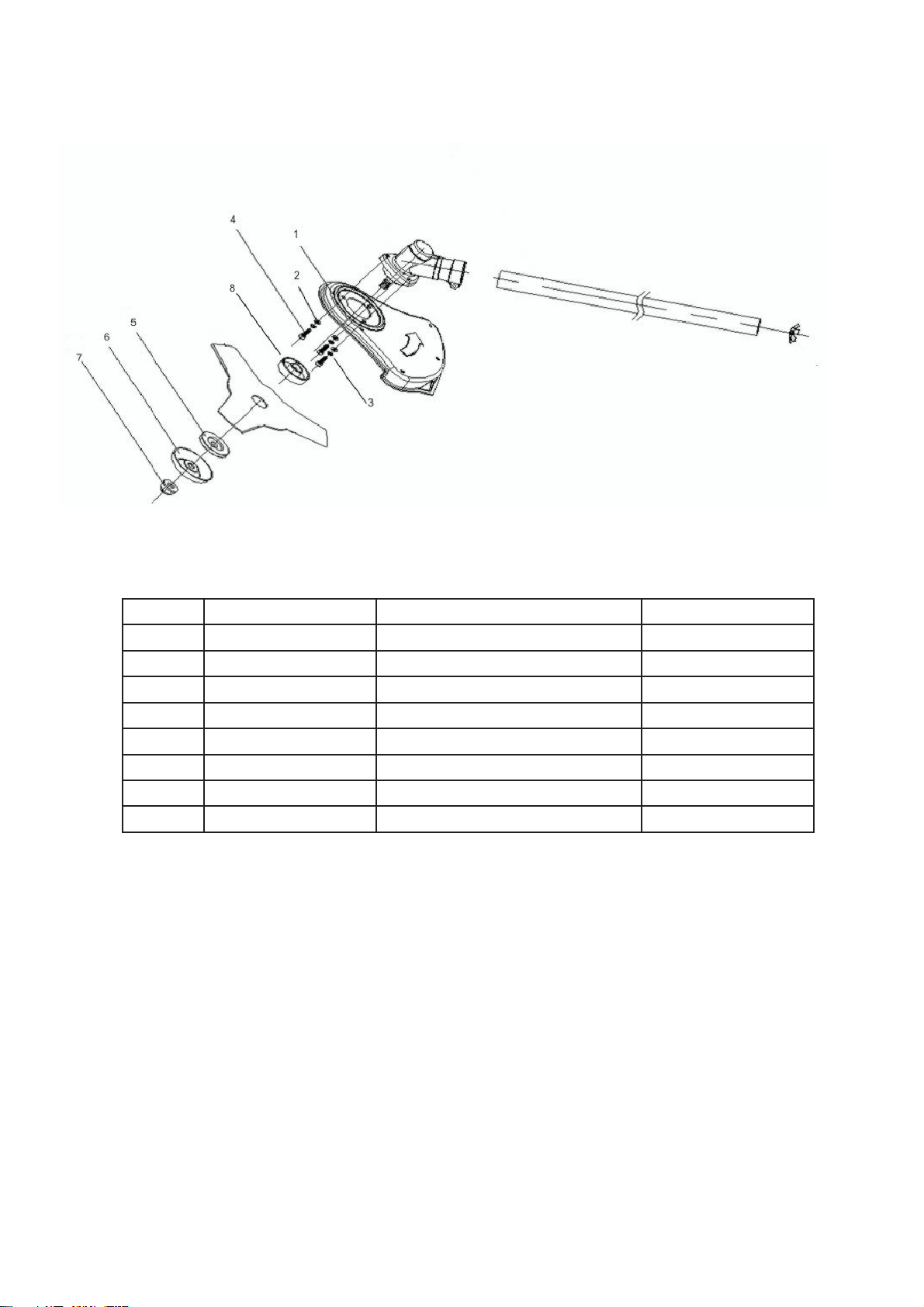

PARTS DIAGRAM AND LIST - BRUSHCUTTER (THBCATT)
No Part No Description Qty
1 TH130-1 Shield 1
2 TH130-2 Flat Washer 3
3 TH130-3 Spring Washer 3
4 TH130-4 Screw 3
5 TH130-5 Blade Boss Outer 1
6 TH130-6 Nut Cover 1
7 TH130-7 Lock Nut (Left Hand) 1
8 TH130-8 Blade Boss Inner 1



Page4

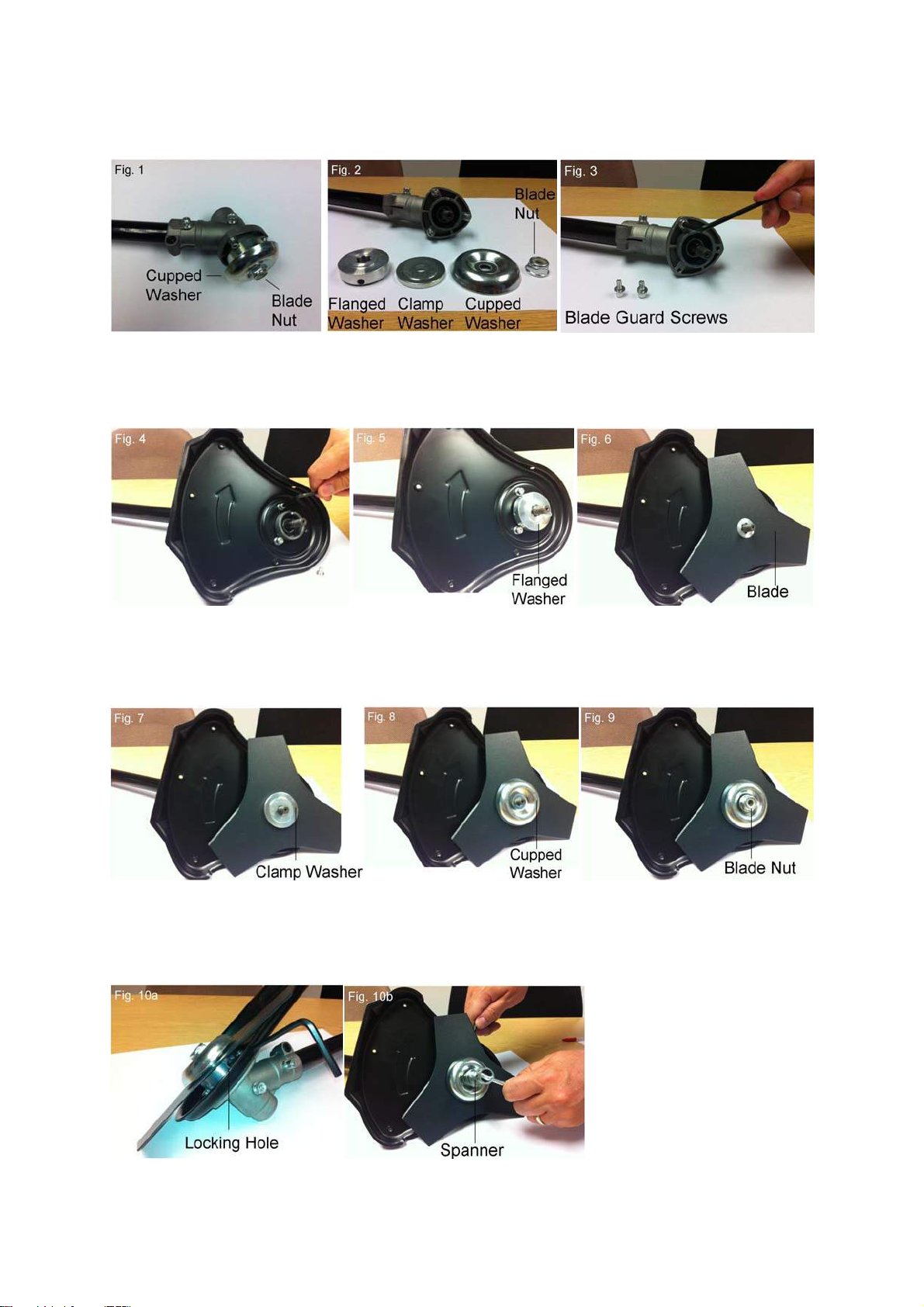

ASSEMBLY
Remove the Blade Nut, this nut has a left hand thread so should be turned
clockwise to undo it.
Remove the Cupped Washer, Clamp Washer and Flanged Washer.
Remove the 3 Blade Guard Screws with the Allen key.
Position the Blade Guard over the Blade Guard Screw holes, insert and
tighten the screws.
Fit the Flanged Washer.
Fit the Blade over the raised section of the Flanged Washer.
Fit the Clamp Washer.
Fit the Cupped Washer.
Fit the Blade Nut, this nut has a left hand thread so should be turned anti-
clockwise to tighten it.
Locate the Allen key in the locking hole to stop the shaft rotating and firmly
tighten the Blade Nut with the spanner supplied.
Fig. 1
Fig. 2
Fig. 3
Fig. 4
Fig. 5
Fig. 6
Fig. 7
Fig. 8
Fig. 9
Fig. 10
Brushcutter Attachment:

Page 5
OPERATION
Operating the Brushcutter:
• Operate the throttle trigger with your right hand and hold the barrier handle with your left
hand.
• Always keep a rm grip with both hands during operation.
• The brushcutter should be held at a comfortable position with the trigger handle about hip
height. Adjust the harness to suit.
• Maintain a rm footing in case the machine hits a solid object and kicks back.
• Do not use the brushcutter near fencing, posts, buildings or other immoveable objects -
use the line trimmer attachment.
• Best results are obtained if you cut from right to left in a broad sweeping action.
• If a hard object is hit, stop the machine and inspect for any damage straight away.
• Never attempt to sharpen the blade. It is reversible so should be turned over when blunt.
The blade must remain balanced. Always check for any damage before use and replace
a damaged blade immediately.
To avoid burns from the hot engine, never operate the unit with the bottom of the
engine above waist level or on the operator's left side.Always position the unit on the
user's right side.
Page 2
SPECIFICATIONS
Cutting Diameter 205mm
Shaft Straight
Blade 3 Segment Brush Blade
Blade Diameter 205mm
Net Weight (empty tank) 5.7kg
Declared Sound Pressure Level 96 dB(A)
Declared Sound Power Level 106 dB(A)
Vibration 8 m/s2
Gear Ratio 23:17
Max Cutting Speed 6600 rpm

ALSO AVAILABLE FROM HANDY
Page6
THEXT Extension Bar
• Heavy duty steel construction
• Quick and simple attachment
• Weight 0.8kg
HP-166 Chainsaw Chain 3/8 1.3mm (91vg) 40DL
• Fits THPATT Handy Pruner Attachment
THHCATT-A Hedge Cutter Attachment
• Fits Handy, McCulloch, Flymo & Ryobi split shaft trimmers
• Articulated through 90° for easier hedge trimming
• 370mm Blade / 24mm Cutting capacity / 655mm Shaft length
• Large blade gap for improved cutting efficiency
• Double reciprocating blade / Easy angle adjustment
• Compatible with Extension Bar
• Weight 2.2kg
THPATT Pruner Attachment
• Easily attachable to your existing power unit, giving you a long reach pruner
that is perfect for those out of the way pruning jobs on trees or shrubs.
• Will fit Handy, Mowerland, Ryobi, Flymo, McCulloch and Partner machines.
• On board chain oil container for automatic chain lubrication
• Compatible with Extension Bar
• 255mm bar and chain.
• 180mm cutting capacity.
• 655mm shaft length.

GUARANTEE
This product is guaranteed against manufacturing defects for a period of 12 months.
This does not cover the product where the fault is due to misuse, abuse, use in
contravention of the instructions, or where the product has been the subject of
unauthorised modifications or alterations. This warranty only covers domestic use
and will be void if the tool is used for a commercial application. In the event of a
problem with the product within the guarantee period, please contact Customer
Service on 01793 333212 or email customerserv[email protected]. If the
issue cannot be resolved over the telephone or by email, you may be referred to
your local approved service dealer.
Please keep your sales receipt as proof of purchase
Your statutory rights remain unaffected. Guarantor: Handy Distribution SN3 4NS
Whilst every effort is made to accurately represent the product, small variations in
colour, design and specification may occur. We reserve the right to alter the product
without giving notice.
