The Louvre Lounge 3400 User manual

www.thelouvrelounge.co.nz
3400 Instruction Manual

www.louvrelounge.co.nz | 2
CONTENTS
Required Tools & Man Force
Parts List
Product Description
Safety Disclaimers
Installation
Foundation Installation
Remote Setup
Disassembly
Storage & Disposal
1.
2.
3.
4.
5.
6.
7.
8.
9.
3
4-5
5
6-8
9-17
18-19
20
20
21
ATTENTION: Read this instruction manual
thoroughly before starting installation.
First of all, thank you so much for choosing The Louvre
Lounge to spice up your outdoor space. Please make
sure you've thoroughly studied the instruction manual
before starting installation.
If you have any questions during the installation
process, please email us at [email protected].

www.louvrelounge.co.nz | 3
REQUIRED TOOLS & MAN FORCE
Man Force

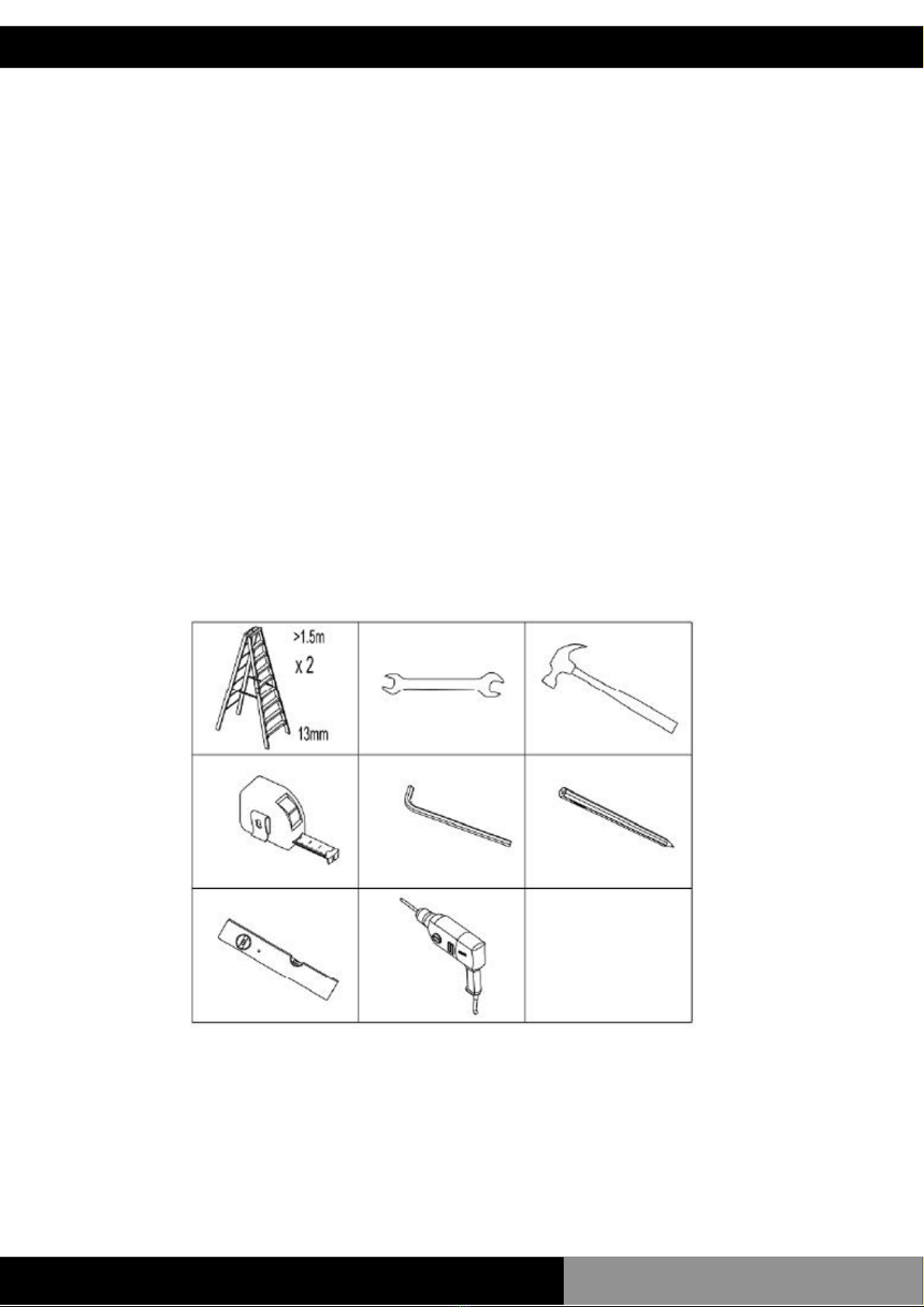

Tools:
Ladder
Tape Measure
Pencil
Spirit Level
Rubber Mallet
Electric Drill
M10/13 Open Wrench (SUPPLIED)
5mm Hexagon Wrench (SUPPLIED)
1.
2.
3.
4.
5.
6.
7.
8.
We recommend installing The Louvre Lounge with 2-3
people although having a third person would make the
installation quicker.

www.louvrelounge.co.nz | 4
PARTS LIST
Before commencing the installation, please confirm all
parts are present. Email us at [email protected]
if you have any issues.

www.louvrelounge.co.nz | 5
PARTS LIST
Before commencing the installation, please confirm all
parts are present. Email us at [email protected]
if you have any issues.
Hardware:
Aluminium Structure:
PRODUCT DESCRIPTION
Make the most of your outdoor living area with the 3400
series Louvre Lounge. The motorised louvres and LED lights
transform your outdoor space into the ultimate entertaining
area for you to enjoy for years to come.

www.louvrelounge.co.nz | 6
SAFETY DISCLAIMER'S
WARNING: For the safety of yourself and others, it is
essential to follow all instructions and obey warnings.
Definitions:
This warning triangle calls attention to hazards that
that can lead to death, severe injuries or which are
important for the functioning of the Pergola.
This symbol identifies important notes.
Safety Disclaimer's
You are unsure if the pergola can be installed in the chosen spot
for installation.
You do not understand the instruction manual or parts of it.
You do not have the necessary tools available.
You do not have the necessary technical knowledge
To install this pergola technical knowledge is necessary. Do not
install this pergola yourself instead, contact a professional if:
1.
2.
3.
4.
A minimum of three healthy adults are required to move and install
the pergola as the product is big and heavy. Do not try to install the
pergola alone. If the pergola falls, it could cause serious injuries and
damages! Contact us or a professional for help.

www.louvrelounge.co.nz | 7
Do not install the pergola when you find damaged parts or parts that
are missing. Contact us.
Keep children and pets out of the working area during assembly and
adjustments.
This product and its fixing parts are only suitable for installation on a
plain cement pad. If the concrete pad shows cracks or you require
installation on a wooden deck, please consult a professional before
installation.
Nobody is permitted to change the pergolas’ design and structure
without the permission of us (Louvre Lounge Limited)
Nobody is allowed to climb onto the Pergola. Hanging anything on
the Pergola is forbidden.
The sheeting used to protect the paint must be removed after installation. This
structure is a non-permanent structure, the warranty does not cover damage
incurred under extreme weather conditions including heavy rain, high winds or
if exposed to high heat from heaters or BBQs. Please refer to the warranty
policy for more information.
Safety precautions should always be followed when assembling and using this
product to reduce the risk of personal injury and damage to equipment. Never
leave children unattended around/under this pergola. Do not attempt to
assemble or use the pergola in moderate or heavy wind conditions.
Always secure the pergola and keep the louvres open during heavy winds or
extreme weather to avoid damage to the pergola or personal injury.

www.louvrelounge.co.nz | 8
Attach base plate③x4 to the bottom of posts ( x1, x2
and x1),use bolts①x8 to attach with hex key or
electric drill.
Both posts need to be installed diagonally.
Refer to the diagram below.
D2
D1
D3
D2
INSTALLATION
Step 1:

www.louvrelounge.co.nz | 9
a. Remove bolts ⑥x6 from each post and set them
aside. A total of 24 bolts should be set aside.
b. Attach beams Ⓐ X1 Ⓑ x1 and Ⓒ x1 to the posts, and use
bolts ⑥ which were previously removed to fasten
tightly. ⑥x6 bolts should be remaining.
INSTALLATION
Step 2:

www.louvrelounge.co.nz | 10
Attach the last beam Ⓒ x1 to the posts using the
remaining ⑥x6 bolts from step 2 to fasten tightly.
Refer to the diagram for correct installation.
INSTALLATION
Step 3:

www.louvrelounge.co.nz | 11
Attach the upright covers ④x4 to the top of each post.
Use bolts ⑥x8 to fasten.
INSTALLATION
Step 4:

www.louvrelounge.co.nz | 12
Attach all four gutters ( Ⓔ x2 and Ⓕ x2 )by slotting them
on the inside of all four beams - Ⓐ , Ⓑ and Ⓒ .
INSTALLATION
Step 5:

www.louvrelounge.co.nz | 13

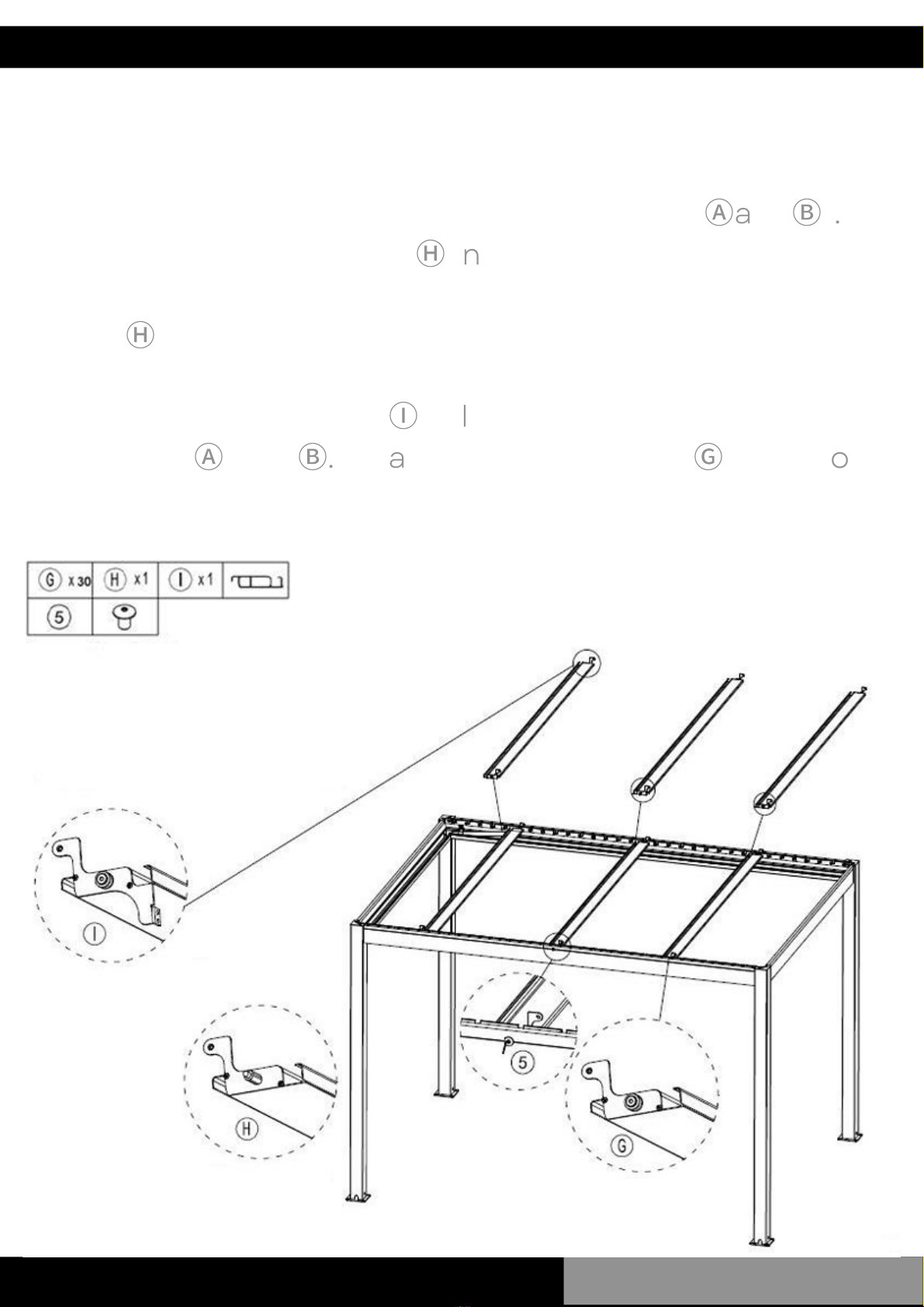

Locate the holes in the centre of the beams( Ⓐ and Ⓑ ).
Place the strength louvre Ⓗ into the 16th slot, lining up
with the holes. Using the M10 nut ⑤X2, secure the
louvre Ⓗ in place on both sides.
Place the driving louvre Ⓘ in line with the 6th slot on
the beams Ⓐ and Ⓑ . Fit all common louvres Ⓖ X30 into
the remaining slots on the beams.
INSTALLATION
Step 6:

www.louvrelounge.co.nz | 14
Attach the control rods Ⓙ x2 to each side of the
pergola by placing the plastic spacer ⑦ between the
control rod and the louvre's, threading the bolt ⑥
through from the control rod side and tightening with
a nut ⑧.
Repeat the process until all louvres are secured to the
control rods on both ends.
NOTE: Do not over-tighten. Over-tightening will prevent
louvers from moving.
INSTALLATION
Step 7:

www.louvrelounge.co.nz | 15
Place a rubber gutter connector ⑪ in each of the four
corners to seal the gutters. Next, place the 50 to 40
pipe fitting ② inside the gutter connecter closest to
the motor.
Ensure cables run through the 50 to 40 pipe fitting
down the post to stop water flowing through the beam
and onto the cables.
TIP: We recommend silicone is used to fully seal the
pipe fitting ② with the rubber gutter connecter ⑪ .
INSTALLATION
Step 8:

www.louvrelounge.co.nz | 16
a. Unscrew the 4 bolts on the beam Ⓑ where the motor
will be positioned and set aside. Fasten the motor ⑨x1
to the beam Ⓑ with the 4 bolts previously set aside.
b. Next, fasten the motor to the driving louvre from
step 6. Make sure louvres are closed when completing
this step.
Refer to the diagram below.
INSTALLATION
Step 9:

www.louvrelounge.co.nz | 17
a. Connect the motor to the power cable by
connecting the male and female plugs (DC24V to
DC24V).
b. Connect the LED lighting to the motor power cable
by connecting the male and female plugs DC24V to
DC24V) between each gutter.
It is essential to make sure the thread nut is tightened
to secure the connection.
INSTALLATION
Step 10:

www.louvrelounge.co.nz | 18
The last step in the installation process involves
securing your Louvre Lounge to the foundation. We
provide instructions to install into a concrete pad
although you must seek professional advice to ensure
the pergola is installed correctly to all local regulations.
Once the pergola is in place and square, mark 4 holes
for each post then move aside and drill all 16 holes
using a 12mm drill bit. Move the pergola back into place
ensuring it's square. Fasten to the concrete slab by
tightening the nuts of the 4 expansion bolts ⑩ for each
post.
Once installed, make sure any remaining plastic is
removed, and silicone is used along all corners and
gutters to waterproof.
FOUNDATION INSTALLATION

www.louvrelounge.co.nz | 19
2503 (Overall height)
Refer to the following diagram to ensure the pergola is
perfectly square before installing the foundation
permanently.
FOUNDATION INSTALLATION
2330 (Including base plate thickness)
2664
(Distance between posts)
2964 (Overall distance)
4005 (Overall distance)
3705 (Distance between posts)

REMOTE SETUP
Once all installation steps are complete, plug the
pergola into the power outlet to start the remote
pairing process.
Remote Disconnection
Press and hold the lamp button on the manual control attached to the pergola post
for 5 seconds.
After this has been completed, press the down button on the remote. The indicator
light on the manual control unit will flash 3 times if the disconnection is successful.
Please note: The down button on the remote MUST be pressed within 15 seconds of
the lamp button being pressed on the manual control unit.
Remote Pairing:
Press and hold the lamp button on the manual control attached to the pergola post
for 5 seconds.
After this has been completed, press the up button on the remote. The indicator
light on the manual control unit will flash 3 times if pairing is successful.
Please note: The up button on the remote MUST be pressed within 15 seconds of
the lamp button being pressed on the manual control unit.
DISASSEMBLY
Keep the pergola louvres open before you begin disassembling. Bind the louvres
of the pergola together to avoid unintended unfolding. This might cause
damage and injury. You can use the protection band that was fixed on the
Pergola when purchasing it.
Follow the mounting instructions in reverse order to disassemble the pergola.
Make sure that any holes drilled for the pergola foundations are filled.
If you want to disassemble the pergola, please follow the following process.
Attention! At least two people are needed for this step.
Attention! Safety hints and instructions have to be followed for disassembly as well.
www.louvrelounge.co.nz | 20
