The Singing Machine SMG-301 User manual

SMG-301 Please read before using this unit.
Compact Disc + Graphic
Karaoke Center

WARNINGS
WARNING:TO REDUCE THE RISK OF
FIRE OR SHOCK HAZARD, DO NOT EXPOSE
THIS PRODUCT TO RAIN OR MOISTURE.
CAUTION: TO PREVENT THE RISK OF
ELECTRIC SHOCK, DO NOT REMOVE COVER
OR BACK. NO USER-SERVICEABLE PARTS
INSIDE. REFER SERVICING TO QUALIFIED
PERSONNEL.
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
This symbol is intended to alert you
to the presence of uninsulated
dangerous voltage within the
product'senclosurethatmightbeof
sufficient magnitude to constitute a
risk of electric shock. Do not open
theproduct'scase.
This symbol is intended to inform
you that important operating and
maintenance instructions are
included in the literature
accompanyingthisproduct.
CAUTION
TO PREVENT ELECTRIC SHOCK, MATCH
WIDE BLADE OF PLUG TO WIDE SLOT,
FULLYINSERT.
DRIPPINGWARNING
The product shall not be exposed to dripping
or splashing and that no objects filled with
liquids, such as vases, shall be placed on the
product.
VENTILATIONWARNING
Thenormalventilationoftheproductshallnot
beimpededforintendeduse.
This CD player is made and tested to meet
exacting safety standards. It meets FCC
requirements and complies with safety
performance standards of the U.S.
DepartmentofHealthandHumanServices.
Warnings:
!This CD player employs a laser light beam.
Only a qualified service person should
remove the cover or attempt to service this
device,duetopossibleeyeinjury.
!The use of controls, adjustments, or
procedures other than those specified
herein might result in hazardous radiation
exposure.
CAUTION
This compact disc player is classified as a
CLASS1LASERproduct.
The CLASS 1 LASER PRODUCT label is
locatedontherearpanel.
CAUTION!
Invisible laser radiation when open and inter
locksdefeated.Avoidexposuretobeam.
E1
CLASS 1
LASER PRODUCT
ENGLISH

IMPORTANT SAFETY INSTRUCTIONS
1. ReadInstructions-Allthesafetyandoperatinginstructionsshouldbereadbeforetheproductisoperated.
2. RetainInstructions-Thesafetyandoperatinginstructionsshouldberetainedforfuturereference.
3. HeedWarnings-Allwarningsontheproductandintheoperatinginstructionsshouldbeadheredto.
4.Followinstructions-Alloperatinganduseinstructionsshouldbefollowed.
5. Cleaning - Unplug this product from the wall outlet before cleaning. Do not use liquid cleaners or aerosol
cleaners.Useadampclothforcleaningtheexterioronly.DoNOTattempttocleantheinside.
6. Attachments - Do not use attachments not recommended by the product manufacturer as they may cause
hazards.
7. Water and Moisture - Do not use this product near water - for example, near a bath tub, wash bowl, kitchen
sink,orlaundrytub;inawetbasement,ornearaswimmingpool,andthelike.
8. Accessories - Do not place this product on an unstable cart, stand tripod, bracket, or table. The product may
fall, causing serious injury to a child or adult, and serious damage to the product. Use only with a cart, stand,
tripod, bracket, or table recommended by the manufacturer, or sold with the product. Any mounting of the
productshouldfollowthemanufacturer'sinstructions,andshoulduseamountingaccessoryrecommendedby
themanufacturer.
9. Aproductandcartcombinationshouldbemovedwithcare.Quickstops,excessiveforce,andunevensurfaces
maycausetheapplianceandcartcombinationtooverturn.
10. Ventilation- Slots and openings in the cabinet are provided for ventilation and to ensure reliable operation of
the product and to protect it from overheating, and these openings must not be blocked or covered. The
openings should never be blocked by placing the product on a bed, sofa, rug, or other similar surface. This
product should not be placed in a built-in installation such as a bookcase or rack unless proper ventilation is
provided.
11. PowerSources-Thisproductshouldbeoperatedonlyfromthetypeofpowersourceindicatedonthemarking
label. If you are not sure of the type of power supply to your home, consult your product dealer or local power
company. For products intended to operate from battery power, or other sources, refer to the operating
instruction.
12. Grounding or Polarization - This product may be equipped with a polarized alternating current line plug (a
plughavingonebladewiderthanthe other). This plugwillfitintothepoweroutletonlyoneway. This is asafety
feature.Ifyouareunabletoinserttheplugfullyintotheoutlet,tryreversingtheplug.Iftheplugshouldstillfailto
fit, contact your electrician to replace your obsolete outlet. Do not defeat the safety purpose of the polarized
plug.
Alternate Warnings - This product may be equipped with a three-wire grounding-type plug, a plug having a
third(grounding)pin.Thisplugwillonlyfit intoagrounding-typepoweroutlet.Thisisasafetyfeature.Ifyouare
unable to insert the plug into the outlet, contact your electrician to replace your obsolete outlet. Do not defeat
thesafetypurposeofthegrounding-typeplug.
13. Power-Cord Protection - Power supply cords should be routed so that they are not likely to be walked on or
pinched by items placed upon or against them, paying particular attention to cords at plugs, convenience
receptacles,andthepointwheretheyexitfromtheproduct.
14. Protective Attachment Plug - The product is equipped with an attachment plug having overload protection.
This is a safety feature. See Instruction Manual for replacement or resetting of protective device. If
replacement of the plug is required, be sure the service technician has used a replacement plug specified by
themanufacturerthathasthesameoverloadprotectionastheoriginalplug.
E2
ENGLISH

IMPORTANT SAFETY INSTRUCTIONS

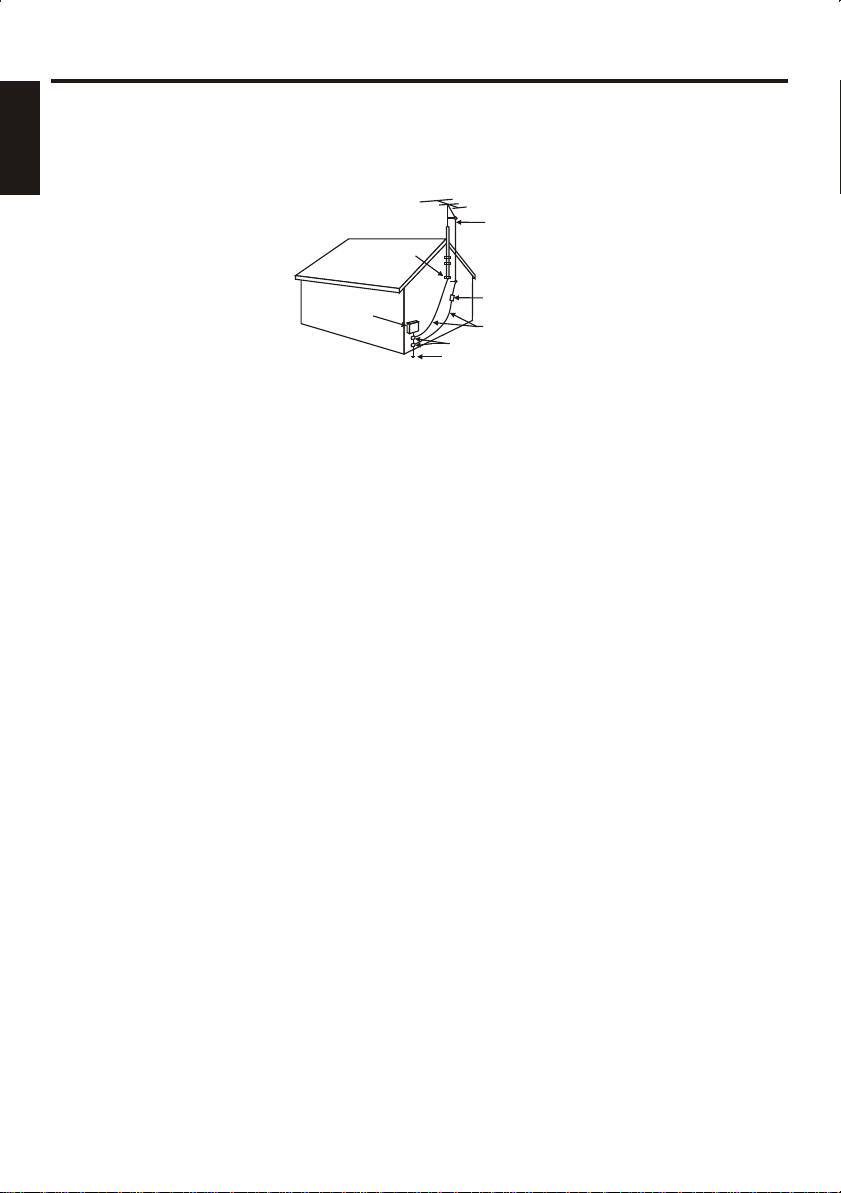

15. OutdoorAntennaGrounding-Ifanoutsideantennaisconnectedtothereceiver,besuretheantennasystem
isgroundedso as to provide some protection againstvoltagesurgesand built-up static charges. Article 810of
theNationalElectricalCode,ANSI/NFPA70, provides information with regard to proper groundingofthemast
and supporting structure, grounding of the lead-in wire to an antenna-discharge unit, size of grounding
conductors, location of antenna-discharge unit, connection to grounding electrodes, and requirements for the
groundingelectrode.Seefigure:
16. Lightning - For added protection for this product during a lightning storm, or when it is left unattended and
unusedforlongperiodsoftime,unplugit fromthewalloutletanddisconnecttheantennaorcablesystem.This
willpreventdamagetotheproductduetolightningandpower-linesurges.
17. PowerLines-Anoutsideantennasystemshouldnotbelocatedinthevicinityofoverheadpowerlinesorother
electric light or power circuits, or where it can fall into such power lines or circuits. When installing an outside
antenna system, extreme care should be taken to keep from touching such power lines or circuits as contact
withthemmightbefatal.
18. Overloading - Do not overload wall outlets, extension cords, or integral convenience receptacles as this can
resultinariskoffireorelectricshock.
19. Object and Liquid Entry - Never push objects of any kind into this product through openings as they may
touchdangerousvoltagepointsorshort-outpartsthatcouldresult inafireorelectricshock.Neverspillliquidof
anykindontheproduct.
20. Servicing - Do not attempt to service this product yourself as opening or removing covers may expose you to
dangerousvoltageorotherhazards.Referallservicingtoqualifiedservicepersonnel.
21. Damage Requiring Service - Unplug this product from the wall outlet and refer servicing to qualified service
personnelunderthefollowingconditions:
a) Whenthepower-supplycordorplugisdamaged,
b) Ifliquidhasbeenspilled,orobjectshavefallenintotheproduct,
c) Iftheproducthasbeenexposedtorainorwater,
d) If the product does not operate normally by following the operating instructions. Adjust only those controls
that are covered by the operating instructions as an improper adjustment of other controls may result in
damage and will often require extensive work by a qualified technician to restore the product to its normal
operation.
e) Iftheproducthasbeendroppedordamagedinanyway,and
f) Whentheproductexhibitsadistinctchangeinperformance-thisindicatesaneedforservice.
22. Replacement Parts - When replacement parts are required, be sure the service technician has used
replacement parts specified by the manufacturer or have the same characteristics as the original part.
Unauthorizedsubstitutionsmayresultinfire,electricshock,orotherhazards.
23. SafetyCheck-Uponcompletionof anyserviceorrepairstothisproduct,asktheservicetechniciantoperform
safetycheckstodeterminethattheproductisinproperoperatingcondition.
24. Wall or Ceiling Mounting- The product should be mounted to a wall or ceiling only as recommended by the
manufacturer.
25. Heat - The product should be situated away from heat sources such as radiators, heat registers, stoves, or
otherproducts(includingamplifiers)thatproduceheat.
ANTENNA
LEAD IN
WIRE
ANTENNA
DISCHARGE UNIT
(NEC SECTION 810-20)
GROUNDING CONDUCTORS
(NEC SECTION 810-21)
GROUND CLAMPS
POWER SERVICE GROUNDING
ELECTRODE SYSTEM
(NEC ART 250. PART H)
GROUND
CLAMP
ELECTRIC
SERVICE
EQUIPMENT
NEC-NATIONAL ELECTRICAL CODE
S2898A
E3
ENGLISH

INTRODUCTION
Your SMG-301 Compact Disc + Graphics Karaoke Center will provide you with many years of
funand entertainment.Itcanlet youbethe“star”asyousingalongwith yourfavoriterecordings
andhearyourvoicewiththemusicthroughthesystem’sspeakers.
ThisKaraokeCenteriseasytouse,yetfulloffeatureswithacompactdesign.Justafewsimple
instructionsandyouwillbecomeanexpert.Beforeyouuseyourunit,pleaseglancethroughthis
manual to familiarize yourself with all the features available and the sections of the manual that
describetheiroperation.Next,gotothesectionforthespecificoperationyouwishtoperform.
Foryoureasyreference,listedherearesomeofthemainfeaturesofthisKaraokeCenter:
LyricsonTVscreen-displaysthelyricswiththetempoofmusicwhenplayingCD+Gdiscs.
Auto Voice Control- lets you replace the original singer's voice with your own voice when any
prerecorded, multiplex karaoke disc or tape is played. To activate, just rotate Mic Volume to a
comfortable listening level, and Auto Voice Control for the best balance between playback and
microphonelevels.
Balance Control - lets you adjust the balance between the prerecorded original singer's voice
andthemusicifyouuseamultiplexkaraokedisc.
EchoControl-letsyouaddanechotoenrichyourvoiceforaconcerthalleffect.
MultipleKaraokemusiccenter-itplaysaudioCompactDiscs,CD+Graphicsdiscs.
Built-InStereoSpeaker-letsyousharethemusicwithyourfamilyorfriends.
AuxiliaryInput Jacks- letsyouconnectanotheraudioinputsource,suchasastereoVCRora
RadioTuner,soyoucansingalongwithanothermusicsource.
Auxiliary Output Jacks - lets you connect another audio output component, such as an
equalizer/boosteroraPAsystem.
ExtensionSpeakerJack-allowsextraspeakerhook-up.
Three CDG Changer -allowsupto3CDGDiscsand/or audio Compact Discs to be played and
programmedcontinuouslyandautomatically.
E4

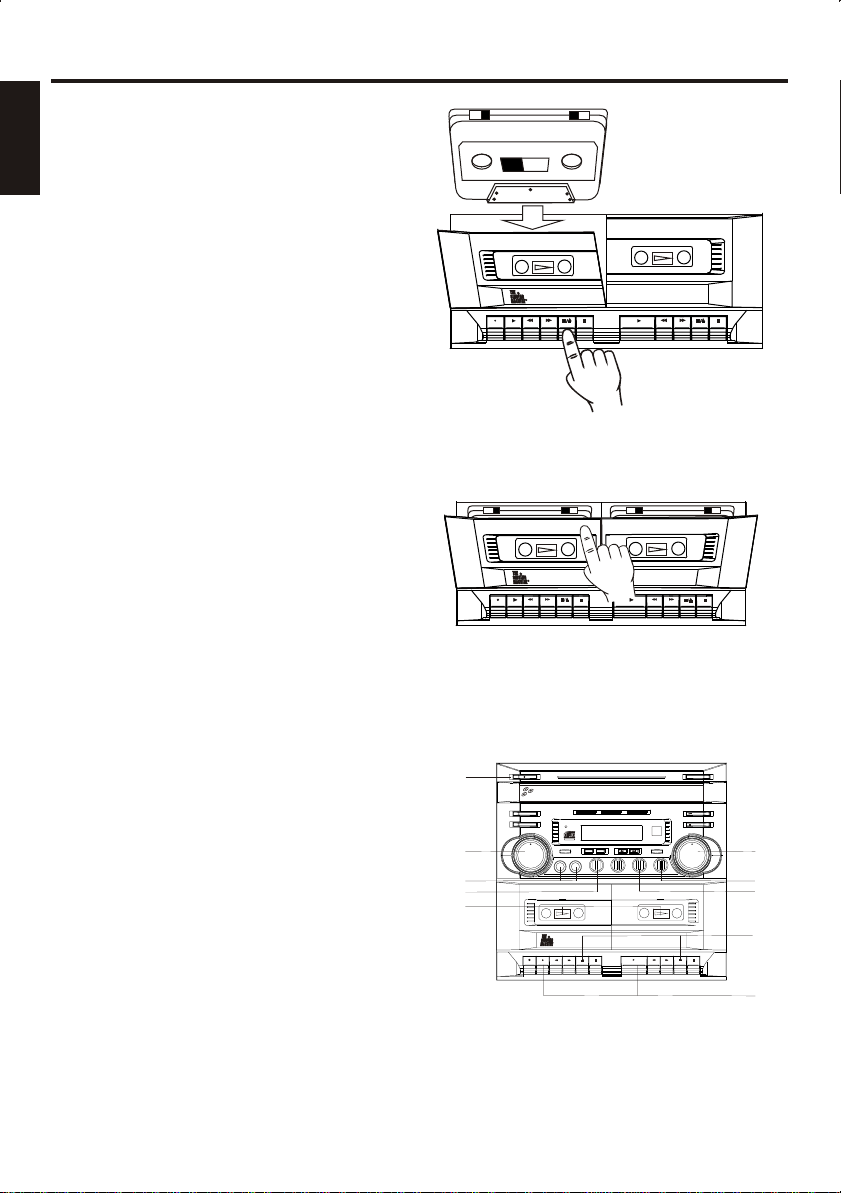

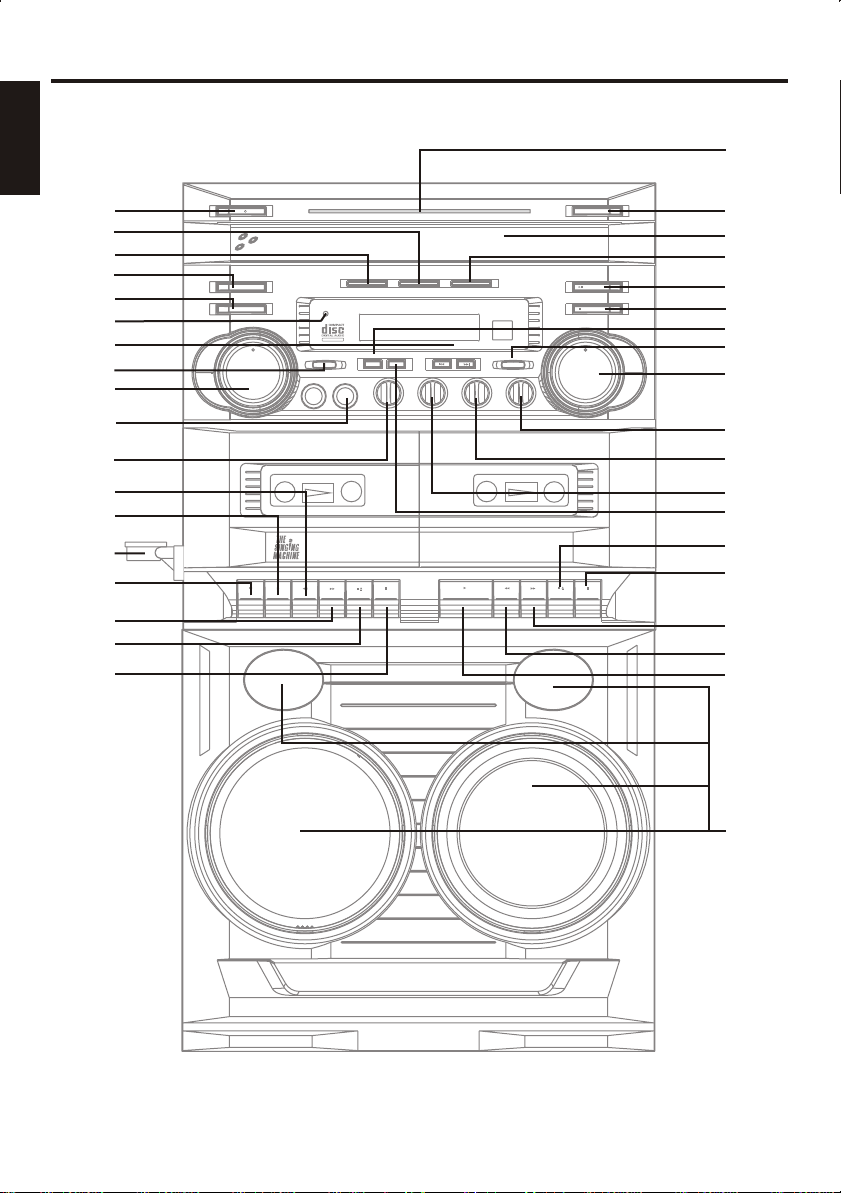

CONTROL LOCATIONS
For Tape 1
1. REWIND Button
2. PLAY Button
3. RECORD Button
4. FAST FORWARD (FFWD) Button
5. STOP/EJECT Button
6. PAUSE Button
For Tape 2
7. STOP/EJECT Button
8. PAUSE Button
9. FAST FORWARD (FFWD) Button
10. REWIND Button
11. PLAY Button
12. POWER Button
13. DISC 2 Button
14. DISC 1 Button
15. DISPLAY Button
16. DISC SKIP Button
17. CDG LED Indicator
18. SKIP Buttons
19. MEGA BASS Button
20. MIC VOLUME Control
21. MIC Jacks
22. ECHO Control
23. MIC Holder
24. STANDBY LED Indicator
25. OPEN/CLOSE Button
26. Model Number
27. DISC 3 Button
28. PLAY/PAUSE Button
29. STOP Button
30. REPEAT Button
31. FUNCTION SELECT
32. MASTER Volume Control
33. PITCH Control
34. BALANCE Control
35. AUTO VOICE CONTROL (A.V.C.)
36. PROGRAM Button
37. Hi Fi 2 Way Stereo Speaker System
38. AUX OUT Jacks (L / R)
39. AUX IN Jacks (L / R)
40. VIDEO OUT Jack
41. EXT.SPEAKER Jack
42. DC Jack (12V)
43. AC POWER Cord
ENGLISH

E5
CONTROL LOCATIONS
ENGLISH
OPEN/CLOSE
RECORD/PLAYBACK PLAYBACK
RECREC PLAY PLAY
REW REW
FFWD FFWD
STOP/EJ. STOP/EJ.
PAUSE PAUSE
DYNAMIC SOUND
TAPE 1 TAPE 2
DISC 1 DISC 2 DISC 3
3 CD 3 COMPACT DISC+ GRAPHICS KARAOKE
SMG-301 3 CD ROTARY CHANGER SYSTEM
DISPLAY
DISC SKIP
MIC VOLUME
PLAY/PAUSE
STOP
MASTER VOLUME
G R A P H I C S
3CD+GRAPHIC CHANGER DISPLAY REMOTE
SENSOR
CDG
MEGA BASS
MIC 1 MIC 2 ECHO A.V.C. BALANCE PITCH
MIN MAX OFF LRLO HI
REPEAT SKIP FUNCTION SELECT
PROGRAM
/ON

12
24
25
27
28
29
30
31
32
33
34
35
7
8
9
10
11
37
13
14
15
16
17
18
19
20
21
22
1
2
23
3
4
5
6
36
26

AC~
AUX IN AUX IN VIDEO
L R IN
RL
TV
VIDEO
OUT
OUT
EXT.
SPK.
IN
AUX
E6
CONTROL LOCATIONS
39
40
41
38
42
43
ENGLISH

RC-301

SLEEP
MUTE
1 2 3
5
4
76
+109 0
8
RANDOM DISC
SKIP
SKIP STOP
PLAY/
PAUSE
REPEAT
DISPLAY
PROGRAM
FUNCTION
VOLUME
BASS
/
/ON
E7

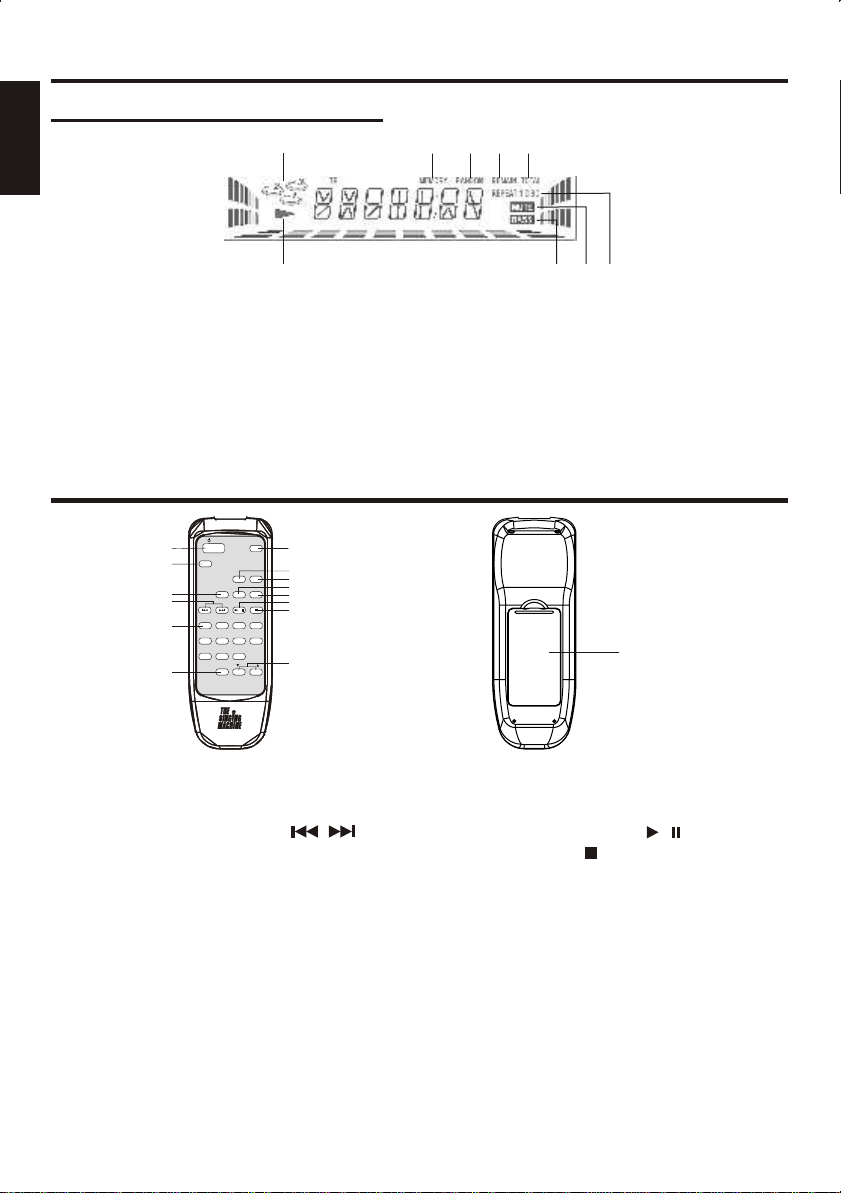

DISPLAY
VFD DISPLAY - ON THE UNIT
1. DISC Icon
2. MEMORY Icon
3. RANDOM Icon
4. REMAIN TRACK Icon
5. TOTALTRACK Icon
6. REPEAT Icon
7. MUTE Icon
8. BASS Icon
9. DISC PLAY Icon
REMOTE CONTROL OVERVIEW
1. POWER Button
2. FUNCTION Button
3. RANDOM Button
4. SKIP Buttons
5. Number Buttons
6. BASS Button
7. MUTE Button
8. PROGRAM Button
9. DISPLAY Button
10. REPEAT Button
11. DISC SKIP Button
12. PLAY/PAUSE Button
13. STOP Button
14. VOLUME Buttons
15. Battery Compartment Lid
REMOTECONTROL(BATTERIESNOTINCLUDED)
Tooperate
!Removerearbatterycompartmentlid,byslidingitawayfromthebackcabinet.
!Installtwoalkaline AAbatteriesintheproper position with +& - polarities asindicated
inthebatterycompartment.Besuretoreplacethecompartmentlid.
!Fortroublefreeuse,pointremotecontroldirectlyattheSMG-301.
!Ifremotefailstooperate,changethebatteries.
(ThisRemoteControlisnotcompatiblewithuniversalremotecontrols.)
15
/
/
1
6
2
7
3
4
5
8
9
10
11
12
13
14
ENGLISH
1 2 345
6
7
8
9

CAUTION: The supplied AC power cord, has a polarized plug that fits into the wall outlet only
oneway.Iftheplugdoesnotfitproperly,turnitoverandtryagain.Donotforceit.
CONNECTIONTOTVSET
In order to display song lyrics from CDG also to appear on TV screen, you must connect the
included video cable (yellow colored RCA single-plug) to the Video Output jack on the back of
yourSMG-301unit.Thenconnecttheotherendofthevideoplug(yellow)totheVideoInputjack
of the television. If your television does not have the required Video Input, you will need an RF
Modulator(RadioFrequencyModulator),whichconnectsthroughyourTVantennaorcableline
andservesasVideoInput.
CONNECTINGANAUDIOCOMPONENTFORINPUT
To connect another audio source (such as a Tuner, an AV Receiver or a VCR) so you can sing
along with its music, simply connect the Audio Output jacks (Red & White RCAjacks) to the
SingingMachine’sAUXINR&Ljacks.
E8
MAKING THE CONNECTIONS
R
L
VIDEO IN AUDIO IN
RL
REAR VIEW OF
SINGING MACHINE REAR VIEW OF TV
VIDEO OUTPUT
(Yellow Jack) VIDEO INPUT
(Yellow Jack)
OUT IN
AUX VIDEO
OUT
RL
ANOTHER
AUDIO COMPONENT
R
L
REAR VIEW OF
SINGING MACHINE
AUX INPUT
R
(Red Jack)
AUX INPUT
L
(White Jack)
AUDIO OUTPUT
R
(Red Jack)
AUDIO OUTPUT
L
(White Jack)
AUDIO OUT
OUT IN
AUX
ENGLISH

Please have the sample CDG demo disc provided with your Singing Machine playing in the
Singing Machine when you are making these connections so you will see the lyrics on the
screenassoonasyouhavethesetupcompletedcorrectly.
You must specify the source you wish to view when you are connecting the video out from the
Singing Machine to either a TV or a VCR. Every TV and VCR manufacturer accomplishes the
set-up a little differently. Even though every TV and VCR is a little different, the general idea is
thesame-ifyouhavetwosourcesofvideosignal(cableorantennaandSingingMachine),you
havetospecifywhichoneisdisplayedonthescreen.
If you have never used the video input RCA jack on your TV/VCR you should consult your
TV/VCR user guide. If you don’t have the manual for your TV or VCR, we suggest calling the
customer service department for your manufacturer. They will be able to tell you very quickly
howtoconfigureyourTVorVCRtodisplaythevideoconnection.
ThethreemostcommonwaystosetuptheTV/VCRare:
1) A ‘Video’ button may be on the TV/VCR or on the remote control. Pressing ‘Video’ may
displaytheinputfromyourSingingMachine.
2) Try looking for a ‘Video’ channel between the regular channels on your TV/VCR. Do this by
setting the channel on the TV/VCR to channel 2 then pressing the ‘Down’ channel button to
seeif thereis a‘Video In’ or ‘Line In’ between the lowest channel and the highest channel on
yoursystem.
3) Theconfigurationmay also be located intheset-up menu on the TV/VCR.Lookfor a section
on ‘Input Selection’ where you might be able to choose the input source i.e. ‘Cable/Ant.’,
‘Video1’,‘LineIn’or‘VideoIn’.
DCJACKOPERATION:12Vto14Vmaximum.
A DC jack is provided for external DC power for use in a car, boat or RV. Please be sure that
inside of the jack is connected to ⊕12Vside and the outside of jack is connected to , negative
side battery. 12 volts fuse protected lighter style plug extension cord with adapter is
recommended.
MAKING THE CONNECTIONS
negative “-”, OD = 5.5mm
positive “+”, ID = 2.0mm
E9
ENGLISH
