The Singing Machine Classic iSM990BT User manual

iSM990BT
THE SINGING MACHINE® is a registered trademark of The Singing Machine Company, Inc.
THE SINGING MACHINE® es marca registrada de The Singing Machine Company., Inc.
Instruction Manual
Manual de Instrucciones
Please read before using this unit.

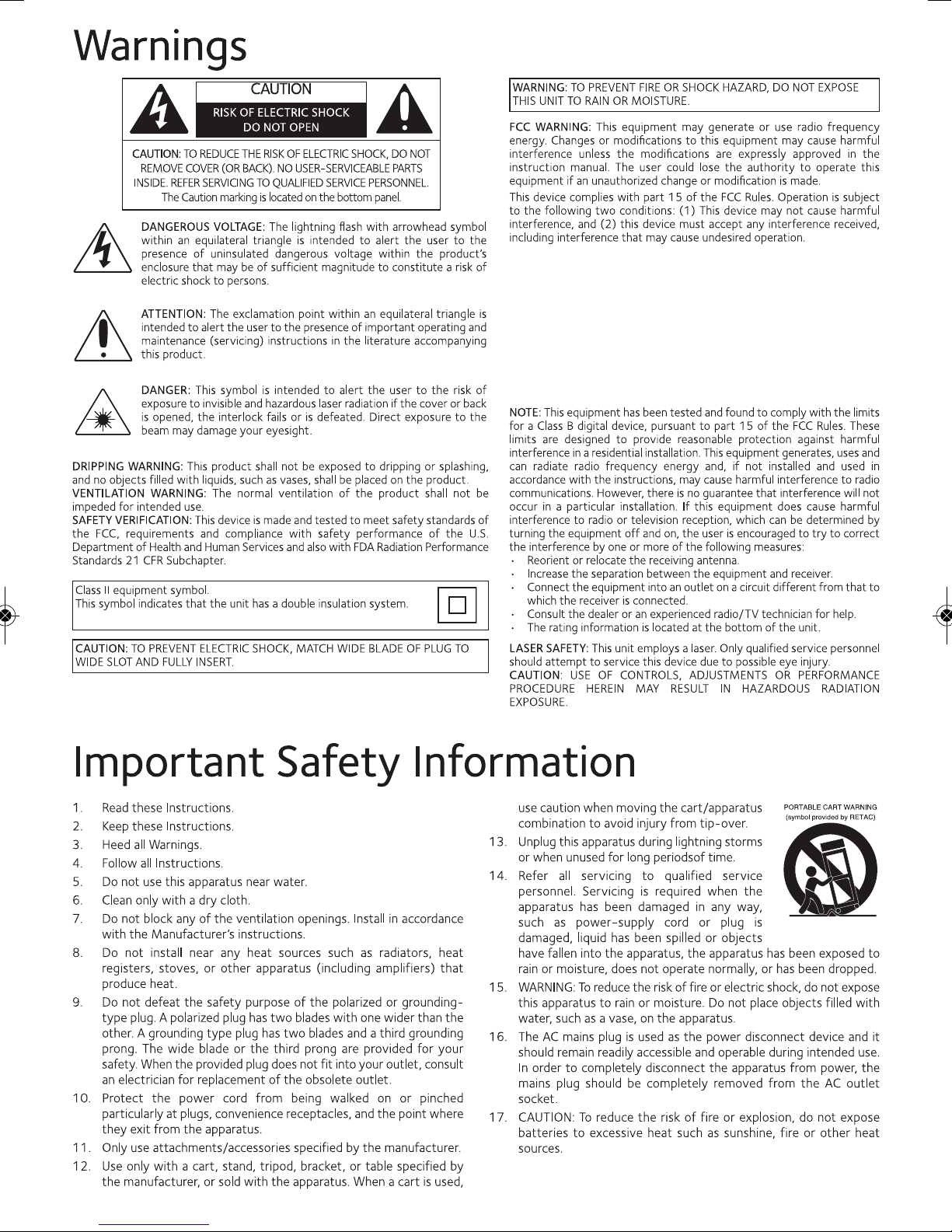

This device complies with Industry Canada licence-exempt RSS
standard(s). Operation is subject to the following two conditions: (1) this
device may not cause interference, and (2) this device must accept any
interference, including interference that may cause undesired operation
of the device.
Le présent appareil est conforme aux CNR d'Industrie Canada applicables
aux appareils radio exempts de licence. L'exploitation est autorisée aux
deux conditions suivantes : (1) l'appareil ne doit pas produire de
brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage
radioélectrique subi, même si le brouillage est susceptible d'en comprom-
ettre le fonctionnement.
E - 1
CAN ICES-3(B)/NMB-3(B)
The distance between user and products should be no less than 20 cm.
La distance entre l’utilisateur et de produits ne devrait pas être inférieure à 20 cm.

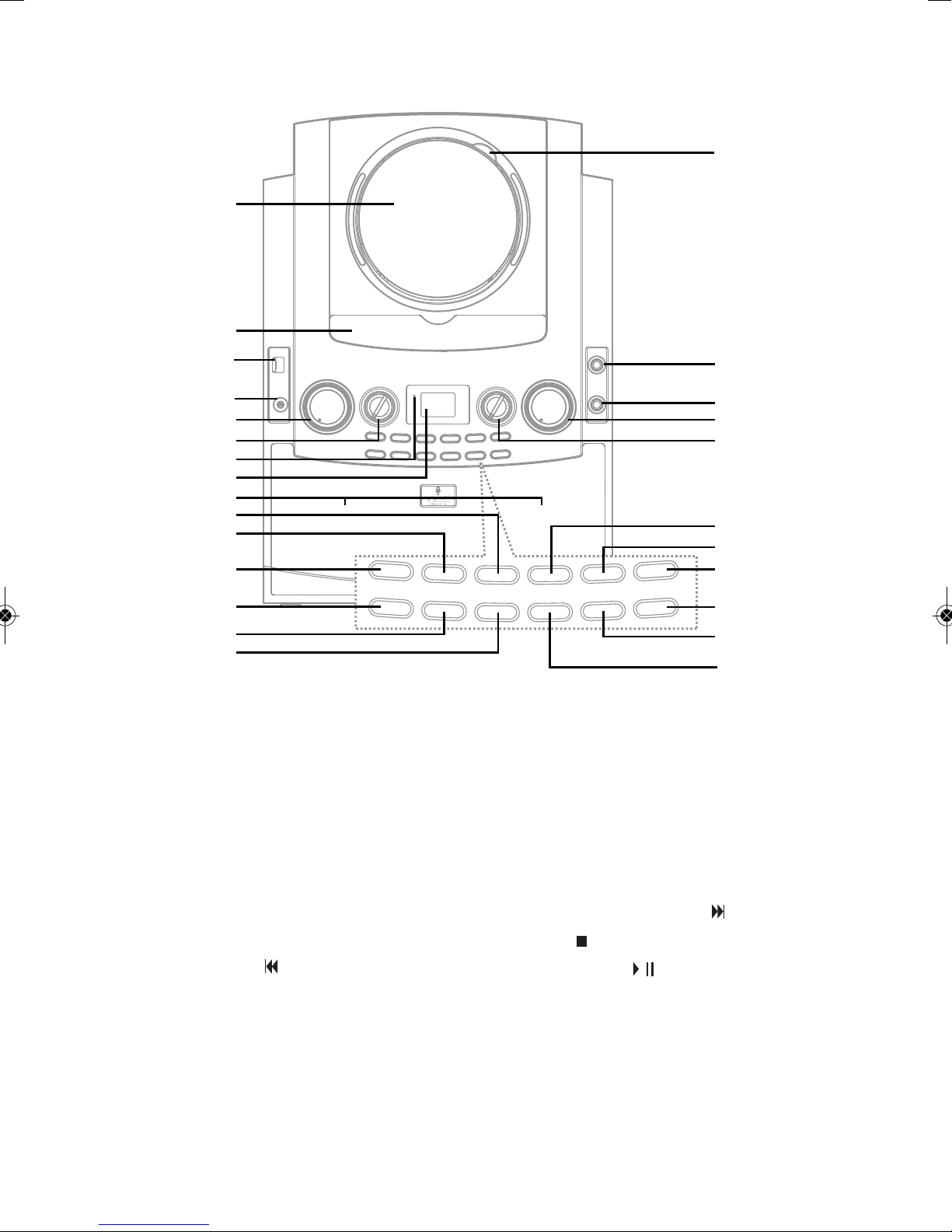

Location of Controls
1. CD Compartment
2. Cradle
3. USB Port
4. LINE IN Jack
5. MASTER VOLUME Control
6. BALANCE Control
7. Power Indicator
8. Display
9. Speakers
10. Skip/Search Back Button (for CD)
11. 10+ Track Button
12. PROGRAM/REPEAT Button
13. Power ON/OFF Button
14. FUNCTION Button
16. CD OPEN Area
17.
18.
19.
Mic 1 Jack
20.
Mic 2 Jack
21.
MIC VOLUME Control
22.
ECHO Control
23.
Skip/Search Forward Button (for CD)
24.
Stop Button
25.
Play/Pause Button
26.
AVC (Auto Voice Control) ON/OFF Button
PAIRING Button
KEY +/PAGE + Button (for MP3 and
MP3+G only)
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
Front
E - 2
15. KEY –/PAGE – Button (for MP3 and
MP3+G only)

Location of Controls
1. Handle
2. VIDEO OUT Jack
3. AUDIO OUT Right Jack
4. AUDIO OUT Left Jack
5. DC Jack
1. PLAY/PAUSE, REPEAT ONE, REPEAT
FOLDER, REPEAT ALL
2. MP3(MP3+G) PLAYBACK, CD(CD+G)
PLAYBACK, USB FUNCTION MODE,
PROGRAM ON
3. TRACK NUMBER/FUNCTION MODES
3
1
2
1
2
3
4
5
Rear
Display
E - 3

Connection
VIDEO
INPUT
AUDIO
INPUT
R L
REAR VIEW OF TV OR DVD PLAYER
REAR VIEW OF SINGING MACHINE
RCA cables
AUDIO OUT
(white - L
red - R)
VIDEO OUT
(yellow)
Your Singing Machine is designed to
connect to your TV the same way you
would connect most video cameras, DVD
players or video game consoles, as follows:
1Connect the Audio/Video cable’s yellow plug to the yellow VIDEO
OUT jack on the iSM990BT and the
other end to the external unit’s
yellow Video In jack.
2Connect the Audio/Video cable’s
red and white plugs to the red and
white AUDIO OUT jacks on the
iSM990BT and the other ends to
the external unit’s red and white
Audio In jacks.
If left unconnected, the audio will
just play through this unit’s speakers.
Notes:
• This unit can be used with or without
a TV.
• To see the lyrics, you must use a CD+G
disc or MP3+G and an external TV.
• Also refer to the TV’s or external unit’s
User Guide.
• Audio/Video cables are included.
Connecting the Unit to an External TV, Stereo, etc.
E - 4

Connection
Connecting the Microphone
Insert a microphone’s plug into the Mic 1
jack �. Insert the other microphone’s plug
into the Mic 2 jack �(if desired).
Note: Do not drop or tap the mic, as damage
to the mic or speakers may occur. Do not
spin the microphone around for the same
reason.
Insert the small end of the AC adapter into
the DC IN jack on the rear of the unit. Insert
the other end (with the 2 blades) into a
conveniently located AC outlet having
110-240V AC, 50/60Hz.
Notes:
•Only use the supplied AC adapter. Failure to
do so may cause a fire or damage the unit.
• The AC adapter included with this unit is
for its use only. Do not use it with other
equipment.
• Turn off the unit before unplugging the AC
adapter from the unit to avoid damaging
the unit.
• When the unit is not going to be used for
a long time, disconnect the AC adapter
from the AC outlet.
• If the unit acts erratically or malfunctions,
unplug the unit, wait 20 seconds and plug
it back in.
• Never use an AC adapter that is damaged.
Route power lead in a safe manner and
make sure it is not subjected to trapping
or pinching. If the power lead is damaged,
refer to a qualified service agent.
E - 5
u
v
u
v

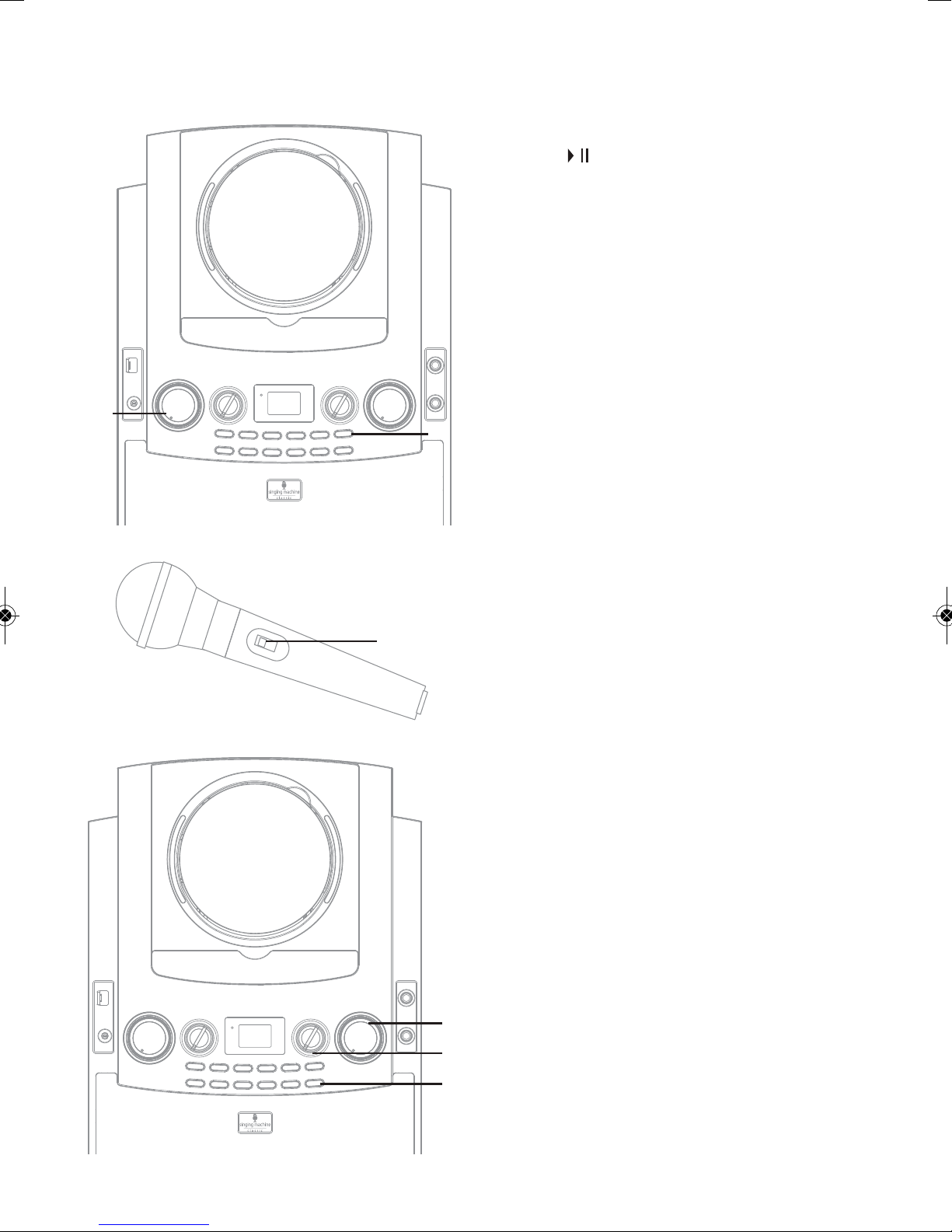

Operation
1Connect the unit as described previously. Press the Power ON/OFF
button to turn the unit on; the Power
indicator will light.
2Lift open the CD door and insert a CD (with standard or MP3+G files) or a
CD+G by gently pressing it on the
center spindle. Then close the CD door.
If using the USB drive with MP3+G
files, insert the USB into the USB slot.
(Always turn on the unit before
inserting your USB Flash Drive.)
FAQs
•What is a CD+G?
A CD+G (CD+Graphics), is the standard
format for most karaoke discs that will
display the words on the screen.
•What is an MP3+G?
MP3+G is the newest format for karaoke
music utilizing the MP3’s small file size. It
will display the words on the screen. See page
E -16 to order and download MP3+G files.
3Repeatedly press the FUNCTION button until the display shows “Cd” to
select the CDG/CD mode or “USb” to
select the USB mode.
4Press the Play/Pause button to start playback; if listening to an
MP3+G or CD+G file and connected to
an external TV, the image and lyrics
will appear on the TV (if connected).
Playing a CD (with or without MP3+G files), CD+G or USB Drive
u
v
wx
E - 6

Operation
5Adjust the volume to a comfortable level using the MASTER VOLUME
control.
Notes:
• Never place anything other than a CD in
the compartment, as foreign objects can
damage the unit.
• If no disc is inserted, “no” will appear in the
display.
• If no USB drive is inserted, “no” will appear
in the display.
• If connected to a TV or other audio source,
the sound will come from this unit and the
TV, so adjust either Volume as desired.
6Connect microphone(s) as shown on page E - 5, and slide the ON/OFF
switch to the ON position.
7Adjust the MIC VOLUME control as desired. Increasing this control will
increase the volume of the respective
microphone.
8Adjust the Echo control to add an echo effect to your voice.
9Adjust the Key to obtain the best key
for the singer on the track. Adjust the
key using the KEY –/PAGE – and KEY
+/PAGE + buttons; the level will
appear in the display. There are a total
of 12 keys.
Playing a CD (with or without MP3+G files), CD+G or USB Drive
U
X
V
W
X
y
E - 7

Operation
10Press the AVC (Auto Voice Control) ON/OFF button to the On position
and the vocals on a multiplex
recording will be muted as soon as the
singer begins singing into the
microphone. When the singer stops
singing, the vocals are automatically
unmuted.
IMPORTANT: This feature only works
with multiplex media.
11BALANCE: Balance allows you to eliminate the lead singer’s voice by
rotating the knob to the left when
playing a multiplex recording, or
eliminate the music by rotating the
knob to the right.
Note: When playing an audio CD or music-
only recording, the balance will shift to the
right or left speaker.
12SKIP: Advance or go back one track
by pressing the Skip Back /Skip
Forward buttons.
Note: If using a USB drive and connected to a
TV, during Stop mode you can also select a
file using the KEY –/PAGE – and KEY +/PAGE
+ buttons to scroll up/down or the Skip Back
/Skip Forward buttons to scroll left/right.
13SEARCH: During playback, press and
hold the Skip Back /Skip Forward
button to move the player forward
or backward within a track to locate a
specific musical passage. When you
release the button, normal playback
will resume.
Note: The Search function is not available for
CD+G playback.
Playing a CD (with or without MP3+G files), CD+G or USB Drive
ak
at
al
am
al
am
E - 8

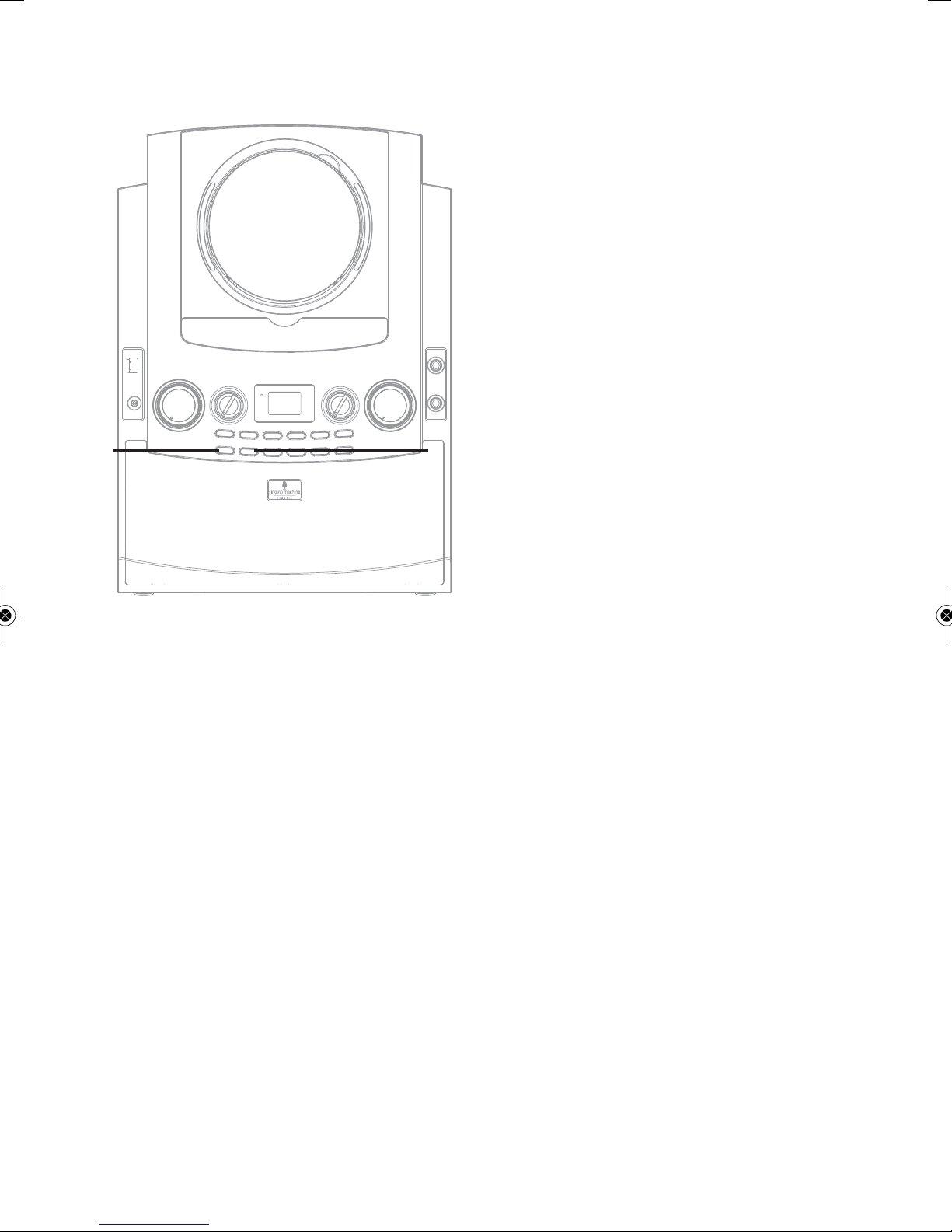

Operation
14SKIP 10 TRACKS: During playback, you can press the 10+ button to skip
foward 10 tracks.
15REPEAT: To repeat the current track, press the PROGRAM/REPEAT button
once during playback. REP1 will
appear in the display and the current
track will be repeated. Press the
PROGRAM/REPEAT button twice, REP
FOLDER will appear and all MP3
tracks inside the current folder will be
repeated continuously. To repeat all
tracks, press the PROGRAM/REPEAT
button again, REP ALL will display on
the LCD display. Press again to cancel
the Repeat feature.
Note: Repeat FOLDER function is not available
for normal music CD/CD+G playback.
16PROGRAM: You can program up to 20 tracks for playback in any desired order.
While in Stop mode, press the
PROGRAM/REPEAT button; PROG and
the track number will appear in the
display. Select the first track using the
Skip Back /Skip Forward buttons,
then press the PROGRAM/REPEAT
button. Repeat to set up to 20 tracks
into memory. When done, press the
Play/ Pause button to start
playback.
Note: Press the Stop button TWICE to stop
and clear the program.
Playing a CD (with or without MP3+G files), CD+G or USB Drive
ao an
ap
E - 9

Operation
17PAUSE: During playback, if you wish to pause the disc momentarily, press
the Play/Pause button; “ ” will
appear in the display. Press again to
resume normal playback.
Note: Pausing the unit while playing a CD+G
may distort the lyrics on the screen. This will
remain until the screen is refreshed.
18Press the Stop button to stop playback.
19Press the Power ON/OFF button to turn the unit off; the Power indicator
will turn off.
Playing a CD (with or without MP3+G files), CD+G or USB Drive
ar aq
as
E - 10

Operation
1Connect the unit as described previously. Press the Power ON/OFF
button to turn the unit on; the Power
indicator will light.
2Repeatedly press the FUNCTION button until “bt” blinks in the display to select
the Bluetooth mode.
3“bt” will blink rapidly to show the unit is in the Pairing mode. If it is not blinking
rapidly, press and hold the PAIRING
button until “bt” blinks rapidly in the
display.
4Switch on the Bluetooth function of your Bluetooth compatible device
within three feet of the iSM990BT. You
will see “Singing Machine” appear on
your device’s search list.
Note: Please always refer to the user manual of
your Bluetooth device for detailed instructions.
5Select “Singing Machine” to start pairing. Wait for completion of the
pairing and “bt” will stop blinking in the
display.
Notes:
• If your Bluetooth device prompts you for a
passcode during the pairing process,
please enter “0000” to connect.
• After initial pairing, the unit will stay paired
unless unpaired manually by the user or
erased due to a reset of the devices.
• If your device should become unpaired,
follow the above steps again. If any pairing
issues should occur, unpair the unit on your
Bluetooth device and follow the above steps
again.
Using a Bluetooth Device
uv
E - 11

Operation

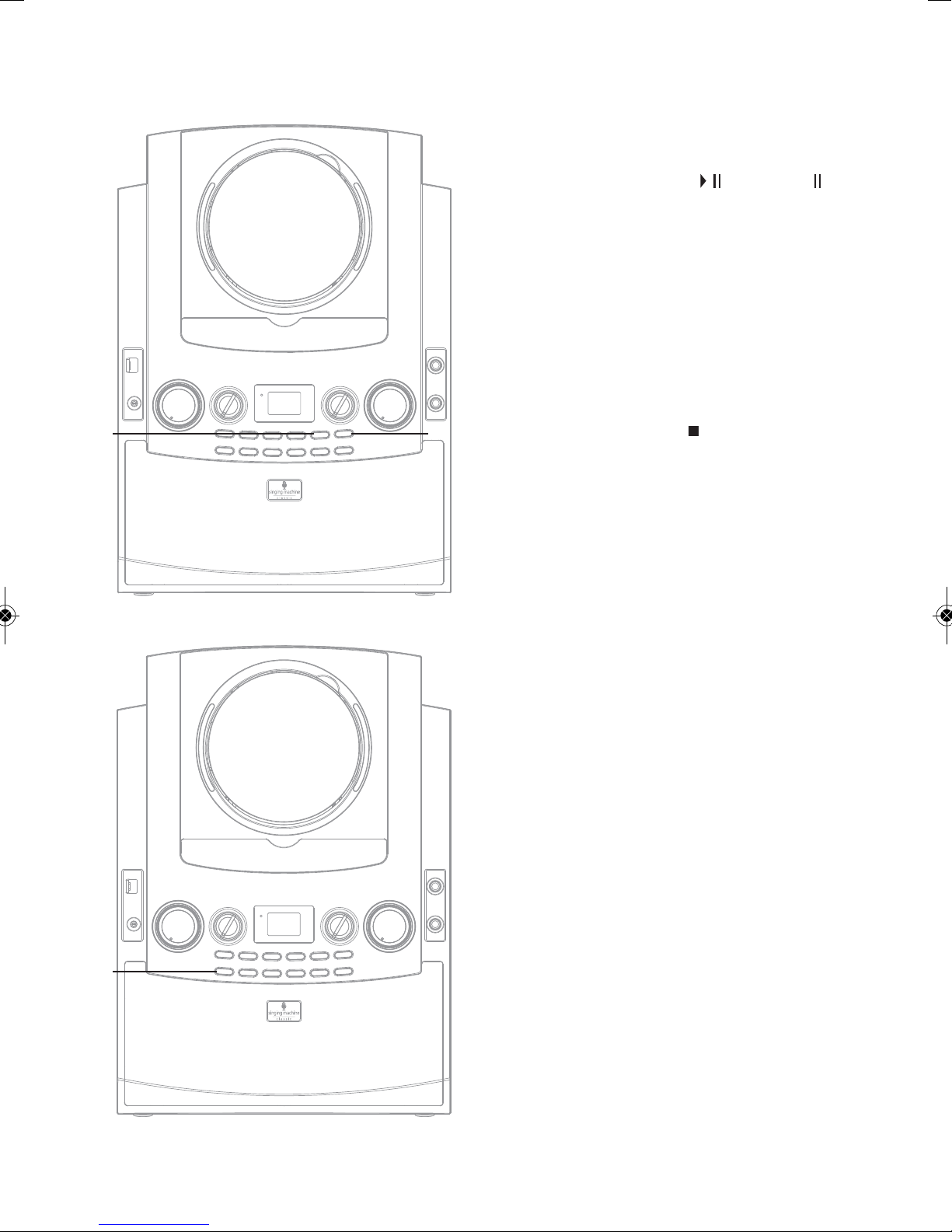

6PLAY/PAUSE: Press the Play/Pause
button to start playback.
7Make sure the Bluetooth device has its volume set to mid range, then adjust
the volume to a comfortable level
using the MASTER VOLUME control.
Note: If connected to a TV or other audio
source, adjust the volume of the TV using its
own volume control.

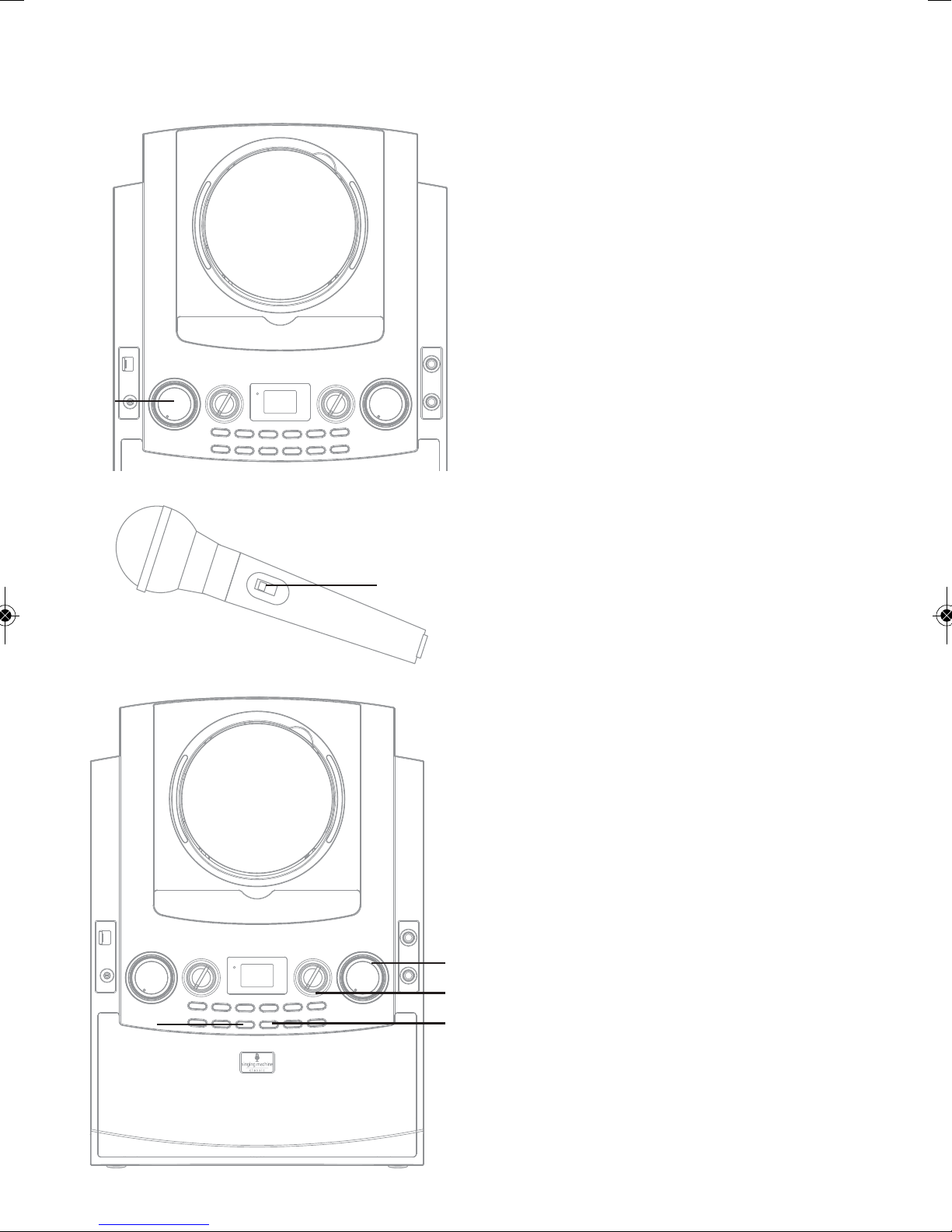

8Connect microphone(s) as shown on page E - 5, and slide the ON/OFF
switch to the ON position. Also, if
desired, put your Bluetooth device
onto the cradle after it is paired.
9Adjust the MIC VOLUME control as desired. Increasing this control will
increase the volume of the respective
microphone.
10Adjust the Echo control to add an echo effect to your voice.
11Press the AVC (Auto Voice Control) ON/OFF button to the On position
and the vocals on a multiplex
recording will be muted as soon as the
singer begins singing into the
microphone. When the singer stops
singing, the vocals are automatically
unmuted.
IMPORTANT: This feature only works
with multiplex media.
Using a Bluetooth Device
VU
X
at
ak
W
E - 12

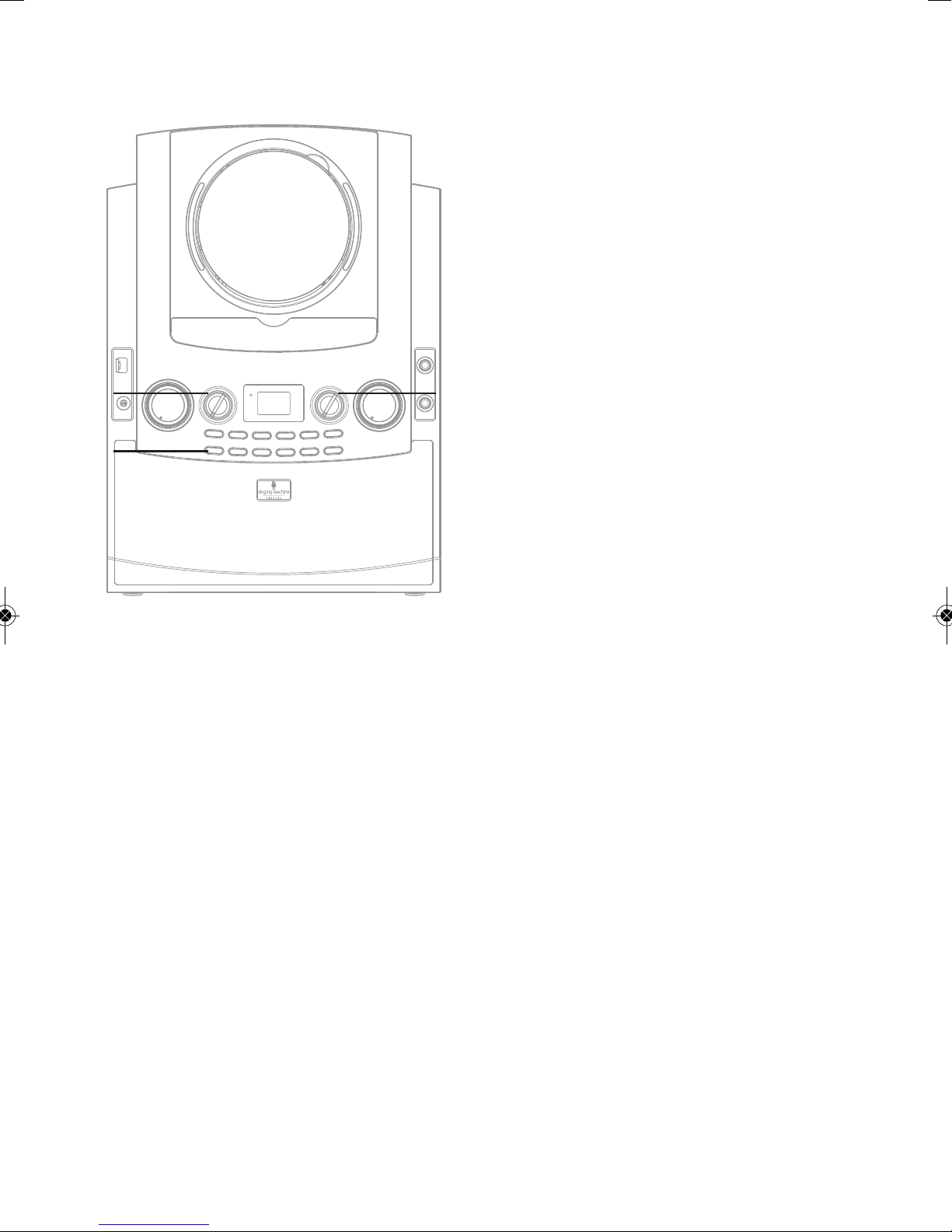

Operation
12BALANCE: Balance allows you to eliminate the lead singer’s voice by
rotating the knob to the left when
playing a multiplex recording, or
eliminate the music by rotating the
knob to the right.
Note: This feature only works with multiplex
media.

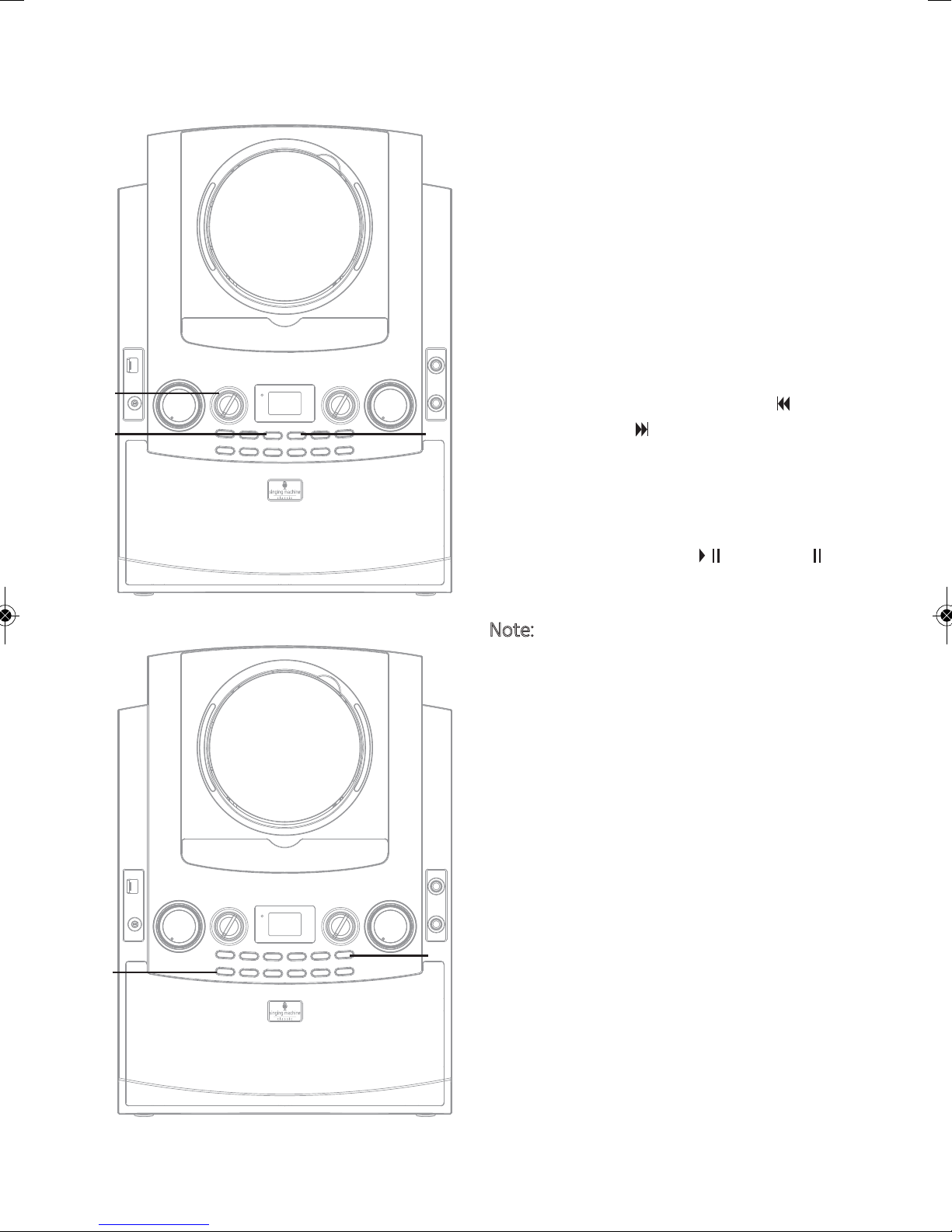

13SKIP: Advance or go back one track
by pressing the Skip Back /Skip
Forward buttons.
14PAUSE: During playback, if you wish to pause the disc momentarily, press
the Play/Pause button; “ ” will
appear on the screen. Press again to
resume normal playback.
Note: Pairing remains intact when the unit
and/or your Bluetooth device is taken out of
communication range. An active connection
will be re-established when your Bluetooth
device returns within range. When the unit is
turned on again, it will automatically try to
reconnect with the most recently paired
Bluetooth device. When the Bluetooth
function of your Bluetooth-enabled device is
turned on again, reconnection can be
achieved by pressing the Bluetooth button on
the unit.
15Press the Power ON/OFF button to turn the unit off; the Power indicator
will turn off.
Using a Bluetooth Device
al
am am
ao an
E - 13

Operation
1Connect the unit as described previously. Press the Power On button
to turn the unit on; the Power indicator
will light.
2Connect the external unit to the LINE IN jack.
Notes:
• It is highly recommended to set the volume
on the auxillary unit to 1/3 or lower to
avoid distortion.
• Skipping files/tracks is not possible when
using an external device.
3Repeatedly press the FUNCTION button until the display shows “AU” to
select the AUX mode.
4Adjust the volume to a comfortable level using the MASTER VOLUME
control.
5Connect microphone(s) as shown on page E - 5, and slide the ON/OFF
switch to the ON position.
6Adjust the MIC VOLUME control as desired. Increasing this control will
increase the volume of the respective
microphone.
Using the LINE IN Jack
YOUR iPHONE/iPOD OR
DIGITAL PLAYER OR
MP3 PLAYER
AUDIO OUTPUT
/ HEADPHONE JACK
LINE IN
u
v
y
w
x
E - 14
U

Operation
7Adjust the Echo and Balance effects as shown on pages E - 7 and E - 8.
8Press the Power ON/OFF button to turn the unit off; the Power indicator
will turn off.
Using the LINE IN Jack
V
W
V
E - 15

Operation
To purchase and download karaoke music,
please visit http://store.singingmachine.com to
access over 12,000 of your favorite karaoke
songs. You will need a USB flash drive (not
included) to transfer the downloads to this unit.
Follow these easy steps:
1Go to http://store.singingmachine.com using your internet browser, and then
register.
2Select and purchase your favorite karaoke music from the Singing
Machine Download Store.
3Download your selected purchase(s) from the Singing Machine Digital Locker
to your USB flash drive.
4Insert the USB flash drive as shown on page E - 6 and enjoy!
Note: Your downloaded songs can also be
burned to a blank CDR/CDRW.

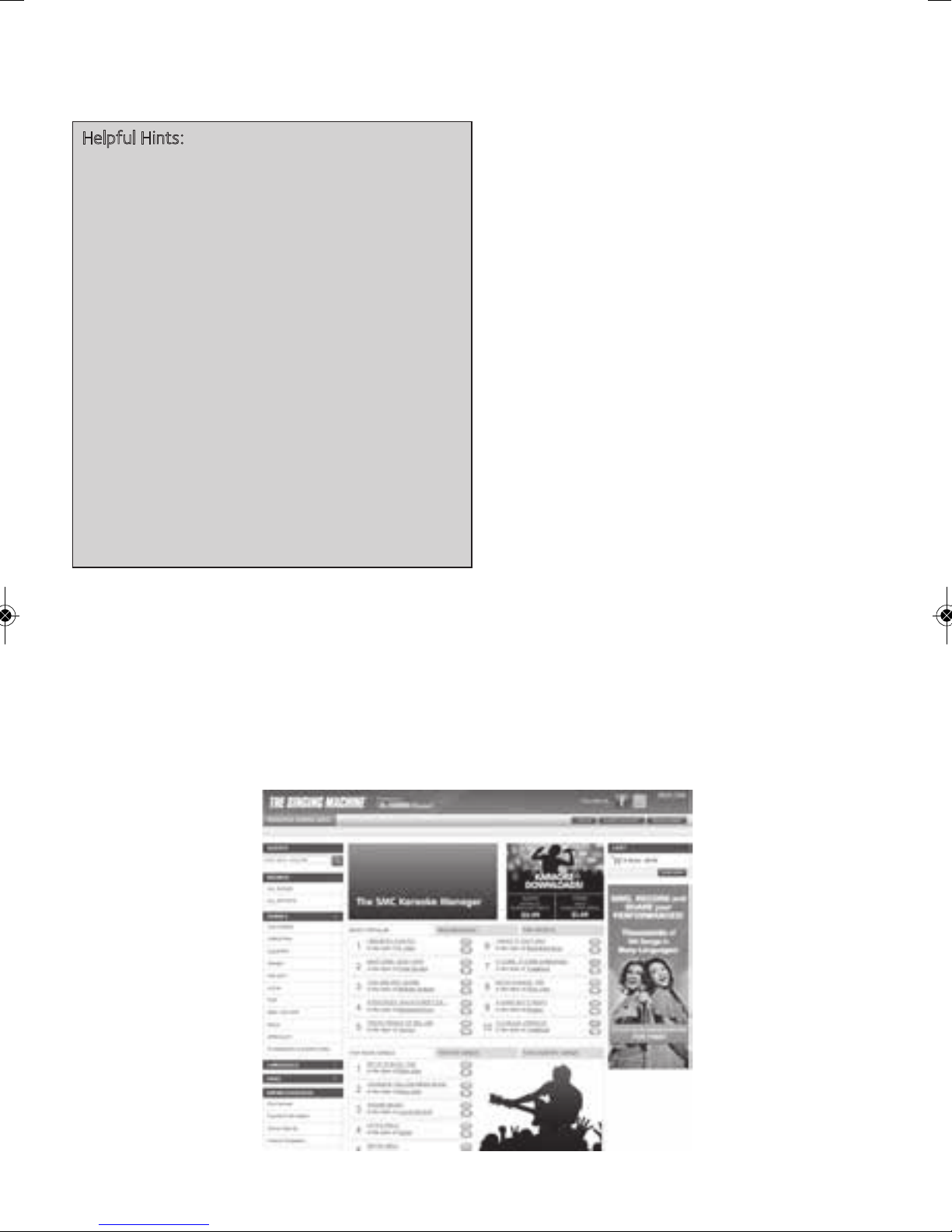

Where to Download MP3+G Files
FAQ
•Where can I get additional help with the file
formats?
While on the Singing Machine Store’s web
page, simply click FILE FORMATS at the
lower left.
Helpful Hints:
The .mp3 and .cdg files are delivered for
download in a single, compressed MP3+G.zip file.
The MP3+G file cannot be played as a .zip file on
a USB flash drive. To play karaoke songs using a
USB flash drive, the MP3+G .zip file must be
unzipped as follows:
• Connect a USB flash drive to your computer.
• Download the MP3+G file from your Digital
Locker and save the .zip* file to a folder on
your computer.
• Double click the .zip file to open the .zip (you
will see the .mp3 and .cdg files).
• Drag and drop the .mp3 and .cdg files to the
USB flash drive.
• Remove (eject) the USB flash drive from your
computer.
Turn on the Singing Machine and connect the USB
flash drive.
E - 16

Care and Maintenance
Care for Compact Discs

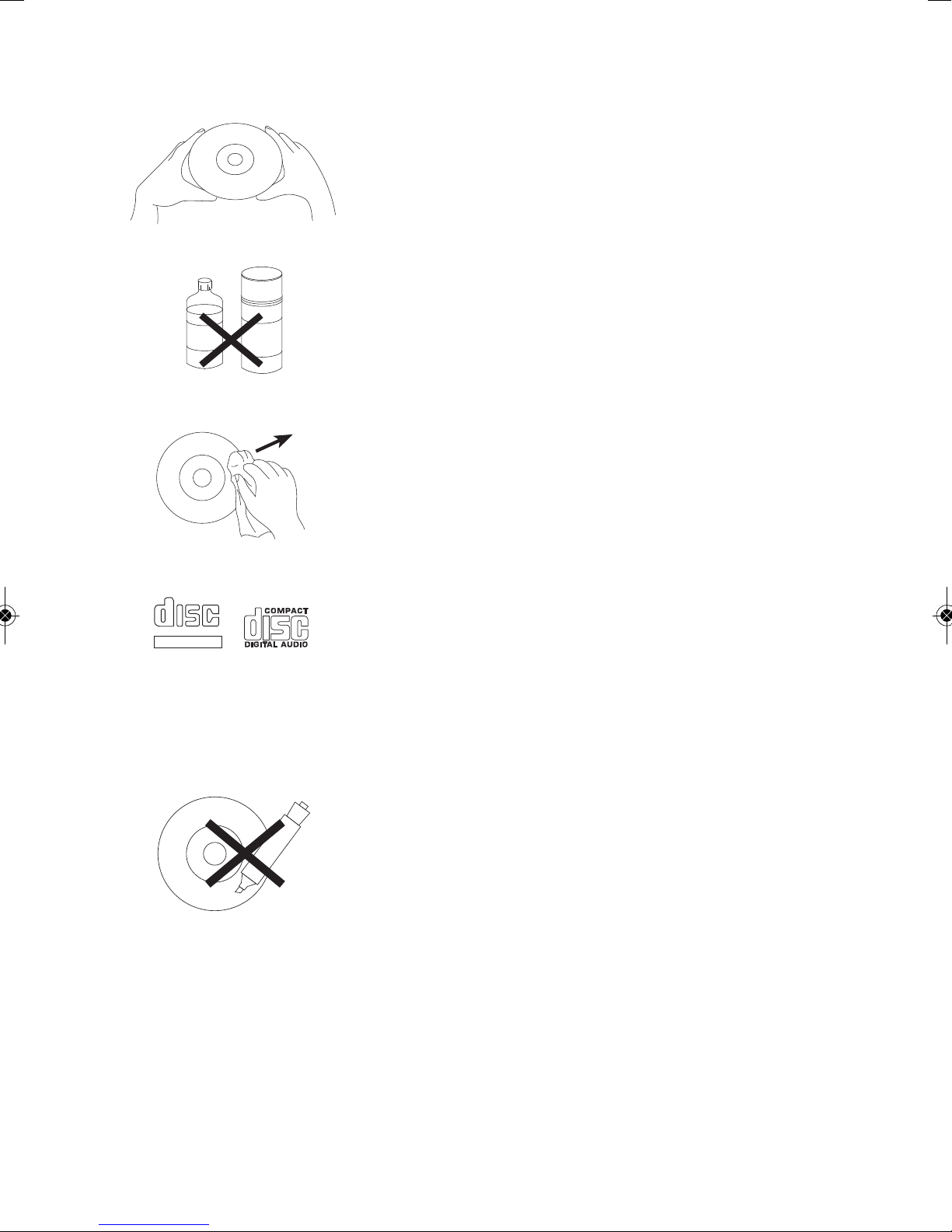

Treat the compact disc carefully. Handle the compact disc
only by its edges. Never allow your fingers to come in
contact with the shiny, unprinted side of the compact disc.
Do not attach adhesive tape, stickers, etc. to the
compact disc label. Clean the compact disc periodically
with a soft, lint-free, dry cloth. Never use detergents or
abrasive cleaners to clean the compact disc. If necessary,
use a CD cleaning kit.
If a disc skips or gets stuck on a section of the compact
disc, it is probably dirty or damaged (scratched).
When cleaning the compact disc, wipe in straight lines
from the center of the compact disc to the outer edge of
the compact disc. Never wipe in circular motions.
This unit is designed to play only compact discs bearing
the identification logos as shown here. Other discs may
not conform to the CD standard and may not play properly.
Compact discs should be stored in their cases after each
use to avoid damage. Do not expose compact discs to
direct sunlight, high humidity, high temperatures or dust,
etc. Prolonged exposure or extreme temperatures can
warp the compact disc.
Do not stick anything on either side of the compact disc.
Also do not write on the shiny side of the disc, as sharp
writing instruments, or the ink, may damage the surface.
Cleaning the Unit
To prevent fire or shock hazard, disconnect your unit
from the AC power source when cleaning. The finish on
your unit may be cleaned with a dust cloth and cared for
as other furniture. Use caution when cleaning and wiping
the plastic parts.
B
E
N
Z
E
N
E
C
L
E
A
N
E
R
COMPACT
DIGITAL AUDIO
GRAPHICS
E - 17

Troubleshooting Guide
Should this unit exhibit a problem, check the following before seeking service:
No Power
• Power is not on; press the Power ON/OFF button to turn power on.
• Make sure the unit is connected to AC power.
No Sound – General
• Master Volume is set to minimum; raise volume.
• Correct Function was not selected; select using the FUNCTION button.
No Sound – If connected to a TV
• Volume on the TV is muted or too low.
• White and red audio plugs are not connected properly; see page E - 4.
• Correct source (usually AV) was not selected in the TV’s menu.
CD section is not working properly
• No disc inserted, or disc inserted upside down; insert disc correctly.
• Make sure to use a CD, CD+G, or when downloaded music has been burned, ensure the disc
is a CDR or CDRW.
• Lens is dirty. Disconnect the power and clean the lens with a CD lens cleaner.
•Moisture has formed. Turn the unit off, unplug the unit from the outlet and allow 20-30
minutes to dry.
No sound from the microphone
• Make sure it is firmly connected to the MIC1 or MIC2 jack.
• Make sure it is turned on, see page E - 7.
• Make sure the MIC VOLUME control is not on the lowest setting.
• MASTER VOLUME is set to minimum; raise volume.
File(s) on USB jack not playing
•The file is corrupted; replace file.
• The file is not in a format this unit will play.
• The connected USB device is not supported by the product.
The Bluetooth device cannot be paired or connected with the unit.
• You have not activated the Bluetooth function of your device; see page E - 11 or refer to
the Bluetooth device’s user manual.
• The unit is not in pairing mode; see page E - 11 to pair.
The Music playback is not available on the unit after successfully connecting the Bluetooth.
• Ensure your Bluetooth device can support the A2DP Bluetooth profile.
E - 18

Specifications
AUDIO
Output Power (Maximum)............................................................................. 10W + 10W (RMS) 10% THD
Output Impedance ............................................................................................................................ 8 Ohms
CD PLAYER
Frequency Response ......................................................................................................... 100 Hz-20 KHz
Signal to Noise Ratio..............................................................................................................................50 dB
Sampling System .................................................................................................... 8 Times Oversampling
Disc Diameter .....................................................................................................................4.72" (120 mm)
.............................................................................................................................. 3.15" (80 mm) Single CD
BLUETOOTH
Bluetooth Version ........................................................................................................................V3.0 + EDR
Working Distance.................................................................Up to 10 meters measured in open space
GENERAL
Power................................................................................................................. AC 110-240 V, 50/60 Hz
Dimensions .......................................................... 17.0 x 8.1 x 12.1 inches / 30.8 x 20.6 x 43.2 cm
Weight ....................................................................................................................................8.2 lbs / 3.7 kg
Microphone............................ -74 dB 600 Ohms impedance with 6.3 mm Dynamic Microphone
Power ............................................................................................DC12V, 2.5A Center Positive Adapter
USB..............................................................................................................Supports USB Flash up to 8 GB
Specifications are subject to change without notice.
E - 19
