You love big pictures but know it is all in the detail. The High Definition detail you’ve never seen
before in your favourite film. Detail that captivates and enthrals – every tiny detail larger than life with
electrifying, perfectly balanced colour and crystal clarity. See the movie as it was intended to be seen;
on the big screen, in HD, at home.

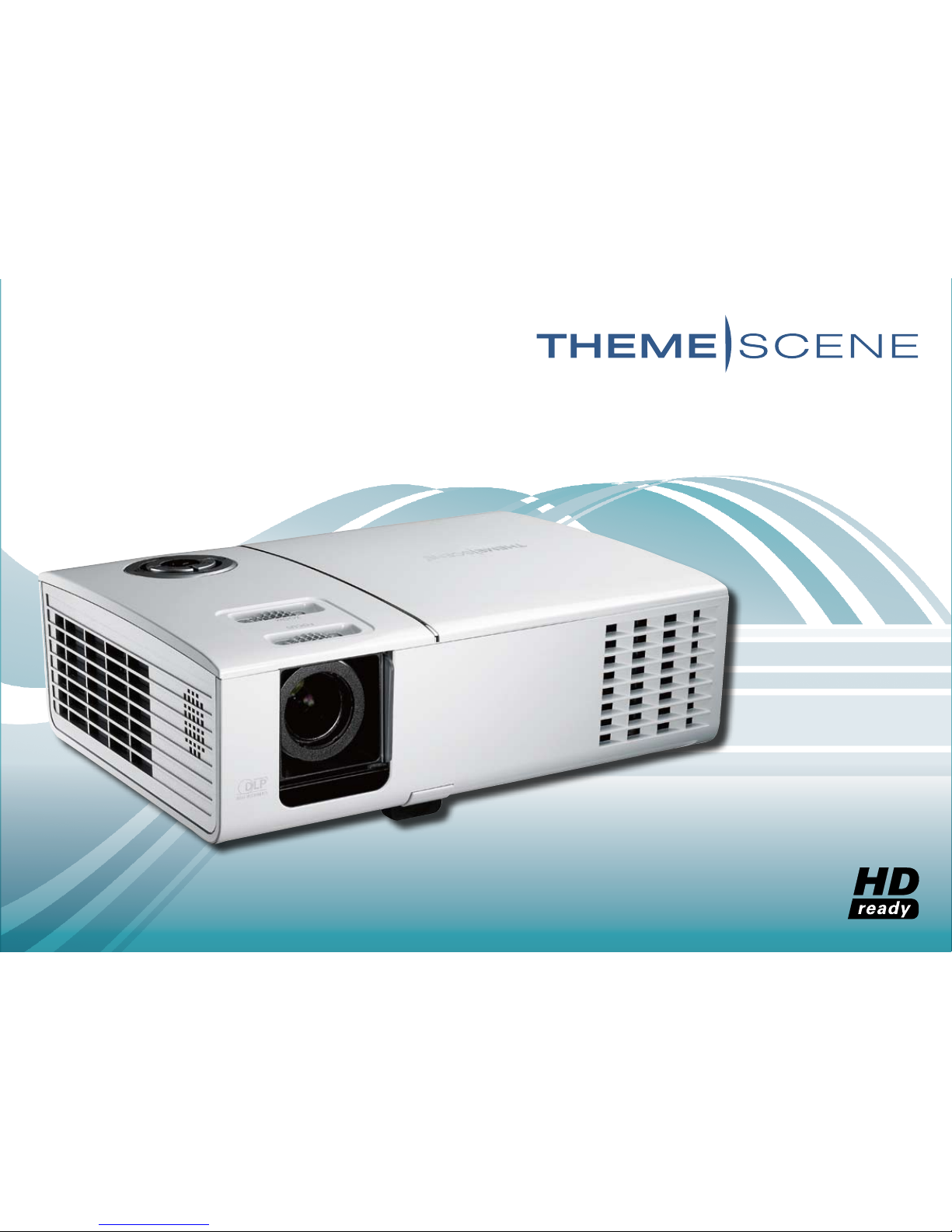

The ThemeScene®HD75 home cinema projector delivers the kind of picture quality associated with the best digital cinema performance
around the world. With a digital HDMI signal you can create a true digital projection system that produces a spectacular High Definition
cinematic experience in your own home. A masterly collaboration of HD Ready 720p DLP®technology from Texas Instruments and Optoma
Colour Enhancement Technology produces a stunningly bright image with perfectly balanced vivid colour and crystal clarity.

A new kind of TV
The Optoma Colour Enhancement Technology™ used in
the HD75 produces a brilliant 1400 Lumens image enabling
quality viewing in ambient light conditions. Use this projector
like a TV, leaving the lights on for casual viewing only
dimming them for feature presentations.
Even the largest big screen TVs will seem small by
comparison; the HD75 can produce a huge image the size
of your wall. Immerse yourself in HD movies from the latest
HD disc players, blast life-size HD characters for an extreme
gaming experience or project all the atmosphere of a live
sporting event.
Home Cinema installation
With near silent operation, 2 digital HD inputs, a 12 volt screen
trigger and the option to remotely control via the RS232
interface the HD75 is at home as the centre piece of a Home
Cinema installation.
Integrated Audio
Alternatively use the HD75 as a portable device with the
convenience of integrated audio – great for hassle-free occasional
use. Use with HDMI for ultimate ease; get both the image and
sound from the same cable. Great for impromptu film screenings
at a friend’s house or gaming events in the kids’ bedrooms!

Deep Color™ HDMI 1.3
The latest 10 bit HDMI technology adds high definition colour to high definition
images producing stunningly natural, vibrant colour.
• HDMI 1.3 supports 30-bit, (10 bits per channel RGB or YCbCr) colour depths,
up from the old 24-bit depths in previous HDMI inputs - displays billions
instead of millions of colours
• Eliminates on-screen colour banding, for smooth tonal transitions and subtle
gradations between colours
• Increased contrast ratio – offering improved light and shade detail
• Enables better greyscale performance
TRUE 10 BIT DIGITAL PROJECTION
HDMI 1.3 HD Disc Player
(10 BIT OUTPUT)
•10 Bit HDMI 1.3 Input Staggering image quality
Currently filmmakers record and process movies at greater colour depths than
most consumer Home Cinema equipment can reproduce. Movie studios have had
to reduce the colour depth of their films for home distribution so they are compatible
with Home Cinema equipment. The pure 10 bit digital signal path of the HD75
paves the way for movie and gaming content to be displayed in a virtually lossless
form producing a level of visual acuity and realism never seen before in the home.

Optoma Colour Enhancement Technology
Advanced colour processing for bright, vibrant, deep
saturated colour for lifelike reproduction.
TrueVivid™Image Processing
TrueVivid™ processing enhances image quality
by increasing the depth of field for natural realistic
looking images
TrueVision™Technology
TrueVision™ deinterlacing technology eliminates
jagged edges enabling the projector to deliver
stunning cinema like images with exceptional
picture quality

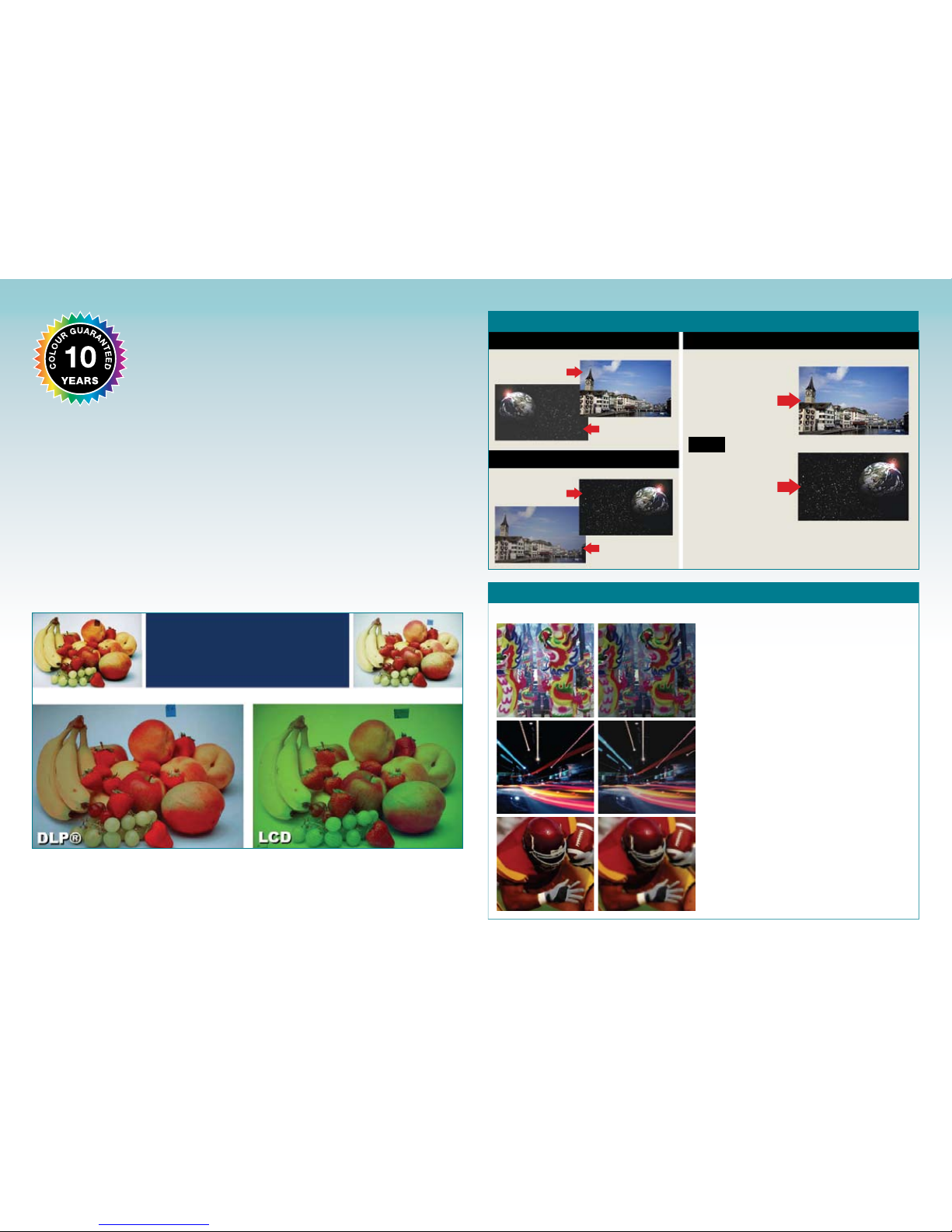

Image and color enhancement technologies
WITH WITHOUT
HIGH LUMENS ALONE
Increases clarity in
ligher areas...
But makes dark
areas wash out
Increases details in
darker areas...
But makes lighter
HIGH CONTRAST ALONE
ONLY ImageAI™ GIVES YOU BOTH!
HIGH 1400
LUMENS
for amazing clarity
in light image
areas...
PLUS
HIGH 5000:1
CONTRAST
for details in dark
areas and shadows
ImageAI™ "Image Artificial Intelligence",
Optoma's auto adjusting light intensity output delivers
both high brightness and stunning contrast
ImageAI™
Optoma guarantees colour quality will remain as
new for 10 years*
For Home Cinema colour accuracy is critical. We are so
confident that, unlike competing technologies, the HD75 colour
will not change in use that we have guaranteed it will stay the
same as the day you bought it, for at least 10 years.
The HD75 projector based on an all-digital DLP®chip delivers stunning picture quality
again and again. Unlike competing analogue technologies, the semiconductor that
makes DLP®projection possible is virtually immune to environmental factors that
can cause an image to degrade over time.
Run continuously for 4,000 hours in an independent laboratory test, projection
systems using DLP®technology maintained their picture quality throughout. By
contrast, in the same test ±, data projectors using LCD technology exhibited
considerable picture degradation by 2558 hours on average.
Approximately
4000 Hrs.
DLP® Baseline LCD Baseline
±Conducted by the Rochester Institute of Technology’s Munsell Color Science Laboratory and sponsored by Texas Instruments. The test
included a sample of commercially available data projectors, five featuring LCD technology and two featuring DLP®technology. The projectors
varied in features such as panel size, weight, resolution and brightness. All units were run in a continuous operation mode at an ambient room
temperature of approximately 25°C.
* Optoma guarantee that in normal use, Optoma DLP®colour quality will be indistinguishable from when new. Please note that worn lamps
will give slight variance. Exclusion: (1) Guarantee is voided if the projector is subject to damage through mis-use. (2) Guarantee may be void
in industrial or commercial entertainment environments where dust or smoke is particularly excessive. (3) Guarantee will not apply if lamp
brightness is below 50% due to wear or if the projector is not working due to other fault.

ThemeScene®is a registered trademark of Optoma Europe Ltd. TrueVivid™ and Image AI™ are registered trademarks of
Optoma Technology, Inc. TrueVision™ is a trademark of Texas Instruments. DLP®and the DLP logo are registered trademarks of
Texas Instruments.
All other product names and company names used herein are for identifications purposes only and may be trademarks or registered
trademarks of their respective owners. Errors and omissions excepted, all specifications are subject to change without notice.
Optoma Europe Limited
42 Caxton Way,
Watford Business Park,
Watford, Hertfordshire.
WD18 8QZ
Tel: [phone]
Fax: [phone]
www.themescene.tv
HD75 Remote Control
1 Power ON/OFF
2 Brightness
3 Edge Masking Tool
4 Auto source select
5 Display aspect ratio selection
6 Keystone
7 Overscan Control
8 Input selection
9 Preset image modes selection
10 Contrast
11 Menu
12 Re-sync
HD75 Projector I/O Ports
13 RS-232
14 Service
15 S-Video
16 Video
17 VGA (Scart, Component, PC)
18 DVI-D
19 HDMI (With audio)
20 12 Volt trigger
21 Analogue audio inputs
22 Component
Technical Specifications
Highlights
HD Ready Native 720P, HDMI V1.3 input
Display Technology DLP DarkChip2™ 720P (1280 x 720)
Contrast 5000:1 (with Image AI enabled)
Audible Noise 28dB Standard mode
Brightness 1400 Video Optimised Lumens
Integrated Audio 1 x 2 Watt Speaker
Connections
Signal Type Options Input Connector
HDMI 2 1. HDMI (V1.3 10 bit) 2. DVI (via adaptor)
Component 2 1. 3 x RCA 2. VGA via adaptor
SCART RGB 1 VGA via supplied adaptor
S-Video (Y/C) 1 3 Pin Mini DIN
Composite Video (CVBS) 1 RCA
DVI-D Computer 1 HDMI (via adaptor)
RGB Computer 1 VGA
Screen trigger 1
RS232 1 3 Pin mini DIN
Video Compatibility PAL, SECAM (576i/p), NTSC (480i/p), HD1080P60\50\24, 1080i, 720p
Display
Aspect Ratio 16:9 with support for 4:3
Throw Ratio 1.55-1.7 (Projection Distance/Image Width) 1.1x Manual zoom
Projection Distance 1.5m – 12m
Image Size 1.0 to 7.36m (16:9 Diagonal)
Keystone Correction Vertical
Projection Types Front, Ceiling, Rear, Rear ceiling
Lamp Type 200w
Lamp Life Standard mode 3000 hours*
General
Dimensions 295 x 222 x 96 mm
Weight 3 kg
Power Consumption 280W Max, <10W standby
Operating Temperature 5-35°C Max, 80% Humidity
Mounting Ceiling mount points and screw mount for camera style tripod
Warranty Warranty may vary by country. Please see www.optomaeurope.com
or ask your local supplier for details
Lamp Warranty 6 months or 1000 hours whichever is the sooner
Menu Languages English, German, French, Italian, Spanish, Portuguese, Polish,
Dutch, Russian, Finnish, Swedish, Greek, Norwegian, Danish,
Hungarian, Czech & Arabic
Supplied accessories AC power cord, Component video cable, S-video cable, SCART
RGB to VGA 15 Pin D-Sub adaptor, VGA cable, Remote control
with backlight, Batteries for Remote control, Lens cap, Users guide
Optional accessories Ceiling Mount Kit
EAN Number 5060059042739
*Typical lamp life achieved through testing. Will vary according to operational use and environmental conditions
14 1613 17 18 1915
7
6
5
8
4
3
2
19
10
11
12
2120 22
