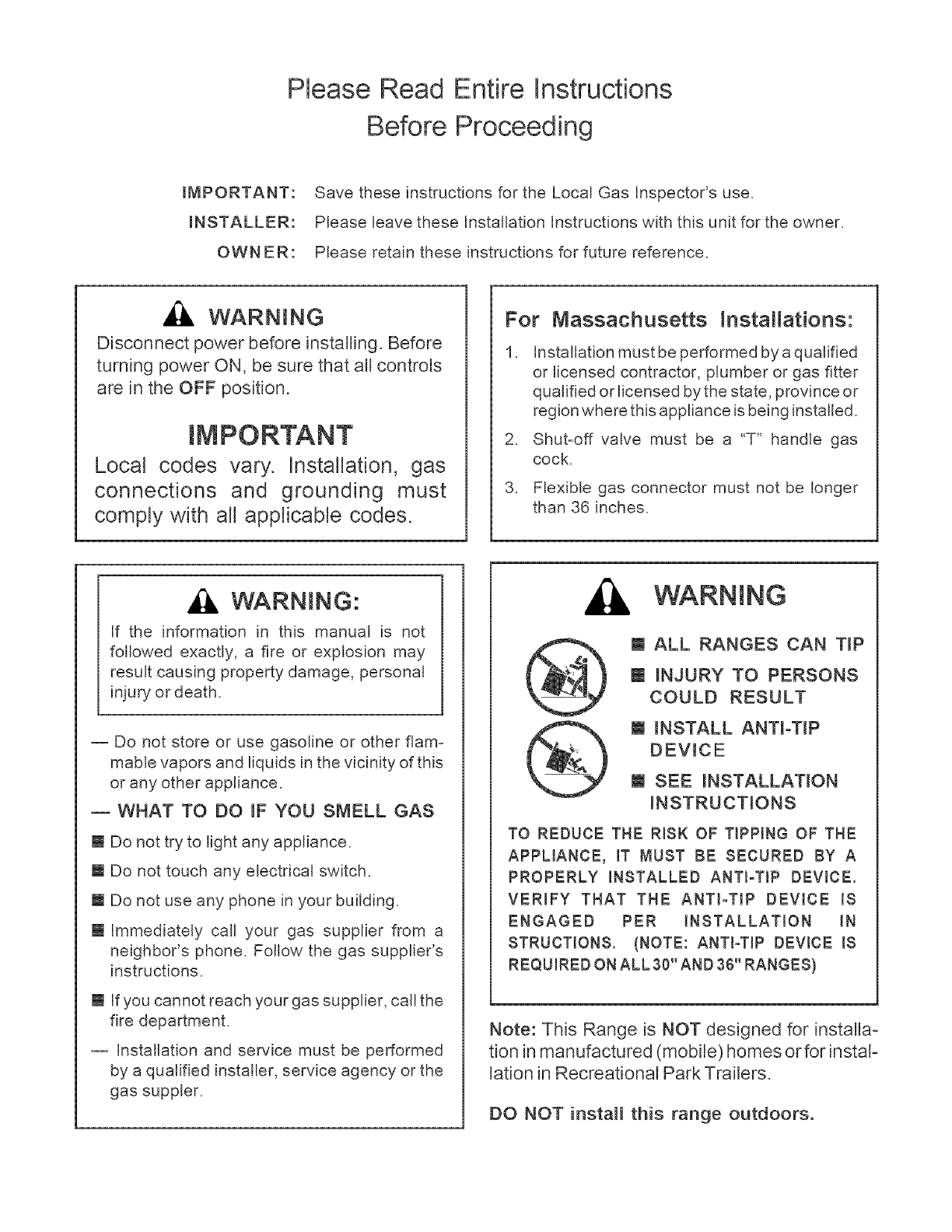

Please Read Entire Instructions
Before Proceeding
iMPORTANT:
iNSTALLER:
OWNER:
Save these instructions for the Local Gas Inspector's use.
Please leave these Installation Instructions with this unit for the owner.
Please retain these instructions for future reference.
_, WARNING
Disconnect power before installing. Before
turning power ON, be sure that all controls
are in the OFF position.
iMPORTANT
Local codes vary. Installation, gas
connections and grounding must
comply with all applicable codes.
For Massachusetts Installations:
1. Installation must be performed by a qualified
or licensed contractor, plumber or gas fitter
qualified or licensed by the state, province or
region where this appliance is being installed.
2. Shut-off valve must be a "T" handle gas
cock.
3. Flexible gas connector must not be longer
than 36 inches.
_, WARNING:
If the information in this manual is not
followed exactly, a fire or explosion may
result causing property damage, personal
injury or death.
-- Do not store or use gasoline or other flam-
mable vapors and liquids in the vicinity of this
or any other appliance.
-- WHAT TO DO IF YOU SMELL GAS
m Do not try to light any appliance.
m Do not touch any electrical switch.
m Do not use any phone in your building.
m Immediately call your gas supplier from a
neighbor's phone. Follow the gas supplier's
instructions.
m If you cannot reach your gas supplier, call the
fire department.
-- Installation and service must be performed
by a qualified installer, service agency or the
gas suppler.
E ALL RANGES CAN TIP
m _NJURY TO PERSONS
COULD RESULT
E INSTALL ANTI-TIP
DEVICE
E SEE INSTALLATION
INSTRUCTIONS
TO REDUCE THE RISK OF TJPPtNG OF THE
APPLIANCE, IT MUST BE SECURED BY A
PROPERLY INSTALLED ANTI-TIP DEVICE.
VERIFY THAT THE ANTI-TIP DEVtCE IS
ENGAGED PER INSTALLATION IN
STRUCTIONS. (NOTE: ANT_-TJP DEVICE IS
REQUIRED ON ALL 30" AND 36" RANGES)
Note: This Range is NOT designed for installa-
tion in manufactured (mobile) homes orfor instal-
lation in Recreational Park Trailers.
DO NOT install this range outdoors.

Model PD304 Mode! PD364GL
Low Back Model LB36R Model PD484GGE Low Back Model LB48R

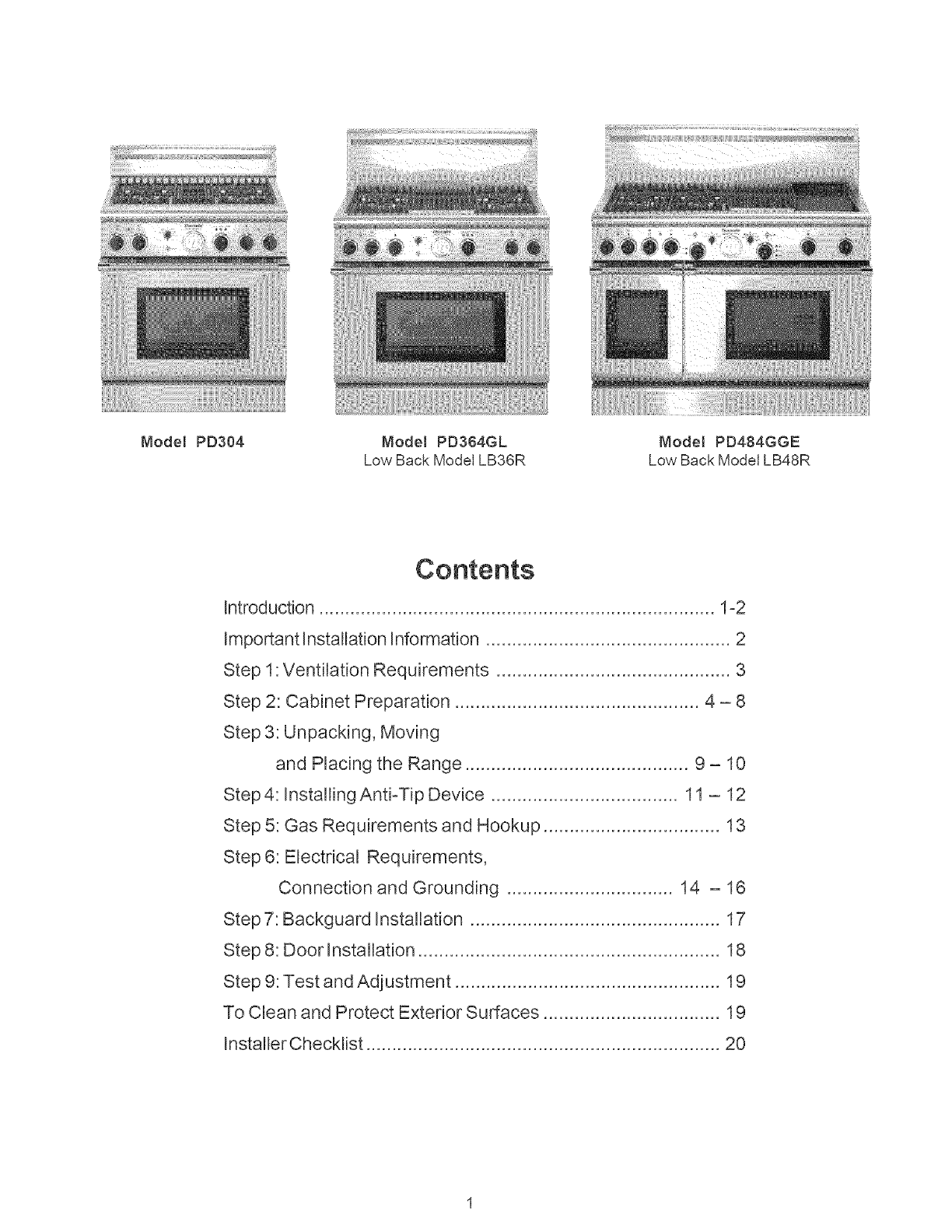

Contents
Introduction ............................................................................ 1-2
Important Installation Information ............................................... 2
Step 1:Ventilation Requirements ............................................. 3
Step 2: Cabinet Preparation ............................................... 4 - 8
Step 3: Unpacking, Moving
and Placing the Range ........................................... 9 - 10
Step 4: Installing Anti-Tip Device .................................... 11 - 12
Step 5: Gas Requirements and Hookup .................................. 13
Step 6: Electrical Requirements,
Connection and Grounding ................................ 14 - 16
Step 7: Backguard Installation ................................................ 17
Step 8: Door Installation .......................................................... 18
Step 9: Test and Adjustment ................................................... 19
To Clean and Protect Exterior Surfaces .................................. 19
Installer Checklist .................................................................... 20

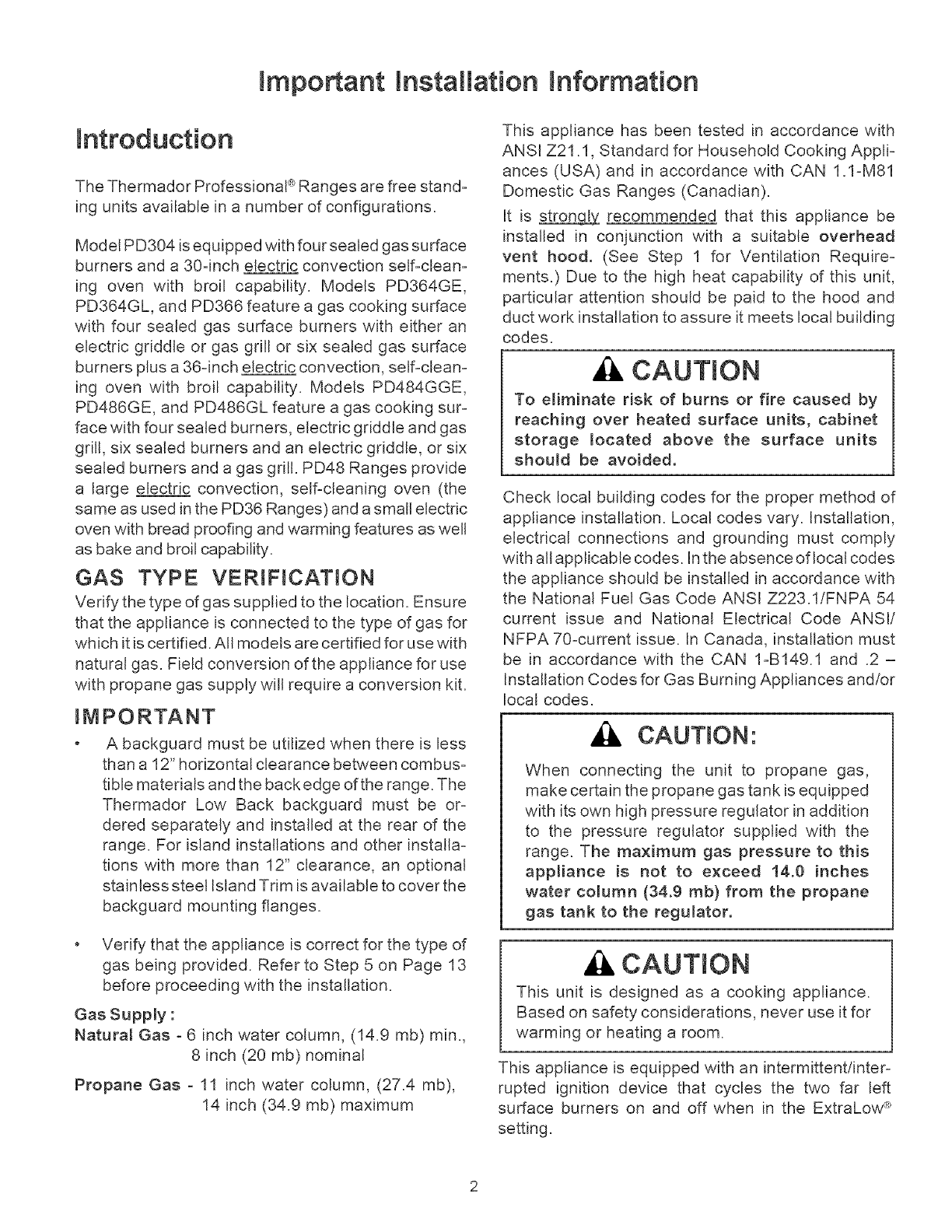

Important Installation Information
Introduction
The Thermador Professional _)Ranges are free stand-
ing units available in a number of configurations.
Model PD304 isequipped with four sealed gas surface
burners and a 30-inch electric convection self-clean-
ing oven with broil capability. Models PD364GE,
PD364GL, and PD366 feature a gas cooking surface
with four sealed gas surface burners with either an
electric griddle or gas grill or six sealed gas surface
burners plus a 36-inch electric convection, self-clean-
ing oven with broil capability. Models PD484GGE,
PD486GE, and PD486GL feature a gas cooking sur-
face with four sealed burners, electric griddle and gas
grill, six sealed burners and an electric griddle, or six
sealed burners and a gas grill. PD48 Ranges provide
a large electric convection, self-cleaning oven (the
same as used in the PD36 Ranges) and a small electric
oven with bread proofing and warming features as well
as bake and broil capability.
GAS TYPE VERIFiCATiON
Verify the type of gas supplied to the location. Ensure
that the appliance is connected to the type of gas for
which it is certified. All models are certified for use with
natural gas. Field conversion of the appliance for use
with propane gas supply will require a conversion kit.
iMPORTANT
•A backguard must be utilized when there is less
than a 12" horizontal clearance between combus-
tible materials and the back edge of the range. The
Thermador Low Back backguard must be or-
dered separately and installed at the rear of the
range. For island installations and other installa-
tions with more than 12" clearance, an optional
stainless steel Island Trim is available to cover the
backguard mounting flanges.
Verify that the appliance is correct for the type of
gas being provided. Refer to Step 5 on Page 13
before proceeding with the installation.
Gas Supply :
Natural Gas -6 inch water column, (14.9 mb) min.,
8 inch (20 mb) nominal
Propane Gas -11 inch water column, (27.4 mb),
14 inch (34.9 mb) maximum
This appliance has been tested in accordance with
ANSI Z21.1, Standard for Household Cooking Appli-
ances (USA) and in accordance with CAN 1.1-M81
Domestic Gas Ranges (Canadian).
It is strong_ recommended that this appliance be
installed in conjunction with a suitable overhead
vent hood. (See Step 1 for Ventilation Require-
merits.) Due to the high heat capability of this unit,
particular attention should be paid to the hood and
duct work installation to assure it meets local building
codes. CAUTUON
To eliminate risk of burns or fire caused by
reaching over heated surface units, cabinet
storage located above the surface units
should be avoided.
Check local building codes for the proper method of
appliance installation. Local codes vary. Installation,
electrical connections and grounding must comply
with all applicable codes. Inthe absence of local codes
the appliance should be installed in accordance with
the National Fuel Gas Code ANSI Z223.1iFNPA 54
current issue and National Electrical Code ANSI/
NFPA 70-current issue. In Canada, installation must
be in accordance with the CAN 1-B149.1 and .2 -
Installation Codes for Gas Burning Appliances and/or
local codes.
CAUTmON:
When connecting the unit to propane gas,
make certain the propane gas tank is equipped
with its own high pressure regulator in addition
to the pressure regulator supplied with the
range. The maximum gas pressure to this
appliance is not to exceed 14.0 inches
water coJumn (34.9 rob) from the propane
gas tank to the regulator.
CAUTION
This unit is designed as a cooking appliance.
Based on safety considerations, never use it for
warming or heating a room.
This appliance is equipped with an intermittent/inter-
rupted ignition device that cycles the two far left
surface burners on and off when in the ExtraLow ®
setting.

Step 1: Ventilation Requirements
It is stron Ig!y.recommended that a
suitable exhaust hood be installed
above the range. Downdraft
ventilation should notbe used. The
table below indicates the
Thermador hoods, by model
number, that are recommended
for use with all ranges.
1. Semect Hood and
BNower Models:
Forwall installations, the hood
width must, at a minimum,
equal the width of the range
cooking surface. Where
space permits, a hood larger
in width than the cooking sur-
face may be desirable for im-
proved ventilation perfor-
mance.
For island installations, the
hood width should, at a mini-
mum, overhang the range
cooking surface by 6" on each
side.
Ventilation hoods and blowers are
designed for use with single wall
ducting. However, some local
building codes or inspectors may
require double wall ducting. Con-
suet local building codes and/or
local agencies, before starting, to
assure that hood and duct instal-
lation will meet local requirements.
Hood blower speeds should
be variable to reduce noise
and loss of heated or air con-
ditioned household air when
maximum ventilation is not
required. Normally, the maxi-
mum blower speed is only
required when using the grill.
2_ Hood P acement:
For best smoke elimination, the
lower edge of the hood should
be installed a minimum of 30" to
a maximum of 36" above the
range cooking surface. (See
Fig. 1).
If the hood contains any com-
bustible materials (i.e. a wood
covering), it must be a mini-
mum of 36" above the cooking
surface.
Consider Make-Up Air:
Due to the high volume of venti-
lation air, a source of outside
replacement air is recom-
mended. This is particularly im-
portant for tightly sealed and
insulated homes.
A qualified heating and ventilat-
ing contractor should be con-
suited.
30" RANGE
36" RANGE
48" RANGE
PH30ZS
PH30HQS
PHE30,36
PH36ZS, 42ZS
PHE36,42
HNW36YS
HNW42 YS
VTR1000Q,
VTR1400Q
ORVTN 1000Q
VTR1000Q, VTR1400Q
orVTN 1000Q
HTNI42YS VTRI000Q,
HNI42YS VTR1400Q
PHI48ZS
HTNI42YS VTR1000Q
HNI42YS VTR1400Q
VTR1000Q, VTR1400Q
VTR1000Q,VTR1400Q
PH48ZS VTR1000Q
PH48HQS VTR1400Q
PHE48,60 orVTN 1000Q
PHI48ZS
HTNI48YS
HNI48YS
HTNI54YS
HNI54YS
PHI60ZS
VTR1400Q
Notes: * For wall installations where adequate space is available, the installer or user may elect to
use a hood that is wider than the range cooking surface. This may be particularly beneficial
for those cases, such as a long duct run or heavy usage of the grill, in which improved
capturing of the cooking exhaust is desired.
•* Thermador offers a choice of remote (VTR1000Q or VTR1400Q) or in-hood
(VTN 1000Q) blowers for use in wall installations.

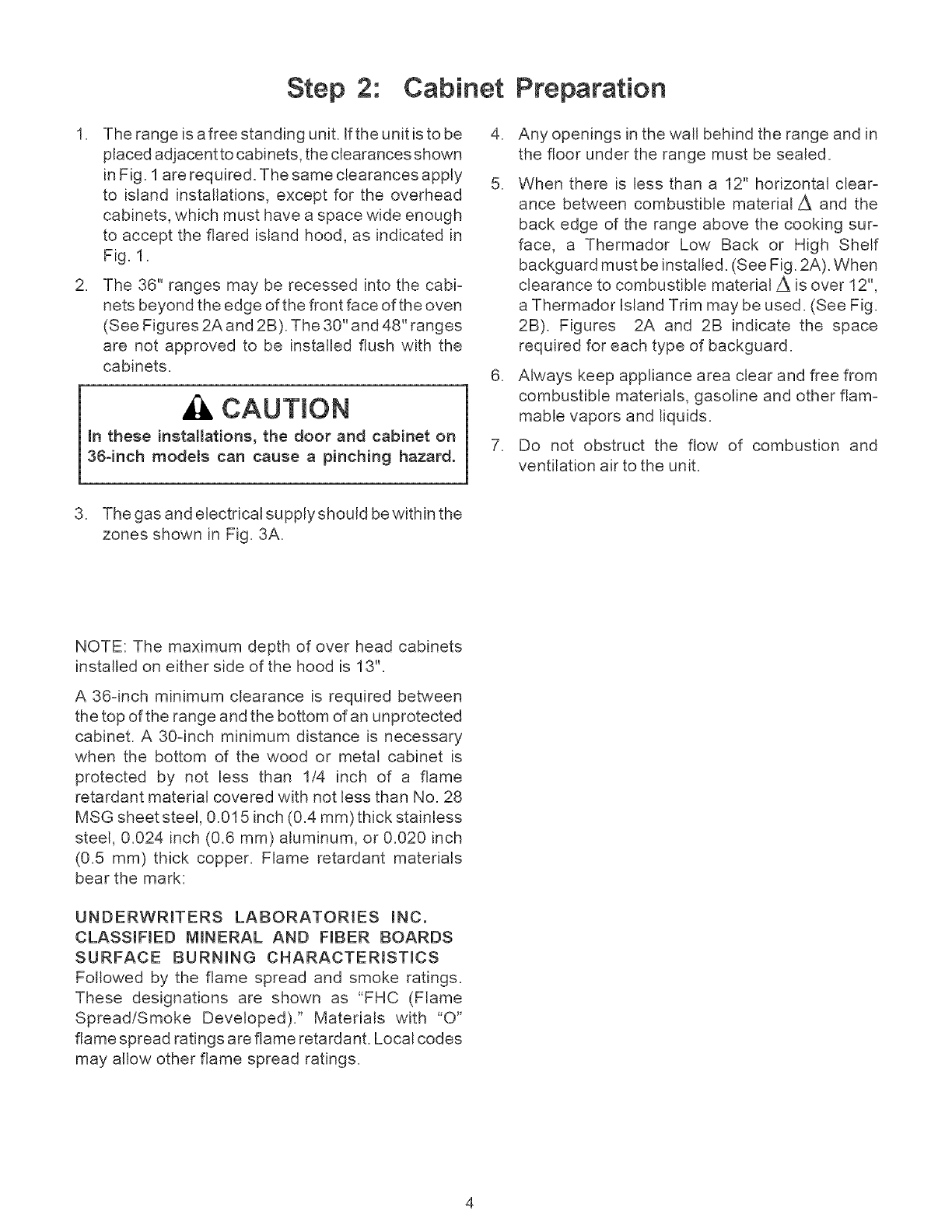

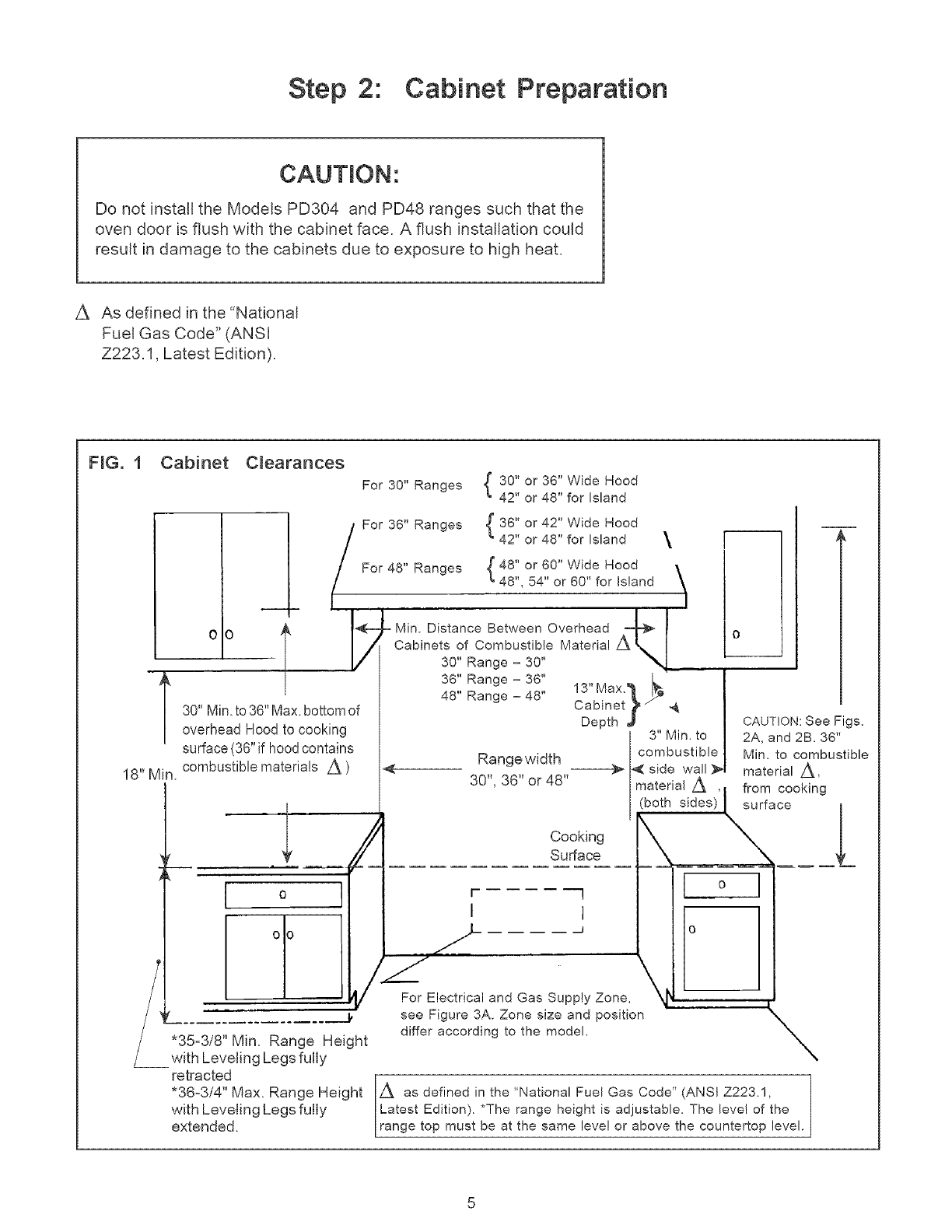

Step 2: Cabinet Preparation
.
.
The range is a free standing unit. If the unit is to be
placed adjacent to cabinets, the clearances shown
in Fig. 1 are required. The same clearances apply
to island installations, except for the overhead
cabinets, which must have a space wide enough
to accept the flared island hood, as indicated in
Fig. 1.
The 36" ranges may be recessed into the cabi-
nets beyond the edge of the front face of the oven
(See Figures 2A and 2B). The 30" and 48" ranges
are not approved to be installed flush with the
cabinets.
CAUTION
mnthese installations, the door and cabinet on
36-inch models can cause a pinching hazard.
.
5.
.
.
Any openings in the wall behind the range and in

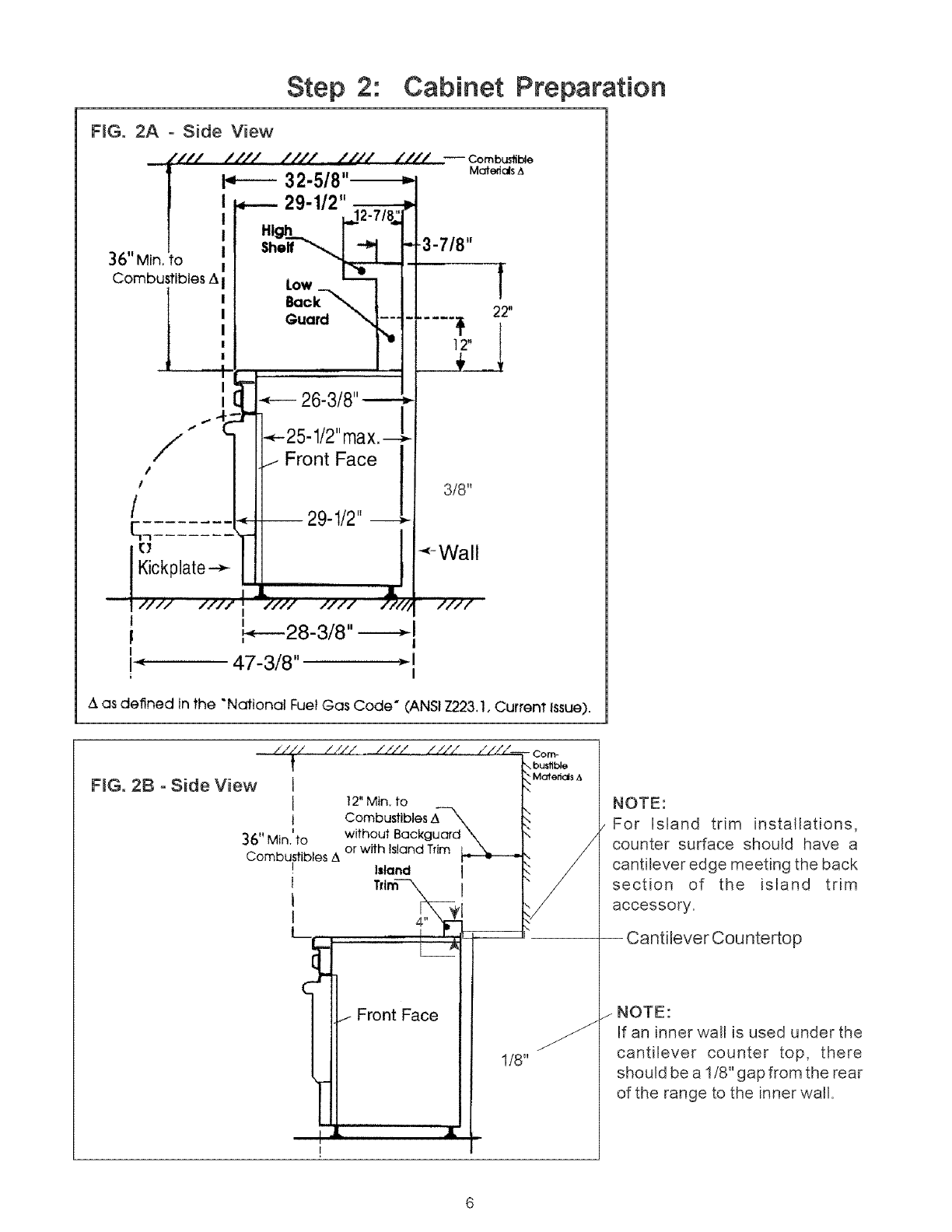

the floor under the range must be sealed.
When there is less than a 12" horizontal clear-
ance between combustible material A and the
back edge of the range above the cooking sur-
face, a Thermador Low Back or High Shelf
backguard must be installed. (See Fig. 2A). When
clearance to combustible material/_ is over 12",
a Thermador Island Trim may be used. (See Fig.
2B). Figures 2A and 2B indicate the space
required for each type of backguard.
Always keep appliance area clear and free from
combustible materials, gasoline and other flam-
mable vapors and liquids.
Do not obstruct the flow of combustion and
ventilation air to the unit.
3. The gas and electrical supply should be within the
zones shown in Fig. 3A.
NOTE: The maximum depth of over head cabinets
installed on either side of the hood is 13".
A 36-inch minimum clearance is required between
the top of the range and the bottom of an unprotected
cabinet. A 30-inch minimum distance is necessary
when the bottom of the wood or metal cabinet is
protected by not less than 1/4 inch of a flame
retardant material covered with not less than No. 28
MSG sheet steel, 0.015 inch (0.4 mm) thick stainless
steel, 0.024 inch (0.6 mm) aluminum, or 0.020 inch
(0.5 mm) thick copper. Flame retardant materials
bear the mark:
UNDERWRITERS LABORATORIES iNC.
CLASSIFIED MmNERAL AND HBER BOARDS
SURFACE BURNING CHARACTERISTICS
Followed by the flame spread and smoke ratings.
These designations are shown as "FHC (Flame
Spread/Smoke Developed)." Materials with "O"
flame spread ratings are flame retardant. Local codes
may allow other flame spread ratings.

Step 2: Cabinet Preparation
CAUTION',
Do not install the Models PD304 and PD48 ranges such that the
oven door is flush with the cabinet face. A flush installation could
result in damage to the cabinets due to exposure to high heat.
A As defined in the "National
Fuel Gas Code" (ANSI
Z223.1, Latest Edition).
FiG. 1 Cabinet C_earances
0
T
18" Min.
30" Min.to36"Max.bottomof
overhead Hoodto cooking
surface(36"if hoodcontains
combustible materials A )
I o I
oo
1,
"35-3/8" Min. Range Height
with Leveling Legs fully
retracted
"36-3/4" Max. Range Height
with Leveling Legs fully
extended.
30" or 36" Wide Hood
For 30" Ranges 42" or 48" for Island
For 36" Ranges _ 36" or 42" Wide Hood
42" or 48" for Island \
48" or 60" Wide Hood
For 48" Ranges 48", 54" or 60" for Island
Min. Distance Between Overhead .49_ !
Cabinets of Combustible Material
30" Range - 30"
36" Range - 36"
48" Range - 48"
Rangewidth
30", 36" or 48"
13"Max" _ I
Cabinet ,
Depth 3 Min. to I
combustible t
-_ -,_ side wall _I_
o
Cooking
Surface
I- ]
I I
J
For Electrical and Gas Supply Zone,
see Figure 3A. Zone size and position
differ according to the model.
material A ,
(both sides) surface
CAUTION: See Figs.
2A, and 2B. 36"
Min. to combustible
material A,
from cooking l
\q
A as defined in the "National Fuel Gas Code" (ANSI Z223.1, j
Latest Edition). The range height is adjustable. The leve! of the /
range top must be at the same leve! or above the countertop level.

Step 2: Cabinet Preparation
FiG. 2A -Side View
36" Min I
Combustibles A I
I
I
I
I
I
II
I
I
/
!
!
/
q:
(I
Kickplate---_
////
I/I/ //// //// //// -- Combustible
Materials z_
I_---- 32-5/8"--_
I _ 29-1/2" ,,-p
I HI_3_ 12-7/8
"1
Lo,, 1/_ 22,,
3/8"
-(-Wall
. It
////_ )/-// //// ////2 ////
I
,L*--- 28-3/8" --------_
47-3/8" _1I
&as defined In the "National Fuel Gas Code" (ANSIZ223.1,Current Issue).
//// f
F_G. 2B - Side View I
L
i
36" Min,)to
Combustibles &
i
t
t
l
//// ////
12" Mtn, to
Combustibles A
without Back
or with Island Trim
Island I
4>,¢
...- Front Face
L.,i
1/8"
-Com-
bustible
" Materials A
NOTE:
For Island trim installations,
counter surface should have a
cantilever edge meeting the back
section of the island trim
accessory.
Cantilever Countertop
z NOTE:
If an inner wail is used under the
cantilever counter top, there
should be a 1/8" gap from the rear
of the range to the inner wall.

Step 2: Cabinet Preparation
GAS AND ELECTRIC SUPPLY ZONES:
FiG. 3A Gas & E{ectrica{ Supp{y Zone for [)ua_ Fue{ Ranges
Typical placement shown.
Other placement of Gas
Supply and Electrical
Receptacle within the
Electrical and Gas Supply
Zone is acceptable.
NOTE:
A Manual Gas
ShutzOffVaive
(notshown)
must be easily
accessible
through an
adjacent cabinet
without moving
the range.
Gas
3/4" Flex Line to
Appliance
1/2"
240 VAC Receptacle
(Shown) or Junction
1 Centerline of
Electrical
I Zone
2" Maximum Protru-
sion from Walt for
Gas Suppty /
Floor
Model A B C D E
PD30 8" 12" 10" 6-1/2" 5ol/4"
PD36 10ol/2" 15" 10ol/2" 6ol/2" 5-1/4"
PD48 16ol/2" 16" 15ol/2" 6ol/2" 5-1/4"
The Dual Fuel ranges may be con-
nected to the power supply with a
range supply cord kit or by hard-
wiring to the power supply. It is the
responsibility of the installer to pro-
vide the proper wiring components
(cord or conduit and wires) and com-
plete the electrical connection as dic-
tated by local codes and ordinances,
and/or the National Electric Code.
The units must be properly grounded.
Refer to Step 6 for details.
The range must be connected only
to the type of gas for which it is
certified. If the range is to be con-
nected to propane gas, ensure that the
propane gas supply tank is equipped
with its own high pressure regulator in
addition to the pressure regulator sup-
plied with the range. (See STEP 5.)
NOTE: Anyopening in the wall behind the appliance and
any opening in the floor under the appliance must be
sealed.

Step 2: Cabinet Preparation
ELECTR(CAL SUPPLY, DUAL FUEL RANGES
Installation of Dual Fuel ranges
must be planned so that the rough-
in of the junction box for the recep-
tacle or conduit connection will aF
low maximum clearance to the rear
of the unit.
to the mating receptacle or junction
box cover, the combined plug/re-
ceptacle or junction box cover/con-
duit connector should protrude no
more than 2-1/4" from the rear wall.
See Figure 3B.
When the power supply cord (not This is especially critical if the junc-
supplied) or conduit is connected tion box in the wall will be directly
behind the junction box on the unit
when the unit is installed, Refer to
Figure 9 on Page 15 for location of
junction box on unit, To minimize
binding when the unit is connected
to the receptacle or junction box,
orient the receptacle or conduit
connector, and slide back into posi-
tion,

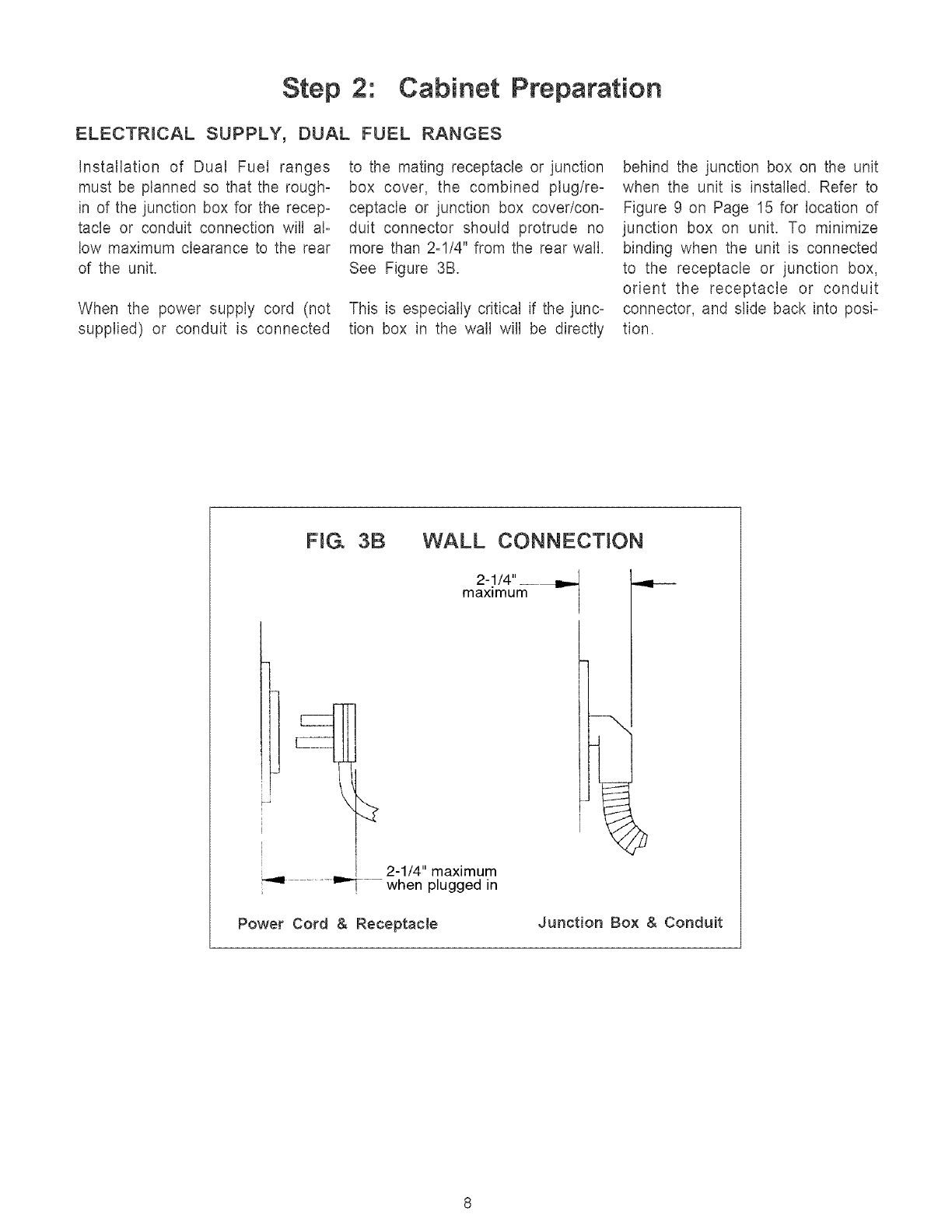

FiG. 3B WALL CONNECTION
L
I
2-1/4" maximum
...... m,,--' ---when plugged in
2-1/4" ____
maximum
Power Cord & Receptac(e Junct(on Box & Conduit

Step 3: Unpacking, Moving and Placing The Range
CAUTION
Proper equipment and ad-
equate manpower must be
used in moving the range
to avoid injury, and to avoid
damage to the unit or the
floor. The unit is heavy
and should be handled
accordingly.
The range has an approximate
shipping weight as shown in
ChartA. It is recommended that
the grates, griddle plate and
frame, burner caps, front kick
panel and oven racks be re-
moved to facilitate handling.
This will reduce the weight as
shown in Chart A and allow the
range to pass through 30" door-
ways. See Figs. 2A and 2B on
Page 6. Do not remove the
grill or griddle assemblies.
Remove the outer carton and
packing material from the ship-
ping base. The dual fuel ranges
are held to the skid by four (4)
bolts (see Fig. 4 and 5). After
removing the bolts the range
must be lifted and removed from
the skid.
Remove angle-mounting brack-
ets from range. This requires
the installer to remove two
screws holding each bracket
then remove bracket and rein-
stall screws.
Cha_ A 30" Range 36" Range 48" Range
Shipping Weight 335 Ibs. 444 Ibs. 584 Ibs.
Weight without 285 Ibs. 390 Ibs. 524 Ibs.
packing materials
Without door(s),
burner caps, front kick
panel and oven racks
2151bs. 2951bs. 3951bs.
FIG. 4 - Removal of Two
Front Shipping Bolts FIG. 8 - Removal of Two Rear
Shipping Bolts
Left Rear j/ z
Shipping
Bolt !

Step 3: Unpacking, Moving
Due to the weight, a dolly with soft wheels
should be used to move this unit. The weight
must be supported uniformly across the bottom
(See Fig. 6).
After transporting the professional range by
dolly close to its final location, the range can be
tipped back and supported on the rear legs
while the dolly is carefully removed.
FLOOR UNDER THE LEGS
SHOULD BE PROTECTED (WOOD
8TRIPS, CARPET, PANEMNG,
ETC.) PUSHING
UNIT INTO POSITION. The antHip de-
vice must be installed (STEP 4), gas and
electrical connections should be made (STEPS
5 and 6), and the backguard installed (STEP 7)
before the range is placed in its final position.
For proper performance the professional
range must be level (It is very important for
all products that have the griddle feature). The
range is leveled by adjusting the legs with a
wrench.
Replace the kick panel and install the oven
door. To install door, see Page 18. DO not
install the oven door until the range is in its
fina_ Dcation. it is important that the two (2)
screws retaining the kick pane_ are secure
to prevent acddenta_ access to hot sur-
faces.
Ensure that the burner caps are correctly
seated on the burner bases of the range's
cooktop.
and Placing The Range
Range
Musl be
Uniformly
Supported
by Braces
Provided
on Bottom
Range
22-3t4"
Griddle Tilt Adjustment
Check the griddle frame adjustment by pouring two tablespoons of water on the back of the griddle
plate. The water should slowly roll into the grease tray. if not, adjust the two screws under the back
of the griddle frame. Start with one half turn CCW of the screws. Further adjustment should be made
by one-quarter turn until water slowly flows into the grease tray.
10

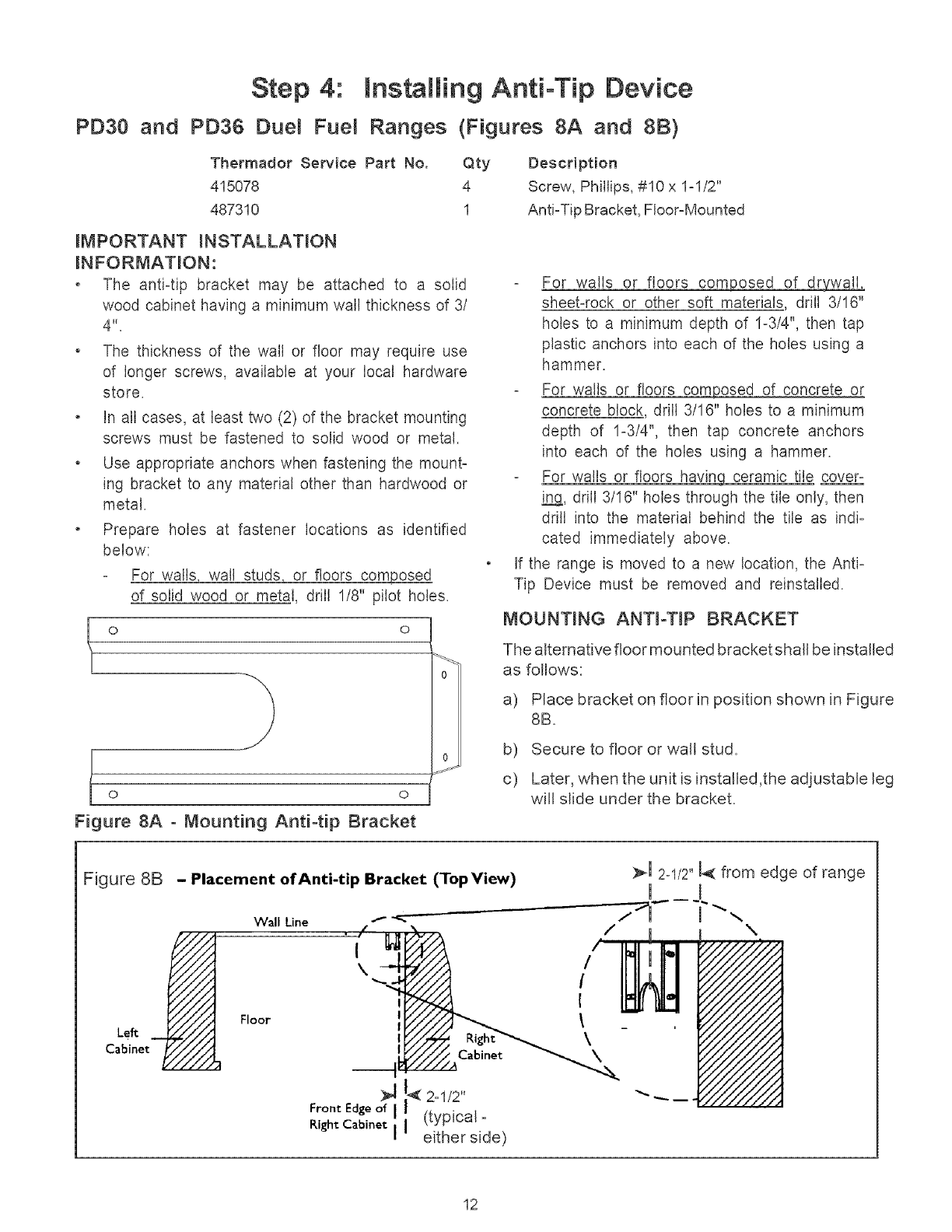

Step 4: installing Anti-Tip Device
For al[ 30" and 36" ranges, an anti-tip device must be installed as per these
instructions.
_, WARNING
RANGE TiPPiNG
Aim ranges can tip and injury can result. To
prevent accidental tipping of the range,
attach it to the floor, wall or cabinet by
installing the Anti-Tip Device supplied.
A risk of tip-over may exist if the appliance
is not installed in accordance with these
instructions.
[f the range is pulled away from the wall
for cleaning, service or any other reason,
ensure that the Anti-Tip Device is prop-
er[y reengaged when the range is pushed
back against the wall. in the event of
abnorma[ usage (such as a person stand=
ing, sitting, or leaning on an open door),
failure to take this precaution can result
in tipping of the range. Persona[ injury
might result from spilled hot liquids or
from the range itself.
_, WARNING
o ALL RANGES CAN
TiP
o iNJURY TO PER-
SONS COULD
RESULT
o iNSTALL ANTi-TiP
PACKED
WiTH RANGE
oSEE iNSTALLATiON
iNSTRUCTiONS
_, WARNtNG
ELECTRICAL SHOCK HAZARD
• Use extreme caution when drilling holes
into the wall or floor. There may be
concealed electrical wires located
behind the wall or under the floor.
. [dentify the electrical circuits that could
be affected by the installation of the
Anti-Tip Device, then turn off power to
these circuits.
. Failure to follow these instructions may
result in electrical shock or other per-
sona[ injury.
CAUTION
PROPERTY DAMAGE
• Contact a qualified installer or contractor
to determine the proper method for drill-
ing holes through the wall or floor material
(such as ceramic the, hardwood, etc.)
. Do not slide the range across an unpro-
tected floor.
Failure to follow these instructions may
result in damage to wall or floor cover-
ings.
Tools Needed for installation of Anti-Tip Device:
=Screwdriver, Phillips =Hammer
=Drill, electric or hand =Pencil or other marker
=Measuring tape or ruler
=1/8" drill bit (wood or metal wail or floor)
=3/16" carbide=tipped masonry drill bit (concrete or concrete block wail or floor)
=3/16" anchors, drywall or concrete, 2 each (not required if mounting bracket is being attached to solid wood or
metal)
11

Step 4: Installing Anti-Tip Device
PD30 and PD36 Duel Fuem Ranges (Figures 8A and 8B)
Thermador Serv{ce Part No. Qty
415078 4
487310 1
Description
Screw, Phillips, #10 x 1=1/2"
Anti=Tip Bracket, Floor=Mounted
{MPORTANT _NSTALLAT_ON
{NFORMAT_ON:
o The anti-tip bracket may be attached to a solid
wood cabinet having a minimum wall thickness of 3/
,,
. The thickness of the wall or floor may require use
of longer screws, available at your local hardware
store.
. In all cases, at least two (2) of the bracket mounting
screws must be fastened to solid wood or metal.
o Use appropriate anchors when fastening the mount-
ing bracket to any material other than hardwood or
metal.
. Prepare holes at fastener locations as identified
below:
For walls, wall studs, or floors_osed
of solid wood or metal, drill I/8" pilot holes.
O O
O O
Figure 8A -Mounting Anti-tip Bracket
For walls or floors composed of dr_
_ther soft materials, drill 3/16"
holes to a minimum depth of 1=3/4", then tap
plastic anchors into each of the holes using a
hammer.
For walls or floors com#osed of concrete or
, drill 3/16" holes to a minimum
depth of 1=3/4", then tap concrete anchors
into each of the holes using a hammer.
For walls or floors having ceramic tile cover=
m__,drill 3/I6" holes through the tile only, then
drill into the material behind the tile as indi-
cated immediately above.
If the range is moved to a new location, the Anti-
Tip Device must be removed and reinstalled.
MOUNTING ANT_-T_P BRACKET
The alternative floor mounted bracket shall be installed
as follows:
a) Place bracket on floor in position shown in Figure
8B.
b) Secure to floor or wall stud.
c) Later, when the unit is installed,the adjustable leg
will slide under the bracket.
Figure 8B - Placement of Anti-tip Bracket (TopView)
Cabinet
Wall Line
Floor
./ /
\--
If<2=i,,'z'
Front Edge of I(typ ca =
Right Cabinet I either side)
:_J 2ol/2" _( from edge of range
\
12

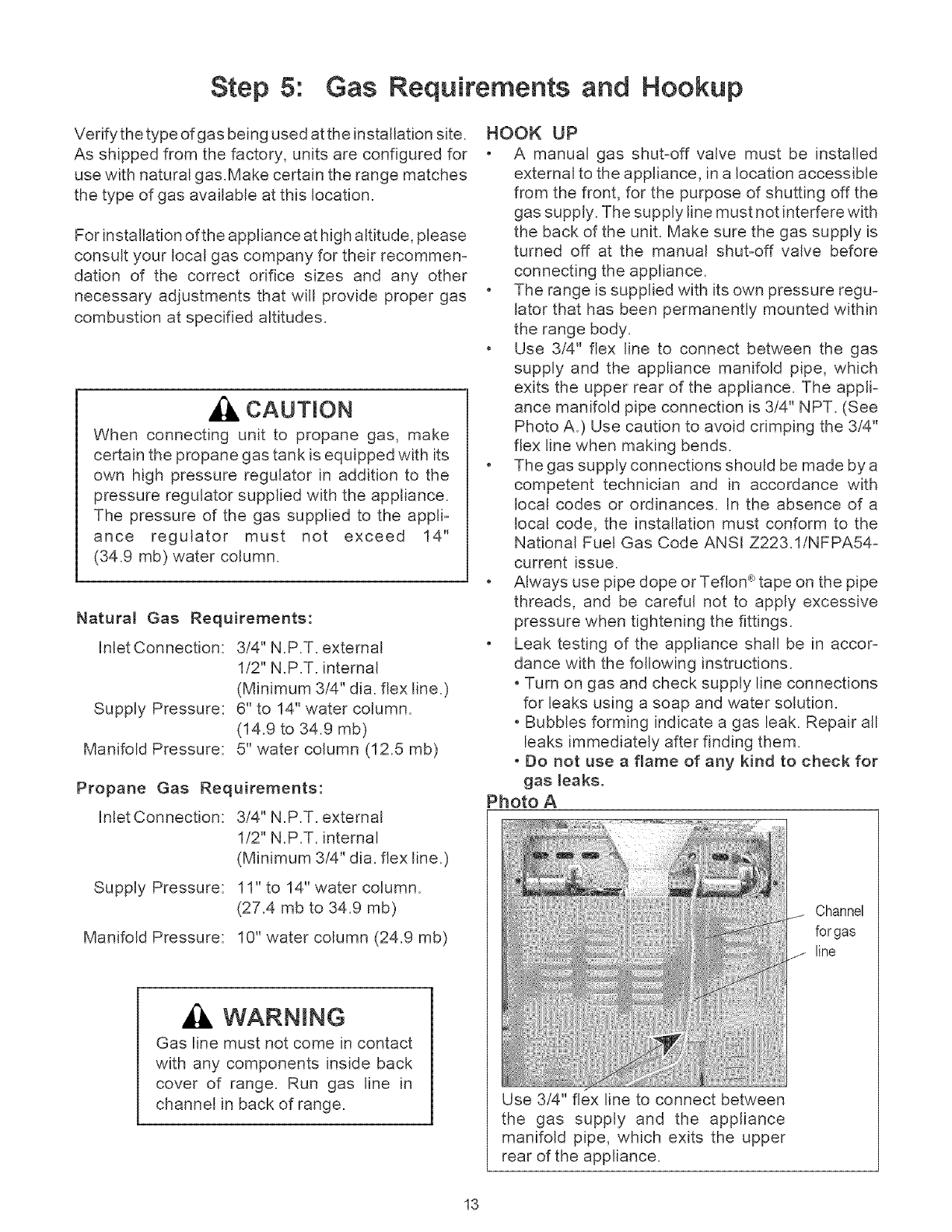

Step 5: Gas Requirements and Hookup
Verify the type of gas being used at the installation site.
As shipped from the factory, units are configured for
use with natural gas.Make certain the range matches
the type of gas available at this location.
For installation of the appliance at high altitude, please
consult your local gas company for their recommen-
dation of the correct orifice sizes and any other
necessary adjustments that will provide proper gas
combustion at specified altitudes.
CAUTION
When connecting unit to propane gas, make
certain the propane gas tank is equipped with its
own high pressure regulator in addition to the
pressure regulator supplied with the appliance.
The pressure of the gas supplied to the appli-
ance regulator must not exceed 14"
(34.9 mb) water column.
NaturaJ
Inlet Connection:
Supply Pressure:
Manifold Pressure:
Gas Requirements:
3/4" N.P.T. external
1/2" N.P.T. internal
(Minimum 3/4" dia. flex line.)
6" to 14" water column.
(14.9 to 34.9 mb)
5" water column (12.5 mb)
Supply Pressure:
Manifold Pressure:
Propane Gas Requirements:
Inlet Connection: 3/4" N.P.T. external
1/2" N.P.T. internal
(Minimum 3/4" dia. flex line.)
11" to 14" water column.
(27.4 mb to 34.9 mb)
10" water column (24.9 mb)
WARNmNG
Gas line must not come in contact
with any components inside back
cover of range. Run gas line in
channel in back of range.
HOOK UP
• A manual gas shut-off valve must be installed
external to the appliance, in a location accessible
from the front, for the purpose of shutting off the
gas supply. The supply line must not interfere with
the back of the unit. Make sure the gas supply is
turned off at the manual shut-off valve before
connecting the appliance.
• The range is supplied with its own pressure regu-
lator that has been permanently mounted within
the range body.
Use 3/4" flex line to connect between the gas
supply and the appliance manifold pipe, which
exits the upper rear of the appliance. The appli-
ance manifold pipe connection is 3/4" NPT. (See
Photo A.) Use caution to avoid crimping the 3/4"
flex line when making bends.
The gas supply connections should be made by a
competent technician and in accordance with
local codes or ordinances. In the absence of a
local code, the installation must conform to the
National Fuel Gas Code ANSI Z223.1iNFPA54-
current issue.
Always use pipe dope or Teflon _)tape on the pipe
threads, and be careful not to apply excessive
pressure when tightening the fittings.
• Leak testing of the appliance shall be in accor-
dance with the following instructions.
• Turn on gas and check supply line connections
for leaks using a soap and water solution.
Bubbles forming indicate a gas leak. Repair all
leaks immediately after finding them.
• Do not use a flame of any kind to check for
gas _eaks.
Photo A
Channel
forgas
line
Use 3/4" flex line to connect between
the gas supply and the appliance
manifold pipe, which exits the upper
rear of the appliance.
13

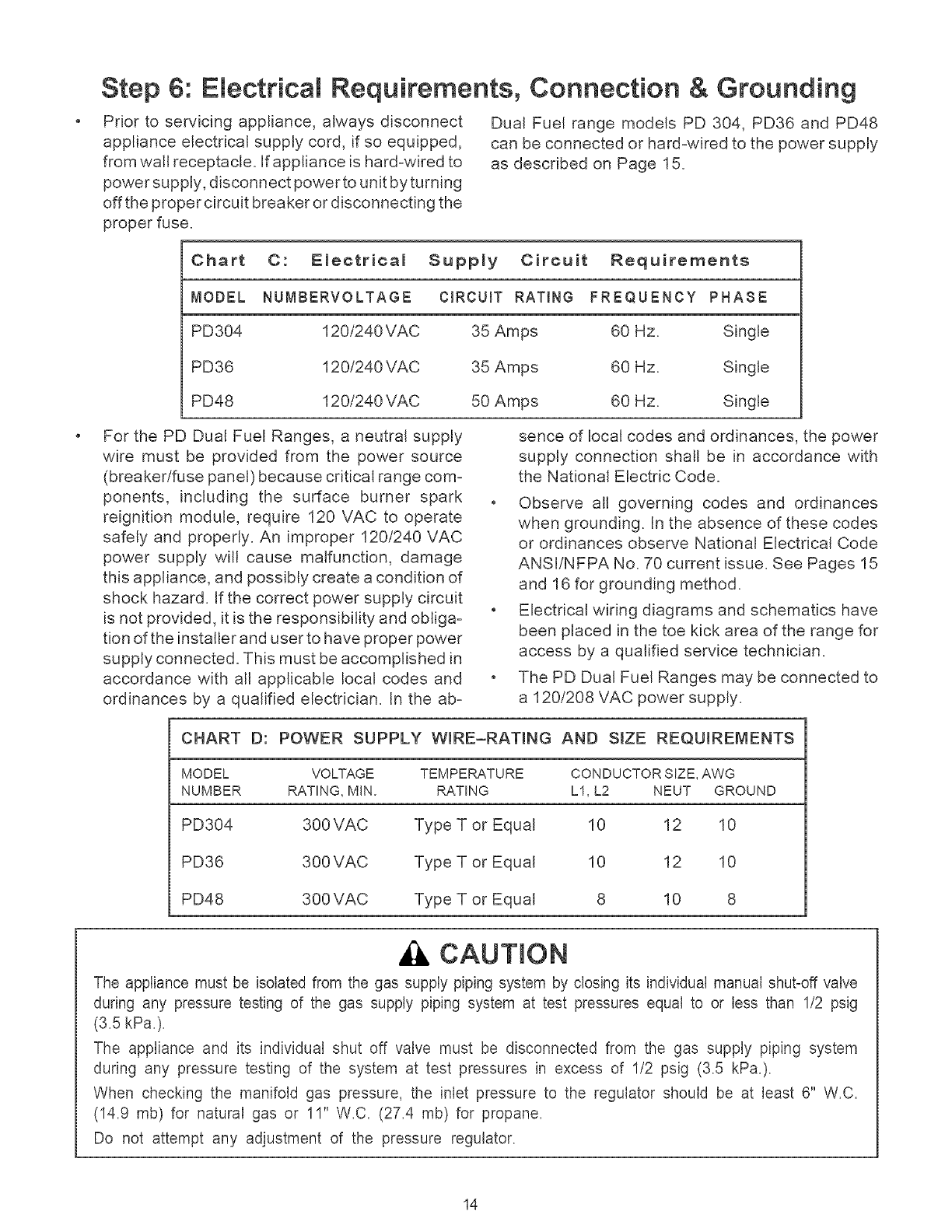

Step 6: Electrical Requirements, Connection & Grounding
Prior to servicing appliance, always disconnect
appliance electrical supply cord, if so equipped,
from wall receptacle. If appliance is hard-wired to
power supply, disconnect power to unit by turning
off the proper circuit breaker or disconnecting the
proper fuse.
Dual Fuel range models PD 304, PD36 and PD48
can be connected or hard-wired to the power supply
as described on Page 15.
Chart C: E_eotriea_ Supply Circuit Requirements
MODEL NUMB_=RVOLTAGE CIRCUIT RATmNG FREQUENCY PHA8 _=
PD304 120/240VAC 35 Amps 60 Hz_ Single
PD36 120/240 VAC 35 Amps 60 Hz. Single
PD48 120/240 VAC 50 Amps 60 Hz. Single
For the PD Dual Fuel Ranges, a neutral supply
wire must be provided from the power source
(breaker/fuse panel) because critical range com-
ponents, including the surface burner spark
reignition module, require 120 VAC to operate
safely and properly. An improper 120/240 VAC
power supply will cause malfunction, damage
this appliance, and possibly create a condition of
shock hazard. If the correct power supply circuit
is not provided, it is the responsibility and obliga-
tion of the installer and user to have proper power
supply connected. This must be accomplished in
accordance with all applicable local codes and
ordinances by a qualified electrician. In the ab-
sence of local codes and ordinances, the power
supply connection shall be in accordance with
the National Electric Code.
Observe all governing codes and ordinances
when grounding. In the absence of these codes
or ordinances observe National Electrical Code
ANSIiNFPA No. 70 current issue. See Pages 15
and 16 for grounding method.
• Electrical wiring diagrams and schematics have
been placed in the toe kick area of the range for
access by a qualified service technician.
• The PD Dual Fuel Ranges may be connected to
a 120/208 VAC power supply.
CHART D: POWER SUPPLY WIRE-RATING AND SIZE REQUIREMENTS
MODEL VOLTAGE TEMPERATURE CONDUCTOR SIZE, AWG
NUMBER RATING, MIN. RATING L1, L2 NEUT GROUND
PD304 300 VAC Type T or Equal 10 12 10
PD36 300 VAC Type T or Equal 10 12 10
PD48 300 VAC Type T or Equal 8 10 8
CAUTION
The appliance must be isolated from the gas supply piping system by closing its individual manual shut-off valve
during any pressure testing of the gas supply piping system at test pressures equal to or less than I/2 psig
(3.5 kPa.).
The appliance and its individual shut off valve must be disconnected from the gas supply piping system
during any pressure testing of the system at test pressures in excess of 1/2 psig (3.5 kPa.).
When checking the manifold gas pressure, the inlet pressure to the regulator should be at least 6" W.C.
(14.9 mb) for natural gas or 11" W.C. (27.4 mb) for propane.
Do not attempt any adjustment of the pressure regulator.
14

Step 6: Electrical Requirements, Connection & Grounding
Dual Fuel models must be connected to the power supply utilizing one of the following methods. For all methods
of connection, the length of the cord or conduit/wiring must allow the unit to be slid completely out of the cabinet
without having to unplug or disconnect the unit from the power supply. Recommended minimum free length of
cord or conduit is four feet. Electrical installations and grounding must be in accordance with all local codes and
ordinances, and/or the National Electric Code, as applicable.
4-CONDUCTOR CORD -
NORMALLY, A UNIT MUST
BE CONNECTED TO THE
POWER SUPPLY WITH A
3-POLE, 4-CONDUCTOR
CORD KIT RATED 125/
250 VOLTS, 50 AMPERES,
AND MARKED FOR USE
WroTH RANGES. The cord
kit must be attached to the
range junction box with a strain
relief which will fit a 1" diam-
eter hole. If not already
equipped, the cord must have
1/4" faston closed-loop lugs
attached to the free ends of
the individual conductors, pref-
erably soldered in place.
PERMANENT CONNECTmON
(HARD WIRING)- Units may
be hard wired to the power
supply. The installer must
provide approved flexible
aluminum conduit, 3/4" trade
size, maximum 6 feet long.
Locate the junction box on the
rear of the unit and remove
cover. Refer to Fig. 9. Remove
the ground strap retaining
screw and bend the ground
strap up. Refer to Fig. 10. The
conduit must be installed to
the junction box using an
approved conduit connector.
Wiring for the unit is to be
brought into the junction box
through the conduit. Refer to
Chart D on Page 15 for rating
of wiring and sizing of indi-
vidual conductors. The ends
of the wiring must have
1/4" faston closedqoop lugs
attached, preferably soldered
in place. Make the connec-
tions to the terminal block pro-
vided. Secure the ground lead
to the junction box with the
screw previously used to se-
cure the ground strap. Refer
to Fig. 11. The free end of the
conduit must be connected to
a junction box provided in the
gas and electrical supply zone,
as shown in Figure 3Aon Page
8.
3-CONDUCTOR CORD -
WHERE LOCAL CODES
AND ORDmNANCES PERMIT
GROUNDING THROUGH
NEUTRAL, AND CONVER-
SION OF SUPPLY TO 4
WIRE mS mMPRACTmCAL,
UNIT MAY BE CON-
NECTED TO THE POWER
SUPPLY WITH A 3_POLE,
FIG. 9 = Location of Junction
Box on dual fuel ranges,
GAS SUPPLY
JUNCTION
BOX
Flexible electrical conduit or
4-connector Appliance Cord
3-CONDUCTOR CORD KIT
RATED 125/250 VOLTS, 50
AMPERES, AND MARKED
FOR USE WroTH RANGES.
The cord kit must be attached
to the range junction box with a
strain relief which will fit a 1"
diameter hole. If not already
equipped, the cord must have
1/4" faston closed-loop lugs at-
tached to the free ends of the
individual conductors, prefer-
ably soldered in place.
15

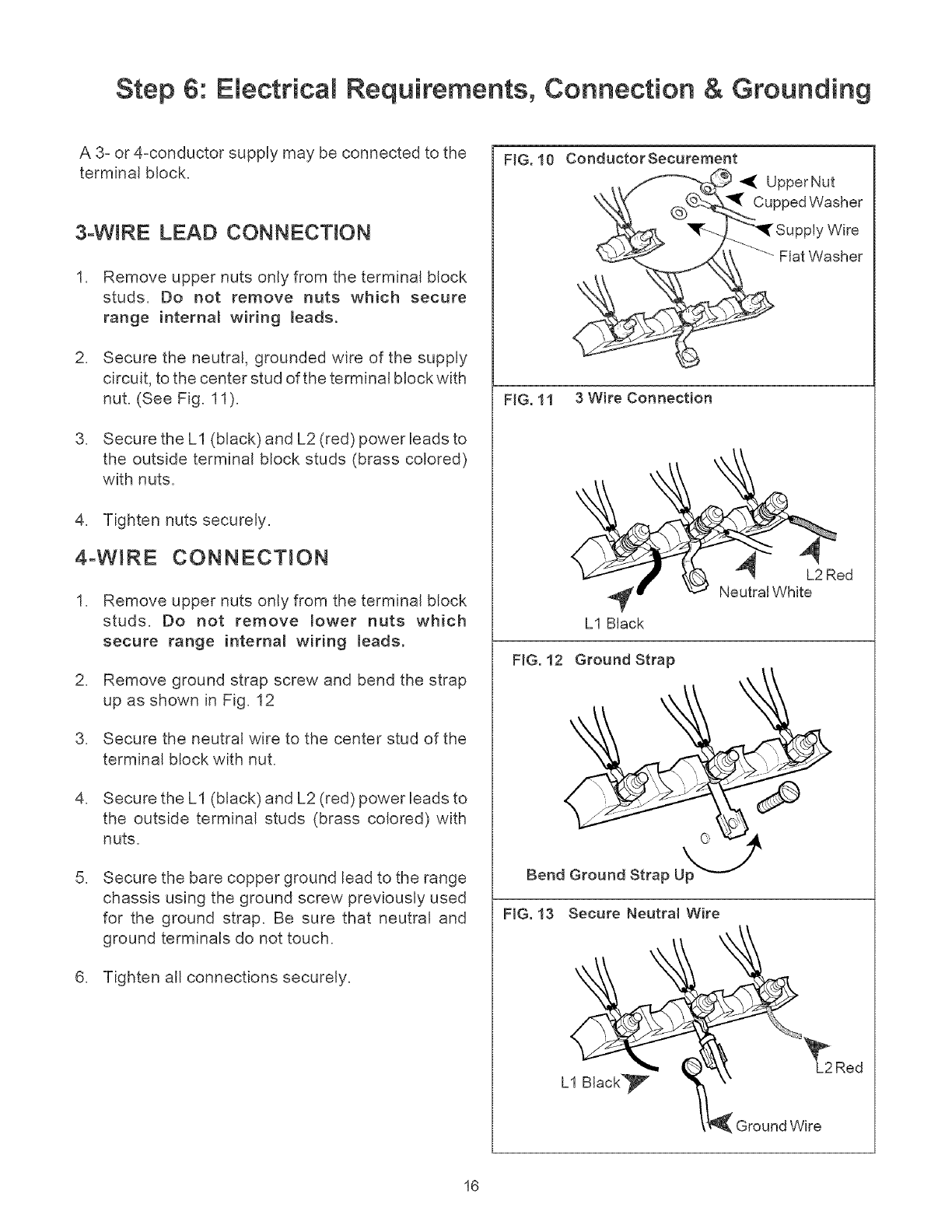

Step 6: Electrical Requirements, Connection & Grounding
A 3- or 4-conductor supply may be connected to the
terminal block.
3-WIRE LEAD CONNECTION
1. Remove upper nuts only from the terminal block
studs. Do not remove nuts which secure
range interna_ wiring _eads.
2. Secure the neutral, grounded wire of the supply
circuit, to the center stud of the terminal block with
nut. (See Fig. 11 ).
3. Secure the LI (black) and L2 (red) power leads to
the outside terminal block studs (brass colored)
with nuts.
4. Tighten nuts securely,
4°WIRE CONNECTION
.
.
.
Remove upper nuts only from the terminal block
studs. Do not remove lower nuts which
secure range interna_ wiring _eads.
Remove ground strap screw and bend the strap
up as shown in Fig. 12
Secure the neutral wire to the center stud of the
terminal block with nut.
4. Secure the L1 (black) and L2 (red) power leads to
the outside terminal studs (brass colored) with
nuts.
.Secure the bare copper ground lead to the range
chassis using the ground screw previously used
for the ground strap. Be sure that neutral and
ground terminals do not touch.
6. Tighten all connections securely.
FIG. 10 ConductorSecutement
• Upper Nut
FIG. 11 3 Wire Connection
!pply Wire
Flat Washer
LI Black
FIG. 12 Ground Strap
L2 Red
Neutral White
LI Black_ Red
Ground Wire
16

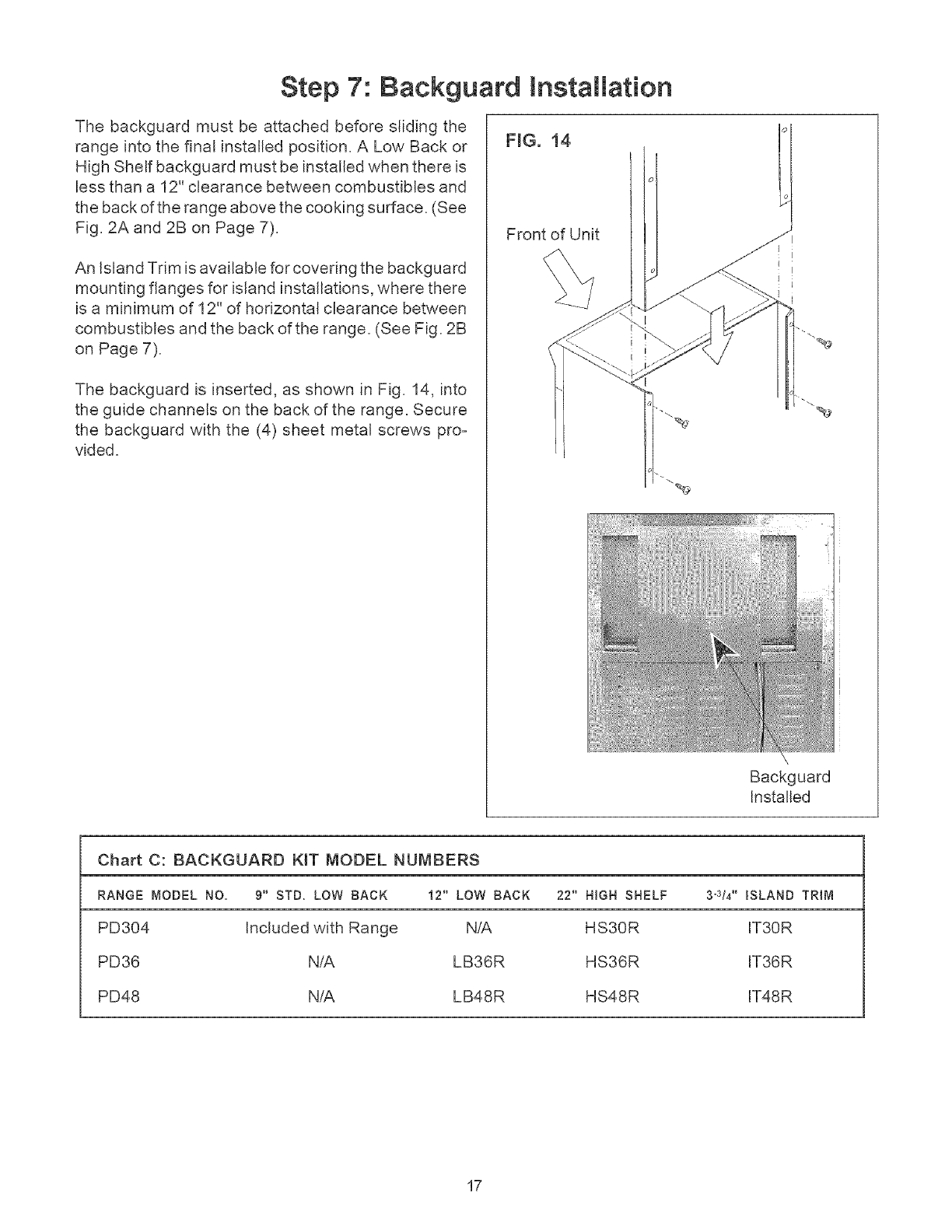

Step 7: Backguard installation
The backguard must be attached before sliding the
range into the final installed position. A Low Back or
High Shelf backguard must be installed when there is
less than a 12" clearance between combustibles and
the back of the range above the cooking surface. (See
Fig. 2A and 2B on Page 7).
An Island Trim is available for covering the backguard
mounting flanges for island installations, where there
is a minimum of 12" of horizontal clearance between
combustibles and the back of the range. (See Fig. 2B
on Page 7).
The backguard is inserted, as shown in Fig. 14, into
the guide channels on the back of the range. Secure
the backguard with the (4) sheet metal screws pro-
vided.
Front of Unit
I
L
Chart C: BACKGUARD KIT MODEL NUMBERS
RANGE MODEL NO, 9" STD. LOW HACK 12" LOW HACK 22" HIGH SHELF
PD304 Included with Range NiA HS30R
PD36 NiA LB36R HS36R
PD48 N!A LB48R HS48R
Backguard
Installed
3°3/4" ISLAND TRIM
IT30R
IT36R
IT48R
17

Step 8: Door Installation
CAUTION
The door is heavy and requires two people to
handle itproperly.
1. Insert the door hinge into the hinge pocket in the
front frame. When the door is properly installed,
the bottom edge will be parallel to the front of the
range and the hinge will click into position and
support the weight of the door.
2. Tip the door parallel to the floor to free the hinge
locking pin.
3. Carefully remove the pins. The door is nowfree to
close. Install the hold down bracket. Do not tighten
screw. Retain pins for future door removal.
4. Adjust the door height so the latch lock lever and
spacer gauge enters the slot in the door liner as
the door is closing and the top of the door should
be parallel to the bottom of the control panel.
Tighten down screw on hold down bracket.
5. Oven door hinges seated and hold down bracket
is located in proper locked position. Now the door
opens and closes properly.
6. The toe kick panel should be mounted last to
)revent damage by the door.
Photo B. Insert the door hinge into the hinge
pocket in the front frame.
Photo D
of Door
Height adjusting screw
Fig. 15
Photo C Hinge Locking Pin
Hold down
pHinge Locking Pin
(Retain for future
door remowll
Door height
oO
Fig. 16
18
