Technical description
Athena
www.thermia.pl

Thermia AB is not liable or bound by warranty if these instructions
are not adhered to during installation or service.
The English language is used for the original instructions.
Other languages are a translation of the original instructions.
(Directive 2006/42/EC)
© Copyright Thermia AB

Table of Contents
1 Heat pump dimensions and connections ................................................ 4
1.1 Heat pump dimensions and connections .............................................. 4
1.1.1 Outdoor unit ................................................................ 4
1.1.2 Indoor unit ................................................................. 5
2Technical data, Athena indoor unit .................................................... 8
2.1 Indoor unit ................................................................. 8
3Technical data Athena 14 400V H/HC ................................................... 9
3.1 Technical data Athena 14 400V H/HC ................................................ 9
3.2 Min./max. output Athena 14 H/HC .................................................. 10
4 Technical data Athena 18 400V H/HC ................................................... 11
4.1 Technical data Athena 18 400V H/HC ................................................ 11
4.2 Min./max. output Athena 18 H/HC .................................................. 12
5 Flow and pressure ................................................................ 13
5.1 Flow and pressure ............................................................. 13
6 Fan speeds ..................................................................... 16
6.1 Athena H/HC ................................................................ 16
6.2 Recommended outdoor unit placement .............................................. 16
Technical description Athena
Thermia AB AWAT01TD0102 3

1 Heat pump dimensions and connections
1.1 Heat pump dimensions and connections
1.1.1 Outdoor unit
Athena 14 & 18 H/HC
(mm)
157
410
100
490
1490
1380
1045
593
1
7
2
3 4
6
5
100
82
176
8
1. Supply line (push-fit connection), Ø28mm
2. Return line (push-fit connection), Ø28mm
3. Back side/air intake
4. Front side/air discharge
5. Drain
6. Condensate drain, Ø25mm
7. Insert for stabilizing screws (M8x4)
8. Air venting
Technical description Athena
AWAT01TD0102 Thermia AB
4

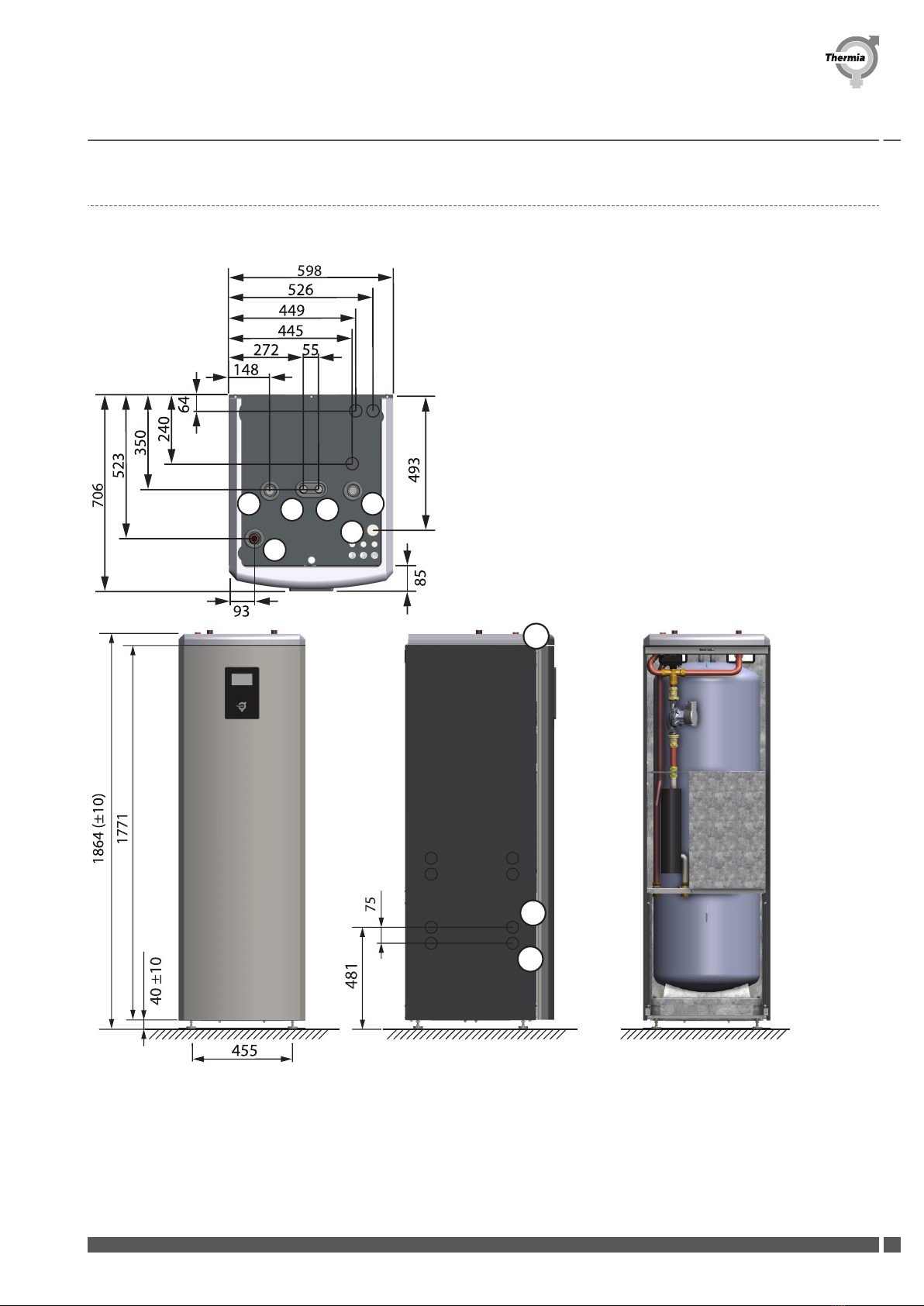

1.1.2 Indoor unit
Indoor unit Athena Total 300L
1a
2a
1b
2b3
5
1a. Hot water line, 22 mm
1b. Cold water line, 22 mm
2a. Heating system supply, 28 mm
2b. Heating system return, 28 mm
3. Connection for bleed valve, 28 mm
4a. Supply line from outdoor unit, 28 mm Cu (left or right)
4b. Return line to outdoor unit, 28 mm Cu (left or right)
5. Lead-in for power supply, sensor and communication cable
6.Top hood
6
4a
4b
Technical description Athena
Thermia AB AWAT01TD0102 5

Indoor unit Athena Compact
1a
2a
1b
2b3
5
1a. Hot water line, 22 mm
1b. Cold water line, 22 mm
2a. Heating system supply, 28 mm
2b. Heating system return, 28 mm
3. Connection for bleed valve, 28 mm
4a. Supply line from outdoor unit, 28
mm Cu (left or right)
4b. Return line to outdoor unit, 28 mm
Cu (left or right)
5. Lead-in for power supply, sensor and
communication cable
6.Top hood
6
4a
4b
Technical description Athena
AWAT01TD0102 Thermia AB
6

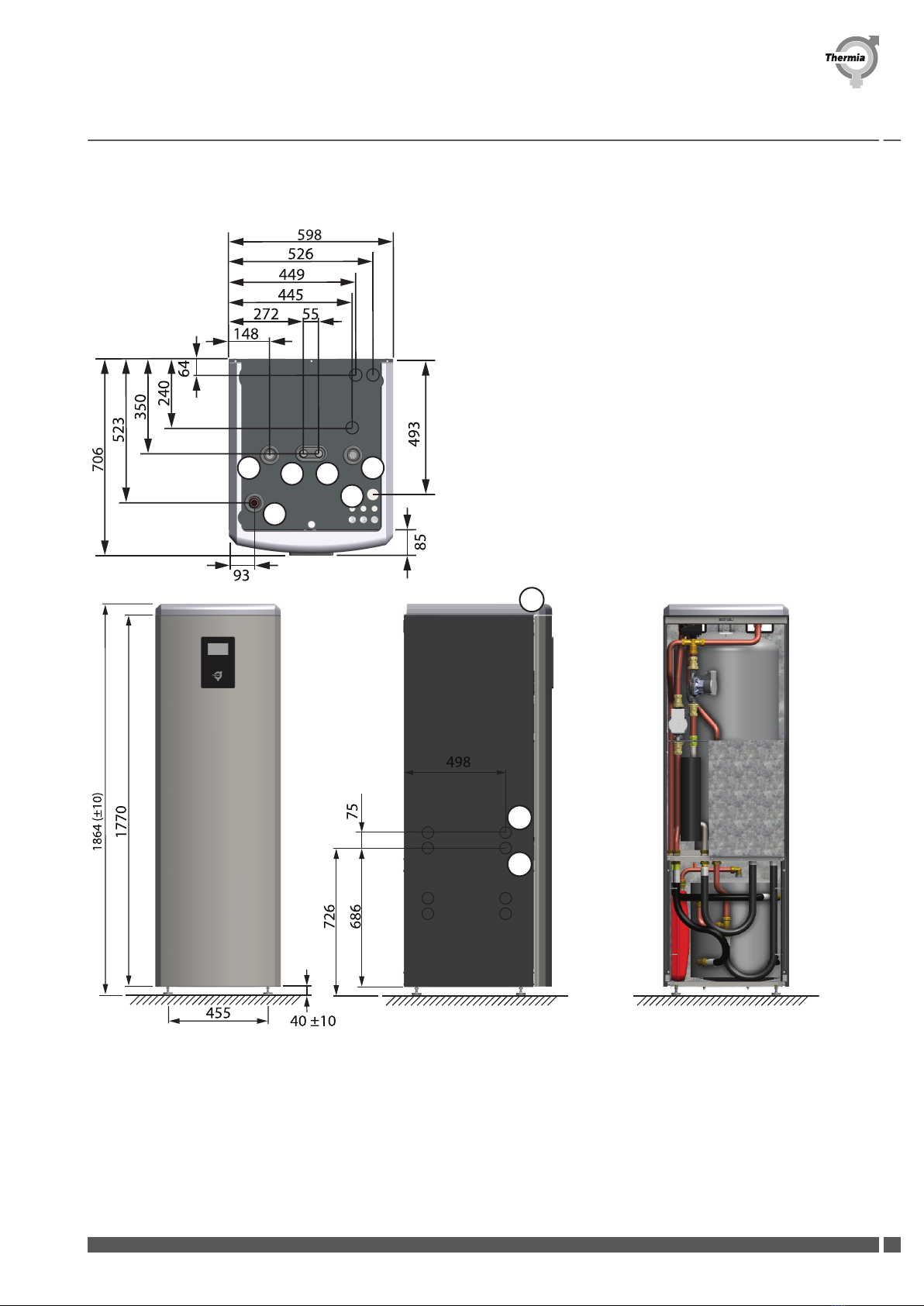

Indoor unit Athena Total EQ
1a
2a
1b
2b3
5
1a. Hot water line, 22 mm
1b. Cold water line, 22 mm
2a. Heating system supply, 28 mm
2b. Heating system return, 28 mm
3. Connection for bleed valve, 28 mm
4a. Supply line from outdoor unit, 28 mm Cu (left or right)
4b. Return line to outdoor unit, 28 mm Cu (left or right)
5. Lead-in for power supply, sensor and communication cable
6.Top hood
6
4a
4b
Technical description Athena
Thermia AB AWAT01TD0102 7

2 Technical data, Athena indoor unit
2.1 Indoor unit
Indoor unit Unit Athena Total EQ Athena Total 300L Athena Compact
204464 204465 204463
Mains power supply V 400~3N 50Hz
Marking power, circula-
tion pumps kW 0,2 0,1 0,1
Immersion heater, steps kW 3/6/9
Fuse separate supply, in-
door unit1A6/10/16
Max current, Immersion
heater only A 5,2/9,5/13,9 4,8/9,1/13,5 4,8/9,1/13,5
Energy class - system Floor heating (35°C)/
Radiator heating (55°C) A+++/A++
Energy class - product2Floor heating (35°C)/
Radiator heating (55°C) A+++/A++
Water heater/Declared
load profile A/XL
Hot water performance Volume 40°C hot water3
(l)
254 417 254
Volume 40°C hot water4
(l)
212 326 212
Water heater energy effi-
ciency5(ηwh%)
102 100 102
Min. water flow m³/h 1
Recommended min. flow m³/h 1,1
Hot water tank, size l 184 290 184
Weight kg 147,5 123 96,5
Dimensions (WxDxH) mm 598x704x1863±10 598x704x1863±10 598x704x1453±10
1) The minimum recommended fuse size depends on the limitation of the electrical immersion heater.
2) When the heat pump is not connected to a heating system, and the function of the built-in control computer is not taken into account. According to EU regulation 811/2013.
3) Hot water performance according to EN16147, V40 according to XL cycle with the control computer set for Comfort mode.
4) Hot water performance according to EN16147, V40 according to XL cycle with the control computer set for Normal mode.
5) Hot water performance according to EN16147, V40 according to XL cycle with the control computer set for Normal mode.
Technical description Athena
AWAT01TD0102 Thermia AB
8

3 Technical data Athena 14 400V H/HC
3.1 Technical data Athena 14 400V H/HC
Athena 14 outdoor units Units Athena 14 400V H Athena 14 400V HC
Heating capacity1kW 7,85-13,98
Refrigerant Type R410A
Amount 2kg 4,70 5,50
CO2 equivalent tCO2e 9,810 11,480
Design pressure bar(g)
Compressor Type Scroll
Oil POE
Electrical data, 400V ~3N 50Hz Mains power supply V 400~3N
Max working power, compressor kW 5,5
Immersion heater3kW 8,8
Fuse separate supply3A 16
Max current, compressor only A 7,9
Max current, immersion heater only A 14
Performance SCOP, floor heating (35°C) - cold climate 4,2 4,25
SCOP, radiator heating (55°C) - cold climate 3,22 3,25
SCOP, floor heating (35°C) - average climate 4,7 4,87
SCOP, radiator heating (55°C) - average climate 3,65 3,74
A7/W35 / A7/W65 (max. power output) kW 10,8/13,98
A-7/W35 / A-7/W65 (max. power output) kW 10,14/11,06
COP (A7W35) 5,09
Energy class - system Floor heating (35°C) A+++
Radiator heating (55°C) A++
Energy class - product Floor heating (35°C) A+++
Radiator heating (55°C) A++
Max temperature Heating circuit °C 65
Operating temperature range (outdoors) Heating/hot water °C -20~+37
Cooling °C +15~+37
Sound power level Normal operation - EN12102 - A7/W55 dB(A) 55
Max dB(A) 66
Sound pressure level - open field 1/5/10m dB(A) 48/32/28
Weight kg 176,5 188
Dimensions (WxDxH) mm 1495x593x1045
1) Min. output corresponds to part-load at A7/W35 and max. output to full compressor speed at A7/W65
2) The refrigerant circuit is hermetically sealed and contains refrigerants covered by the F-gas regulation. The GWP for R410A according to EC 517/2014 is 2088, corresponding to 11,48 tCO2e for
Athena HC and 9,81 tCO2e for Athena H
3) The immersion heater located in the outdoor unit isn't allowed to run at the same time as the compressor, only allowed to run at low outdoor temperatures when the compressor is OFF
Technical description Athena
Thermia AB AWAT01TD0102 9

3.2 Min./max. output Athena 14 H/HC
0,00
5,00
10,00
15,00
20,00
-20 -15 -7 27 12 20
Heating output [kW]
Outdoor temperature [˚C]
max W35 max W45 max W55 max W65
min W35 min W45 min W55 min W65
Technical description Athena
AWAT01TD0102 Thermia AB
10

4 Technical data Athena 18 400V H/HC
4.1 Technical data Athena 18 400V H/HC
Athena 18 outdoor units Units Athena 18 400V H Athena 18 400V HC
Heating capacity1kW 7,85-17,5
Refrigerant Type R410A
Amount 2kg 4,70 5,50
CO2 equivalent tCO2e 9,810 11,480
Design pressure bar(g)
Compressor Type Scroll
Oil POE
Electrical data, 400V ~3N 50Hz Mains power supply V 400~3N
Max working power, compressor kW 7,1
Immersion heater3kW 8,8
Fuse separate supply3A 16
Max current, compressor only A 10,2
Max current, immersion heater only A 14
Performance SCOP, floor heating (35°C) - cold climate 4,05 4,08
SCOP, radiator heating (55°C) - cold climate 3,18 3,2
SCOP, floor heating (35°C) - average climate 4,63 4,76
SCOP, radiator heating (55°C) - average climate 3,59 3,67
A7/W35 / A7/W65 (max. power output) kW 12,85/17,5
A-7/W35 / A-7/W65 (max. power output) kW 12,86/14,3
COP (A7W35) 5,09
Energy class - system Floor heating (35°C) A+++
Radiator heating (55°C) A++
Energy class - product Floor heating (35°C) A+++
Radiator heating (55°C) A++
Max temperature Heating circuit °C 65
Operating temperature range (outdoors) Heating/hot water °C -20~+37
Cooling °C +15~+37
Sound power level Normal operation - EN12102 - A7/W55 dB(A) 55
Max dB(A) 66
Sound pressure level - open field 1/5/10m dB(A) 48/32/28
Weight kg 176,5 188
Dimensions (WxDxH) mm 1495x593x1045
1) Min. output corresponds to part-load at A7/W35 and max. output to full compressor speed at A7/W65
2) The refrigerant circuit is hermetically sealed and contains refrigerants covered by the F-gas regulation. The GWP for R410A according to EC 517/2014 is 2088, corresponding to 11,48 tCO2e for
Athena HC and 9,81 tCO2e for Athena H
3) The immersion heater located in the outdoor unit isn't allowed to run at the same time as the compressor, only allowed to run at low outdoor temperatures when the compressor is OFF
Technical description Athena
Thermia AB AWAT01TD0102 11

4.2 Min./max. output Athena 18 H/HC
0,00
5,00
10,00
15,00
20,00
-20 -15 -7 2 7 12 20
Heating output [kW]
Outdoor temperature [˚C]
max W35 max W45 max W55 max W65
min W35 min W45 min W55 min W65
Technical description Athena
AWAT01TD0102 Thermia AB
12

5 Flow and pressure
5.1 Flow and pressure
Water flow in the heating system
The minimum flow rate and defrost energy must always be assured. The minimum flow rate is 1 m³/h and the recommended flow rate is
to have at least 10% margin, resulting in a recommended flow rate of 1,1 m³/h or approximately above 18 litres per minute.
The water flow can be found in SYSTEM INFORMATION - Operating data - Flow rate and it is shown in l/min. The minimum water flow
is set to 70% as default, but this needs to be adjusted that you have at least the recommended water flow as minimum water flow. In
order to adjust the minimum water flow go to SETTINGS - Circulation pumps - Condenser pump HP - Min speed. Adjust the minimum
speed of the condenser pump in order to have at least approximately 18 l/min.
Pressure loss - Athena
Recommended min. ow rate
Internal pressure loss in Athena outdoor unit.
Technical description Athena
Thermia AB AWAT01TD0102 13

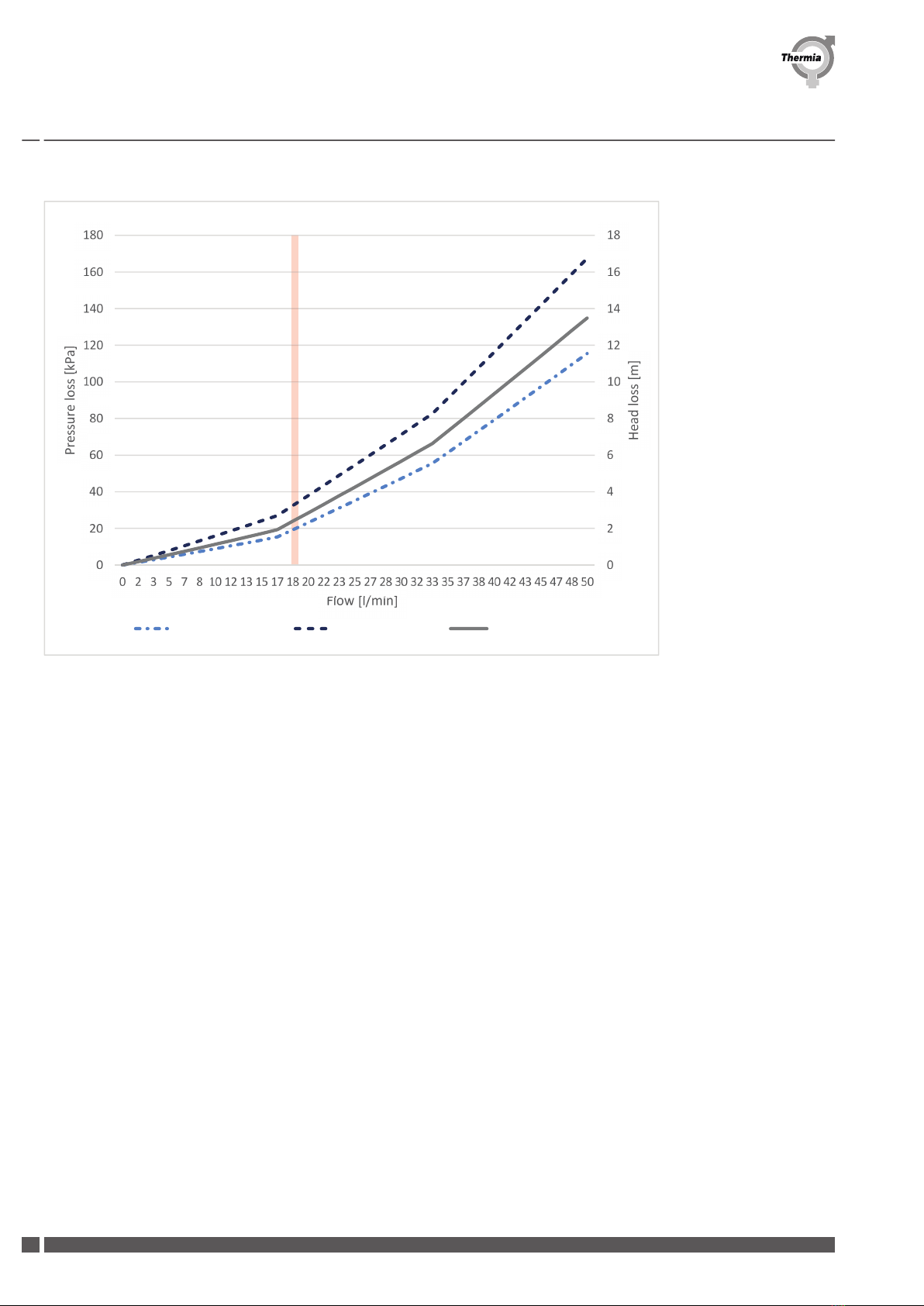

Pressure loss - Heating system
Recommended min. ow rate
Total 300L Total EQ Compact
Total pressure loss in the heating system with outdoor unit and respective indoor unit.
The pressure loss in the heating system has been calculated according to an assumed standard installation consisting of Athena outdoor
units, indoor units (Total EQ/Total 300L/Compact), 10m copper pipes (Ø 28mm) and minor losses corresponding to 90° bends.
Technical description Athena
AWAT01TD0102 Thermia AB
14

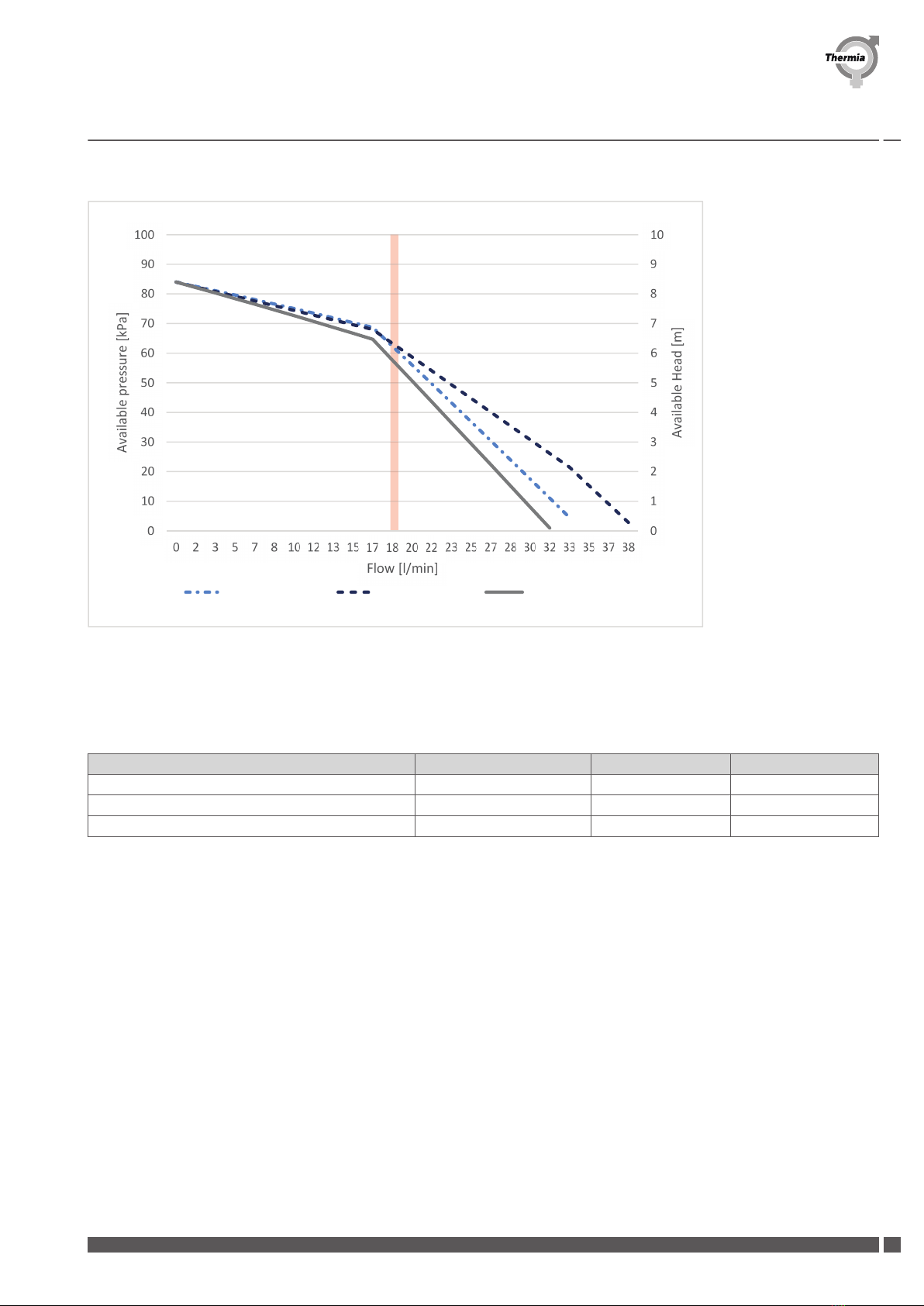

Available pressure - Rad system
Recommended min. ow rate
Total 300L Total EQ Compact
External available pressure with internal circulation pump for Athena.
When calculating the available pressure for Total EQ, the internal pressure loss was taken into account due to its two circulation pumps,
where one works towards the rad system. For Total 300L and Compact, the total pressure in the heating system was considered.
Indoor unit Unit Min Max
Total 300L l/min 18 34
Total EQ l/min 18 39
Compact l/min 18 32
Technical description Athena
Thermia AB AWAT01TD0102 15

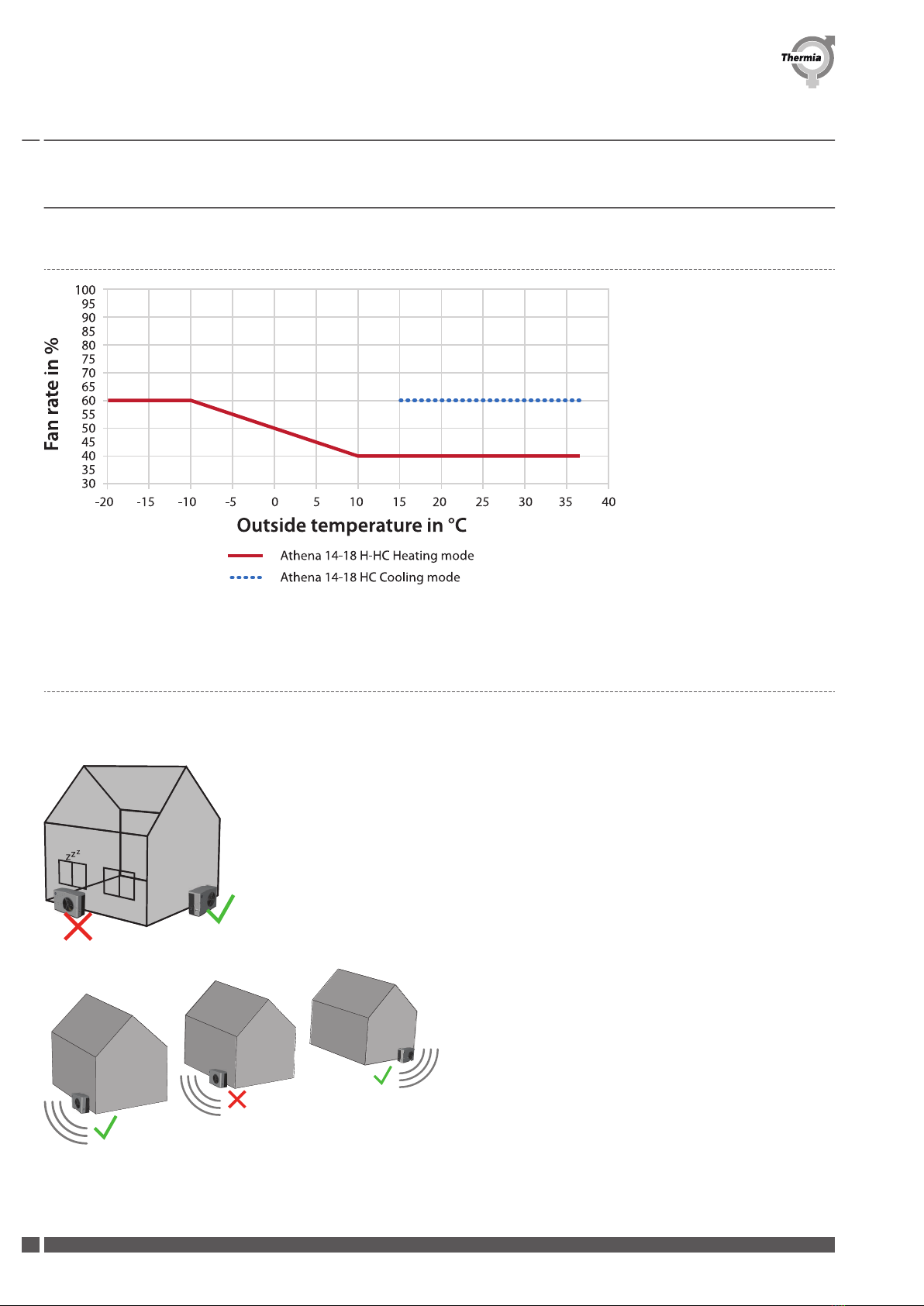

6 Fan speeds
6.1 Athena H/HC
In heating mode the fan speed increases with decreasing outdoor temperature, as shown in the table above.
6.2 Recommended outdoor unit placement
Avoid placing the outdoor unit close to bedroom or living room windows. Preferable placement is instead on solid walls facing away
from any close neighbouring houses or facilities. See images below.
Technical description Athena
AWAT01TD0102 Thermia AB
16

Technical description Athena
Thermia AB AWAT01TD0102 17

Technical description Athena
AWAT01TD0102 Thermia AB
18

Technical description Athena
Thermia AB AWAT01TD0102 19

Technical description Athena
Serwis i Wsparcie: [email protected]
Wsparcie Inwestycji i Projektów: [email protected]
www.thermia.pl
Thermia can accept no responsibility for possible errors in catalogues, brochures and other printed material. Thermia reserves the right to alter its products without notice. This also applies to products
already on order provided that such alterations can be made without subsequential changes being necessary in specifications already agreed. All trademarks in this material are property of the respective
companies. Thermia AB and the Thermia AB logotype are trademarks of Thermia AB. All rights reserved.
AWAT01TD0102 Produced by Thermia AB © 2021
