Thermo King SLXi-100 User manual

SLXi-Operator’s Manual
SLXi-Manuel de l’utilisateur
SLXi-Manuale dell’operatore
SLXi-Betriebshandbuch
SLXi-Manual del operador
SLXi-Podręcznik operatora
SLXi-Bedieningshandleiding
SLXi-Kullanıcı Kılavuzu
SLXi-Manual do operador
SLXi-Brugermanual
SLXi-Driftmanual
SLXi-Руководство oператора

Copyright© 2018 Thermo King EMEA
Printed in Ireland
SLXi-100, 200, 300, 400, SLXi-300 Whisper Pro, SLXi
Spectrum and SLXi Spectrum Whisper Pro
TK 61452-2-OP (Rev. 1, 01-18)

Table of Contents
Table of Contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Safety Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
General Safety Practices . . . . . . . . . . . . . . . . . . . . . . . 8
Automatic Start/Stop Operation . . . . . . . . . . . . . . . . . . 8
Battery Installation and Cable Routing . . . . . . . . . . . . . 9
Refrigerant . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Refrigerant Oil . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
First Aid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

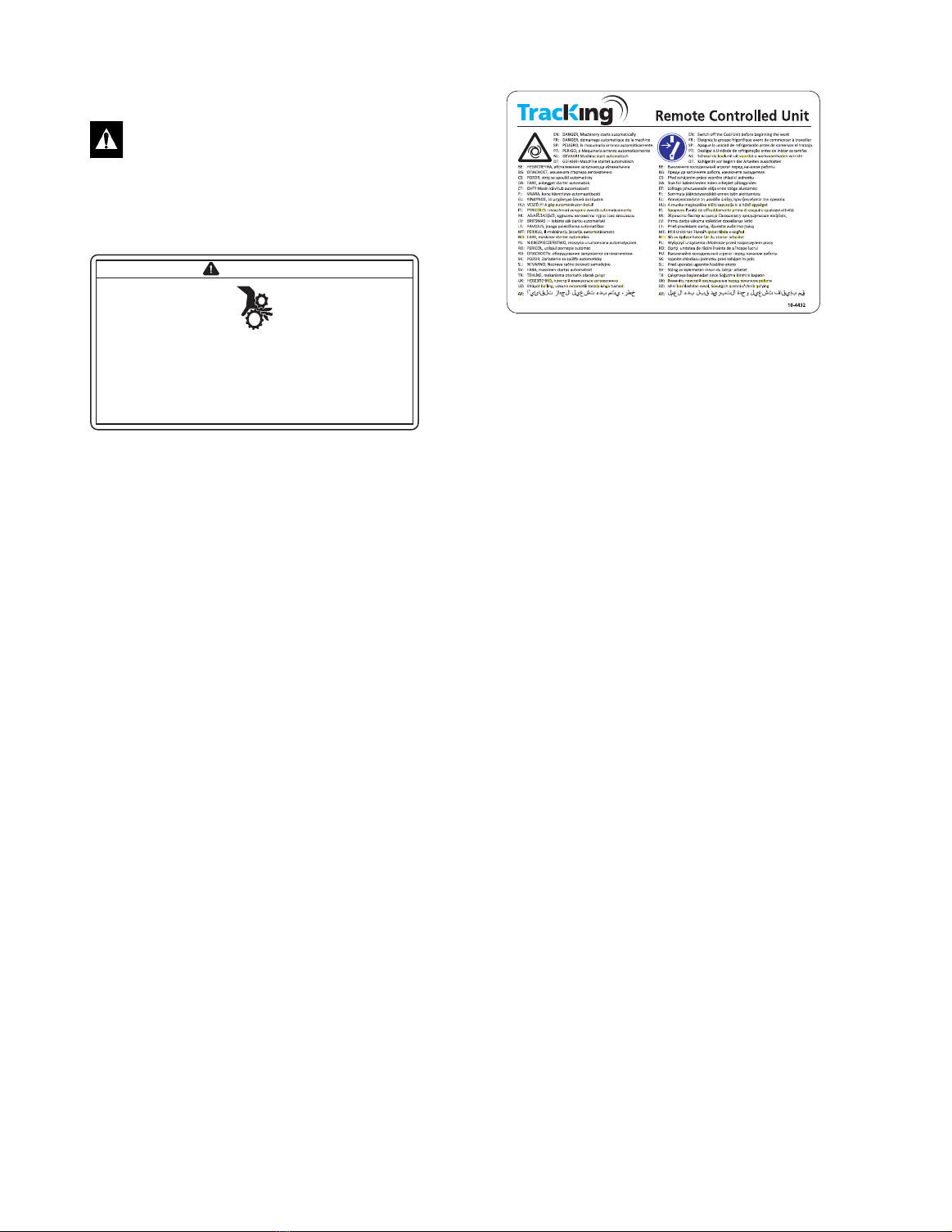

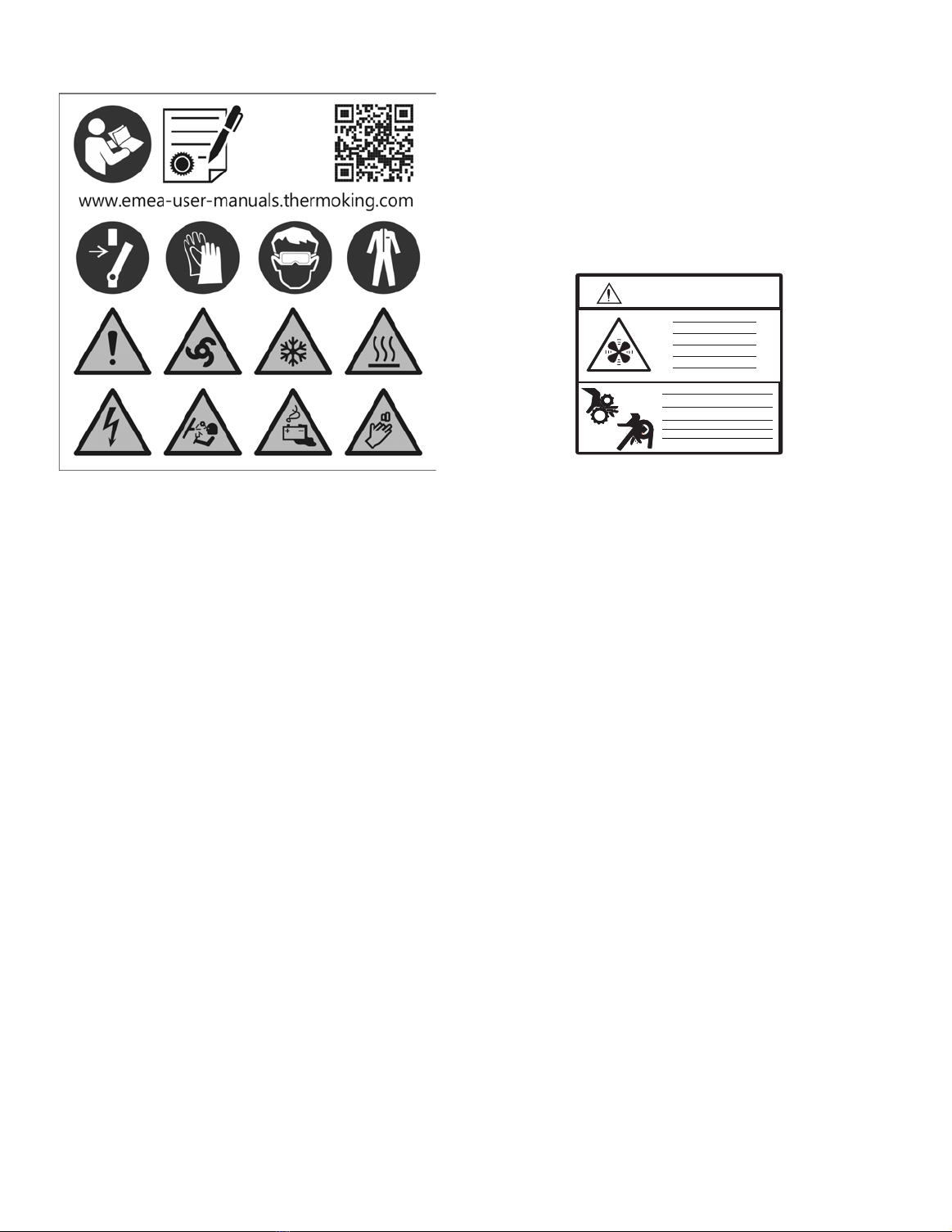

Safety Decals and Locations . . . . . . . . . . . . . . . . . . . 11
Refrigerant . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Do Not Use Ether Starting Aids . . . . . . . . . . . . . . . . . 14
Unit Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
General Information . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Diesel Engine . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
ELC (Extended Life Coolant) . . . . . . . . . . . . . . . . . . . 16
EMI 3000 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Thermo King Reciprocating Compressor . . . . . . . . . . .17
Electronic Throttling Valve . . . . . . . . . . . . . . . . . . . . . .17
SMART REEFER 3 (SR-3) Control System . . . . . . . . .17
CYCLE-SENTRYTM Start-Stop Controls . . . . . . . . . .18
Telematics as Standard . . . . . . . . . . . . . . . . . . . . . . . .18
OptiSet Plus . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19
Engine Compartment . . . . . . . . . . . . . . . . . . . . . . . . . .21
Unit Protection Devices . . . . . . . . . . . . . . . . . . . . . . . .21
Manual Pretrip Inspection . . . . . . . . . . . . . . . . . . . . .25
Operating Instructions . . . . . . . . . . . . . . . . . . . . . . .30
SMART REEFER 3 (SR-3) Controller Overview . . . . .30
HMI Control Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . .32
Operating the SR-3 Controller . . . . . . . . . . . . . . . . . . .35
Alarm Codes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .38
Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .38
Loading and Enroute Inspections . . . . . . . . . . . . . .40

Pre-Loading Inspection . . . . . . . . . . . . . . . . . . . . . . . . 40
Post-Loading Inspection . . . . . . . . . . . . . . . . . . . . . . . 42
Connecting to a Third Party Device . . . . . . . . . . . . . 48
The LVD Switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48
Jump Starting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50
Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53
Engine . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53
Filters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56
Refrigeration System . . . . . . . . . . . . . . . . . . . . . . . . . . 56
Electrical Control System . . . . . . . . . . . . . . . . . . . . . . 57
Electric Motor (model 50) . . . . . . . . . . . . . . . . . . . . . . 57
Standby Power Requirements . . . . . . . . . . . . . . . . . . .58
TK BlueBox . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58
Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60
Maintenance Inspection Schedule . . . . . . . . . . . . . . 61
Inspection and Service intervals . . . . . . . . . . . . . . . . . 61
Serial Number Locations . . . . . . . . . . . . . . . . . . . . . 63
Recover Refrigerant . . . . . . . . . . . . . . . . . . . . . . . . . 64

Disclaimer
This manual is published for informational purposes only. Thermo King Corporation makes no
representations or warranties, express or implied, with respect to the information, recommendations
and descriptions contained in this manual and such information, recommendations and descriptions
should not be regarded as all-inclusive or covering all contingencies. In the event you have any
questions or require further information, please contact your local Thermo King dealer.
The procedures described herein should only be undertaken by suitably qualified personnel. Failure to
implement these procedures correctly may cause damage to the Thermo King unit or other property or
personal injury.
The manufacturer, Thermo King Corporation, assumes no responsibility for any act or action taken on
the part of the owner or operator in the repair or operation of the products covered by this manual that
are contrary to the manufacturer’s printed instructions. No warranties expressed or implied, including
warranties arising from cause of dealing or usage or trade, are made regarding the information,
recommendations, and description contained herein. The manufacturer is not responsible and will not
be held liable in contract or in tort (including negligence) for any special, indirect or consequential
damages, including injury or damage caused to vehicles, contents or persons, by reason of the
installation of any Thermo King product, its mechanical failure or the failure of owner/operator to heed
caution and safety decals strategically located on the product.

4
Machine Information Policy
Use of this product serves as acceptance of the Thermo King Machine Information Policy available at:
www.europe.thermoking.com. This product includes a standard feature that collects and shares
Machine Information with Thermo King. Separate terms may apply when a customer has entered into an
agreement with Thermo King. Customers that would like to opt-out of sharing Machine Information with
Thermo King should forward such inquiries to the email address [email protected].
Software Licence
The product includes software that is licensed under a non-exclusive, non-sub-licensable, terminable
and limited license to use the software as installed on the product for its intended purpose. Any
removal, reproduction, reverse engineering, or other unauthorized use of the software is strictly
prohibited. Hacking the product or installing unapproved software may void the warranty. The owner or
operator shall not reverse engineer, decompile, or disassemble the software, except and only to the
extent that such activity is expressly permitted by applicable law notwithstanding this limitation. The
product may include third party software separately licensed as specified in any documentation
accompanying the product or in an about screen on a mobile application or website that interfaces with
the product..

Introduction
5
Introduction
There is nothing complicated about operating and maintaining
your Thermo King unit, but a few minutes studying this manual
will be time well spent.
Performing pre-trip checks and enroute inspections on a regular
basis will minimize on-the-road operating problems. A regular
maintenance program will also help to keep your unit in top
operating condition. If factory recommended procedures are
followed, you will find that you have purchased the most efficient
and dependable temperature control system available.
All service requirements, major and minor, should be handled by a
Thermo King Dealer for these very important reasons:
• They have factory trained and certified technicians
• They have genuine Thermo King replacement parts
• They are equipped with the factory recommended tools to
perform all service functions
• The warranty on your new unit is valid only when the repair
and replacement of component parts is performed by an
authorized Thermo King Dealer.
IMPORTANT: This manual is published for informational purposes
only and the information furnished herein should not be considered
as all-inclusive or meant to cover all contingencies. If more
information is required, consult your Thermo King Service
Directory for the location and telephone number of the local dealer.
Customer Satisfaction Survey
Let your voice be heard!
Your feedback will help improve our manuals. The survey is
accessible through any internet-connected device with a web browser.
Scan the Quick Response (QR) code or click or type the web
address to complete the survey:
http://irco.az1.qualtrics.com/SE/?SID=SV_2octfSHoUJxsk6x

Introduction
6

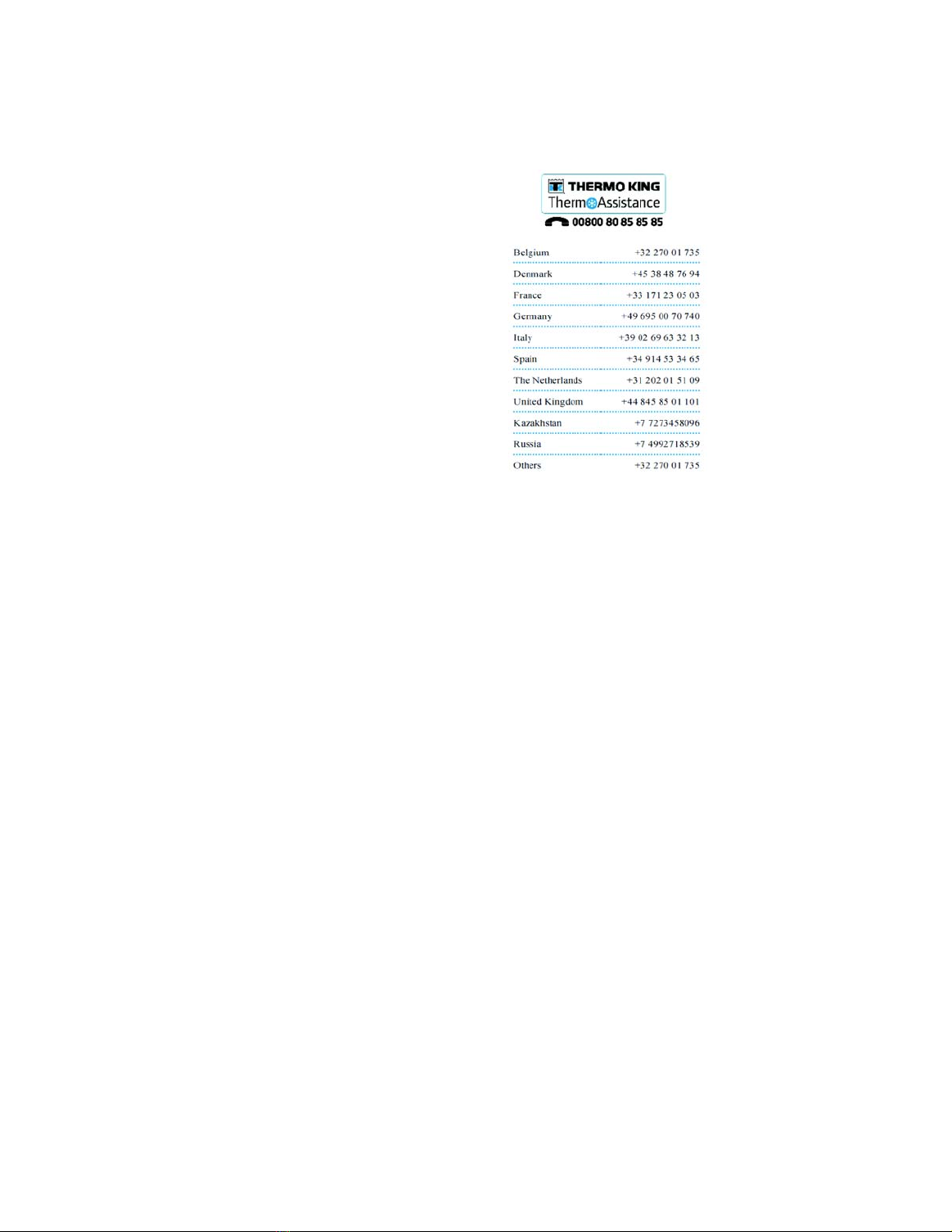

Emergency Assistance
Thermo Assistance is a multi-lingual communication tool
designed to put you in direct contact with an authorized
Thermo King dealer.
Thermo Assistance should only be contacted for
breakdown and repair assistance.
To use this system, you need the following information before
you call: (phone charges will apply)
• Contact Phone Number
• Type of TK Unit
• Thermostat Setting
• Present Load Temperature
• Probable Cause of Fault
• Warranty Details of the Unit
• Payment Details for the Repair
Leave your name and contact number and a Thermo Assistance
Operator will call you back. At this point you can give details
of the service required and the repair will be organized.
Please note that Thermo Assistance cannot guarantee payments
and the service is designed for the exclusive use of refrigerated
transporters with products manufactured by Thermo King
Corporation.
BEA261

Introduction
7
General Inquires and Unit
Maintenance
For general inquiries please contact your local Thermo King
dealer.
Go to www.europe.thermoking.com and select dealer locator
for your local Thermo King dealer.
Or refer to the Thermo King Service Directory for contact
information.

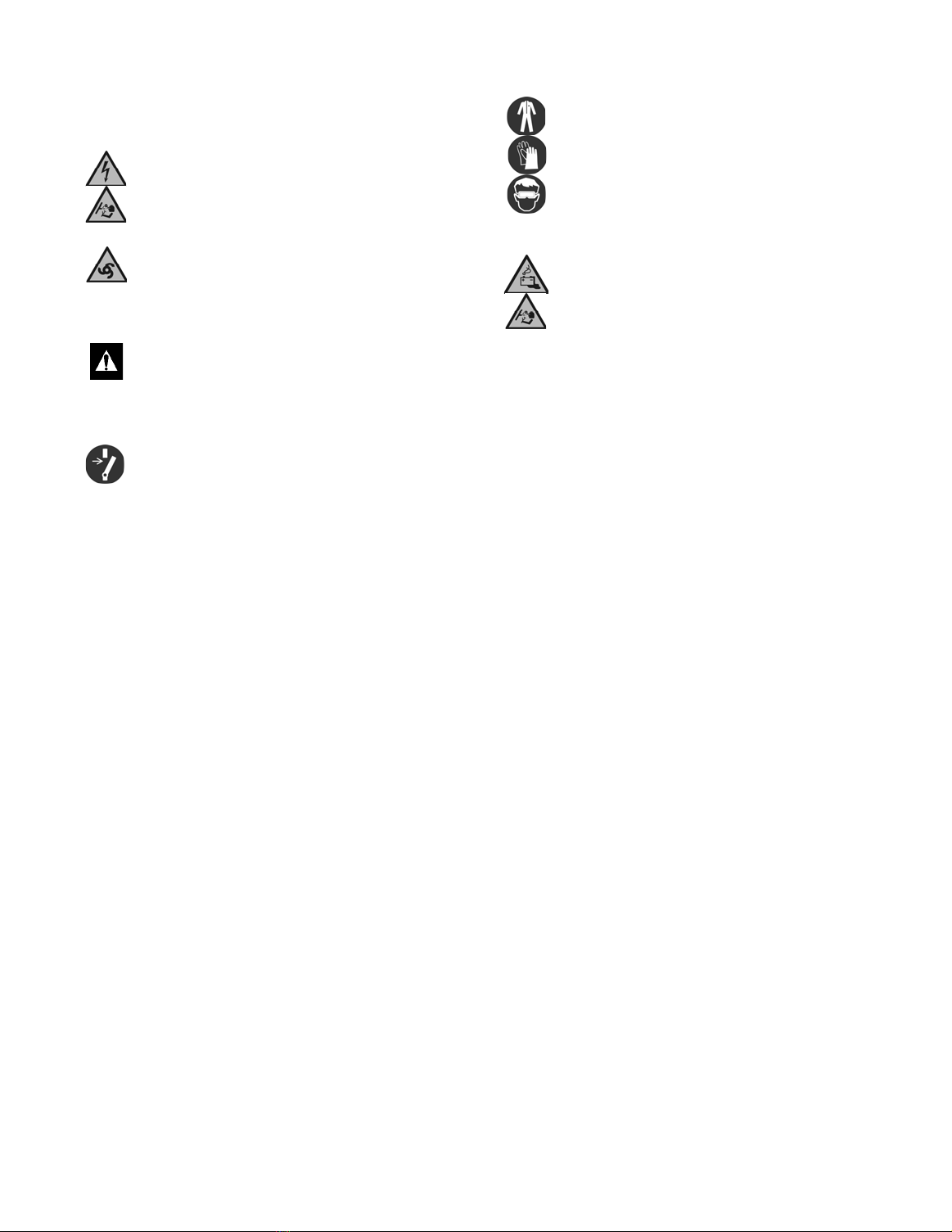

Safety Precautions
8
Safety Precautions
Thermo King recommends that servicing be done only by a
Thermo King dealer. However, you should be aware of several
safety practices. This chapter gives basic safety precautions for
working with Thermo King units and describes the safety
stickers on your unit that you should be familiar with.
General Safety Practices
Automatic Start/Stop Operation
This unit is capable of automatic operation and could start at
any time without warning.
WARNING: Keep hands and loose clothing clear of
fans and belts at all times when the unit is operating
with the doors open.
WARNING: Exposed coil fins can cause painful
lacerations. Service work on the evaporator or
condenser coils should be done by a certified Thermo
King technician.
WARNING: Do not apply heat to a closed cooling
system. Before applying heat to a cooling system,
drain it. Then flush it with water and drain the water.
Antifreeze contains water and ethylene glycol. The
ethylene glycol is flammable and can ignite if the
antifreeze is heated enough to boil off the water.
WARNING: The unit can start at any time without
warning. Press the OFF key on the control panel and
place the microprocessor On/Off switch in the Off
position before inspecting or servicing any part of the
unit.

Safety Precautions
9
Battery Installation and Cable
Routing
WARNING: Improperly installed battery could result
in a fire or explosion. A Thermo King approved
battery must be installed and properly secured to the
battery tray.
WARNING: Improperly installed battery cables could
result in fire or explosion. Battery cables must be
installed, routed and secured properly to prevent
them from rubbing, chaffing or making contact with
hot, sharp or rotating components.
CAUTION: Do not connect other manufacturer’s
equipment or accessories to the Thermo King unit.
This could result in severe damage to equipment and
void the warranty.
CAUTION: Set all unit electrical controls to the OFF
position before connecting battery cables to the
battery to prevent unit from starting unexpectedly and
causing personal injury.
CAUTION: Always wear protective clothing, gloves
and eye wear when handling and installing batteries.
Battery acid can cause serious burns when exposed to
eyes or skin. If battery acid contacts skin or clothing,
wash immediately with soap and water. If acid enters
your eye, immediately flood it with running cold
water for at least twenty minutes and get medical
attention immediately.
CAUTION: Always cover battery terminals to prevent
them from making contact with metal components
during battery installation. Battery terminals
grounding against metal could cause the battery to
explode.

Safety Precautions
10
Refrigerant
Although fluorocarbon refrigerants are classified as safe, use
caution when working with refrigerants or in areas where they
are being used.
NOTE: These warnings refer to servicing of the unit.
Refrigerant Oil
Observe the following precautions when working with or
around refrigerant oil:
NOTE: These warnings refer to servicing of the unit.
DANGER: Fluorocarbon refrigerants can produce
toxic gases. In the presence of an open flame or
electrical short, these gases are severe respiratory
irritants CAPABLE OF CAUSING DEATH.
DANGER: Fluorocarbon refrigerants tend to
displace air and can cause oxygen depletion which
could result in DEATH BY SUFFOCATION. Provide
adequate ventilation in enclosed or confined areas.
WARNING: Fluorocarbon refrigerants evaporate
rapidly, freezing anything they contact if accidentally
released into the atmosphere from the liquid state.
WARNING: Always wear goggles or safety glasses to
protect eyes from refrigerant oil contact.
WARNING: Protect skin and clothing from
prolonged or repeated contact with refrigerant oil.
Rubber gloves are recommended.
WARNING: Wash thoroughly immediately after
handling refrigerant oil to prevent irritation.

Safety Precautions
11
First Aid
First Aid–Refrigerant
Eyes: For contact with liquid, immediately flush eyes with
large amounts of water. Get prompt medical attention.
Skin: Flush areas with large amounts of warm water. Do not
apply heat. Wrap burns with dry, sterile, bulky dressing to
protect from infection or injury. Get prompt medical attention.
Inhalation: Move victim to fresh air and restore breathing if
necessary. Stay with victim until emergency personnel arrive.
First Aid–Refrigerant Oil
Eyes: Immediately flush eyes with large amounts of water for
at least 15 minutes while holding the eyelids open. Get prompt
medical attention.
Skin: Remove contaminated clothing. Wash thoroughly with
soap and water. Get medical attention if irritation persists.
Inhalation: Move victim to fresh air and restore breathing if
necessary. Stay with victim until emergency personnel arrive.
Ingestion: Do not induce vomiting. Immediately contact
local poison control center or physician.
Safety Decals and Locations
Operation
The operation decal is located inside the Engine Doors. This
decal gives you the information to access/download your unit
operator manual, but also the safety icons associated with your
unit. These safety icons are directly associated with the
information within this chapter. You can see the explanations
for these icons starting from “General Safety Practices” on
page 8. See “Operation Decal” on page 12
NOTE: This decal only contains symbols of warning for the
operation of the unit.

Safety Precautions
12
Figure 1: Operation Decal
Condenser and Evaporator Fans
Be aware of the warning nameplates in the following locations
(example in Figure 2):
• On bulkhead
• Behind belt panel
• On belt guard
• On rear of evaporator housing
Figure 2: Fan Warning
BEN217
WARNINGWARNING
CAUTION FAN
ATTENTION VENTILATEUR
ACHTUNG VENTILATOR
ATTENZIONE VENTILATORE
CUIDADO VENTILADOR
CUIDADO HELICE
CAUTION FAN
ATTENTION VENTILATEUR
ACHTUNG VENTILATOR
ATTENZIONE VENTILATORE
CUIDADO VENTILADOR
CUIDADO HELICE
SWITCH UNIT TO OFF BEFORE SERVICING
ARRESTARE L'UNITÀ PRIMA DEGLI INTERVENTI DI SERVIZIO
ARRÊTER LE GROUPE AVANT DE PROCÉDER À L'ENTRETIEN
VOR WARTUNG EINHEIT ABSCHALTEN
PARAR LA UNIDADANTES DE HACERLE EL SERVICIO
DESLIGUE A UNIDADE ANTES DE EXECUTAR SERVIÇO
ARRESTARE L'UNITÀ PRIMA DEGLI INTERVENTI DI SERVIZIO
VOR WARTUNG EINHEIT ABSCHALTEN
PARAR LA UNIDADANTES DE HACERLE EL SERVICIO
DESLIGUE A UNIDADE ANTES DE EXECUTAR SERVIÇO
UNIT MAY START AUTOMATICALLY AND CAN CAUSE
SEVERE INJURY. SWITCH UNIT TO "OFF" BEFORE SERVICING.
LE GROUPE EST EN FONCTIONNEMENT AUTOMATIQUE
AVANT INTERVENTION METTRE L'INTERRUPTEUR.
DU CIROUPE SUR ARRET.
MASCHINE KANN AUTOMATISCH STARTEN UND
VERLETZUNGEN VERURSACHEN.
VOR WARTUNG EINHEIT ABSCHALTEN.
AVVIO E ARRESTO AUTOMATICO DEL MOTORE. SPEGNERE
L'UNITÀ PRIMA DEGLI INTERVENTI DI SERVIZIO.
MARCHA/ PARO AUTOMATICO
PARAR LA UNIDADANTES DEHACERLE EL SERVICIO.
A UNIDADE PODE INICIAR AUTOMATICAMENTE E CAUSAR
FERIMENTO GRAVE. DESLIGUE A UNIDADE ANTES DE
EXECUTAR SERVIÇO.
UNIT MAY START AUTOMATICALLY AND CAN CAUSE
SEVERE INJURY. SWITCH UNIT TO "OFF" BEFORE SERVICING.
LE GROUPE EST EN FONCTIONNEMENT AUTOMATIQUE
AVANT INTERVENTION METTRE L'INTERRUPTEUR.
DU CIROUPE SUR ARRET.
MASCHINE KANN AUTOMATISCH STARTEN UND
VERLETZUNGEN VERURSACHEN.
VOR WARTUNG EINHEIT ABSCHALTEN.
AVVIO E ARRESTO AUTOMATICO DEL MOTORE. SPEGNERE
L'UNITÀ PRIMA DEGLI INTERVENTI DI SERVIZIO.
MARCHA/ PARO AUTOMATICO
PARAR LA UNIDADANTES DEHACERLE EL SERVICIO.
A UNIDADE PODE INICIAR AUTOMATICAMENTE E CAUSAR
FERIMENTO GRAVE. DESLIGUE A UNIDADE ANTES DE
EXECUTAR SERVIÇO.

Safety Precautions
13
Remote start of the unit
Decals located behind service door.
NOTE: Only present on units fitted with TK TracKing
Telematic's installed.
DANGER: Machinery Starts Automatically.
BEN181
WARNING
UNIT MAY START AUTOMATICALLY AT ANY TIME.
CAN CAUSE SERIOUS INJURY.
PLACE THE UNIT ON/OFF SWITCH AND SATELLITE SWITCH
TO "OFF" PRIOR TO SERVICING THE UNIT.
SATELLITE CONTROLLED UNIT
BEN182
92-8894

Safety Precautions
14
Refrigerant
Refrigerant decal located on frame inside door
F Gas decal indicates that this equipment Contains fluorinated
greenhouse gases.
Do Not Use Ether Starting Aids
Figure 3: Do Not Use Ether Starting Aids
(Near Engine)
BEN501
R 452A
REFRIGERANT TYPE / GWP = 2140
COMPRESSOR OIL TYPE
203-513
POLYOL ESTER ISO 35
932223
F-GAS
GWP
>150
Kyoto Protocol !

Unit Description
15
Unit Description
General Information
The Thermo King SLXi models are one piece, self-contained,
diesel powered cooling/ heating units operating under the
control of a Smart Reefer 3 (SR-3) programmable
microprocessor controller. The units mount on the front of the
trailer with the evaporator extending through an opening in the
front wall.
There are models:
• SLXi-100, 200, 300, 400, and 300 Whisper Pro Model
30's: Cooling and heating on diesel engine operation.
• SLXi-100, 200, 300, 400 and 300 Whisper Pro Model
50’s: Cooling and heating on diesel engine or electric
motor operation.
• SLXi Spectrum and Spectrum Whisper Pro Model 30's:
Multiple trailer compartment cooling and heating on diesel
engine operation.
• SLXi Spectrum and Spectrum Whisper Pro Model 50's:
Multiple trailer compartment cooling and heating on diesel
or electric motor operation. Figure 4: Front View

Unit Description
16
Diesel Engine
SLXi units use a 4-cylinder, water cooled, direct injection
diesel engine. The engine is coupled directly to the compressor
on standard units. Belts transmit power to the to fans (behind
the condenser coil/radiator), water pump, and alternator on all
models.
ELC (Extended Life Coolant)
ELC (Extended Life Coolant) is standard equipment. The
maintenance interval for ELC is five years or 12,000 hours. A
nameplate on the coolant expansion tank identifies units with
ELC. The new engine coolant, Chevron Extended Life
Coolant, is RED in color instead of the previous GREEN or
BLUE-GREEN colored conventional coolants.
NOTE: The use of 50/50% pre-mixed ELC is recommended
to assure that de-ionized water is being used. If 100% full
strength concentrate is used, de-ionized or distilled water is
recommended instead of tap water to insure the integrity of
the cooling system is maintained.
EMI 3000
EMI 3000 is an extended maintenance interval package. It is
standard equipment. The EMI 3000 package consists of the
following key components:
• EMI 3000-Hour Cyclonic Air Cleaner Assembly and Air
Cleaner Element
• EMI 5-Micron 3000-Hour Fuel Filter
• EMI 3000-Hour Dual Element Oil Filter
• API Rating CI-4 Mineral Oil
• Five Year or 12,000 Hour ELC (Extended Life Coolant)
The EMI package allows standard maintenance intervals to be
extended to 3,000 hours, or 2 years, whichever occurs first.
NOTE: Units equipped with the EMI 3000 package do
require regular inspection in accordance with Thermo King's
maintenance recommendations.
CAUTION: Do not add “GREEN” or
“BLUE-GREEN” conventional coolant to cooling
systems using “RED” Extended Life Coolant, except
in an emergency. If conventional coolant is added to
Extended Life Coolant, the coolant must be changed
after 2 years instead of 5 years.

Unit Description
17
Thermo King Reciprocating
Compressor
The SLXi units (except SLXi-100) are equipped with a
4-cylinder 492 cm3 (30.0 cu. in.) displacement Thermo King
X430 reciprocating compressor. The SLXi-100 unit is
equipped with a 4-cylinder 426 cm3 (25.9 cu. in.) displacement
Thermo King X426 reciprocating compressor.
Electronic Throttling Valve
NOTE: SLXi-100 or SLXi-200 are equipped with a
Mechanical Throttling Valve (MTV).
The ETV provides enhanced control of the refrigeration system
as follows:
• Allows the refrigeration system to fully utilize the power
capabilities of the engine under varying conditions
• Provides an additional measure of protection against high
discharge pressures
• Protects the engine from high coolant temperature
shutdowns
• Provides a means of precise temperature control.
SMART REEFER 3 (SR-3) Control
System
The SR-3 is a microprocessor control system designed for
transport refrigeration. The SR-3 integrates the following
functions: changing setpoint and operating mode, viewing
gauge, sensor and hourmeter readings, initiating defrost cycles,
and viewing and clearing alarms.
The microprocessor components are located inside the control
box, which is located inside the lower roadside service door. It
is used to operate the unit. The control panel is mounted on the
face of the control box. It is clearly visible through an opening
in the lower roadside service door.
See “Operating Instructions” for more information about the
SR-3 Controller.
Depending on the air temperature in the trailer, as sensed by
the microprocessor Base Controller, the unit will typically
operate in one of the following modes:
