thermo mate ET060 Parts list manual

ET060
Instruction / Installation Manual
Tankless Electric Water Heater
Live Smart, Better Life!
1 [phone]
[email protected]
8350 Patriot Blvd STE B, North Charleston, SC 29420
www.thermomate.com

01
1 [phone]
www.thermomate.com
Live Smart, Better Life!
Please read and follow the installation and operation instructions
carefully, to ensure the long life and reliable operation of this appliance.
CONTENTS
Safety Instructions ...........................................................................................
Symbols used in this manual ...........................................................................
Technical Data .................................................................................................
Mounting Instructions .......................................................................................
User Manual .....................................................................................................
Troubleshooting ...............................................................................................
Product Warranty .............................................................................................
02
02
04
05
06
08
10

02
[email protected]
8350 Patriot Blvd STE B, North Charleston, SC 29420
Live Smart, Better Life!
Failure to observe this instruction may expose you or others
todanger.
Failure to observe this instruction may lead to damage to the
device.
Indicates live parts.
Failure to observe this instruction may lead to damage to the device
or danger to you or others.
Please read the manual.
Hazardous materials and waste electrical and electronic equipment
should be taken to a designated recycling point.
Safety Instructions
Congratulations and thank you for choosing our instant water heater. The
instruction contains important information about commissioning, switching the
device on and maintenance. To ensure your safety and that of others we
recommend you read through this safety manual carefully. Please refer to the
back of the manual for details about the warranty. Keep this manual for future
reference.
If you lose the manual, contact your local distributor or manufacturer. When
you call, please tell us the model number and the serial number of your unit
written on the rating plate of the water heater.
Symbols used in this manual
The following symbols are used in this manual and on the appliance:
Important safety instructions
When using this electrical equipment, basic safety precautions should always
be followed, including the following.

03
1 [phone]
www.thermomate.com
Live Smart, Better Life!
Read and follow all instructions
All supply circuits must be disconnected before removing cover. Supply
this appliance only from a grounded system. A wire connector marked “ ” is
provided for wiring the appliance. Connect the connector to the grounding
terminal of the electric service or supply panel with a continuous copper wire.
This product shall be protected by a Class A ground fault circuit interrupter.
This appliance is not intended for use by persons (including children) with
reduced physical, sensory or mental capabilities, or lack of experience and
knowledge, unless they have been given supervision or instruction concerning
use of the appliance by a person responsible for their safety.
Children should be supervised to ensure that they do not play with the
appliance.
The maximum inlet water pressure: 150 PSI (1.0 MPa).
The minimum inlet water flow: 0.26GPM.
Warning
Before obtaining access to terminals, all supply circuits must be disconnected.
After service work is complete, proceed as during the first-time appliance
start-up.
Caution
1. Do not install in a bath enclosure or shower stall or Connect to a
salt-regenerated water softener or a water supply of salt water.
2. Connect only to a circuit protected by a class a ground fault circuit
interrupter.
Use copper conductors only
USE BONDING CONDUCTOR IN ACCORDANCE WITH THE CANADIAN
ELECTRICAL CODE, PART I.
Each individual heating element is marked with the manufacturers’s part
number or its electrical rating in voltage and amperes/watts.
The specifc spacing between the appliance and adjacent surface.

04
[email protected]
8350 Patriot Blvd STE B, North Charleston, SC 29420
Live Smart, Better Life!
Save these instructions
The appliance is not to be installed in locations where freezing can occur.
The resistivity of the water supply must not be less than 3300 Ω•in.
The appliance must be grounded properly!
The appliance is close-outlet type, the water connection of this appliance
must be connected to unvented water heating system.
No changes may be made to the appliance.
If the supply cord is damaged, it must be replaced by the manufacturer, its
service agent or similarly qualifed persons in order to avoid a hazard.
Standards and regulations
The installation (plumbing and electrical work), commissioning and
maintenance of this appliance should only be undertaken by personnel with
electrical engineering qualifcation sand in accordance with the relevant
standards and regulations (BSI, etc.) and this manual. The following should
also be observed:
• The appliance name plate;
• The technical specifcations.
Connection to the water supply.
Compatible cold water pipe materials: steel, copper and plastic.
Technical Data
ET060
240V 6kW
25A
30A
12AWG
0.26GPM
3.98 lb
10.95" x 7.4" x 2.52"
1/2"NPT
Model
Power
Rated Current
Min. Required Circuit Breaker
Min. Wire Size
Min. Water Flow to Activate Unit
Net Weight
Product Dimensions
Water Connections

05
1 [phone]
www.thermomate.com
Live Smart, Better Life!
Mounting Instructions
Electrical installation
The appliance must be permanently connected to fxed wiring.
The device has been prepared for connection to the electrical supply.
These units require a 240V, single-phase supply. Please take reference of the
rating plate on device.

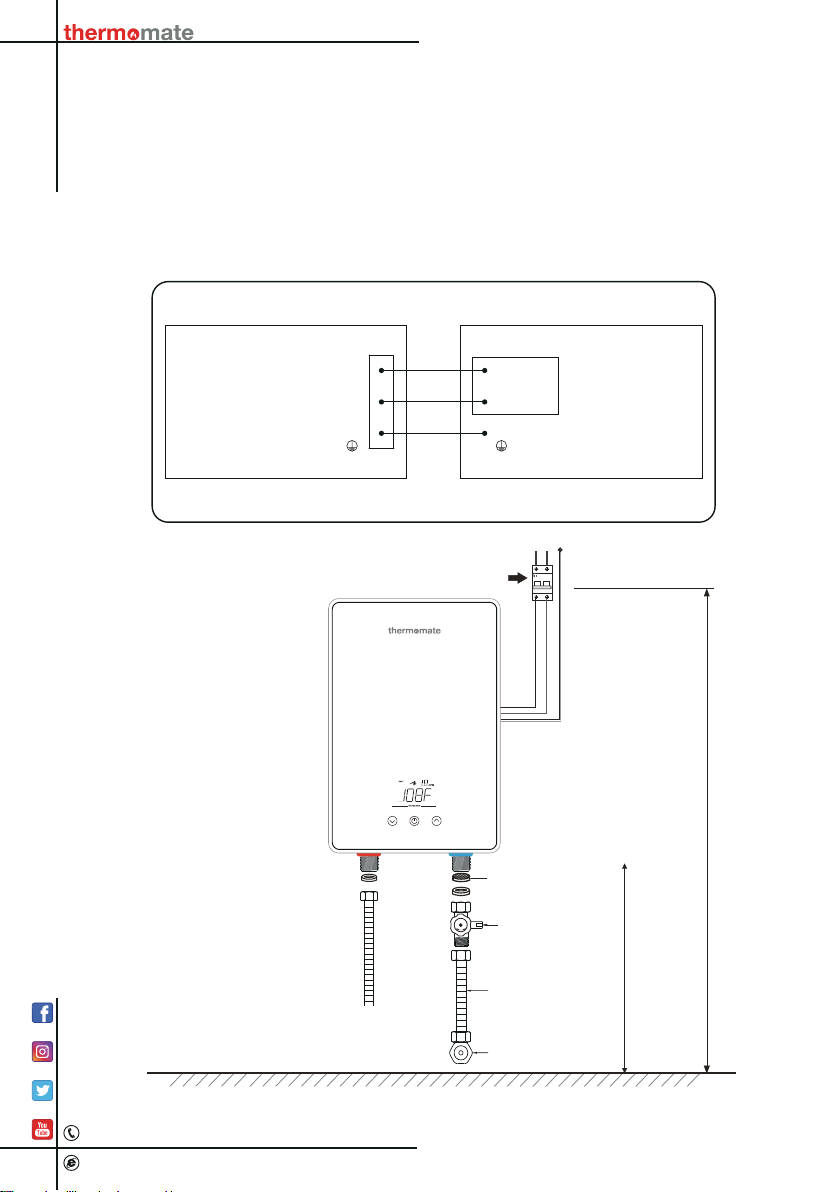

Please take reference of the following diagram to connect power supply.
GR GR
L2
L1
L2
L1
L2L1
Tankless
Water Heater
Circuit
Beaker Electric Panel
240V~
60Hz
AC 240V ~ 60Hz
Earth
Mesh filter
Pressure
relief valve
(Recommended,
not included in package)
Water inlet
Valve
Earth
30A ELCB
(Earth leakage circuit breaker)

06
[email protected]
8350 Patriot Blvd STE B, North Charleston, SC 29420
Live Smart, Better Life!
This cable can be surfaced clipped, hidden or via 20mm conduit.
User Manual
Operation
The electronically regulated continuous-fow water heater with automatic
temperature adjustment keeps the outflow temperature constant.
The device has touch key “ ” to switch it on and off, and / keys to adjust
the heating.
: Decrease the outlet setting temperature;
: Increase the outlet setting temperature.
Adjust the temperature settings as desired.
If the selected outfow temperature is not reached when the tap is fully opened,
then the water fow through the device exceeds the capacity of the device. In
this case, the fow should be reduced with the hot water valve. There is a
danger of scalding at outfow temperatures exceeding 108°F.
Mixer taps and thermostatic mixer taps should be of a design compatible with
devices with flow control.
If used with shower heads, the shower heads must be with a low pressure
loss.
Fittings for open-outlet water heaters should not be used!
Only fttings for close-outlet water heaters can be used!
Suggestion: To ensure that the minimum flow (switch-on flow 0.26GPM) of a
water-pressure operated device is reached.
Without a temperature limiter, high temperatures may be reached at
draw-off points. Keep children away from the draw-off points. Danger of
scalding!
The appliance should be disconnected from the electrical mains supply
when working on the water supply. After service work is complete, proceed as
during the frst-time appliance start-up.

07
1 [phone]
www.thermomate.com
Live Smart, Better Life!
The main water valve should be closed before any work is done on the
water pipe.
If the water supply is interrupted, e.g. due to maintenance on the mains
water supply, then the following steps should be undertaken before returning
the device to operation:
1. Remove the fuses or isolate the device in another way.
2. Open a hot water valve connected to the device until the air is vented from
both the device and the cold-water supply pipe.
3. Reconnect the supply.
First aid
• Check the leakage protection switch and the fuses.
• Check if any fttings or shower head are affected by the build-up of lime scale
or dirt.
• See also “Troubleshooting by users”.

08
[email protected]
8350 Patriot Blvd STE B, North Charleston, SC 29420
Live Smart, Better Life!
Problem
Water heater is not
heating at all (water is
fowing but the unit is not
heating - the outgoing
water temperature is the
same as the cold water
supply) - the digital
display does NOT
light up.
No power or incorrect
wiring. Make sure the breakers at main electrical panel
are ON. You may have a
faulty breaker or unit
may be wired incorrectly.
Flow rate is too low Something was blocked
in the filter mat / Pipe
was blocked.
Check and clean the
filter mat inside the inlet
connector.
Water heater is not
heating at all (water is
fowing but the unit is not
heating - the outgoing
water temperature is the
same as the cold-water
supply) The digital
display DOES light up,
but no temperature
display.
Flow rate is too low /
water pressure is too
low.
The air bubbles in the
water heater have not
been purged out.
Make sure the breakers
at main electrical panel
are ON, turn on the unit
and open the hot water
tap for about 20s.
Your water heater has
an activation flow rate of
approximately 0.26GPM.
If your water fow rate is
less than this level, your
unit will not activate.
Increase the flow rate or
check the filter mat inside
the inlet connector.
Cause Solution
Troubleshooting
Troubleshooting by users
Display“E1”
It means the product is
overheated Lower the setting temperature or replace the temperature measurer
Display“E2”
It means there is leakage
of electricity Contact with the maintenance department
Display“E3”
It means the intlet temperature
measures broken Replace the temperature measurer
Display“E4”
It means the outlet temperature
measures broken Replace the temperature measurer

09
1 [phone]
www.thermomate.com
Live Smart, Better Life!
Water heater is heating,
but the water
temperature is not hot
enough.
User temperature
setting too low. Increase the temperature setting on the unit.
Depending on your
incoming water
temperature and the kW
of your heater, your water
flow rate may exceed the
physical heating capacity
of your water heater.
Reduce the flow rate by
installing a Flow
Regulator.
It’s a new installation,
have your electrician
double check the wiring.
It's possible that the
wiring is incorrect.
The heating elements on
your water heater are
design for 240 volts.
When used with a lower
voltage, they produce
less heating power. You
may need to upgrade to
a larger input heater
You do not need to mix
as much cold water with
your tankless water
heater compared to
when you use a
conventional water
heater. You may also
have an anti-scald
feature on your faucet
that is mixing cold water.
These types of faucets
can usually be adjusted
to reduce the amount of
cold water mixed.
Flow rate is too high.
Crossed wires.
Voltage less than 240
volts.
Mixing too much cold
water.
Problem Cause Solution

10
[email protected]
8350 Patriot Blvd STE B, North Charleston, SC 29420
Live Smart, Better Life!
Product Warranty
Thermomate warranties this water heater to be free of defects in material
and/or workmanship for a period of one (1) year commencing on the day on
which the product is purchased. During this 1-year warranty period, we will at
our option, at no charge to the customer, repair or replace this product if found
defective, with a new or reconditioned product, but not to include costs of
removal or installation. Warranty services provided shall neither prolong the
warranty period nor initiate a new warranty period. All return goods must be
shipped with transportation charges prepaid.
This warranty shall not cover errors due to improper installation or incorrect
usage, incorrect operating conditions or defective maintenance or repair work.
Normal wear and tear such as lime scaling shall also be excluded under this
warranty. The warranty will not be valid if the problem is caused by extreme
values of drinking water.
This warranty shall not include compensation, withdrawal from the agreement,
reduction in price or any reimbursement for consequential loss due to defects.
The owner and not the thermomate nor his agent/representative shall be liable
for and shall pay for all field charges for labor or other expenses incurred in
the removal and/or repair of the water heater or any expense incurred by the
Owner in order to repair the water heater.

1 [phone]
[email protected]
8350 Patriot Blvd STE B, North Charleston, SC 29420
www.thermomate.com
