Thermocet Trimline 85 User manual

Page 1
OPERATING AND INSTALLATION INSTRUCTIONS
1050
Trimline 85 R
UNITED KINGDOM-UK IRELAND-IE

Page 2
TABLE OF CONTENTS
1. General Page 3
1.1 Contents of the package
2. Safety of the unit Page 4
2.1 Safety
3. Operating instructions 8-Symbol remote control Page 5
3.1 Setting Celsius or Fahrenheit
3.2 Setting the time
3.3 Modes of operations
3.4 Manual mode
3.5 To turn ON Fire
3.6 Standby mode
3.7 To turn OFF fire
3.8 Flame height adjustment
3.9 Designated LOW fire and HIGH fire
3.11 Countdown timer
3.12 Program mode
3.13 Temperature setting
3.14 Auxiliary feature
3.15 Child proof
3.16 Eco mode
4. Manual control Page 11
4.1 Igniting the fire
4.2 Extinguishing the fire
4.3 Switching the unit off
5. Initial start-up Page 12
5.1 Daily maintenance
5.2 Important tips
6. Installation instructions Page 13
6.1 General instructions

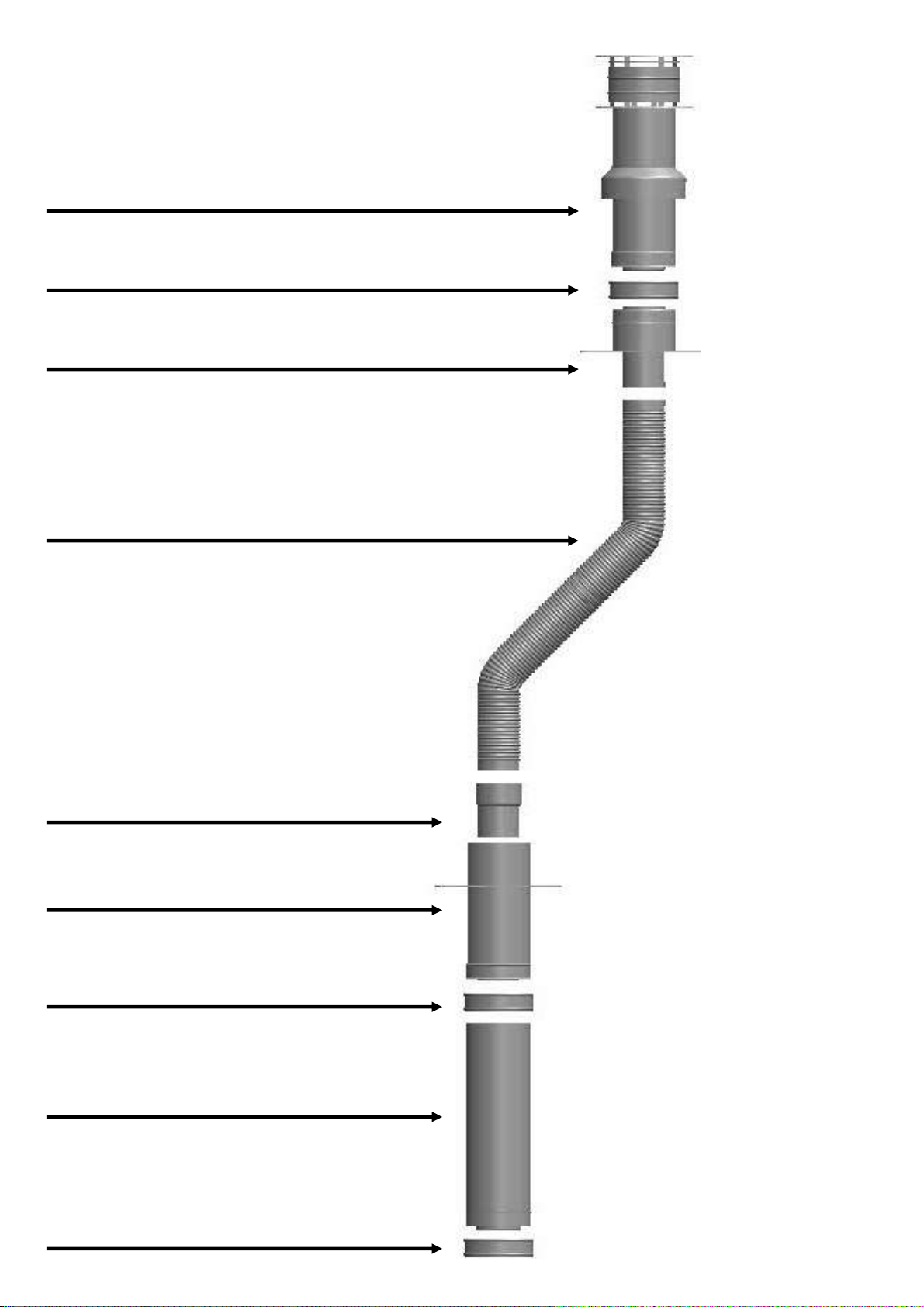

7. Concentric flue system Page 14
7.1 Components of the concentric flue system
7.2 Construction of concentric flue system
7.3 Installation instructions regarding existing flues.
7.4 Parts
7.5 Installation
7.6 Cleaning and maintenance
8. Instructions for the Mertik Maxitrol GV60 and the Remote Control Page 18
8.1 Mertik Maxitrol Troubleshooting Flow Chart Page 17
9. Maintenance check-up list Page 24
10. Maintenance activities Page 25
11. Placing the unit Page 26
11.1 Connection to the gas pipes
11.2 Preparation and installation of the unit
11.3 Installing gas control GV60
11.4 Installation and assembly of the CC flue system with accessories.
11.5 Fitting the ceramic log inset
11.6 Fitting the optional pebble set
11.7 Fitting the optional Carrara / Basalt stones
12. Technical details GV60 Page 28
12.1 Gas-technical specifications Page 29
13. Table of concentric pathways Page 30
Problems and possible Solutions Page 31
Illustrations Page 32-41
ALL RIGHTS RESERVED.
(5/24072014)

Page 3
We hope you really enjoy the warmth of your new gas fire Read these instructions carefully before
installing and using the gas fire. Keep these instructions in a safe place. Always provide the following
information if the gas fire breaks down: model and serial number, which can be found on the unit. Your
purchase invoice is your proof of warranty.
1. General
Check the unit immediately after delivery to confirm that it has not been damaged during transport. If it is
damaged in any way, please inform your supplier immediately and provide as many details as possible.
Attention
The unit must be installed, connected and checked by a qualified fitter based on national, regional, and local
standards and regulations. The fitter must inspect the unit for tightness in relation to gas and combustion
products and correct operation of the different components and functions.
The flue tube system and the outlets in the outer wall or roof face must also meet the requirements of the
applicable regulations.
The unit falls in the closed unit category, in a set-up location without a fan and with a chimney loss that is
greater than 17 % (non-condensing).
Warning
Gas fires become hot when in use. After installation of the Gas fire, the glass surface must be considered as
active zone. The glass surface may be very hot.!
Therefore care should be taken, for example, by keeping children and those requiring help away from the
immediate vicinity of burning fires. Gas fires must not be placed on or against flammable materials
(curtains, etc.).
Contents of the packaging
1 x Fully assembled unit:
Trimline 85R
1 x Remote control
3 x Restriction plate
2 x 1.5 V AAA battery
4 x 1.5 V AA battery
1 x Operating and installation instructions
1 x Wood imitation set
2 x Suction cap
Additional
Pebble set
Carrara / Basalt stones

Page 4
2. SAFETY OF THE UNIT
The unit is fully safeguarded by means of thermo-electric pilot light protection to prevent unforeseen dis-
charge of gas from the main burner.
2.1 Safety
Do not place ceramic burner decoration material or logs against the pilot burner. Ensure the pilot light is
able to burn freely over the main burner at all times. Good ignition of the main burner is only guaranteed if
this is the case. Not adhering to these instructions can lead to dangerous situations.
The unit, complete concentric flue system and flue terminal need to be cleaned and checked annually by a
recognised gas technician/fitter, so the unit continues to operate safely. For additional instructions, see
Chapter 10: Maintenance.
If, for whatever reason, the pilot light extinguishes, you must wait 5 minutes before igniting the pilot light
again.
The unit may not be operated without the glass panel being in place.
It is not permitted to place flammable materials on the ceramic wood inset.
The layout of the main burner with ceramic burner decoration material and wood inset may under no cir-
cumstances be changed or added to.
Light flammable materials, such as nylon clothing or flammable liquids, may not be placed near the unit.
Ensure children and other persons unaware of the operation of a gas unit, are supervised at all times when
near the unit.
Use a fireguard to protect against burns and protection of the children and persons named above.

Page 5

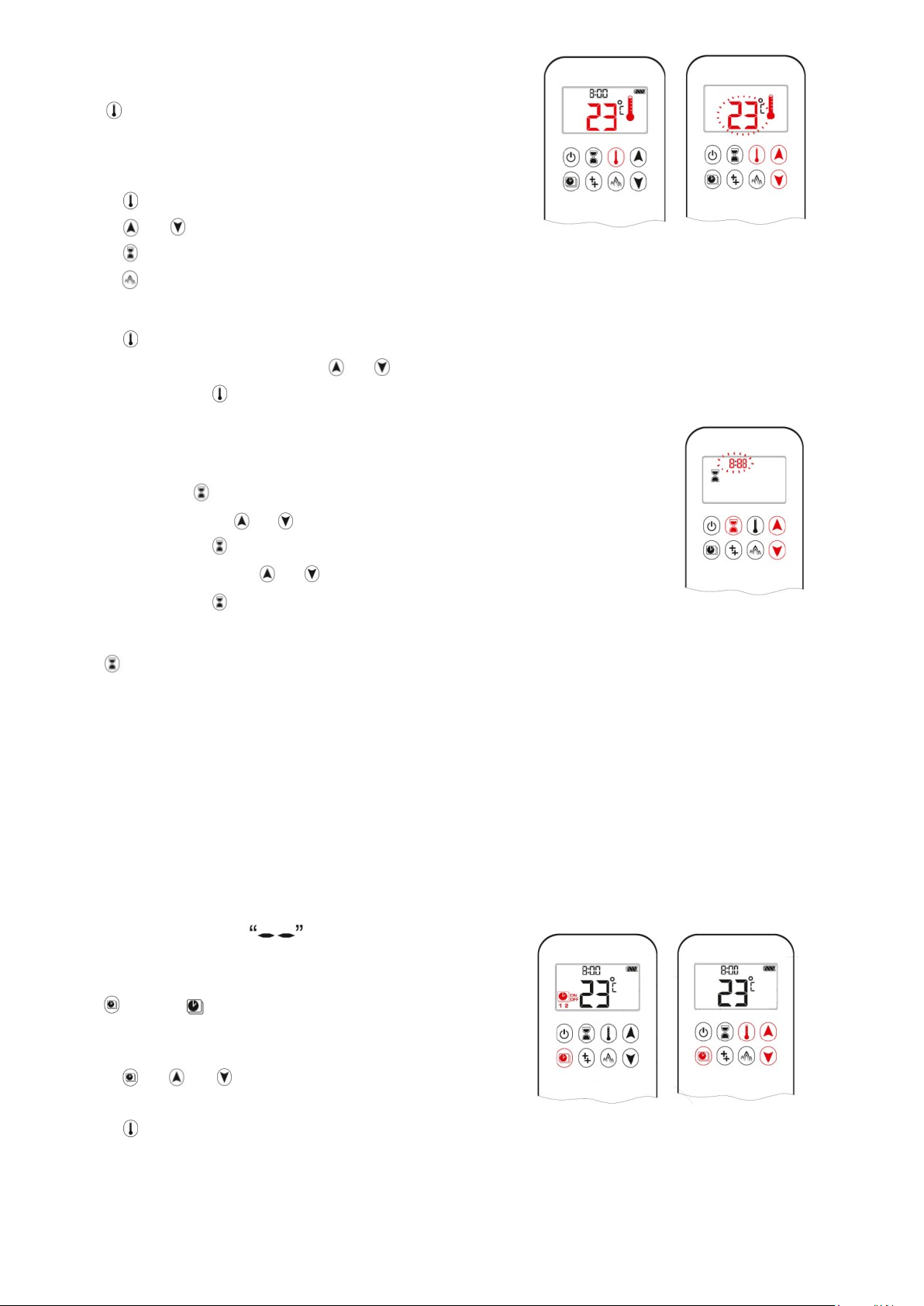

OPERATING INSTRUCTIONS 8-SYMBOL REMOTE CONTROL
SETTING CELSIUS OR FAHRENHEIT
To change between °C and °F, press and buttons simultaneously.
NOTE: Choosing °F results in a 12 hour clock.
Choosing °C results in a 24 hour clock.
SETTING THE TIME
1. Press and buttons simultaneously. Hour flashes.
2. To select hour press or button.
3. Press and buttons simultaneously. Minutes flash.
4. To select minutes press or button.
5. To confirm press and buttons simultaneously or wait.
MODES OF OPERATIONS
Enter Mode
Press the appropriate mode button
Exit Mode
1. Press the same mode button again to change to Manual Mode.
2. Press or button to change to Manual Mode.
3. Press a different mode button to change to that mode.
Time Signal indicator
Battery
°F or °C
Eco Mode
Child Proof
Countdown
Program
8-SYMBOL DISPLAY
Thermostatic Mode
Auxiliary FeatureTemperature

Page 6
Thermostatic Mode
The room temperature is measured and compared to the set temperature.
The flame height is then automatically adjusted to achieve the set temperature
Program Mode
Programs 1 and 2, each can be programmed to go ON and OFF at specific times
at a set temperature.
Eco Mode
Flame height modulates between high and low depending on room temperature
in relation to set temperature. lf the room temperature is lower than set
temperature, the flame height stays on high longer. lf the room temperature is
higher than set temperature, the flame height stays on low longer.
Once cycle takes approx. 40 min.
MANUAL MODE (HANDSET)

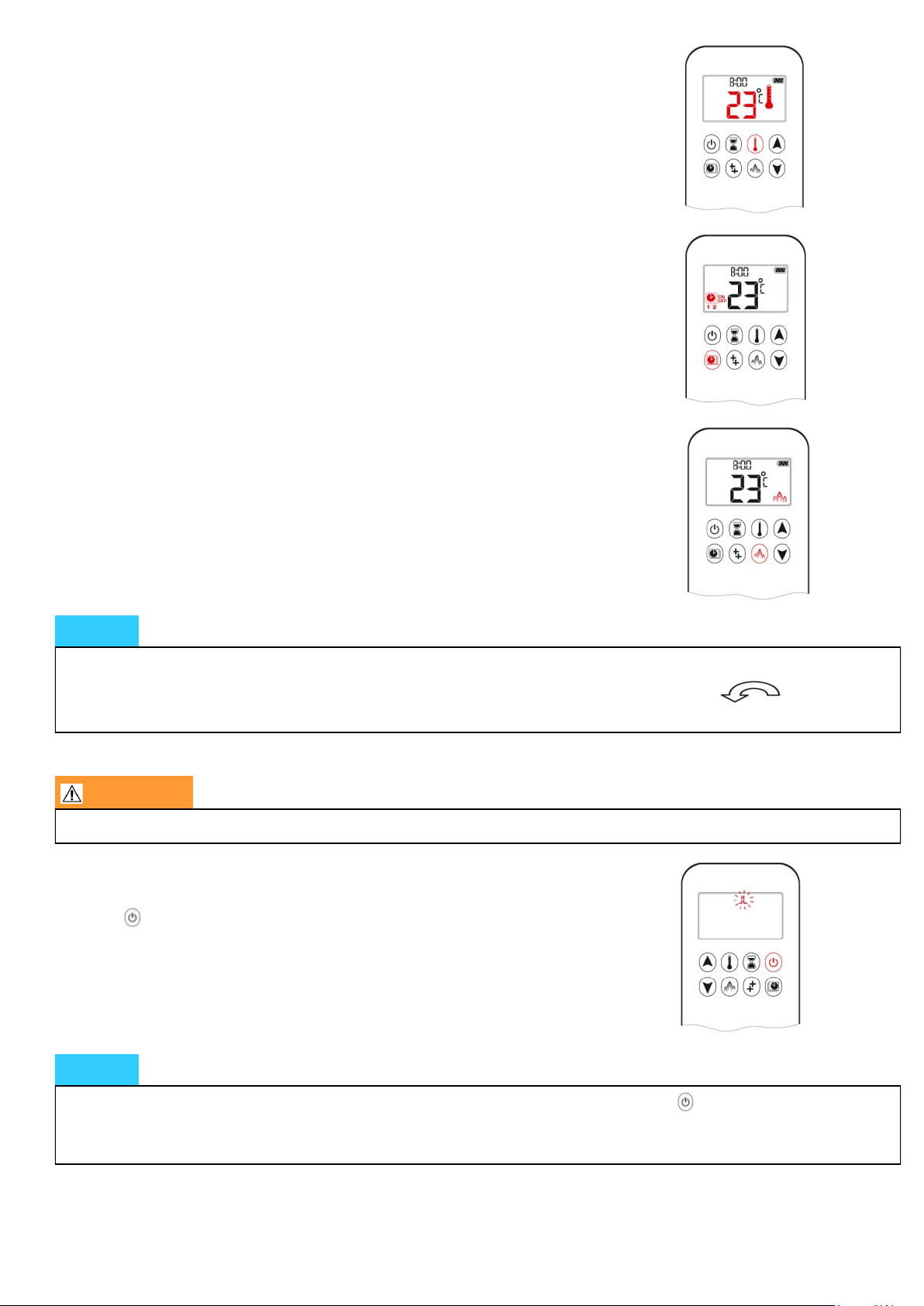

TO TURN ON FIRE
Handset One-Button Operation
(Default Setting)
* Press button until two short beeps and a blinking series of lines confirms
the start sequence has begun; release button.
* Main gas flows once pilot ignition is confirmed.
* Handset automatically goes into Manual Mode after main burner ignition
(CSA version, CE version).
NOTICE
BEFORE OPERATING

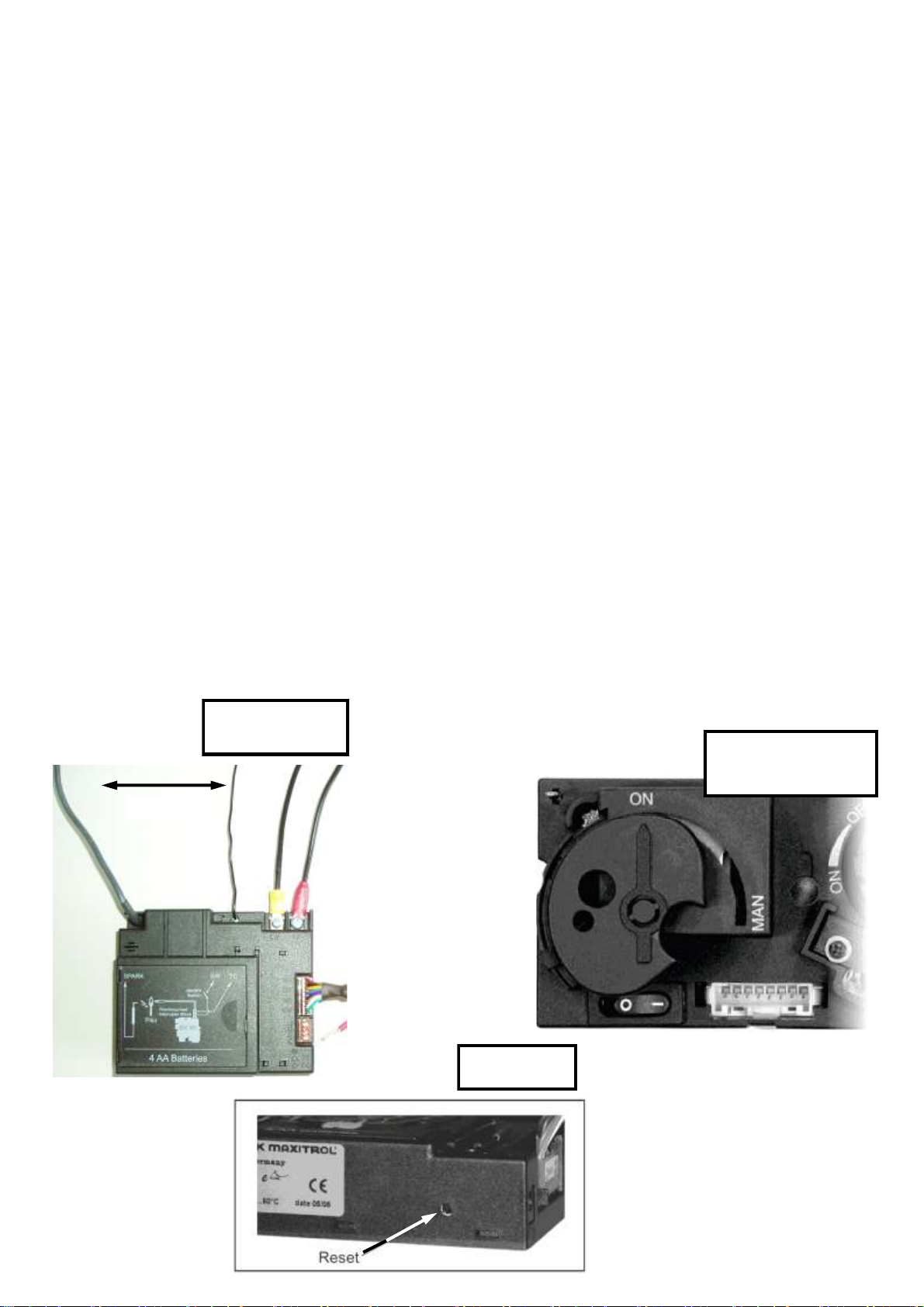

1. Make sure MANUAL knob on the GV60 Valve is in the ON, full counter clockwise position.
2. Place the ON/OFF switch (if equipped) in the "I" (ON position).
NOTICE
Change from one-button to two-button ignition operation by pressing and holding button for 16 sec.
immediately after installing batteries. ON is displayed and 1is flashing.
When change is complete 1changes to 2.
WARNING
When pilot ignition is confirmed, motor turns automatically to maximum flame height.

Page 7

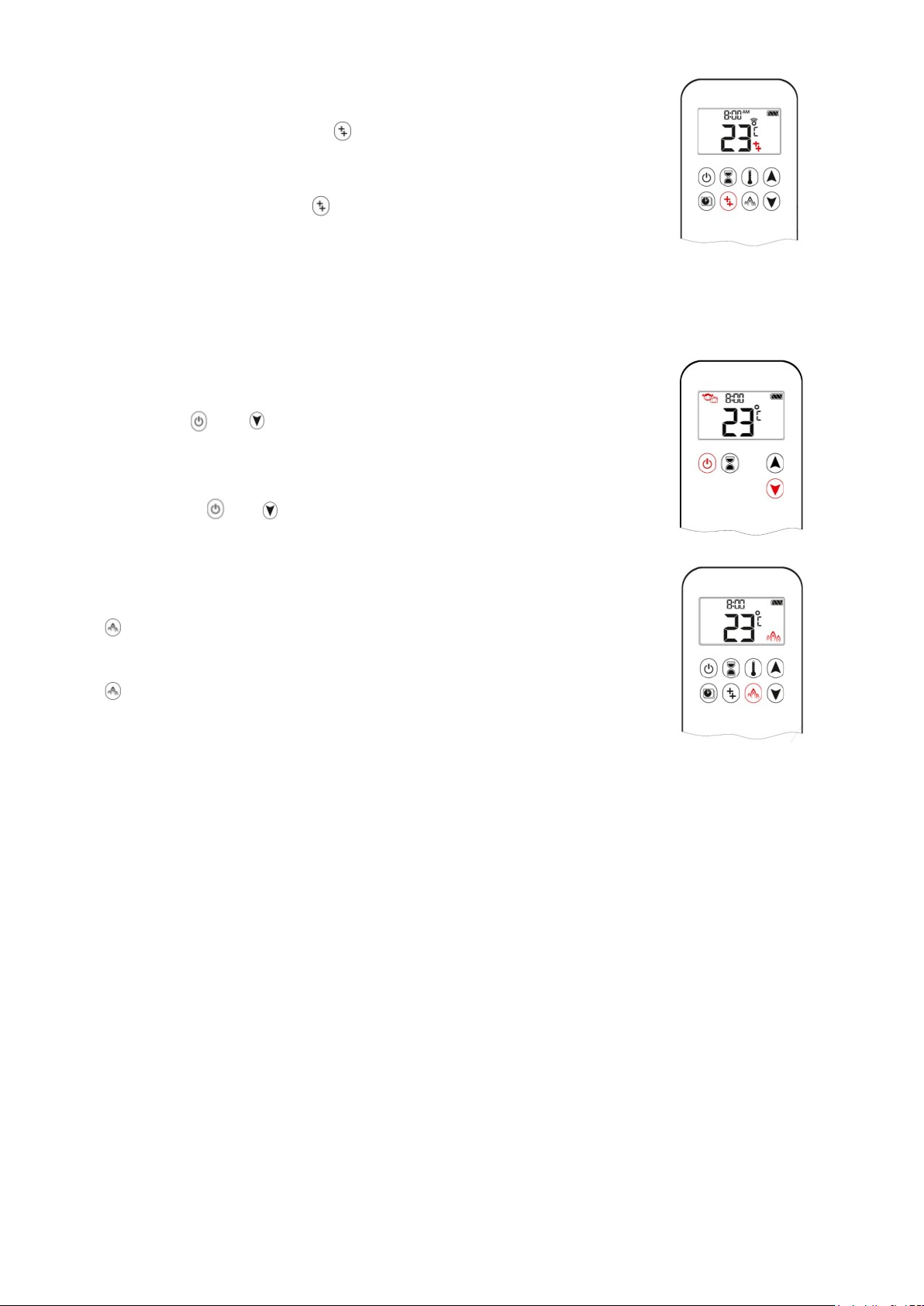

Handset Two-Button Operation
* Press and button simultaneously until two short beeps and a blinking
series of lines confirms the start sequence has begun; release buttons.
* Main gas flows once pilot ignition is confirmed.
* Handset automatically goes into Manual Mode after main burner ignition
(CSAversion, CE version).
STANDBY MODE (PILOT FLAME)
Handset
* Press and hold button to set appliance to pilot flame.
TO TURN OFF FIRE
Handset
* Press button to turn OFF.
NOTE: There is a 5 sec delay before the next ignition is possible
FLAME HEIGHT ADJUSTMENT
Handset
* To increase flame height pres hold button.
* To decrease flame height or to set appliance to pilot flame, press and
hold button.
DESIGNATED LOW FIRE AND HIGH FIRE
* To go to low fire, double-click button. "LO" is displayed.
NOTE: Flame goes to high fire first before going to low fire.
* To go to high fire, double-click button. "HI" is displayed.
Change from two-button to one-button ignition operation by pressing and holding button for 16 sec.
immediately after installing batteries. ON is displayed and 2is flashing.
When change is complete 2changes to 1.
NOTICE
WARNING
If the pilot does not stay lit after several tries, turn the main knob to OFF and follow the instructions
TURN OFF GAS APPLIANCE.
WARNING
lf the appliance will not operate, follow the instructions TURN OFF GAS TO APPLIANCE

Page 8
THERMOSTATIC MODE
ON:
Press button. Thermostat icon displayed, preset temperature
displayed briefly, and then room temperature displayed.
OFF:
1. Press button.
2. Press or button to enter Manual Mode.
3. Press button to enter Countdown Timer Mode.
4. Press button to enter Eco Mode.
SETTING:
1. Press button and hold until Thermostat icon displayed, temperature flashes.
2. To adjust SET temperature press or button.
3. To confirm press button or wait.
COUNTDOWN TIMER
ON/SETTING:
1. Press and hold button until hourglass icon displayed and hour flashes.
2. To select hour press or button.
3. To confirm press button. Minutes flash.
4. To select minutes press or button.
5. To confirm press button or wait.
OFF:
Press button, hourglass and countdown time disappear.
NOTE: At end of countdown time period, the fire turns OFF. The Countdown Timer only works in Manual,
Thermostatic, and Eco Modes. Maximum countdown time is 9 hours.
PROGRAM MODE
NOTE: The set temperature for Thermostatic Mode is the temperature for the ON time in Program Mode.
Changing the Thermostatic Mode set temperature also changes the ON time temperature in Program Mode.
Default settings:
TEMPERATURE OFF: (pilot flame only)
ON:
Press button. , 1or 2, ON or OFF displayed.
OFF:
1. Press or or button to enter
Manual Mode.
2. Press button to enter Thermostatic Mode.

Page 9
TEMPERATURE SETTING:
1. Press button and hold until
flashes, ON, Set temperature
(thermostatic) displayed.
2. To continue press button.
, OFF displayed, temperature flashes.
3. Select OFF temperature by pressing the or button.
4. Confirm by pressing button.
, 1, ON displayed, hour flashes.
NOTE: The ON (thermostatic) and OFF set temperatures are the same
for each day.
DAYSETTING:
5. ALL flashes. pres or button to choose between ALL, SA-SU,
1, 2, 3, 4, 5, 6, 7
6. To confirm press button.
ON TIME SETTING:
5. To select hour press or button.
6. To confirm press button. 1, ON displayed, minutes flash.
7. To select minutes press or button.
OFF TIME SETTING:
8. To confirm press button. , 1, OFF displayed, hour flashes.
9. To select hour, press or button.
10. To confirm press button. , 1, OFF displayed, minutes flash.
11. To select minutes press or button.
NOTE: lf you stop programming at this point, program 2 remains deactivated.
NOTE: Programs 1and 2use the same ON and OFF temperatures. Once an ON and/or OFF temperature has
been set, that temperature becomes the new default setting.
NOTE: PROGRAM 1 and 2 use the same on (Thermostatic) and off temperatures for R LL, 5F15U and Daily
Timer (, 2,3, H, 5, , ). Once a new on (Thermostatic) and/or off temperature has been set, that temperature be-
comes the new default setting.
NOTE: lf RLL, SA-SU or Daily Timer are programmed for PROGRAM 1 and PROGRAM 2 on and off times,
these become the new default times. The batteries must be removed to clear the PROGRAM 1 and PROGRAM
2 on and off times and temperatures.
SA-SU or Daily Timer (1, 2, 3, 4, 5, 6, 7) selected
• Set on time and off time using same procedure as ALL selected (above).
• SA-SU: Set on time and off time for both Saturday and Sunday.
• Daily Timer: Unique on and off times may be set for a single day of the week, for multiple days of the week,
or for every day of the week.
• Wait to finish setting.

Page 10
AUXILIARY FEATURE
Upon ignition burner 1 is ON and burner 2 is in the last setting
OFF:
To switch the burner OFF, press the button.
Auxiliary icon disappears.

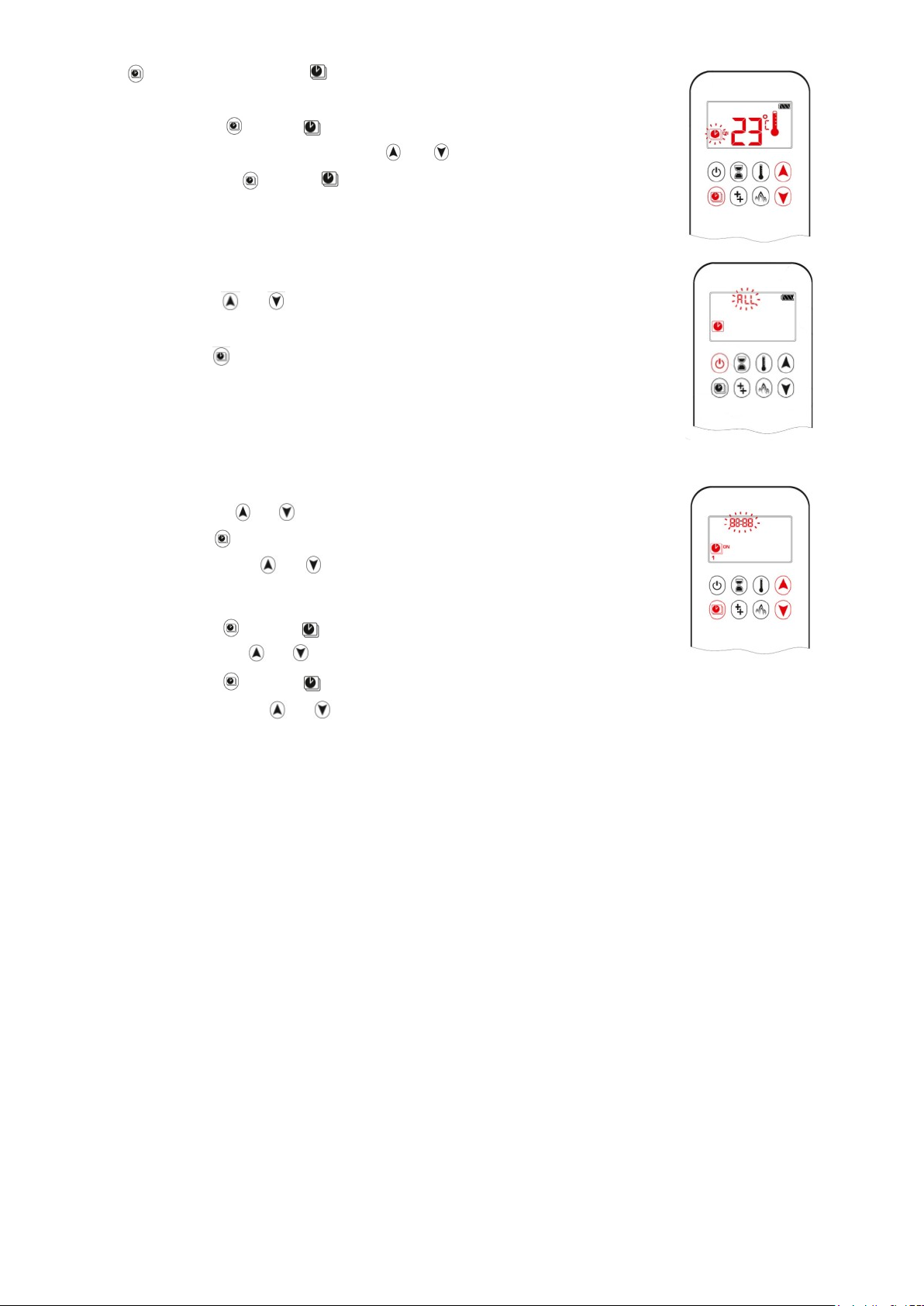

ON:
To switch a burner ON, press the button.
Auxiliary icon displayed.
NOTE: The latching solenoid valve cannot operate manually the receiver battery runs down it will
remain in the operating position.
CHILD PROOF
ON:
To activate press and button simultaneously. Children icon disappears
and the handset is rendered inoperable, except for the OFF function.
OFF:
To deactivate press and simultaneously. Children icon disappears.
ECO MODE
ON:
Press button to enter Eco Mode. Auxiliary icon disappears.
OFF:
Press button. Auxiliary icon displayed.

Page 11
4.0 MANUAL OPERATION (in case of emergency, only if remote control is not working)
The unit may be operated by hand if there is a defect in the remote control. To do so, the ignite (piezo)cable of
the receiver must first be removed and carefully slid into the piezo connector on the gas control block.
4.1 Igniting the fire
* Open the gas shut-off cock that has been installed in the gas pipe to the unit.
* Press the “O I” switch, on the gas control block, in the “I” position.
* Turn the motor button, on the gas control block, completely to the right. The button will make a "click”
sound.
* Turn the operating button on the gas control block, into the “MAN” position. A metal circle in the
operating button will become visible.
* Push the metal circle inwards. For example, with a pen. Gas will now flow to the pilot flame.
* While keeping the metal circle pressed down, press the (square) piezo button (along the “O I” switch)
several times to ignite the pilot flame. You will be able to see whether the pilot flame is burning through
the glass window.
* If the pilot flame is alight, keep the metal circle pressed down for another 10 seconds and then let go.
Important: If the pilot light extinguishes, one should wait at least 5 minutes before repeating the
aforementioned steps.
* Turn the operating button to the ON position. The burner may or may not ignite, depending on the position
of the motor button.
* By turning the motor button to the required setting to the left, the burner will ignite and the flame size can
be adjusted.
4.2 Extinguishing the fire
Turn the motor button, on the gas control block, completely to the right. The button will make a "click” sound.
The burner will turn off. The pilot flame continues to burn.
4.3 Switching the unit off
Press the "O I” switch, on the gas control block, in the “O” position. The pilot flame will extinguish.
If the fireplace is not used for an extended period of time, we recommend closing the gas shut-off cock in the
supply line.
Important: If, for whatever reason, the pilot light extinguishes, you must wait 5 minutes before
igniting the pilot light again.
Piezo Button
Piezo connector
(With manual operation) Control button
Motor button
(in the maximum setting)
Microswitch
“O I” switch
8-pole receiver cable
connection
Small metal circle for
manual operation of the
ignition
(Control button in Manual position)

Page 12
5. INITIAL START-UP
The unit has a layer of heat-resistant varnish that resists very high temperatures. An unpleasant smell may
develop in the first hours after starting the unit due to burning in of the varnish; however, this is not dangerous.
To accelerate this process, allow the unit to burn at the highest setting for several hours and ventilate the
area well. After the first time the unit is turned on, a light deposit may form on the inside of the window. This is
due to the varnish hardening. After the fireplace has cooled down, this deposit can be removed using a fireplace
glass cleaner or ceramic hotplate cleaner.
5.1 Daily maintenance
* Avoid having a lot of dust and cigarette smoke, candle and oil lamp particles in the air of your home.
Heating of these particles through the convection system of the unit, can lead to discolouring of walls and
ceilings. It is therefore advisable to ensure the area containing the unit is always sufficiently ventilated.
Regularly remove any dust that has settled behind the operating lid with a vacuum cleaner.
If the glass is broken or cracked, it should be replaced immediately by a recognised fitter before the
unit is used again.
* The unit must be switched off immediately if something is spilt on it. It should only be cleaned once the
unit has cooled down. Never use abrasive, aggressive cleaning products or fireplace cleaner; only use a dry
cloth that does not give off fluff.
* Your local specialised dealer will be able to provide you with spray cans containing heat-resistant varnish,
so that small stains or damages may be touched-up during annual maintenance.
5.2 Important tips for gas heating or wood fuelled units and fireplaces.
 Prevent discolouration of walls and ceilings!
There are always particles in the air in each living area even if the area is vacuum cleaned regularly!
These particles are easily visible when the sun streams in. This issue will not arise if the amount of
particles in the air is limited. If these particles are present in greater quantities and particularly if the air is
contaminated by soot and tar particles, for example, through the burning of candles or oil lamps and
cigarette or cigar smoke, then we can speak of a poor inner climate! Cooled air slowly flows over the floor
to the heater in a heated living area. This air is heated in the convection system of the fireplace or heater,
resulting in a quickly rising column of air that subsequently spreads through the room again. This means
there is always dust and other polluting particles depositing on cold and often damp surfaces. This issue
occurs especially in a new building (building damp) that is not yet dry. An undesirable consequence of this
phenomenon could be discolouration of walls and or ceiling!
How can this problem be avoided?
* With a newly built fireplace or following renovation, wait at least 6 weeks before firing up.
* The building damp must have disappeared completely from the walls, floor and ceiling.
* The room where the unit is located must be well ventilated.
* The required air ventilation must be in line with local building regulations.
* Limit the use of candles and oil lamps and keep the taper as short as possible.
* These two creators of atmosphere ensure considerable quantities of polluting and unhealthy soot particles
in your flat.
* Among other things, cigarettes and cigars contain tar that will precipitate on cold and damp walls during
heating.
* This may occur above radiators and light fittings and with ventilation grilles (if there is a poor internal
climate), although to a lesser degree.

Page 13
6. INSTALLATION INSTRUCTIONS
Important
The installation may only be performed by an authorised person
6.1 General instructions
* The gas fireplace must be installed, connected and inspected as a closed unit by a qualified fitter, according
to national, regional, and local standards and regulations.
* The flue tube system and the outlets in the outer wall or roof face must also meet the requirements outlined
in the applicable standards and regulations.
* The temperature of the walls and shelves near the side and back of the unit may not be more than 80°C
higher than the temperature of the environment.
* The unit has been approved in combination with the THC CC system Ø100 mm - Ø150 mm
and Ø130 mm - Ø200 mm , in accordance with European CE standards for gas units, and may therefore
only be applied with this system.
* The unit needs to be inspected by the fitter for local gas distribution (gas type and gas pressure) as indicated
on the identification plate.
* The instructions are only applicable if the relevant country code is stated on the unit. If this is not the case,
the gas technical information for the relevant country needs to be consulted and modifications discussed
with the manufacturer.
* There will be air in the gas pipes when the unit is first used. The gas pipes therefore need to be vented first.
* Ignite the heater according to operating instructions and check whether the burner flame is uniform. After
the unit has been used for the first time, you should remove any deposits resulting from convection-curing
of the unit, from the glass window using a glass cleaner for heaters.
Warning:
Never install the unit against or within a flammable wall!
Distance to flammable materials:
* With respect to the front, side and top of the unit, a distance of 1000 mm needs to be kept between the unit
and: curtains, floor covering, upholstery and fabrics, and/or other flammable material unless stated other
wise in these instructions.
Distance to non-flammable materials:
* The unit needs to be placed a minimum distance of 50 mm from the wall unless stated otherwise in these
instructions.
Important
* Construction material for fireplaces and mantles etc., or for an assembly must be made of non flammable
material. This also applies to floors and ceilings. Never use flammable materials near the unit in compli-
ance with the abovementioned instructions.
Note: Please contact your supplier if you are unsure.

Page 14
7. CONCENTRIC FLUE SYSTEM CC
The concentric flue system consists of a 100mm or 130mm Ø inner flue concentric with a Ø150 mm or Ø200 mm
outer flue. These flues have been set up concentrically; the combustion gases are exhausted through the internal
flue while the fresh combustion air is supplied between the internal and external flues.
7.1 Components of the concentric flue system. (See page 31,32 and 33)
Different connections are possible using the concentric flue system. These are:
Through the roof face and through the exterior wall.
There are various options for mounting the pathway for this system,
however, there are a few important requirements/conditions:
* The maximum allowable vertical flue length is 12 metres (the sum of the flue length and the calculation
lengths for the bends).
* 90° bends have a 2-metre horizontal calculation length.
* 45° bends have a 1-metre horizontal calculation length.
* The outlet can be installed at any point on the roof face or exterior wall (supply and discharge in an identical
pressure area), but must meet applicable regulations.
* Duct pathways may not be insulated
Important
* Ensure the restriction plate is mounted in the correct manner, as indicated in these instructions.
* The correct restriction plate will provide the unit with the most optimal efficiency, flame image and
combustion.
* Mounting an incorrectly placed restriction plate may cause malfunction of the unit.
7.2 Construction of concentric flue system CC
Indirect wall connection.
* The outlet may also be installed above the exhaust in the wall, taking any hindrance to the surrounding area
into consideration, according to national, regional, local standards and regulations. Ensure wind pressure on
the flue terminal is not too extreme, such as a balcony, flat roof, corners and in small alleys etc., as this may
negatively influence the unit efficiency.
* Provide a recess in the exterior wall of around 155 mm for concentric Ø100-150, and 205 mm for concentric
Ø130-200. (in a flammable wall ensure there is 50 mm of extra space around the outer pipe and use
fireproof casing) and fix the exterior wall duct with the wall plate to the outer side of the wall. The wall
plate of the exterior wall duct must be sealed sufficiently against the wall on the outside, to avoid moisture
and/or flue gas leaks into the living space.
* The flue should be cased if necessary. Sufficient fireproof measures must also be taken when the flue is
being mounted along flammable materials.
* Determine the position of the unit and outlet and begin construction of the flue with the connection on the
unit, paying attention to the direction of installation and connecting the elements by means of clamp strips.
* The fitted pipe can be used between the bends or when connecting to the unit.
If necessary, use wall brackets to support the flue
Mounting using the roof pass-through option
* The flue terminal can be located at any random place on the roof face (supply and exhaust in identical
pressure areas) and must meet the applicable rules and regulations.
* A roofing sheet for a flat roof or a roofing sheet lead for sloping tiled roofs can be used for a watertight duct.
Use various bends for the slope, if required. The recess in the roof decking should be 5 cm larger all
around, to ensure sufficient fire resistance.
* One needs to take into account the regulation regarding fire resistance between rooms (See national,
regional, local standards and regulations). A casing made of fireproof material (e.g. 12 mm Promatect fire
resistant plate) must be used at 25mm from the outside duct.
* Determine the position of the unit and outlet and begin construction of the flue with the connection on the
unit (always 1 metre vertical first), paying attention to the direction of installation! The inner flue must be
installed for draining purposes. Connect the elements by using clamping strips. Ensure the gas tightness of
all connections is correct.
* A fitted pipe can be used between the bends or when making the connection to the unit and/or the roof pass-through.
Use 2 wall brackets to support the flue on each floor.

Page 15

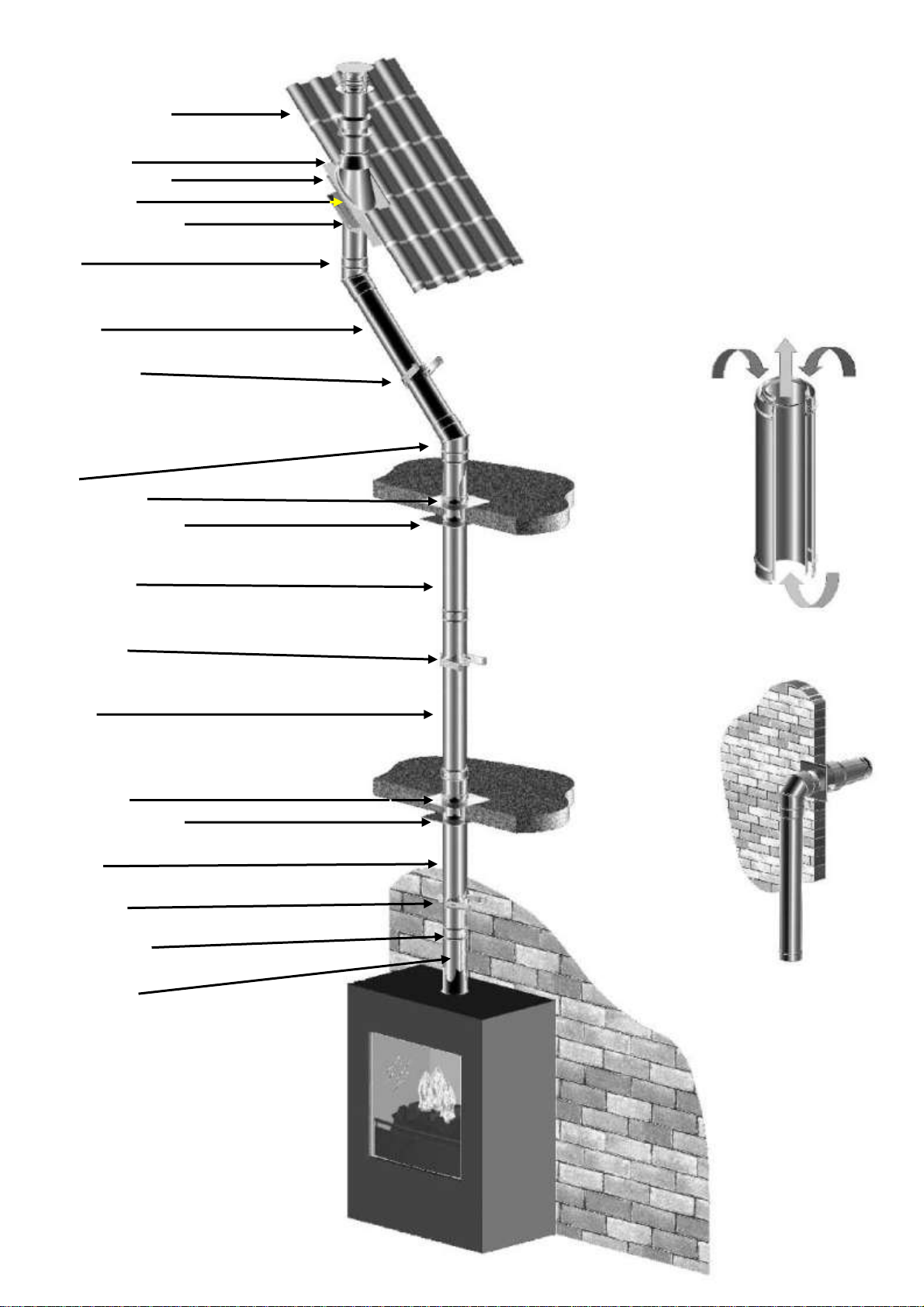

Roof-pass trough
Storm collar
Lead roofing sheet
Roof bracket
Fire protection plate
Bend
CC Pipe
Wall bracket
Bend
Floor support
Fire protection plate
CC Pipe
Wall bracket
CC Pipe
Floor support
Fire protection plate
CC Pipe
Wall bracket
Clamping strips
CC fitted pipe
Page 15

Page 16
7.3 Installation instructions regarding existing flues.
Instructions
The flue gas exhaust system falls within category C91 and must be built in accordance with national rules and
regulations and the instructions of the manufacturer, as specified in the documentation and installation instructions.
This means, among other things, that the chimney pass-through must not be smaller than 150 mm round / square, but
no larger than 200 mm, and not ventilated by grilles etc. In the case of larger chimney pass-throughs, a flexible hose
of around 150 mm may possibly be used in combination with a flexible hose of around 100 mm, as described below.
For other situations, you should consult your supplier / manufacturer.
7.4 Parts (See page 17)
Check all parts for damage before commencing the installation. You will require the following parts for converting a
brickwork duct to a concentric duct connecting to a CC duct system :
1. Clamping strips 7. Chimney mounting plate (renovation kit)
2. CC Fitted pipe 8. Clamping strips
3. Clamping strips 9. Roof pass-through
4. Inner mounting plate
5. Slider (renovation kit)
6. Flexible hose 316 L round 100 /107
Note: The renovation/sanitation set consists of parts 4, 5 and 7.
7.5 Installation (See page 14)
·* Guide the flexible hose (6) through the existing duct (8).
·* Attach the adapter (5) to the bottom of the flexible hose and secure this in place using 2 parkers.
·* The mounting plate (7) is adjustable, slide / fix it on to the outer pipe and then mount it against the ceiling
(airtight).
·* Shorten the flexible hose to approximately 100 mm above the chimney coping plate.
·* Attach the mounting plate / connecting piece (7) to the flexible hose on the roof. clamp it with a hose bracket
and secure it in place using a parker.
·* Attach the mounting plate / connecting piece (7) to the chimney coping watertight on the roof using silicone
sealant and stainless steel screws.
·* Install the roof pass-through (9) and secure it in place using the supplied clamping strips (8).
·* Position the unit in accordance with the instructions of the unit manufacturer.
·* Always install a minimum of 1 metre of concentric duct type CC/US 100-150 (2), or 130-200 mm with
reduction to 100-150 mm.
7.6. Cleaning and maintenance.
The unit must be cleaned and checked every year by your dealer. The Concentric flue system must be cleaned every
2 years.
Control of:
1 Density of the gas products of combustion and combustion air feed circuit.
2 The correct operation of the gas control block and the ignition of the burner.
Carry out the checks in accordance with the inspection list on page 22.

Page 17
9. Roof pass-through
8. Clamping strips
7. Chimney mounting plate
(Renovation kit)
6. Flexible hose 316L
5. Slider (renovation kit)
4. Inner mounting plate
(Renovation kit)
3. Clamping strips
2. CC Fitted pipe
1. Clamping strips

Page 18
8. Instructions for the Mertik Maxitrol GV60 and the Remote Control:
Ensure that the fuel supplied to the unit is clean and free from particles and moisture.
Before a gas supply pipe (new or existing) is connected to the main gas pipe at the gas meter and to the gas
control block of the unit, clean and dry compressed air should been blown through it.
Cut copper pipes as well as aluminium pilot pipes must be deburred and blown clean before they are
connected. The dust filter at the connection to the gas control block will only filter out the coarsest dirt
from the system. Fine particles are still able to reach the inside and may damage and/or adversely affect
regulation in the gas control block .
Heat, moisture and dust are a threat to all electronic components
Protect the electronic gas control until all construction, plastering and paintwork has been completed. If
such work cannot be avoided, then protect the control against dirt and moisture penetration by using, for
example, plastic film .
Warning
Electronic components will become permanently faulty when exposed to temperatures higher than 60°C.
Standard AA batteries will crack open at temperatures >54°C and the battery contents will damage the
electronic switches located underneath. Batteries last longest at <25°C. At >50°C the life span is around 23
weeks, this makes the use of the gas fire unnecessarily expensive.
Only install the gas control block and receiver as pre-installed at the factory
Remember that components may have to be replaced or that repairs may have to be performed at a later
date.
This may be more difficult if the control is installed using a method that is different from the instructions
provided here.
Please note!
Only place the batteries after wiring to the receiver, gas control block and pilot set is connected.
Premature connection to the energy source may damage the control’s CPU (central processor).
Ensure that the ignition cable is not near the antenna wire and that they do not cross each other.
The high voltage released at ignition may damage the sensitive receiver circuit.
This may mean that the unit becomes less responsive or not responsive at all to handset commands. (See
photograph 1 on page 16)
If the manual transmitter range is too limited, loosen the antenna wire from the terminals on the
receiver box. Direct the antenna wire away from the ignition cable and in the direction of the control
box door.
Ensure there is no contact with metal components. Ensure there is no damage to the connection to
electronic components or to the wire itself. (See photograph 1 on page 19)
Connect the wires correctly to the contact breaker behind the gas control block.
The shortest wire runs immediately back to the 1/0 switch and can be found nearest to the back of the gas
control block. The longest wire runs to one of the two connections on the receiver box and only fits on one
of the screws .
Do not tighten the contact breaker and the thermocouple connection too tightly on the gas control
block or to each other.
It is sufficient to tighten by hand and add a half a turn with an open-end spanner. Tightening too much
will break the connection to the magnetic coil below and/or the insulation around the aluminium contact
pin in the contact breaker. This may lead to the magnetic coil not opening the gas supply to the pilot and
the unit not working.

Page 19
Do not extend the thermocouple supplied to the pilot set
Extending the thermocouple beyond its limit will lead to a reduction in voltage. This may, in turn, lead to
the magnetic coil not being activated.
Do not extend the thermocouple supplied to the pilot set
Extending the thermocouple beyond its limit will lead to a reduction in voltage. This may, in turn, lead to
the magnetic coil not being activated.
The receiver and the control units on the gas control block should be switched on to ensure automatic
start-up through the manual transmitter.
The oval disk on the gas control block should be turned to the ON position. The 1/0 switch should be set to
1. See photograph 2. The ignition cable should be connected to the SPARK connection point on the
receiver box. See photograph 1.
The manual transmitter has to communicate with the receiver. This has to be ‘learnt’.
Press the RESET button using a blunt object. (See photograph 3.) Continue to press this button until you
hear a short beeping sound, followed immediately by a long beeping signal. Release the button. Direct the
manual transmitter towards the receiver and press the arrow down until you hear a long beeping sound. The
gas control button will now move for a short period.
The manual transmitter has now learned the setting with regard to the receiver and the unit can now be
ignited using the remote control. If the manual transmitter is still not communicating with the receiver,
repeat the procedure again.
The system’s thermostat sensor is in the manual transmitter.
The manual transmitter operates best at a distance of 2 or 3 metres from the unit. Although communication
occurs via short wave radio signals, it is recommended to place the hand transmitter in view of the gas
apparatus in a place where the user wishes to experience a pleasant temperature. Do not place the manual
transmitter in direct sunlight or other warm location. The thermostat measures the temperature and
regulates the flame size of the gas unit accordingly.
Remove the batteries only with the red ribbon underneath the batteries, not with a metal tool
Removing batteries with a metal object may damage the electronic control permanently.
Photo 2
Photo 3
Photo 1
40 mm

Page 20
8.1 Mertik GV60 Troubleshooting Flow Chart
No ACTION Possible problem/cause Solution
1. Option: wall switch START:
press ON button > wall switch
works.
NO Bent pin on switch, or cable not
operating properly. Straighten pin, replace wall switch or cable.
1. Manual transmitter START: press
both buttons to start ignition
sequence.
Beep will occur each second
NO Manual transmitter battery low. Replace battery, 1.5V AAA quality
alkaline!
Receiver batteries low. Replace batteries, 1.5V AA quality
alkaline!
Optional mains adapter not
operating properly. Check mains adapter.
Check coding of transmitter and
receiver. Learn in new code, see instructions and label on receiver.
OK Transmitter/receiver range
limited. 1. Move antenna cable, see instructions.
2. Replace receiver.
Optional wall switch / cabling not
operating properly. Replace wall switch / cabling.
Receiver fuse blown (in older
versions only). Replace receiver.
2. Magnet unit in gas valve is
energised (audible click) NO
No beep Impulse magnet not operating
properly. Replace gas valve.
NO 3 short beeps Receiver batteries low. Replace batteries, 1.5V AA quality
alkaline!
NO 1 long beep ON/OFF switch on gas valve in
OFF position Set switch to ON.
8-wire cable between receiver and
gas valve defective / poor contact. Check cable, especially in case of plug connection.
OK Switch cable disconnected. Check switch cable, see fig. 1 on
page 18
Motor not operating properly. Replace gas valve.
Micro switch on gas valve not
operating properly. Replace gas valve.
