Thermoheat FA60 Series Manual

Questions, problems, missing parts? Before returning to your retailer, call our customer
service department at 877-447-4768 8:30 a.m. – 4:30 pm CST, Monday – Friday
www.ghpgroupinc.com
USER’S MANUAL AND OPERATING INSTRUCTIONS
C US
PROPANE
CONSTRUCTION HEATER
GENERAL HAZARD WARNING
FAILURE TO COMPLY WITH THE PRECAUTIONS AND INSTRUCTIONS PROVIDED WITH
THIS HEATER, CAN RESULT IN DEATH, SERIOUS BODILY INJURY AND PROPERTY LOSS,
OR DAMAGE FROM THE HAZARDS OF FIRE, EXPLOSION, BURN. ASPHYXIATION, CARBON
MONOXIDE POISONING, AND/OR ELECTRICAL SHOCK.
ONLY PERSONS WHO CAN UNDERSTAND AND FOLLOW THE INSTRUCTIONS SHOULD
USE OR SERVICE THIS HEATER.
IF YOU NEED ASSISTANCE OR HEATER INFORMATION SUCH AS AN INSTRUCTION
MANUAL, LABELS, ETCETERA, CONTACT THE MANUFACTURER.
CONSUMER: Retain this manual for future reference.
ANS Z83.7-2011 CSA 2.14-2011
50-10-166 Printed in China Rev. 2012-04-12
GHP Group, Inc.
8280 Austin Ave.
Morton Grove, IL 60053-3207
GHP
RMC-FA60/L/L-01 (30,000/60,000 BTU/HR, FORCED - AIR)
LPFA125/L/L-01 (70,000/125,000 BTU/HR, FORCED - AIR)
THERMOHEAT
MODELS:

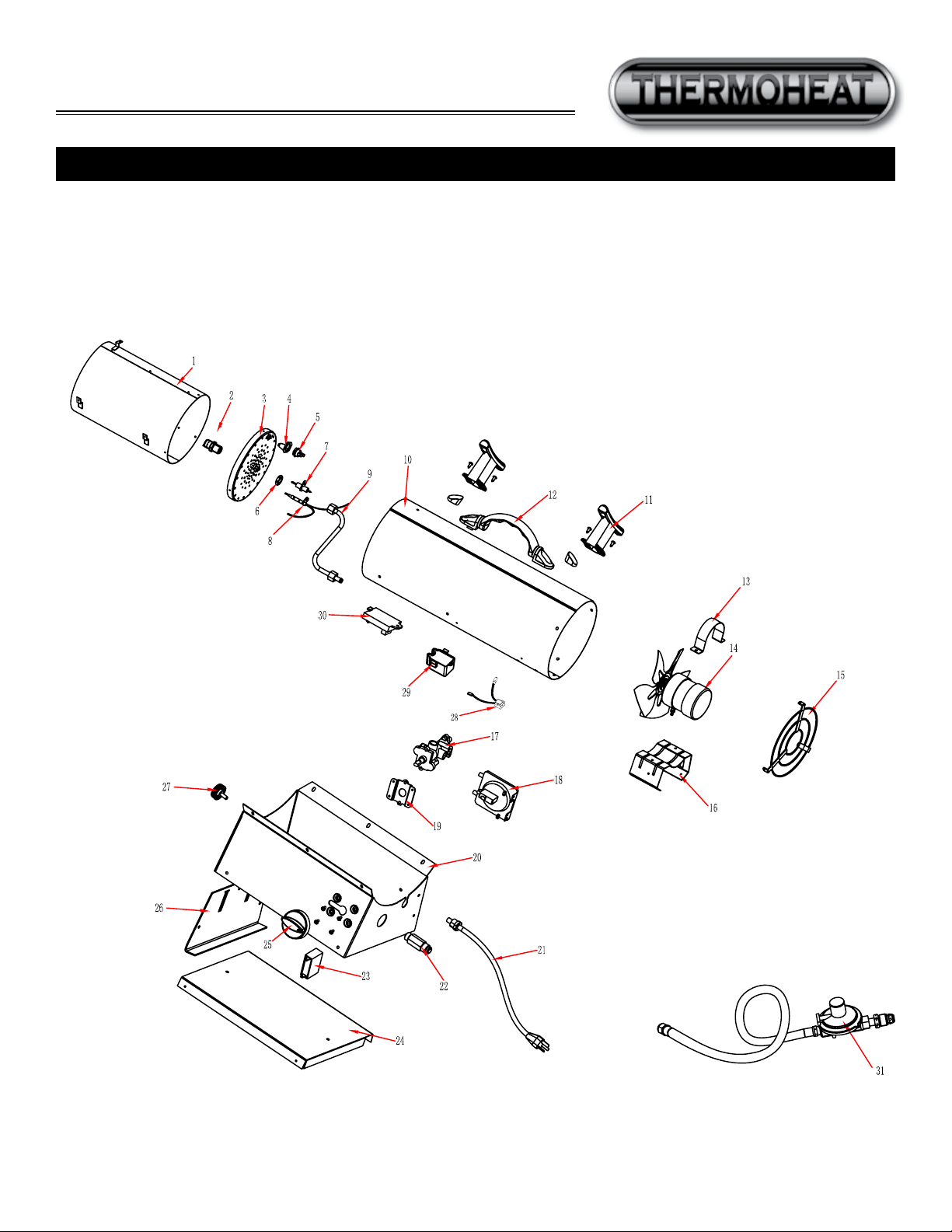

PROPANE CONSTRUCTION HEATER ILLUSTRATED / PARTS BREAKDOWN :
RMC-FA60
TABLE OF CONTENTS
WARNING:NOT FOR HOME OR RECREATIONAL VEHICLE USE.
WARNING
: FIRE, BURN, INHALATION, AND EXPLOSION HAZARD, KEEP SOLID
COMBUSTIBLES, SUCH AS BUILDING MATERIALS, PAPER OR CARDBOARD, A SAFE
DISTANCE AWAY FROM THE HEATER AS RECOMMENDED BY THE INSTRUCTIONS.
NEVER USE THE HEATER IN SPACES WHICH DO OR MAY CONTAIN VOLATILE OR
AIRBORNE COMBUSTIBLES, OR PRODUCTS SUCH AS GASOLINE, SOLVENTS, PAINT
THINNERS, DUST PARTICLES OR UNKNOWN CHEMICALS.
2
PROPANE CONSTRUCTION HEATER
GHP Group, Inc.
8280 Austin Ave.,Morton Grove, IL 60053-3207
Tel: (877) 447-4768 Web: www.ghpgroupinc.com
GHP
CALIFORNIA PROPOSITION 65 WARNING:
cancer, birth defects or other reproductive harm. This product contains chemicals, including lead
reproductive harm. Wash hands after handling.

to anticipate every use which may be made of this heater. CHECK WITH YOUR LOCAL FIRE SAFETY
AUTHORITY IF YOU HAVE QUESTIONS ABOUT APPLICATIONS.
DYNA-GLO PROPANE FORCED AIR CONSTRUCTION HEATERS
use is primarily the temporary heating of buildings or structures under construction, alteration or repair. All the
products of combustion generated by the heater are forced through the heater and released into the area being
of carbon monoxide. Humans can tolerate small amounts of carbon monoxide for short periods. Carbon
monoxide can build up in a heated space and failure to provide adequate ventilation could result in poisoning
or death.
3
Your local authority can advise you about these.
IMPORTANT: READ THIS USER’S MANUAL CAREFULLY AND COMPLETELY BEFORE TRYING
TO OPERATE OR SERVICE THIS HEATER. IMPROPER USE OF THIS HEATER CAN CAUSE
SERIOUS INJURY OR DEATH FROM FIRE, EXPLOSION AND CARBON MONOXIDE POISONING.
WARNING
: NOT FOR USE WITH DUCT WORK.
FA60Series LPFA125Series
30,000BTU/hr
60,000BTU/hr
70,000BTU/hr
125,000BTU/hr
Propane Propane
CylinderPressure CylinderPressure
5psig 5psig
11"W.C 11"W.C
1.4lbs/hr
2.8lbs/hr
3.3lbs/hr
5.8lbs/hr
120V,60Hz,1Ø 120V,60Hz,1Ø
Amperage Load 0.65amps 0.7amps
Fan
Unload
Load
3570rpm
3300rpm
3580rpm
3300rpm
ConInuousSpark ConInuousSpark
0.16"(4mm) 0.16"(4mm)
19.3"x8.3"x15.2"
(490x211x386)mm
25.59''x11.81''x16.64''
(650x300x410)mm
14.3lbs(6.48kg)
20.72lbs
(9.4kg)
Weight
ModelNo.
InputRaBng
TypeofGas
GasSupplyPressureto
RegulatorMaximum
Minimum(forpurpose
ofInputAdjustment)
ManifoldPressure
GasConsumpBon
ElectricalInput
IgniBon
SparkGap
Size(LxWxH)
SPECIFICATIONS
PROPANE CONSTRUCTION HEATER

Accidents are always tragic especially because so many of them could have been prevented with little care
and judgment. There are some basic good practices, we hope you will follow for safe use of your heater.
at all times when the heater is operating.
as necessary. Do not service while hot or operating.
do not convert heater to any other gas. Installation must conform to local codes or, in the absence,
respectively. Use only the regulator & hose assembly provided with the heater. Inspect the regulator/hose
assembly prior to each use of the heater. If there is excessive abrasion or wear, or hose is cut, replace with
regulator/hose assembly listed on the parts list prior to using this heater.
(3) prong receptacle.
operating cylinder.
4
PRODUCT FEATURES
GENERAL SAFETY INSTRUCTION
IMPORTANT SAFETY INSTRUCTION
WARNING
: Motor and fan must be running before lighting, during operation and at shutdown,
PROPANE CONSTRUCTION HEATER

PROPANE CONSTRUCTION HEATER
5
UNPACKING HEATER
damage, promptly inform dealer/distributor where you purchased heater.

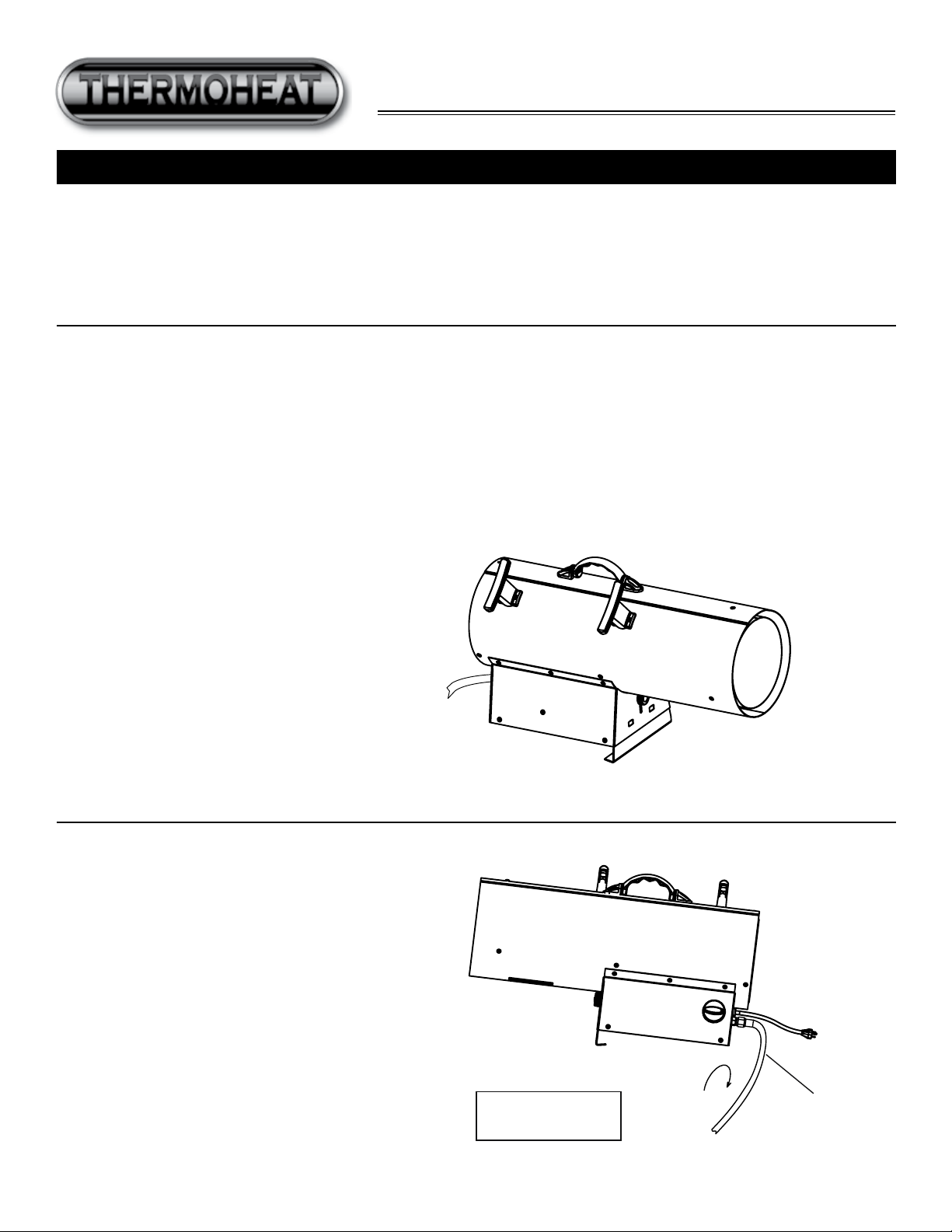

Assembly Components and Instructions:
1. Assembling the Cord Wrap Attachments:
(LPFA125 Series Only)
Parts Required:
and 2 Cord Wrap Attachments
Place the cord wrap attachment
as shown, then use Phillips
screwdriver to tighten the
screws and secure the
cord wrap attachments.
2. Regulator and Hose Connection:
(All Models)
Connect the hose tightly to
the heater using a wrench.
Please also refer to
page 8 in the manual.
use a wrench
Hose Assembly
Assembly Time:
5 Minutes
Contents:
All Models: Unit, Manual, Hose and Regulator
Assembly
LPFA125 Series Includes:
Tools required for assembly:
All Models: Adjustable Wrench
LPFA125 Series: Phillips Head
Screw Driver

PROPANE CONSTRUCTION HEATER
6
INFORMATION ON SIZE * CAPACITY OF PROPANE GAS CYLINDERS:
The propane (LP) gas tank must also be equipped with the following:
American National Standards for Compressed Gas Cylinder Valve Outlets and Inlet
Connections.
The propane (LP) gas pressure regulator and hose assembly supplied with
this heater must be used without alteration.
The hose assembly shall be visually inspected prior to each use of the heater. If it is evident
that there is excessive abrasion or wear, or the hose is cut, it must be replaced prior to the
by the manufacturer.
Temperature
50,000-60,000 BTU/h
2 - 20lb
Above 32°F
32°F
20°F
-20°F

INSTALLATION TO THE PROPANE GAS TANK
IMPORTANT: You must use a propane/LP gas supply cylinder that is compatible with the connection device
provided with the hose and regulator.
REFILLING THE PROPANE GAS TANK
ALL NEW CYLINDERS MUST BE PURGED BEFORE THE FIRST FILLING.
with soap solution.
WARNING
:
has been thoroughly trained in accepted LP gas industry procedures. Failure to follow
6. Close propane / LP supply valve before attempting to repair connection.
Propane/LP
Supply Valve
Propane/LP
Regulator
Fuel Gas
Fitting
Connector Inlet
Hose to Regulator
Hose Fitting

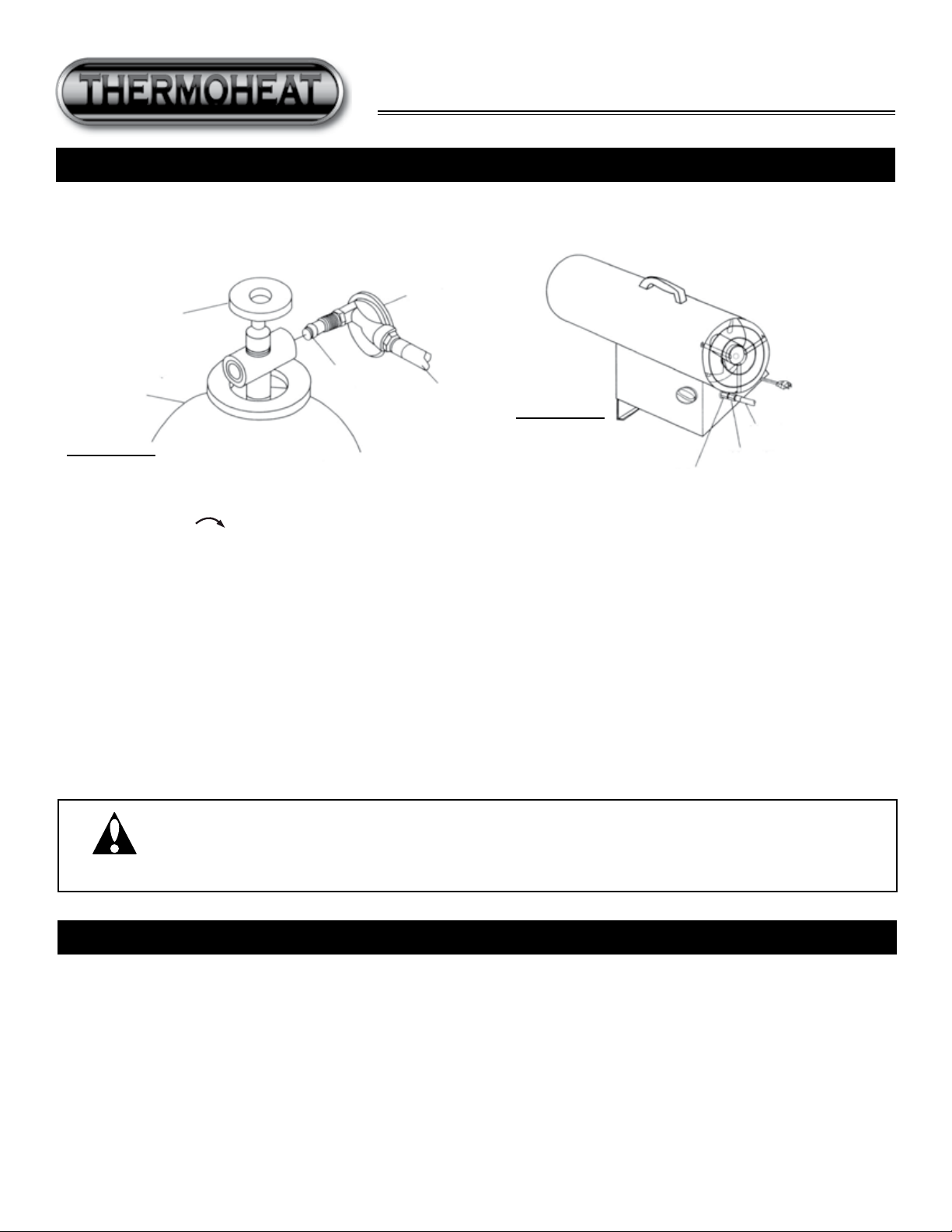

FIGURE 1
FIGURE 2
Hose to
Heater
PROPANE CONSTRUCTION HEATER
7

PROPANE CONSTRUCTION HEATER
8
PROPANE SAFETY
diaphragm in regulator.
THE DISCONNECTED TANK MUST NEVER BE STORED IN A BUILDING, GARAGE
OR ANY OTHER ENCLOSED AREA.
LEAK CHECKING
there is excessive abrasion or wear, or the hose is cut, it must be replaced prior to the heater being
put into operation.
LIGHTING INSTRUCTIONS
WARNING
: Motor and fan must be running before lighting, during operation and shutdown,
NOTE:
positioning.
OFF to LOW/IGN.
7. If burner does not stay lit, repeat the lighting procedure.

PROPANE CONSTRUCTION HEATER
SHUTDOWN INSTRUCTIONS
TEST FIRING HEATER
-
STORAGE
must be stored outdoors in a well ventilated area, out of the reach of children. If for any reason the
area out of reach of children, in accordance with the standard for the the Storage and Handling of
disconnected from the heater.
MAINTENANCE INSTRUCTIONS
-
nance
season.
WARNING
: Motor and fan must be running before lighting, during operation and at shutdown,
Disconnect the power cord once the heater has cooled to ambient temperature.
REPLACEMENT PARTS
Warning: Use only original replacement
parts. Do not substitute or use generic parts.
Improper replacement parts could cause
serious or fatal injuries.
This will also protect your warranty coverage
for parts replaced under warranty.
Parts warranty and non-warranty: Contact au-
supply original replacement part(s), either con-
tact your nearest Parts Central or GHP Group
447-4768.
When calling GHP Group Inc., have ready:

PROPANE CONSTRUCTION HEATER
Always be sure to follow proper maintenance procedures, by cleaning the heater once per
month during regular usage, and check spark gap at least once per season.
TROUBLESHOOTING:
PROBLEM POSSIBLECAUSE CORRECTIVEACTION
TROUBLESHOOTING

WIRING DIAGRAMS
*
*100K,125K & 150K Models only
*100K,125K & 150KSólo modelos
*100K,125K & 150K Les modèles Seulement
*
*
PROPANE CONSTRUCTION HEATER
Models Only
Sólo Modelos
Les modles Seulement

PROPANE CONSTRUCTION HEATER
REPLACEMENT PARTS LIST
MODELS: RMC-FA60 Series/LPFA125 Series

FA40THROUGHFA150STEELBASEUNITS
QTY FA60SERIES LPFA125SERIES
1 INNERSHELLASS'Y 1 2304818 2304929
2 NOZZLE 1 2325121 5030077*
3 FLAMEHOLDERCAP 1 2325120 2325122
4 THERMALSWITCHBRKT. 1 2304826 2315515
5 THERMALSWITCH 1 2201599 2201373
6 NOZZLENUT 1 2304578 2304945
7 SPARKPLUGASSY 1 2206033 2206034
8 THERMOCOUPLEASSY(1130/1474‐425L) 1 2304885 2304885
9 GASTUBINGASS'Y 1 2304830 2325138
10 OUTERSHELL‐ORANGE 1 2305403 2325360
11 CORDWRAP 2N/A 2101423
12 HANDLEASSY‐BLACK 1 2101447 2101447
12.1 SCREW‐HANDLEFRONT 1 2001355 2001355
12.2 SCREW‐HANDLEFRONT 1 2001077 2001077
12.3 NUT‐HANDLEREAR 1 2000384 2000384
13 MOTORSUPPORT 1 2304823 2304823
13.1 BOLT‐MOTORMOUNTING 2 2001332 2001332
13.2 SLEEVE 1 2304949 2304949
14 MOTORASS'Y 1 2304547 2304548
14.1 MOTOR‐FAN 1 2304821 2304936
15 GUARDFAN‐BLACK 1 2304828 2304939
16 MOTORBRKT 1 2304937 2304938
17 VALVE‐GAS 1 5051233 5051235
18 PRESSURESWITCH 1 N/A 2305976
19 VALVEBRKT 1 2304624 2304624
20 BASEASSY‐BLACK 1 2304923 2304924
21 POWERCORDASS'Y 1 2101670 2101673
22 GASCONNECTORINLET 1 2304831 2304831
23 CAPACITOR 1 2201372 2301390
24 BASELOWER‐BLACK 1 2304925 2304926
25 KNOBGASVALVE‐BLACK 1 2101451 2101451
26 HEIGHTCONTROLLER‐BLACK 1 2304927 2304928
27 HEIGHTCONTROLSCREW‐BLACK 1 2304510 2304510
28 LEADWIREASSY 1 2201371 2201371
29 SPARKMODULE 1 2201391 2201391
30 PCBASSEMBLY 1 2201369 2201369
31 REG&HOSEASSY‐10FT(3M) 1 5002614 5055549
REG&HOSEASSY‐10FT(3M)w/HANDWHEEL 1 5055533 5055551
REG&HOSEASSY‐15FT(4.6M) 1 5055298 5055550
REG&HOSEASSY‐15FT(4.6M)w/HANDWHEEL 1 5055415 5055552
USETHISCHARTWITHTHEEXPLODEDVIEWOFTHEFA125AONPAGE200FTHEMANUALCHRISTYSENTMEYESTERDAY.
ITEM
No.
DESCRIPTION
PARTNUMBER
*Notshowninexplodedview.
REPLACEMENT PARTS LIST
PROPANE CONSTRUCTION HEATER

LIMITED WARRANTY:
This limited warranty is extended to the original retail purchaser of this Forced Air/Convection/Radiant Heater and warrants against any
defect in materials and workmanship for a period of one (1) year from the date of retail sale. GHP Group, Inc., at it’s option, will either
provide replacement parts or replace or repair the unit, when properly returned to the retailer where purchased or one of our service centers
as directed by GHP Group, Inc., within one (1) year of retail purchase. (Shipping costs, labour costs, etc. are the responsibility of the purchaser.)
DUTIES OF THE OWNER:
This heating appliance must be operated in accordance with the written instructions furnished with this heater. This warranty shall not excuse
the owner from properly maintaining this heater in accordance with the written instructions furnished with this heater. A bill of sale, canceled
check or payment record must be kept to verify purchase date and establish warranty period. Original carton should be kept in case of warranty
return of unit.
WHAT IS NOT COVERED:
1. Damage resulting from use of improper fuel.
2. Damage caused by misuse or use contrary to the owners manual and safety guidelines.
3. Damage caused by a lack of normal maintenance.
4. Fuses
5. Use of non-standard parts or accessories.
6. Damage caused in transit. Freight charges on warranty parts or heaters to and from the factory shall be the responsibility of the owner.
This warranty does not imply or assume any responsibility for consequential damages that may result from the use, misuse, or the lack of
routine maintenance of this heating appliance. A cleaning fee and the cost of parts may be charged for appliance failures resulting from lack of
maintenance. This warranty does not cover claims which do not involve defective workmanship or materials. FAILURE TO PERFORM
GENERAL MAINTENANCE (INCLUDING CLEANING) WILL VOID THIS WARRANTY.
THIS LIMITED WARRANTY IS GIVEN TO THE PURCHASER IN LIEU OF ALL OTHER WARRANTIES, EXPRESSED OR IMPLIED,
INCLUDING BUT NOT LIMITED TO THE WARRANTIES OF MERCHANTABILITY OF FITNESS FOR A PARTICULAR PURPOSE. THE
REMEDY PROVIDED IN THIS WARRANTY IS EXCLUSIVE AND IS GRANTED IN LIEU OF ALL OTHER REMEDIES. IN NO EVENT WILL
GHP GROUP, INC. BE LIABLE FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES.
Some states do not allow limitations on how long an implied warranty lasts, so the above limitation may not apply to you. Some states do not
allow the exclusion or limitation of incidental or consequential damages so the above limitation or exclusion may not apply to you.
CLAIMS HANDLED AS FOLLOWS:
1. Contact your retailer and explain the problem.
2. If the retailer is unable to resolve the problem, contact our Customer Service Dept. detailing the heater model, the problem, and proof
of date of purchase.
3. A representative will contact you. DO NOT RETURN THE HEATER TO GHP GROUP,INC. unless instructed by our Representative.
This warranty gives you specific legal rights and you may also have other rights which vary from state to state.
TO REGISTER THE WARRANTY ON YOUR HEATER, PLEASE FILL OUT THIS CARD COMPLETELY
AND MAIL WITHIN 14 DAYS FROM DATE OF PURCHASE OR REGISTER ON-LINE AT www.ghpgroupinc.com
NAME: ______________________________________ PHONE: ( ) __________________ EMAIL: ____________________________
ADDRESS: _________________________________ CITY: ______________________________ STATE: __________ ZIP: ____________
MODEL: ____________________ SERIAL #: _______________________________________ DATE PURCHASED: __________________
DEALER PURCHASED FROM: ____________________________________________ TYPE OF STORE: __________________________
CITY & STATE WHERE PURCHASED: ______________________________________________ PRICE PAID: _______________________
Please Take a Minute To Give Us Your Answers To The Following Questions.
All Responses Are Used Solely For Market Research And Are Held In Strict Confidence.
Who primarily decided this purchase? Male Female 18-24 25-39 40-59 60 and over
Purpose of Purchase? _______________________________________________________________________________________________
Do you own any other portable heaters? Yes No If yes, type____________________________brand_____________________
How do you intend to use your new heater? Construction Site Farm Warehouse/Commercial Garage/Outbuilding Other
How did you become aware of this heater? In-Store Display Newspaper Ad Magazine Ad Friend/Relative
TV Commercial Store Salesperson Other ___________________________
What made you select this heater? Style Size/Portability Price Package Brand Other ___________________
Do you: own rent Would you recommend this heater to a friend? Yes No
Please give us your comments:________________________________________________________________________________________
THANK YOU FOR COMPLETING THIS FORM!
Information will be held confidential.
WARRANTY

WARRANTY REGISTRATION
IMPORTANT: We urge you to fill out your warranty registration card within fourteen (14)
days of date of purchase. You can also register your warranty on the internet at
www.ghpgroupinc.com. Complete the entire serial number. Retain this portion of the card
for your records.
SAVE THIS CARD!
Place
Postage
Stamp
Here
GHP Group, Inc.
8280 Austin Avenue
Morton Grove, IL 60053-3207
GHP Group, Inc.
8280 Austin Ave.
Morton Grove, IL 60053-3207
Tel: (877) 447-4768
www.ghpgroupinc.com
GHP
This manual suits for next models
5
Table of contents
Other Thermoheat Heater manuals
Popular Heater manuals by other brands

Tesla
Tesla PC401W user manual

Solaris
Solaris P Series user manual

HEATSTRIP
HEATSTRIP Design THH Series Operation, installation, and maintenance manual

Prem-I-Air
Prem-I-Air PECCB3200 instruction manual

flowair
flowair LEO FB Series Operation manual

Harvia
Harvia FG Series Instructions for installation and use

cecotec
cecotec Ready Warm 9500 Force instruction manual

VOKERA
VOKERA ETV-10 Installation & servicing instructions

Twin-Star International
Twin-Star International duraflame 9HM8000 instruction manual

United States Stove Company
United States Stove Company 1269E owner's manual

Kooper
Kooper Atene 2191370 User instructions

Beldray
Beldray EH0576 instruction manual
