THIBO PORTARA User manual

PORTARA
AUTOMATIC GATEWAY / AUTOMATISCHES
SCHIEBETOR
USER INSTRUCTIONS (EN)
GEBRAUCHSANWEISUNG (DE)
WWW.THIBO.NL
These are the English and German
translation of the original Dutch
instructions
Diese sind die deutsche und englische
Übersetzungen der niederländischen
Originalgebrauchsanweisung

V.04-20222
Thibo makes no representations or warranties with respect to
this manual and, to the maximum extent permitted by law,
expressly limits its liability for breach of any warranty that may
be implied to the replacement of this manual with another.
Furthermore, Thibo reserves the right to revise this publication at
any time without incurring an obligation to notify any person of
the revision.
The information provided in this documentation contains
general descriptions and/or technical characteristics of
the performance of the products contained herein. This
documentation is not intended as a substitute for and is not
to be used for determining suitability or reliability of these
products for specific user applications. It is the duty of any such
user or integrator to perform the appropriate and complete risk
analysis, evaluation and testing of the products with respect to
the relevant specific application or use thereof. Neither Thibo nor
any of its affiliates or subsidiaries shall be responsible or liable for
misuse of the information that is contained herein. If you have
any suggestions for improvements or amendments or have
found errors in this publication, please notify us.
All pertinent state, regional, and local safety regulations must be
observed when installing and using this product. For reasons of
safety and to help ensure compliance with documented system
data, only the manufacturer shall perform repairs to components.
When devices are used for applications with technical safety
requirements, the relevant instructions must be followed. Failure
to observe this information can result in injury or equipment
damage.
Copyright © 2022 Thibo. All rights reserved. No part of this
publication may be reproduced, distributed, or transmitted in
any form or by any means, including photocopying, recording,
or other electronic or mechanical methods, without the prior
written permission of the publisher. Please send a request for
approval to the publisher. Please send this application “for the
attention of the Approval Coordinator” to the address below.
WWW.THIBO.NL
Thibo
Thibostraat 3
5741 SJ Beek en Donk
The Netherlands / Niederlande
0031 (0) 492 471333
[email protected]
DISCLAIMER

V.04-20223
TABLE OF CONTENTS
1 Preface 4
2 Description of the Portara 7
3 Safety instructions 9
4 Operation/ use 11
5 Maintenance 13
6 Troubleshooting and repair 15
7 Disposal 16
Appendix I - declaration of conformity for machinery 17

V.04-20224
1 PREFACE
1.1 DESCRIPTION OF THE USER
This document is intended for the end-user of the Portara
Automatic Gateway.
1.2 CONVENTIONS USED IN THIS MANUAL
The following style conventions are used in this
document:
Bold
Names of product elements, options, services, and utilities.
Italic
Publication titles referenced in text Emphasis (for example a
new term).
1.3 EXPLANATION OF SAFETY INSTRUCTIONS
DANGER!
“Danger” indicates a hazard with a high level of risk
which, if not avoided, will result in death or serious
injury.
WARNING!
“Warning” indicates a hazard with a medium level
of risk which, if not avoided, could result in death or
serious injury.
NOTICE
“Notice” indicates information considered important,
but not hazard-related.
CAUTION!
“Caution” indicates a hazard with a low level of
risk which, if not avoided, could result in minor or
moderate injury.

V.04-20225
1.4 RETAINING INSTRUCTIONS
Follow all the instructions. This will avoid fire, explosions,
electric shocks or other hazards that may result in
damage to property and/or severe or fatal injuries.
The product shall only be used by persons who have fully
read and understand the contents of this user manual.
Ensure that each person who uses the product has read
these warnings and instructions and follows them.
Keep all safety information and instructions for future
reference and pass them on to subsequent users of the
product.
DANGER!
Read and understand this manual and its safety
instructions before using this product. Failure to do so
can result in serious injury or death.
The manufacturer is not liable for cases of material damage
or personal injury caused by incorrect handling or non-
compliance with the safety instructions. In such cases, the
warranty will be voided.

V.04-20226
1.5 OBTAINING DOCUMENTATION AND INFORMATION
1.5.1 INTERNET
The latest version of the documentation is available at the
following address: http://www.thibo.nl
1.5.2 ORDERING DOCUMENTATION
Documentation, user instructions and technical information
can be ordered by calling Thibo at [phone].
1.5.3 OTHER DOCUMENTATION
Besides these user instructions, the following documentation
is available:
• Installation instructions
• Operating Instructions Portara Drive
1.5.4 DOCUMENTATION FEEDBACK
If you are reading Thibo product documentation on the
internet, any comments can be sent to [email protected]. We
appreciate your comments.
1.5.5 SUPPORT AND SERVICE
For information about special tools, materials, service,
technical assistance, ordering user instructions or for other
information or questions please contact Thibo.
WWW.THIBO.NL
Thibo
Thibostraat 3
5741 SJ Beek en Donk
The Netherlands / Niederlande
0031 (0) 492 471333
[email protected]

V.04-20227
2 DESCRIPTION OF THE PORTARA
2.1 INTENDED USE AND REASONABLY FORESEEABLE MISUSE
The Portara Automatic Gateway is intended to be used as
for closing off passages.
The Portara Automatic Gateway is not intended to be used
as a device to move objects. Only use the Portara within the
specified performing limits. The Portara must only be used
according to the instructions as described in this manual.
All use other than described in this manual is seen as
unintended use.
The Portara shall be used with original accessories and
components only.
2.2 TECHNICAL DATA
Parameter Unit
Device name: Thibo Portara
Designation: Automatic Gateway
Type: Portara
Technical life span: 5 years
Power consumption: 200 W
Maximum power consumption motor: 130 W
Weight: Max. 1200 kg
Opening/closing speed: 8 m/min
Electrical input power: 230 V; 50/60 Hz
Electrical output power: 24 V DC
Nominal power consumption: 4.5 W
Emission of noise motor:
The A-weighted emission sound pressure level: < 75 dB (A)
The peak C-weighted instantaneous sound pressure value: < 63 dB
Operating temperature range: -20°C to +55°C, 10% ~ 80% RV
(at max. 5.5 A and 80 sec. use)
Receiving frequency built-in receiver: 433 MHz

V.04-20228
2.3 PRODUCT ELEMENTS
2.4 EXPLANATION OF AUDITORY AND VISUAL SIGNALS
The Portara contains a warning light. The warning light
flashes orange when opening or closing the Portara.
A. Upper intake and lower intake
B. Slam portal
C. Contact strips (6 x)
D. Photocell (1 set)
E. Wheel
F. Gate leaf
G. Lower beam
H. Guiding portal
I. Warning light
J. Guiding wheel
K. Prefab foundation
L. Drive
M. Pocket for forklift truck
N. Prefab foundation
7
2.4 Productonderdelen
A. Boveninloop en onderinloop
B. Sluitportaal
C. Contactlijsten (6x)
D. Fotocel (1 set)
E. Wiel
F. Poortvleugel
G. Onderbalk
H. Geleideportaal
I. Waarschuwingslicht
J. Geleiderol
K. Prefab-fundering
L. Aandrijving
M. Heftruckuitsparing
N. Prefab-fundering
2.5 Toelichting geluidssignalen en visuele signalen
De Portara heeft een waarschuwingslicht. Het waarschuwingslicht knippert oranje bij het openen of sluiten van
de Portara.
ABC
D
E
F
H
I
J
C
C
E
M
L
K
C
D
G
M
N

V.04-20229
3 SAFETY INSTRUCTIONS
WARNING!
Read and understand this manual and its safety
instructions before using this product. Failure to do so
can result in serious injury or death.
3.1 HOW TO USE THE PRODUCT SAFELY
3.1.1 INTENDED USE
• The gateway shall only be used and installed for
applications as described by the manufacturer. All
other applications are unprofessional and considered
dangerous. The manufacturer cannot be held liable
for damage resulting from errors, unintended or
unprofessional use of the device.
• This gateway is not intended for use by persons
(including children) with restricted physical, sensory
or intellectual capability or lack of experience and/or
knowledge, unless they are supervised by a person who
is responsible for their safety or provides them with
instructions on how to use the product.
• Children should be supervised in order to ensure that
they do not play with the gateway.
• Inform yourself properly with respect to the prescribed
safety devices on the basis of the EU directives on
operating safety for gates.
• If there is any visible damage, a strong odour or
excessive heating of components, disconnect the power
supply immediately and do not use the gateway.
3.1.2 USE
• Be vigilant at all times, and always be careful what you
are doing. Do not use the gateway if you are lacking in
concentration or awareness, or are under the influence
of drugs, alcohol or medication. Even a moment of
inattentiveness can lead to serious accidents and
injuries when using the gateway.
• The gateway contains moving parts! Always keep a safe
distance to prevent jamming.
• The gateway is not intended to be used as a device to
move objects. Do not stand on the gateway!
• Ensure that there are no people or objects in the range
of motion when you extend or retract the gateway.
Otherwise injury or damages may occur.

V.04-202210
• Do not use the gateway after an earthquake. Keep
a safe distance from the gateway until the gateway
has been fully inspected by a qualified and trained
person.
• In case of an accident, stop using the product and
consult a doctor if necessary.
3.1.3 MAINTENANCE AND CLEANING
• All work with respect to cleaning and maintenance
shall only be carried out by qualified personnel.
To ensure the operational safety of the installation
regular maintenance should be carried out
by qualified personnel in accordance with the
manufacturer’s instructions.
• Maintenance and inspection should be done on a
frequent basis. If there is any visible damage, a strong
odour or an excessive overheating of components
stop using the gateway.
3.1.4 REPAIR
• Do not attempt to modify or repair the gateway. This
will expire the warranty.
• Use only original accessories and spare parts.
• Alterations to the gateway and technical
modifications are not permitted.

V.04-202211
4 OPERATION/ USE
WARNING!
Ensure that there are no people or objects in the range
of motion when you extend or retract the gateway.
Otherwise injury or damages may occur.
4.1 HOW TO OPEN/ CLOSE THE GATEWAY
4.1.1 MANUAL OPERATION
To manually operate the Portara:
1. Lock the gate leaf so that the Portara can be operated
manually. To lock:

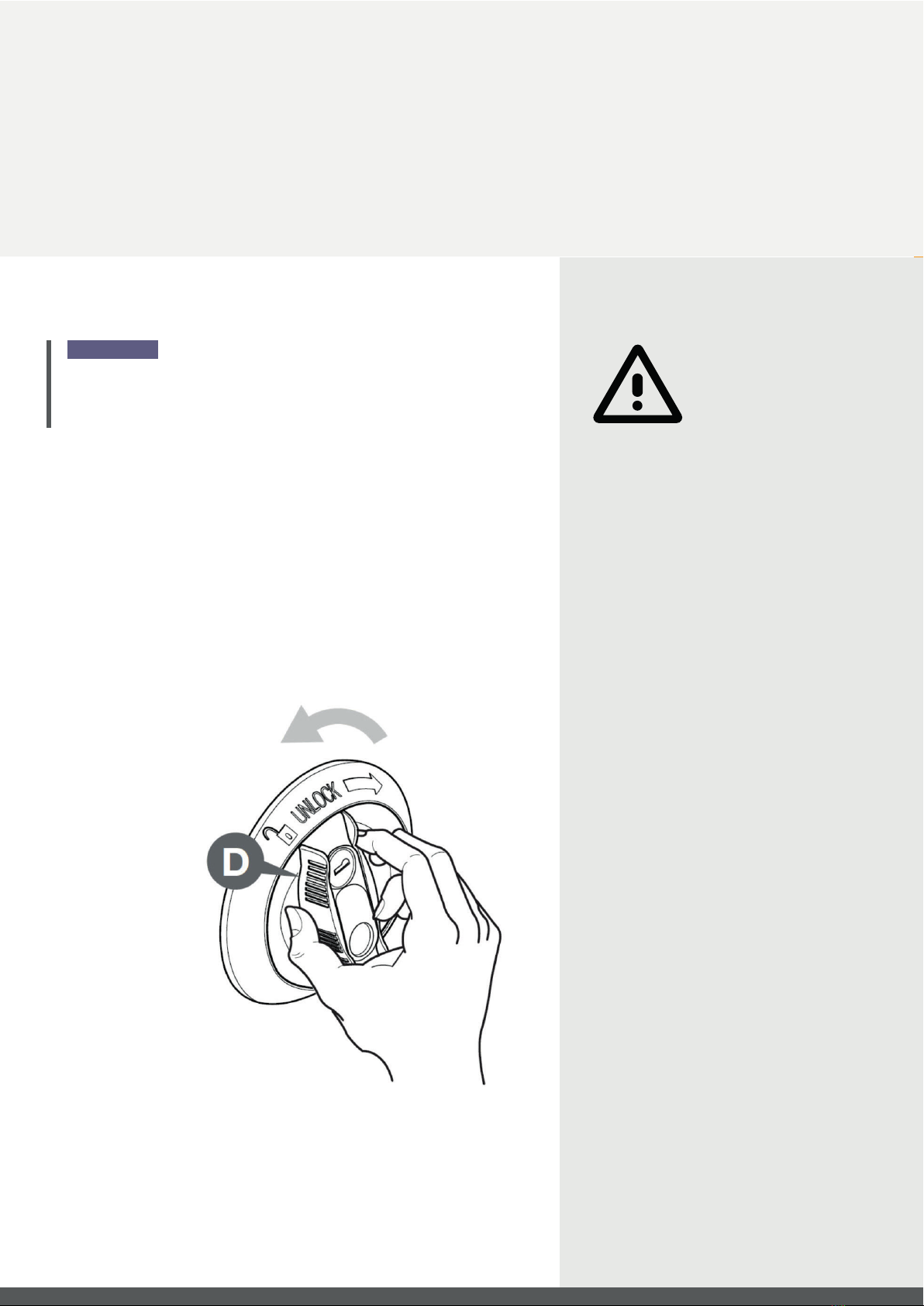

A. Turn knob “D” to the left until it stops completely.
B. Turn the key to the left. Then remove the key and
slide the slot cover back up. The geared motor is now
locked and the gateway can be used normally again.
The key must be kept in a safe place when the
system is operating normally again.
2. Open or close the gate leaf.

V.04-202212
WARNING!
To prevent emergency situations, keep hands and feet
away from moving parts, specifically from the slam
portal and the lower beam.
4.2 WHAT TO DO IN EMERGENCY AND EXCEPTIONAL
SITUATIONS
4.1.2 REMOTE/ AUTOMATIC OPERATION
To operate the Portara remotely:
• Use the remote control to open or close the Portara
To safely unblock the Portara:
1. Stop the supply of electrical power.
2. In case of a battery, disconnect the battery.
3. To unlock the motor:
A. Slide down the lock cover “A” on the unlock button.
Then insert the key “B” into it and turn it clockwise by
180degrees.
The button is now free and can be adjusted.
B. Turn the knob “C” several times to the right until
it stops. The geared motor is now unlocked. The
gateway can now be moved manually.
CAUTION!
Do not turn the knob beyond the limit.

V.04-202213
5.2 HOW TO CLEAN THE GATEWAY
To clean the gateway:
1. Spray the gateway with cold tap water to remove coarse dirt.
2. Apply a neutral non-abrasive cleaning agent (pH value of
between 6 and 8).
3. Allow the cleaning agent to work sufficiently in accordance
with the relevant product information.
4. Wipe the gateway with a soft and clean cloth.
5. Rinse the gateway thoroughly with tap water. Preferably, use
warm water with a temperature of approximately 40°C.
The gateway shall only be inspected by a qualified and
trained person.
WARNING!
Task
Make sure that the path of the sliding gate is free
from obstacles at all times.
Clean the gateway
Make sure the motor is operates correctly
Make sure that the guiding wheels operate
correctly
Frequency
Before each use.
Each 2-3 months or when exposed to harsh
conditions (for example salt). See How to
Clean the Gateway
Every 6 months. Consult the manufacturer.
Clean, adjust or replace the wheels if
necessary.
Every 6 months. Consult the manufacturer
5.1 INSPECTION SCHEME
5 MAINTENANCE5 MAINTENANCE

V.04-202214
The wireless safety system works with batteries. These must
be checked/ replaced at least once a year. This must be
performed by a qualified technician in combination with
settings and safety tests. If the batteries are empty, the
gateway will not work.
5.4 HOW TO REPLACE THE BATTERY SAFETY SYSTEM
To maintain the gateway:
• Consult the manufacturer
The gateway shall only be maintained by a qualified and
trained person.
5.3 HOW TO MAINTAIN THE PRODUCT
WARNING!

V.04-202215
6 TROUBLESHOOTING AND REPAIR
WARNING!
The gateway shall only be repaired by a qualified and
trained person. Consult the manufacturer.
6.1 HOW TO IDENTIFY AND SOLVE PROBLEMS

V.04-202216
The symbol on the product, the accessories or packaging
indicates that this device must not be treated as unsorted
municipal waste, but must be collected separately! Dispose
of the device via a collection point for the recycling of
waste electrical and electronic equipment if you live
within the EU and in other European countries that
operate separate collection systems for waste electrical
and electronic equipment. By disposing of the device in
the proper manner, you help to avoid possible hazards for
the environment and public health that could otherwise
be caused by improper treatment of waste equipment.
The recycling of materials contributes to the conservation
of natural resources. Therefore do not dispose of your old
electrical and electronic equipment with the unsorted
municipal waste.
7.2 DISPOSAL OF PACKAGING WASTE
The packaging is made of environmentally friendly
materials, which may be disposed through your local
recycling facilities. By disposing of the packaging and
packaging waste in the proper manner, you help to avoid
possible hazards for the environment and public health. The
symbol on the packaging indicates that the packaging is
made of PAP.
7 DISPOSAL
7.1 DISPOSAL OF ELECTRONIC COMPONENTS
7.2 DISPOSAL OF BATTERIES
The product contains a battery. Batteries may not be
disposed of with the usual domestic waste. They may
contain toxic heavy metals and are subject to hazard
our waste regulations. For this reason, dispose of used
rechargeable batteries at a local collection point.

V.04-202217
APPENDIX I DECLARATION OF CONFORMITY FOR MACHINERY
EC declaration of conformity (DoC) of the machinery
Declaration according to Directive 2006/42/EC, as amended
(hereafter called Machinery Directive).
This language version of the declaration is verified by the
manufacturer (original declaration).
We (manufacturer):
Business name: Thibo
Address: Thibostraat 3
5741 SJ Beek en Donk
Country: The Netherlands
Declare under our sole responsibility for the following
machinery:
Generic denomination: Automatic Gateway
Position: Closing off passages
Model: Portara
Type: .................................................
Serial number: .................................................
Commercial Name: Portara
that all the relevant provisions of the Machinery Directive
are fulfilled;
that the machinery also complies with the provisions of
the following European Directives:
• 2014/30/EU relating to electromagnetic compatibility
(EMC directive)
• (EU) 305/2011 Construction Products Regulation
• Directive 2002/95/EC - Restriction of hazardous
substances
that the machinery is in conformity with the following
standards and/or other normative documents:
• EN 349:1993+A1:2008 Safety of machinery - Minimum
gaps to avoid crushing of parts of the human body
• EN 13241-1:2003+A2:2016 Industrial, commercial, garage
doors and gates. Product standard, performance
characteristics
• NEN-EN-ISO 14121-1:2007 Safety of machinery - Risk
assessment - Part 1: Principles
• NEN-EN-IEC 60204-1:2018 Safety of machinery - Electrical

V.04-202218
• equipment of machines - Part 1: General requirements
• NEN-EN-IEC 61000-6-1:2019 Electromagnetic
compatibility (EMC) - Part 6-1: Generic standards -
Immunity for residential, commercial and light-industrial
environments
• NEN-EN-IEC 61000-6-3:2007 Electromagnetic
compatibility (EMC) - Part 6-3: Generic standards -
Emission standard for residential, commercial and light-
industrial environments
• NEN-EN-IEC 60204-1:2018 Safety of machinery - Electrical
equipment of machines - Part 1: General requirements
and that the following Notified Body performed the
intervention as described below and issued the EU-type
examination certificate:
and that the following natural or legal person established in
the Community is authorized to compile the technical file:
Business name: Thibo
Address: Thibostraat 3
5741 SJ Beek en Donk
Country: The Netherlands
Name: R. Beukers
Position: CEO
Place and date of issue (of this DoC): 01 juni 2022
Signed by or for the manufacturer:
Name: Ralph Beukers
Title: CEO Thibo

V.04-202219
Thibo leistet keine Zusicherungen oder Garantien hinsichtlich
dieses Handbuchs und beschränkt, soweit gesetzlich zulässig,
ausdrücklich seine Haftung für die Verletzung jeglicher
Gewährleistung, die sich aus dem Ersatz dieses Handbuchs
durch ein anderes ergibt. Zudem behält sich Thibo das
Recht vor, diese Publikation jederzeit zu überarbeiten, ohne
diesbezüglich zur Benachrichtigung anderer Personen
verpflichtet zu sein.
Die in diesem Dokument bereitgestellten Informationen
umfassen allgemeine Beschreibungen und/oder technische
Merkmale zur Leistung der hierin beschriebenen Produkte.
Dieses Dokument ist nicht als Ersatz gedacht bzw. nicht dazu
bestimmt, die Eignung oder Zuverlässigkeit dieser Produkte
für spezifische Benutzeranwendungen zu bestimmen. Es liegt
in der Verantwortung jedes Benutzers oder Installateurs, eine
angemessene und vollständige Risikobeurteilung, Bewertung
und Prüfung der Produkte hinsichtlich ihrer jeweiligen
spezifischen Anwendung durchzuführen. Weder Thibo noch
seine Partner oder Tochterunternehmen kann/können für
einen Missbrauch der in diesem Dokument enthaltenen
Informationen verantwortlich oder haftbar gemacht werden.
Falls Sie irgendwelche Vorschläge für Verbesserungen oder
Ergänzungen haben oder Ihnen in dieser Publikation Fehler
aufgefallen sind, teilen Sie uns dies bitte mit.
Alle einschlägigen staatlichen, regionalen und örtlichen
Sicherheitsvorschriften müssen bei der Installation und
Verwendung dieses Produktes stets beachtet werden.
Aus Sicherheitsgründen und um die Einhaltung der
dokumentierten Systemdaten zu gewährleisten, darf nur der
Hersteller Reparaturen an Komponenten durchführen.
Beim Einsatz von Produkten für Anwendungen, für die
sicherheitstechnische Anforderungen gelten, sind die
entsprechenden Hinweise zu beachten. Die Nichtbeachtung
dieser Informationen kann zu Verletzungen oder Schäden an
der Anlage führen.
Copyright © 2022 Thibo. Alle Rechte vorbehalten. Kein Teil
dieser Publikation darf ohne schriftliche Genehmigung des
Herausgebers in irgendeiner Form oder mit irgendwelchen
Mitteln, einschließlich Fotokopie, Aufzeichnung oder anderen
elektronischen oder mechanischen Verfahren, reproduziert,
verbreitet oder übertragen werden. Bitte einen Antrag auf
Genehmigung an den Herausgeber schicken. Bitte diesen
Antrag „z. Hd. Genehmigungskoordinator“ an die unten
genannte Adresse schicken.
WWW.THIBO.NL
Thibo
Thibostraat 3
5741 SJ Beek en Donk
The Netherlands / Niederlande
0031 (0) 492 471333
[email protected]
HAFTUNGSAUSSCHLUSS

V.04-202220
INHALT
1 Vorwort 21
2 Beschreibung des Portara 24
3 Sicherheitshinweise 26
4 Betrieb/verwendung 28
5 Instandhaltung 30
6 Fehlersuche und reparaturen 32
7 Entsorgung 33
Anhang i konformitätserklärung für maschinen 34
