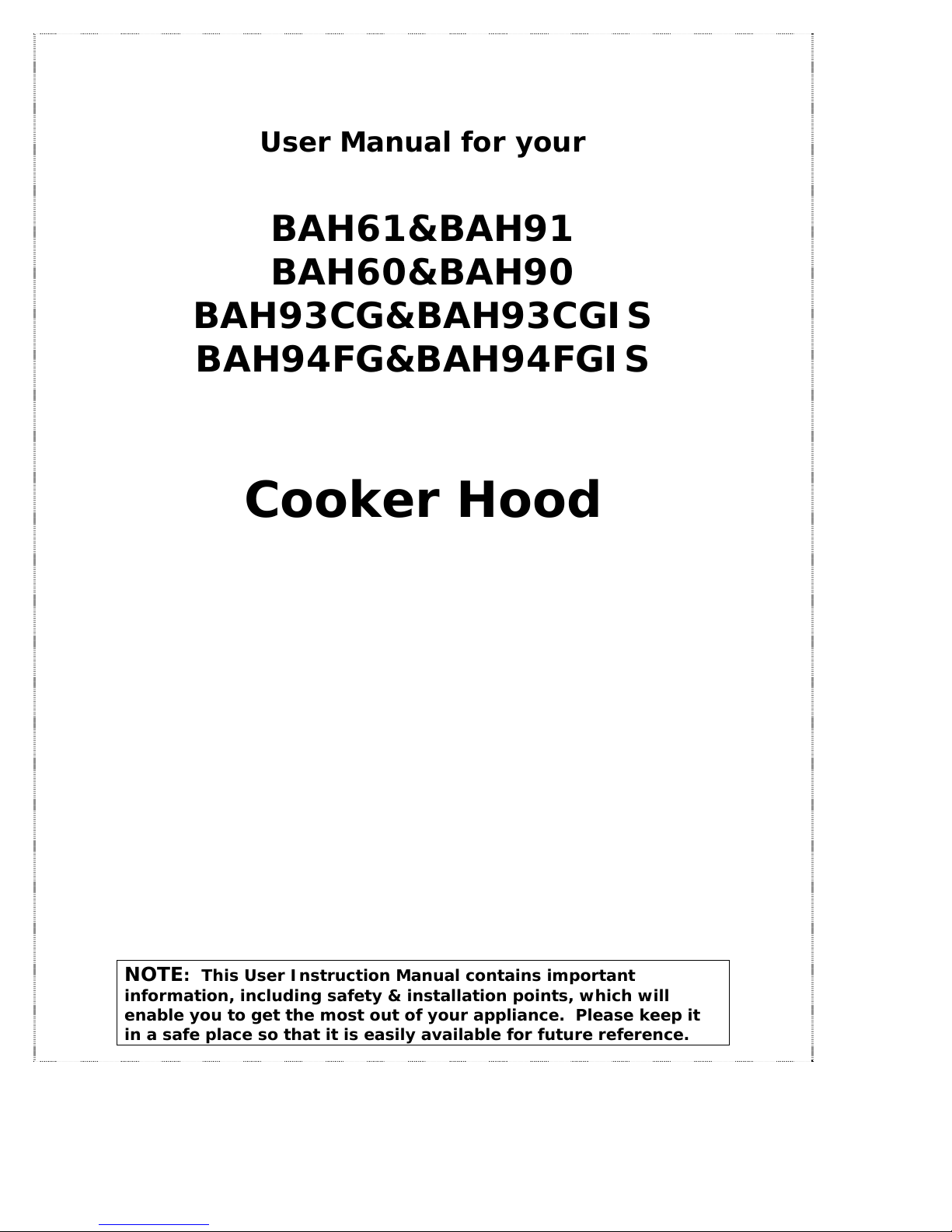

Think Appliances BAH61 User manual

User Manual for your
BAH61&BAH91
BAH60&BAH90
BAH93CG&BAH93CGIS
BAH94FG&BAH94FGIS
Cooker Hood
NOTE: This User Instruction Manual contains important
information, including safety & installation points, which will
enable you to get the most out of your appliance. Please keep it
in a safe place so that it is easily available for future reference.

1

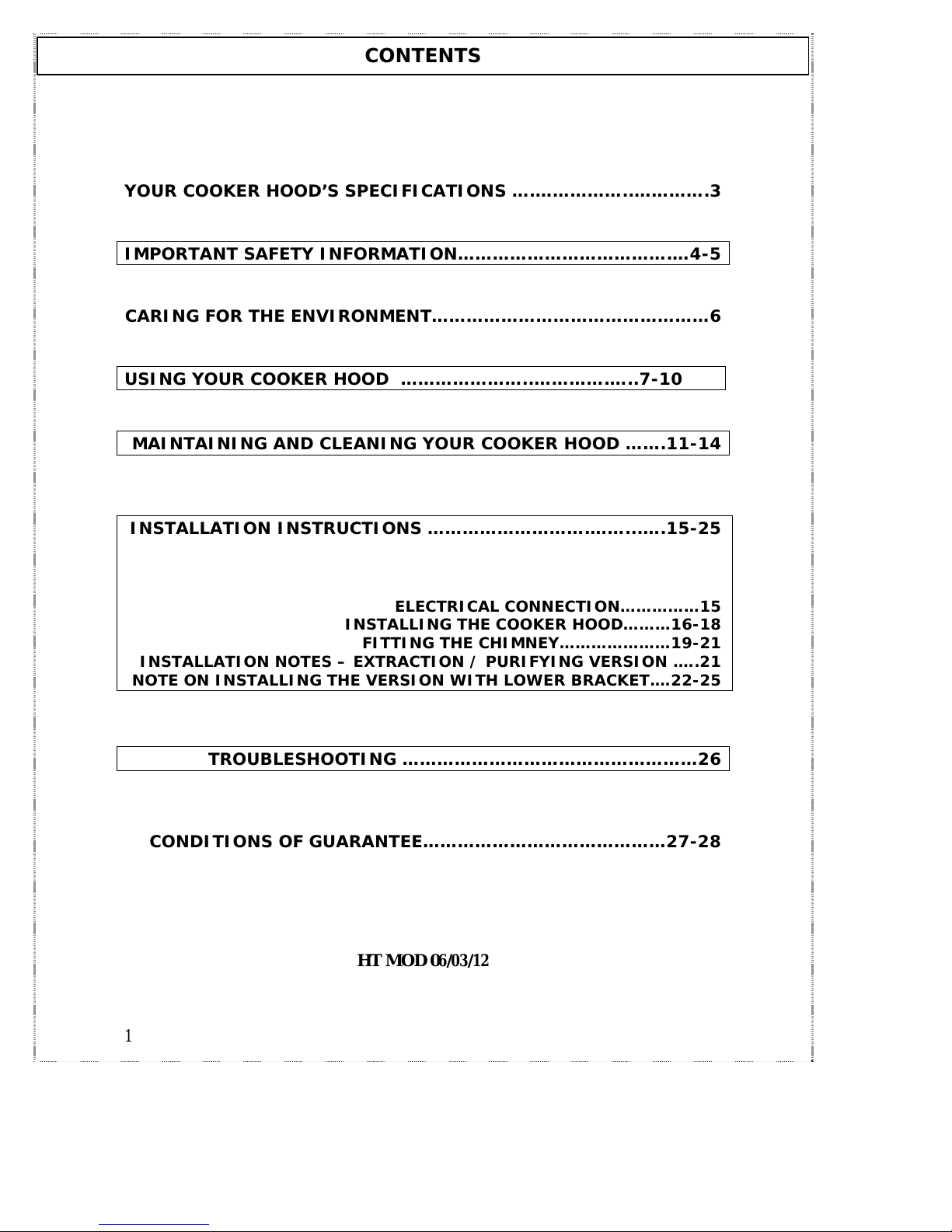

YOUR COOKER HOOD’S SPECIFICATIONS ….……………..………….3
IMPORTANT SAFETY INFORMATION……………………………….…4-5
CARING FOR THE ENVIRONMENT…………………………………………6
USING YOUR COOKER HOOD …………………..………….…..7-10
MAINTAINING AND CLEANING YOUR COOKER HOOD …….11-14
INSTALLATION INSTRUCTIONS ……………………….……...….15-25
ELECTRICAL CONNECTION……………15
INSTALLING THE COOKER HOOD………16-18
FITTING THE CHIMNEY…………………19-21
INSTALLATION NOTES – EXTRACTION / PURIFYING VERSION .….21
NOTE ON INSTALLING THE VERSION WITH LOWER BRACKET.…22-25
TROUBLESHOOTING ……………………………………………26
CONDITIONS OF GUARANTEE……………………………………27-28
HT MOD 06/03/12
CONTENTS

Dear Customer,
Congratulations on purchasing your new product from Think Appliances.
To register your parts and labour warranty (some conditions apply please refer to your
warranty card for more details) please contact out Customer Care team on:
1800 444 357
Our Customer Care centre is there to ensure you get the most out of your appliance. For
example, should you want to learn more about recommended cooking temperatures, the
various cooking functions available, how to set and program your LED clock, and importantly
taking care of your appliance when cleaning, please call us because we are here to help you.
It is important that you read through the following use and care manual thoroughly to
familiarize yourself with the installation and operation requirements of your appliance to
ensure optimum performance.
We also carry a complete range of spare parts for all Think products. For all your spare parts
enquiries please contact our team at Pronto Parts on:
1300 306 973
Again, thank you for choosing an appliance brought to you by Think Appliances and we look
forward to being of service to you.
Kind regards
Management
Think Appliances

3
Congratulations on purchasing a Cooker Hood!
To fully enjoy using your appliance long into the future,
please firstly familiarise yourself with its specifications,
safety advice and operational instructions included in this
manual. You will also need this manual to ensure that your
Cooker Hood has been installed properly.
Your cooker hood can work either as an extraction fan or as
an air recirculator. Whichever mode you choose, you will
need to bear in mind that the extractor calls for ducting (not
included) to be worked from the exhaust of your fan, while
the recirculation function will require the replacement of
carbon filters.
Please see the installation section of this manual for details.
Model Width
(mm) control light Extraction Capacity Carbon filter
BAH61 600 Electronic
button 2*3W LED 500 S1
BAH91 900 Electronic
button 2*3W LED 750 S1
BAH60 600 Push button 2*20W
halogen 500 S1
BAH90 900 Push button 2*20W
halogen 750 S1
BAH93CG 900 LCD electronic 2*3W
LED 750 S1
BAH94FG 900 LCD electronic 2*3W
LED 750 S1
BAH94FGIS 900 LCD electronic 2*3W
LED 750 SQ1
BAH93CGIS 900 LCD electronic 4*3W
LED 750 SQ2
Specifications of yourCooker Hood

4
o Any installation work must be
carried out by a qualified
electrician or competent person.
o The hood must be installed in
accordance with the installation
instructions and all measurements
followed.
o There shall be adequate
ventilation of the room when the
range hood is used at the same
time as appliances burning gas or
other fuels (not applicable to
appliances that only discharge the
air back into the room)
Regulations
concerning the discharge of air
have to be fulfilled.
o If the cooker hood is installed
for use above a gas appliance then
the provision for ventilation must
be in accordance with AS5601
AS4551 and
a ny applicable Building
Regulations.
oThe air must not be
discharged into a flue that is used
for exhausting fumes from
appliances burning gas or other
fuels (not applicable to appliances
that only discharge the air back
into the room).
oIt is dangerous to alter the
specifications or to modify this
product in any way. Do not tamper
with it or attempt to alter it in the
attempt to customise it further.
oWhen installing the hood,
ensure that the following
recommended distances are being
observed between the cooker top
and the bottom of the cooker hood:
9Electric cookers:
600 mm
9Gas cookers:
600 mm
9Coa
* NOTE - DO NOT SET YOUR
COOKER HOOD LESS THAN
600mm ABOVE YOURCOOKER!
oCAUTION: Accessible
parts may become hot
when used with cooking
appliances.
oWhen installed between
adjoining wall cabinets,
the cabinets must not
overhang the hob.
oThe edges of the cooker
hood are sharp – be
mindful of this as you
handle your appliance,
especially during
installation and cleaning.
DO NOT CLEAN IN
BEHIND THE GREASE
FILTERS!
oRefer to Cleaning section
for the details concerning
the method and
frequency of cleaning.
There is a fire risk if
cleaning is not carried
out in accordance with
the instructions;
oIf the room where the
cooker hood is to be used
contains a fuel burning
appliance such as a
central heating boiler
then its flue must be of
the sealed or balanced
flue type.

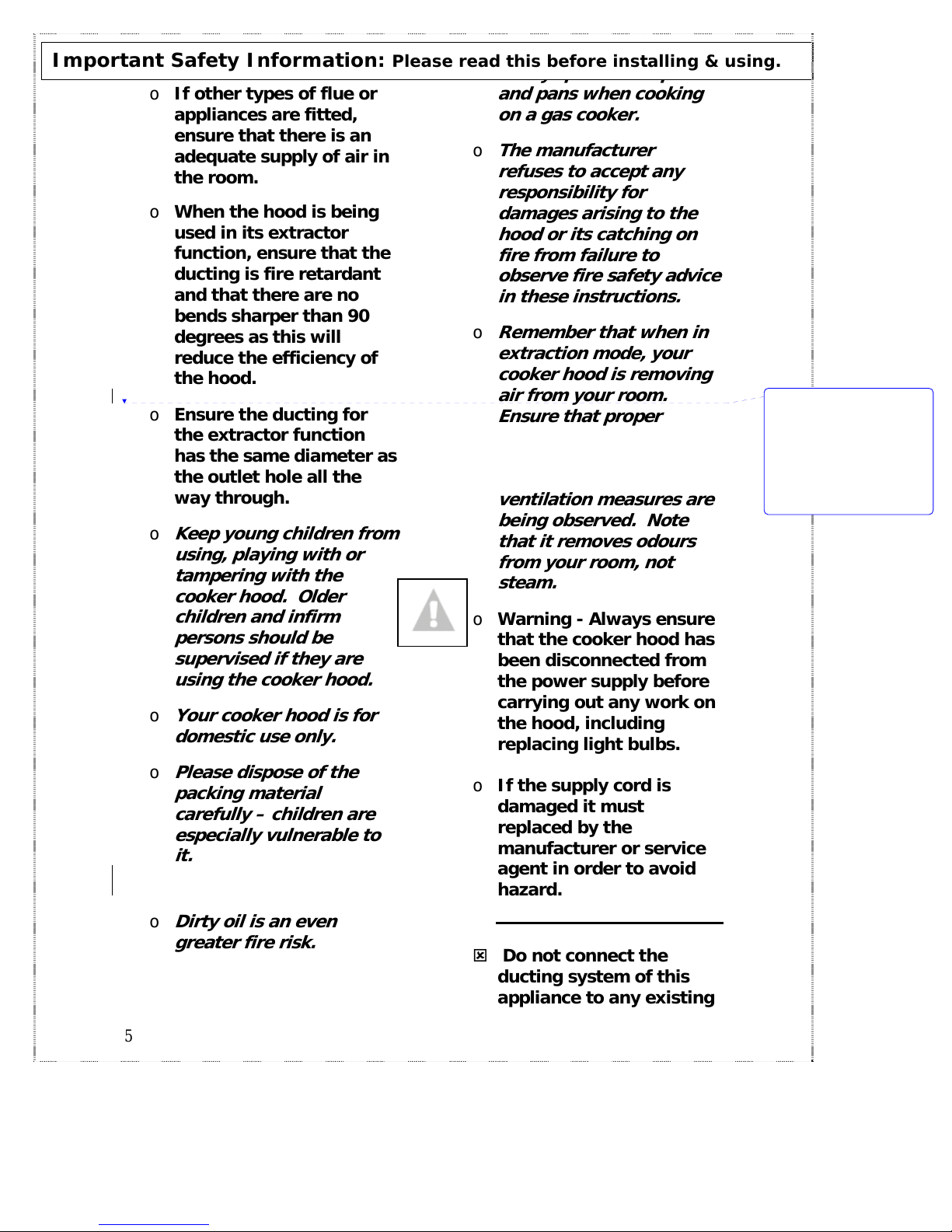

Important Safety Information: Please Read this before installing & using.

5
oIf other types of flue or
appliances are fitted,
ensure that there is an
adequate supply of air in
the room.
oWhen the hood is being
used in its extractor
function, ensure that the
ducting is fire retardant
and that there are no
bends sharper than 90
degrees as this will
reduce the efficiency of
the hood.
oEnsure the ducting for
the extractor function
has the same diameter as
the outlet hole all the
way through.
o
Keep young children from
using, playing with or
tampering with the
cooker hood. Older
children and infirm
persons should be
supervised if they are
using the cooker hood.
o
Your cooker hood is for
domestic use only.
o Please dispose of the
packing material
carefully – children are
especially vulnerable to
it.
o
Dirty oil is an even
greater fire risk.
o Always put lids on pots
and pans when cooking
on a gas cooker.
o The manufacturer
refuses to accept any
responsibility for
damages arising to the
hood or its catching on
fire from failure to
observe fire safety advice
in these instructions.
o Remember that when in
extraction mode, your
cooker hood is removing
air from your room.
Ensure that proper
ventilation measures are
being observed. Note
that it removes odours
from your room, not
steam.
oWarning - Always ensure
that the cooker hood has
been disconnected from
the power supply before
carrying out any work on
the hood, including
replacing light bulbs.
oIf the supply cord is
damaged it must
replaced by the
manufacturer or service
agent in order to avoid
hazard.
:Do not connect the
ducting system of this
appliance to any existing
Important Safety Information: Please read this before installing & using.

6
ventilation system which
is being used for any
other purpose.
:Do not install above a
cooker with a high level
grill.
: Never leave frying pans
unattended during use as
overheated fats and oils
might catch fire.
: Do not leave naked
flames under the cooker
hood.
:Do not attempt to use
the cooker hood if it is
damaged in any way.
Never attempt to use it
without the grease filters
fitted or if the filters are
excessively greasy!
: Never flambé cook under
this cooker hood
.
Environmental Note

7
Note: Before discarding an old appliance, switch off and
disconnect it from the power supply. Cut off and render any plug
useless. Cut the cable off directly behind the appliance to prevent
misuse. This should be undertaken by a competent person.
CONFORMITY TO W.E.E.E. DIRECTIVE
To use your cooker hood(PUSH BUTTON)
Usin
g
y
our Cooker Hood:

8
1) Make sure it has been properly installed.
2) Find the CONTROL PANEL. It is located at the front of the
canopy, to the right.

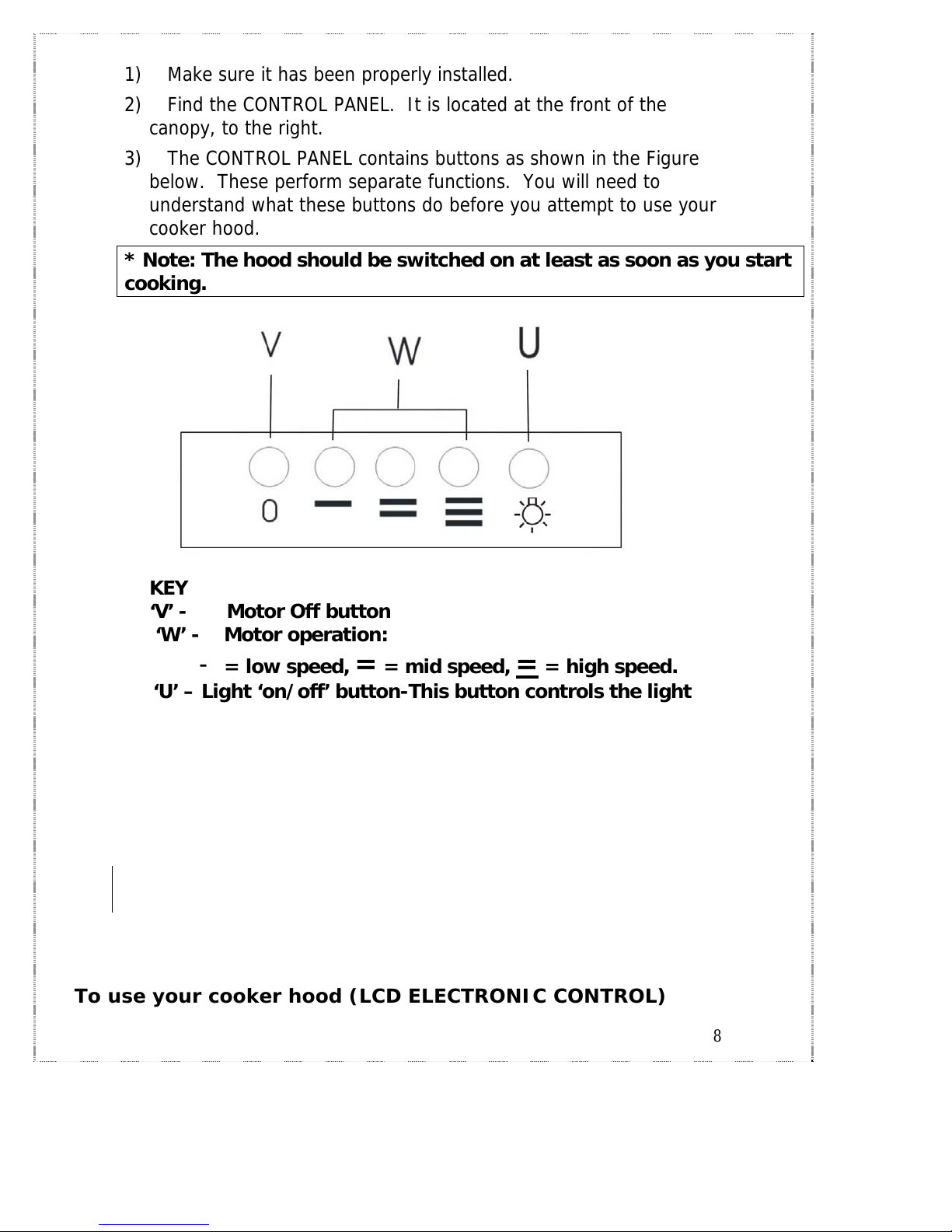

3) The CONTROL PANEL contains buttons as shown in the Figure
below. These perform separate functions. You will need to
understand what these buttons do before you attempt to use your
cooker hood.
* Note: The hood should be switched on at least as soon as you start
cooking.
KEY
‘V’ - Motor Off button
‘W’ - Motor operation:
-= low speed, == mid speed, == high speed.
‘U’ – Light ‘on/off’ button-This button controls the light
To use your cooker hood (LCD ELECTRONIC CONTROL)

9
Before operating the hood, make sure that it has been installed by a
suitably qualified person, as per the information contained in
installation instructions.
1) Find the control panel, which is located in the front middle of the
canopy.
2) There are several buttons on the control panel, which perform
separate functions.
Setting the time of day
1) After the appliance is connected to your mains supply, press the
ON/OFF button to switch the hood on, the LED display backlight will
switch on. If no other button is pushed within 30 seconds, then the
backlight will go out.
2) Press and hold down the timer button for a few seconds, the hour
section of the LED display will flash.
3) Press the speed selection button to increase the number shown on
the LED display.
4) Press the light ON/OFF button to decrease the number shown on
the LED display.
5) The clock on the cooker hood is 24 hour, so the largest hour
number that can be set is 23.
6) Press the timer button again to confirm the hour time; the minute
section of the LED display will then flash.

10
7) Use the same buttons as before to adjust the number shown on
the LED display.
8) Press the timer button for a third time and this will confirm the
time of day setting.

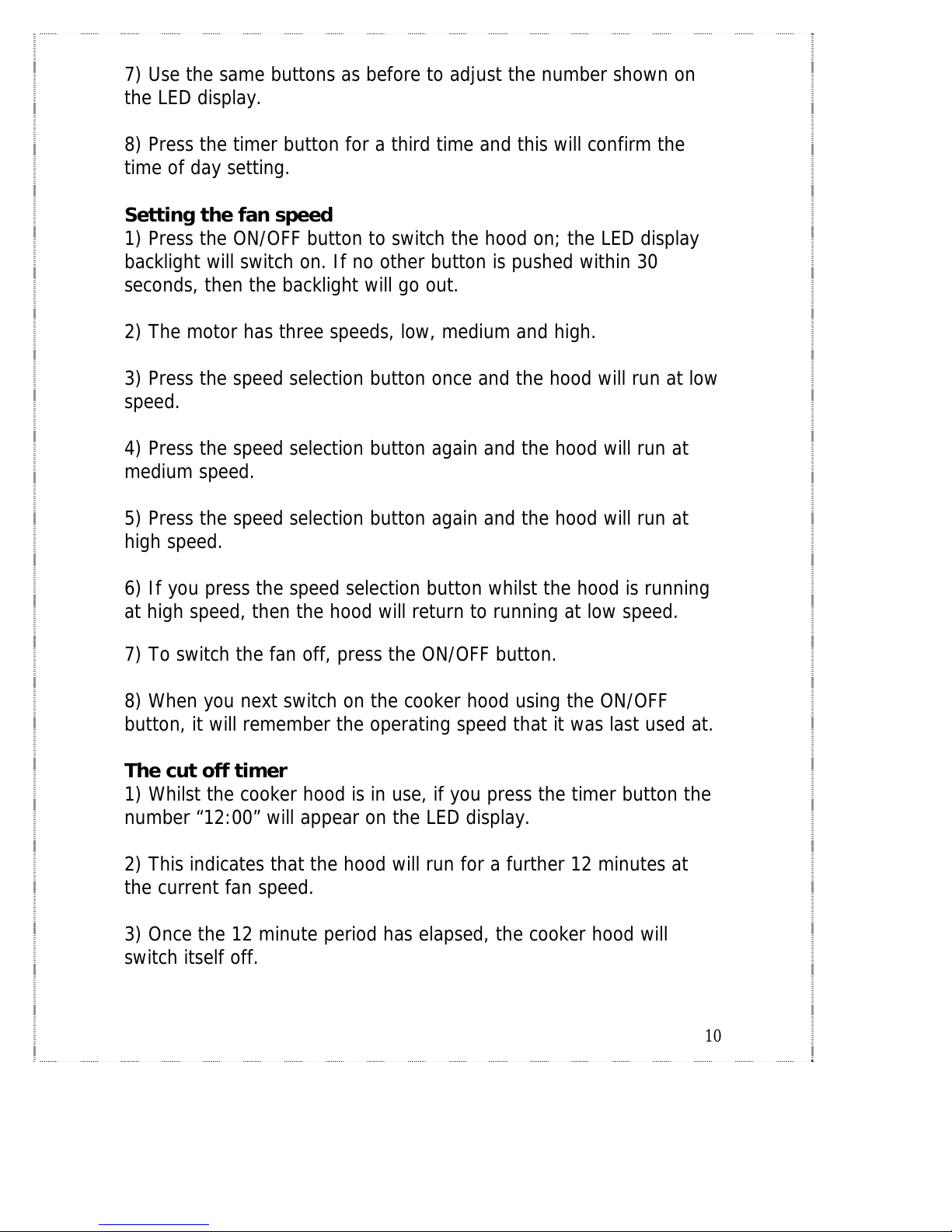

Setting the fan speed
1) Press the ON/OFF button to switch the hood on; the LED display
backlight will switch on. If no other button is pushed within 30
seconds, then the backlight will go out.
2) The motor has three speeds, low, medium and high.
3) Press the speed selection button once and the hood will run at low
speed.
4) Press the speed selection button again and the hood will run at
medium speed.
5) Press the speed selection button again and the hood will run at
high speed.
6) If you press the speed selection button whilst the hood is running
at high speed, then the hood will return to running at low speed.
7) To switch the fan off, press the ON/OFF button.
8) When you next switch on the cooker hood using the ON/OFF
button, it will remember the operating speed that it was last used at.
The cut off timer
1) Whilst the cooker hood is in use, if you press the timer button the
number “12:00” will appear on the LED display.
2) This indicates that the hood will run for a further 12 minutes at
the current fan speed.
3) Once the 12 minute period has elapsed, the cooker hood will
switch itself off.

11
4) It is useful to use this feature when you have finished cooking.
You can press the timer button and the hood will run on to extract
any remaining odours and then switch itself off without you needing
to return to the kitchen.
To use your cooker hood (Electronic button)
o You should use a good quality stainless steel cleaner and polish on
ALL of the stainless steel areas of your cooker hood, before it is used
for the first time.
o This will help to leave a silicone water-resistant film to protect the
stainless steel surfaces.
o Before operating the hood, make sure that it has been installed by
a suitably qualified person, as per the information contained in
installation instructions.
o Find the control panel, which is located in the middle of the main
body of the cooker hood.
o There are several buttons on the control panel, which perform
separate functions (see line drawing on previous page).

12
PLEASE NOTE THAT YOUR COOKER HOOD CAN BE USED EITHER
IN RECIRCULATION MODE OR IN EXTRACTION MODE. TO USE
THE HOOD IN RECIRCULATION MODE, YOU WILL NEED TO FIT
THE CARBON FILTERS.
IMPORTANT: Before cleaning, always ensure that you have
switched your cooker hood OFF at the omni-polar switch,
set at the wall from the cable:
Cleaning
ÂClean the external parts with
mild liquid detergents on a
damp cloth.
ÂNever use abrasive powder,
corrosive solvents or brushes.
ÂNever insert pointed objects
into the motor’s protective grid.
ÂOnly clean the control panel
and filter grill with a damp
cloth and delicate detergents.
ÂBe sure to replace the
carbon filters at the
recommended intervals.
Build up could cause a
fire hazard.
ÂNever take out the
grease filters and
attempt to clean the
space above where they
are set.
________________________________________________
Anti-Grease Grille
ÂYour cooker hood includes an anti-grease grille
which helps absorb vapour-suspended grease
particles to protect your kitchen & furniture from
greasy residues.
ÂThe metal grille may become inflammable if it
becomes saturated with greasy residue.
9To prevent this fire hazard, the grille should be
cleaned regularly (depending on use) every 10-15
Cleanin
g
y
our Cooker Hood:

13
days and at least once a month in hot water with
normal washing-up detergent. DO NOT USE A
DISHWASHER TO ACHIEVE THIS.
First remove the grille by pulling down on it. Undo the
side catches.
You can now clean the anti-grease filter grilles.
9Soak them for about one hour in hot water with a
grease-loosening detergent then rinse off thoroughly
with hot water.
9Repeat the process if needed. Refit the grease grille
once it has dried.
9Refit the grease grilles when dry.
9PLEASE NOTE: DISCOLOURATION OF THE GREASE
FILTER CAN TAKE PLACE WHEN CLEANED IN A
DISHWASHER, ETC. Do not worry about the slight
Maintenance - Cleaning the Anti-grease Filters

14
discolouration of the grille –its performance won’t
be affected.
Let the filter grilles dry thoroughly before refitting
them.
a) Changing the light bulb
a) Changing the light bulb
1) Before changing the light bulb, ensure that the appliance
is not
live (i.e., ensure that you have switched it off at the omni-
polar switch on
the wall switch plate.).
2) Open the grease filter support grill (see previous page).
4) Find the bulb in its position.
4) Change the bulb using only olive-shaped spares.
5) Replace the grease filter support grill.
* PLEASE NOTE - Defective bulbs should be replaced immediately.
9Replace the metal anti-grease filters.
Maintenance – Changing the Light Bulb and Carbon Filter
Installing / Changing the Carbon F

15
Installing / Changing the
Carbon Filter.
Your Cooker Hood uses a
pair of CARBON FILTERS to
purify the air for the air
recirculation function.
You will find that the filters
will attach to both sides of
the fan motor (please see
figures at bottom of page).
The active carbon filters must
be replaced regularly, at least
once every three months,
to allow normal operation.
Before starting to fit the carbon
filter, turn the omni-polar
switch off at the wall.
CHANGING THE CARBON FILTER
1) Press the handle of the metal grease
filter towards the rear part of the unit
until it is released from the front
housing, and remove it by pressing
downwards (Fig. 2 - below).
2) Remove the old carbon filters by
twisting them anticlockwise until they
unlatch from the sides of the motor.
3) Place the new carbon filters (which
have two fixing tongues), turning
clockwise so that the tongues latch
onto the motor’s sides. (Fig. 3 - above).
4) Reposition the anti-grease metallic filter grilles.

16
Before installation and usage, read all the instructions and make sure that the
voltage (V) and the frequency (Hz) indicated on the identification plate (found
inside your Cooker Hood) and all the data inside the appliance are exactly the
same as the voltage and frequency in your home.
NOTE: The manufacturer declines all responsibility in the event of failure to observe all the
accident-prevention regulations in force which are necessary for normal use and regular
operation of the electric system.
______________________________________________
ELECTRICAL CONNECTION
Y
Yo ou ur r c co oo ok ke er r h ho oo od d i is s i in nt te en nd de ed d f fo or r f fi it tt te ed d w wi it th h p po ow we er r
c co or rd d & & p pu ul lg g f fo or r
c
co on nn ne ec ct ti io on n t to o p po ow we er r o ou ut tl le et t . .
oThe power cable must be
connected to the terminals
marked L (live) and N (neutral)
in the hood and fixed with a
cable clamp.
oThe cooker hood’s power cable
must be fitted upstream from the
electrical connection using an
omni-polar switch with a contact
distance of at least 3mm.
INSTALLATION INSTRUCTIONS

17

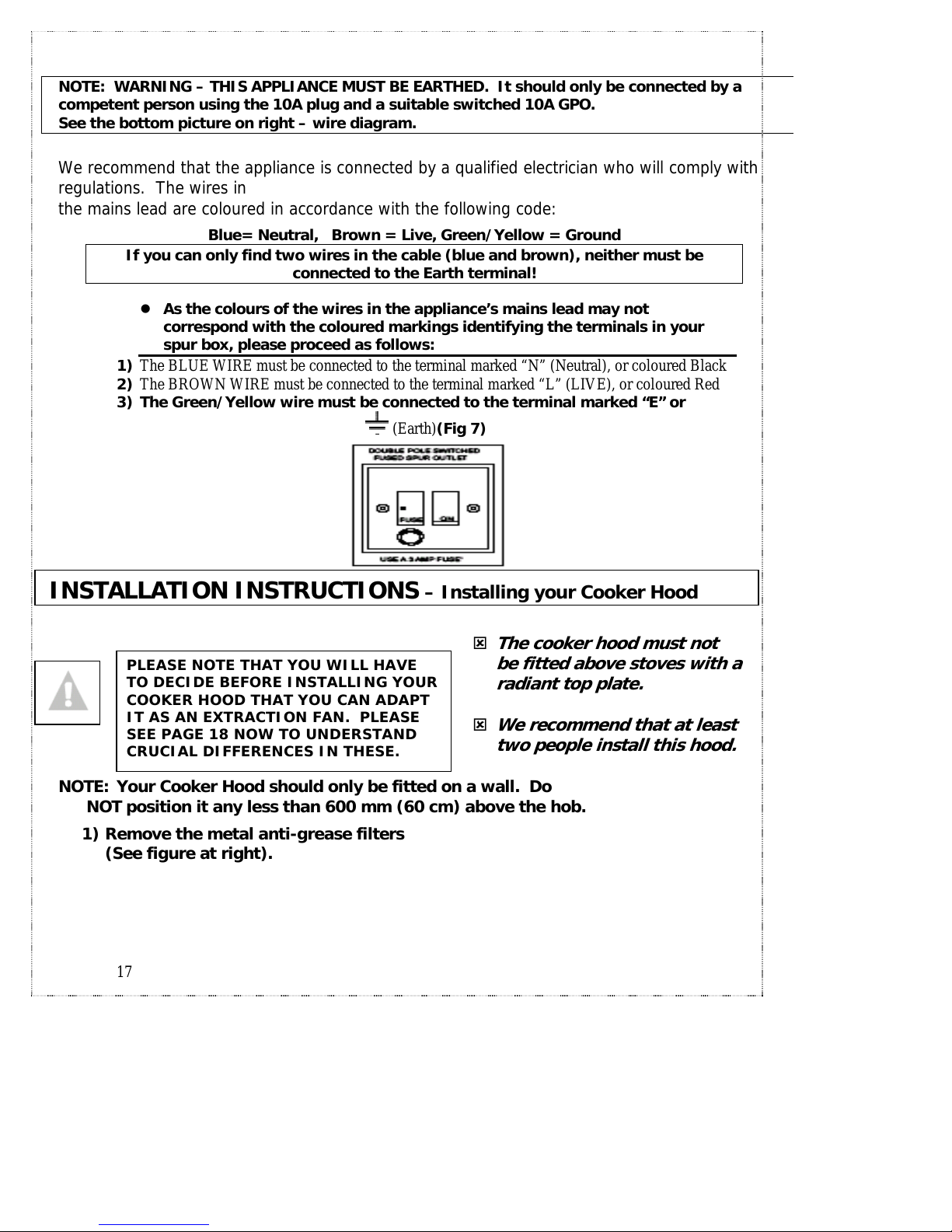

NOTE: WARNING – THIS APPLIANCE MUST BE EARTHED. It should only be connected by a
competent person using the 10A plug and a suitable switched 10A GPO.
See the bottom picture on right – wire diagram.
We recommend that the appliance is connected by a qualified electrician who will comply with loca
regulations. The wires in
the mains lead are coloured in accordance with the following code:
Blue= Neutral, Brown = Live, Green/Yellow = Ground
If you can only find two wires in the cable (blue and brown), neither must be
connected to the Earth terminal!
zAs the colours of the wires in the appliance’s mains lead may not
correspond with the coloured markings identifying the terminals in your
spur box, please proceed as follows:
1) The BLUE WIRE must be connected to the terminal marked “N” (Neutral), or coloured Black
2) The BROWN WIRE must be connected to the terminal marked “L” (LIVE), or coloured Red
3) The Green/Yellow wire must be connected to the terminal marked “E” or
(Earth)(Fig 7)
: The cooker hood must not
be fitted above stoves with a
radiant top plate.
:
We recommend that at least
two people install this hood.
NOTE: Your Cooker Hood should only be fitted on a wall. Do
NOT position it any less than 600 mm (60 cm) above the hob.
1) Remove the metal anti-grease filters
(See figure at right).
INSTALLATION INSTRUCTIONS –Installing your Cooker Hood
PLEASE NOTE THAT YOU WILL HAVE
TO DECIDE BEFORE INSTALLING YOUR
COOKER HOOD THAT YOU CAN ADAPT
IT AS AN EXTRACTION FAN. PLEASE
SEE PAGE 18 NOW TO UNDERSTAND
CRUCIAL DIFFERENCES IN THESE.

18
2) Position the hood against the wall and mark the position of the support
holes that are to be drilled as shown in the figure below. These support
holes can be found on Fig. 4 on next page marked as ‘D’ with the anchoring
holes marked as ‘E’ (Fig. 4 on next page). If your hood comes with an
attached jig, use that as a guide to make the marks for the screw holes.

19
--------------------------------------------------------------------------
3) Using a drill bit with a 6 mm diameter, make holes in the wall where you have
marked these positions (see below).
Rear view of your
cooker hood.
INSTALLATION INSTRUCTIONS
–
Attachin
g
the Hood
